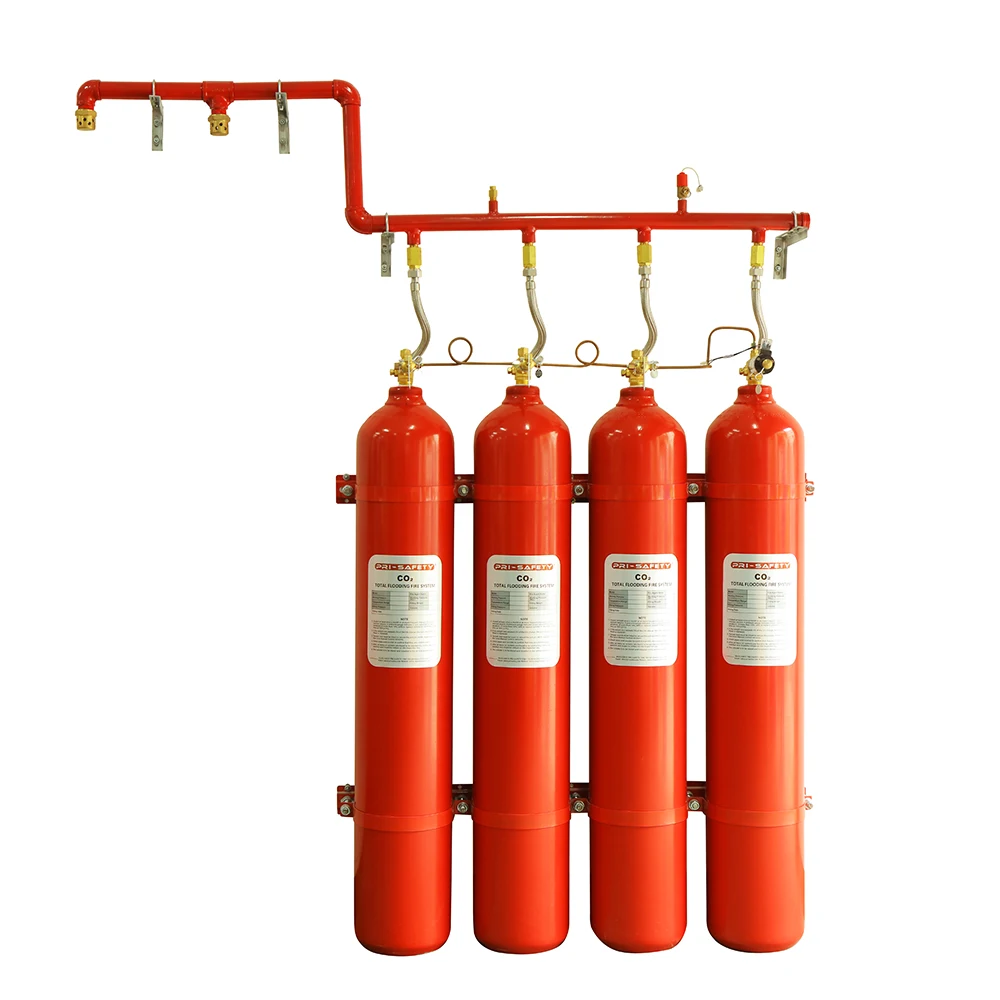

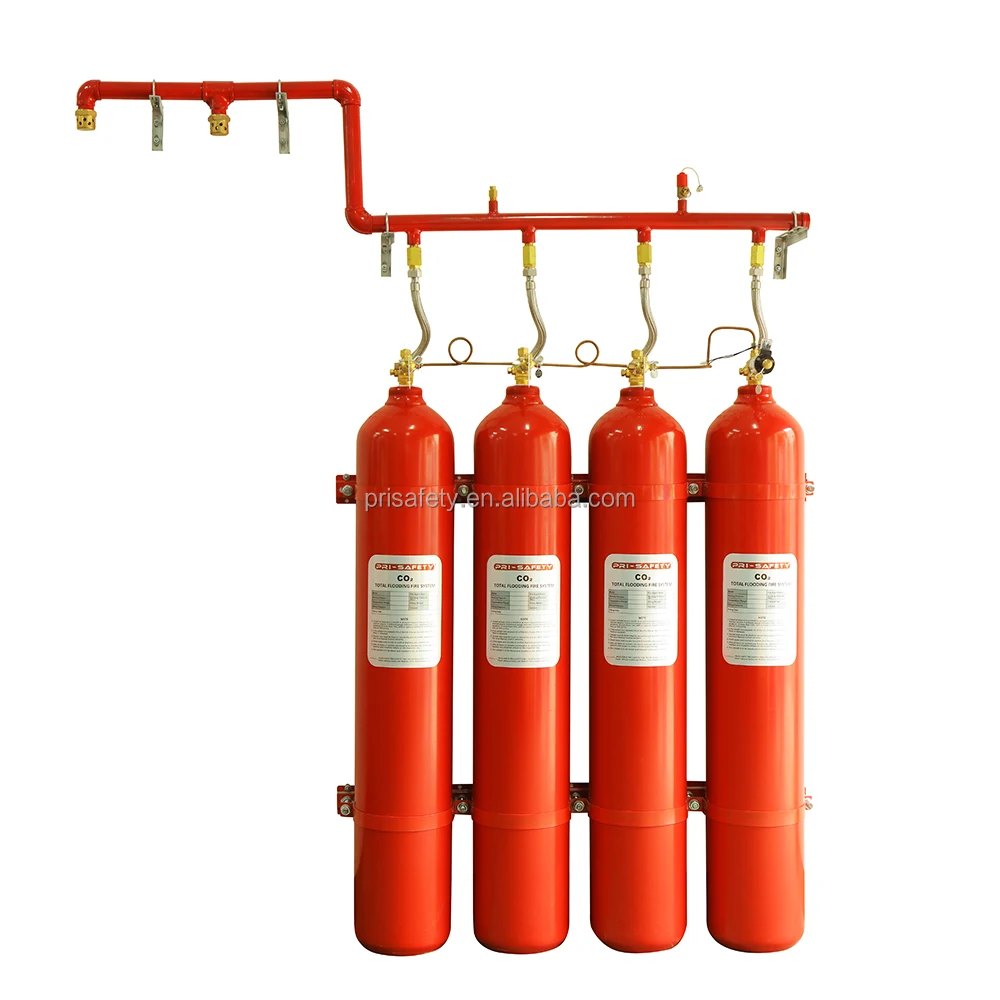

China Total Flooding Fire Prevention and Control with CO2 Fire System
When the control mode selection key on the automatic fire alarm and fire extinguishing controller is set to the "auto" position, the fire extinguishing system is under automatic control. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal through the automatic fire alarm and extinguishing control After the logic analysis of the device, it sends out a combined sound and light alarm signal, and sends out a linkage command at the same time to close the linkage device. After a delay, a fire extinguishing command is issued, the starting valve is opened to release the starting gas, and the starting gas is opened through the control gas pipeline valves and container valves release the fire extinguishing agent and implement fire extinguishing.


Advantages:
Very swift fire suppression and cost effective engineering systems provide maximum protection
Safe to people.
Low extinguishing concentration. Nearly no obscure to vision in person evacuation;
Easy to clean. No residue left, and minimize damage to sensitive equipment;
Environment friendly and Safe for humans. Zero ozone depletion potential and zero global warming potential. Sustainable Technology provides environmentally friendly solutions;
Clean and leaves no residue, safe to discharge into occupied space;
Simple installation, with small storage space;
There is no additional damage;
Proven Reliability – tested on a variety of detection and control options;
Quick blackout.


Specification


No.
Specification
Technical Parameter
1
Capacity
70L,80L,90L,100L,120L
2
Filling
45kg, 50kg ,58kg, 65,kg 76kg
3
Spraying time
≤60s
4
Filling density
≤950kg/m3
5
Power
DC24V/1.6A
6
Nitrogen Pressure of Driving Device
6.0±1.0Mpa(20℃)
8
Working pressure
5.7Mpa
9
MAX working pressure
15Mpa

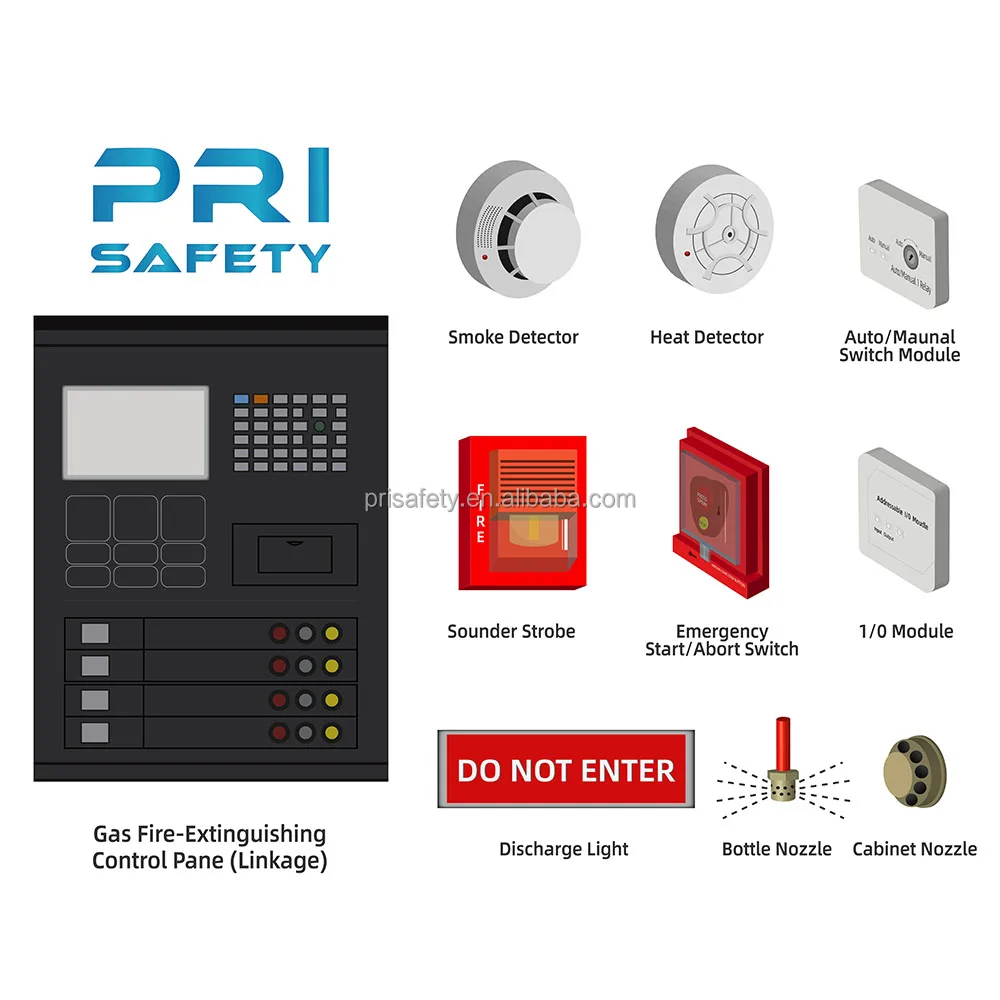

Accessories List:

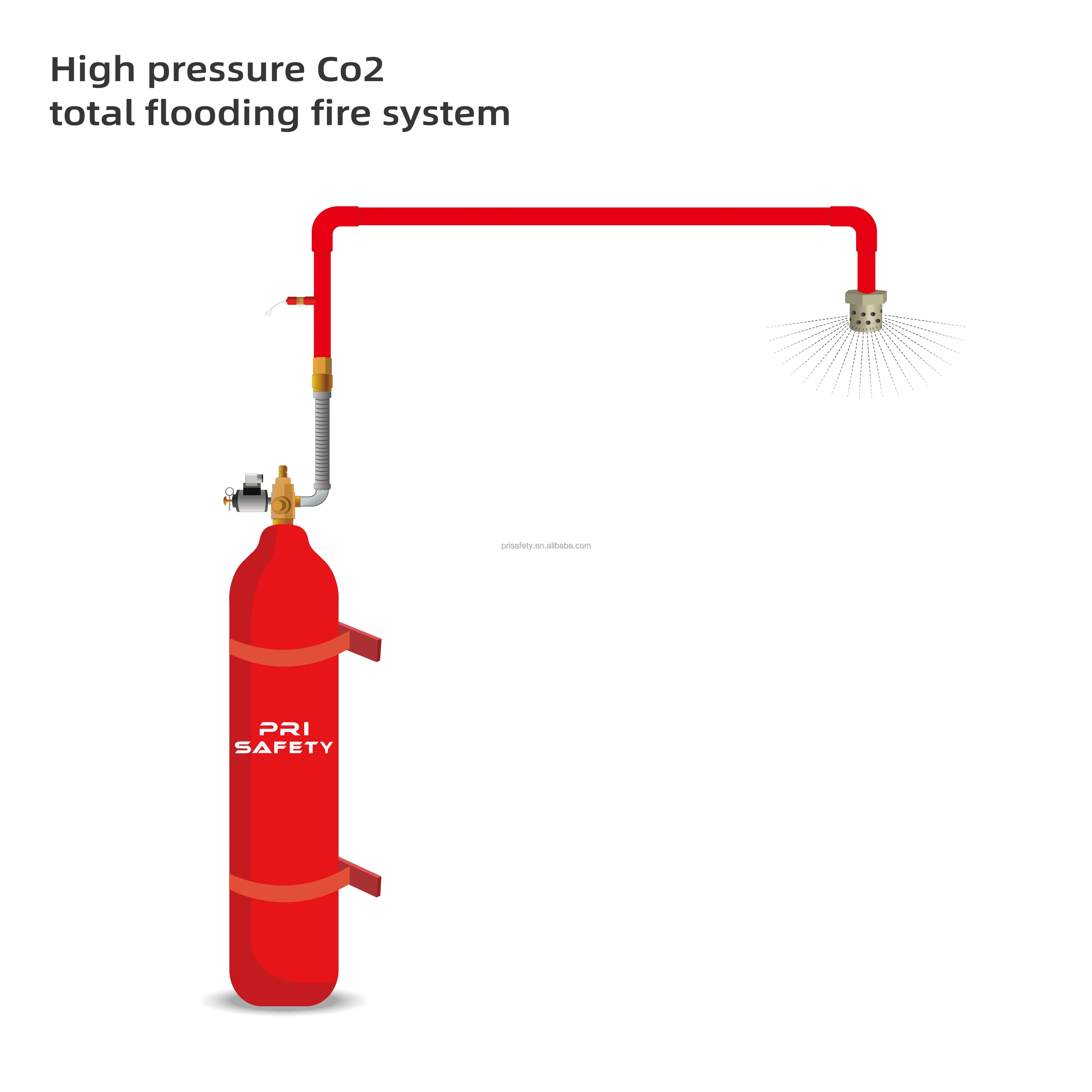

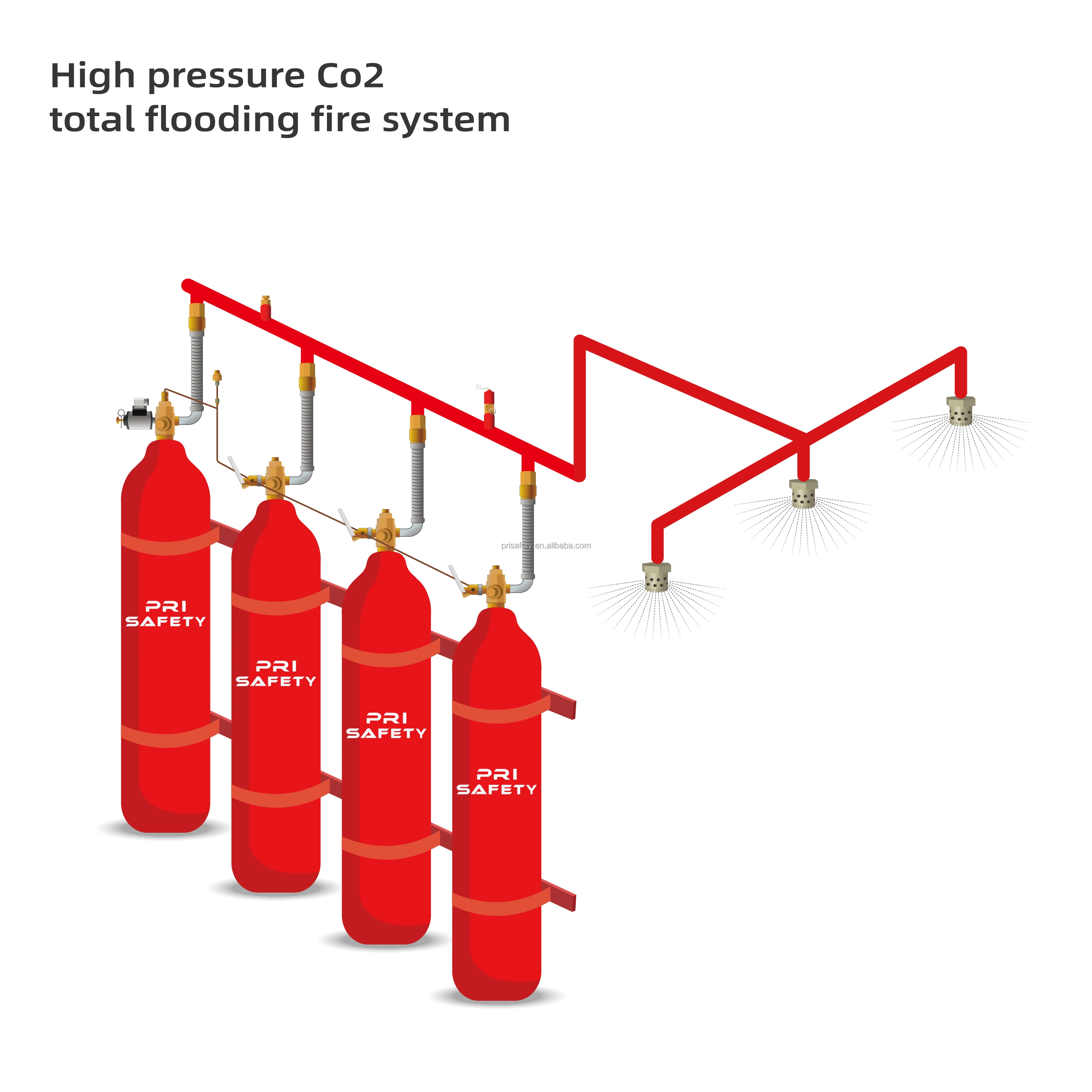

Working Principle:
Design Total Flooding Fire Prevention and Control with CO2 Fire System are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.

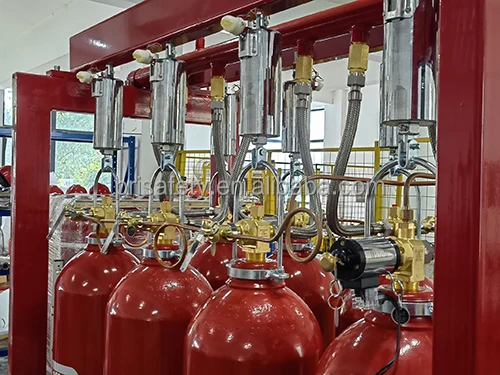

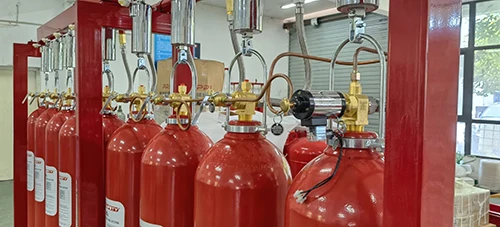

Production Process

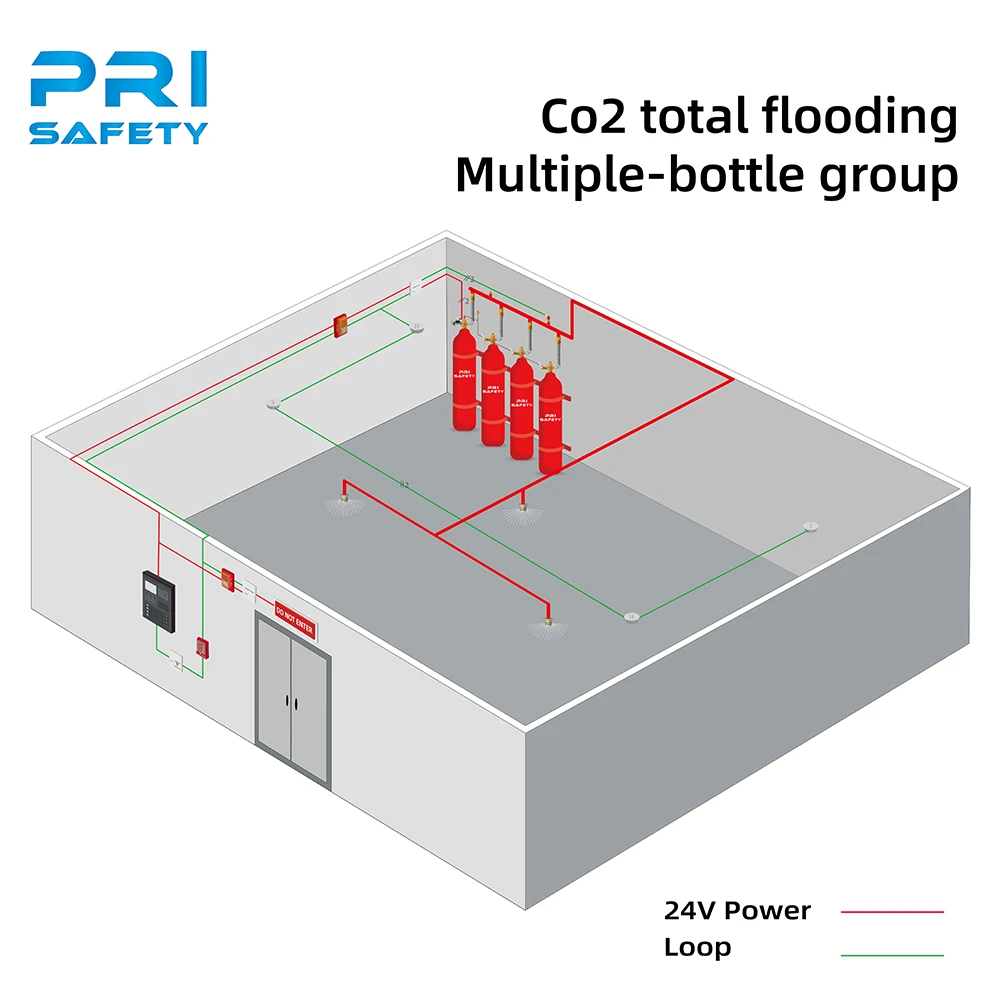

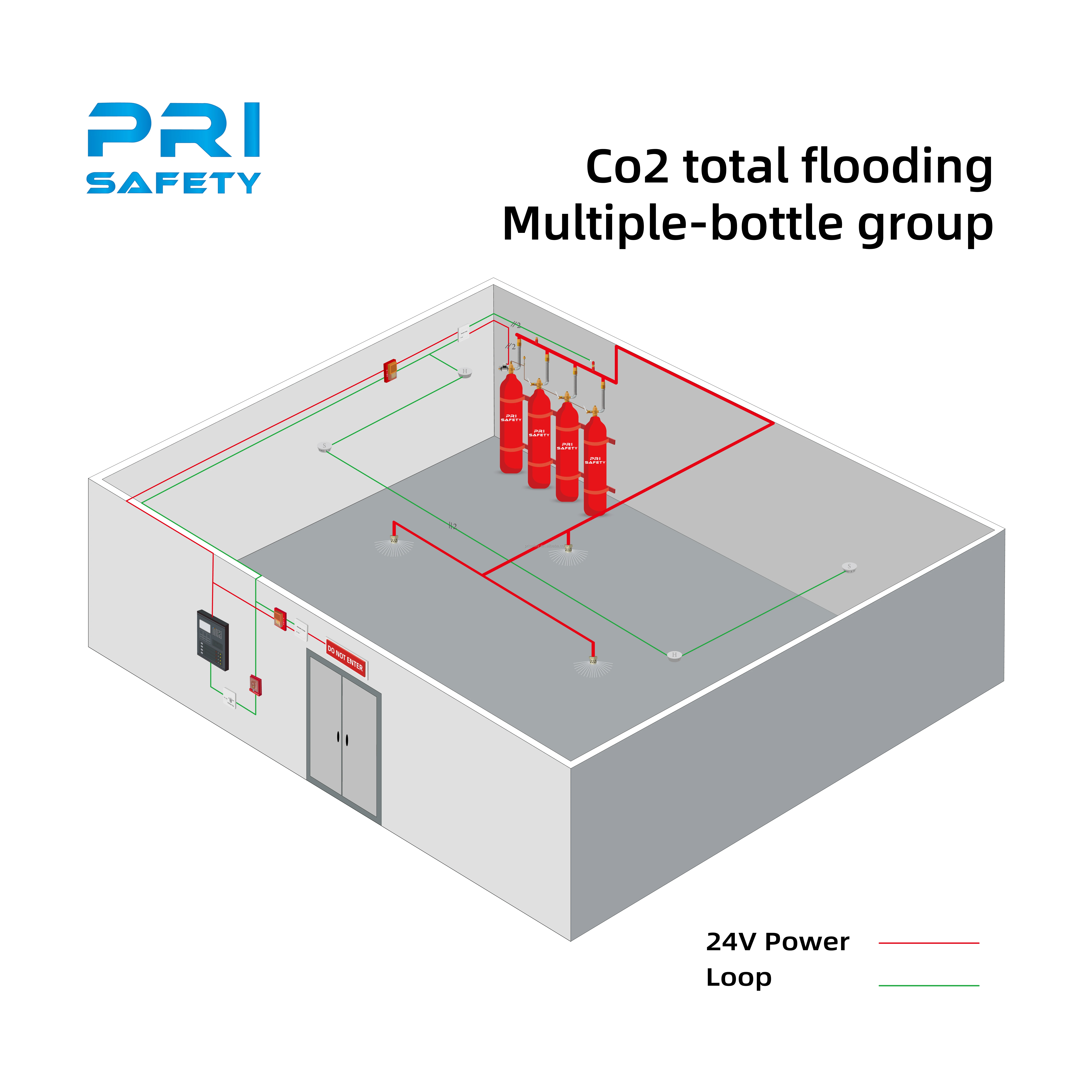

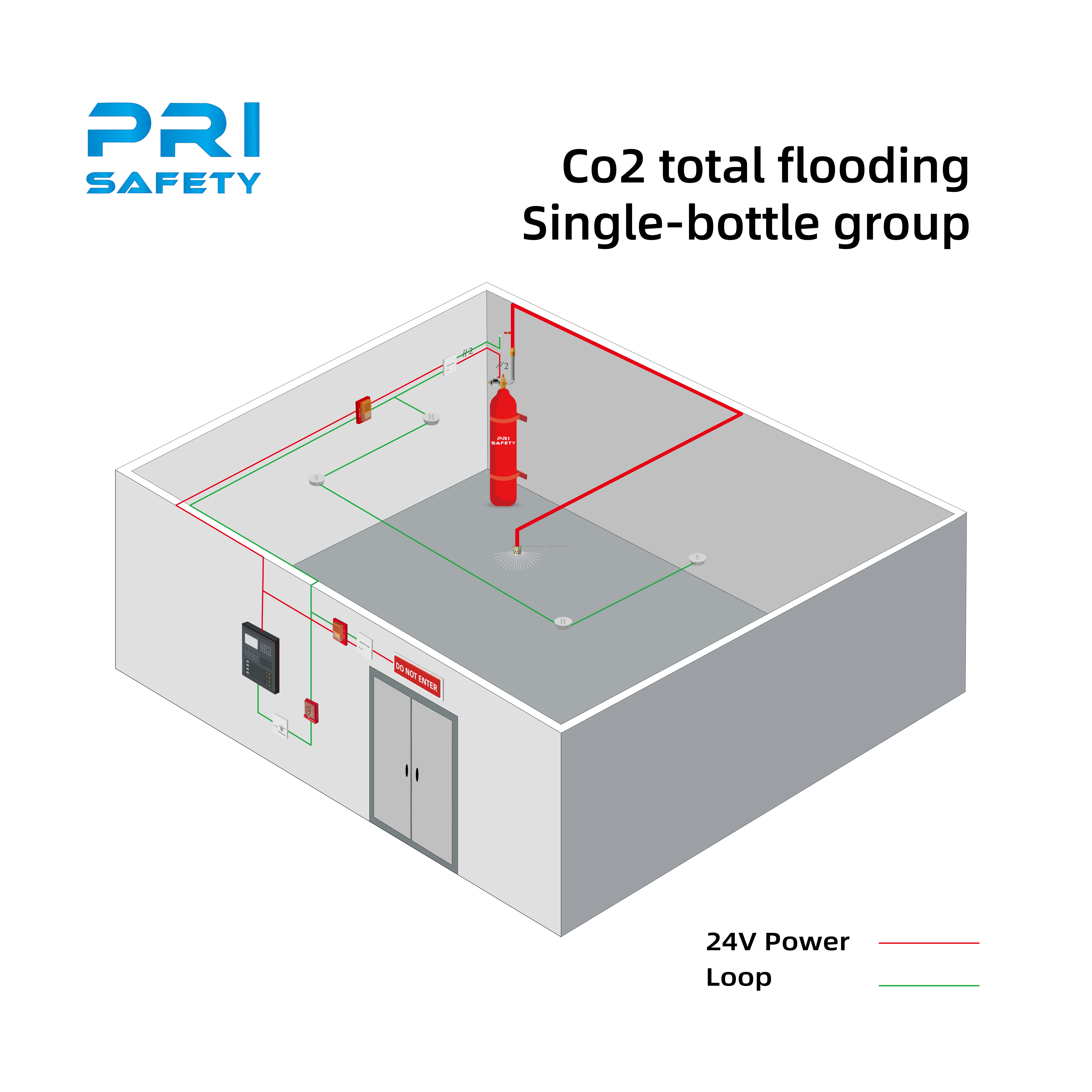

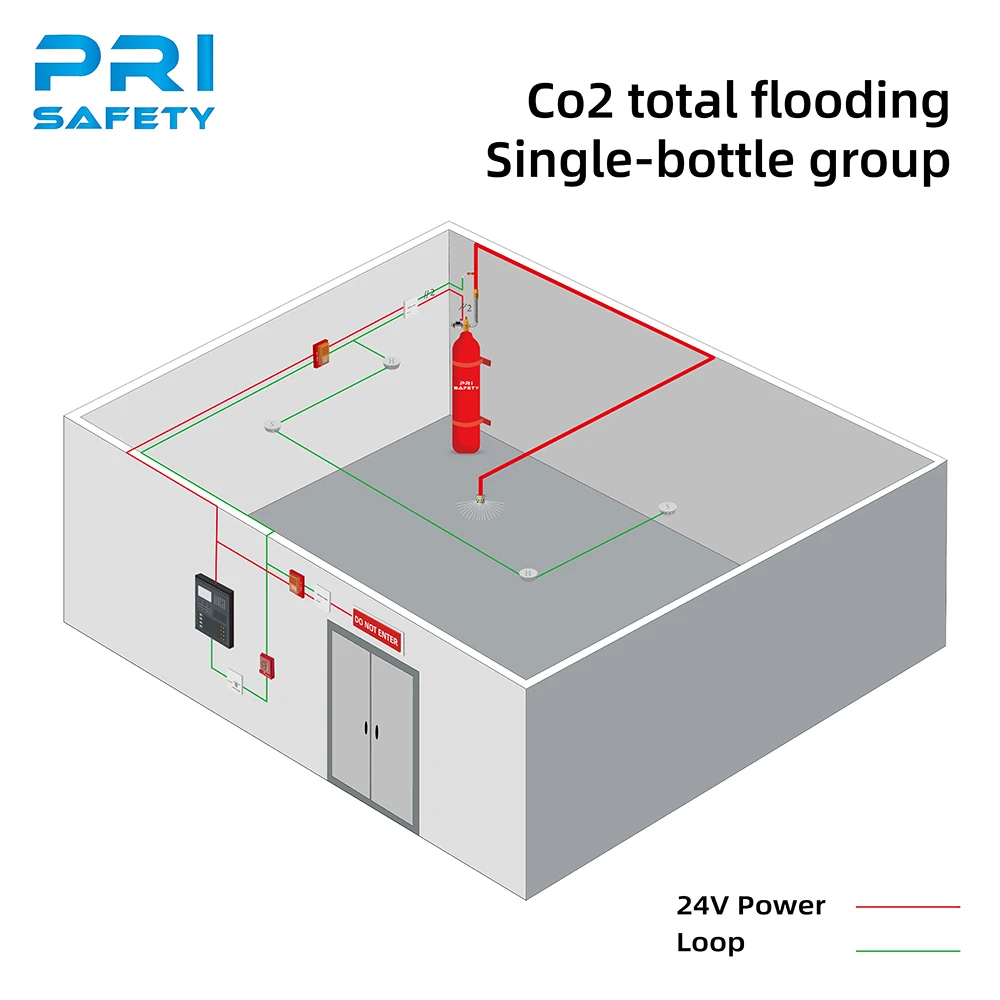

Working Diagram

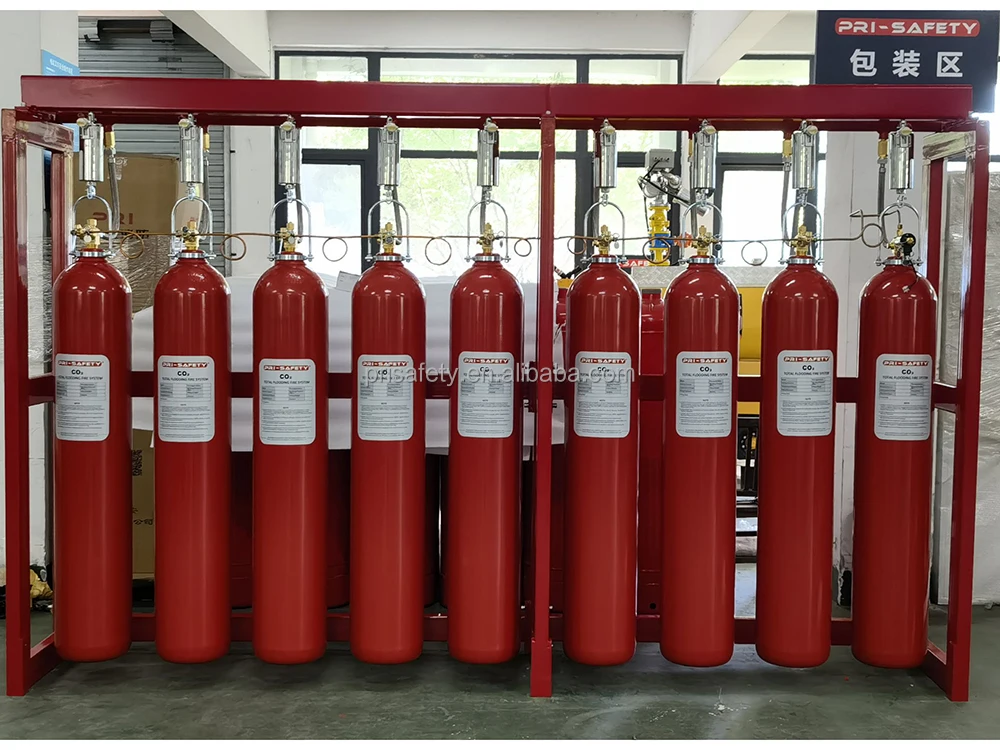

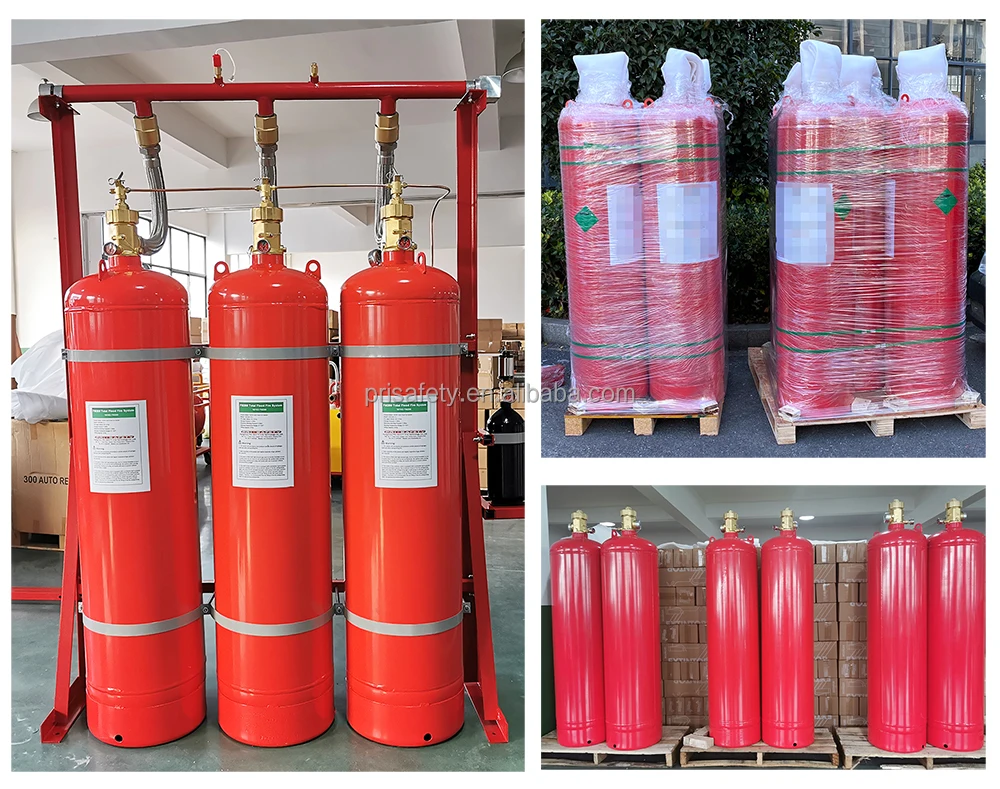

Packing & Delivery




China Total Flooding Fire Prevention and Control with CO2 Fire System


Company Profile


Our Main Products:
--Vehicle Automatic Fire Suppression System
--Kitchen Automatic Fire Suppression Systems
--Electric Equipment Automatic Fire Suppression Systems
--FM200 / FK-5-1-12 / CO2 Total Flooding Fire System
--CAFS----Compressed Air Foam Fire Systems----Used for Gas Station/Petrol Station/Industry/Fire Department
--Automatic Tube Fire Extinguisher For Car & Electrical Devices
--Stainless Steel Fire Extinguisher / Carbon Steel Fire Extinguisher
Our Vehicle Fire System is UN ECE R107 Certificated, CE Certificated. FM200 Total Flooding Fire System is China CCC Certificated. Automatic tube fire extinguisher is CE Certificated.








FAQ


1. who are we?
We are based in Zhejiang, China, start from 2009,sell to South America(20.00%),Africa(15.00%),Mid East(15.00%),North America(10.00%),Southeast Asia(10.00%),Western Europe(10.00%),Central America(10.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
FM200 Fire System,Vehicle Automatic Fire System,Kitchen Automatic Fire System,CAFS Fire System,Automatic Fire Tube

4. why should you buy from us not from other suppliers?
One Stop Fire Fighting Equipment supply and professional service.
We have CE, EN3, EN671, EN1869 certificates.
Mainly export to Europe, Middle east, South America, Africa,etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
