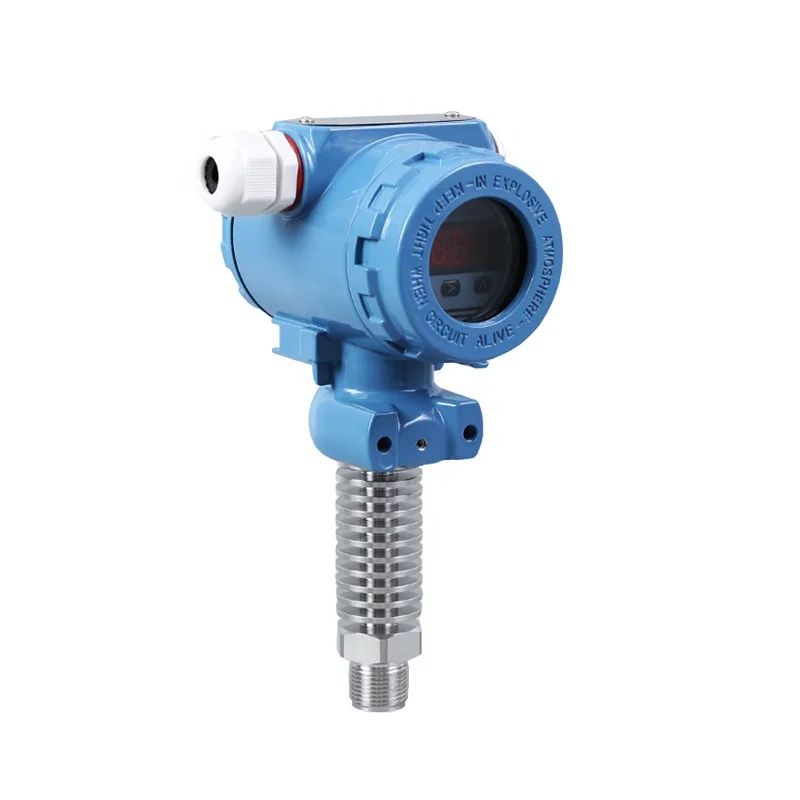

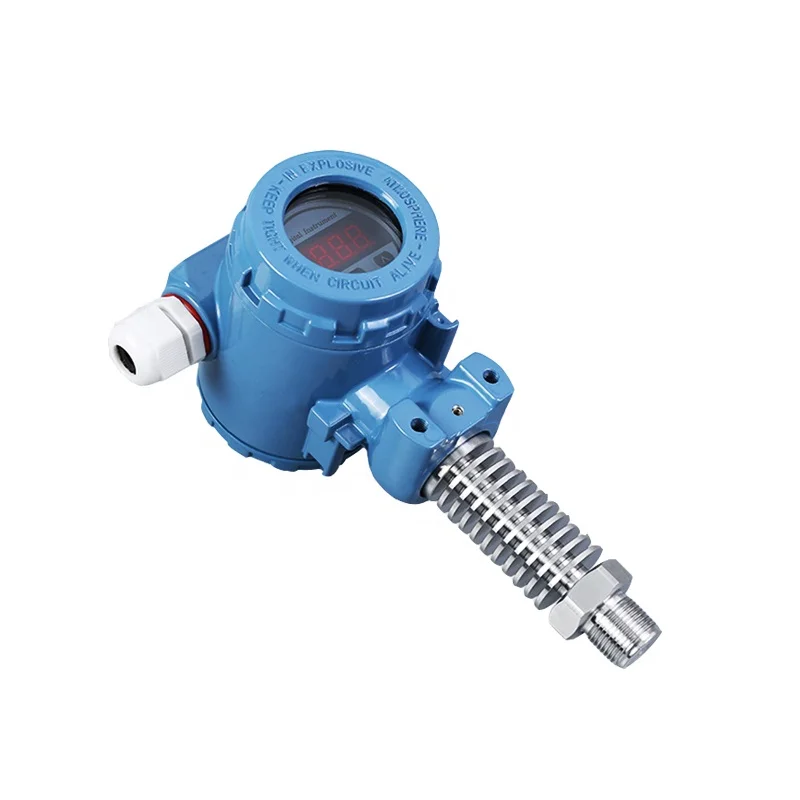

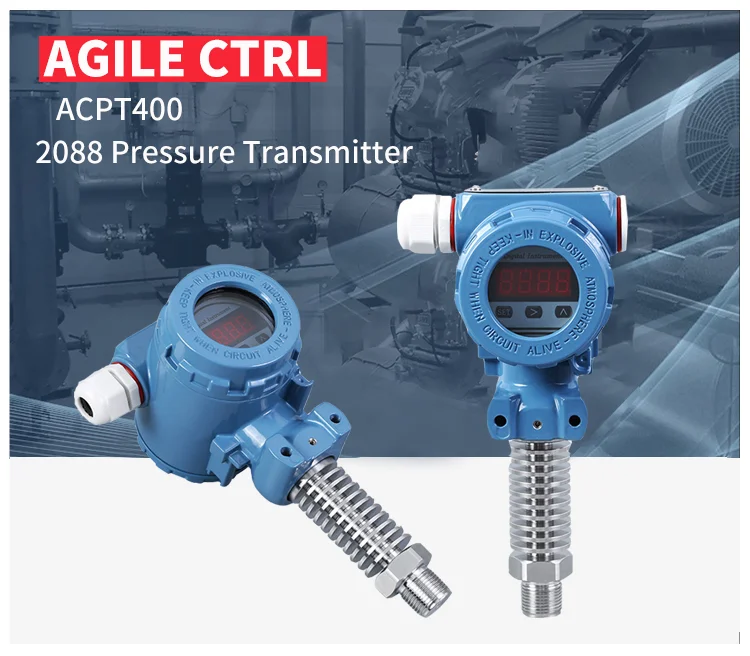

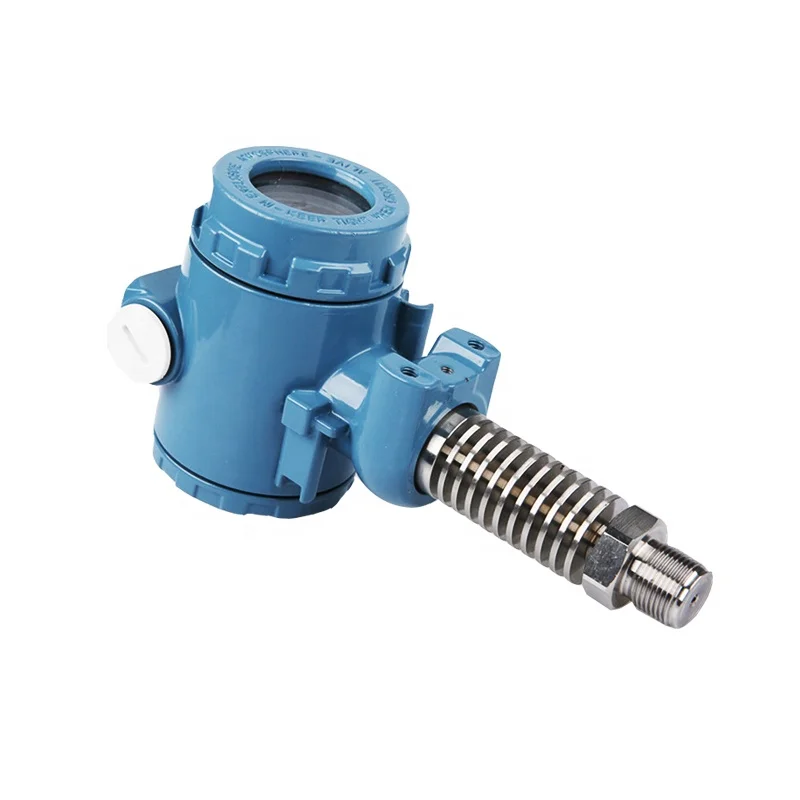

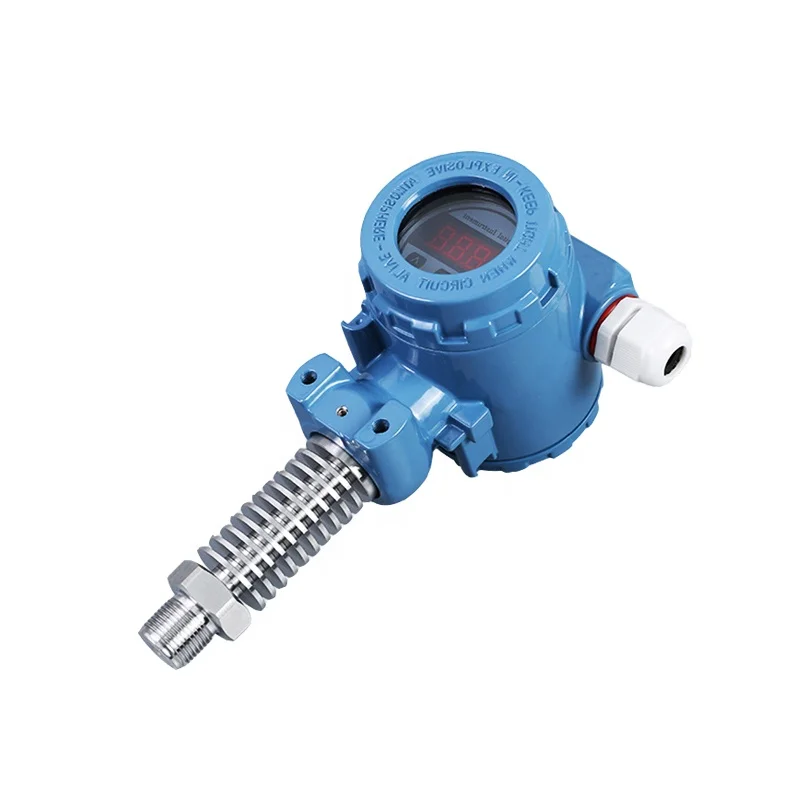

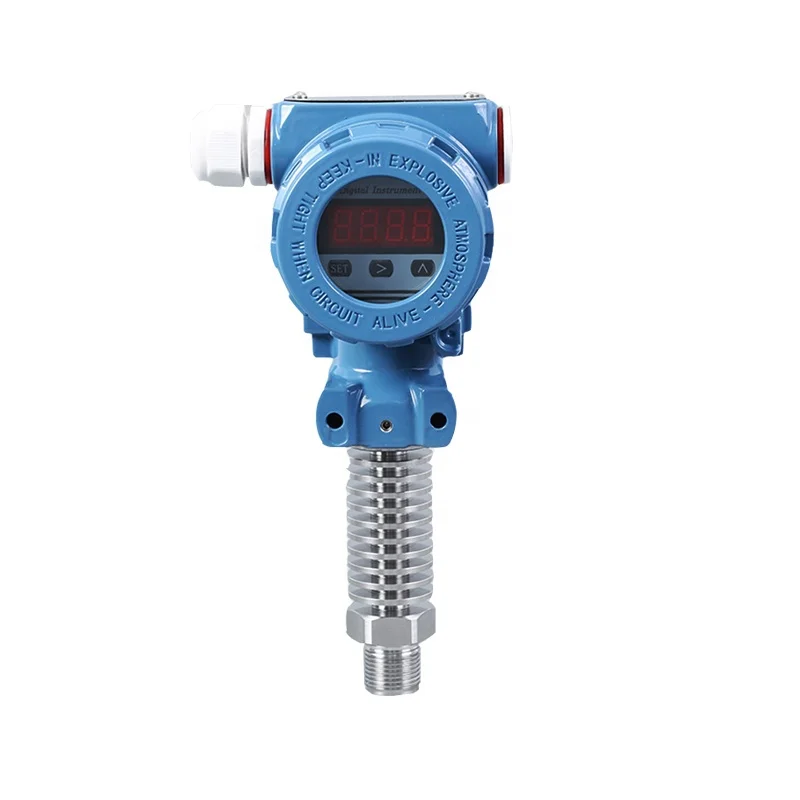

4 20ma high temperature 600 bar pressure sensor for boiler water anti explosion pressure transmitter for diesel fuel tank

Share on (1600930875951):


Price:$43.00 - $49.00

Quantity:


Product Overview

Description



Product Description

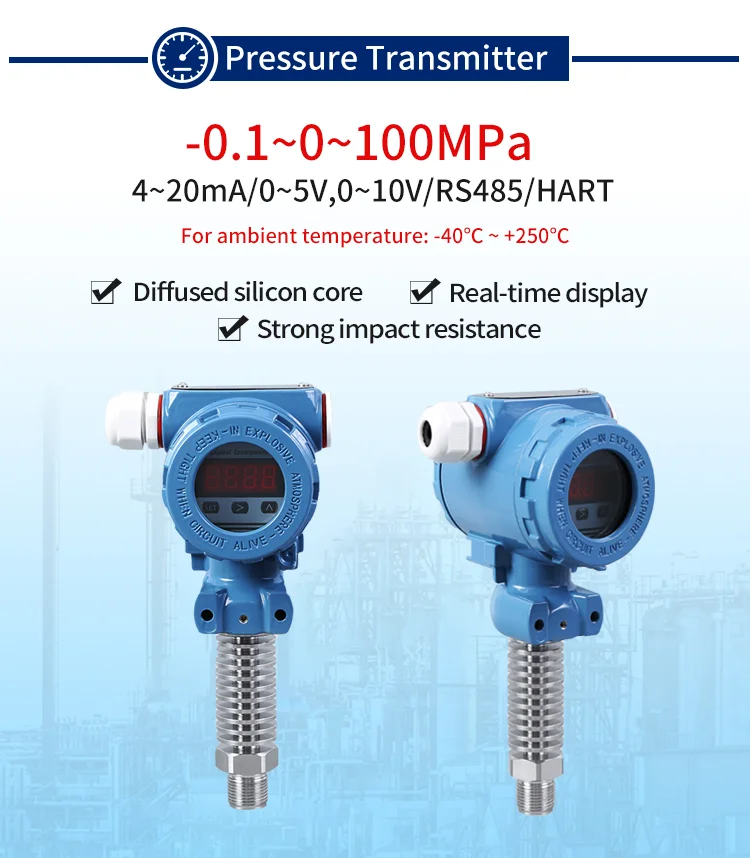

1>>. CPT400 pressure transmitter is used for high temperature media(-40℃ to +250℃).

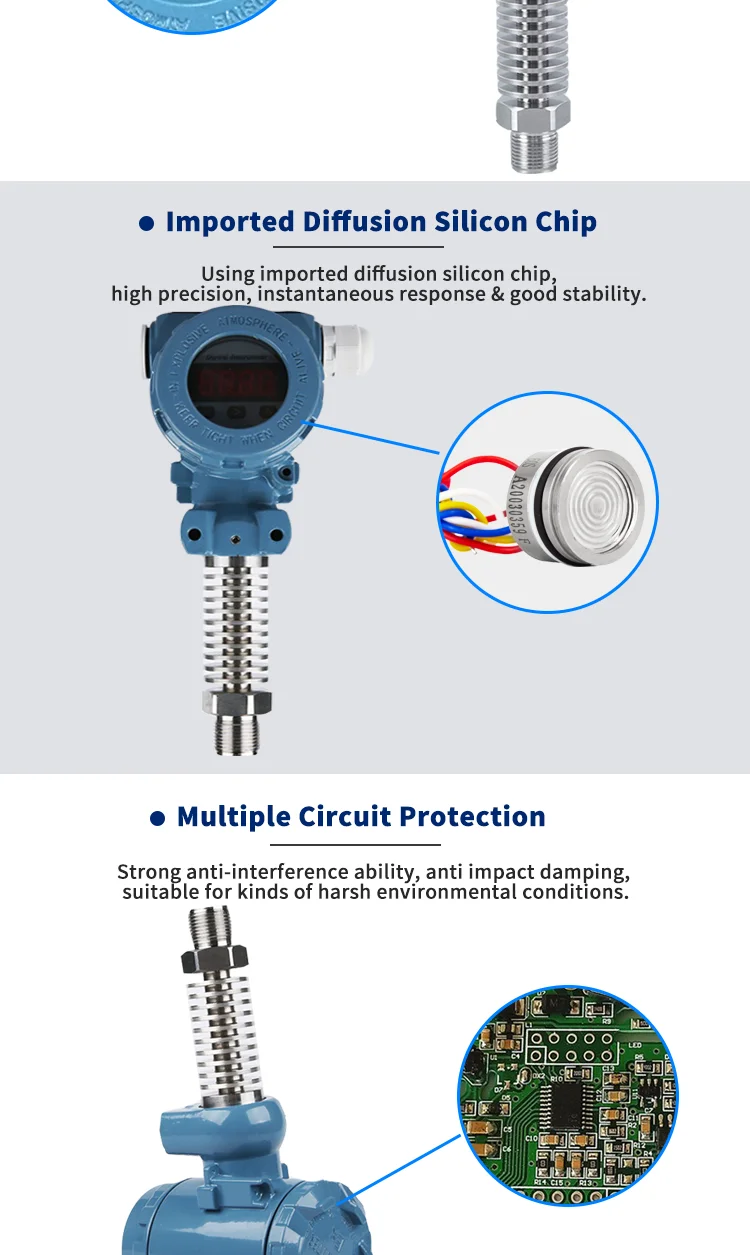

2>>. ACPT400 pressure transmitter used sensitive & high performance diffusion silicon piezoresistive chip.


3>>. ACPT400 pressure transmitter internal circuit board converts the pressure signal into standard analog signal,users can directly connect the transmitter with computer interface card,control instrument,intelligent instrument or PLC.


4>>. ACPT400 pressure transmitter has many good features,small volume,light weight,easy to install,all stainless steel sealing structure,high anti-vibration and anti-impact performance.


5>>. ACPT400 pressure transmitter is widely used in process control, aviation, aerospace, automobile, medical equipment and many other fields.

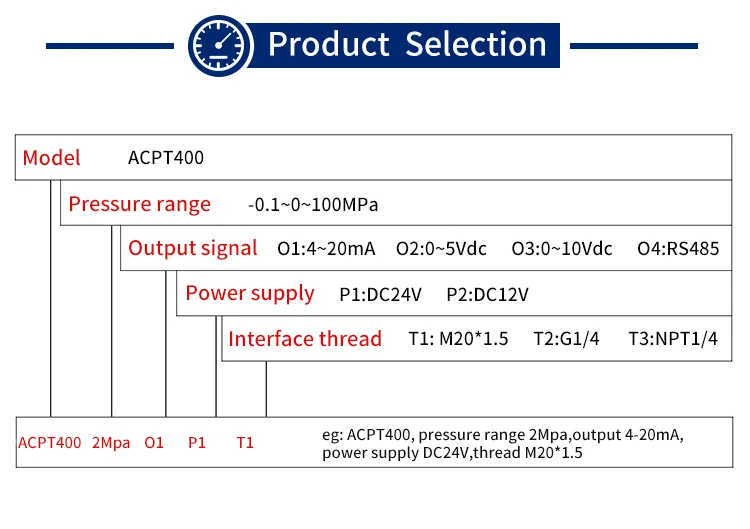

Product model


ACPT400


Display mode


LED,LCD,without display


Measuring range


-0.1MPa~0~100MPa


Output signal


4~20mA,0~5V,0~10V,RS485,HART


Power supply


12~36VDC (24VDC)


Measurement accuracy


0.2%FS,0.5%FS


Response time


≤10mS


Overload capacity


150%FS


Compensation temerature


-10~70℃


Ambient temperature


-40~250℃


Long term stability


±0.2%FS/year


Zero temperature drift


±0.5%FS/℃


Sensitivity temperature drift


±0.5%FS


Mechanical vibration


20g(20~5000Hz)


Sampling time


20 times/second


Insulation


≤500MΩ


Protection grade


IP65


Compatible media


Various media compatible with SS316

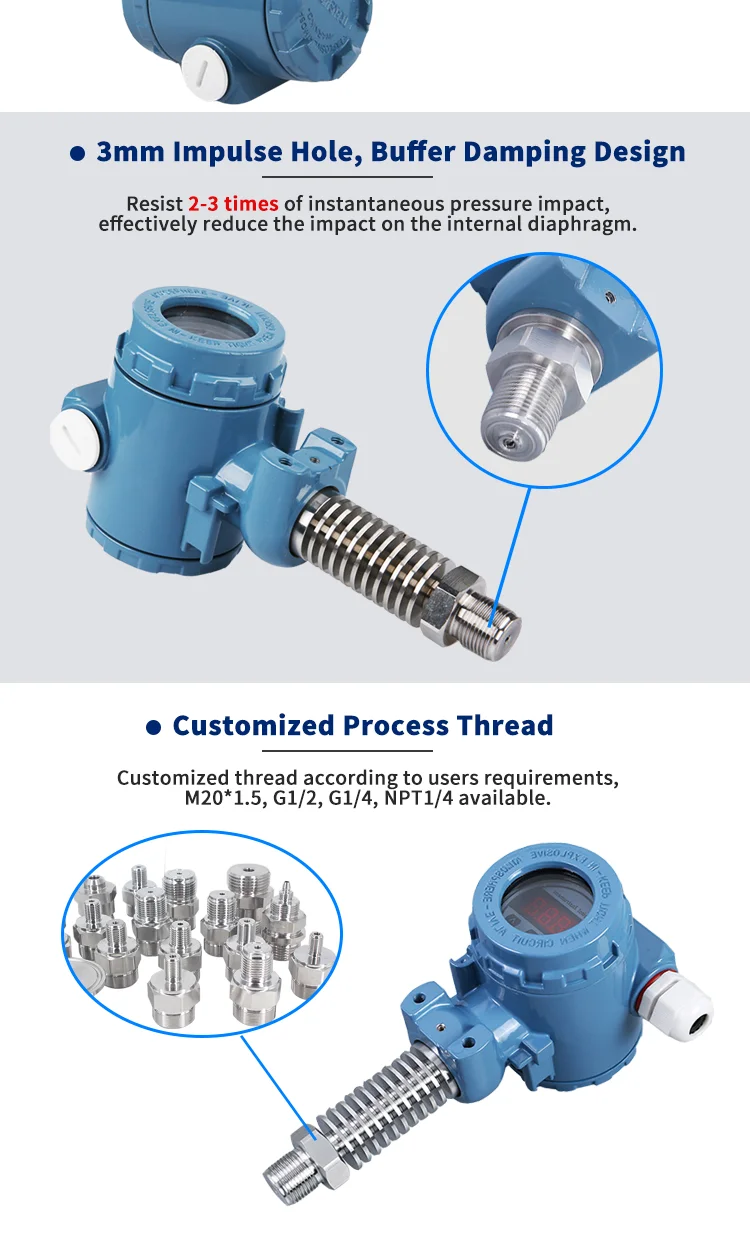

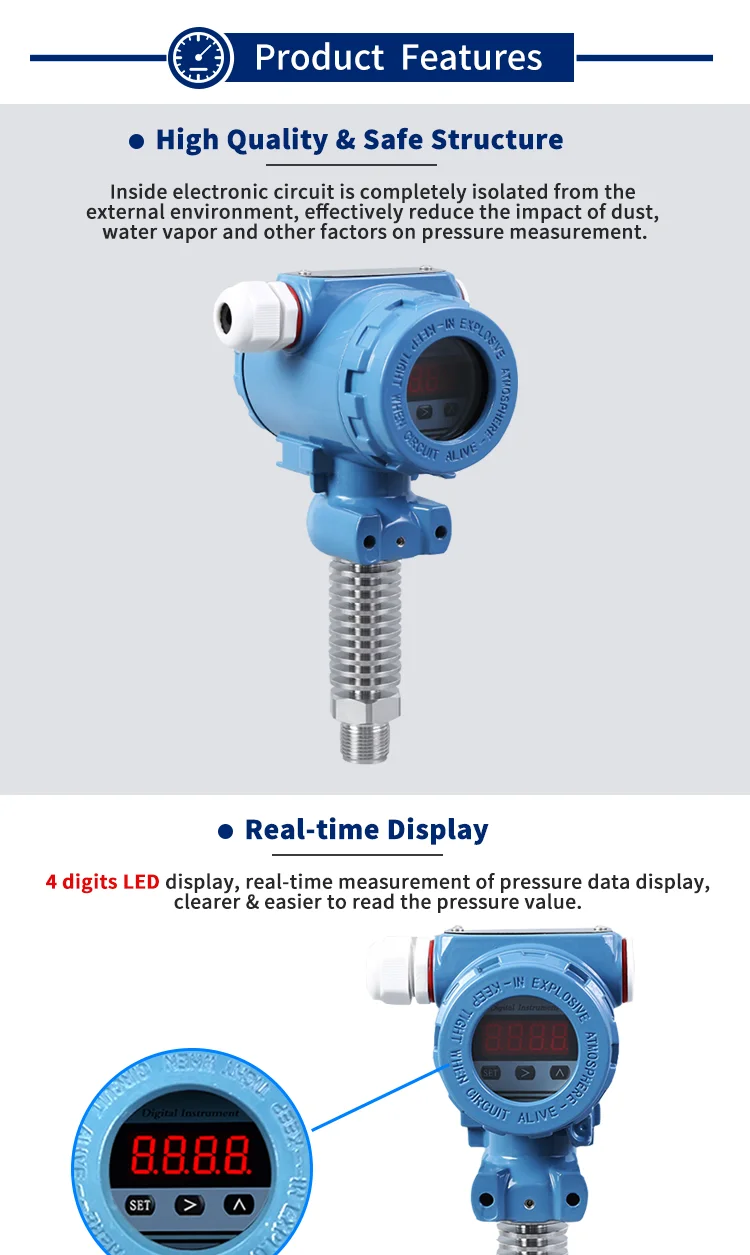

Product Features

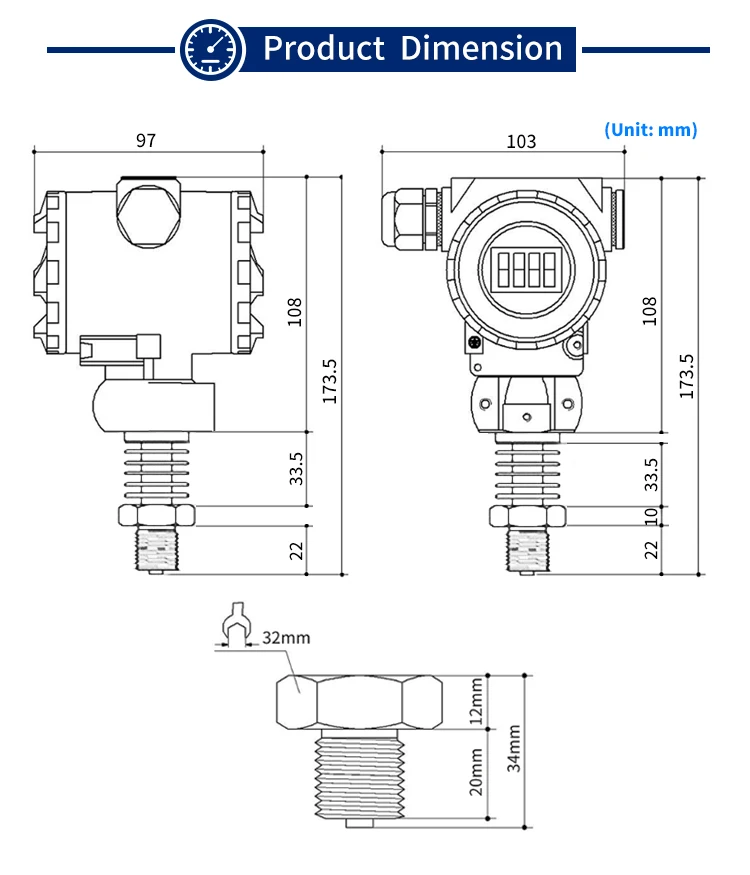

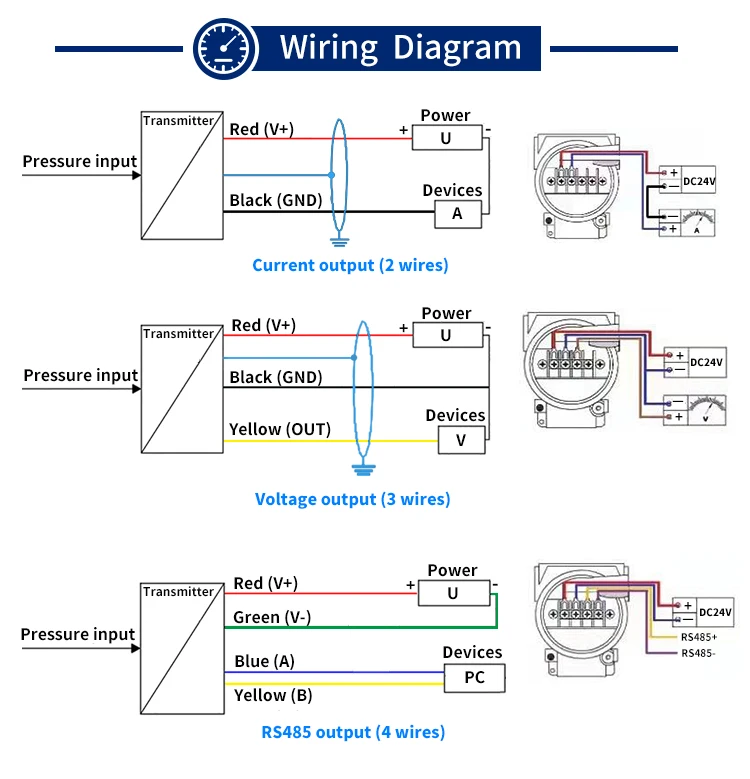

 2088gLED_xq3_01.png2088gLED_xq3_02.png2088gLED_xq3_03.png2088gLED_xq5.jpg2088gLED_xq6.jpg2088gLED_xq7.jpg

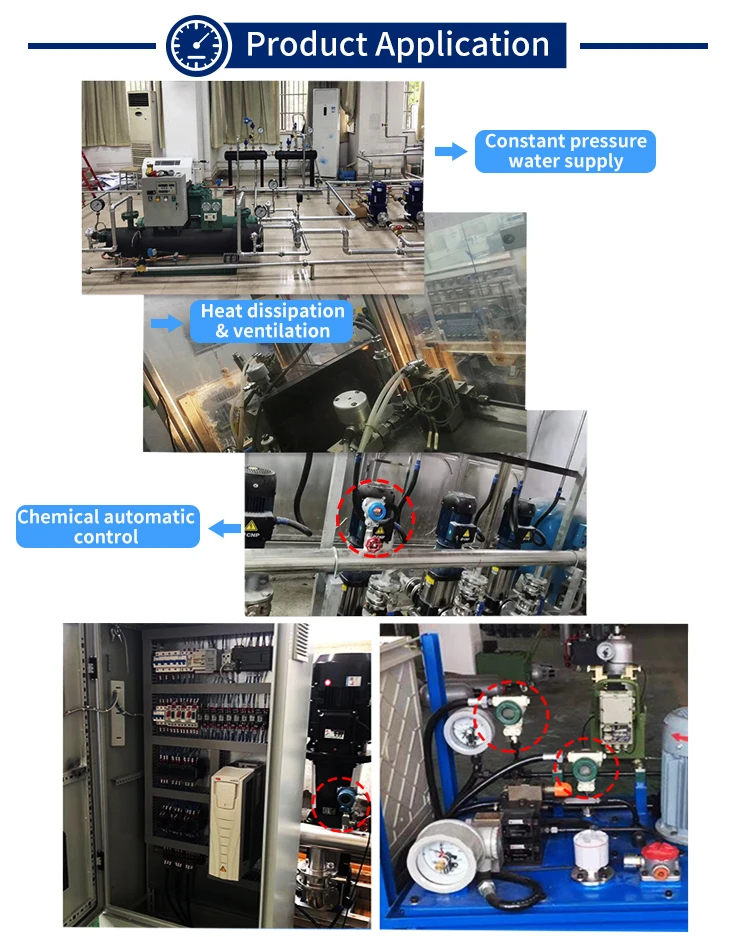

Product Application







Product Display


 .jpg





Company Information












Contact Us


 Contact-me-1





FAQ


 Q: Are you the final manufacturer?


A: Yes, we are the leading sensor manufacturer with 10+ years of experience.





Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you.





Q: What payment ways do you accept?
A: You can pay us by credit card, T/T, PayPal, by Alibaba Insurance Order.





Q: What is your delivery time?
A: It is in 2 days since the payment was confirmed. If the quantity is more than 100pcs /order, it will need extra 3-4 working days.





Q: What is your normal delivery way?
A: We use DHL / FEDEX / UPS / SF or other proposed forwarders.





Q: How is your quality assurance service?
A: Our service is free to exchange within one month and 12 months quality guarantee.





Q: Can I be your exclusive distributor?
A: Yes surely, we welcome business partners who can achieve a long-term relationship of trust with each other.
