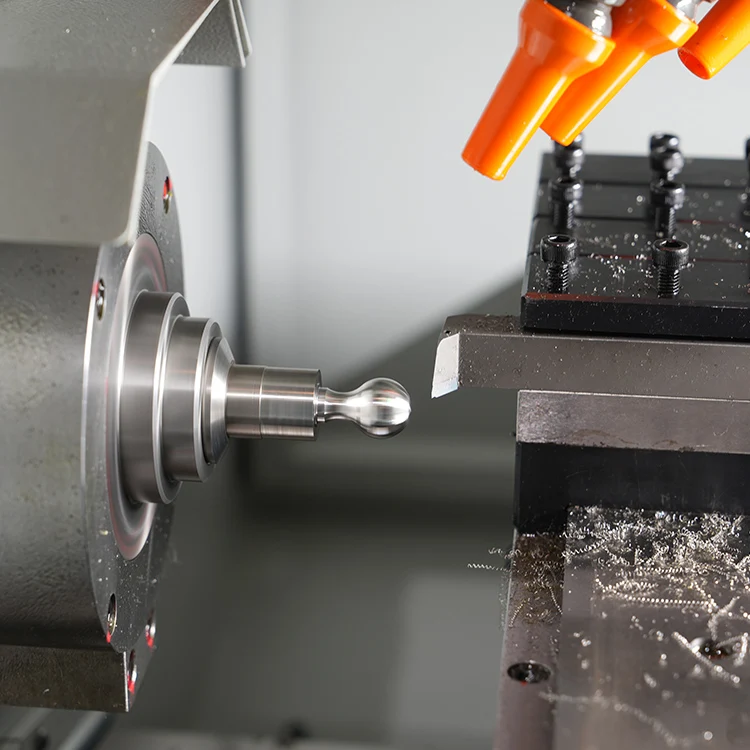

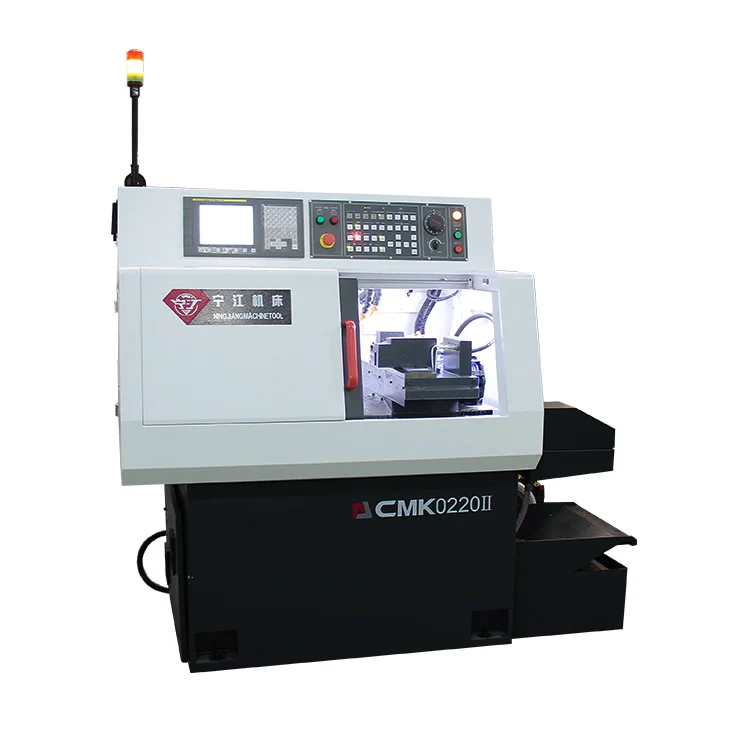

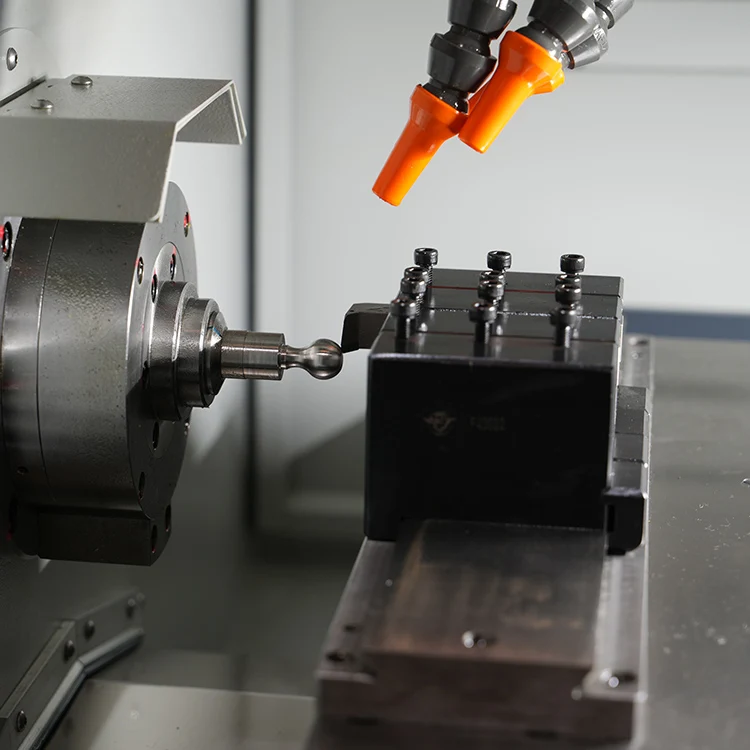

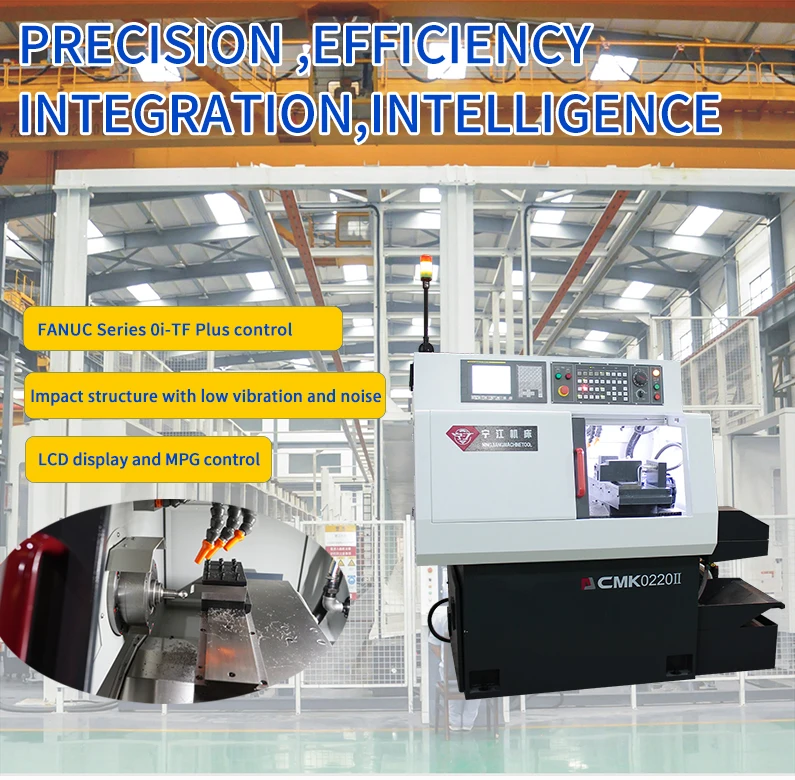

economical Gang tool type CNC lathe for O.D turning, drilling, tapping, boring, threading, slotting, parting off
- Category: >>>
- Supplier: Push Ningjiang Machine Tool Co. Ltd.
Share on (1600930900429):
Product Overview
Description
Product Description
specification
No. | Description | Specification | Remark | |
1 | Max bar-stock diameter | 20 mm |
| |
2 | Max working length | 100 mm |
| |
3 | Max working diameter | 100mm |
| |
4 | Spindle rpm | 0~8000 r/min | stepless | |
5 | Spindle hole | 20 mm |
| |
6 | Max swing over bed | 300 |
| |
7 | Max swing over tool plate | 120mm |
| |
8 | Motor power | 2.7/3.5 KW | Built-in motor | |
10 | Tool holder dimension | 16×80~100 mm |
| |
11 | Control Mode | Semi-closed |
| |
12 | Detecting element | Built-in Encoder |
| |
13 | X,Z minimum increments | 0.0001 mm |
| |
14 | X travel | 220 mm |
| |
15 | Z travel | 180 mm |
| |
16 | X,Z rapid feed | 24 m/min |
| |
17 | X servo motor’s torque | 3.5N.m |
| |
18 | Z servo motor’s torque | 3.5 N.m |
| |
19 | Repeatability | X | 0.002 mm |
|
Z | 0.0025 mm | |||
20 | Radial run out of the positioning hole for the spindle 0.003mm
| 0.003mm
|
| |
21 | Coolant motor | 50L/min |
| |
22 | Power input | 0.18KW |
| |

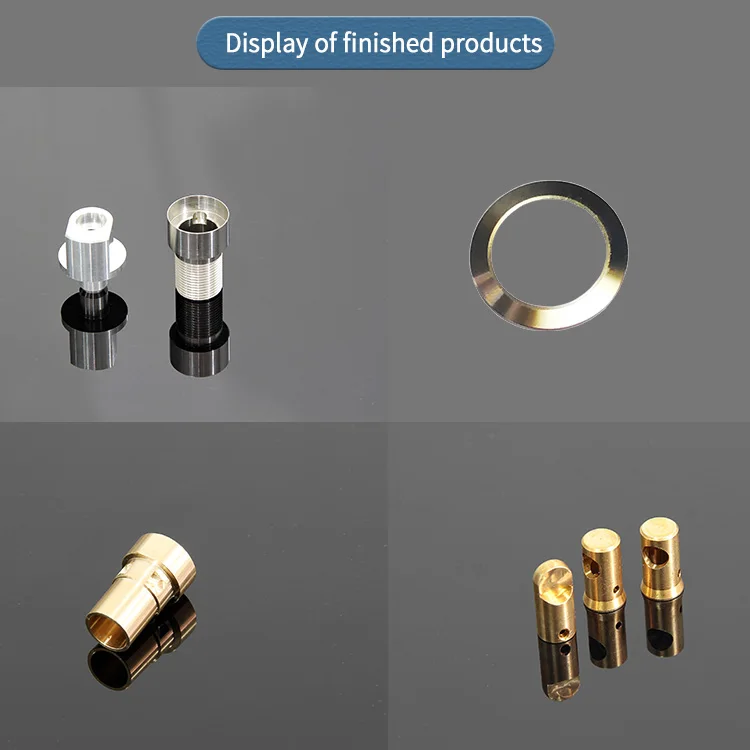

O.D. turning, drilling, tapping, boring, threading, grooving, cutting of short and small shaft, disc, and small sleeve parts in IT and related industries, electronics, communication, refrigeration, household appliances, micro and special motors, aerospace, automobiles, motorcycles, watches, medical, military, fishing gear, toys, and other industries
Company Information

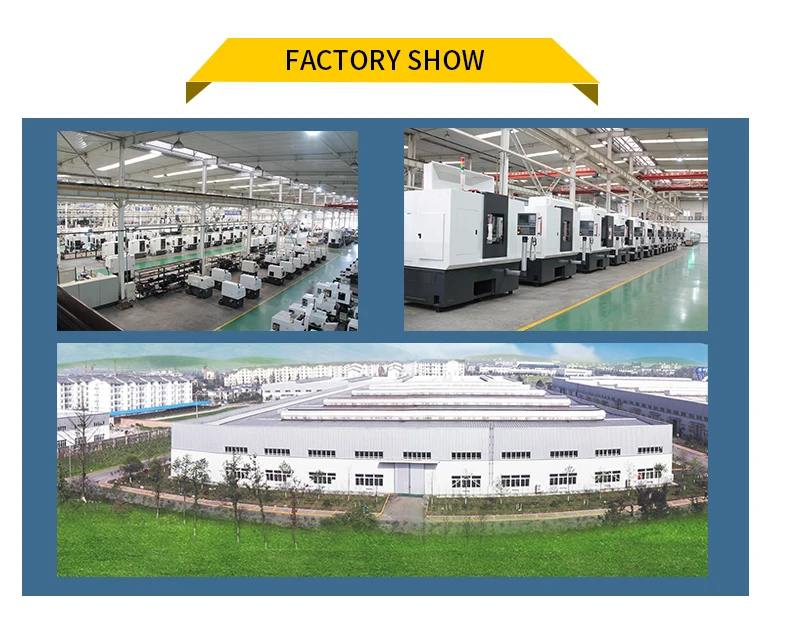

Push-Ningjiang Machine Tool Co., Ltd (Founded on Oct. 2006 at Dujiangyan, Sichuan, P.R. China)is a joint venture of Ningjiang Machine Tool Group Co., Ltd. and Push Group Inc. The company have1300 employees and covers over 400 ‘000 m2 and invested CNY 600 million totally.
lMany authorized certifications/awards on quality, environment, and occupation health
——ISO 9001:2000 Quality control system.
——ISO 14001:2004 Environmental management system
——OHSAS 18001 occupation health safety control system
——IS0/TS16949:2002 Automobile quality system
——National customer satisfied enterprise
——National excellent management enterprise
——and etc.
Certifications
Packaging & Shipping
FAQ
1. Is your company a factory or trading company ?
We are factory founded in 1965.
2. Can we pay by L/C or others ?
Yes ,you can make the payment by T/T , l/C etc.
3. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
4. Do you have CE certificate?
Yes , we have CE certification,machine quality is guaranteed.
5. What is the warranty period ?
The warranty period is general 13 monthes after B/L date. Duringthe warranty period, we will provide free replacement parts which are easy damaged.
6. Can you send the service engineer to ourcompany ?
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses.
