Product Overview

Description

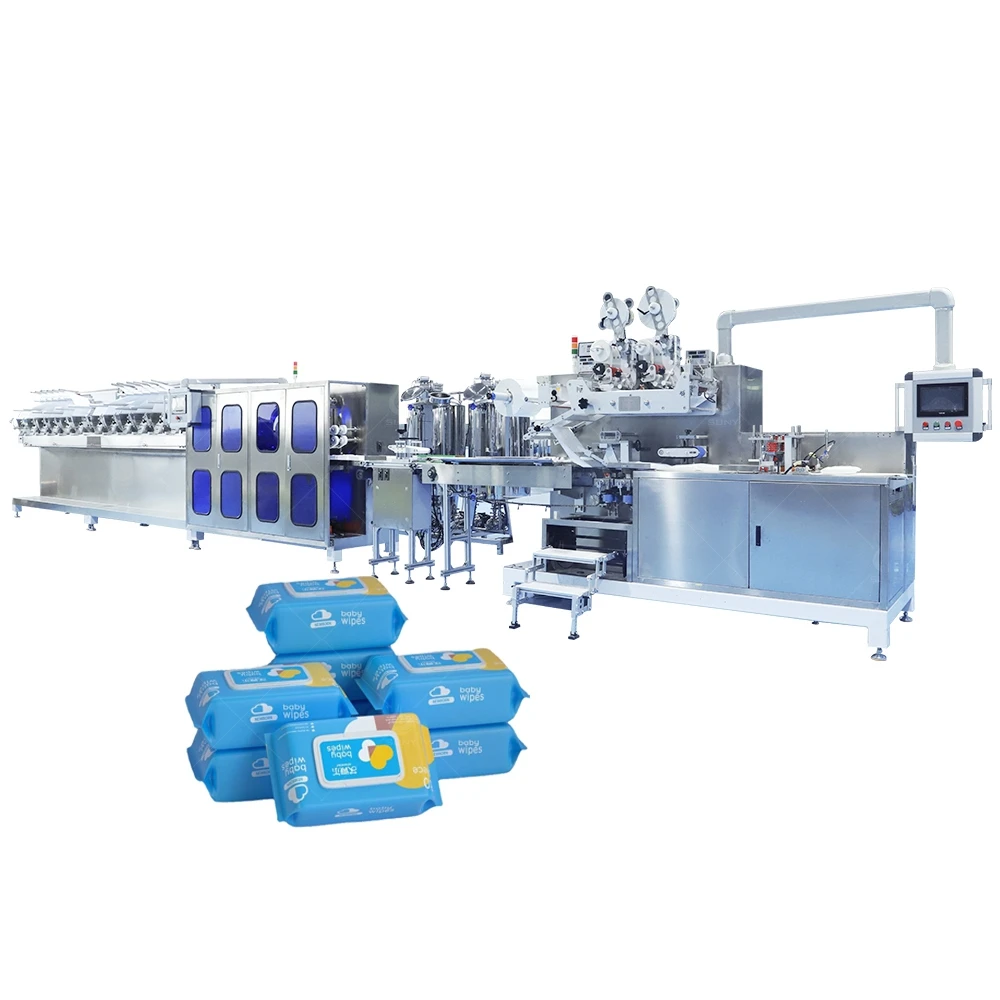

High Speed Wet Tissue Folding Wipes Cutting Machine Baby Wet Wipes Towel Packing Machine with Lid Robot




PARAMETER


 General Specification
Model Number
SYF12

Capacity
Wet Wipes Folding Machine
 4000-4800 pcs/min
Packing Machine
Max.70 bags/min
Lid Machine
Max.70 bags/min
Electricity
6.5mm² Copper
Power
28KW

Voltage
Wet Wipes Folding Machine
 AC380V  50/60HZ
Packing Machine
 AC220V  50/60HZ
Lid Machine
 AC220V  50/60HZ
Folding Way
N-shape,C-shape,Y-shape; Y-shape pop-up
Air Supply
0.6-0.8Mpa, 600L/min
Machine Weight
7.5 tons
Language
Chinese/English/other customized
Water Tank
600L*1




RAW MATERIALS

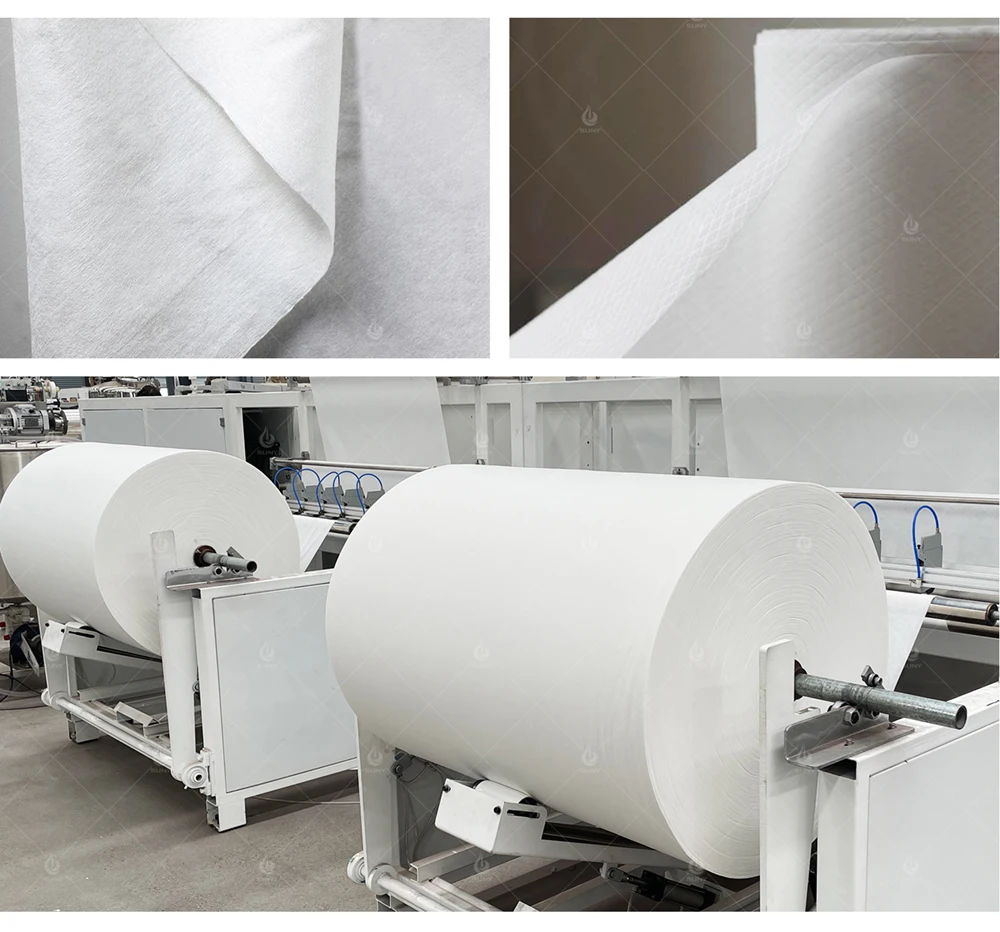

Applicable materials: spunlaced non-woven fabrics,hot-rolled non-woven fabricsand dust-free fabrics.The maximum fabric roll diameter is 1100mm, the maximumcloth roll width is 1200 mm, and the inner diameter of paper core is 76.2mm.




Applicable packaging materials: aluminized film, aluminum foil film PE/PP PO/PPEThickness of package material: 0.07mm-0.09mm
Axis number setting: single axis operation
Axis diameter of envelope: 70-75mm in diameter
Coil film specification: diameter 350mm width 350mm

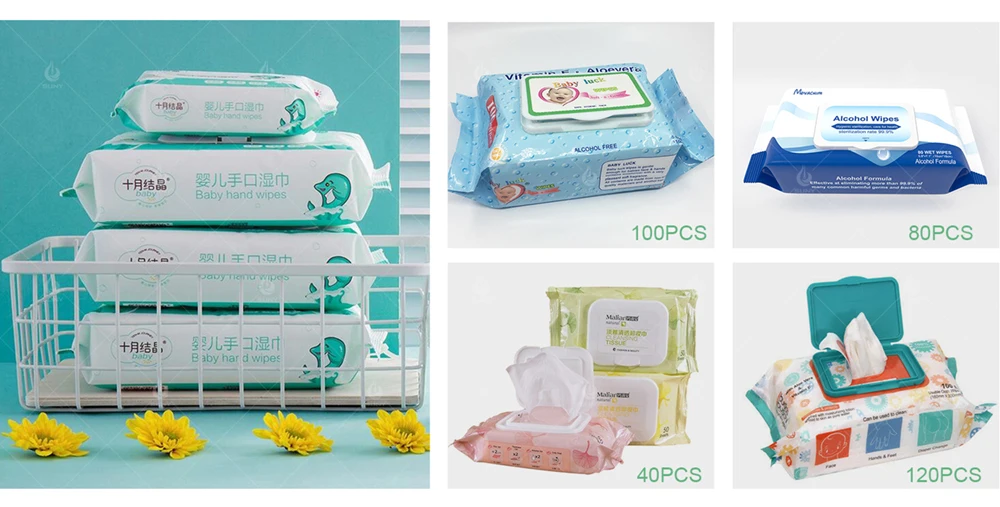

Packing size: length (150-230)x width (100-120)x height (20-80)






High Speed Wet Tissue Folding Wipes Cutting Machine Baby Wet Wipes Towel Packing Machine with Lid Robot


WORKING FLOW

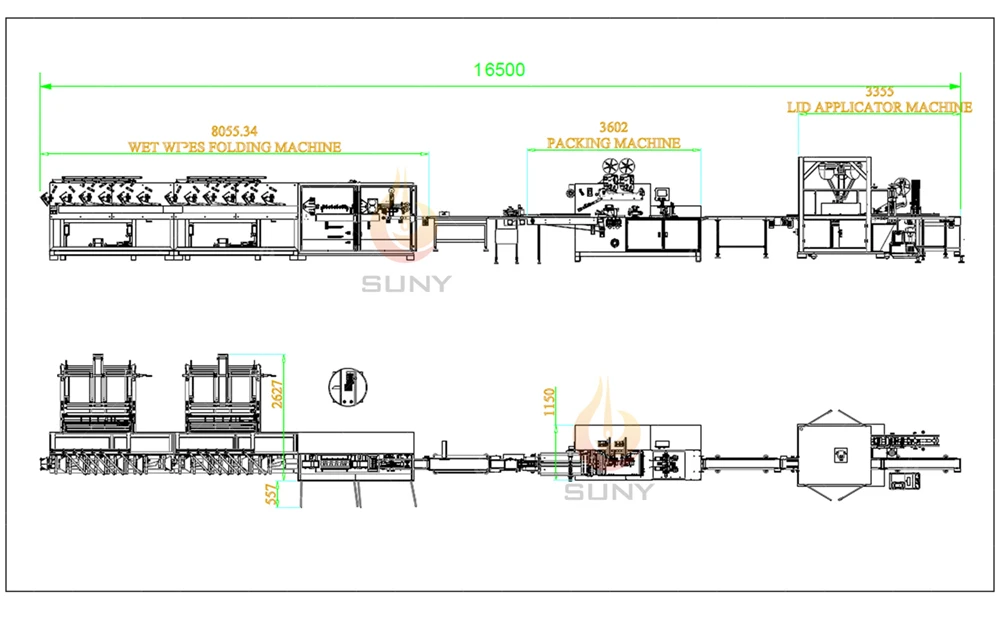

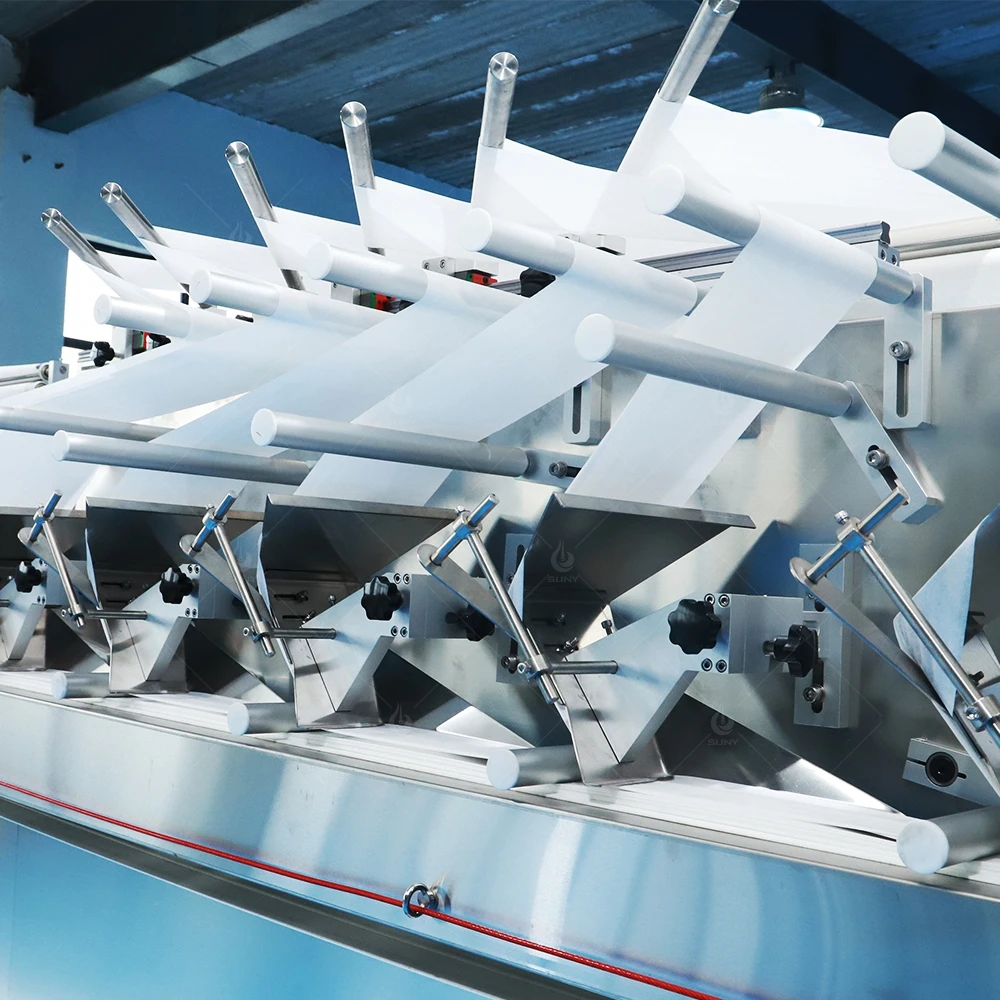

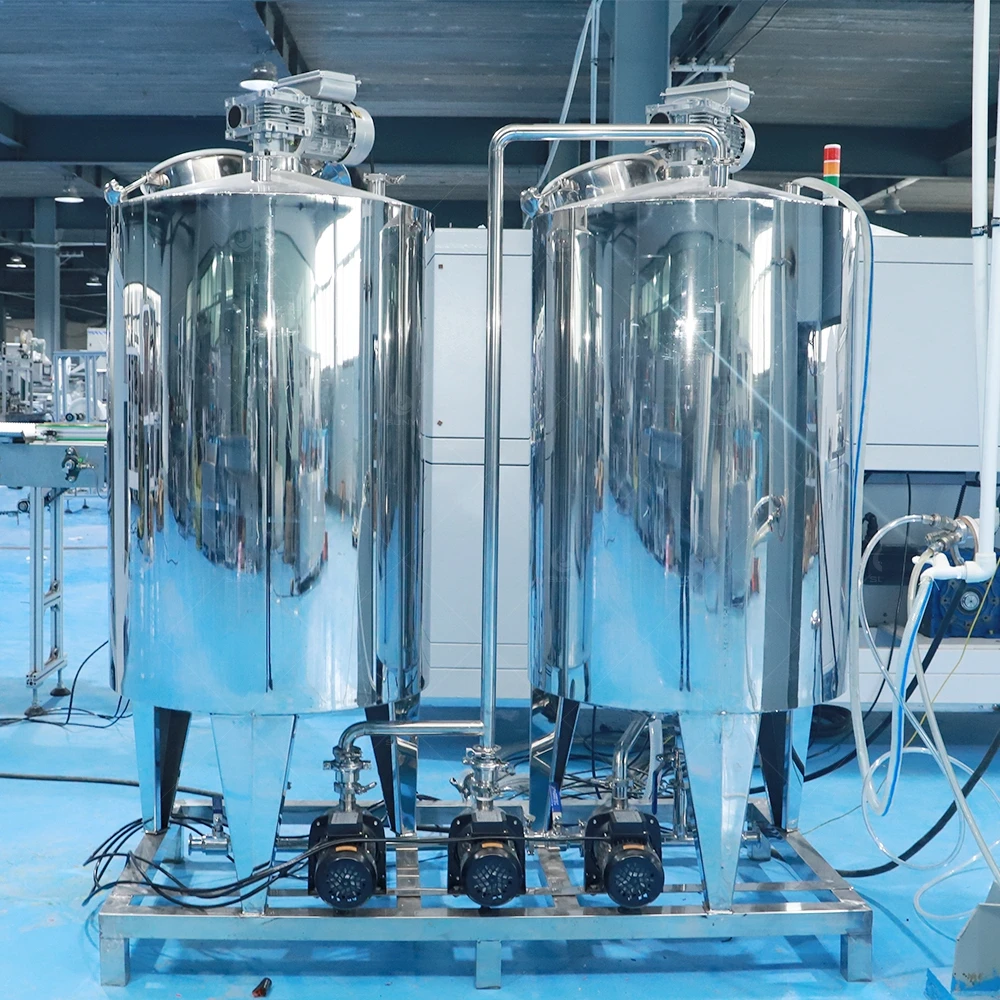

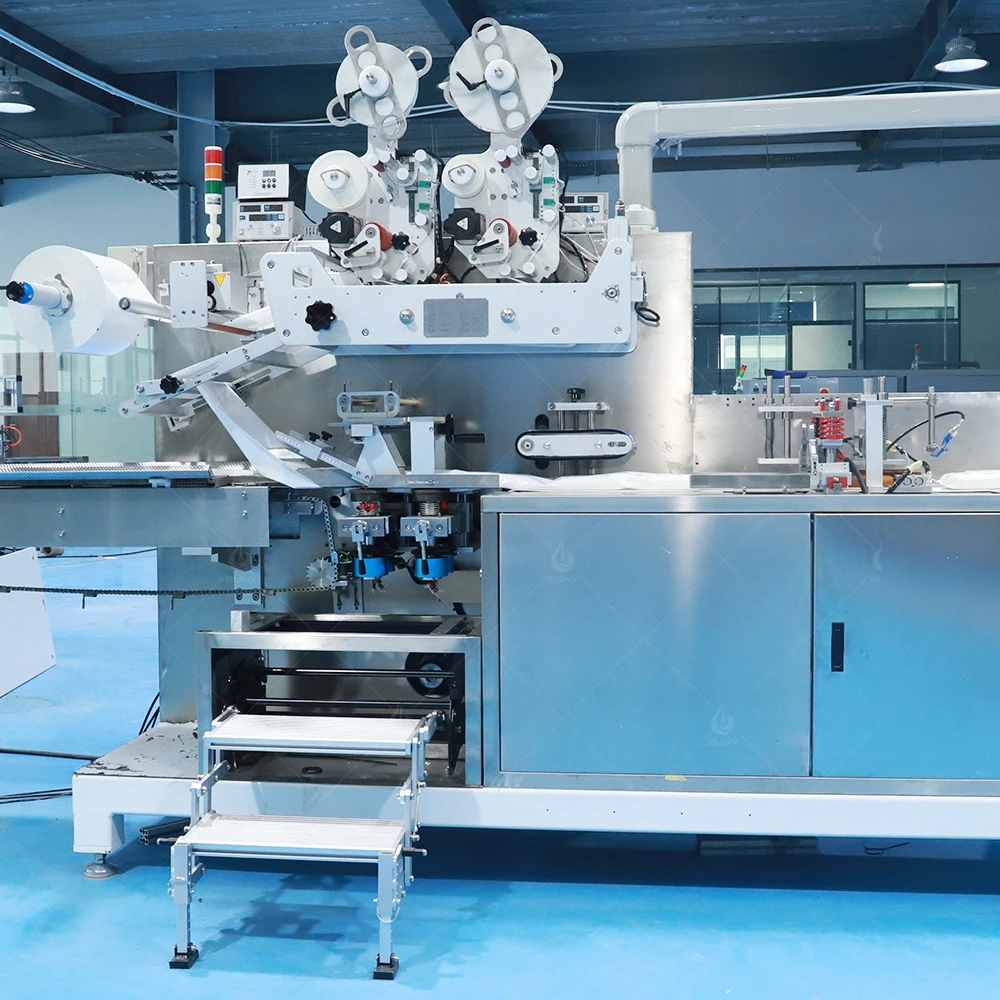

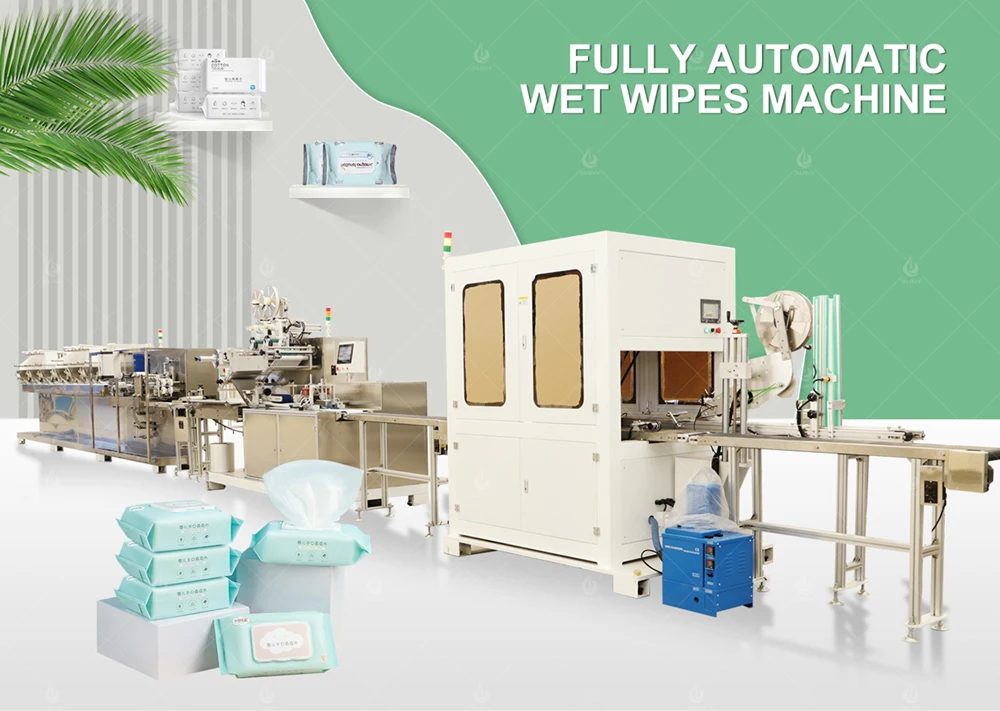

The equipment consists of wet wipes cutting, folding, adding liquid,stacking,bagging, sealing machine and capping machine.The capping machine can beconfigured independently.The whole production line is fully automatic, and only1-2 people are needed to assist the supervisor.
