60kg ~ 500kg High Accuracy Off-center Weight Sensor Single Point Load Cell Platform Beam Type Industrial Grade

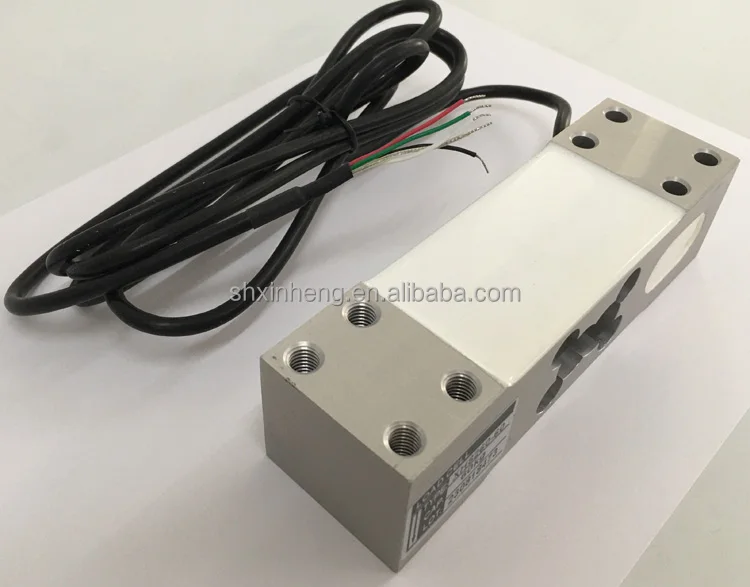

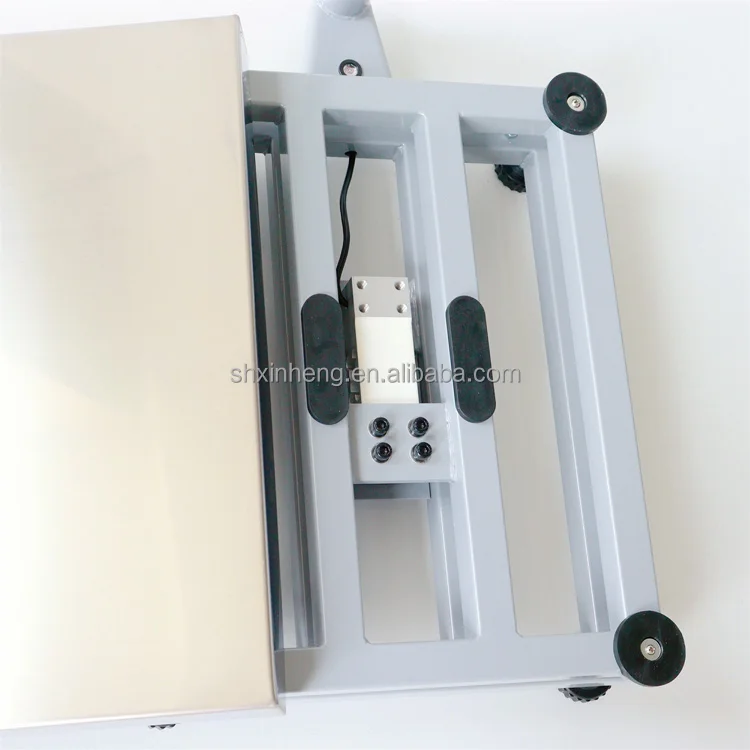

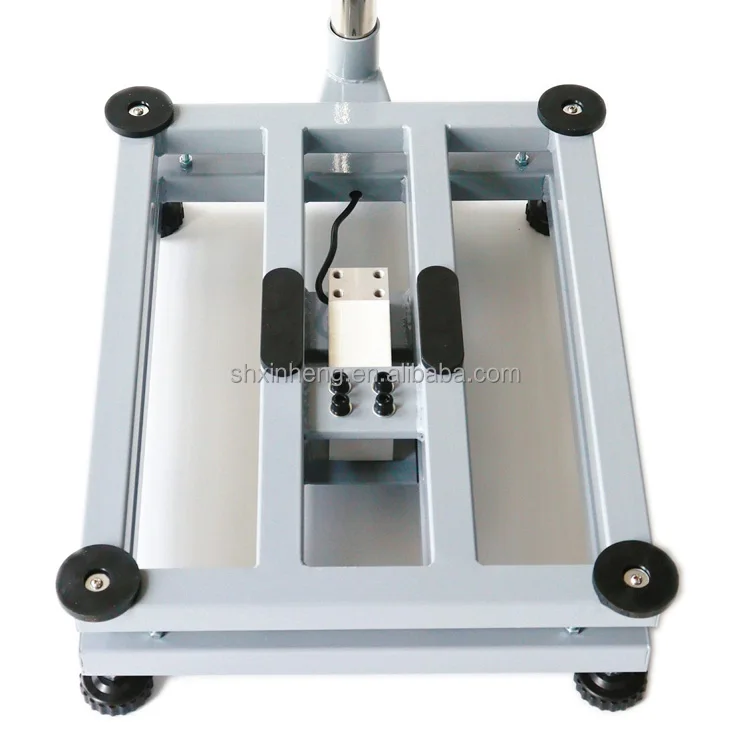

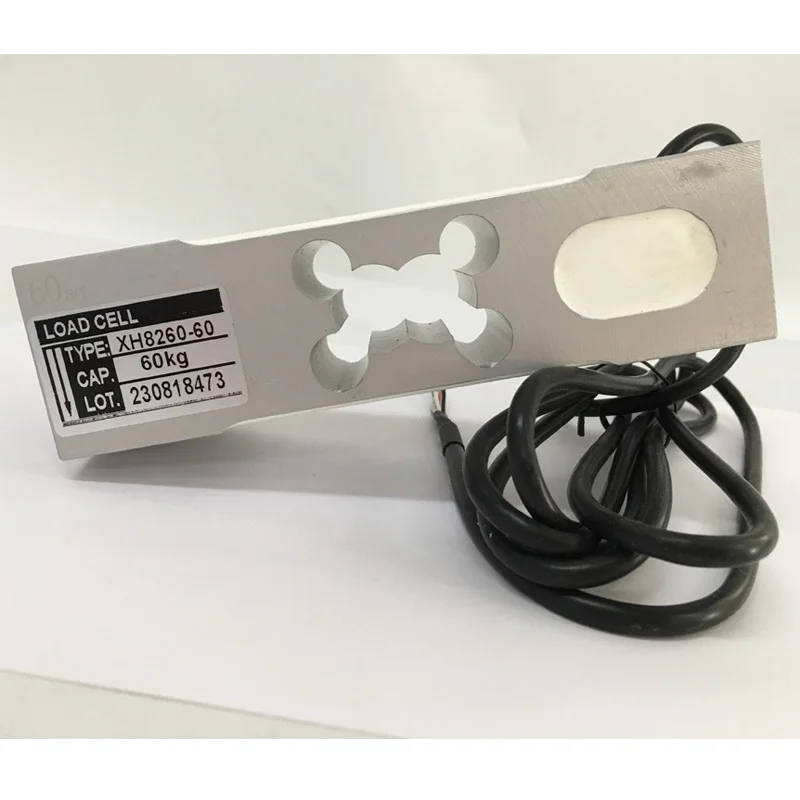

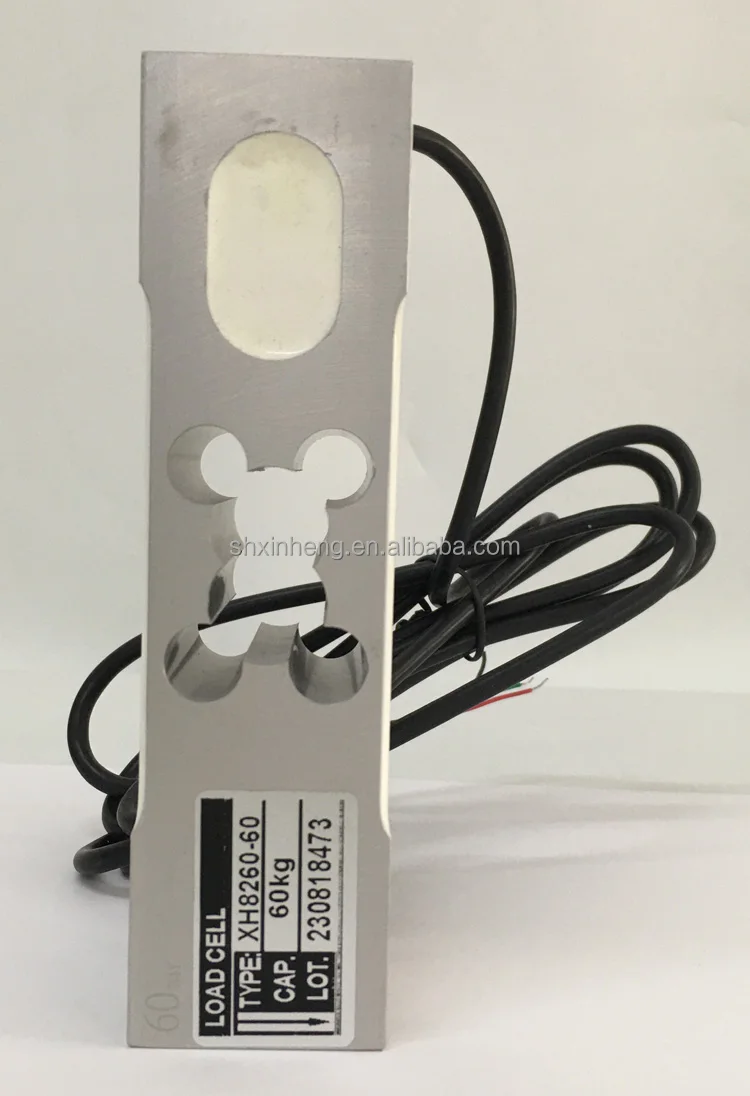

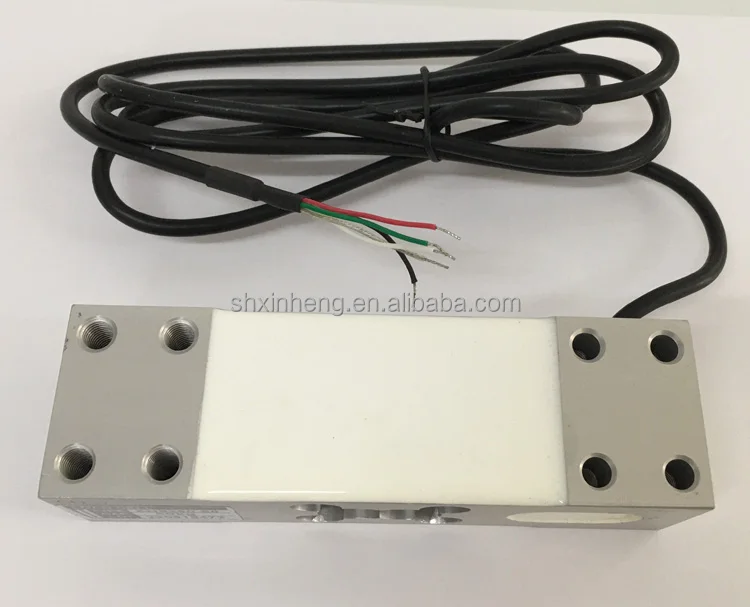

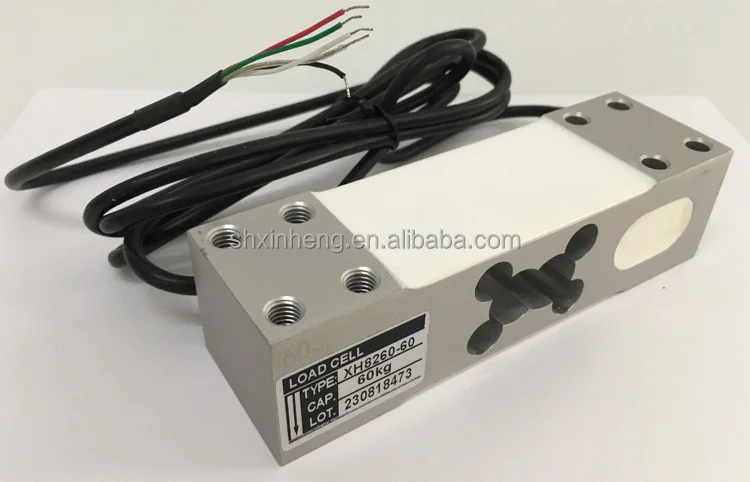

Load cell XH8260 can be used to measure the weight of objects between 0 and 500 kg. It delivers highly precise and reliable measuring results even in long-term use. The parallel beam Load Cell can be used individually in smaller bench scales and retail scales. The color code on the wiring is as follows: red = E+, green = O+, black = E-, and white = O-. Additionally, these load cells feature through holes for mounting purposes.
Technical parameters:
| Rated capacity | 60/100/150/200/250/300/500kg |
| Rated output | 2.0±0.2mV/V |
| Total Error | ±0.02%F. S |
| Creep | ±0.016%F. S/30min |
| Temperature effect on zero | ±0.02%F. S/10ºC |
| Temperature effect on sensitity | ±0.02%F. S/10ºC |
| Input resistance | 406±10Ω |
| Output resistance | 350±2Ω |
| Operating temperature range | -30ºC ~ +65ºC |
| Safe overload | 150%F. S |
| Destructive load | 200%F. S |
| Excitation recommend | 5~12V DC, max 15V DC |
| Construction | Aluminum Alloy Steel |
| Protection class | IP67 |
| Cable length | 2m |

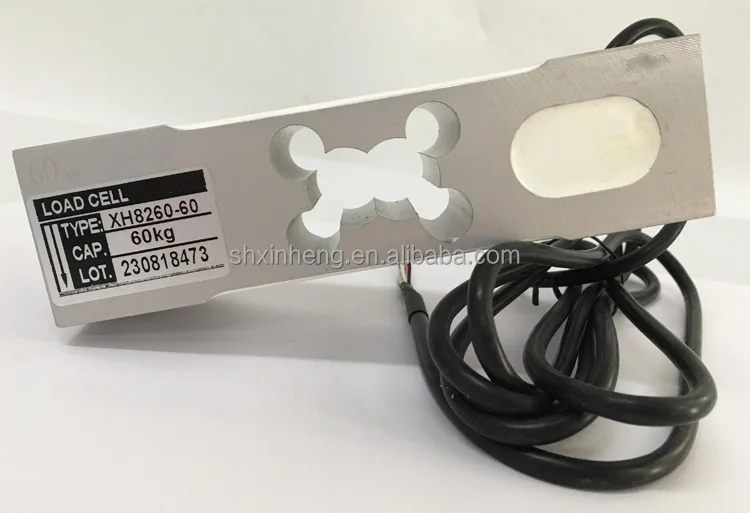

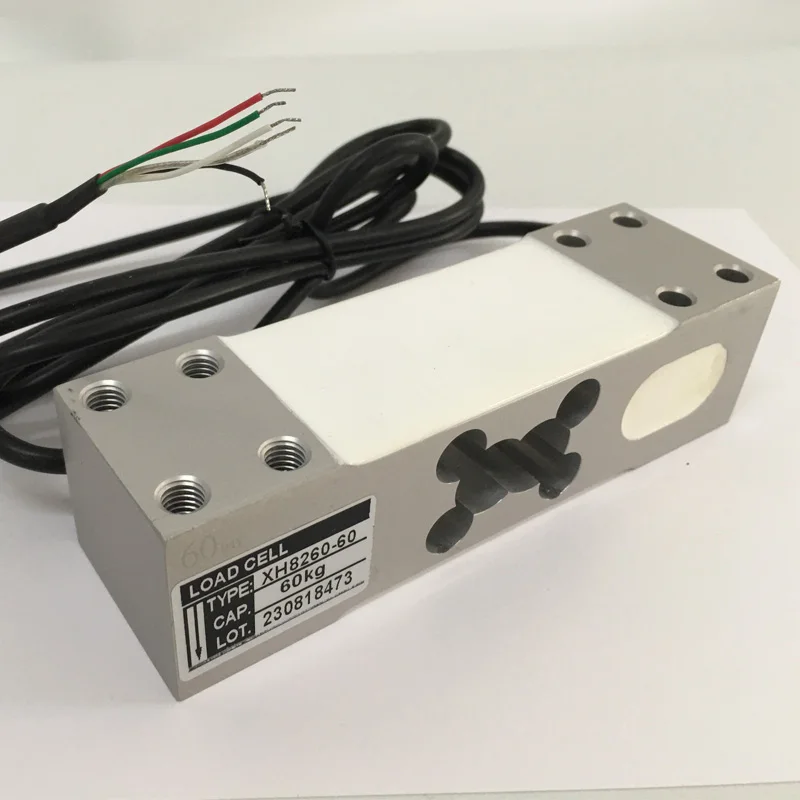

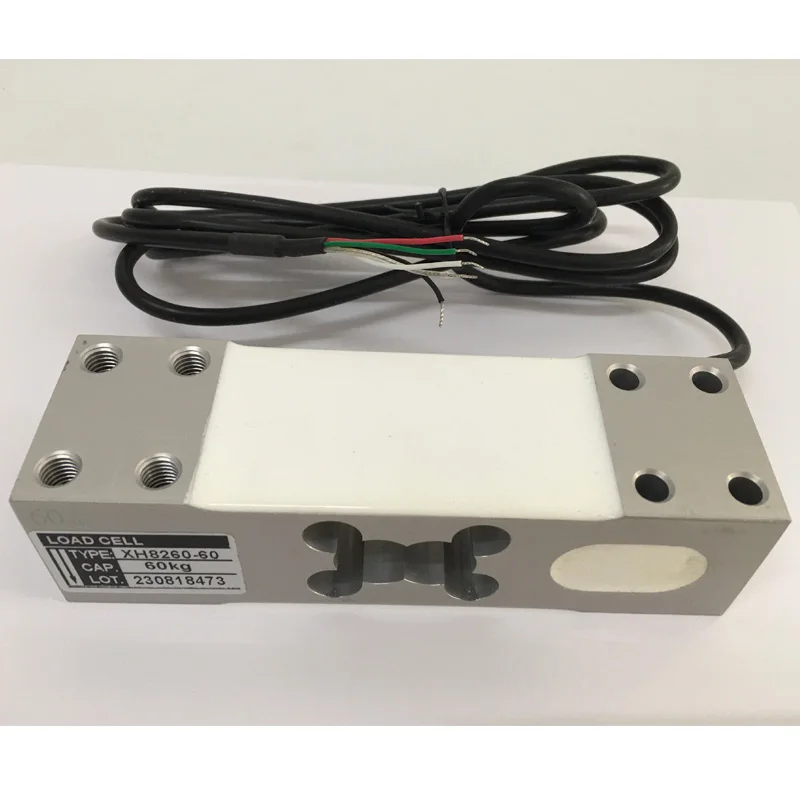

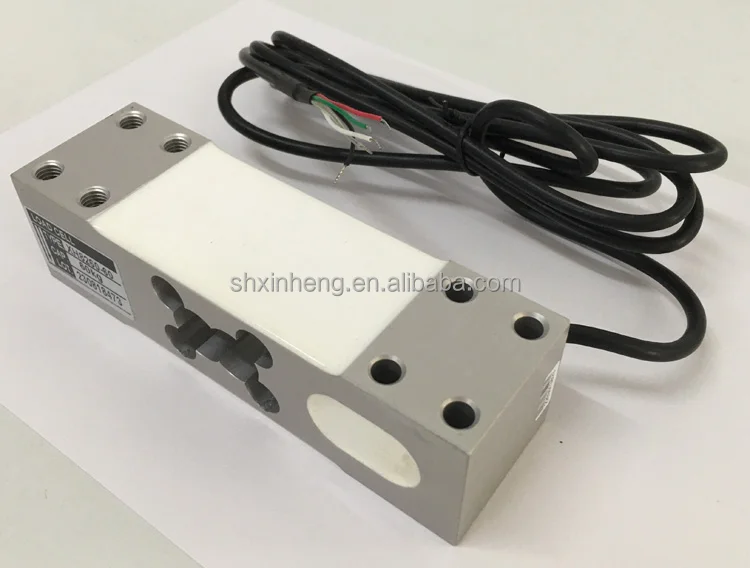

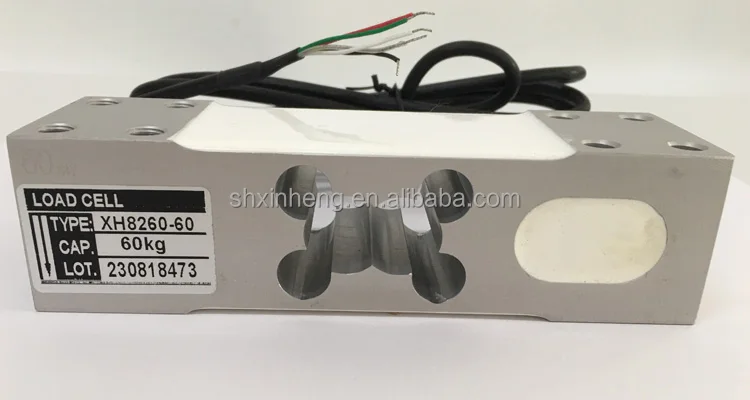

Product Images
Welcome to contact us for more info.!
