  • River Sand Silica Screw Sand Washer for washing and selecting coarse materials

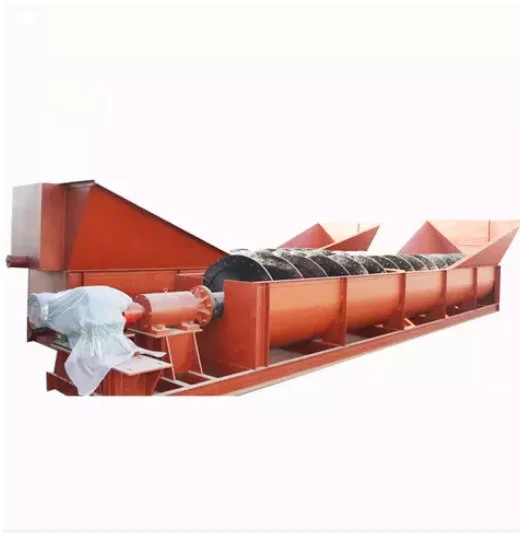

River Sand Silica Screw Sand Washer for washing and selecting coarse materials
River Sand Silica Screw Sand Washer for washing and selecting coarse-materials
River Sand Silica Screw Sand Washer for washing and selecting coarse-materials
River Sand Silica Screw Sand Washer for washing and selecting coarse-materials
River Sand Silica Screw Sand Washer for washing and selecting coarse-materials
River Sand Silica Screw Sand Washer for washing and selecting coarse-materials
River Sand Silica Screw Sand Washer for washing and selecting coarse-materials

River Sand Silica Screw Sand Washer for washing and selecting coarse materials

Share on (1600931109883):


Price:$14,800.00 - $15,000.00

Quantity:


Product Overview

Description



Product Overview

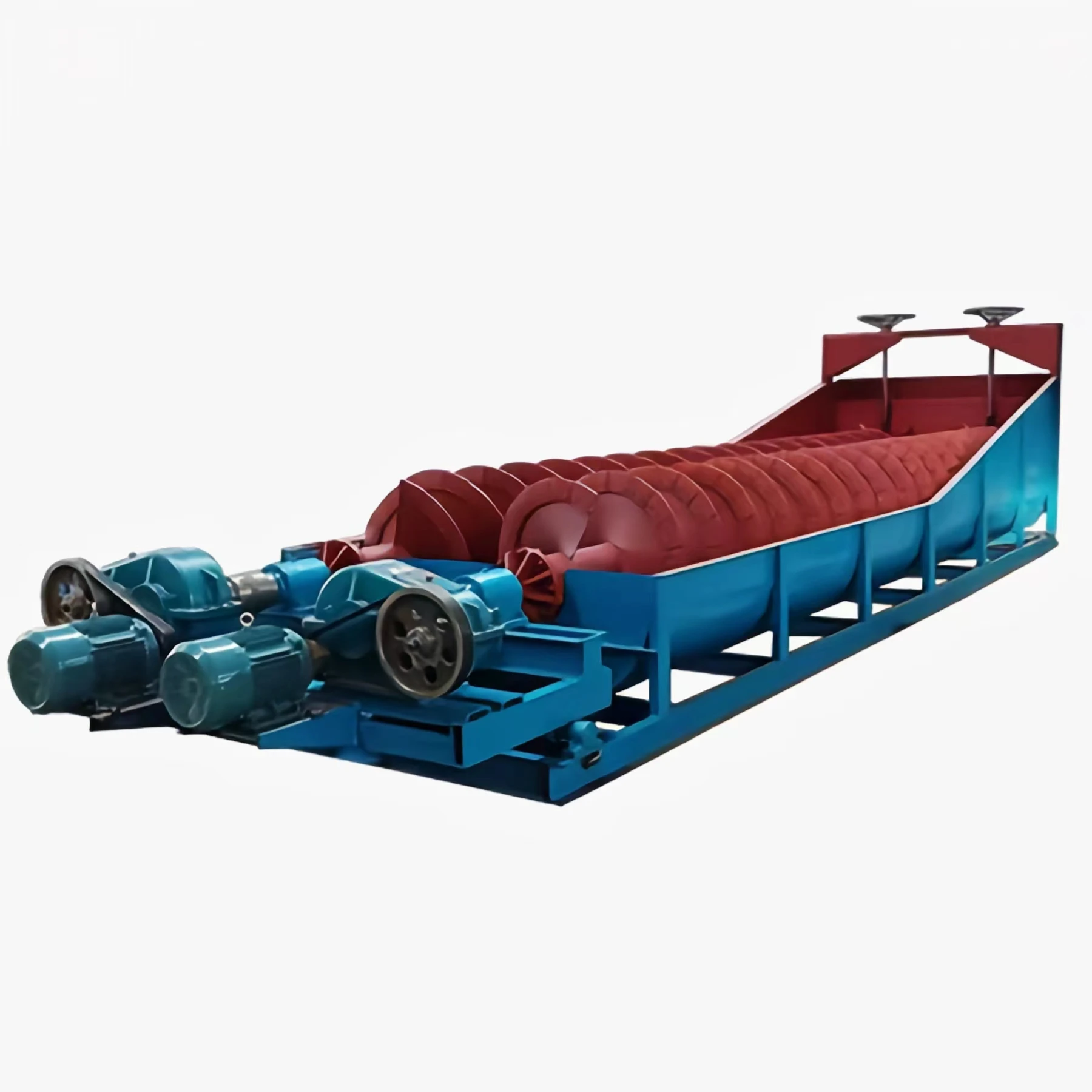

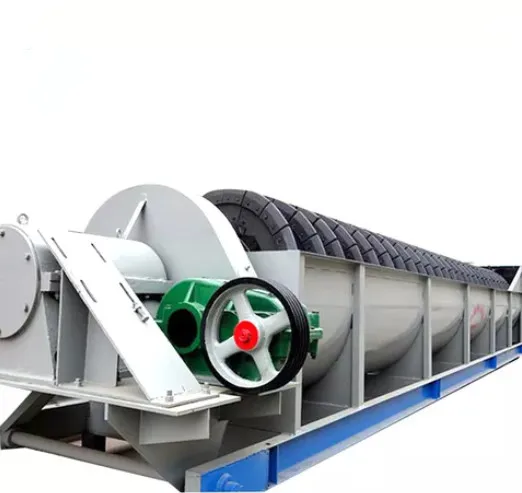

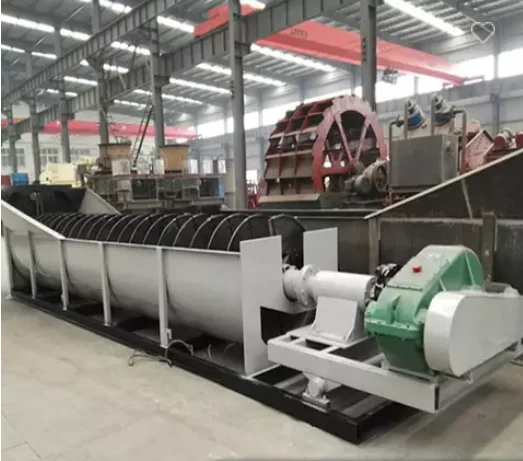

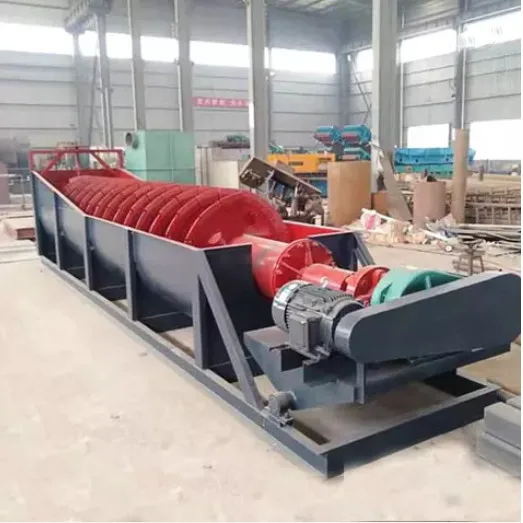

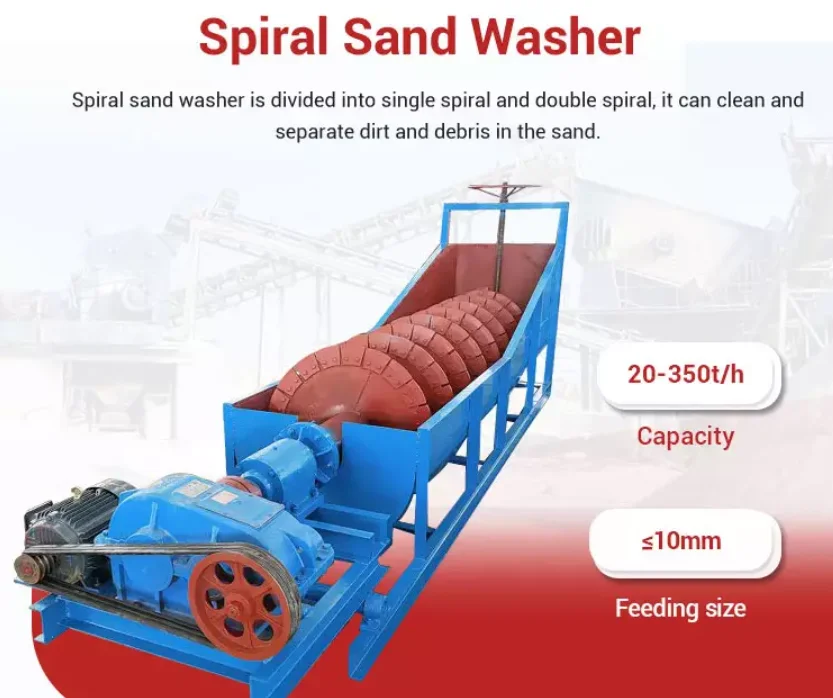

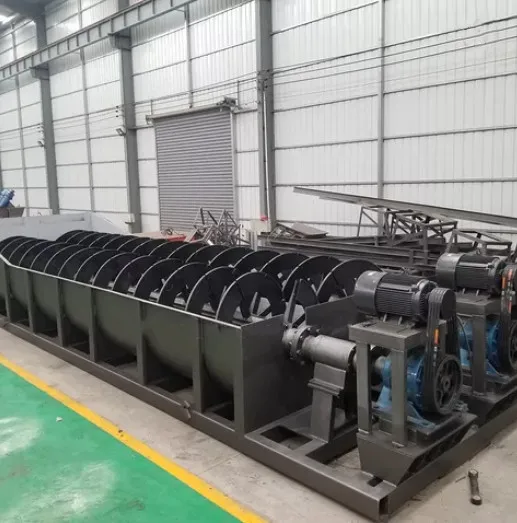

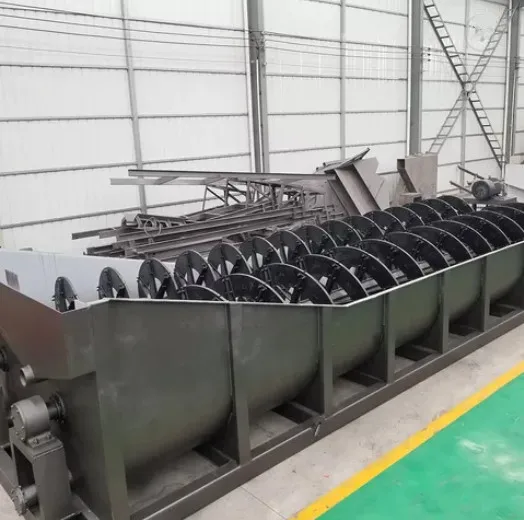

Spiral sand washer

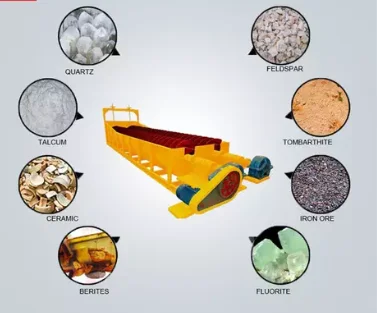

Spiral sand washing machine with the high capacity per hour, has been extensively used for sand impurity elimination and dehydration in building and construction site, sand processing plant, concrete dam site, glass and quartz plant, etc. It has feature of low energy cost and high washing ratio, and with features of good structure, totally enclosed gear equipment and adjusted weir board, some things could be kept such as, high efficiency, durable products, performing well in washing and dehydrating and steadily in keeping fine products size.










FEATURES AT A GLANCE


Advantages of Sea River Silica Sand Washer Screw Spiral Sand Washing Machine
1. Functions: cleaning, dewatering and grading.
2. Low water consumption, durable.
3. Impellers use wear resisting plate, polyurethane material, reduce running cost.
4. Designed to lower volume and investment.
5. Effectively control the sand loss.






PRODUCT SPECIFICATIONS


Model
Type
Diameter
(mm)
feed size
(mm)
Water
consumption
(mm)
Capacity
(t/h)
Power
(kw)
Overall dimensions
(mm)
Weight
(t)
Light type single spiral
GM-508
508
＜10
6-60
20
7.5
8000*2343*1530
2.7
2
GM-610
610
＜10
6-63
50
7.5
8000*2490*1530
3.5
3
GM-762
762
＜10
9-63
75
11-15
9070*2650*1530
5.3
4
GM-914
914
＜10
10-80
100
11-15
8000*2343*1638
6.4
5
GM-1118
1118
＜10
13-168
175
22
9070*2830*1900
12.7
Light type double spiral
2GM-762
762
＜10
20-150
140
2*11
11580*3965*2370
7.4
7
2GM-914
914
＜10
60-300
200
2*15
9310*3940*3870
11.3
8
2GM-1118
1118
＜10
60-600
350
2*22
9070*3890*1900
16.7
Heavy type single  spiral
GMZ-762
762
＜60
160-220
80-125
22
11580*5226*2370
8.8
GMZ-914
914
＜60
200-300
125-175
30
6980*1200*1340
9.8
GMZ-1118
1118
＜75
250-350
180-250
37
7400*1380*1950
12.2
Heavy type double spiral
2GMZ-762
762
＜60
300-400
100-150
2*22
6980*2091*1340
16.8
2GMZ-914
914
＜60
350-450
150-200
2*30
7120*2146*1590
18.9
2GMZ-1118
1118
＜75
450-550
200-300
3*37
8500*2861*2150
22.2






Working Principle


Working Principle

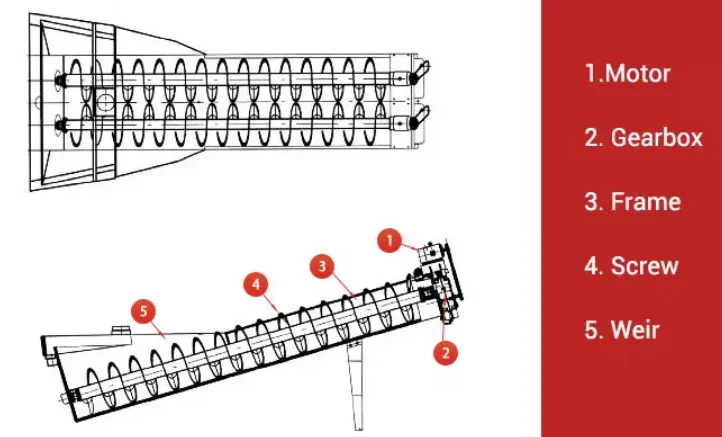

Spiral Washer is a type of classifying machine that classifies materials based the principle that the solid particles with different sizes and proportions have different falling speed in the liquid, and fine ore particles float in the water and coarse ore particles sink to the bottom of the chute and the coarse ore particles are pushed by the spiral to the upper part and discharged.

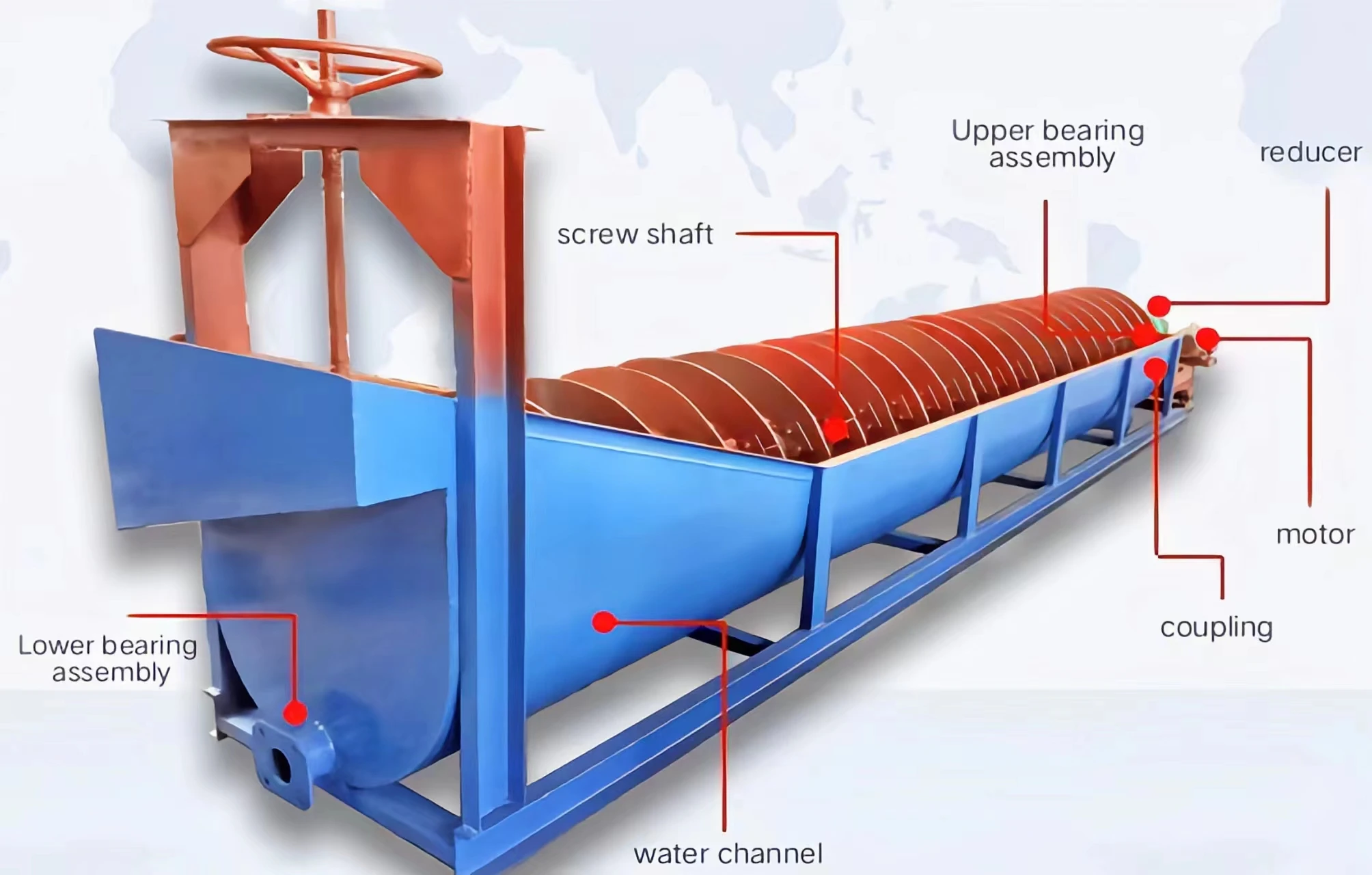

This machine is able to filter the powdery particle crushed by the grinding mill and whirl the coarse particles with the spiral to the feeding mouth of the grinding mill and discharge the filtered fine particles. The pedestal of this machine is made of U-steel, and the rack is welded with steel plate. The water feeding head and spindle nose of the spiral shaft are made of cast iron with wear-resisting and durable property and the lifting device is divided into power-operated type and manual-operated type.

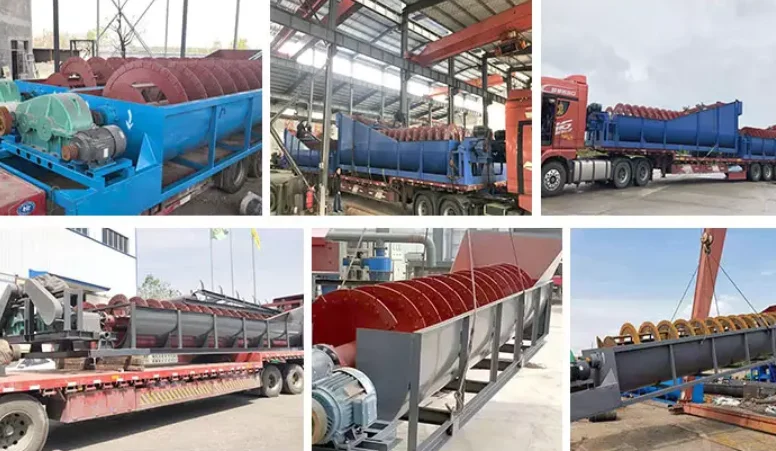

Packing & Shiping
