VIPPAI Bulgaria Hot Single Pack Glasses Cleaning Wet Wipes Tissue Alcohol Prep Pads Making Packaging Machine Machinery
- Category: Wet Wipe Making Machines >>>
- Supplier: Wenzhou,Weipai,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Machine Feature
VPD-250 General Speed Right Angle Wet Wipes Machine
1. VPD-250 uses Taiwan Delta servo motor and Siemens PLC, Intelligent touch screen, servo motor control system, full automatic machine make stable run and convenient operation.
2. This machine adopts adjustable mould, it can produce (40-140) *(40-110) mm(L*W) wet tissue without changing mould.
3. Manufacturers can choose single pack or double pack at will when outputting.（only need to replace the dotted line knife part）
4. Non-woven fabrics can be folded according to different types. Up to 10 vertical folds and 4 horizontal folds, which can be freely folded by unfolding the width and length of the non-woven fabric.
5. Two heat seals is to avoid liquid leakage.
6. The speed is 80-110 bags/min.
7. The edging form of package bag can be “-”or “v”.
2. This machine adopts adjustable mould, it can produce (40-140) *(40-110) mm(L*W) wet tissue without changing mould.
3. Manufacturers can choose single pack or double pack at will when outputting.（only need to replace the dotted line knife part）
4. Non-woven fabrics can be folded according to different types. Up to 10 vertical folds and 4 horizontal folds, which can be freely folded by unfolding the width and length of the non-woven fabric.
5. Two heat seals is to avoid liquid leakage.
6. The speed is 80-110 bags/min.
7. The edging form of package bag can be “-”or “v”.
Successful Case
Product Application
Bag Type: 4 Side Seal Right Angle
Power: 8.8KW
Product Size: (40-140) *(40-110) mm(L*W)

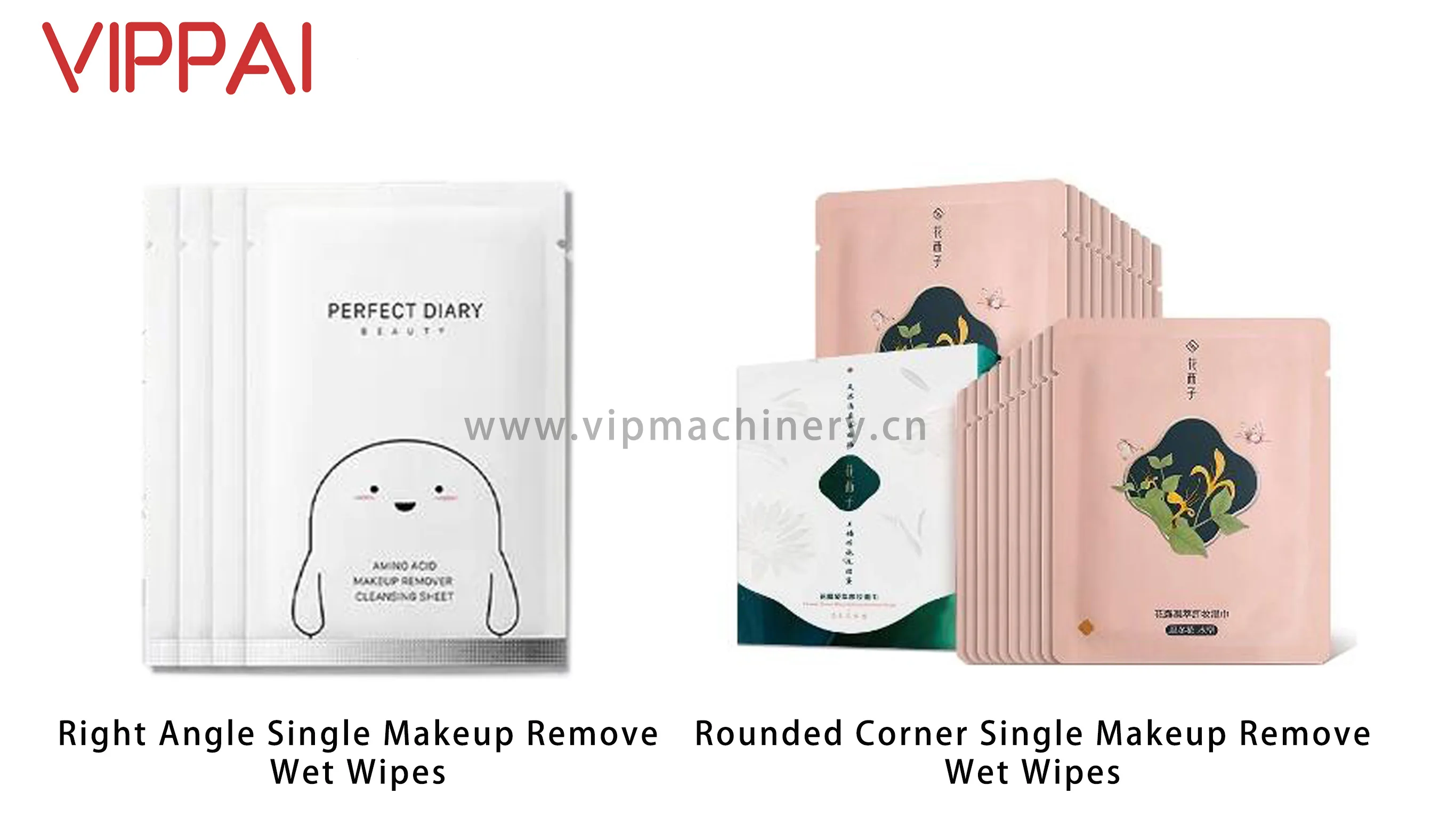

VPD-250 is the general speed right angle wet wipes/tissue machine. Our single wet wipes machine is widely used in cosmetics, healthcare and pharmaceutical industry. It can produce makeup remover wipes, skin cleaning wipes, men’s maintenance wipes, women care wipes, alcohol pad/swabs and so on. Single sachet wet wipes making machine makes one piece wet wipes that is easy to carry out and hygienic.
Products Description
Model | VPD 250 | ||||||
Packing Form | horizontal four side sealing with right angle device | ||||||
Packing Material | PET/AL/PE, PET/AL/PE, Paper/ PE/AL/PE, PET/PE, BOPP/PE/AL/PE, PET/AL/NY/PE | ||||||
Inner Material | 30-80g/m2 air laid paper, nonwoven, spun lace nonwoven fabric etc | ||||||
Packing Size | L: 40-140 MM, W: 40-110 MM | ||||||
Packing Speed | 80-110 BAGS/MIN | ||||||
Folding Way | max 10 folding vertical and 4 folding horizontal | ||||||
Liquid Adding Range | 0-5 ML(according to product) | ||||||
Power Supply | single phase-two wire 220 V 50/60 HZ / three phase four wires 380V 50/60Hz | ||||||
Total Power | 8.8 KW | ||||||
Air Supply | air pressure 0.6-1.0 MPA, air consumption 300-500 L/MIN | ||||||
Machine Noise | ≤80 db(a) | ||||||
Overall Dimension | 3300*2200*1600 MM | ||||||
Weight | 1100 KG | ||||||
Brand: Japan Panasonic

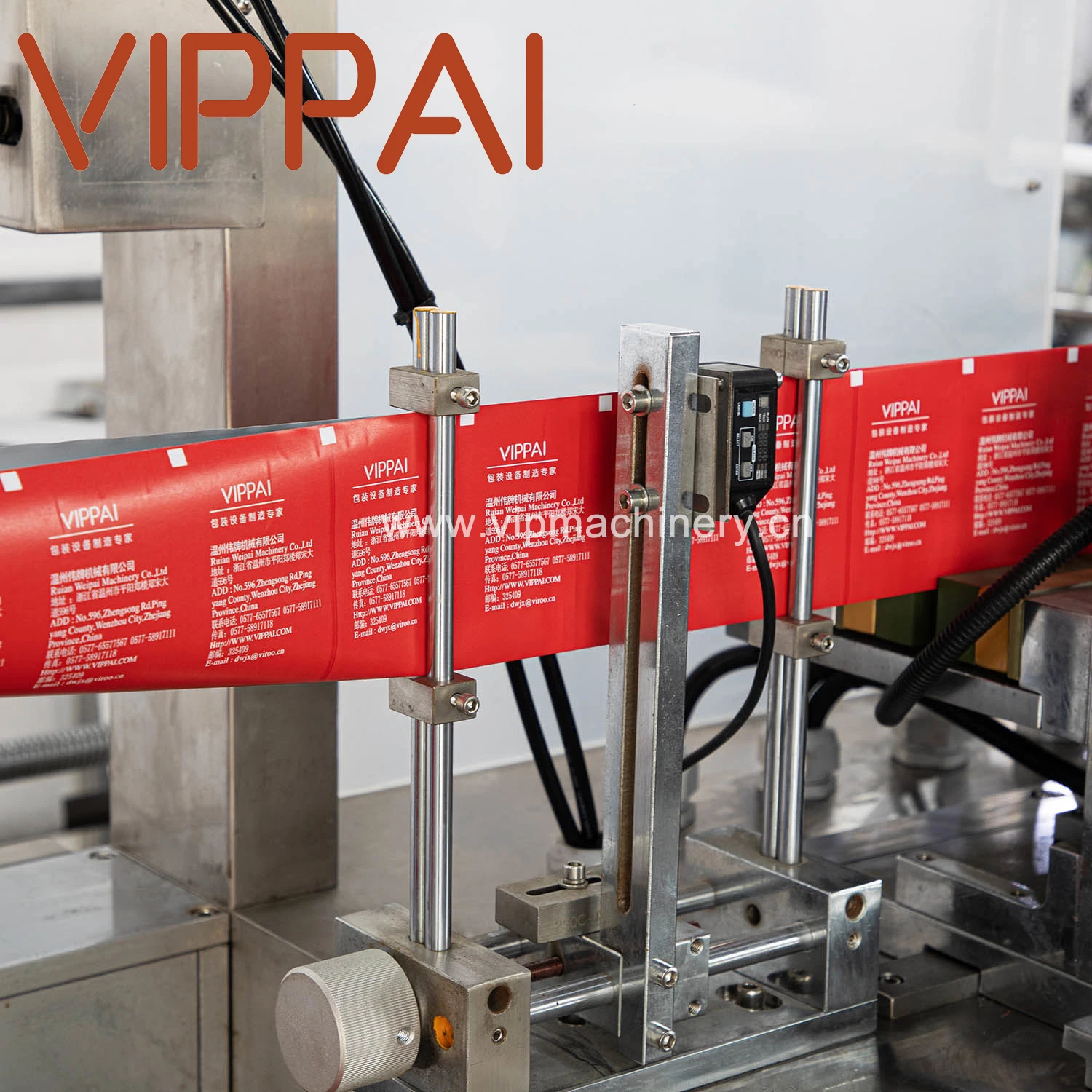

Fold the packing film in half and use the photo eyes to detect the color mark to ensure the precise packing.

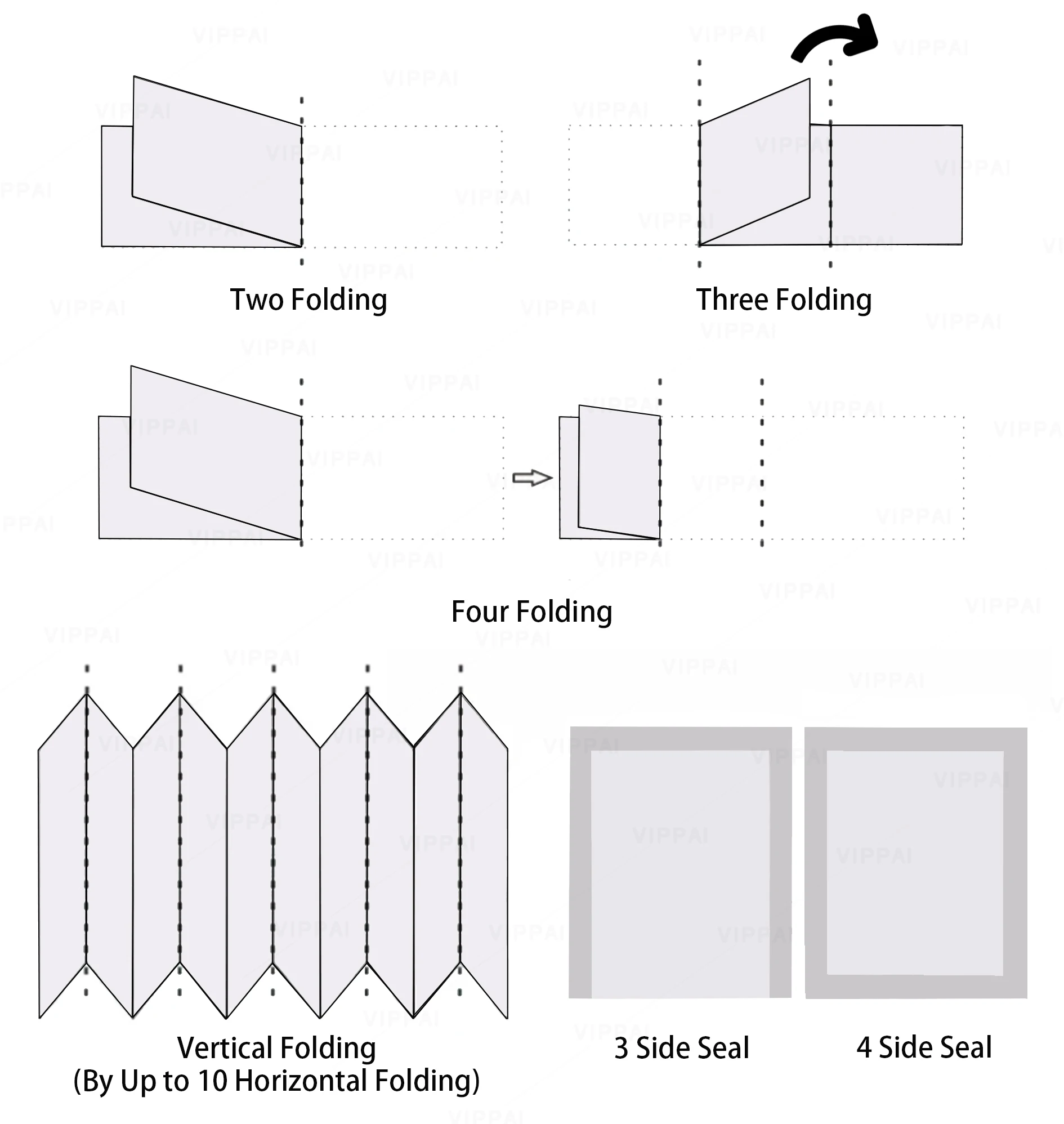

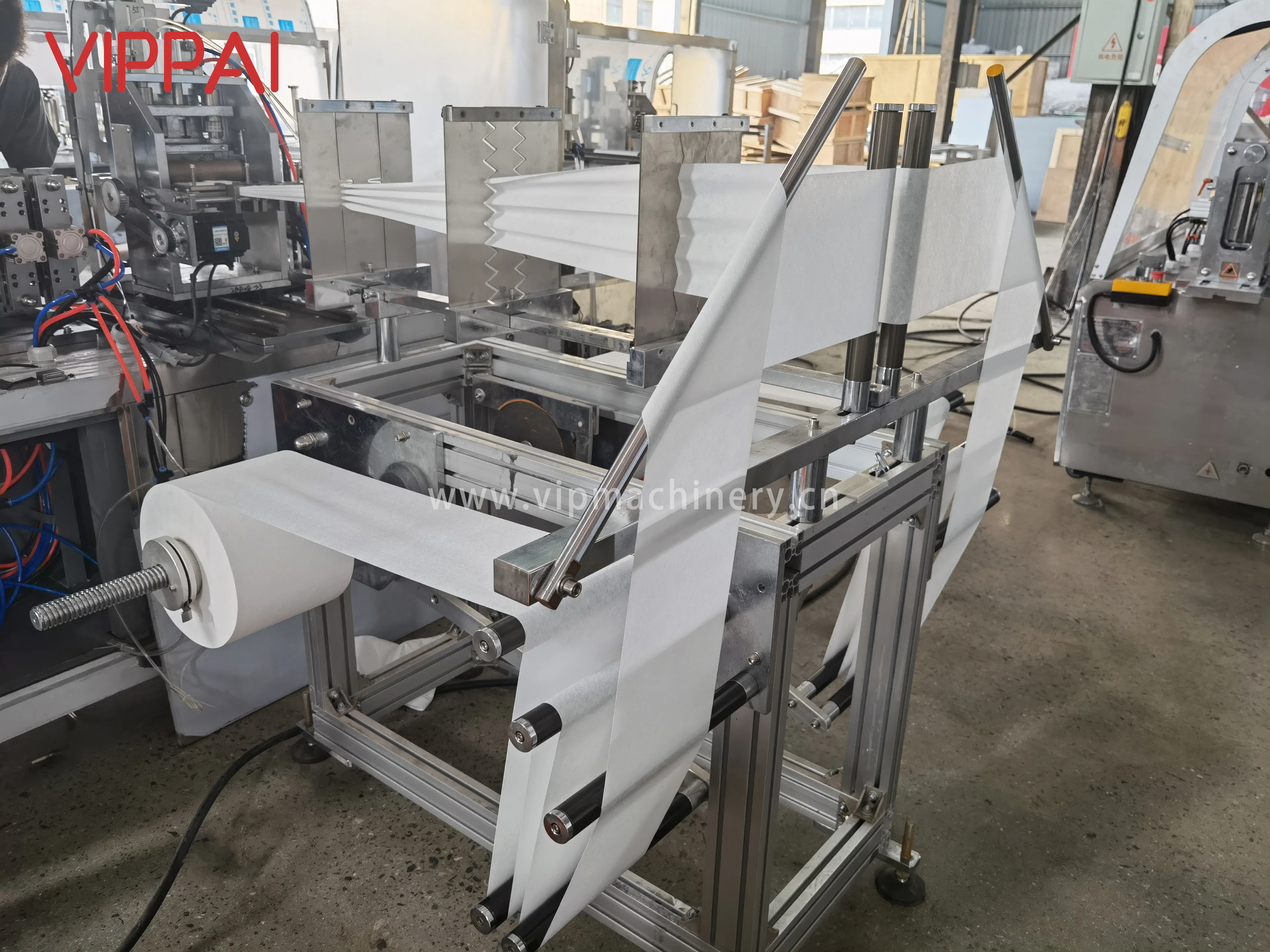

Place the non-woven fabric, the maximum is 10-fold vertical and 4-fold
horizontal folding.It can be folded according to customers requirement.

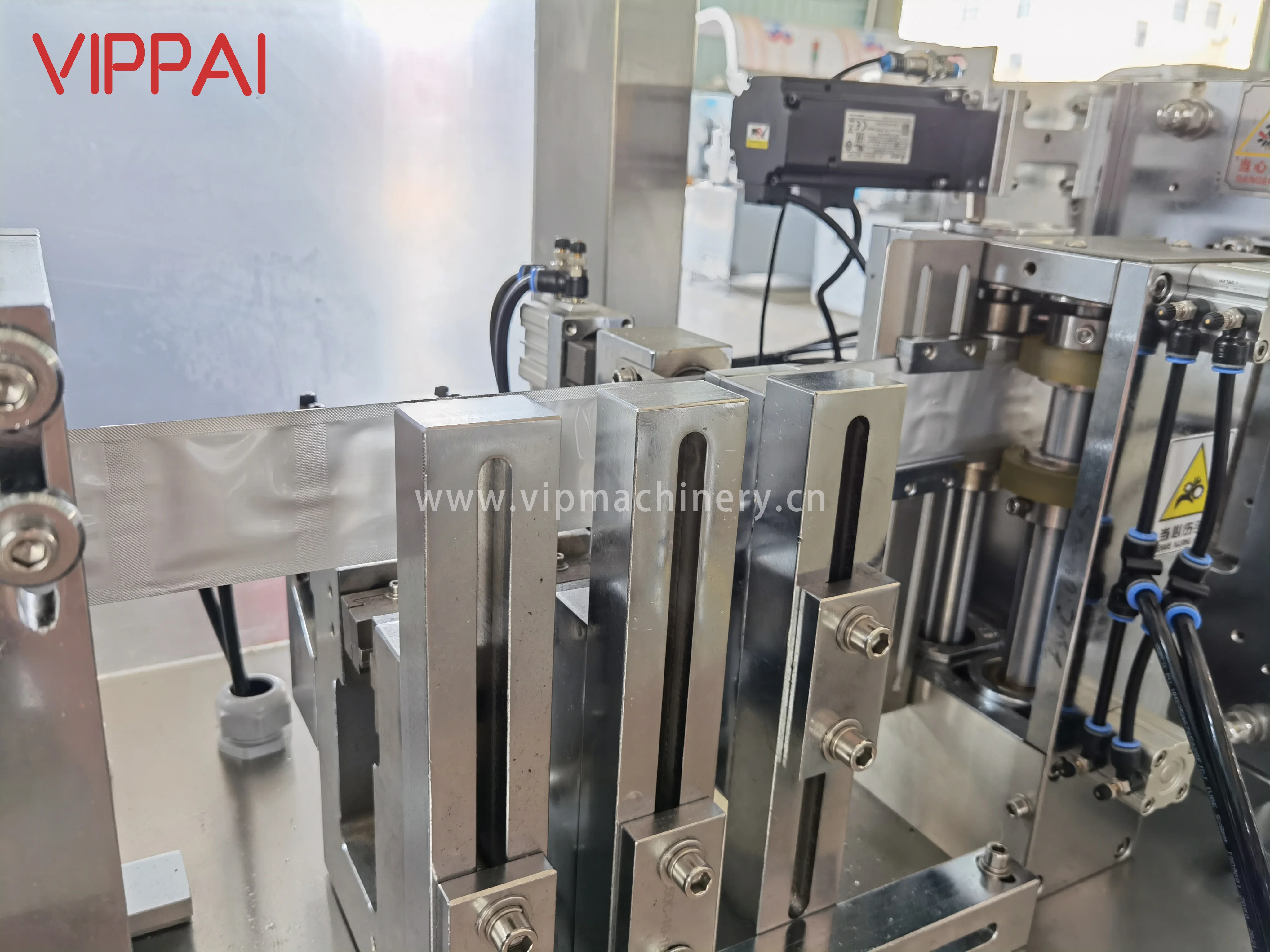

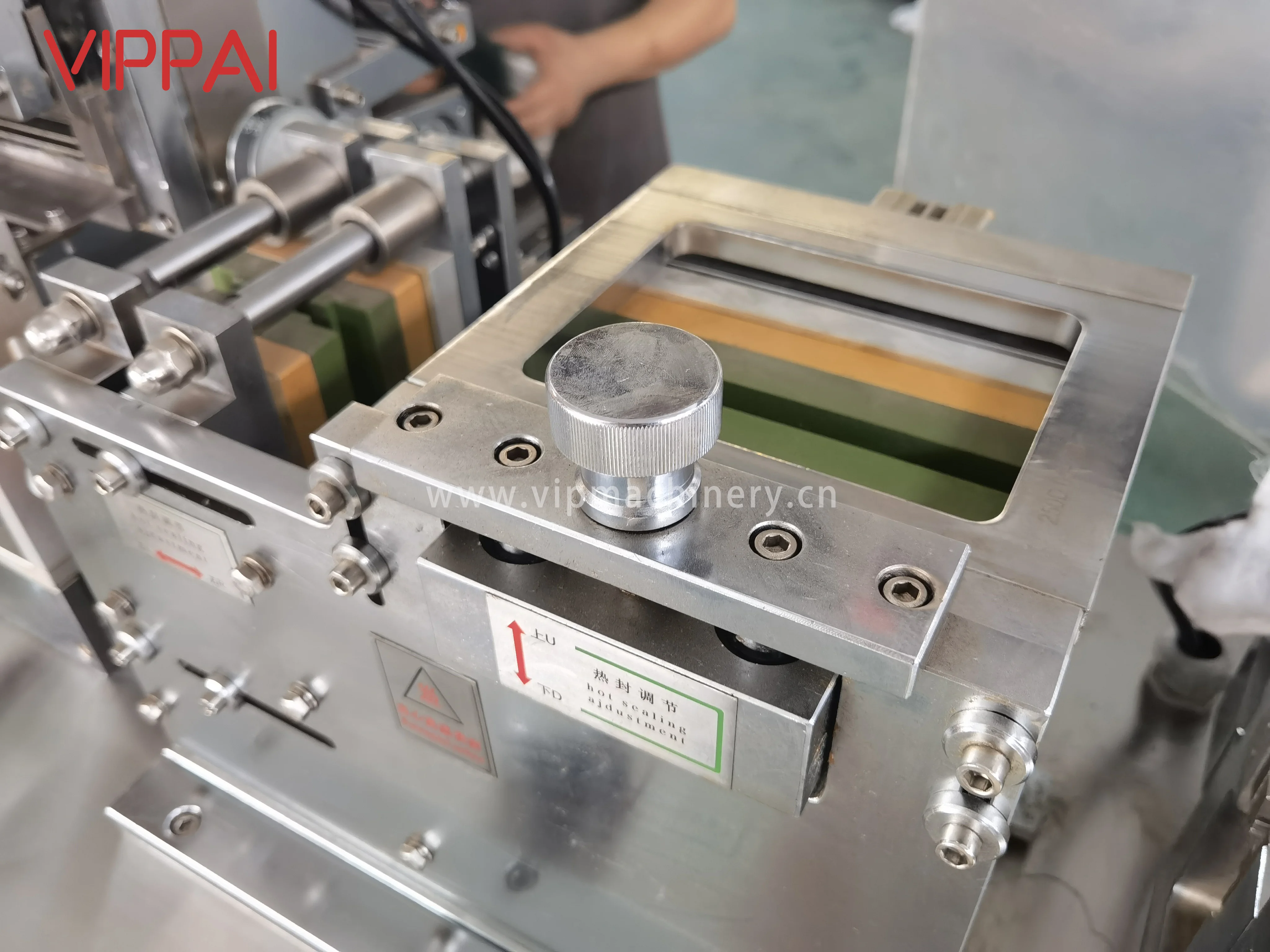

Adopt four-side sealing design, adjustable mold.
The mold coated with Teflon, it is anti-stick also protects the mold mesh and prolongs the service life.
The mold coated with Teflon, it is anti-stick also protects the mold mesh and prolongs the service life.
The users can change the steel letters to control the date and codes print on the products the tear mouth have two types
for select 'V' or ''-“.

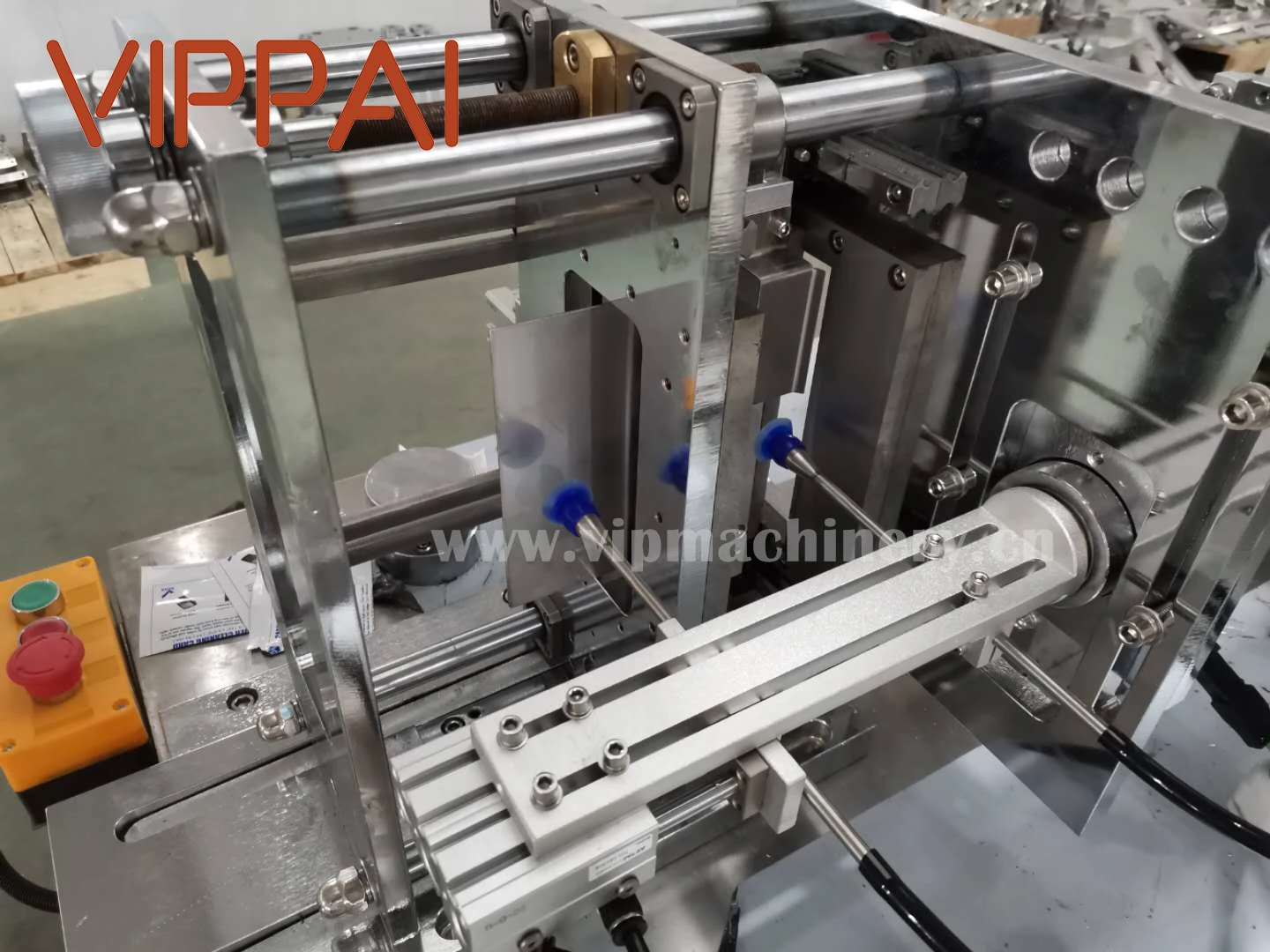

It cuts the right angle package bag.
Brand: IWAKI Japan

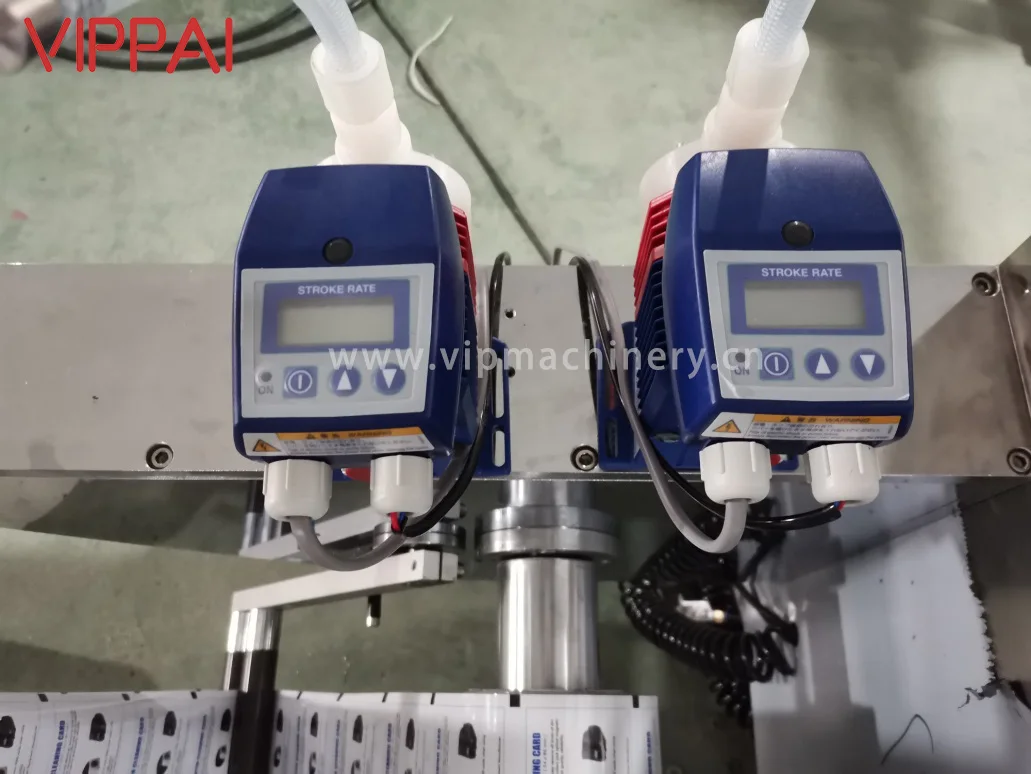

The IWAKI metering pump ensures the high precision when adding the essence.
About Us
Wenzhou WEIPAI Machinery Co.,ltd has specialized in Packaging Machinery Industry since 2003.
During 19 years development, we became a leading brand, having a group of senior technical team. Our main products are Wet Wipes Packing Machine, Swab Packing Machine, Face Mask Making Machine, Cartoning Machine, Bagging Machine and so on. Our machines are suitable for Pharmaceutical, Foods, Cosmetics, Health Care Industries.
In addition, we have researched and achieved lots of national technical patents:
for example: A packaging bag slitting and discharging device
Mask Corner Conveying Mechanism
A folding device
During 19 years development, we became a leading brand, having a group of senior technical team. Our main products are Wet Wipes Packing Machine, Swab Packing Machine, Face Mask Making Machine, Cartoning Machine, Bagging Machine and so on. Our machines are suitable for Pharmaceutical, Foods, Cosmetics, Health Care Industries.
In addition, we have researched and achieved lots of national technical patents:
for example: A packaging bag slitting and discharging device
Mask Corner Conveying Mechanism
A folding device
A traction device
No displacement hollow placement conveyor and so on.
Meanwhile, we are cooperating with global famous manufacturers such as SAMSUNG, KFC, LF BEAUTY, and having further relationship with suppliers Siemens, Taiwan Weinview, Delta, Japan Yaskawa and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
No displacement hollow placement conveyor and so on.
Meanwhile, we are cooperating with global famous manufacturers such as SAMSUNG, KFC, LF BEAUTY, and having further relationship with suppliers Siemens, Taiwan Weinview, Delta, Japan Yaskawa and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
Exhibition
Certifications
Packing & Delivery
FAQ
Q1:Are you a factory or a trading company?
A1:We are the manufacturer and factory, specialized in packaging machinery industry since 2003.
Q2:Where is your factory? How can I get there?
A2:Our factory is located in Pingyang County, Wenzhou City, Zhejiang Province, China.
Q3:What’s your main market?
A3:Our machine is sold well in 30 provinces and cities and enjoy high reputation in China. At the same time,
it has been widely exported to more than 20 countries, such as Korea, India, Bangladesh, Russia, Pakistan, Brazil, USA, U.A.E, Kazakhstan etc.
Q4:How is your factory doing in quality control?
A4:Quality is the most important principle. There are at least twice test before shipment, the first is by our factory, the second is together with customer. And also we will offer whole-life service. What's more, all machinery has been passed CE testing. Strictly testing the machine and arranging delivery after 100% confirmation of no problem are what we always do.
A2:Our factory is located in Pingyang County, Wenzhou City, Zhejiang Province, China.
Q3:What’s your main market?
A3:Our machine is sold well in 30 provinces and cities and enjoy high reputation in China. At the same time,
it has been widely exported to more than 20 countries, such as Korea, India, Bangladesh, Russia, Pakistan, Brazil, USA, U.A.E, Kazakhstan etc.
Q4:How is your factory doing in quality control?
A4:Quality is the most important principle. There are at least twice test before shipment, the first is by our factory, the second is together with customer. And also we will offer whole-life service. What's more, all machinery has been passed CE testing. Strictly testing the machine and arranging delivery after 100% confirmation of no problem are what we always do.
Q5:How about after sales service？
A5:During the special period of epidemic, we will offer all support online via video 24h per day. Before shipment, we will test machine from A to Z, and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together. And if customers need the engineer to offer support in their factory, the cost and visa should be paid and prepared by customers.
A5:During the special period of epidemic, we will offer all support online via video 24h per day. Before shipment, we will test machine from A to Z, and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together. And if customers need the engineer to offer support in their factory, the cost and visa should be paid and prepared by customers.
Contact
Tina Wang
Email: [email protected]
Whatsapp:+86 13967752237
Wechat: +86 13967752237
Address: Wenzhou City, China 325400
