Product Overview
Description
High Precision 626 627 628 629 634 635 636 637 638 Zro2 Si3N4 Miniature Full Ceramic Deep Groove Ball Bearing
Product Description
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
Full Ceramic bearing Applications:
* Aircraft generators
* Biotechnology equipment
* High speed machining and grinding spindles
* high speed mills
* Precision instruments
* Pumps and compressors
Other applications of ceramics
Ceramics can be used in place of steel for ball bearings. Their higher hardness means they are much less susceptible to wear and typically last for triple the lifetime of a steel part. They also deform less under load, meaning they have less contact with the bearing retainer walls and can roll faster. In very high speed applications, heat from friction during rolling can cause problems for metal bearings, which are reduced by the use of ceramics. Ceramics are also more chemically resistant and can be used in wet environments where steel bearings would rust. In some cases, their electricity-insulating properties may also be valuable in bearings. Two drawbacks to ceramic bearings are a significantly higher cost and susceptibility to damage under shock loads.
* Aircraft generators
* Biotechnology equipment
* High speed machining and grinding spindles
* high speed mills
* Precision instruments
* Pumps and compressors
Other applications of ceramics
Ceramics can be used in place of steel for ball bearings. Their higher hardness means they are much less susceptible to wear and typically last for triple the lifetime of a steel part. They also deform less under load, meaning they have less contact with the bearing retainer walls and can roll faster. In very high speed applications, heat from friction during rolling can cause problems for metal bearings, which are reduced by the use of ceramics. Ceramics are also more chemically resistant and can be used in wet environments where steel bearings would rust. In some cases, their electricity-insulating properties may also be valuable in bearings. Two drawbacks to ceramic bearings are a significantly higher cost and susceptibility to damage under shock loads.
New code | 629 bearing |
Bearing type | Full Ceramic Bearing |
Brand | OEM |
Id (mm) | 9 |
OD (mm) | 26 |
B (mm) | 8 |
Cr(KN) | 4.55 |
Cor(KN) | 2.00 |
Speed for grease lubrication (r/min) | 27000 |
Oil lubrication speed (r/min) | 33000 |
Weight(kg) | 0.019 |
Material | Chrome steel or Stainless steel |
Delivery time | 2-3 days of stock, 15-30 days for OEM |
Packing | Standard NSK bearing package |
Payment terms | T/T, Western Union, Paypal |
Gurantee | 2 years |
Si3N4 Ceramic Bearing
-resist up to 800 degree
-very tight - approx.45% of
the weight of steel bearings

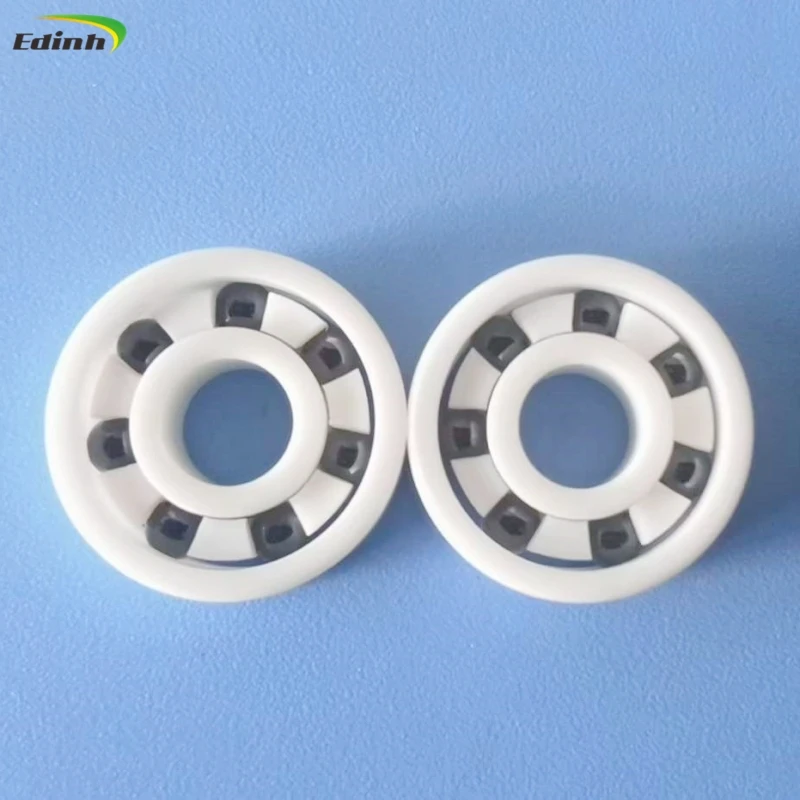

ZrO: Ceramic Bearing
-cost-effective than Si3N4
-resist up to 400 degree
-light - approx.70% of theweight of steel bearings
-higher fracture toughness
-withstand small shock loads

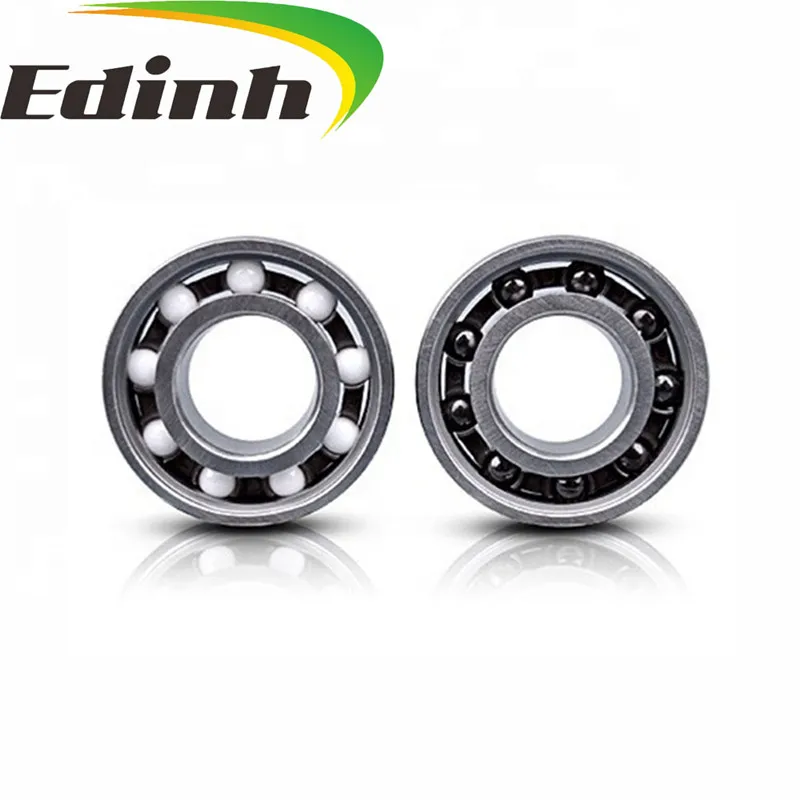

Hybrid Ceramic Bearing
Stainless with Si3N4 Ball
- highest potential spin time
- quieter than full ceramic
Hybrid Ceramic Bearing
GCR 15 with Si3N4 Ball
-cheaper than ceramic with
stainless outer ring
Size Information
Item | ID(mm) | OD(mm) | Width(mm) | weight(g) | Cr(kN) | Cor(KN) |
6202 | 15 | 35 | 11 | 45 | 7650 | 3750 |
6203 | 17 | 40 | 12 | 67 | 9550 | 4800 |
6204 | 20 | 47 | 14 | 107 | 12800 | 6600 |
6206 | 30 | 62 | 16 | 199 | 19500 | 11300 |
6205 | 25 | 52 | 15 | 129 | 14000 | 7850 |
6200 | 10 | 30 | 9 | 32 | 5100 | 2390 |
6201 | 12 | 32 | 10 | 37 | 6800 | 3050 |
6207 | 35 | 72 | 17 | 284 | 25700 | 15300 |
6208 | 40 | 80 | 18 | 366 | 29100 | 17900 |
6209 | 45 | 85 | 19 | 420 | 31500 | 20400 |
Related Products
Customer Photos
ZAOZHUANG YIDING BEARING CO.,LTD
ls specialized in bearings export production selling and after-service. In practice for many years,we established strict quality assurance system.
Our products range covers Cylindrical Roller Bearing, Needle Roller Bearing, Tapered RollerBearing, Spherical roller bearing, Deep Groove Ball Bearing, Angular Contact Ball Bearing (single row& double row),Thrust Ball/Roller Bearing, Linear bearing,Plain shaft(Axis) series, Linear guide rail,Rod end bearing, Joint bearing, Stainless Steel Bearings, Ceramic bearings,Plastic bearing, Thinwall bearing, Excavator bearing, Rotor bearing and so on. They are widely used in applications likeAgriculture, Automotive, Steel industry, Pumps & Compressors, Railways, Mining & Construction,Motorcycles, Electric Motors,Printing and Power Tools, etc.
We can do OEM products, and do following drawings.
We are the agent of world famous brands:NSK NTN KOYO NACHI ASAHI KO THK UBC NMB DPI and so on.
Our principle is service and quality Firstl! By ceaselessly improve our quality and, our products win highpraise for our favorable price...
Buyer Feedback
Packing & Shipping
package | 1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet |
Delivery Time | 1-3 days after order |
Shipping | by air to door address / by sea to sea port |
FAQ
Q1: What the MOQ of your company?
Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter highercost,
ure the more you purchase the cheaper cost you could get.
Q2: Could you accept OEM and customize?
Yes,we can customize for you according to sample or drawing.
Q3: Could you supply sample for free?
Yes,we can supply sample for free,do you mind to buy her a ticket?
Q4: Dose your factory have any certificate?
Yes we have ISO 9001:2008,IQNET and SGS. If you want other like CE ,we can do for you.
Q5: IS you company factory or Trade Company?
We have our own factory ;our type is factory +trade.
Q6: Could you tell me the material of your bearing?
We have chrome steel, and stainless steel,ceramic and plastic material.
Q7: Could you offer door to door service?
Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
Q8: Could you tell me the payment term of your company can accept?
T/T.Western Union,PayPal
Q9: Could you tell me the delivery time of your doors?
If stock,in 7days or base on your order quantity
Q10:Can you give me some discount?
Yes, you can, contact me immediately to get more discounts.
