Multi function PP PE plastic product recycling machine Plastic Recycling Extruder Granulating plastic pelletizing machine
- Category: >>>
- Supplier: Laizhou Keda Chemical Machinery Co. Ltd.
Share on (1600932019490):
Product Overview
Description
Product Description
Product Application
We have many designs according to different material like HDPE , LDPE , PP , PPR , ABS , EPS etc. All models are reasonable in design, easy in operation, convenient in maintenance with high output and low consumption .
Raw Materials of Recycled plastic pelletizing machine :
Pipes , Transparent packaging , Houseware / household products/ household appliances, Fruit box , Beverage bottle , Microwave cooker , Water bottle , Detergent bottle , Personal care packaging etc.
Process flow of Plastic pelletizing machine :
Convey feeder → Extruding machine → Die-head and High speed screen exchanger → water-ring pelletizing machine (or strand cutting) → Dewatering machine → Cutting → Air conveying Blower → Storage silo
Remarks
Concerning more details of our products , you can tell me your concrete requirement. For example : the raw materials , hourly output and so on. The more concrete, the better
Wish we have the opportunity to cooperation.
We have many designs according to different material like HDPE , LDPE , PP , PPR , ABS , EPS etc. All models are reasonable in design, easy in operation, convenient in maintenance with high output and low consumption .
Raw Materials of Recycled plastic pelletizing machine :
Pipes , Transparent packaging , Houseware / household products/ household appliances, Fruit box , Beverage bottle , Microwave cooker , Water bottle , Detergent bottle , Personal care packaging etc.
Process flow of Plastic pelletizing machine :
Convey feeder → Extruding machine → Die-head and High speed screen exchanger → water-ring pelletizing machine (or strand cutting) → Dewatering machine → Cutting → Air conveying Blower → Storage silo
Remarks
Concerning more details of our products , you can tell me your concrete requirement. For example : the raw materials , hourly output and so on. The more concrete, the better
Wish we have the opportunity to cooperation.
Extruder | SJ110 | SJ130 | SJ140 | SJ150 | SJ180 | SJ220 |
Screw diameter | 105mm | 125mm | 135mm | 145mm | 175mm | 215mm |
Main motor | 18.5kw | 22kw | 30kw | 37kw | 45kw | 90kw |
Vice motor | 5.5kw | 11kw | 11kw | 15kw | 18.5kw | 22kw |
Capacity | 80-100kg/h | 100-150 kg/h | 150-200kg | 200-250kg/h | 250-300 kg/h | 300-400kg/h |
Characteristic:
1.unit include:extrusion granulating machine, heating system, power distribution box,cooling flume, and cutter. The machine can produces continuously and only needs one person to operate.
2.The machine are automated from feeding materrials to discharging particles.
3.Make full use of high friction uninterrupted heating system, automatic heating production,avoiding continuous heating and saving energy.

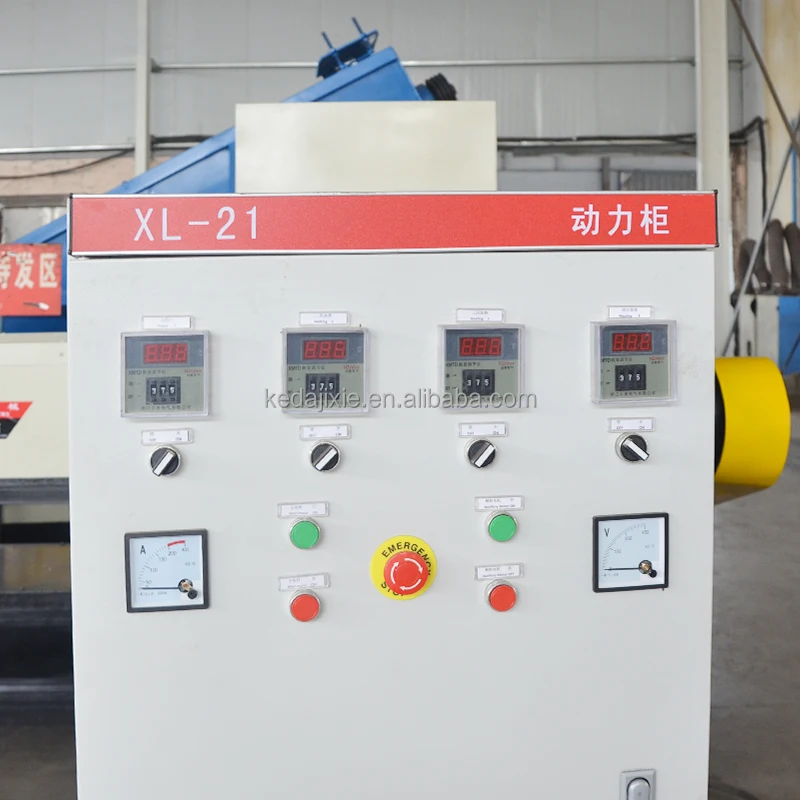

4.Using full automatic power distribution system to ensure the normal operation of the motor.
5.Screw and barrel are made of 40Cr imported high strength and high quality, durable in use.
6.Appearance of the machine is beautiful and generous. Based on customer requirements, color is sprayed.
7.The machine adopts ZLYJ series hardened reducer, noise free, maintenance free and long service life.
8.The machine is equipped with quick net changing device, convenient and efficient.
9.The machine is equipped with one hob cutting machine by electromagnetic speed-regulating and has low noise, hob can't be abrasive within 1000t.
Detailed Images
Screw steel
Screw and barrel are made of high quality carbon steel and alloy steel after quenching (spraying optional nichel alloy), improving the service lift more than five times. 40Cr imported high strength and high quality, durable in use.
Steel barrel with electromagnetic heating
The steel barrel has the drainage exhaust device. bothe dry and wet materils can bi produced. it has high manufacturing strength for 24 hours of continuous non-stop production.

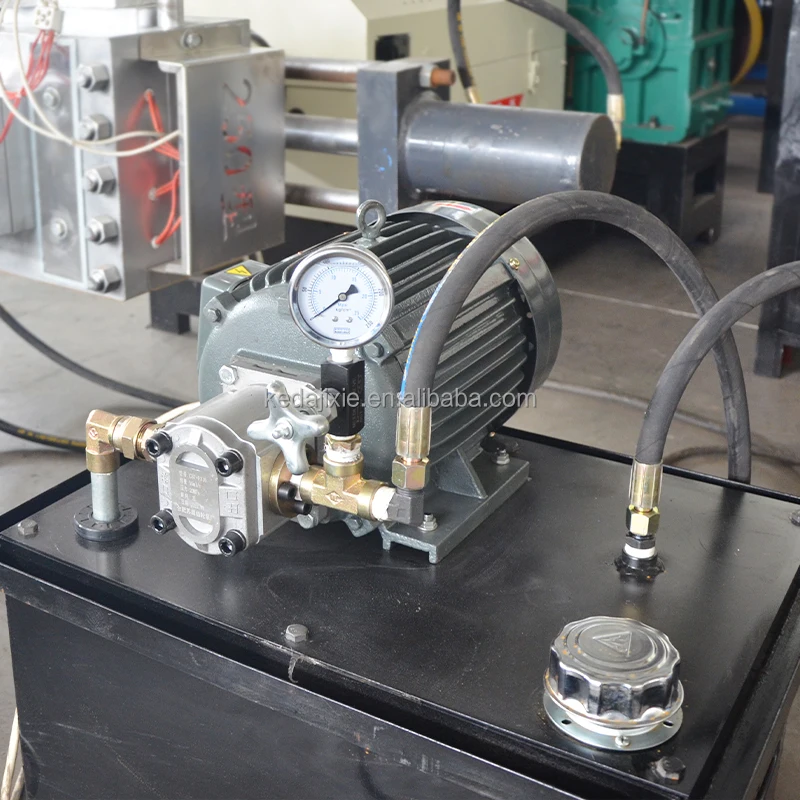

Hydraulic non-stop screen exchanger
left and right hydraulic dual-mode double heads, cartridge filter ect, non-stop for rapid changing net,reduces changing net pressure and improves production efficiency.

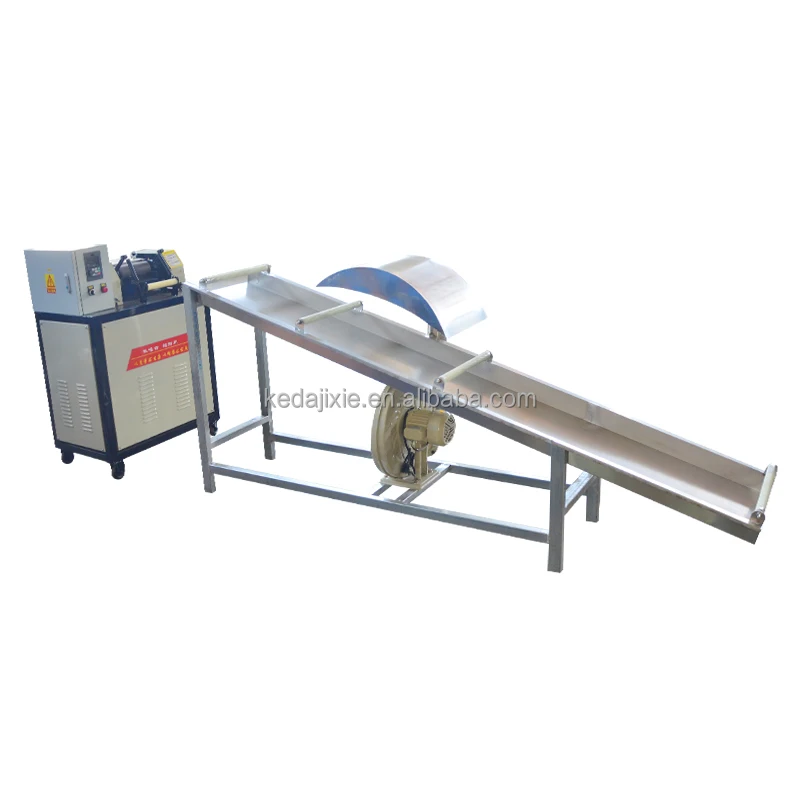

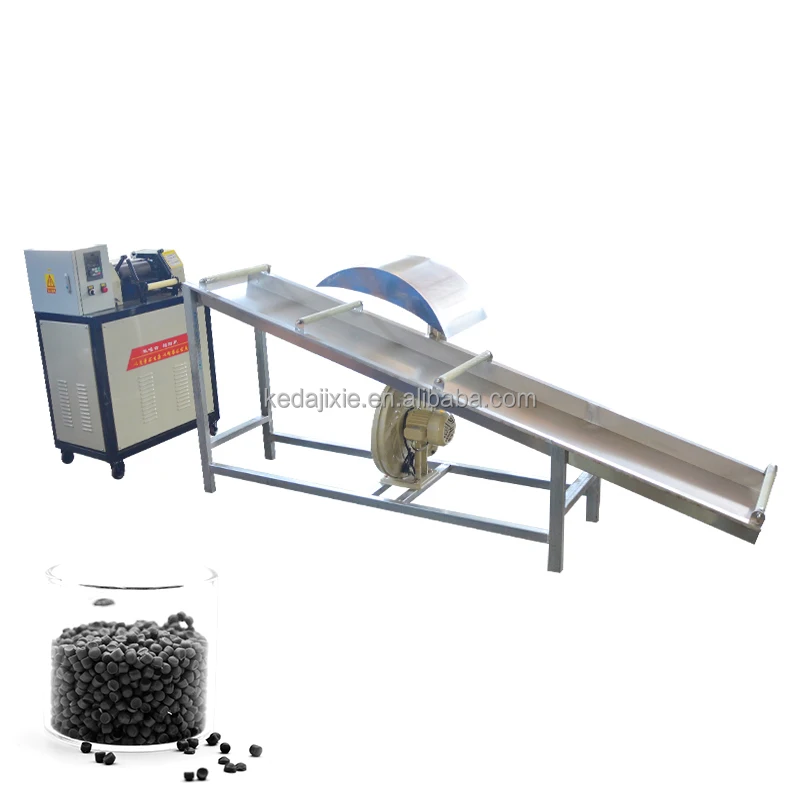

Hob cutting machine
hob cutting machine by electromagnetic speed-regulating and has low noise, hob can't be abrasive within 1000t.
Storage silo
Material: ss201 1 stainless steel
