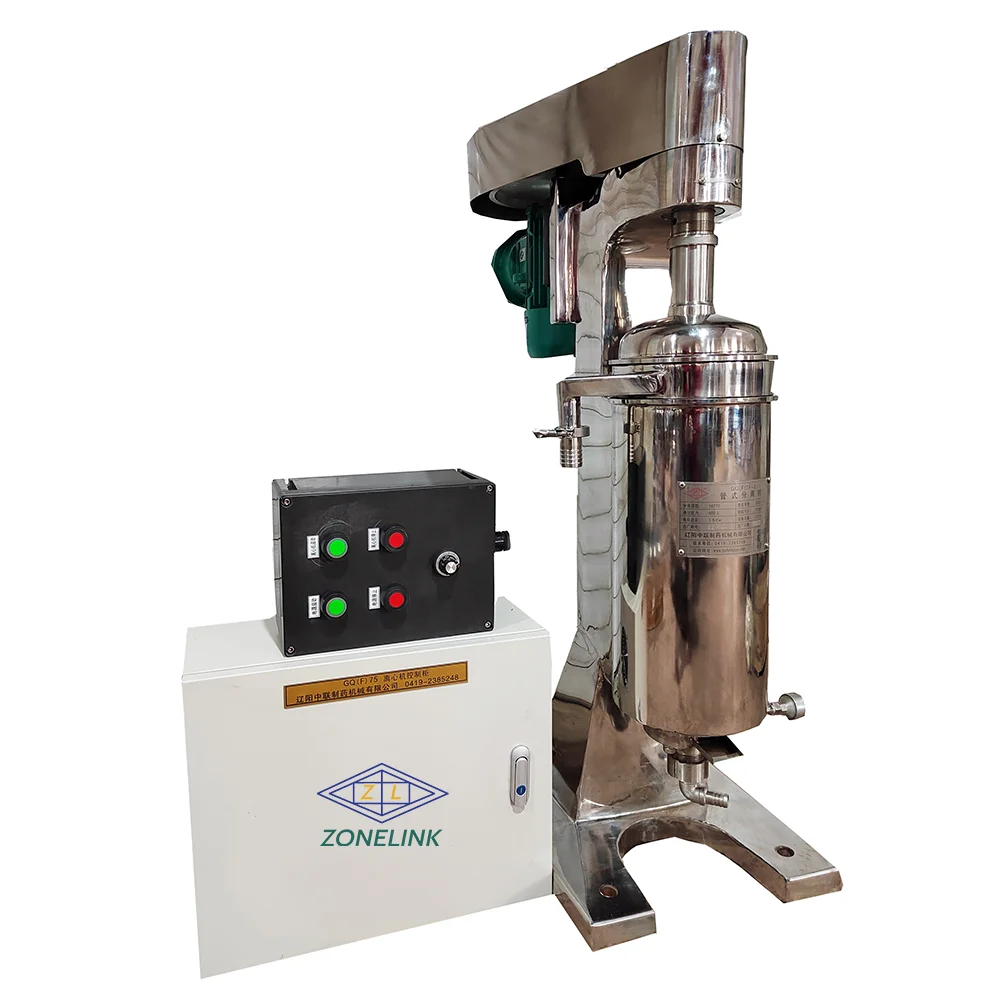

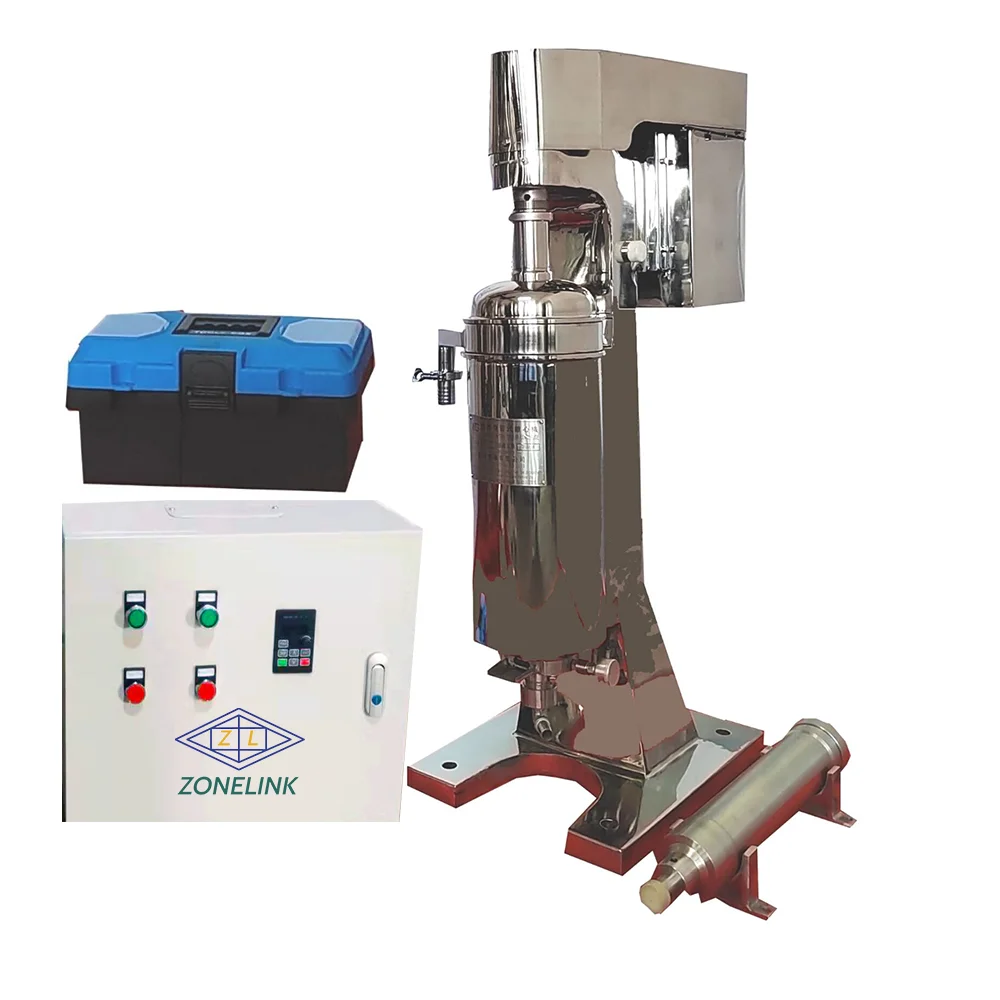

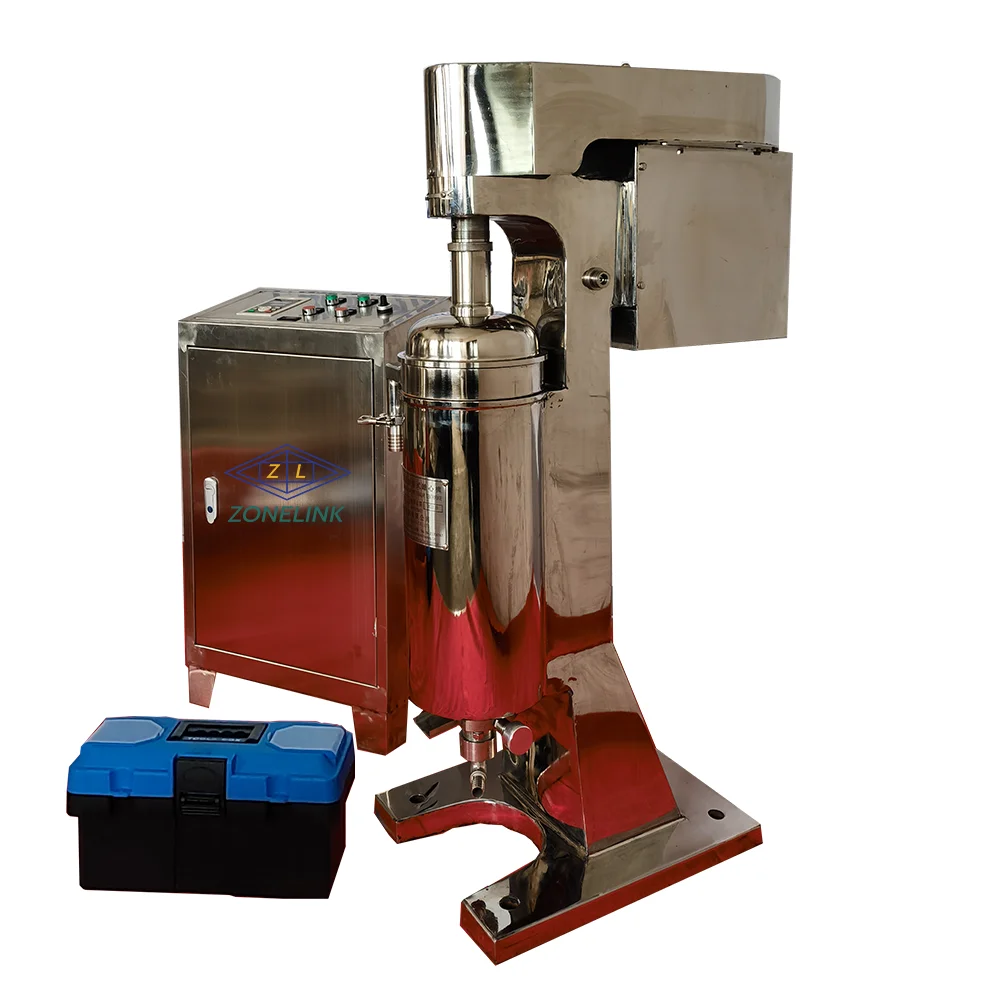

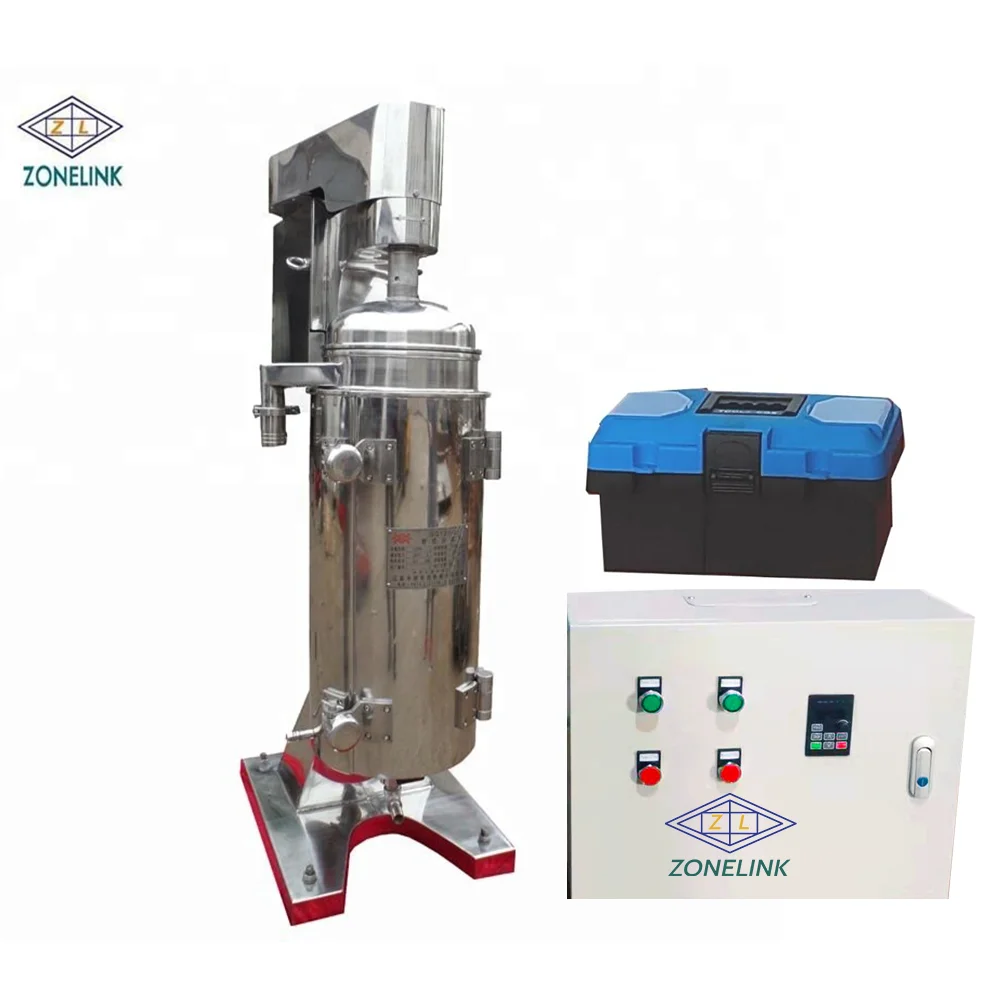

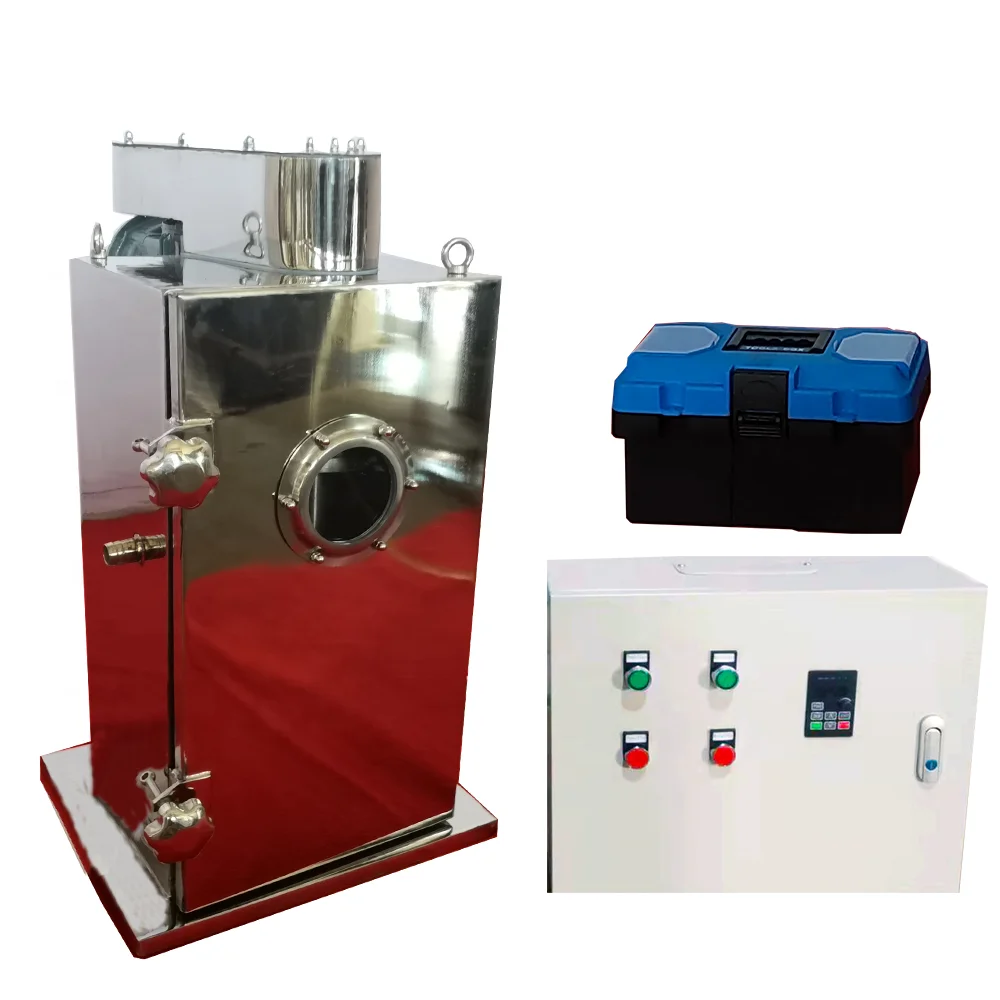

Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter
Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter
Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter
Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter
Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter
Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter
Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter

Shea Butter Oil Separating Purification Machine tubular 12l centrifuge tube with filter

Share on (1600932129309):


Price:$5,300.00 - $5,500.00

Quantity:


Product Overview

Description




product
product

Noted:product name: tubes centrifuge centrifuge glass tube centrifugal tube for milk
The page price is only for reference only, please contact the sales at the bottom of the page, they will quote for you according to the actual situation of your needs.thank you!

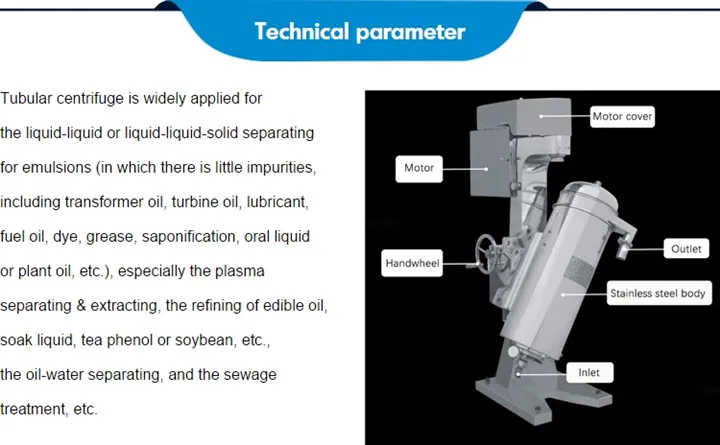

photobank (11)
productproductproduct

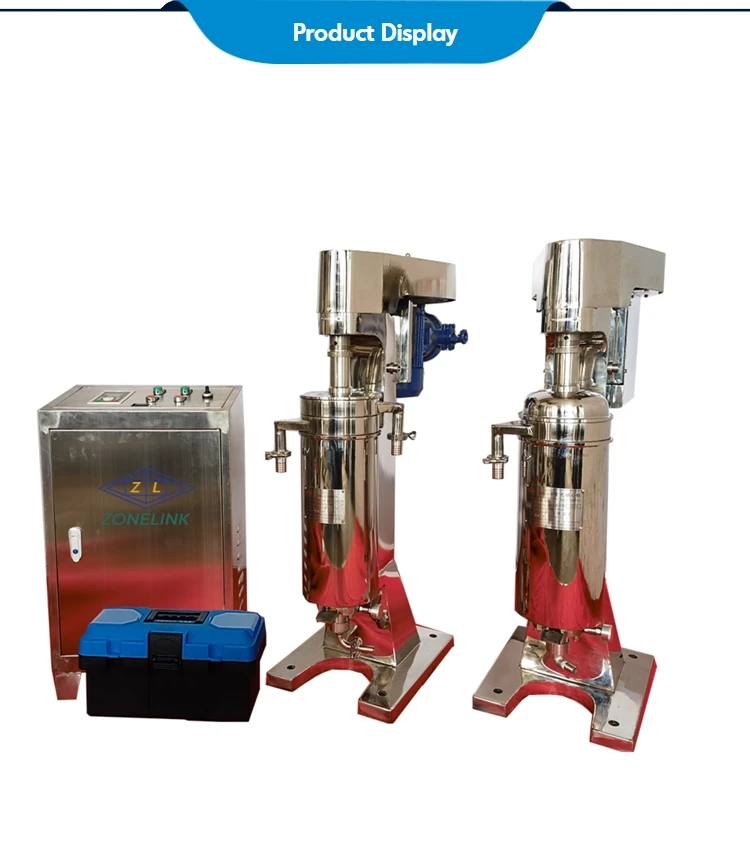

Tubular Centrifuge Separator Machine

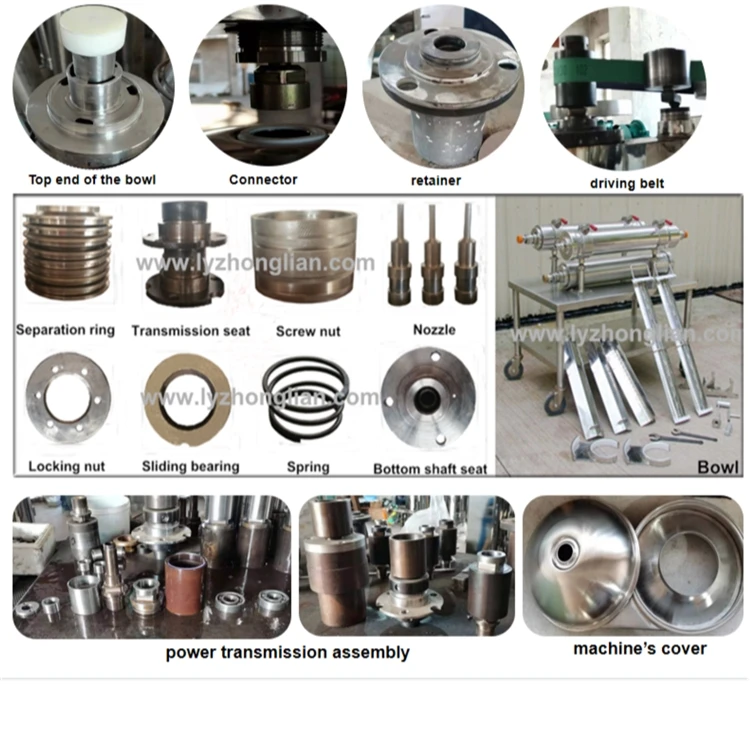

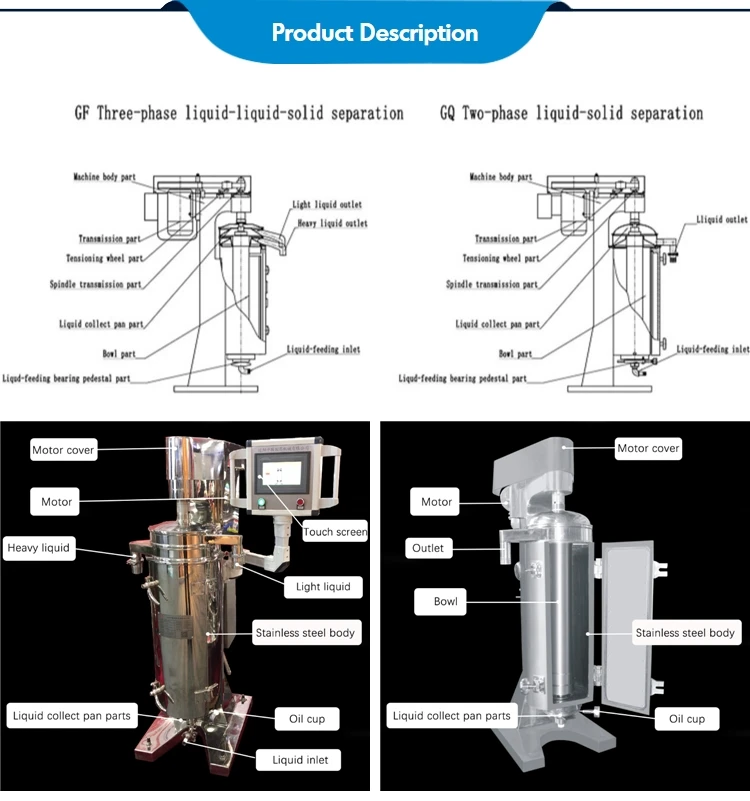

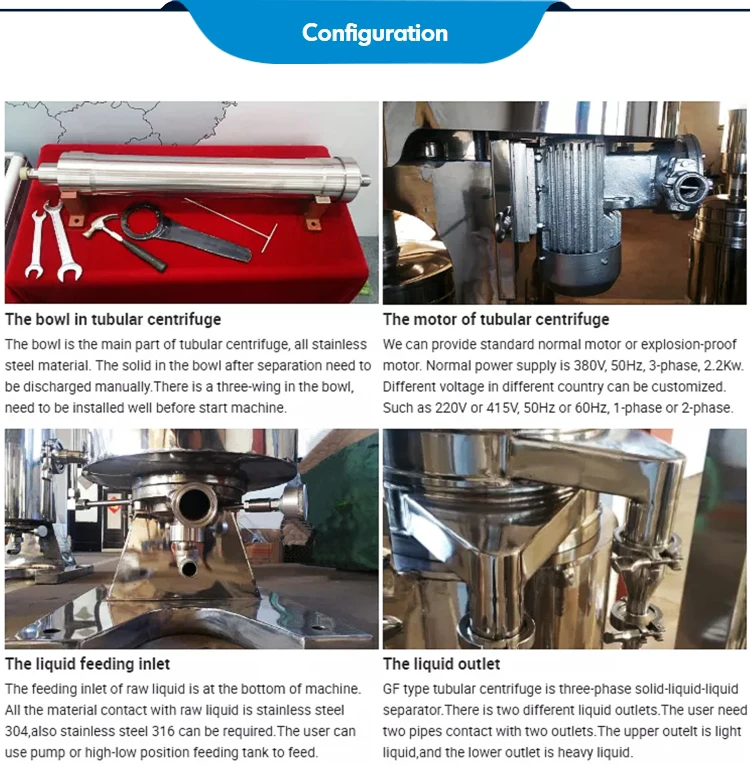

It is a high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.

ModelGF45GF75GF105GF125GQ150
GQ45GQ75GQ105GQ125
Inner diameter(mm)4575105125142
Rotary speed(r/min)3000019000163001500014000
Volume(L)0.42.26810
Separation factor(w2 r/g)2116815700156201575015700
Productivity (water flow)(kg/h)100600120015002500
Power(kw)0.551.52.233
Weight(kg)90300570610665
Diamensions(mm)(L*W*H)480*460*800760*450*1120840*500*1600900*550*16001020*600*1600

product
product
product
product
product

product
product
7C09891C026BDBDF4E75084F2FDDAB37
Q:How to choose the suitable machine?
A:The proper selection of the vibrating screen depends on the material, number of layers, every mesh size, capacity, material
moisture, viscous and corrosive etc:
Name and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading
Handling capacity: kg /h, L/h
The raw material size: (mesh or mm)
How many final materials you want, or how many layer you need?
Local power supply (voltage and frequency)
Note: You had better send us the relevant pictures about the details.
Q:How many kinds of material are supported?
A:All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
Q:Is it special requirement available?
A:Yes, the equipment could be designed according to customer''s using aim or special requirements.
Q: We found out the voltage supply is only 220V and our voltage requirement is 440VAC, could you please offer us those?
A:Yes, we can offer machines with any voltages and frequencies existing on the earth.
Q: How about the warranty of equipments purchased?
A: The warranty period is for one year for whole machine except the consumable and wearing parts. We are always glad to provide
technical supports and solutions for the whole using life.
Q: How long will my order take?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.

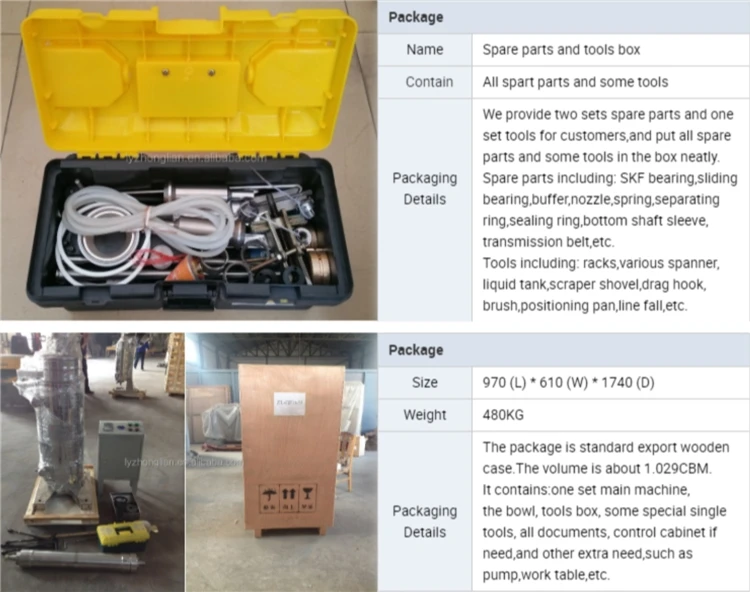

Q: How about the packing of machine, can I use my own logo on packages?
A:Normally we are using fumigation-free plywood case to pack machines. We can mark your own logo on the packages. And also can be
neutral packing for your convenience.
Q:How to install and configure a rotary vibrating screen?
A:Very easy, we have served thousands of customers home and abroad,when delivering the machine we just attach a video manual,you
may follow us on youtube Vibrating Screen Exper.
