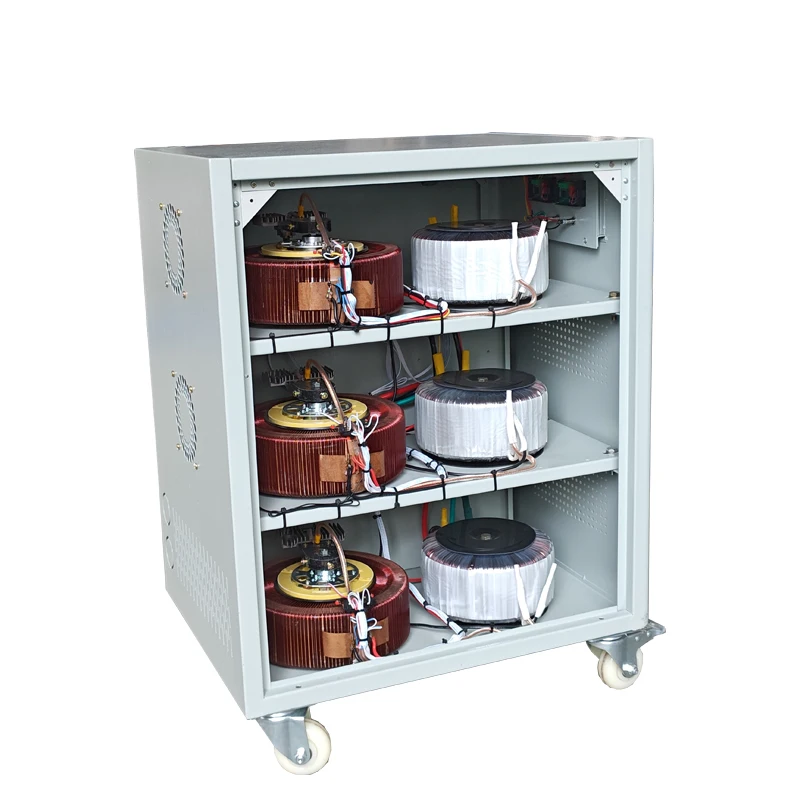

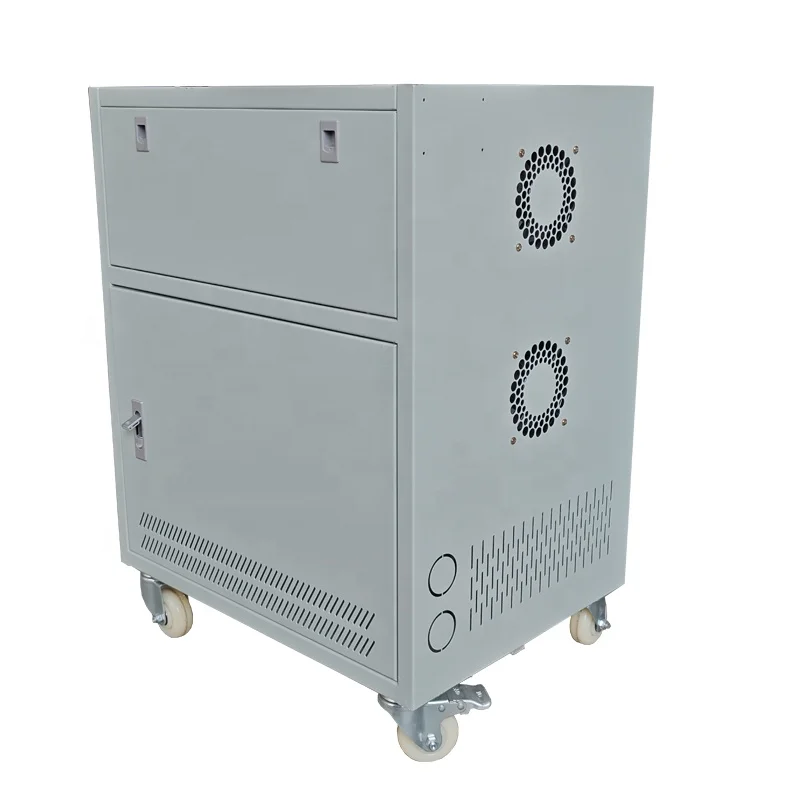

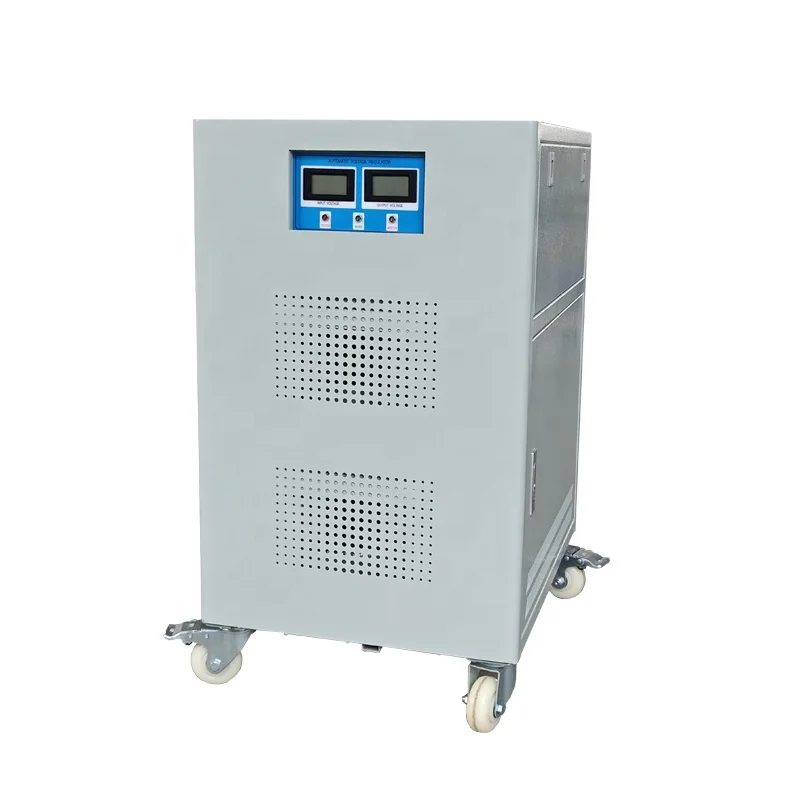

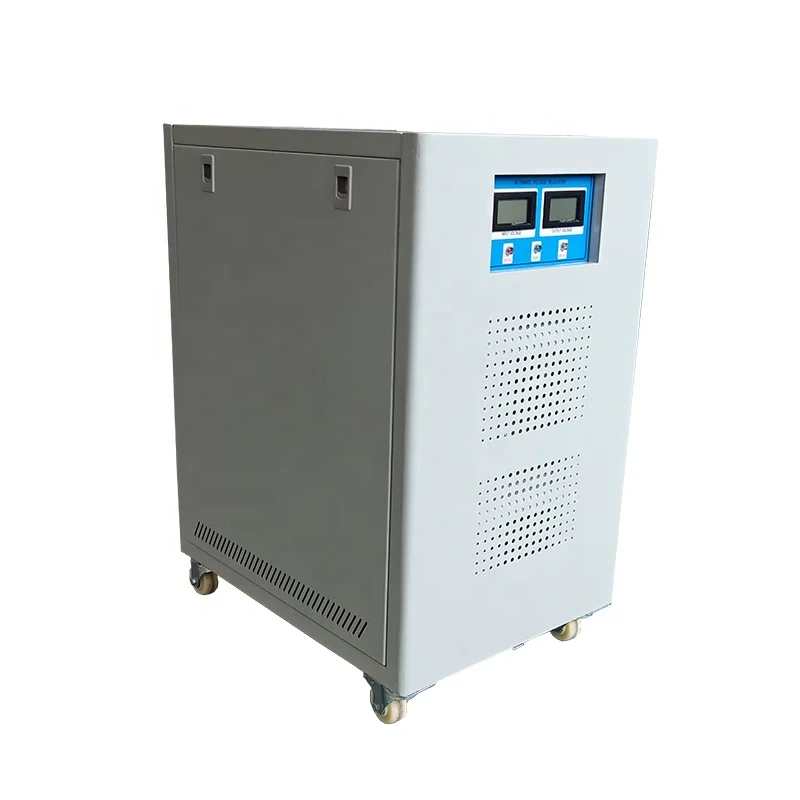

XQ TND 20KVA 20KVA SVC Stabilizer Voltage 16KW single phase Servo voltage stabilizer
- Category: >>>
- Supplier: Dongguan Xingqian Electronic Technology Co. Ltd.
Share on (1600932156586):
Product Overview
Description
Product Description
XQ-TND-20KVA 20KVA SVC Stabilizer Voltage single phase 16KW Servo voltage stabilizer
1、CPU intelligent control, stable and reliable
2、 Main Control PCB adopts SMT process.
3、Electronic components all adopt imported brands.
4、 LCD screen, easy setup with menu button
5、Withstand all kinds of load
Control Method | Servo Motor（Microprocessor CPU） |
Power Factor | PF≥0.8 |
Efficiency | ≥98% |
Response time | ≤0.5S |
Delay time(When it is on) | ≤5s（Optional） |
Waveform Distortion | ≤1℅ |
Over Voltage | The output voltage is higher than 10℅（adjustable)，cut off the input in 3~5s |
Under Voltage | The output voltage is lower than 15℅（adjustable)，cut off the input in 3~5s |
Overload | If over current，cut off the input in 3~5s |
Phase Dislocation | When there is phase dislocation, alarm and cut off the input power |
Phase Loss | When there is phase loss, alarm and cut off the input power. |
Short Circuit | When the load device is short circuited, cut off the input power |
Bypass | When the AVR fails or is repaired, the power transfer to bypass manually or automatically |
Input Voltage | Real-time display of the input voltage |
Output Voltage | Real-time display of output voltage |
Output Current | Real-time display of working current |
Working Status | AVR, Bypass, Fuse Blown, Over-voltage, Under-voltage,Over-load etc. |
Cooling System | Air |
Insulation Resistance | ≥2MΩ |
Voltage-endurance | The whole machine has no breakdown and no arcing phenomena for 2000VAC/ min. |
Noise | ＜65dB/m |
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | XQNE |
Model Number | XQ-TND-20KVA |
Usage | SVC |
Phase | Single Phase |
Current Type | AC |
Rated Voltage | 1 x 220VAC (1Phase + N) |
Voltage Range | 180VAC ~ 250VAC |
Frequency | 50/60 Hz |
Product Name | XQ-TND-20KVA 20KVA SVC Stabilizer Voltage single phase 16KW Servo voltage stabilizer |
Stabilizing Accuracy | ±1% ( 1%~ 5% Adjustable) |
System Protection | AVR, Over-voltage, Under-voltage,Over-load etc. |
Ambient Temperature | 0℃-45℃ ( No condensation ) |
Product Size WxDxH(mm) | 460*380*550mm |
Gross Weight | 70KGS |
