Product Overview
Description
Product Description
Functional parameters of A8 full digital ultrasonic diagnostic instrument
1.Display: 5.7-inch LED display;

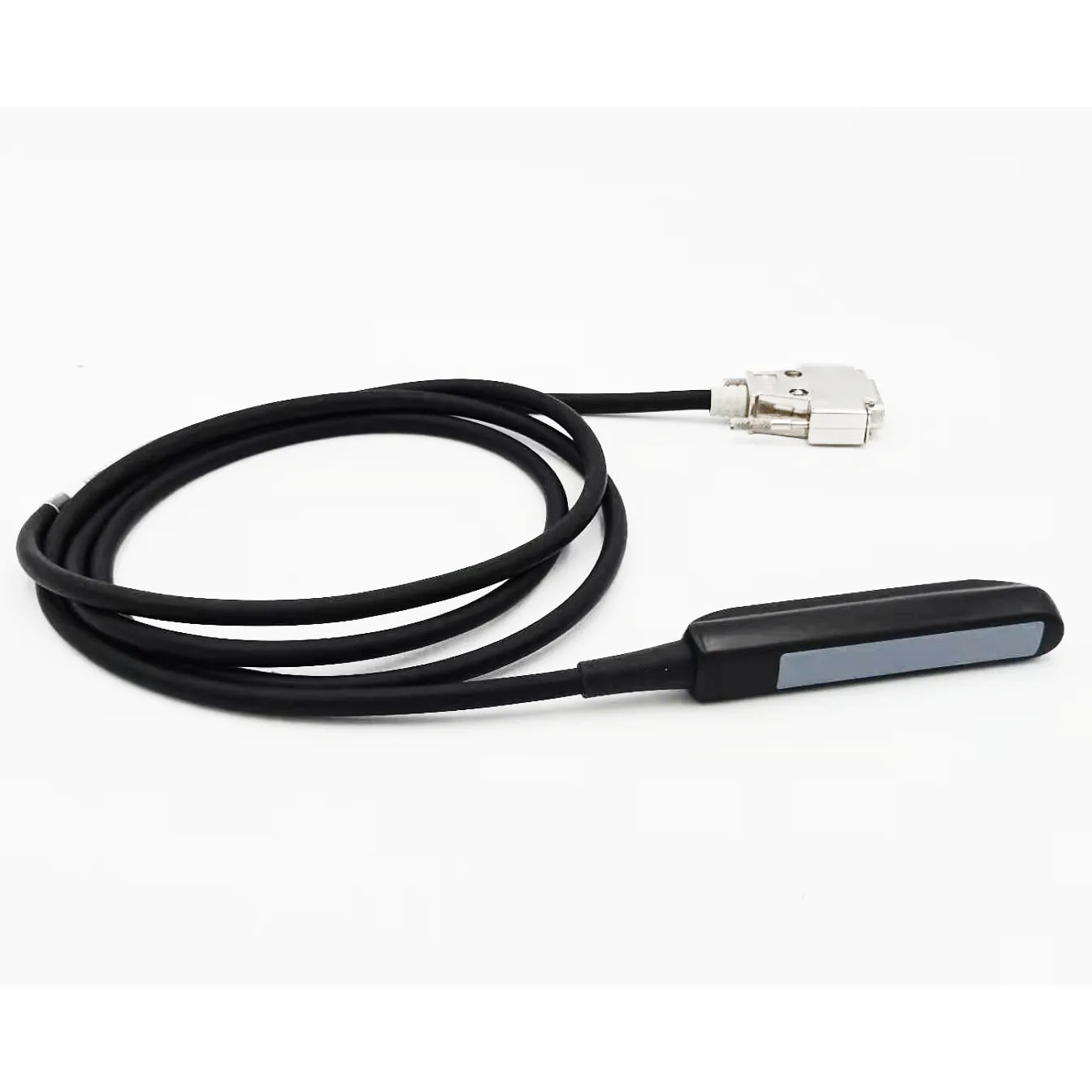

2.support probe: 3.5MHz abdominal convex array probe, 6.5mhz micro convex small animal probe, 6.5mhz veterinary rectal probe,7.5MHz high frequency linear array probe, 3.5MHz backfat probe;;
3.It has automatic backfat function (intelligent one key measurement), fast backfat function (mobile reading ruler) and manual backfat measurement function;
4.Display mode: B, B + B, 4b, B + m, m;
5.Electron focusing: four stage electron focusing;
6.There were more than 18 body position markers;
7.Frequency conversion: any probe has five section frequency conversion function;
8.Image image: rotate the image up, down, left and right, and flip the interface in black and white;
9.With image rotation function, the image can be flipped up, down, left and right;
10.In addition, it has annotation function, which is convenient for text and body mark annotation;
11.Routine measurement: distance, perimeter, area, volume and angle;
12.Specialty measurement, heart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals
13.It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly
14.Character display: gain, frequency, dynamic, date, time;
15.It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;
16.Storage: it can be equipped with 8g memory card and external U disk for storage. It can browse pictures and transfer built-in pictures to U disk;
17.Dynamic range: 0-135db;
18.Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo color processing;
19.Blind area: ≤ 4
20.The maximum display depth is 3.5MHz: 270mm, 6.5mhz: 189mm, 7.5MHz: 165mm;:
21.organization harmonic, histogram function

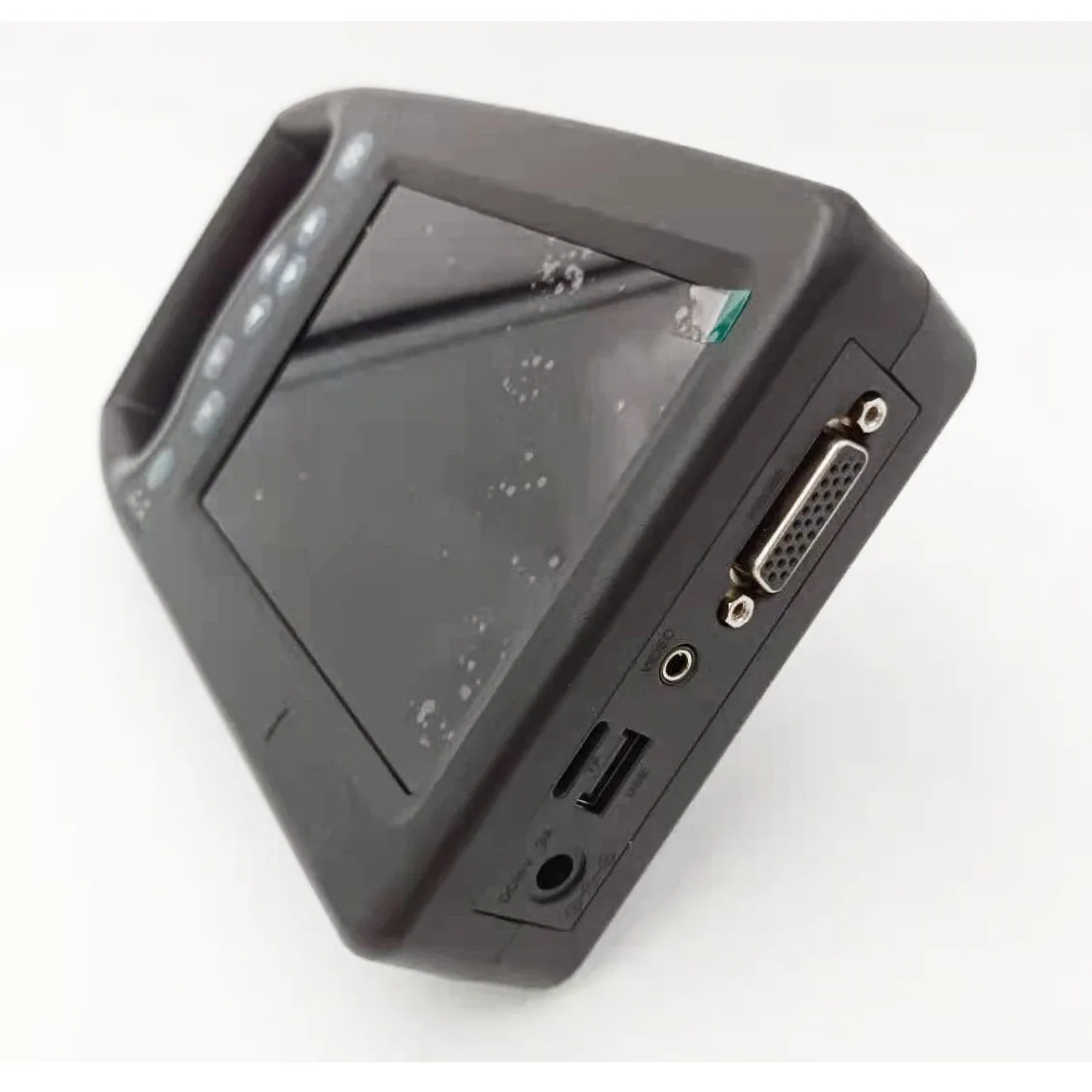

22.Interface: USB interface, PAL-D / NTSC video, VGA;
23.Geometric accuracy: transverse ≤ 5%, longitudinal ≤ 5%
24.Resolution: lateral ≤ 2mm, axial ≤ 1mm
25.Display magnification: 16 display modes;
26.Gain range: 0-100db;
27.Near field adjustment range: - 31 ~ 0;
28.Far field adjustment range: 0 ~ 31;
29.It has time and date, video output, TV mode, key tone switch, parameter mode, standby protection, multi language selection,custom gestational age and other settings;
30.Battery power indication, U disk indication, prompt information display;
31.Large capacity lithium battery, imported 18650 standard cell, can work for about 4 hours;
32.Host size: 245x130x44mm (length x width x height);
33.Main engine weight: 740g;
34.Double cooling channels, more smooth cooling
2.support probe: 3.5MHz abdominal convex array probe, 6.5mhz micro convex small animal probe, 6.5mhz veterinary rectal probe,7.5MHz high frequency linear array probe, 3.5MHz backfat probe;;
3.It has automatic backfat function (intelligent one key measurement), fast backfat function (mobile reading ruler) and manual backfat measurement function;
4.Display mode: B, B + B, 4b, B + m, m;
5.Electron focusing: four stage electron focusing;
6.There were more than 18 body position markers;
7.Frequency conversion: any probe has five section frequency conversion function;
8.Image image: rotate the image up, down, left and right, and flip the interface in black and white;
9.With image rotation function, the image can be flipped up, down, left and right;
10.In addition, it has annotation function, which is convenient for text and body mark annotation;
11.Routine measurement: distance, perimeter, area, volume and angle;
12.Specialty measurement, heart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals
13.It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly
14.Character display: gain, frequency, dynamic, date, time;
15.It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;
16.Storage: it can be equipped with 8g memory card and external U disk for storage. It can browse pictures and transfer built-in pictures to U disk;
17.Dynamic range: 0-135db;
18.Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo color processing;
19.Blind area: ≤ 4
20.The maximum display depth is 3.5MHz: 270mm, 6.5mhz: 189mm, 7.5MHz: 165mm;:
21.organization harmonic, histogram function
22.Interface: USB interface, PAL-D / NTSC video, VGA;
23.Geometric accuracy: transverse ≤ 5%, longitudinal ≤ 5%
24.Resolution: lateral ≤ 2mm, axial ≤ 1mm
25.Display magnification: 16 display modes;
26.Gain range: 0-100db;
27.Near field adjustment range: - 31 ~ 0;
28.Far field adjustment range: 0 ~ 31;
29.It has time and date, video output, TV mode, key tone switch, parameter mode, standby protection, multi language selection,custom gestational age and other settings;
30.Battery power indication, U disk indication, prompt information display;
31.Large capacity lithium battery, imported 18650 standard cell, can work for about 4 hours;
32.Host size: 245x130x44mm (length x width x height);
33.Main engine weight: 740g;
34.Double cooling channels, more smooth cooling
Specification
item | value |
Brand Name | Zetop Medical |
Model Number | A8 |
Properties | Diagnosis & Injection |
Product name | Veterinary Monitor |
Screen | 5.7 inch LED screen |
Probe | 3.5 MHz abdominal convex array probe |
Display mode | B, B+B, 4B, B+M, M |
Electronic focus | four-segment electronic focus |
Body position markers | ≥18 kinds |
Frequency conversion | five-segment frequency conversion function |
Dynamic range | 0-135dB |
Blind area | ≤4 |
Maximum display depth | 3.5MHz: 270mm |
