Low Cost Underfloor Heating Panel
- Category: >>>
- Supplier: Hangzhou Tyco Industrial Co. Ltd.
Share on (1600932170483):
Product Overview
Description
Product Description

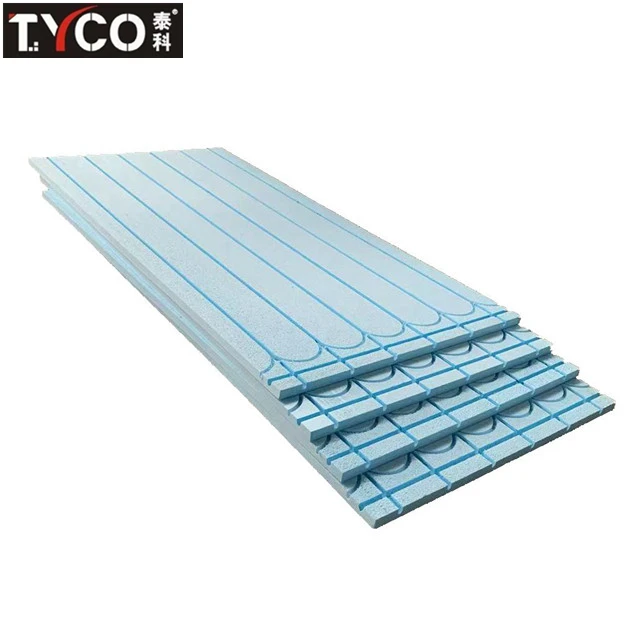

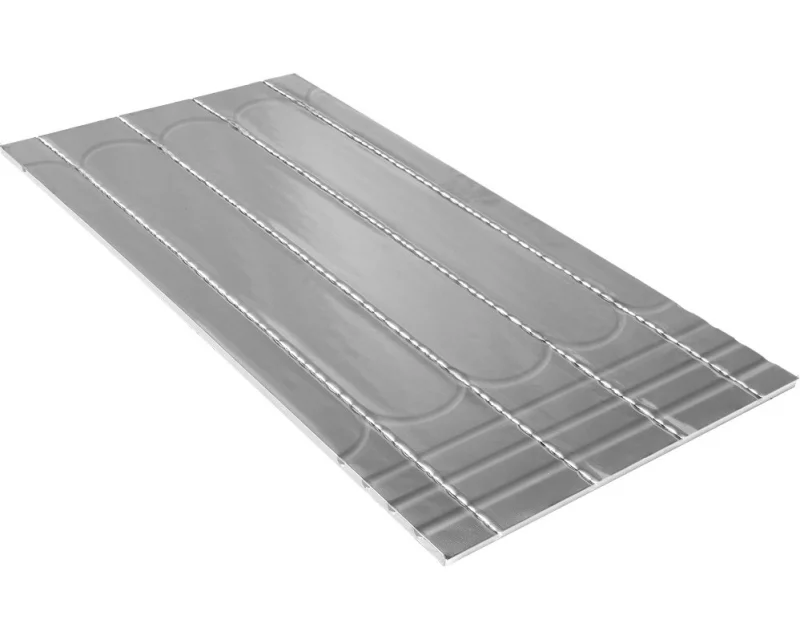

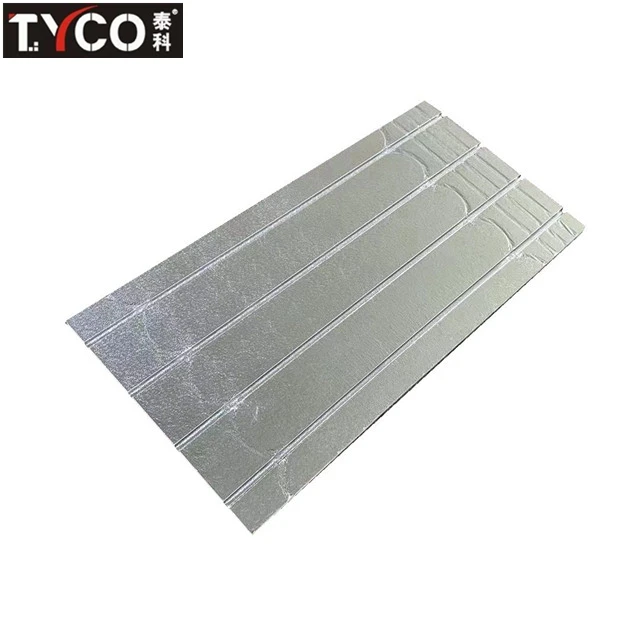

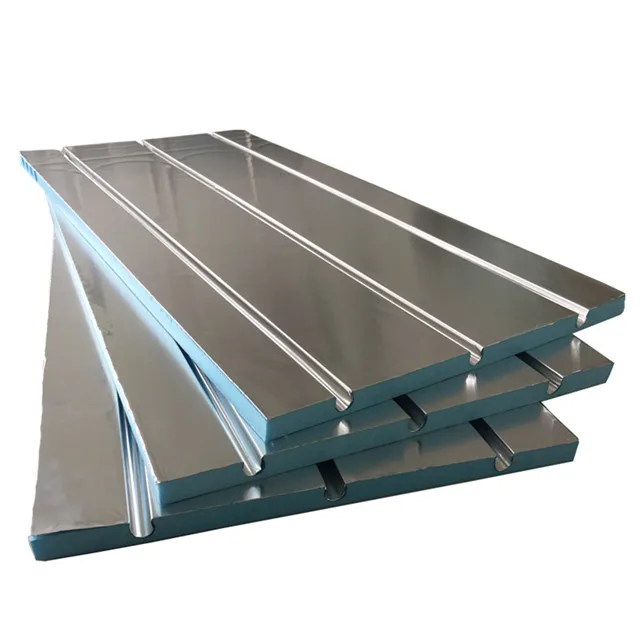

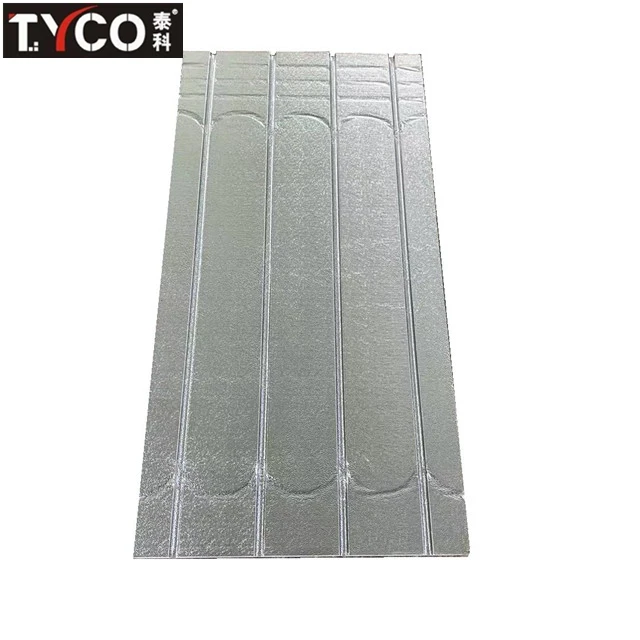

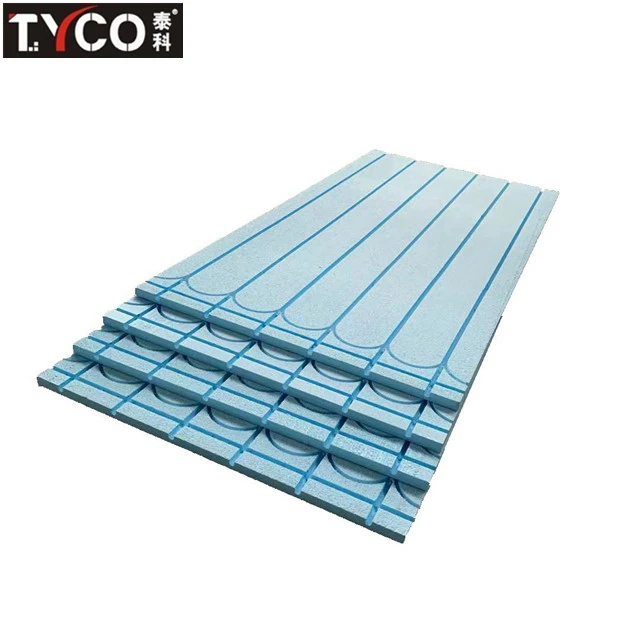

TYCO underfloor heating panel is made by grooved XPS/EPS foam board for heat insulation and covered with aluminum layer for
thermal conductivity.
TYCO underfloor heating panel is
● Raw material free of CFC, HCFC, HBCD, approved by REACH and EN13164
● High compressive strength at least 350 kpa (1 SQM hold 30 tons weight)
● Waterproof, fireproof, soundproof
● Various insulation board thickness and aluminum layer thickness for different budget
● Do small influence to room space
● Dry installation, support DIY cutting
● Quick handle, two women can finish 1000 SQM room within two hours
Technical Data
Tyco underfloor heating panel specification data
Density | kg/cbm | 32~35 |
Thermal conductivity, 90days, 10℃ | w/mk | 0.027~0.03 |
Compressive strength at 10% deflection or yields, (vertical) | kpa | ≥300 |
Tensile strength | kpa | ≥300 |
Water absorption | vol-% | ≤1% |
Capillarity | nil | nil |
Coefficinet of linear thermal expansion | mm/mk | 0.07 |
Temperature limits | ℃ | -50℃~+75℃ |
Specification

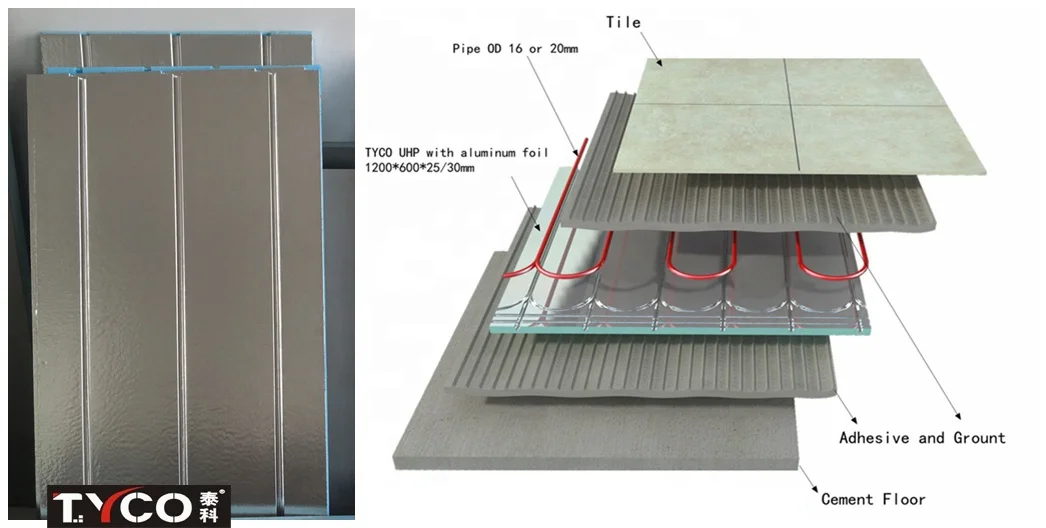

For tile finished floor
Item No. | Size of the Panel | Pipe OD | Chanel spacing | Thickness of AL |
UHP-AL20-16 | 1200*600*20mm | 16mm | 150/200mm | 100/200micron |
UHP-AL25-16 | 1200*600*25mm | 16mm | 150/200mm | 100/200micron |
UHP-AL30-20 | 1200*600*30mm | 20/16mm | 150/200mm | 100/200micron |

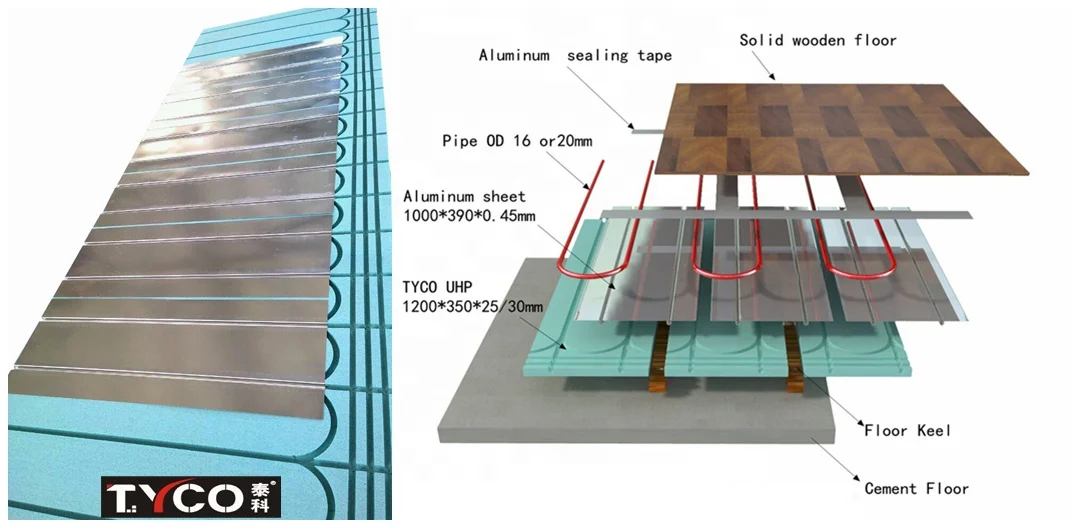

For wood finished floor
Item No. | Size of the panel | Pipe OD | Chanel distance |
UHP25-16 | 1200*600*25mm | 16mm | 15/20cm |
UHP30-20 | 1200*600*30mm | 20mm | 15/20cm |
AL Sheet | 1000*390*0.45mm | 16/20mm | 15/20cm |
EPS400 both for tile and wooden floor
Item No. | Size of the Panel | Pipe OD | Chanel distance | Thickness of AL | Compressive Strength |
EPS 400-2016-0.2 | 1200*600*20mm | 16mm | 150mm | 0.2mm | 400kpa |
EPS 400-2016-0.1 | 1200*600*20mm | 16mm | 150mm | 0.1mm | 400kpa |
Who We Are
Packing & Delivery
Underfloor heating panel normally pack by pp bag, 10pcs/bag
Aluminum sheet pack by carton, 40pcs/ctn, finally with pallet
Certifications
FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer over 20years and we export to whole world over 10years.
Q: How does your factory control quality?
A: We do quality control from the very beginning of raw material to the end of production. Each batch of products will be tested with caution before packing and delivery. We have testing equipment and staff in our QC department.
A: We are manufacturer over 20years and we export to whole world over 10years.
Q: How does your factory control quality?
A: We do quality control from the very beginning of raw material to the end of production. Each batch of products will be tested with caution before packing and delivery. We have testing equipment and staff in our QC department.
A: Layout is available, and its not free, cost depends on heating area, our advice is you calculate total heating area in square meter then notice us, we will check what quantity you need, for detailed layout plan, as long as your floor is clean and even, you can put board on floor directly, and do DIY.
Q: My floor is tile/wooden floor/carpet/concrete, what kind of board do you recommend?
A: Towards different floor and budget, we offer different heating solutions for you, welcome to send inquiry for more information.
Q: My floor heating plan is floating keels, 600mm wide board not suitable for me, can you do specific board for me?
A: Sure, OEM and ODM is supportive, we can make specific size board to fit your floor very well.
A: Sure, OEM and ODM is supportive, we can make specific size board to fit your floor very well.
Q: Can I get samples before ordering?
A: Yes, small size sample is free, and express fee need to be bear in your side.
Q: How about MOQ and delivery?
A: Here is no MOQ if we have enough stock of standard board.
Delivery time will be 15~20days for LCL order(less than full container load), and 30days for FCL order(full of container load).
Q: Do you support to door delivery service?
A: Yes, we can handle whole delivery service to your door, and first please notice us if you have personal or company tile which can be used for customs clearance after goods arrive destination seaport.
Welcome to send us inquiry to get more help!
