Product Description

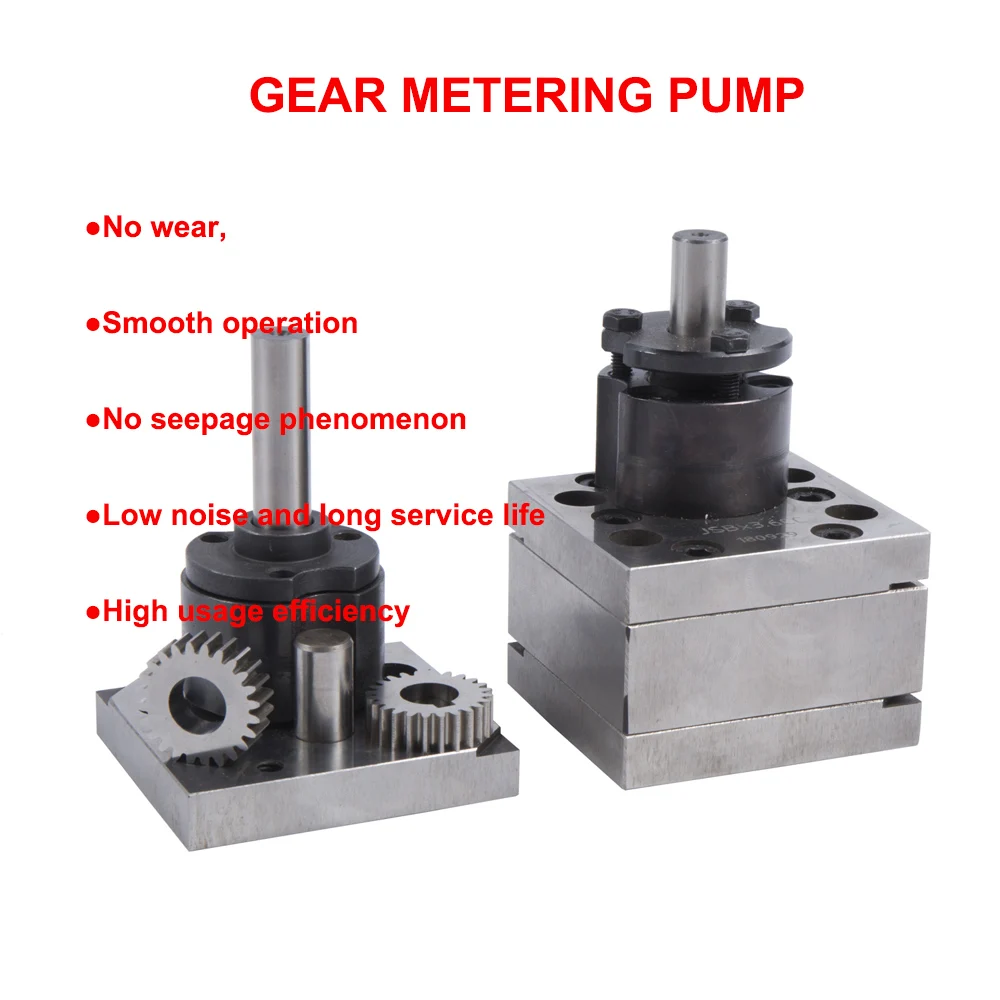

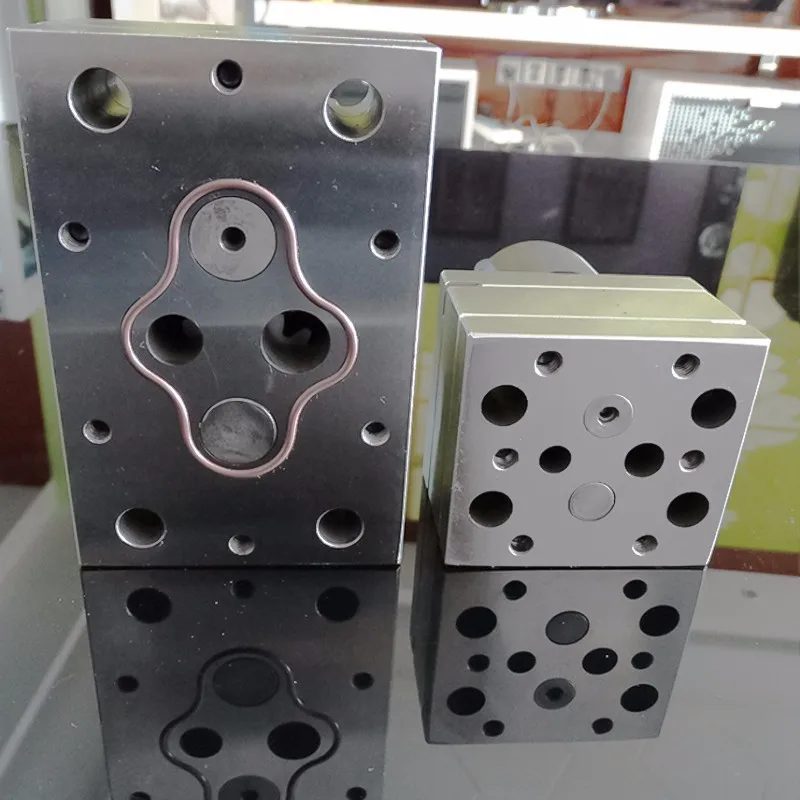

Gear Metering Pump utilizes high standard external spur gears enclosed within a close tolerance housing assembly. This provides you the precise volume of fluid dispensed per shaft revolution. The housing is constructed from a precision ground and lapped three-plate assembly. This assembly is aligned with dowels to allow close control of operating clearances. This construction method in combination with several proprietary internal features is what ensures precise, pulseless and reliable flow under varying process conditions.


Min inlet pressure
   <0.2Mpa
Working speed
   5~200r/min
Medium
   Fluid
Process temperature
   <200℃
Max Outlet pressure
   <30Mpa
Flow capacity
   0.15~3.6cc/r  or 6-30cc/r
Sealing
   Combined seal


Supporting use

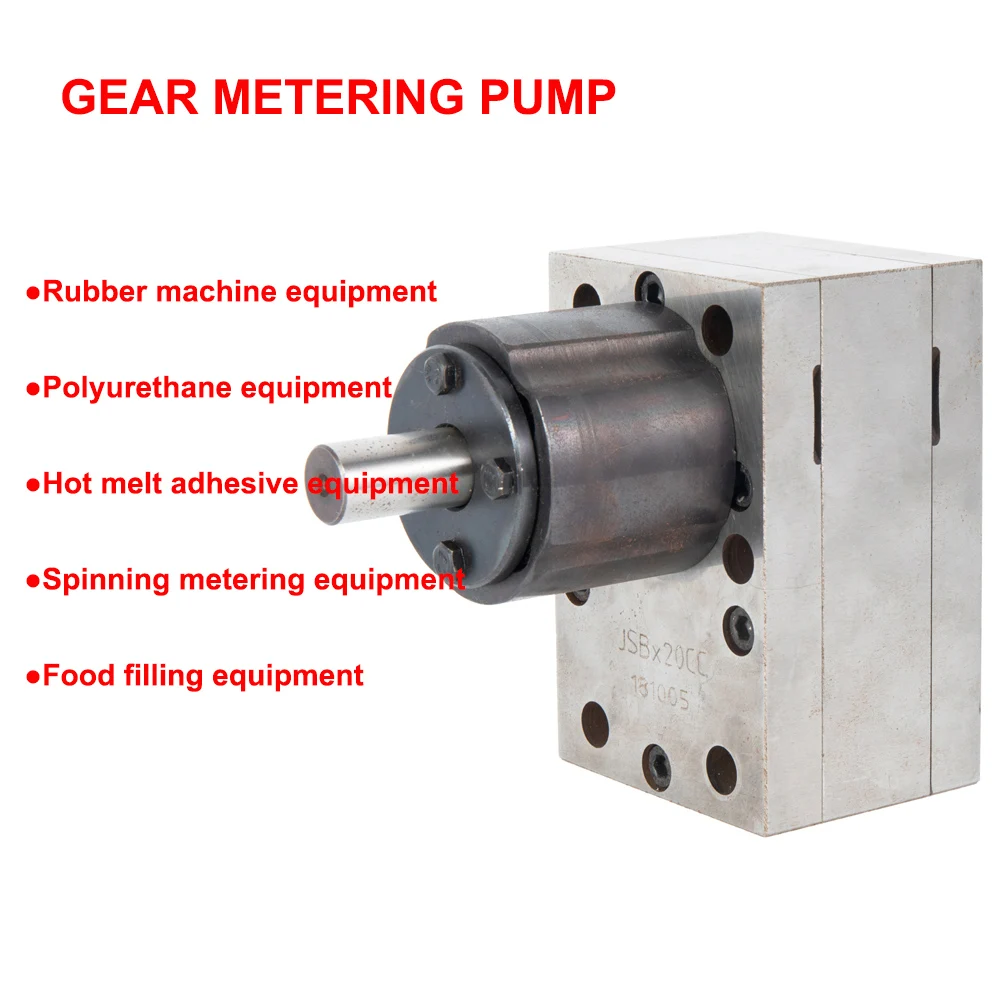

Widely used in dispenser equipment, polyurethane equipment, Hot-melt adhesive equipment, spinning metering equipment, food filling equipment Preparation and other industries.


Parameters


Model
Displament
Total
Height
Base
Height
Min
Pressure
Max
Pressure
Accuracy
Temperature
GWMP-0.15
0.15
83
28.1
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-0.3
0.3
85
30.2
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-0.6
0.6
85
32
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-1.2
1.2
90
34
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-2.4
2.4
100
42
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-3.6
3.6
105
50
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-6
6
130
41
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-9
9
135
46
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-12
12
140
51
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-15
15
145
56
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-20
20
150
64
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-30
30
165
80
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-40
40
90
215
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-50
50
97
215
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-60
60
104.5
230
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-75
75
112
230
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-80
80
Customized
Customized
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-125
125
Customized
Customized
<0.2Mpa
<30Mpa
+/-3%
200℃




Note:Direction of rotation: clockwise from the axis of rotation


Model
0.15cc
0.3cc
0.6cc
1.2cc
2.4cc
3.2cc
3.6cc
A
83
85
85
90
100
103
105
B
28.1
30.2
32
34
42
47.6
50


Model
6cc
9cc
12cc
15cc
20cc
25cc
30cc
A
130
135
140
145
150
158
165
B
41
46
51
56
64
72
80




Product Show

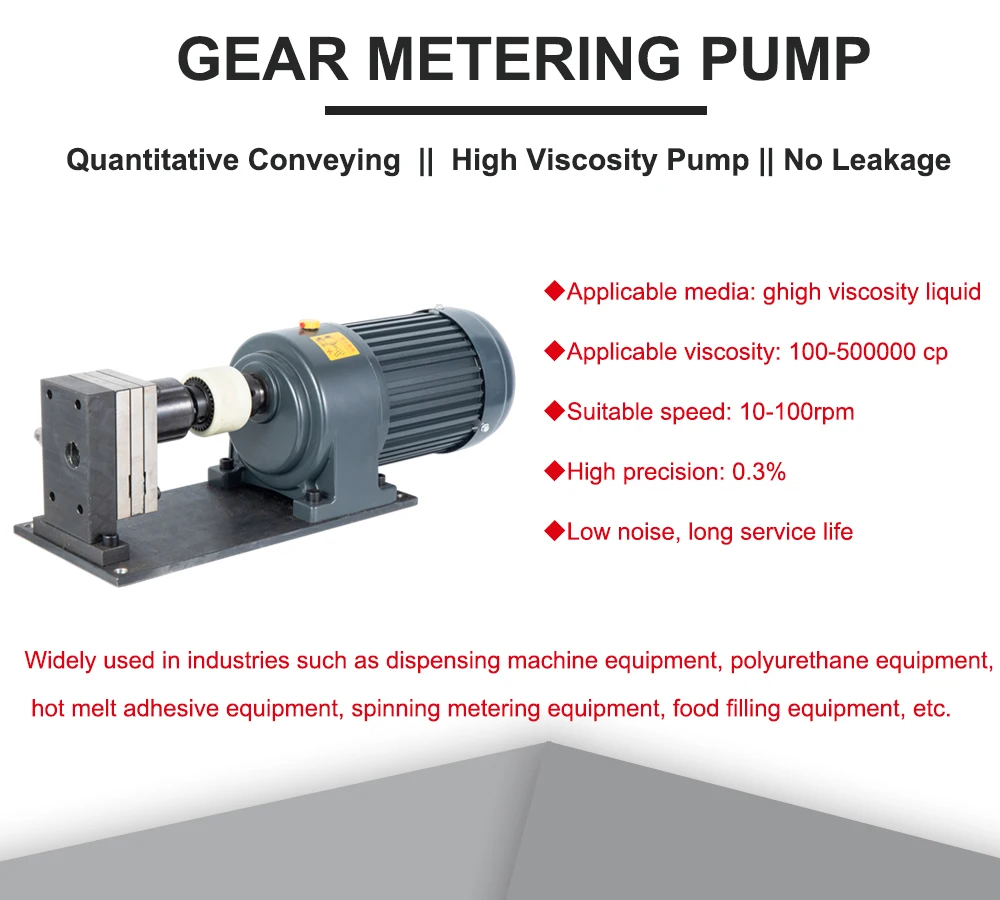

Widely used in industries such as dispensing machine equipment, polyurethane equipment, hot melt adhesive equipment, spinning metering equipment, food filling equipment, etc.




Company Profile




FAQ


Q1.Are you a factory?
A1:We are based in Shanghai, China, start from 2011.Main production and sales of various industrial flow meters and other products.Welcome to visit!

Q2.what can you buy from us?
A2:We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.

Q3. What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.

Q4. How about your delivery time?
A4: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.

Q5. What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.

Q6. How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.

Q7. How long your quotation valid?
A7: Our quotation valid for 1 months.

Q8. Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.

Q9. How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.

Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
