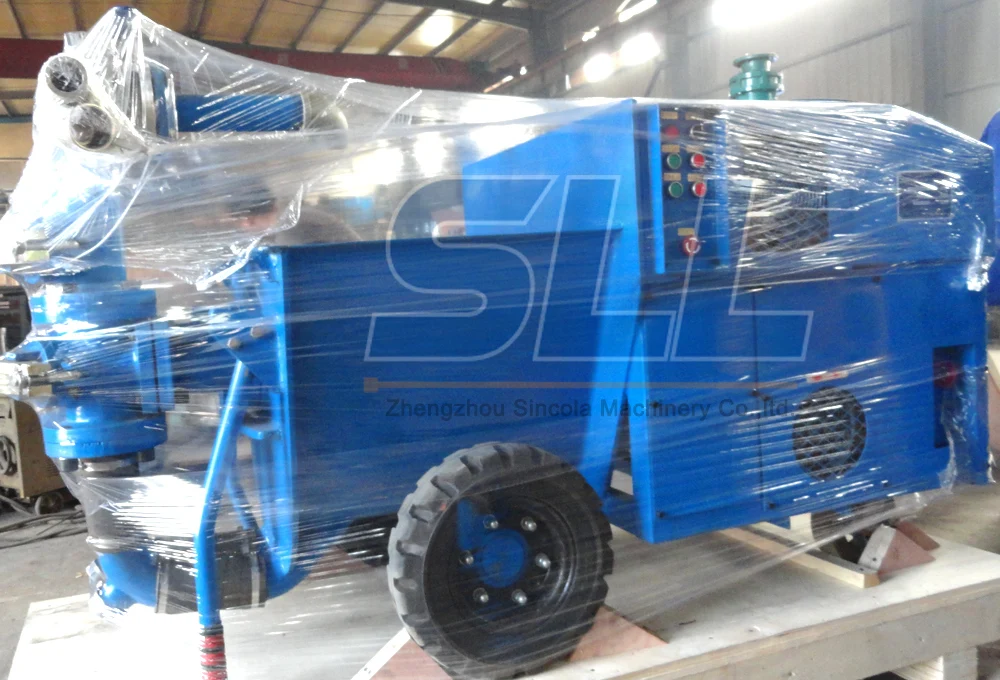

2023 Industrial Mud Cement Mortar Pump Mobile Concrete Mixer Machinery Pipe Pump Diesel
- Category: >>>
- Supplier: Zhengzhou Sincola Machinery Co. Ltd.
Share on (1600932202521):
Product Overview
Description
2023 Industrial Mud Cement Mortar Pump Mobile Concrete Mixer Machinery Pipe Pump Diesel
Technical Parameters
Item | SG50-40 | SG60-50 |
Cylinder Dia | φ90 mm | φ90 mm |
Output | 50 L/min | 60 L/min |
Pressure | 4 Mpa(40bar) | 5 Mpa(50bar) |
Piston stroke | 85 mm | 145 mm |
Piston Speed | 95 /min | 82 /min |
Inlet diameter | 75 mm | 75 mm |
Outlet diameter | 50 mm | 50 mm |
Max.Aggregate.size | 6 mm | 6 mm |
Cement : Sand | ≥1:3 | ≥1:3 |
Dimensions | 1400×650×920 mm | 1610× 1024× 900 mm |
Weight | 320 kg | 600 kg |
Power unit | 5.5 kW(Electric)/10hp(Diesel) | 7.5 kW(Electric)/10hp(Diesel) |
Note: Single or Double Passageway.Skid or Tyre | ||
Product Description

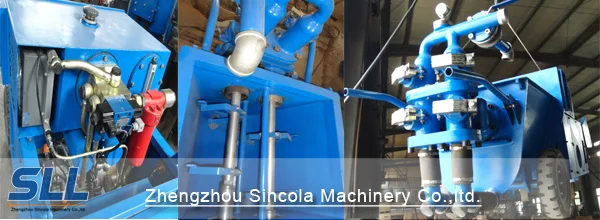

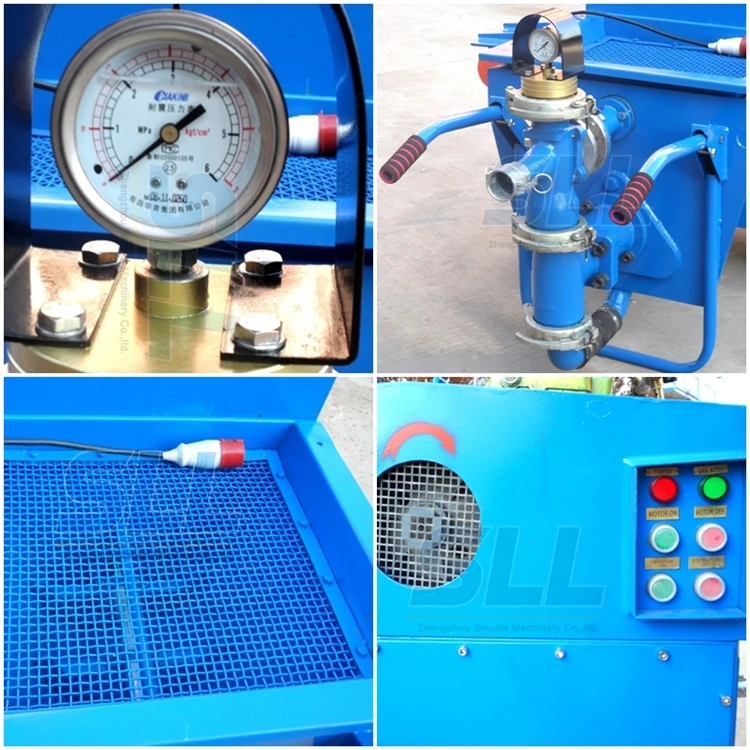

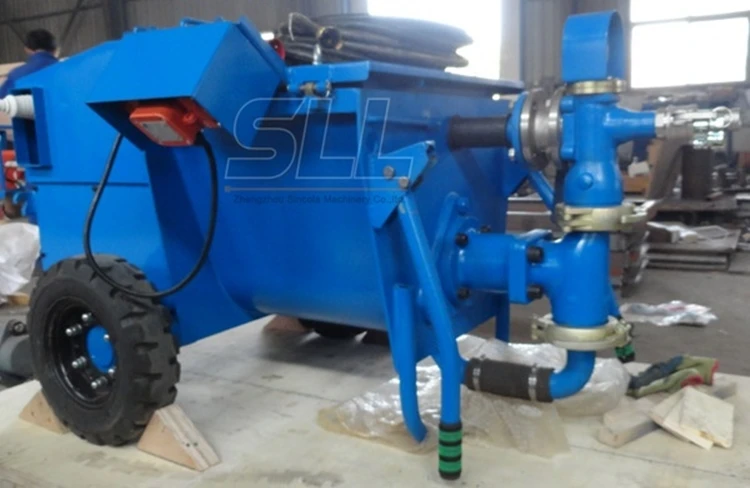

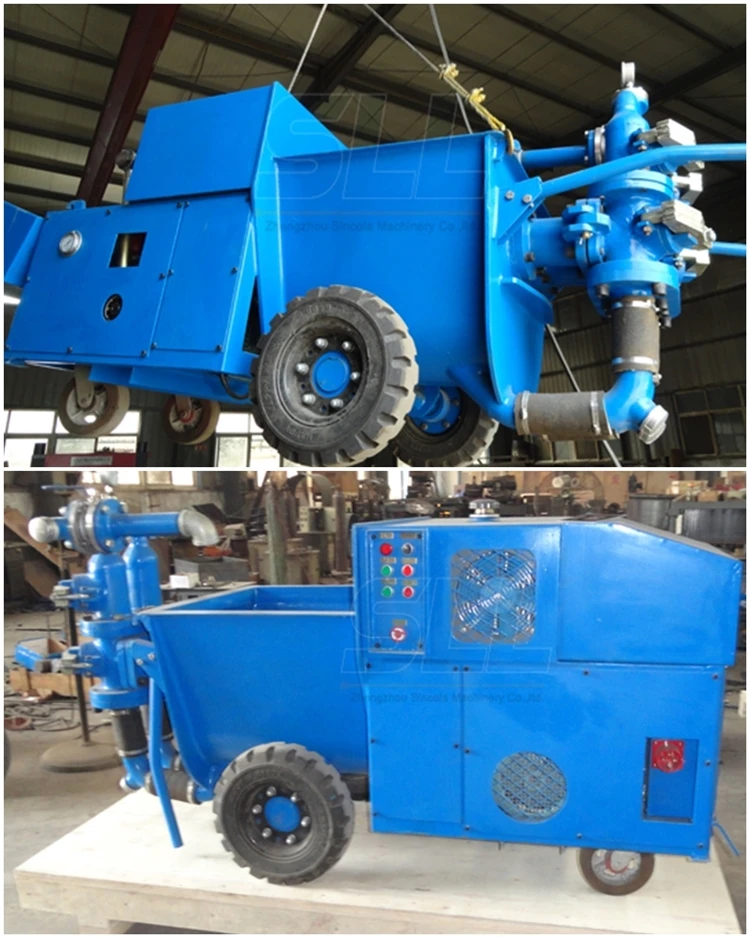

SG60-50 reciprocating piston pump for construction with double piston and single acting is widely used in construction for its convenient maintenance, compact structure ,high working pressure and high efficiency, working reliability,and it is hydraulic piston pump etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc, above all, it is convenient for maintaining.
Features
Features of Piston Mortar Pump:
1.Single piston single acting;
2.Switch by ball valve;
3.Mechanical transmission, lower failure rate;
4.Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating;
5.Compact structure, convenient for maintaining ;
Advantages
Advantage of Cement Mortar Pump:
reciprocating piston pump
Double Piston Mortar Pump
Mechanical transmission
lower failure
ISO9001:2008
FAQ
FAQ:
1. How many people that are need to operate this kind of machine?
Two persons, one loading the material and the other for the spraying.
2.MOQ:
1set can be acceptable for Trail Order.
Over 3sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3. How long the life time the main engine?
more than than years, 1 year guarantee for quality problems.
4. Does this kind of machine can work singlely?
No, it need match one air compressor to cooperate.
5.Delivery time:
1 week for Standard Model(motor:380v 50hz 3phases)
15-25days for Cusmoized Model.
6.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
7.Available Shipment:
FOB Qingdao
FOB Shanghai
FOB Tianjin

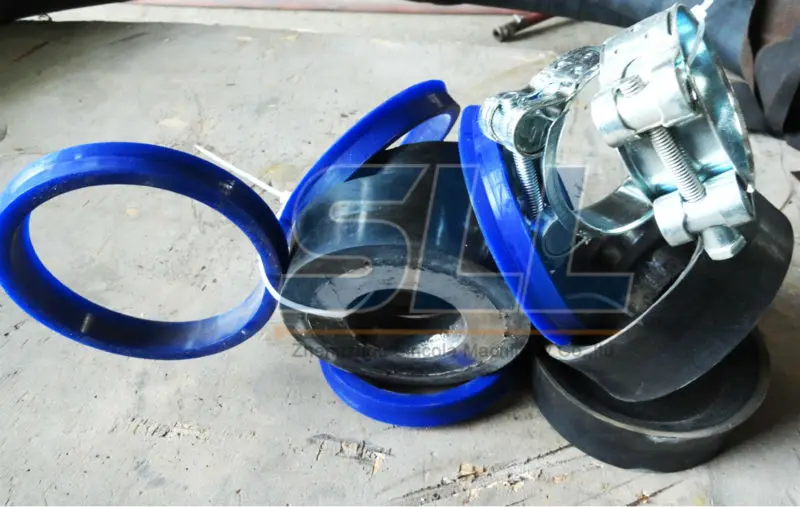

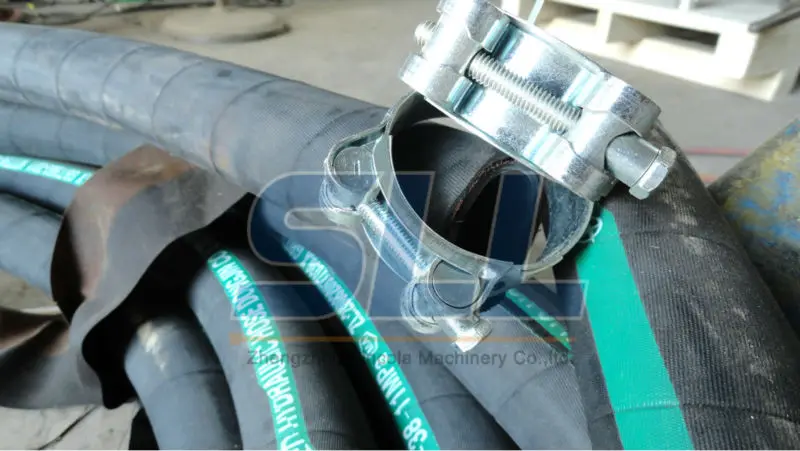

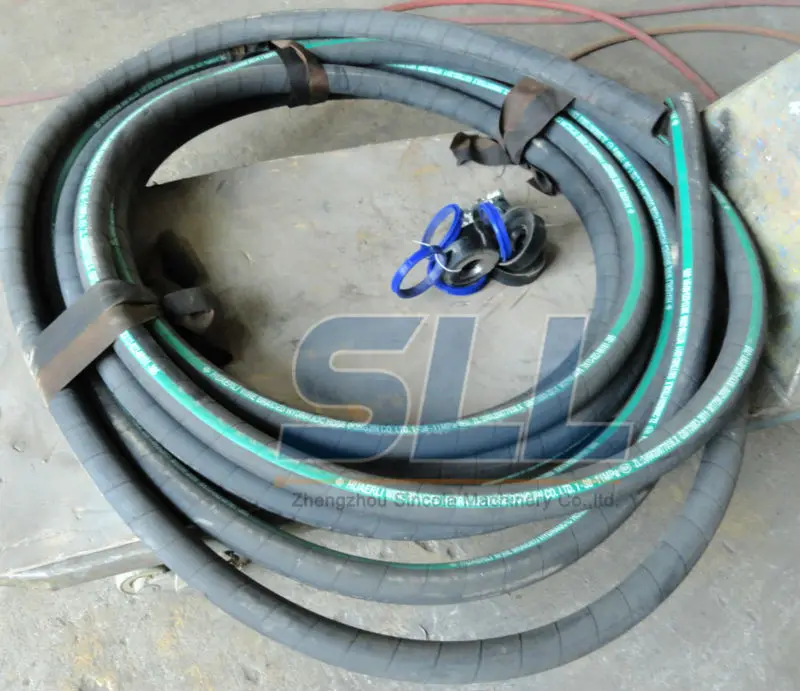

Parts
Company Information
Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are the one of the big manufacturer and supplierin China .
Our products are Shotcrete machinery and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.
Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.
Our products are well known to international market such as Russia, UzbekistanRussia,Uzbekistan,Cyprus,Algeria,Cameroon,Macedonia,Malaysia,Austrialia,Yemen,Oman etc.
Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.
Service:
We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business...
