GNSS RTK R10 network RTK gnss receiver
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600932396357):
Product Overview
Description
Product Description

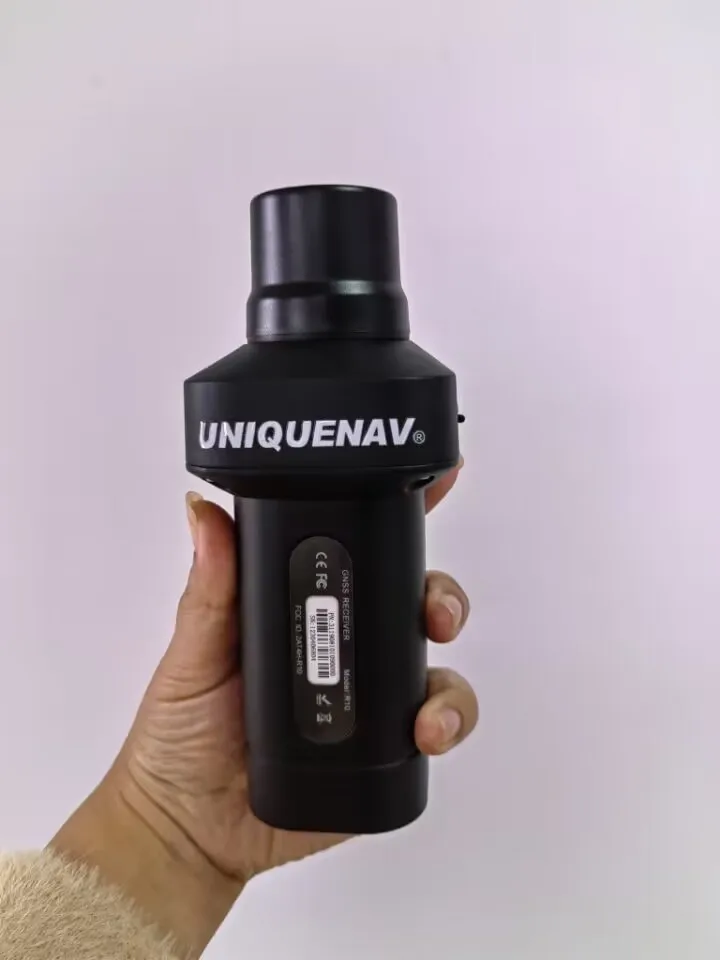

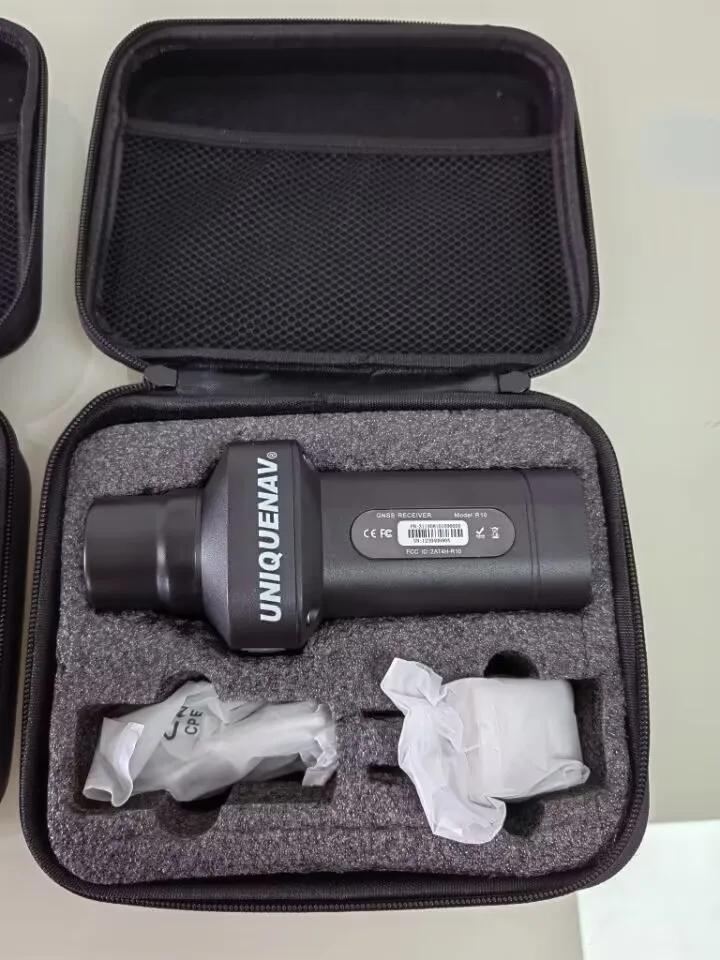

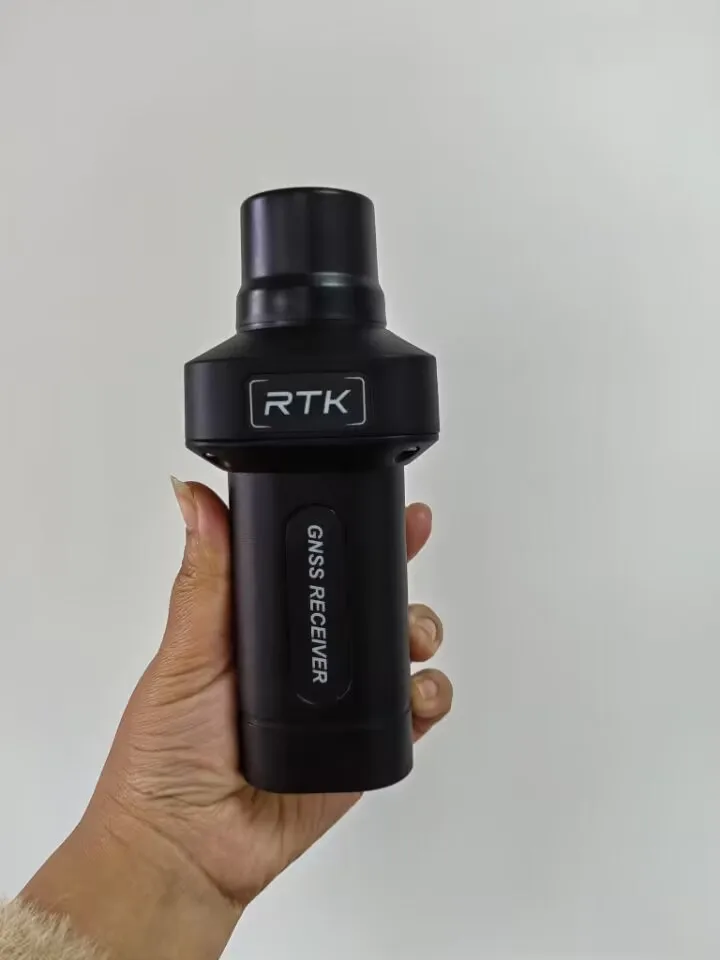

GNSS RTK R10 network RTK gnss receiver
SMALL SIZE, HIGH INTEGRATION
The R10 portable high-precision locator is a lightweight, simple, and practical highprecision full-constellation GNSS RTK receiver
independently developed and produced by UNIQUENAV. The total weight of the device is 0.55kg . It is small, light, and easy to
carry. Integrated large-capacity battery, GNSS antenna, satellite positioning module , Bluetooth , etc
independently developed and produced by UNIQUENAV. The total weight of the device is 0.55kg . It is small, light, and easy to
carry. Integrated large-capacity battery, GNSS antenna, satellite positioning module , Bluetooth , etc
HIGH PRECISION AND WIDE APPLICATION
R10 supports Beidou, GPS, GLONASS, Galileo, QZSS , with high positioning accuracy, which can ensure positioning accuracy in a
variety of complex environments ; it can meet the needs of precision agriculture, vehicle positioning, mechanical control, and
ship positioning. part of the demand.
variety of complex environments ; it can meet the needs of precision agriculture, vehicle positioning, mechanical control, and
ship positioning. part of the demand.
WELL-CONFIGURED AND EASY TO OPERATE
The software adopts the standard version of the measurement software or the flagship version of the measurement software, with
functions such as measurement, point placement, CAD stakeout, etc. It supports various CORS systems .
Adopt TYPE-C charging interface, support power bank charging, support TYPE-C upgrade; built-in 4.0 Bluetooth module, support
various mobile phone connections; standard IP 5 4 waterproof and dustproof design ; built-in 4800mAh large - capacity battery ,
support more than 16 hours of battery life ; flexible use, can be held by hand or directly screwed to the centering rod for
measurement .
various mobile phone connections; standard IP 5 4 waterproof and dustproof design ; built-in 4800mAh large - capacity battery ,
support more than 16 hours of battery life ; flexible use, can be held by hand or directly screwed to the centering rod for
measurement .
The software adopts the standard version of the measurement software or the flagship version of the measurement software, with
functions such as measurement, point placement, CAD stakeout, etc. It supports various CORS systems .
GNSS Performance | ||
Channels | 1408 channels based on Nebulas-Ⅱ | |
GPS | L1/L2/L5 | |
GLONASS | E1, E5a , E5b | |
BeiDou | B1I/B2I/B3I/B1C/B2a | |
QZSS | L1, L2, L5 | |
GNSS Accuracies | ||
Real time kinematics(RTK) | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS Initialization time:< 5 s Initialization reliability: > 99.9% | |
Post-processing kinematics (PPK) | Horizontal: 2.5 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS | |
Post -processing static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS | |
Positioning rate | Default 1 HZ, Maximum 20 HZ | |
Time to first fix | Cold start: < 25 s Hot start: < 10 s Signal re-acquisition: < 1 s | |
RTK tilt - compensated | Tilt angle 0~60°, Tilt accuracy 25mm (within 30° accuracy) | |
Hardware | ||
Size (L x W x H) | 140 mm x 140 mm x 88 mm (5.5 in × 5.5 in × 3.5 in) | |
Weight | 1.03 kg (2.27 lb) | |
Environment | Operating: -45°C to +75°C (-49°F to +167°F) Storage: -55°C to +85°C (-67°F to +185°F) | |
Humidity | 100% condensation | |
Ingress protection | IP67 waterproof and dustproof, protected from temporary immersion to depth of 2 m | |
Shock | Survive a 2-meter pole drop | |
Tilt sensor | Calibration - free IMU for pole - tilt compensation. Immuneto magnetic disturbances. | |
Front panel | 4 LED indicates 2 physical buttons | |
Communication | ||
Bluetooth | v 4.0, Backward compatible with BT2.x | |
Ports | 1 x 9 PIN aviation plug, including power supply, COM RS232, CONFIG，RS232. 1 x UHF radio antenna interface | |
Build-in UHF radio | Standard Internal Rx/Tx: 410 - 470 MHz/840MHz Transmit Power: 0.5 W to 2 W Protocol: Transparent, TT450S,Trimtalk, TRMMARK3 | |
External Radio | Frequency: 410-470MHz Transmitting power: 35W Working Range: 15-20Km | |
Data formats | Link rate: 9600 bps to 460800 bps Range: Typical 5 km to 8 km RTCM2.x, RTCM3.x, CMR | |
Data storage | 8 GB internal memory | |
Electrical | ||
Power consumption | 5 W (depending on user settings) | |
Li -ion battery capacity | 10200mAh | |
Operating time on internal battery | 20h(Rover) 10h(Base) | |
External power input | 9 V DC to 36 V DC | |
Power consumption | As Rover<4.0W As Base<10.5W | |
