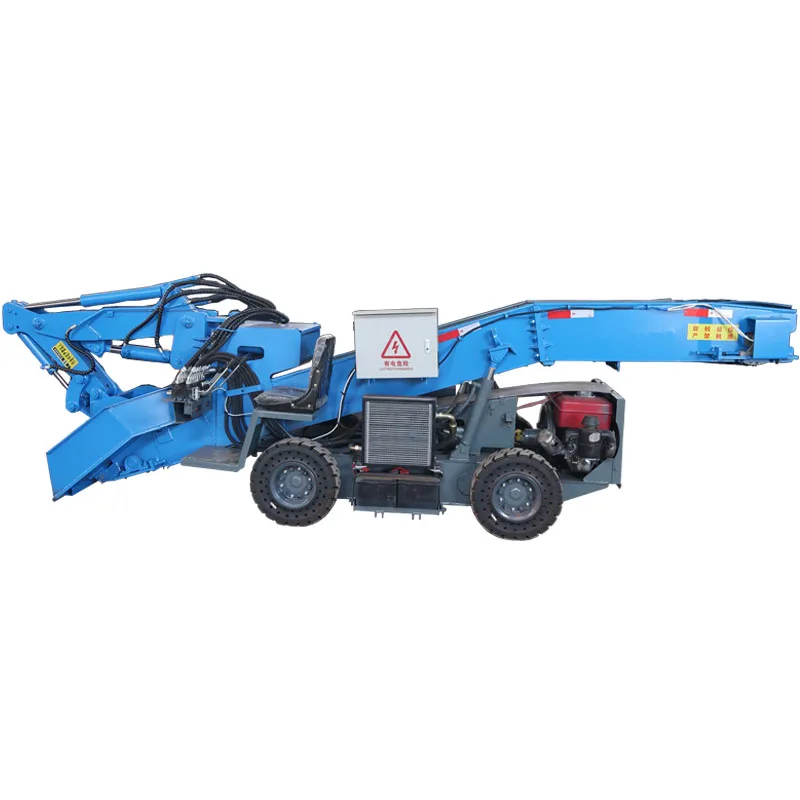

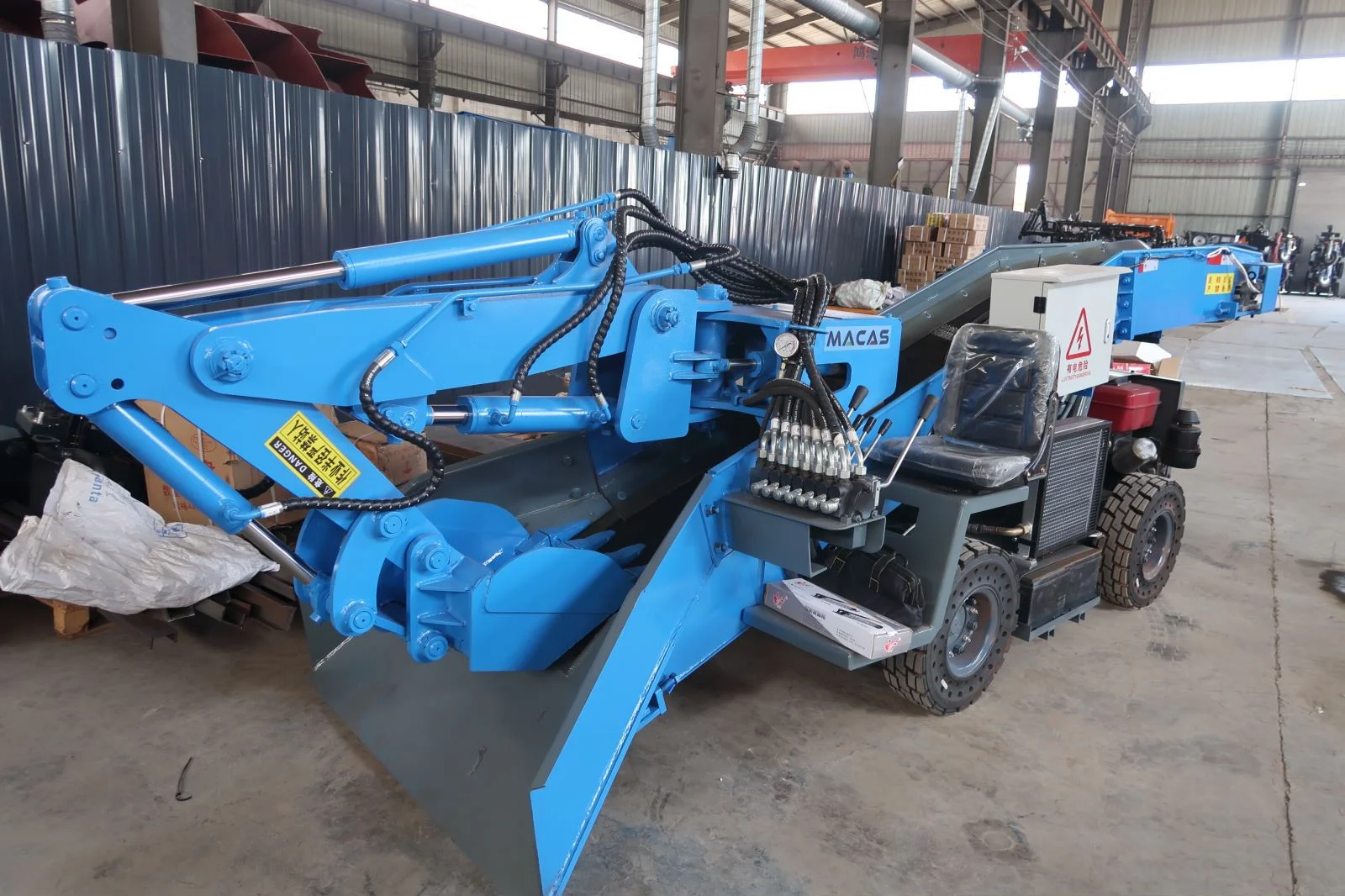

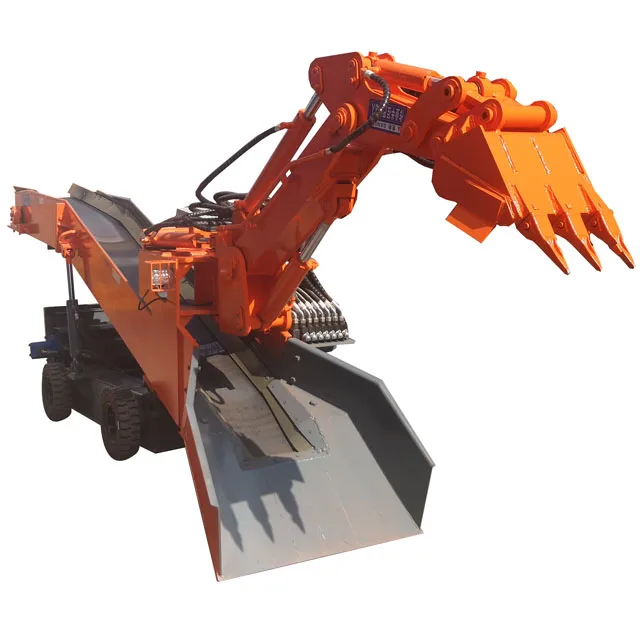

HuanSheng Cheap Tunnel Wheel Mucking Loader Small Mucking Loader for Mining
- Category: >>>
- Supplier: Henan Huansheng Mechanical Equipment Co. Ltd.
Share on (1600932719139):
Product Overview
Description
Products Description
Product Description

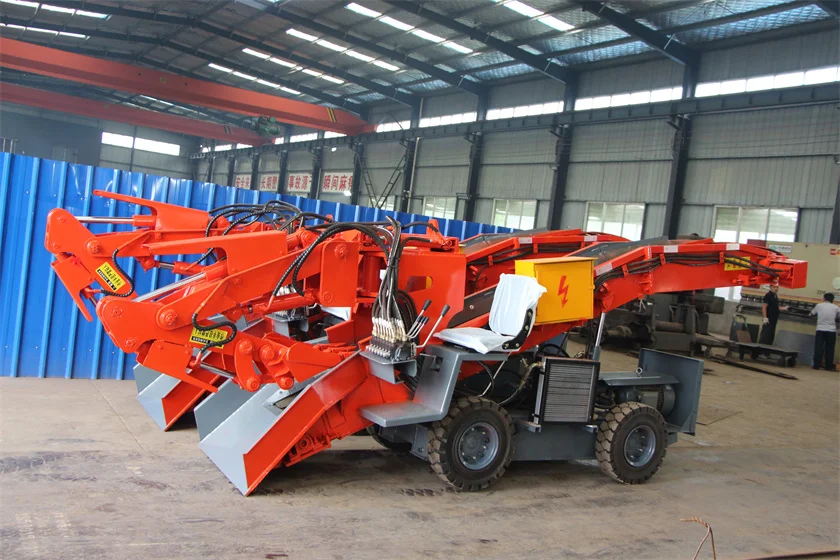

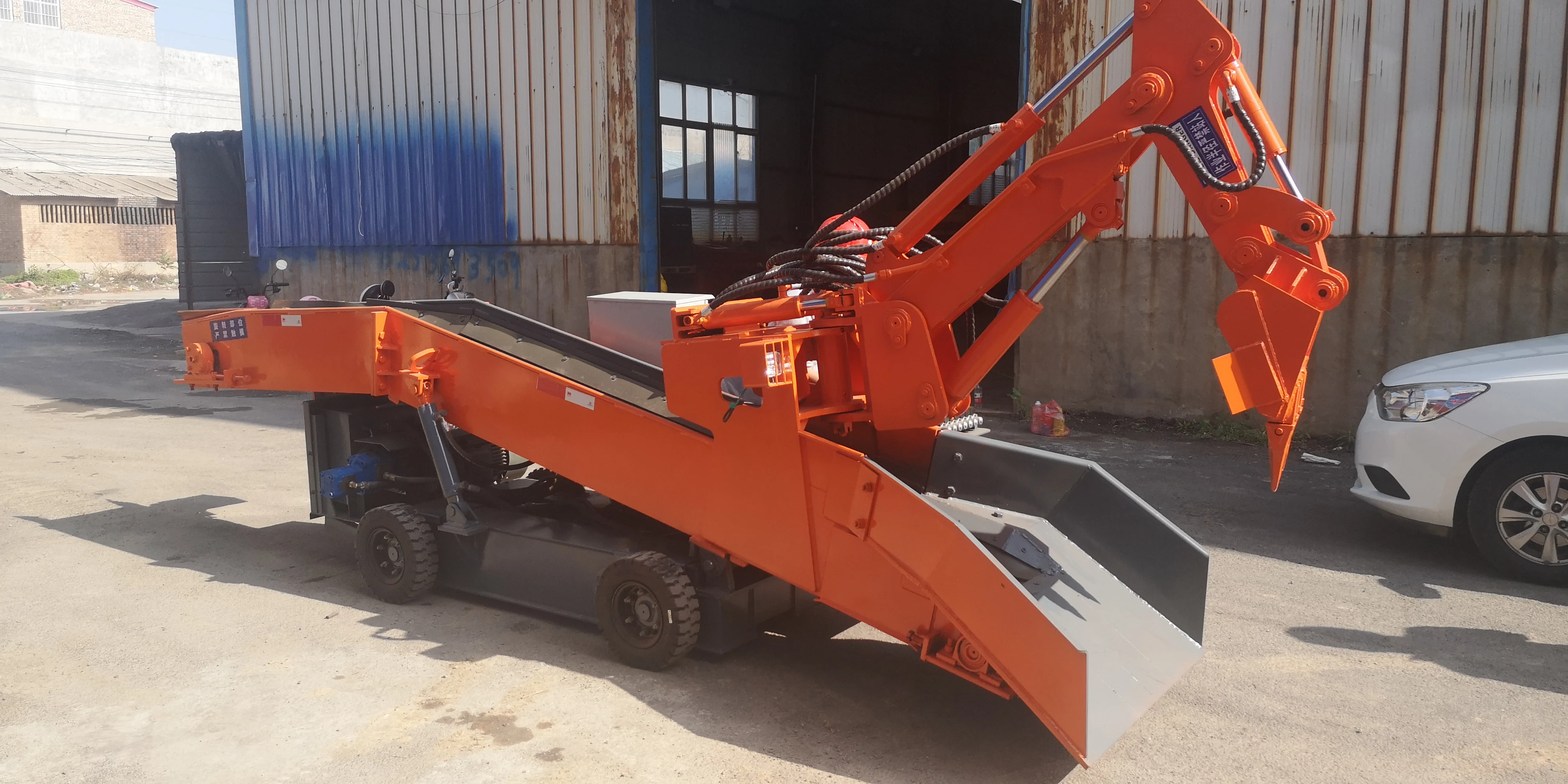

The mucking loader is a type of underground construction mucking loading machinery mainly used in excavating of tunnel mining, mine engineering, narrow space mining operation such as metal mine, water transferred roadway, Urban jacking pipe, and etc.
Our mucking loader is with a different capacity of 40 cubes, 50 cubes, 60 cube, 80 cube, 100 cube, 120 cube per hour. The mini wheel loader can be divided into different types: coal mine, rock load and excavation, tunnel excavation, urban underground engineering.
While, according to the different mining or tunneling conditions, we can especially design the all kinds of wheel mini electric backhoe loader to meet customers' needs, such as crawler/tracking muck loader, wheel mucking loader and coal mine explosion-proof mucking machine.
Feature
1-The mucking loader or haggloader, is essential and advanced mining equipment which can be used to replace manpower and other mechanical equipment.

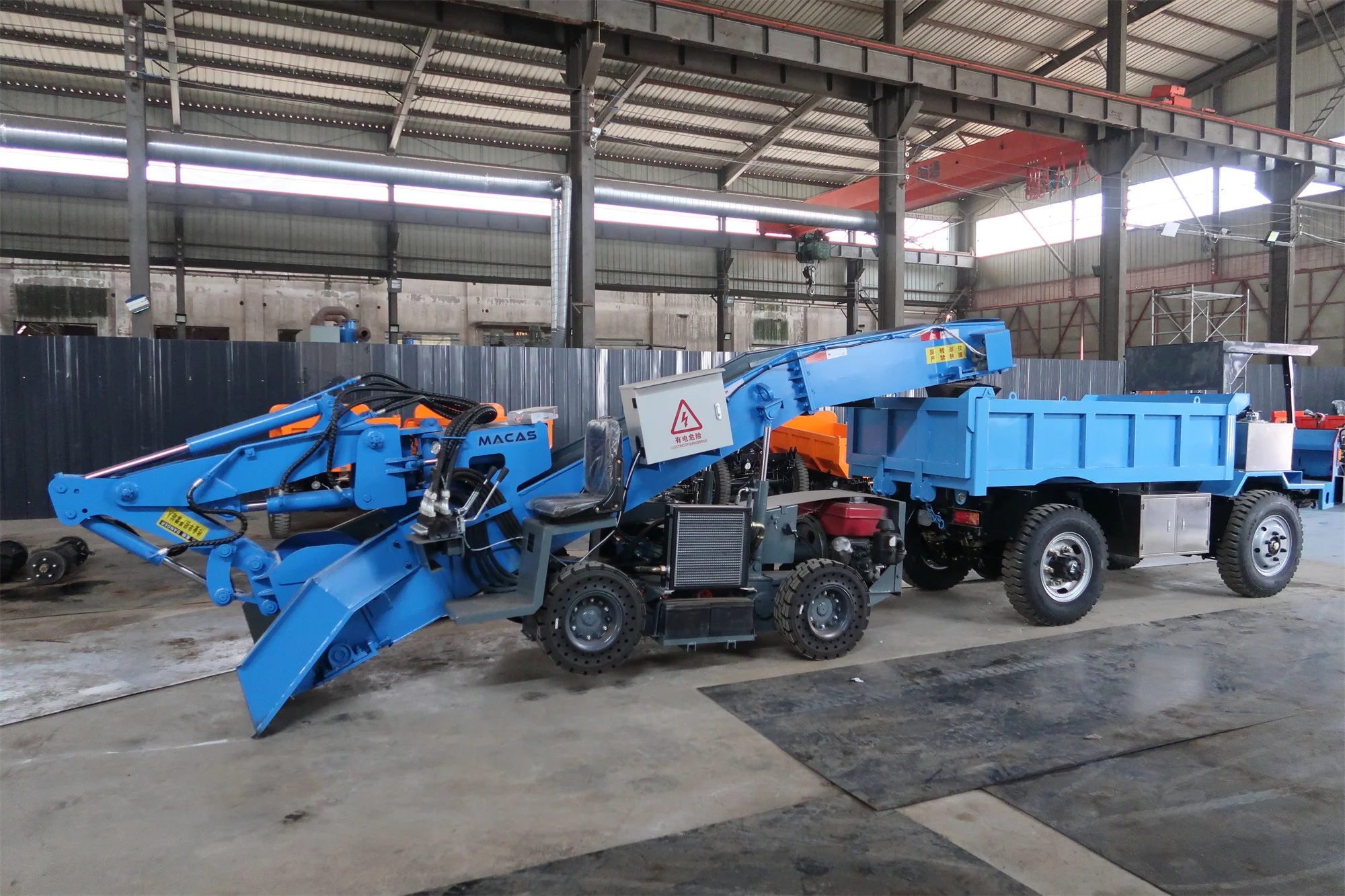

2-The conveyor of this wheel mucking loader or wheel haggloader can discharge the rock into the auto dumper, shuttle mining car,side-dumping car, belt conveyor, skip and other transshipment equipment. The dumping height can be designed according to the requirements of customers.
Inquiry
When you send inquiry, please provide the most detailed information of your mine or tunnel information,
We can save time to provide you the most suitable model machine according to your information and give you the quotation as soon as possible.
We can save time to provide you the most suitable model machine according to your information and give you the quotation as soon as possible.
Questions is as follows:
Q1:What kind of mine or tunnel you are going to use machine ? Such as gold mine or diversion tunnel?
Q2:What is your mine width and height ? Has curve inside your mine ?
Q3:What is your mine or tunnel slope ? More than 8 degrees ?
Q4:Do you have transporting dumper behind our machine ? what is the size ?
Q1:What kind of mine or tunnel you are going to use machine ? Such as gold mine or diversion tunnel?
Q2:What is your mine width and height ? Has curve inside your mine ?
Q3:What is your mine or tunnel slope ? More than 8 degrees ?
Q4:Do you have transporting dumper behind our machine ? what is the size ?

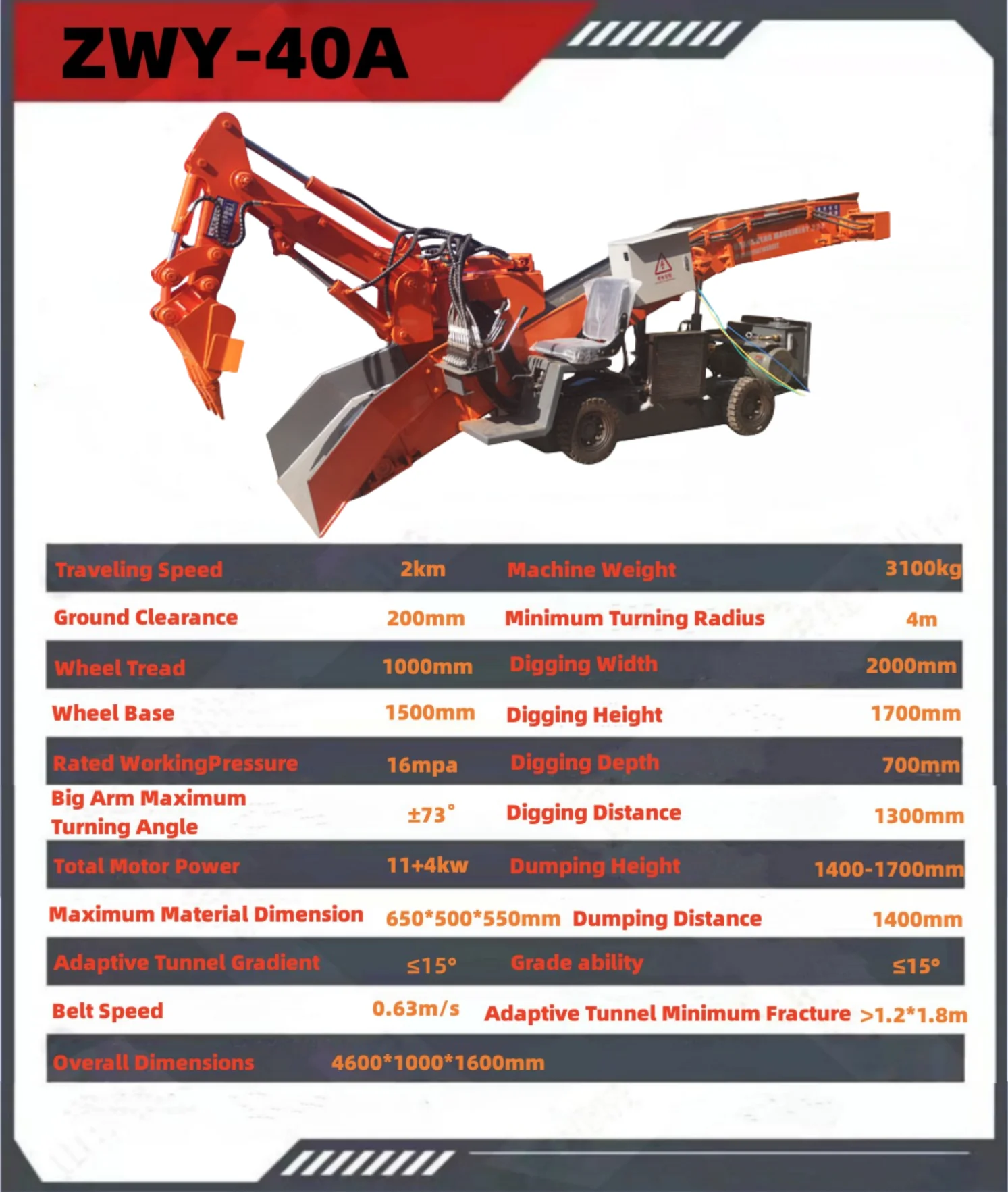

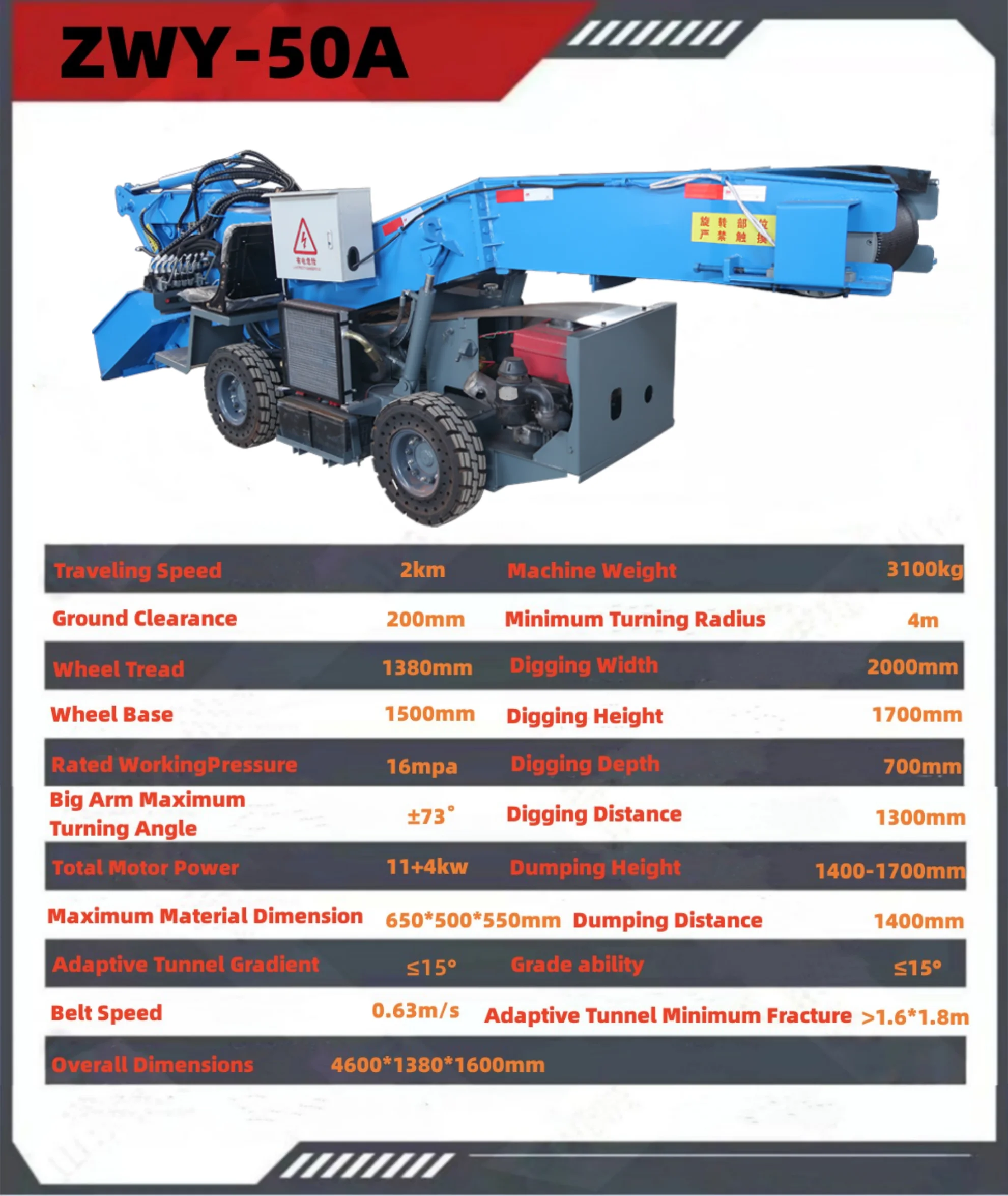

Specific Details

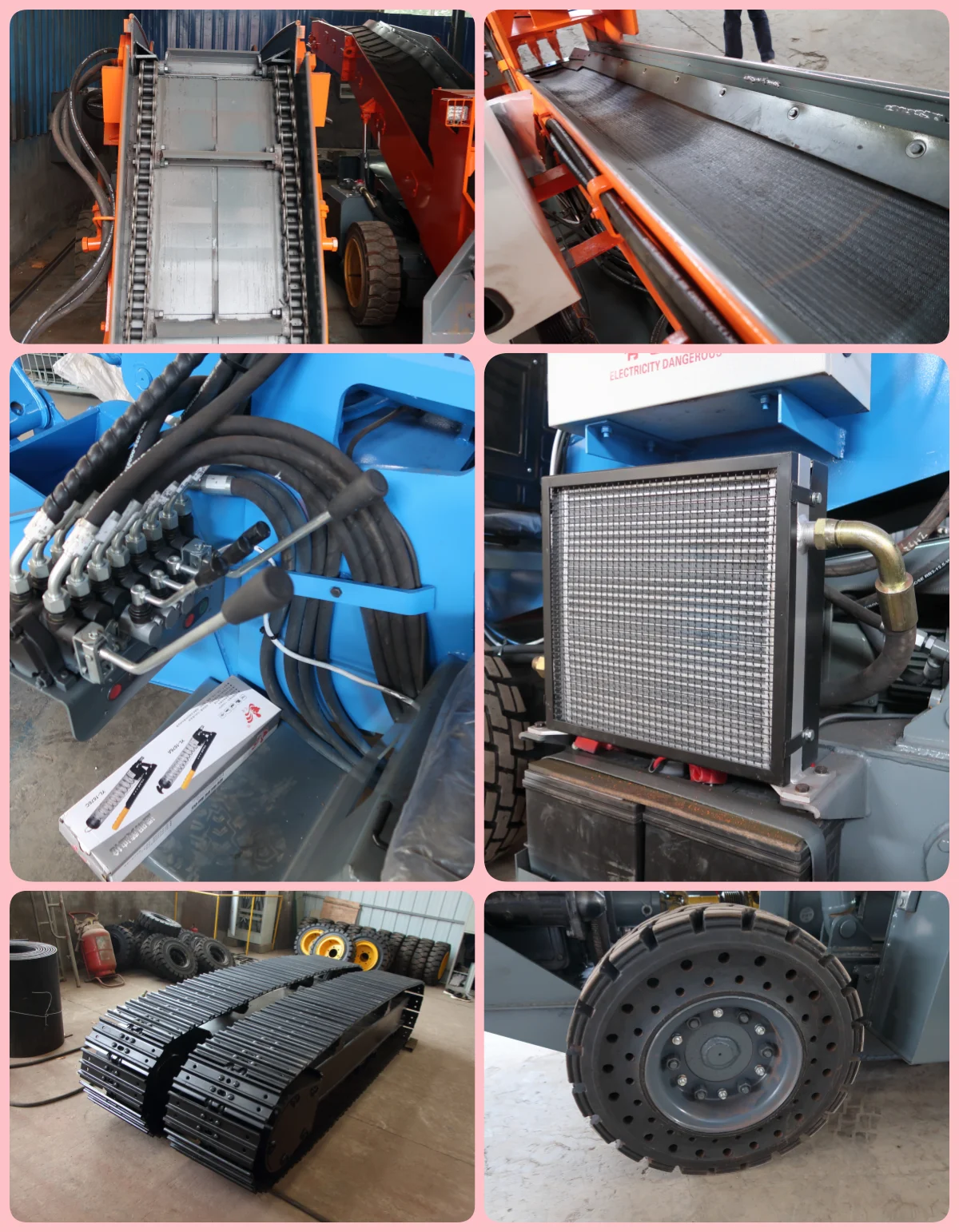

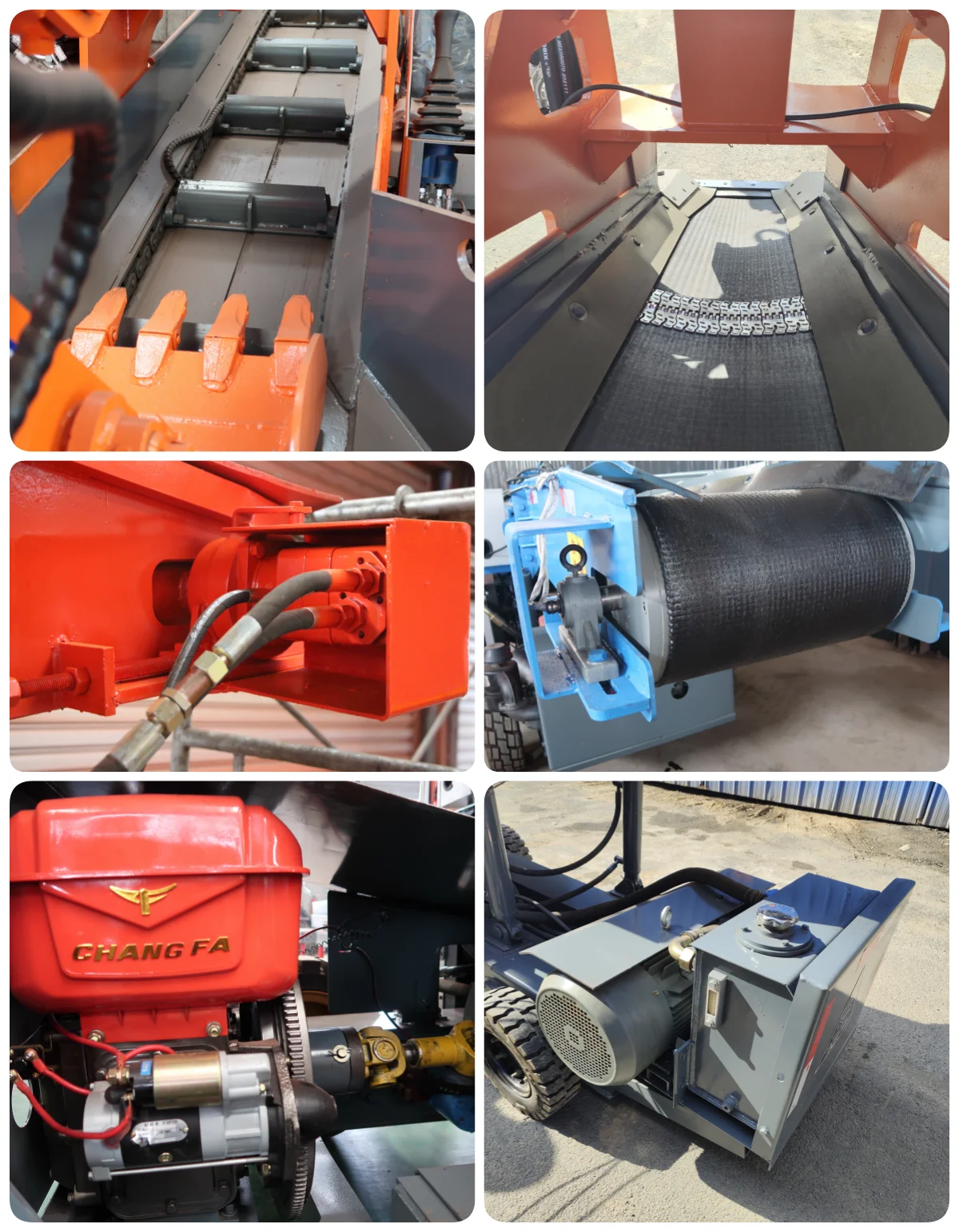

Customization
* Tire type:The standard configuration of the machine is suitable for the road without slopes. It can replace larger wheels and make ,it have a higher chassis and can be used in the mine with track.
Crawler type:If your local road conditions need to be climbed and the slope is greater than 12 degrees, you need to use crawler type. The chassis of the crawler is heavier, which can be suitable for various road conditions.
* Belt type: Suitable for a mine with a slope of less than 8 degrees,materials used for conveying loose or small
particles, such as soil, low density stones, etc. Advantages: high transport efficiency and low cost
particles, such as soil, low density stones, etc. Advantages: high transport efficiency and low cost
Scraper type:It used in mines with slopes greater than 8 degrees,double chain on each side of the conveyor. in the scraper conveyor, We installed the baffles，the height of the baffle is 13cm. It can prevent the slipping of the material well.Compared with the belt conveyor, because the material of the scraper conveyor is steel plate, the conveyor is very wear -resistant and will not be cut by sharp stones, and no need to be replaced.
* Electric drum or hydraulic drum. When the customer's local voltage is inconsistent with our industrial voltage (380V, 3 phase), the customized hydraulic drum is required to replace the electric drum .
* Diesel engine 1. When the machine needs to be transfer to another place, it is not convenient to connect the wires.you can startup the diesel engine. When testing the machine, or it is not convenient to use electricity, it can replace electricity for a short time.
* Quartering hammerThere are two types of broken hammer of our mucking loader. One is that the broken hammer and the digging are one, and the other is that the broken hammer and the digging bucket are separated.you can choose as your need.

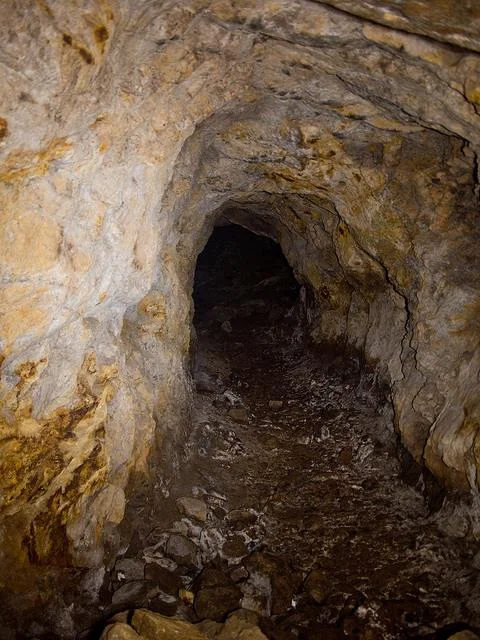

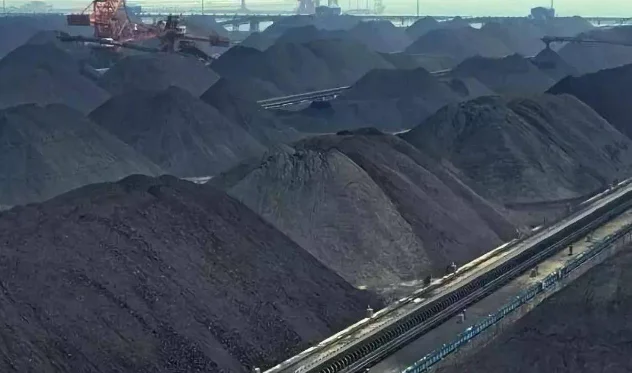

Application scenario
Product packaging

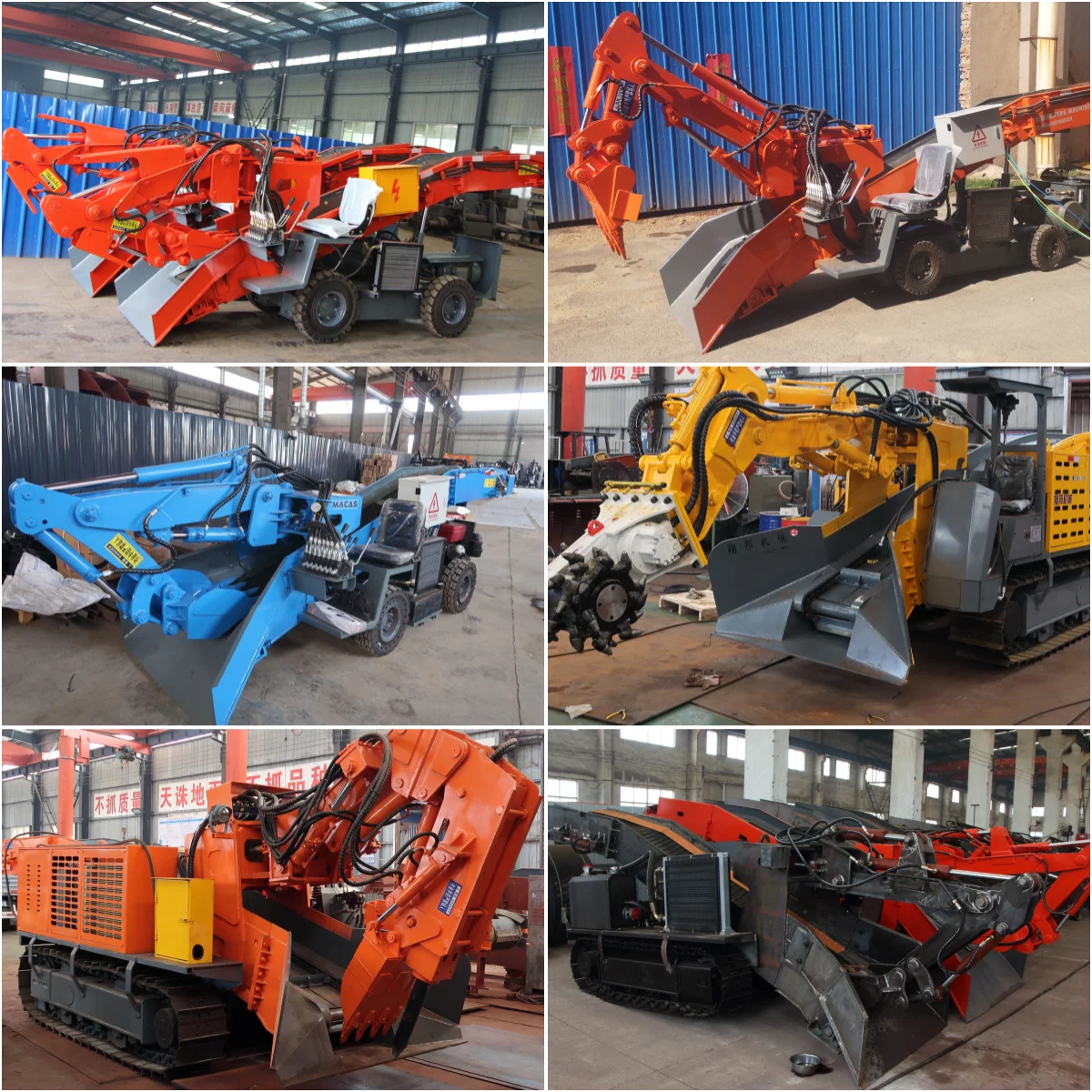

Related Products

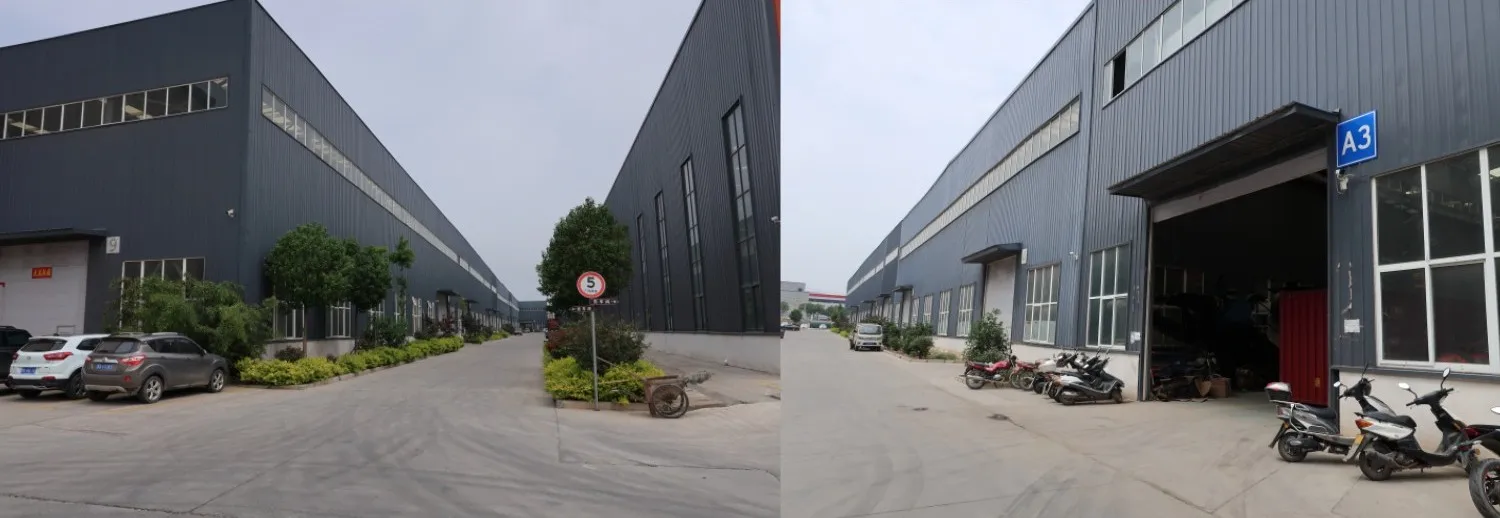

About HuanSheng
Henan Huansheng Mechanical Equipment Co., Ltd.was established in 2006, mainly for the research and development, production and sales of mining machinery products at home and abroad. Our products strive for development with quality, and insist on high-quality every accessory, so that customers can rest assured to buy and use Comfortable; after twenty years of experience, we have accumulated customers' likes and in-depth praise from more than 20 countries,
FAQ
Q: Do you have the warranty?
A: Yes,(1)The mucking loader all parts quality assurance period for 12 months. In normal use circumstances, there is any quality problem,during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customersafter,determine the damaged parts.(2)We will try our best effort to solve, whenever customers have a problem.
A: Yes,(1)The mucking loader all parts quality assurance period for 12 months. In normal use circumstances, there is any quality problem,during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customersafter,determine the damaged parts.(2)We will try our best effort to solve, whenever customers have a problem.
Q: Are you trading company or manufaturer?
A: We are 17 years factory engaged in mining machinery and equipment area and we provide OEM service.We can give you original factory sale price than those trade companies.
A: We are 17 years factory engaged in mining machinery and equipment area and we provide OEM service.We can give you original factory sale price than those trade companies.
Q:How about the service of your company?
A:24 Hours Online service.all machines have one year warranty and Whole life Technology support to make sure your machine work well.
