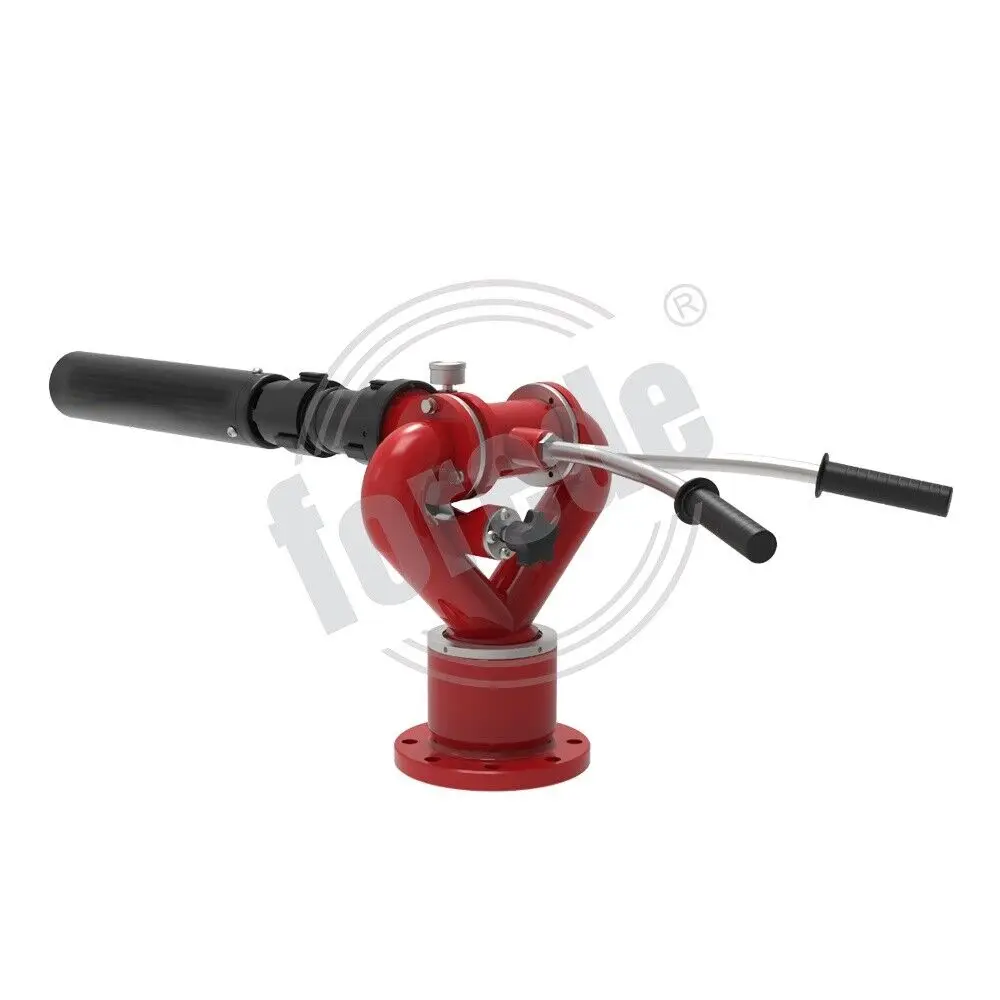

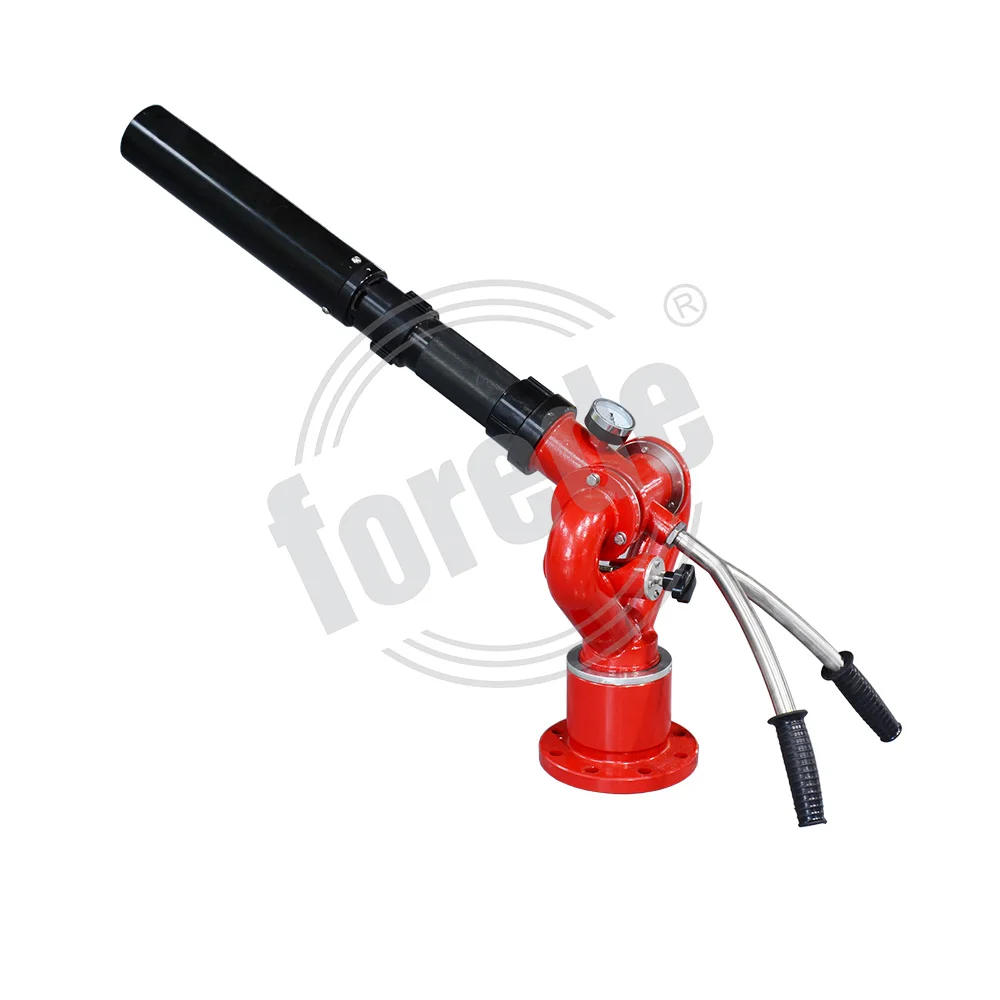

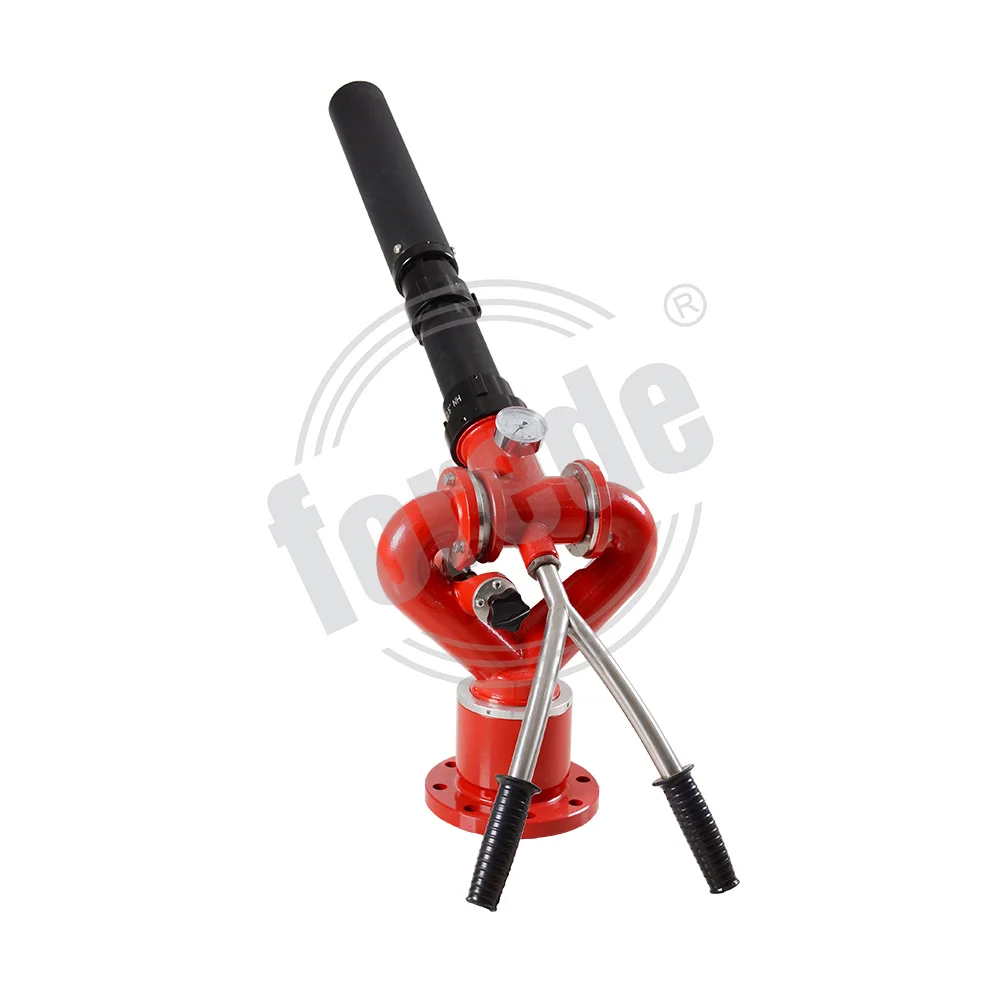

Aluminium Alloy Manual Water Foam Monitor For Fire Fighting

Share on (1600932909978):


Price:$342.00 - $349.00

Quantity:


Product Overview

Description



Description


The fixed manual Fire Monitor is aluminum alloy construction with lever, The flow rate can reach from 1400/1920/2400/2880 LPM, and this monitor can install in Industrial, Timber Yards and so on. The tiller is for control vertical swing, from -45° to + 85° .




Features
Aluminum Alloy Construction
Tiller Control
Flow Rate:24/32/48 LPS (optional)
360° rotation horizontally
-45° to + 80° elevate vertically
Flange Standard: BS4504, ANSI150,GB,etc


Product Parameters


Model
PL24B
PL32B
PL40B
PL80B
Flow Rate
1440 LPM
1920 LPM
2400 LPM
1880 LPM
Working Pressure
10 bar8 bar
8 bar
10 bar
10 bar
Foam Jetting Range
40 meters
45 meters
50 meters
55 meters
Water Jetting Range
45 meteres
50 meters
55 meters
60 meters
Foam Expansion
≥6 times
≥6 times
≥6 times
≥6 times
Outlet
2.5''NH
2.5''NH
2.5''NH
2.5''NH
Inlet
Flange 3'' ANSI 150# is standard (other sizes & standard are available)

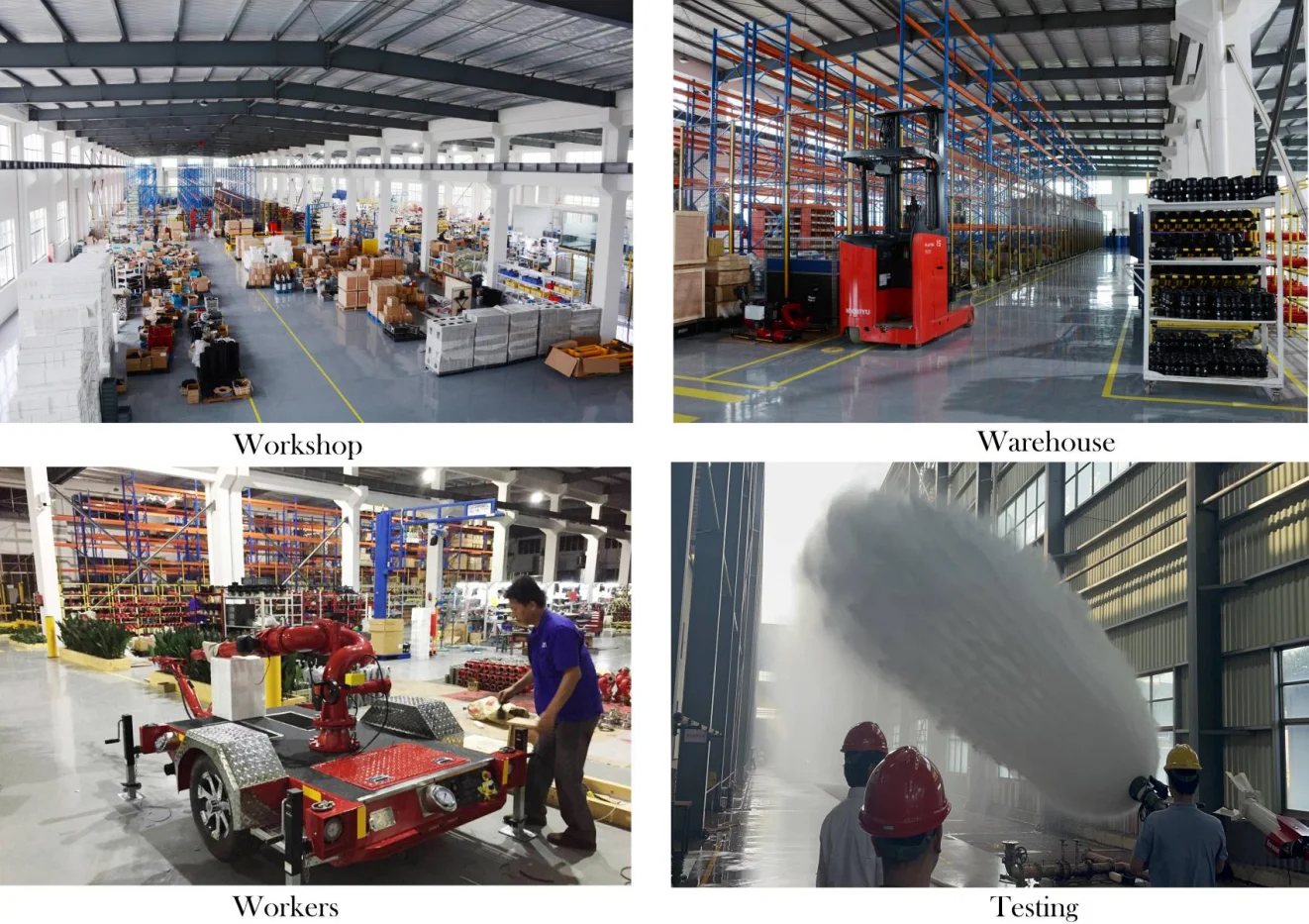

Factory View
