Hospital psa oxygen plant medical oxygen generator for oxygen cylinder filling
- Category: >>>
- Supplier: Amcaremed Technology Co. LimitedAmcaremed Limited
Share on (1600932958863):
Product Overview
Description
Product Description
AmcareMed medical oxygen generator system could supply pure oxygen for all kinds of hospitals and clinics continuously. Medical Oxygen Generators System use Pressure Swing Adsorption (PSA) technology to separate the oxygen from air.
Our Oxygen plant equipment put the air as raw material, zeolite molecular sieve as adsorbent, under the normal temperature low pressure, using the selectivity of zeolite molecular sieve for oxygen adsorption. The purity is 93%±3%.
Our Oxygen plant equipment put the air as raw material, zeolite molecular sieve as adsorbent, under the normal temperature low pressure, using the selectivity of zeolite molecular sieve for oxygen adsorption. The purity is 93%±3%.
In addition to the existing oxygen generators, we can also customize the oxygen generator system according to the installation conditions of the customer site, and can be installed on site for customers.
WORKING PRINCIPLE

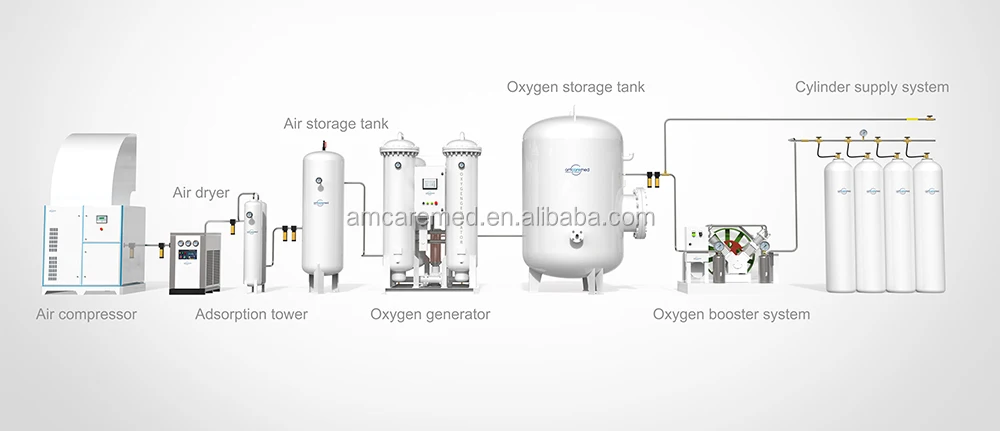

The oxygen production process of the medical oxygen generator is shown in the figure. Detailed work process is the medical air which after dryer and purification, by switching valve into the absorption tower. In the adsorption tower, oxygen gas was gathered at the top of adsorption tower, then into oxygen storage tank. Through the different filter to remove dust, bacterial and peculiar smell, achieve the quality oxygen gas. Our Oxygen Concentrator allow the hospital to have stand-alone oxygen production capability directly on the facility site.
OXYGEN STANDARD
European Pharmacopoeia Requirements For Medical Oxygen | ||||||
Oxygen | 93 ±3% | Carbon Monoxide | <5ppm | |||
Carbon Dioxide | <300ppm | Nitrogen Monoxide and Dioxide | <2ppm | |||
Sulphur Dioxide | <1ppm | Oil | < 0.1 mg/m³ | |||
Water | <67ppm | Working dewpoint | - 46℃ | |||
FEATURES
* Capacity: 5Nm³/hr to 50 Nm³/hr
* Operating temperature: 5℃-45℃
* Two pcs molecular sieve beds, ensure uninterrupted operation
* Modular design for easy installation
* Operating temperature: 5℃-45℃
* Two pcs molecular sieve beds, ensure uninterrupted operation
* Modular design for easy installation
* Higher separation efficiency AmcareMed oxygen generators have higher separation efficiency than other PSA oxygen generators of the same type, requiring only a relatively small amount of air to obtain more oxygen.
* Easy to Install and Maintain All parts of the oxygen generator will be commissioned before leaving the factory and sent to the installation site together, making installation very easy. If necessary, we will arrange professional installation personnel to install and guide on site.
* Automatic and stable operation 24/7 – 365 days fully automatic operation. Reliable, tested and controlled components ensure smooth performance. Control and checking via monitoring control system automatically, real-time display and monitoring pressure, purity, flow rate, operating condition of each unit and with alarm function.

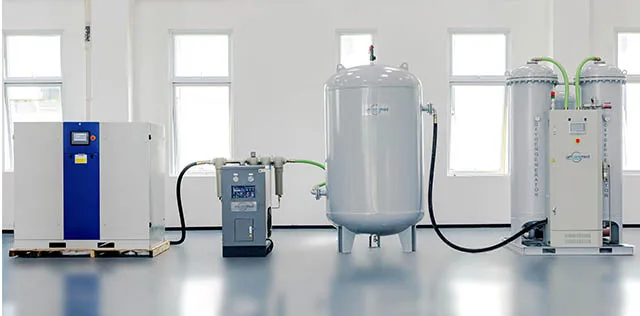

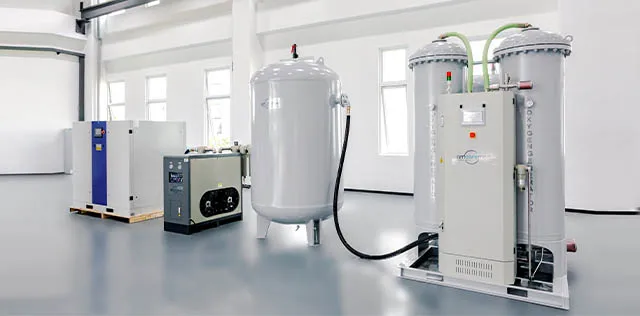

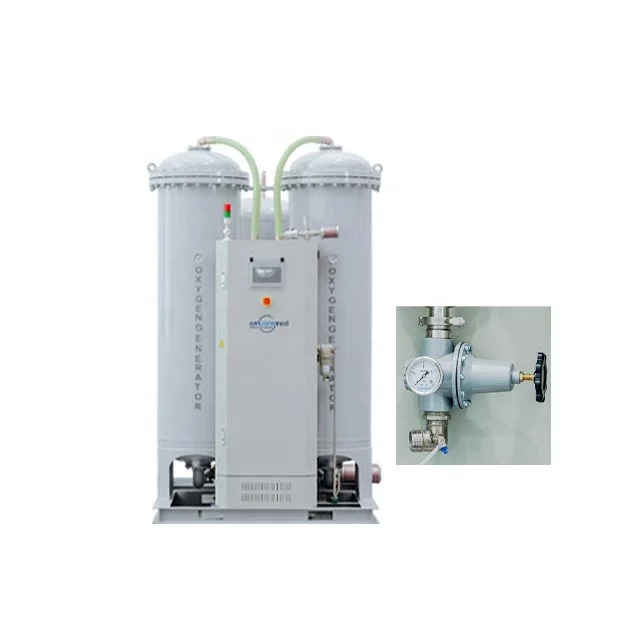

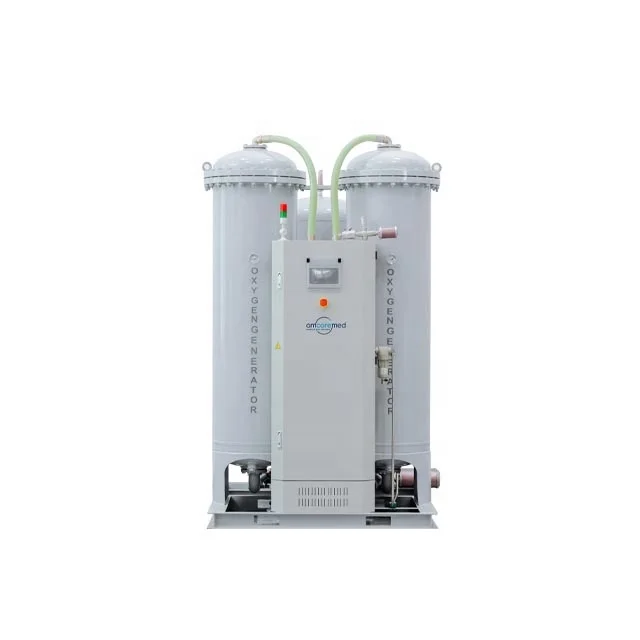

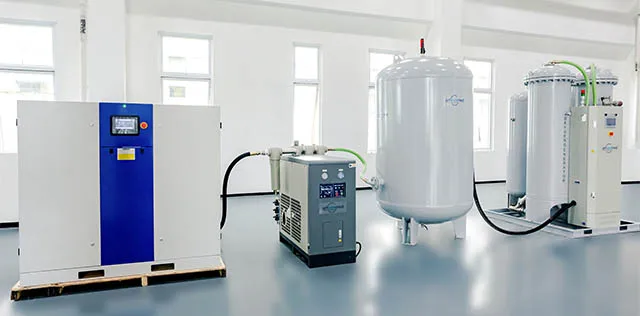

Detailed Images
Model
Model | Oxygen Product Nm3/h(m) | Hospital Bed | Single line solution | Dual line solution |
OY-50 | 5 | ≈150 | 25 | 45 |
OY-80 | 8 | ≈250 | 28 | 48 |
OY-100 | 10 | ≈300 | 30 | 50 |
OY-150 | 15 | ≈450 | 30 | 50 |
OY-200 | 20 | ≈600 | 40 | 80 |
OY-250 | 25 | ≈750 | 40 | 80 |
OY-300 | 30 | ≈1000 | 45 | 90 |
OY-350 | 35 | ≈1300 | 45 | 90 |
OY-400 | 40 | ≈1700 | 50 | 95 |
OY-500 | 50 | ≈2000 | 50 | 95 |
Related Products
Company Introduction
AMCAREMED MEDICAL is a professional design and manufacturing company for medical gas products in China. We are committed to providing users with comprehensive and innovative medical gas solutions and other user-centric service offerings. Include gas pipeline engineering, ward care products, operating room equipment, supporting installation and after-sales service. These solutions and services will create an overall satisfying experience throughout the hospital's gas engineering.
Our plant area is over 2,500m2 and consists of production workshop, inspection workshop, R&D department, warehouse and sample room. All our products have passed strict test and inspection to control the qualified rate before they leave the factory. We believe that quality products and services will cultivate customers' loyalty to our brand.
Over the years, AMCAREMED has track record of continuous growth and a gained one of leadership in the china and oversea market. Our value is time savings, safety and reduced costs for each client.
Our plant area is over 2,500m2 and consists of production workshop, inspection workshop, R&D department, warehouse and sample room. All our products have passed strict test and inspection to control the qualified rate before they leave the factory. We believe that quality products and services will cultivate customers' loyalty to our brand.
Over the years, AMCAREMED has track record of continuous growth and a gained one of leadership in the china and oversea market. Our value is time savings, safety and reduced costs for each client.
Customer Photos
Product Categories
FAQ
Q1. Are you manufacturer or trade company?
A:We are professional manufacturer to produce medical gas pipeline equipment.
Q2. Can I have a sample order？
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Production time needs 4-5 weeks.
Q4. How to buy the products?
A: Firstly let us know your detailed requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A:We are professional manufacturer to produce medical gas pipeline equipment.
Q2. Can I have a sample order？
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Production time needs 4-5 weeks.
Q4. How to buy the products?
A: Firstly let us know your detailed requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
