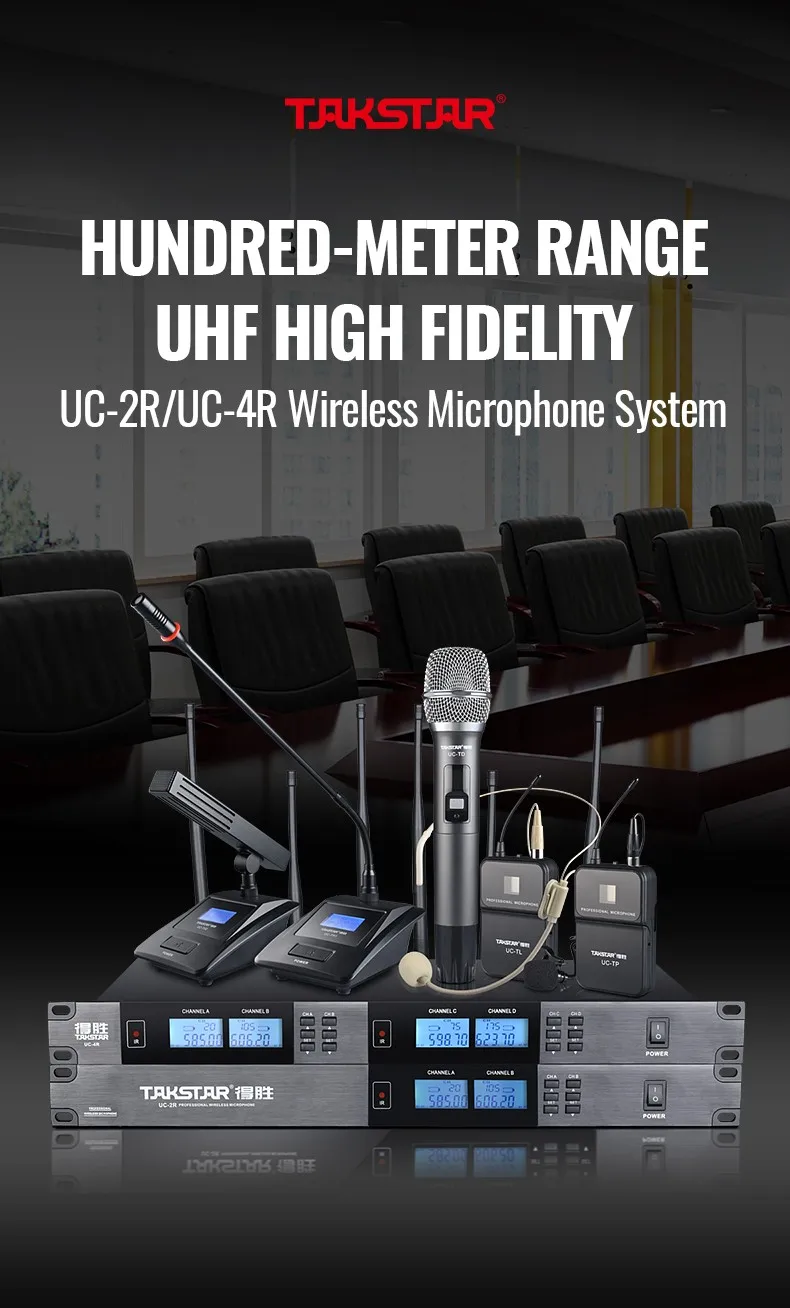

Takstar UC 4R Wholesale High Quality Long Distance 100M UHF 4 Channel Wireless Microphone with Receiver for conference church

Product Overview

Description





UC-4R Wireless Microphone

Karaoke

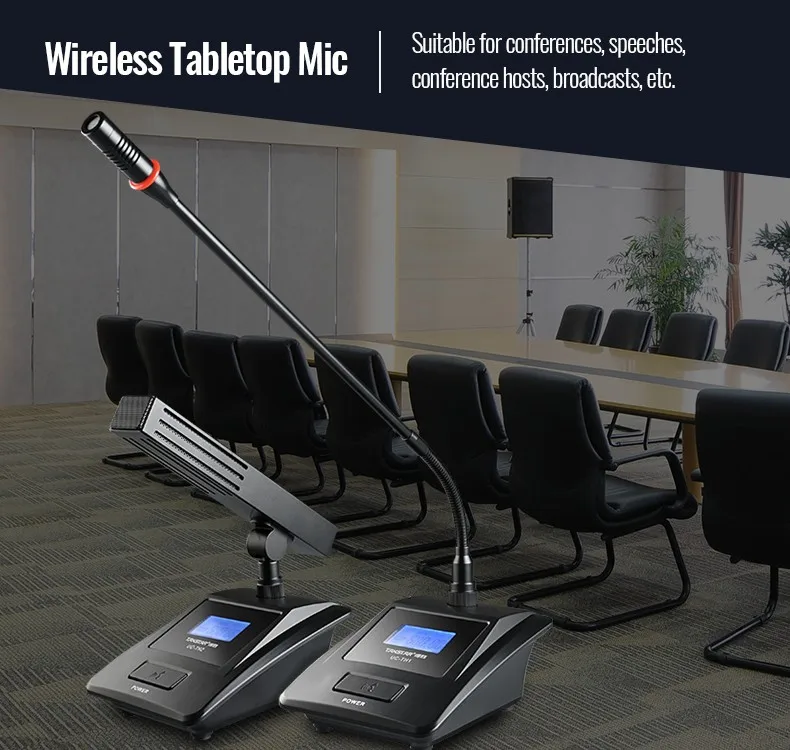

Conference & Speech
Performance
Wireless



Features:

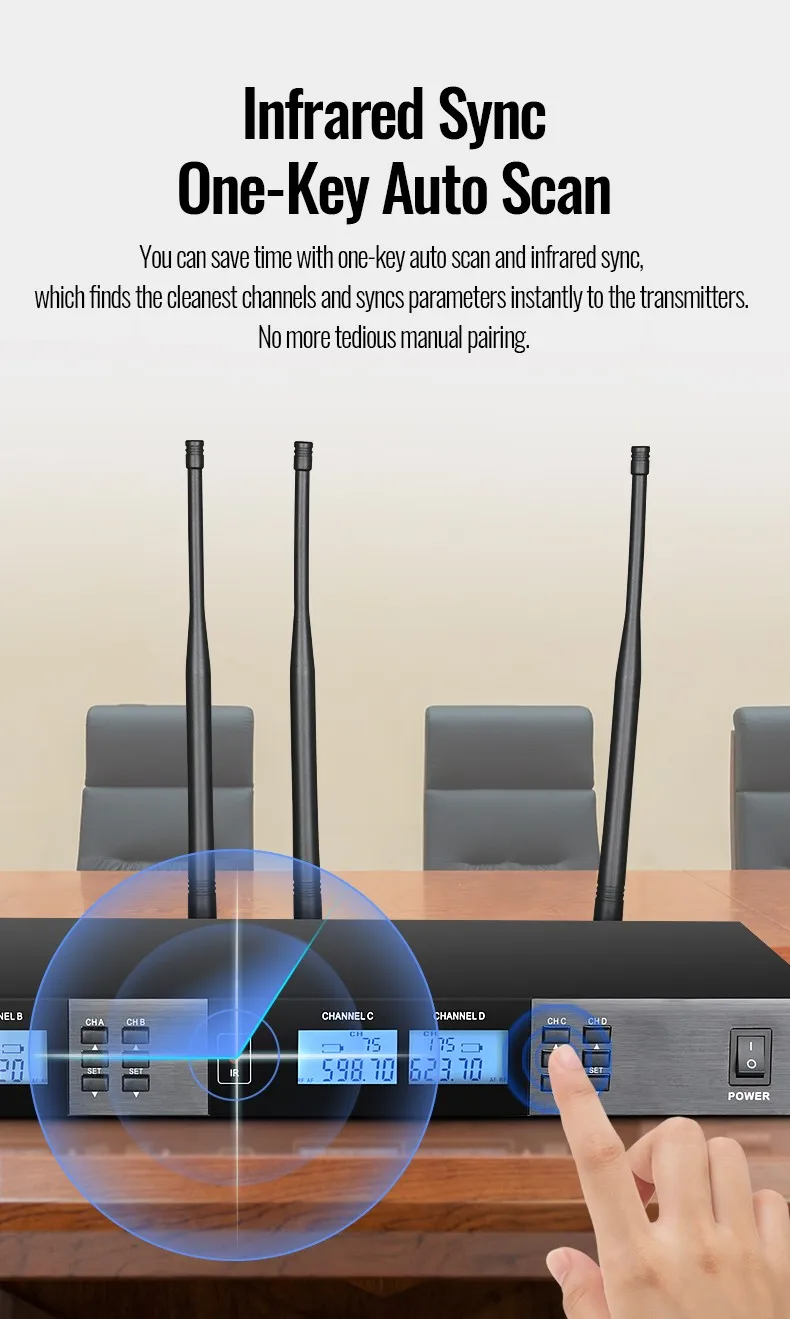

• Microcomputer controlled system, featuring frequency selection, LCD display, frequency data processing and automatic channel scan.

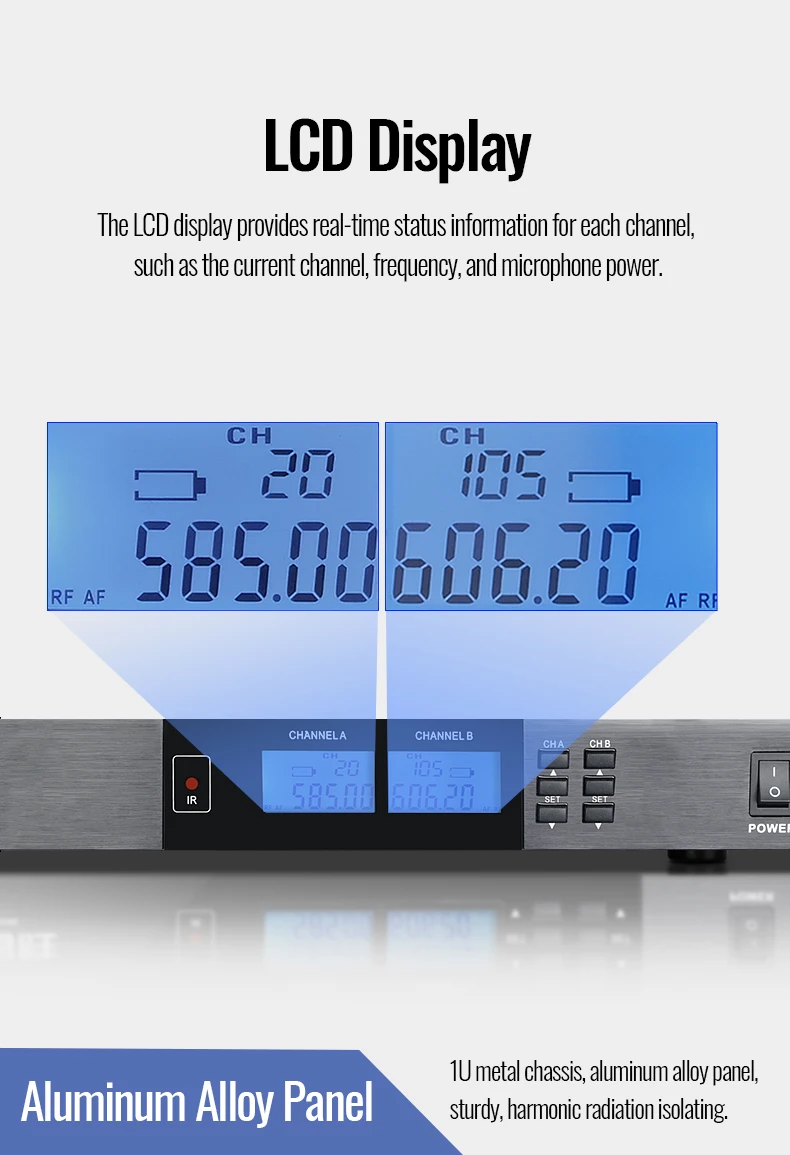

• On-board LCD display makes it easier to track system status and modify system settings.

• Transmitter battery level meter on receiver LCD screen, with low-power alert function.

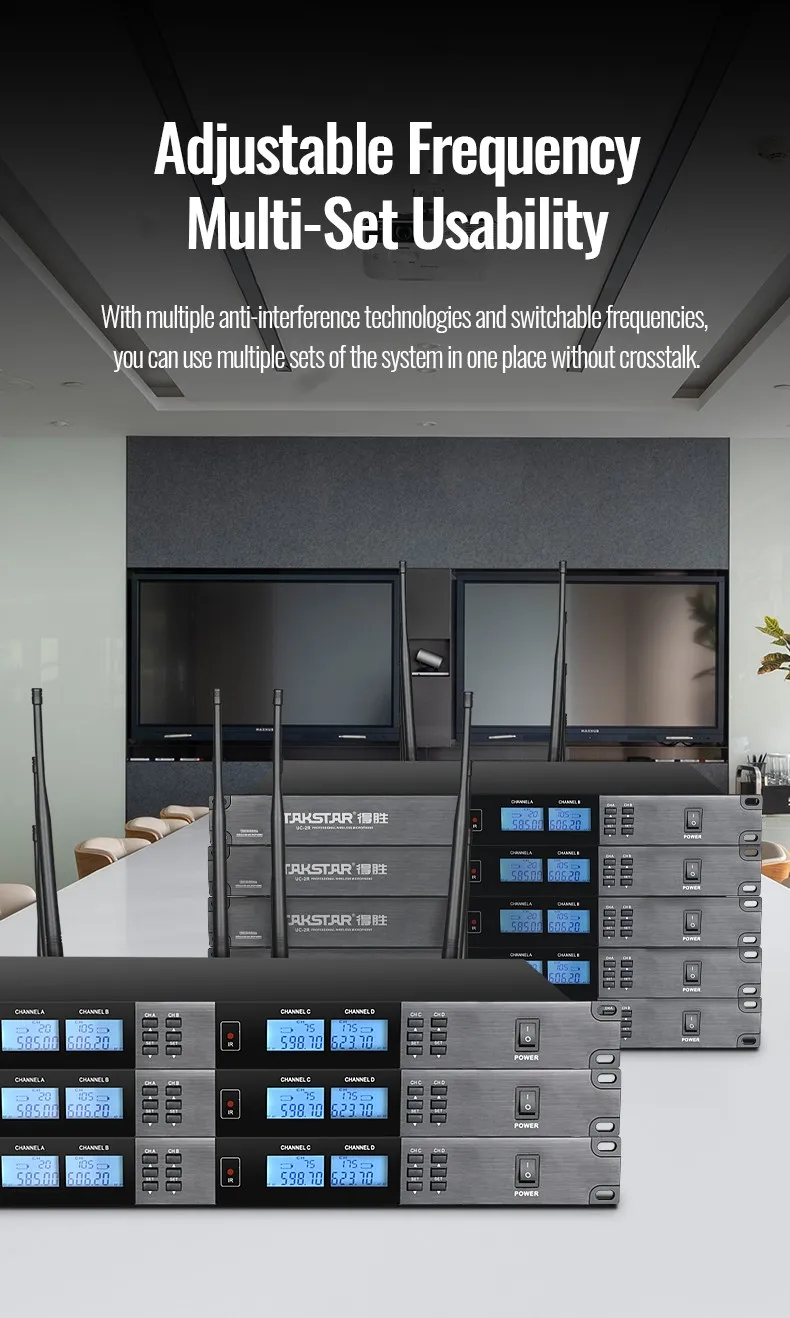

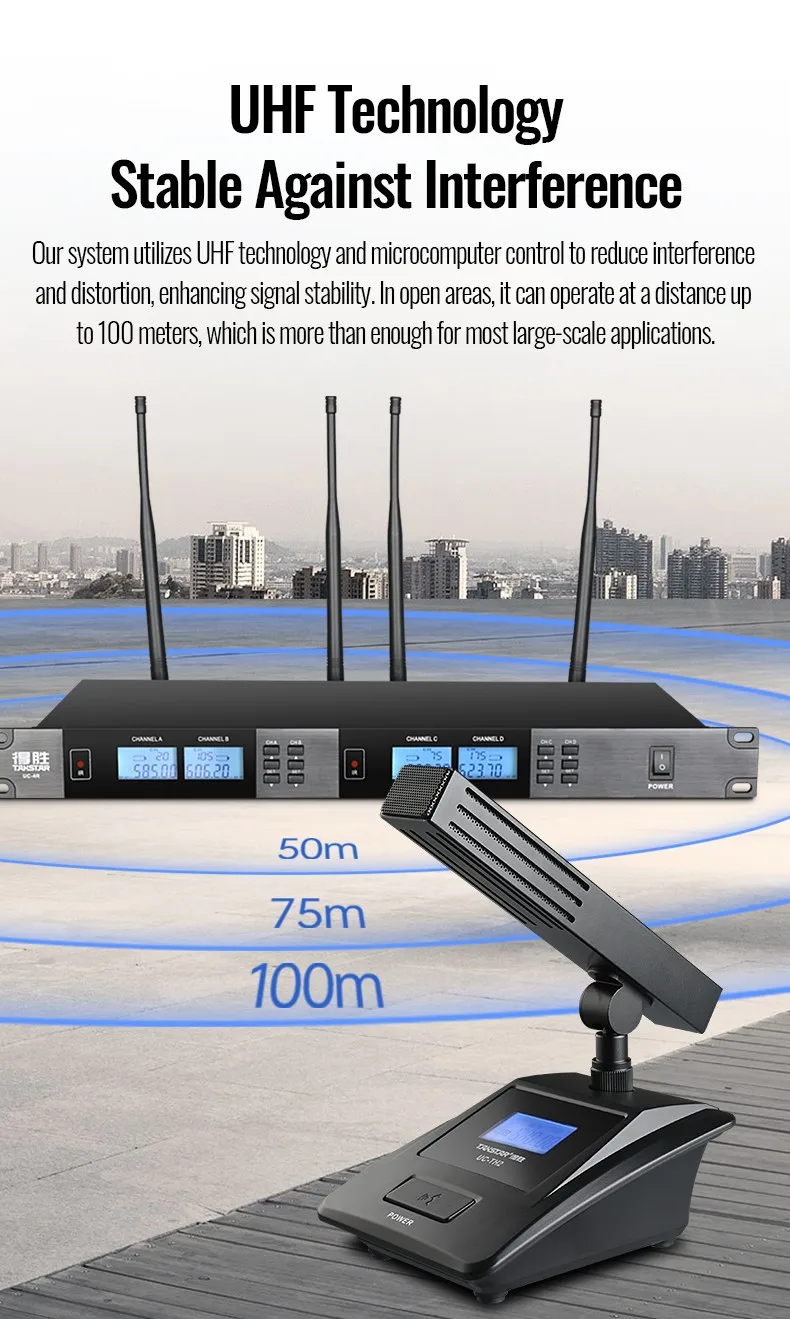

• The system applies a variety of anti-interference technologies, comes with multiple non-interfering frequency presets, convenient for using several systems together.

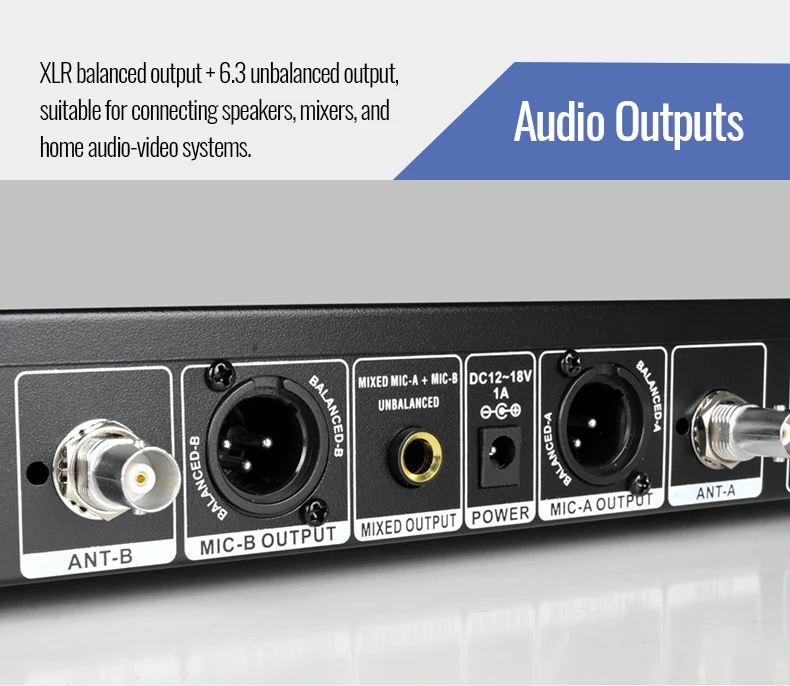

• XLR balanced outputs and 6.3 unbalanced outputs, for connecting different external devices.

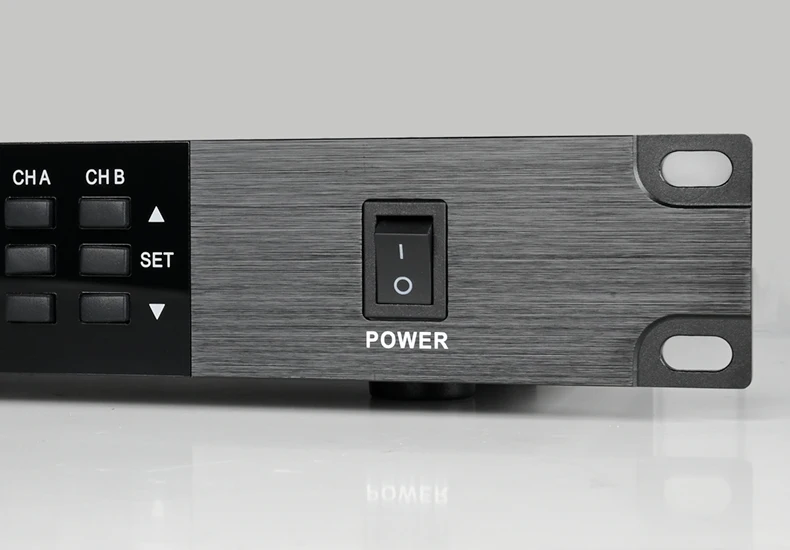

• 1U rack-sized metal chassis, aluminum alloy panel, sturdy, isolating harmonic radiation.

Specification:
Receiver (UC-2R/UC-4R)

• Spurious Suppression: N50dB

• Image Rejection: N50dB

• Sensitivity: >25dBu (SIND=35dB)

• Audio Output Level: balanced output (XLR output jack): 250mV/600Q

unbalanced output (1/4" output jack): 400mV/3KΩ

• Working Voltage: DC 12V; Working Current: 350mA

• Chassis Size: 480 (W) X 190 (D) X 45 (H) mm



Overall System Parameters:

• Frequency Range: 580-630MHz

• Frequency Bandwidth: 60MHz

• Modulation Method: FM

• Max Frequency Deviation: ±45KHz

• Frequency Response: 80Hz-18KHz

• Signal-To-Noise Ratio (S/N): >50dB

• Distortion (IkDz): <5%

• Operating Temperature: TOP ~ 55°C

• Working Distance: 100 meters (under ideal conditions)

• Power Consumption: 8W

• Static Power: 3W

Note: The above data is measured by Takstar laboratory.

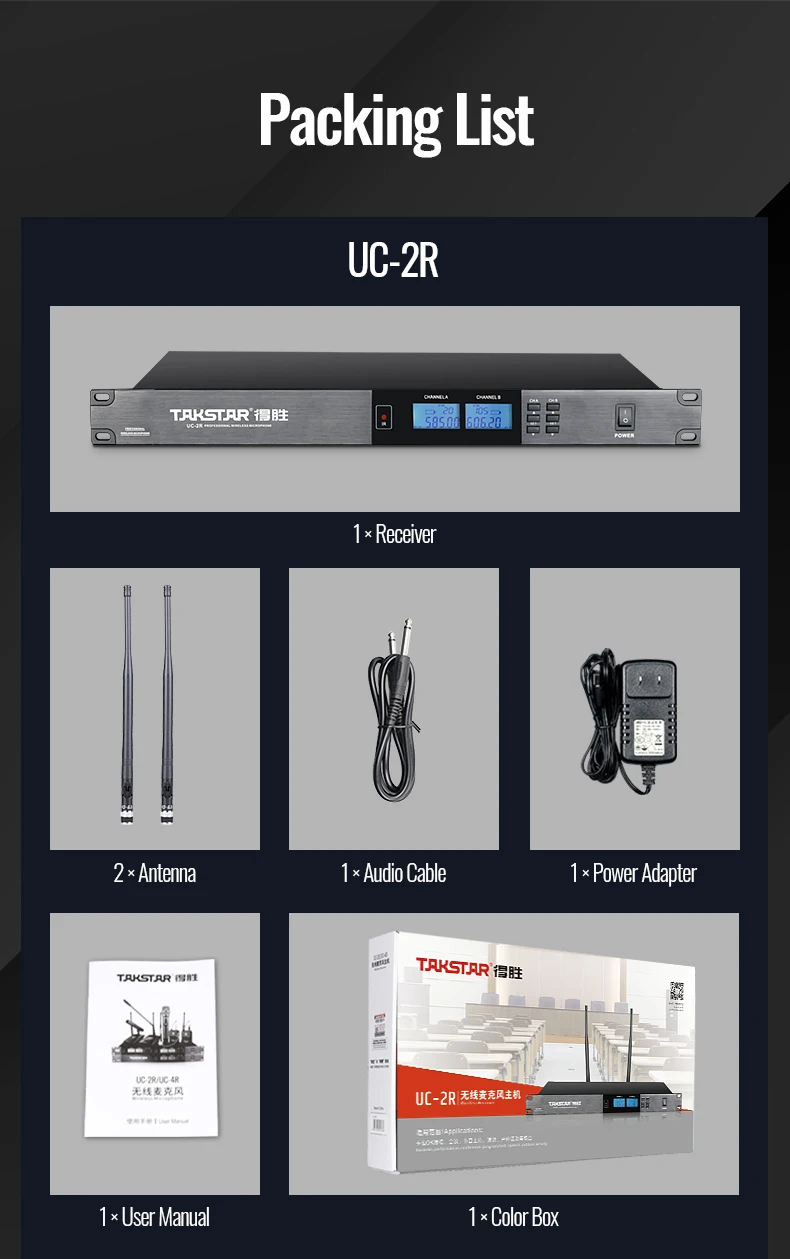

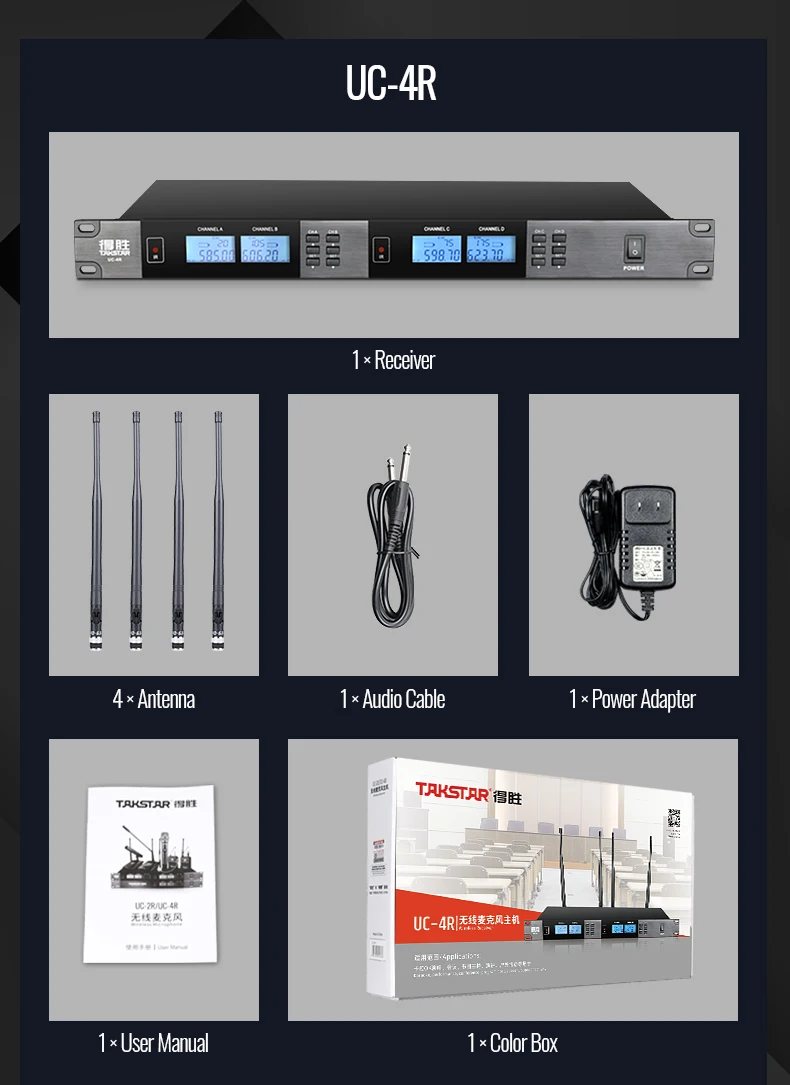

Package Included:
• Receiver 1PCS
• Audio Cable 1PCS
• Power Adapter 1PCS
• Antenna 1PCS
• User Manual 1PCS

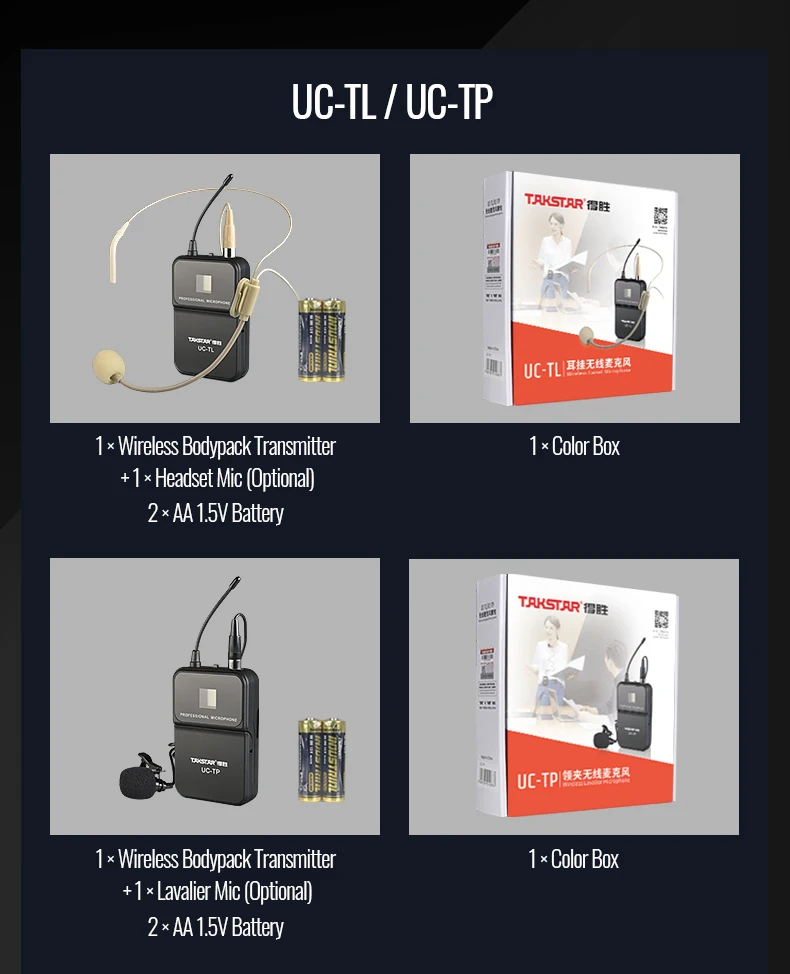

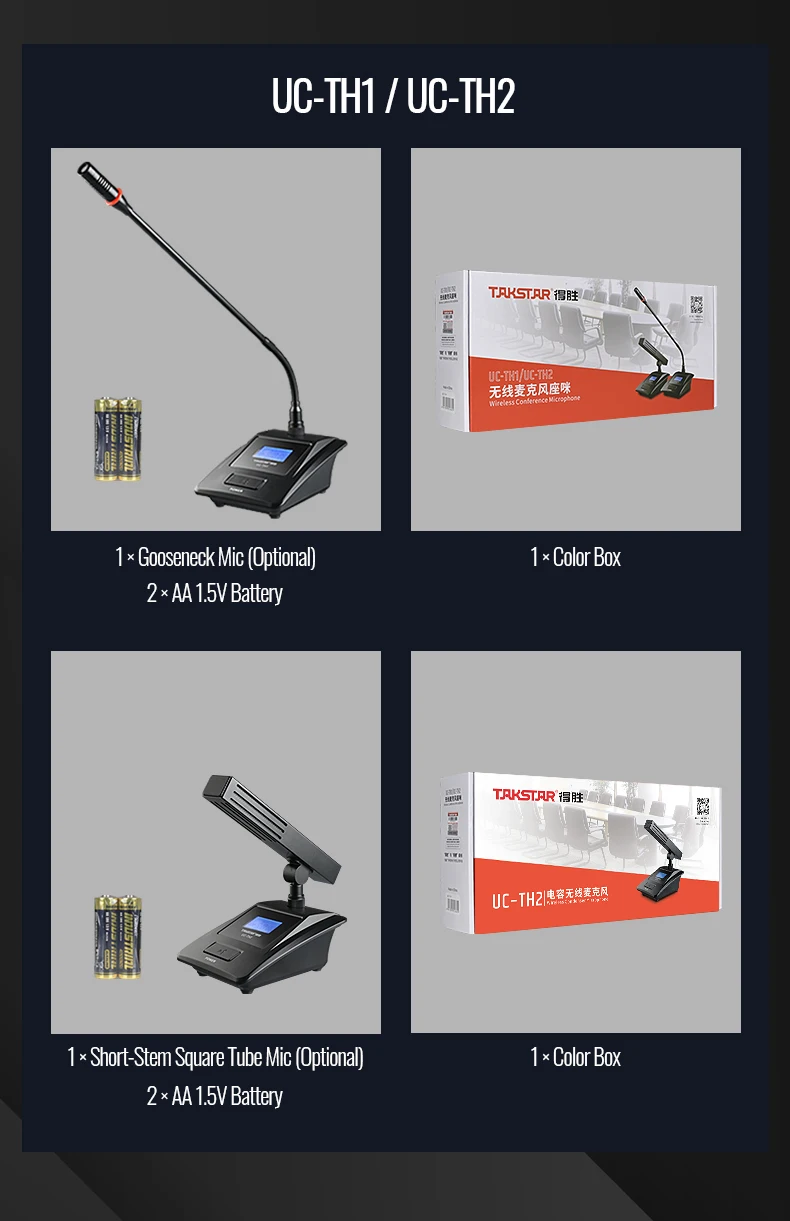

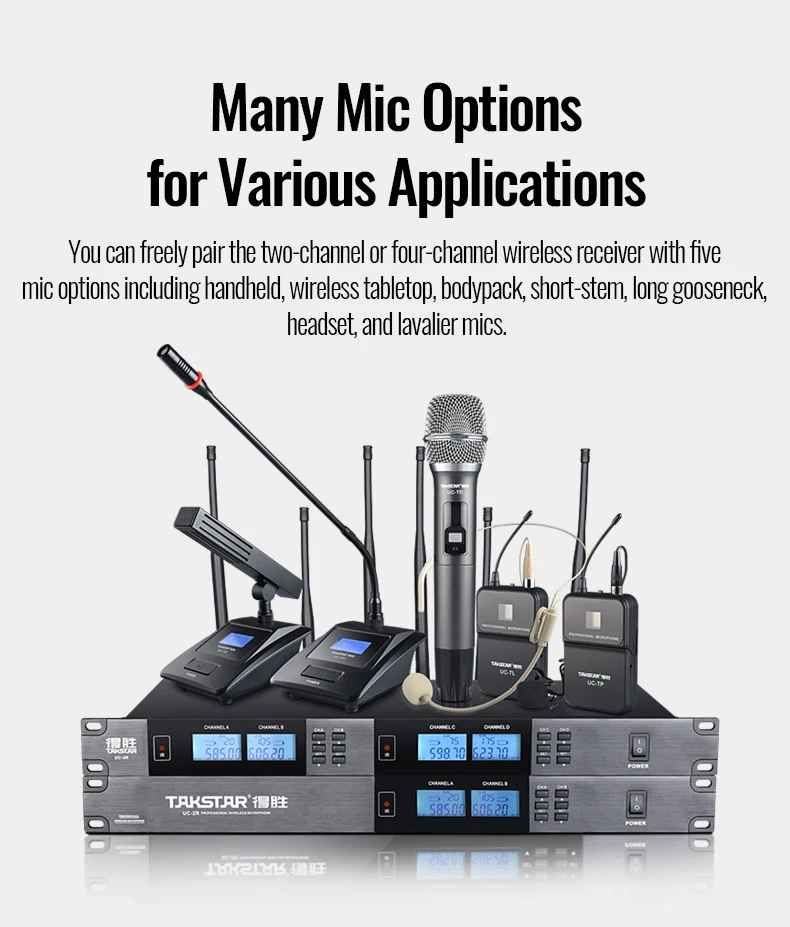

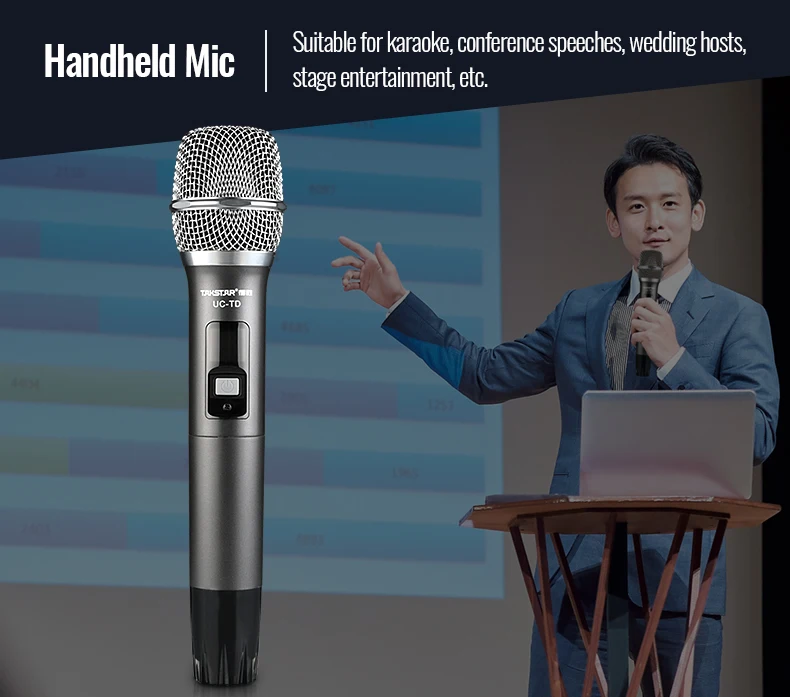

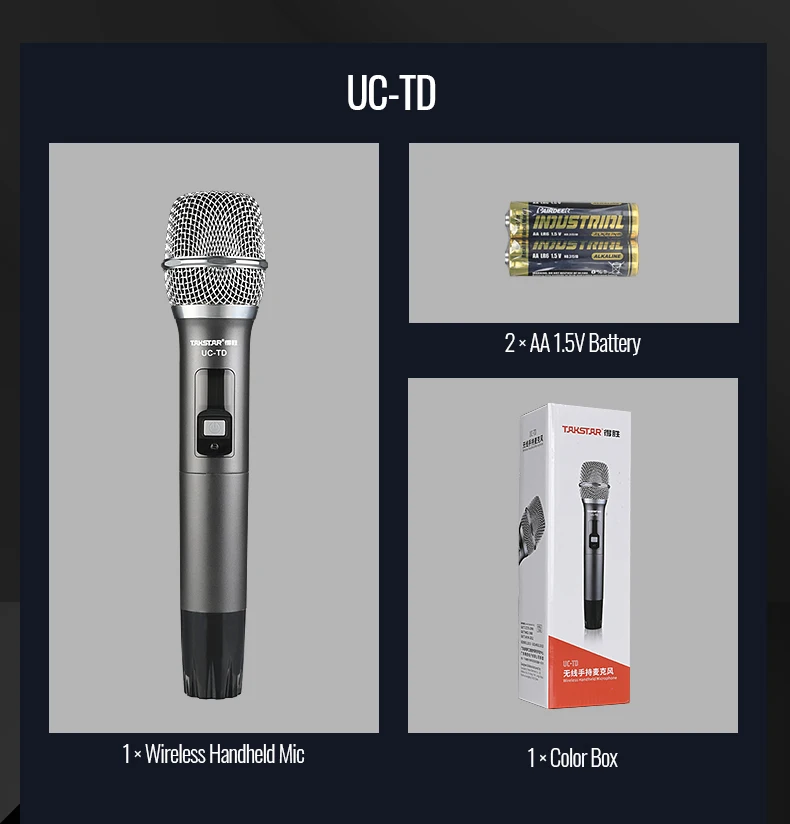

You can choose 4pcs microphone by yourself.
