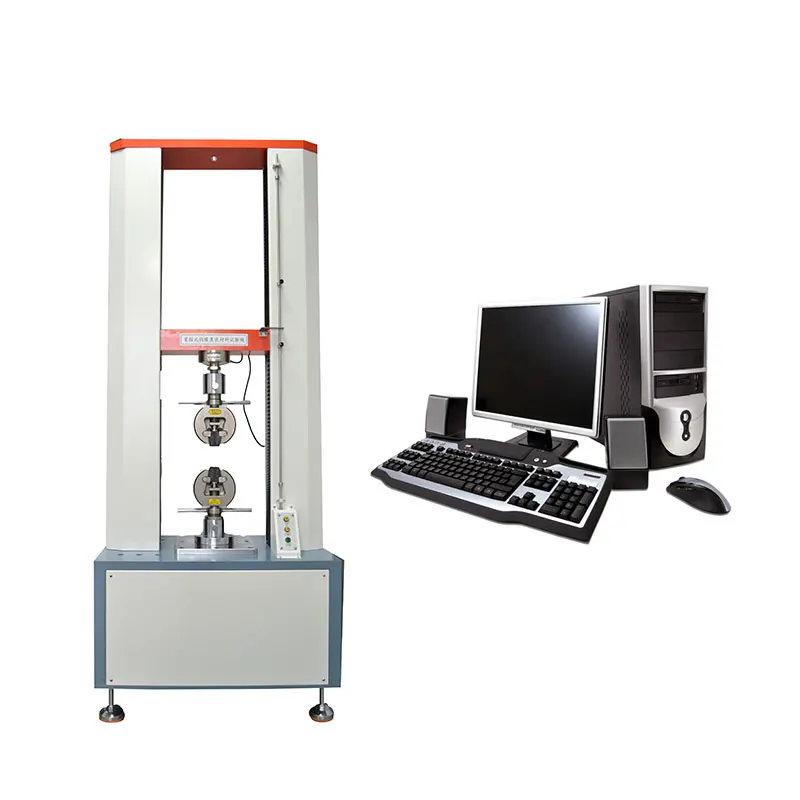

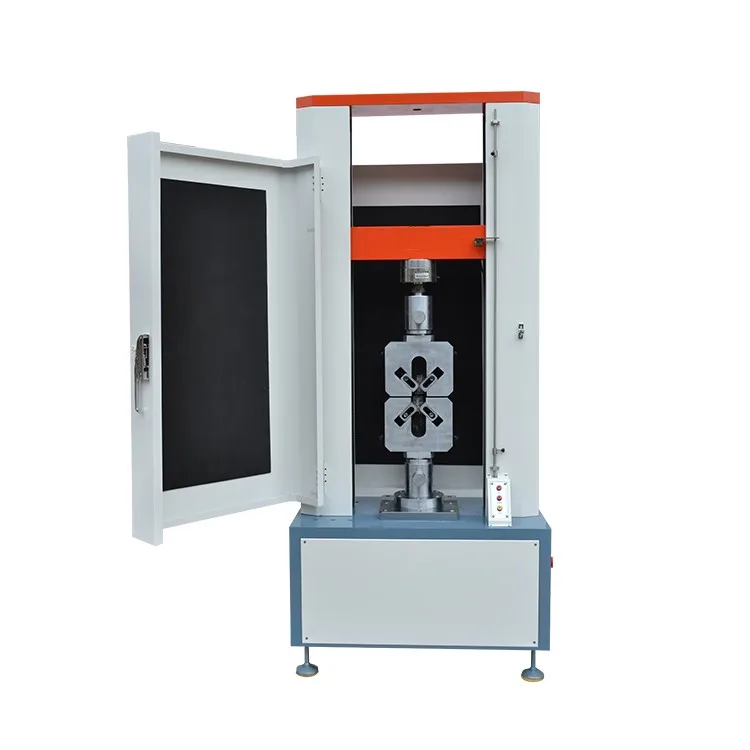

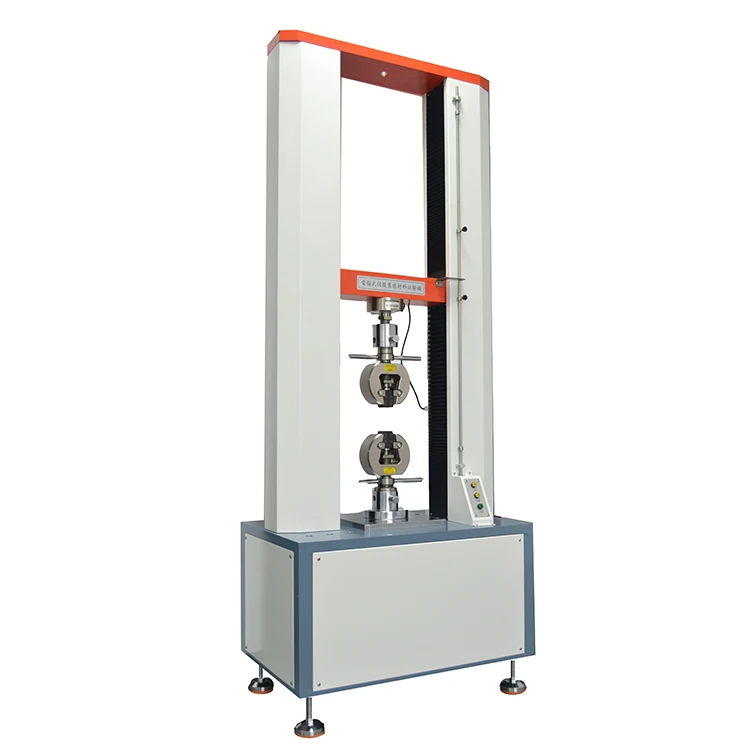

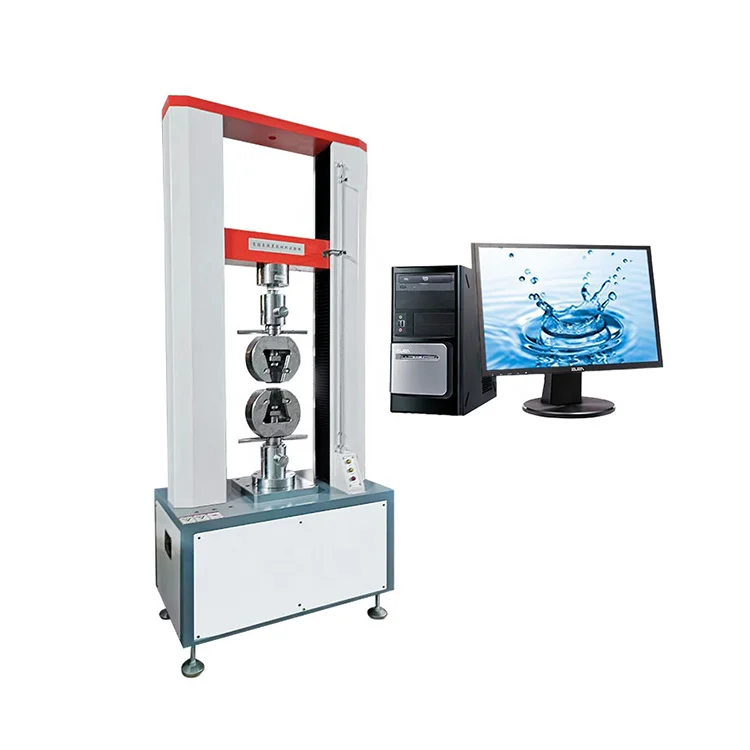

50KN 100KN 200KN 300KN Tensile Breaking Strength And Elongation Testing Apparatus Universal Tensile Tester
Summary:
This tester is applicable to analysis and research of static physical performance test on phone glass,tablet computer glass,liquid crystal glass,touch sensor glass,toughened glass with three-point,four-point bending and elongation test;can do experiments according to International standard like GB,DIN,ISO,JIS and ASTM as well as furnish information(like JC/T676-1997glass material bending test methods,BS EN 1288-3-2000 architectural glass and determination of glass bending strength);test data is in form of dynamic curve display;it automatically obtain maximum force,maximum deformation,bending strain,bending strength,bending modulus,,compression strength,compression force,etc.
Elastic modulus in bending (i.e., flexural modulus), stress-strain behavior, and failure limits in bending all can be obtained
using the simple sample geometry of a 3-point bend test. ASTM D790 or ISO 178 covers flexural properties for plastics; ASTM E855 is used for properties of flat metallic spring materials; ASTM C1684 or C1161 covers 3-point bend testing of ceramics. Four-point bend testing is similar, the major difference is that the addition of a fourth loading point brings a much larger portion of the beam to the maximum stress.
This tester is applicable to analysis and research of static physical performance test on phone glass,tablet computer glass,liquid crystal glass,touch sensor glass,toughened glass with three-point,four-point bending and elongation test;can do experiments according to International standard like GB,DIN,ISO,JIS and ASTM as well as furnish information(like JC/T676-1997glass material bending test methods,BS EN 1288-3-2000 architectural glass and determination of glass bending strength);test data is in form of dynamic curve display;it automatically obtain maximum force,maximum deformation,bending strain,bending strength,bending modulus,,compression strength,compression force,etc.
Elastic modulus in bending (i.e., flexural modulus), stress-strain behavior, and failure limits in bending all can be obtained
using the simple sample geometry of a 3-point bend test. ASTM D790 or ISO 178 covers flexural properties for plastics; ASTM E855 is used for properties of flat metallic spring materials; ASTM C1684 or C1161 covers 3-point bend testing of ceramics. Four-point bend testing is similar, the major difference is that the addition of a fourth loading point brings a much larger portion of the beam to the maximum stress.
Typical applications:
Glass 3-points bending test
Glass 4-points bending test
Glass compressive strength test
Metal / sheet tensile test
Rubber / plastic tensile test
Metal / plastic bending test
Tape 900/1800 peel strength test
FPC pull test
Beverage packaging compression / bursting force test
The product holding force (Constant) Test
Low cycle fatigue (loop) test
Metal timber three-point bending test
Environmental plywood adhesive force test
The composite woven packaging with strength test
Features:
High-precision:
Use Panasonic AC servo motor to drive, and ABBA high precision ball screw for transmission, with high precision explosion-proof LOADCELL from U.S. TRANSCELL, the force accuracy can be ± 0.25%, the displacement accuracy is up to 0.001mm.
High intelligence:
Automatically determine the fracture, automatic return, the force units are free to switch languages switchable: Simplified / Traditional Chinese, English. Load - displacement, load - time, displacement - time stress - strain, strain - time, stress - time multi-curve analysis.
Test report:
Statements developing is based the Crystal Reports10.0 version, can automatically calculate the strength, elastic modulus E RP0.2 ReL, ReH, elongation, content can be freely altered ,curve automatically generated. Can be exported to Excel, PDF, HTML and other formats.
Glass 3-points bending test
Glass 4-points bending test
Glass compressive strength test
Metal / sheet tensile test
Rubber / plastic tensile test
Metal / plastic bending test
Tape 900/1800 peel strength test
FPC pull test
Beverage packaging compression / bursting force test
The product holding force (Constant) Test
Low cycle fatigue (loop) test
Metal timber three-point bending test
Environmental plywood adhesive force test
The composite woven packaging with strength test
Features:
High-precision:
Use Panasonic AC servo motor to drive, and ABBA high precision ball screw for transmission, with high precision explosion-proof LOADCELL from U.S. TRANSCELL, the force accuracy can be ± 0.25%, the displacement accuracy is up to 0.001mm.
High intelligence:
Automatically determine the fracture, automatic return, the force units are free to switch languages switchable: Simplified / Traditional Chinese, English. Load - displacement, load - time, displacement - time stress - strain, strain - time, stress - time multi-curve analysis.
Test report:
Statements developing is based the Crystal Reports10.0 version, can automatically calculate the strength, elastic modulus E RP0.2 ReL, ReH, elongation, content can be freely altered ,curve automatically generated. Can be exported to Excel, PDF, HTML and other formats.
Size Information
Recommended Our Model NG-101, Double Column Universal Tensile Tester
Items | Servo Universal Tensile Testing Machine |
Capacity | 5000, 10000, 20000, 30000Kg |
Unit | G, KG, N, LB can be exchanged |
Accurate Grade | 0.5grade |
Display Device | PC |
Resolution | 1/250,000 |
Effective Accuracy | ±0.2% (0.5grade) |
Max.Stroke | 800mm (Column height 143cm) |
Speed Range | 0.05-250mm/min (adjustable ) |
Motor | Servo Motor + High Precise Ball Screw |
Elongation Accuracy | 0.001mm |
Power | AC220V, 50/60HZ (Or custom-made) |
Standard Accessories | One set of 3PB or 4PB test clamp, Computer system, English software CD,User manual |
Best Selling
Company Introduction
FAQ
1.Are your company a trading one or a factory ?
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
