High Quality 2-Channel Isolated RS232 Hat And Dual Channel Isolation Expansion Board With Factory Prices
Product details
| name | Raspberry Pi 4B/3B+ Expansion HAT |
| Model Number | MD-RPME34-18 |
| use for | Raspberry Pi 4B/3B+/3B/Zero |
| MOQ | 5 pieces |
| Type | Expansion board |
| lead time | 2~3 days |
| Product Keywords | raspberry pi,2-channel isolated rs232 expansion hat,dual channel isolation expansion board |

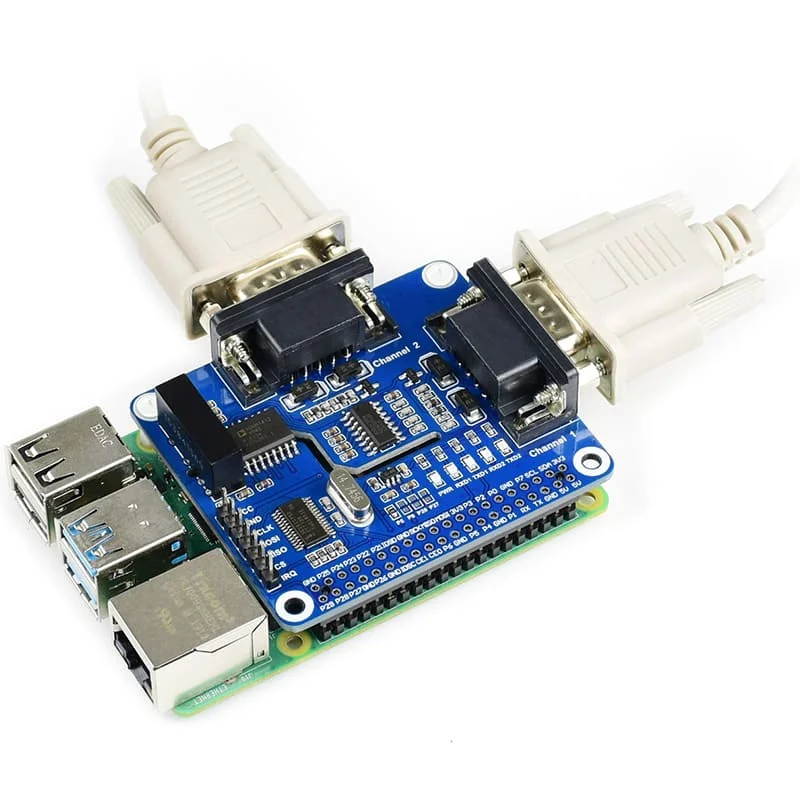

2-Channel Isolated RS232 Expansion HAT For Raspberry Pi, SC16IS752+SP3232 Solution, With Multi Onboard Protection Circuits
Overview
This is a 2-channel isolated RS232 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3232 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc.
It is easy to control the 2-channel RS232 via SPI interface. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Adopts SC16IS752+SP3232 dual chip combination, converts SPI to RS232, data rate up to 921600bps
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
Onboard LEDs for indicating the power and transceiver status
Comes with development resources and manual (examples in C and Python)
Specifications
UART expansion chip: SC16IS752
RS232 transceiver: SP3232
Communication interface: SPI
Data rate: 300 ~ 921600 bps
Operating voltage: 3.3V / 5V

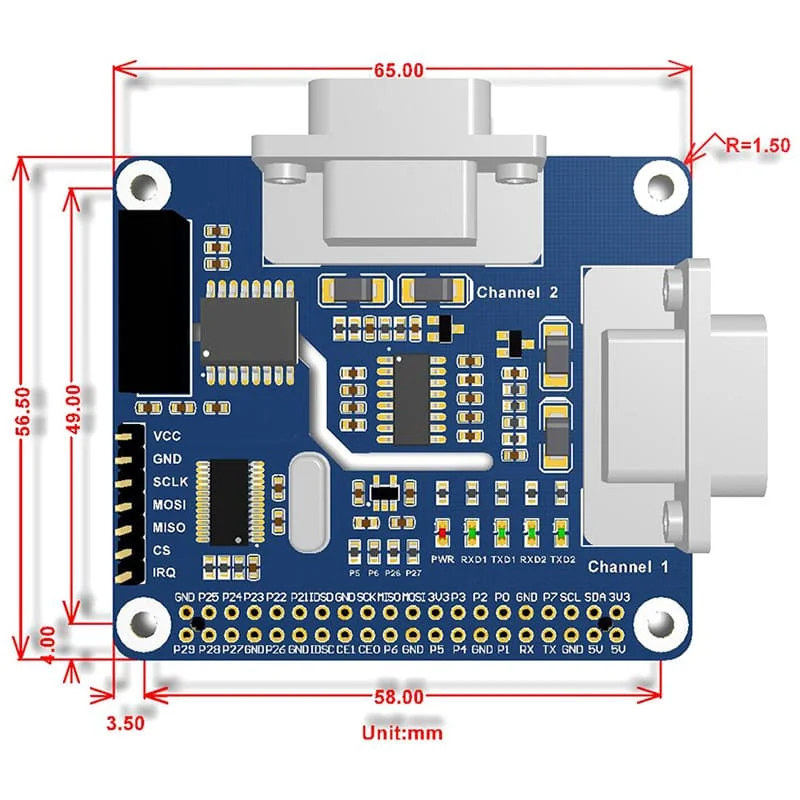

Dimensions: 65mm × 56.5mm
Mounting hole size: 3.0mm

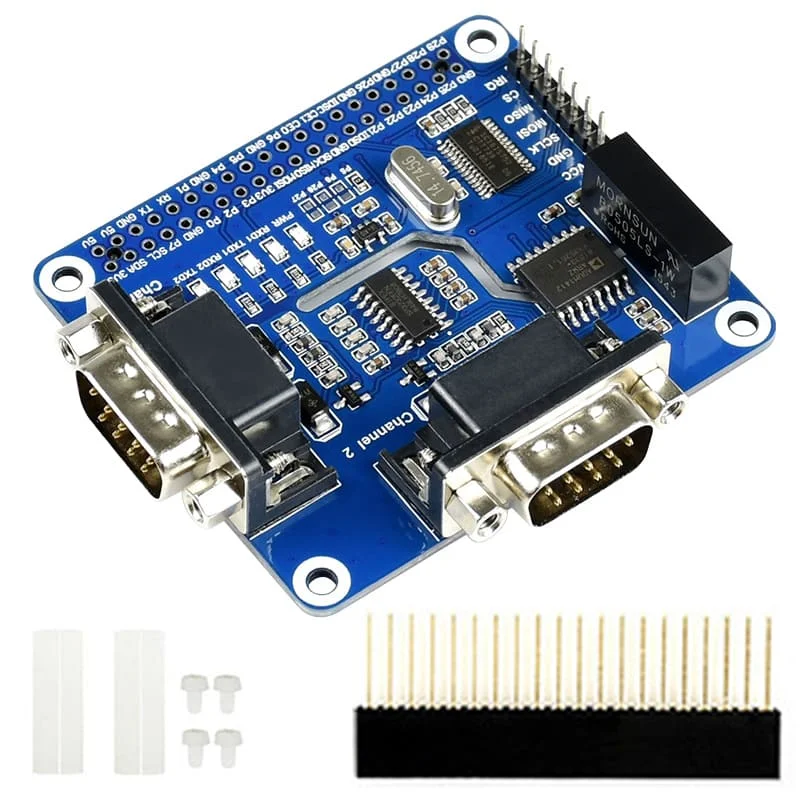

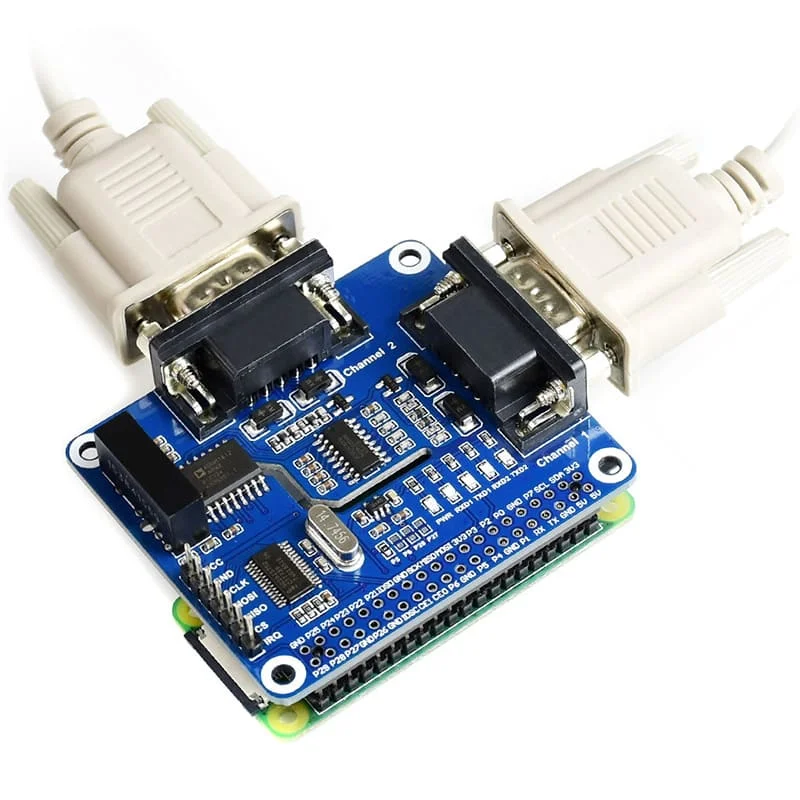

What's on board?
SC16IS752 UART expansion chip
SP3232 RS232 transceiver
ADUM1412 digital isolator
B0505LS power supply isolation module
RT9193-33 power chip
Raspberry Pi GPIO connector:for connecting Raspberry Pi
RS232 connector:2 channels RS232 interface (RS232 9PIN male)
Transient suppress diode array
ESD protection two-way diode
Serial port status indicator
RXD1/TXD1: channel 1 transceiving indicator
RXD2/TXD2: channel 2 transceiving indicatorPower indicator
Interrupt pin switch
The interrupt pin IRQ is connected to P5 (BCM P24) by default
Changeable via 0R resistor
Pinouts
PIN | RASPBERRY PI (BCM) | DESCRIPTION |
VCC | 5V | 3.3V/5V power supply |
GND | GND | Ground |
SCK | P21 (SPI1 SCLK) | SPI clock input |
MOSI | P20 (SPI1 MOSI) | SPI data input |
MISO | P19 (SPI1 MISO) | SPI data output |
CS | P18 (SPI1 CS) | SPI chip select |
IRQ | P24 | Interrupt output
|
