Tobee Effluent Handling
$12,600

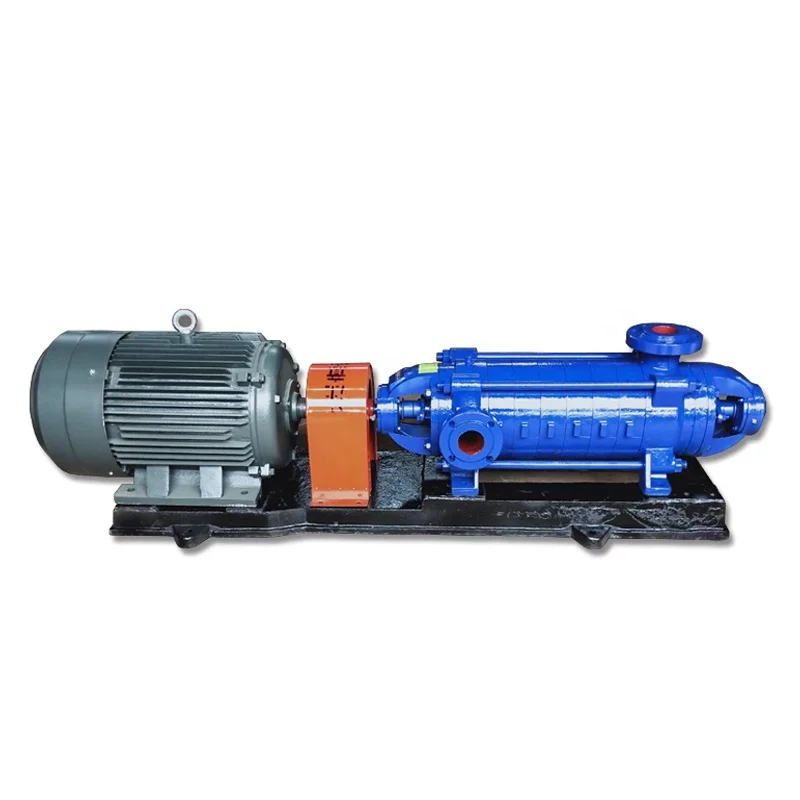

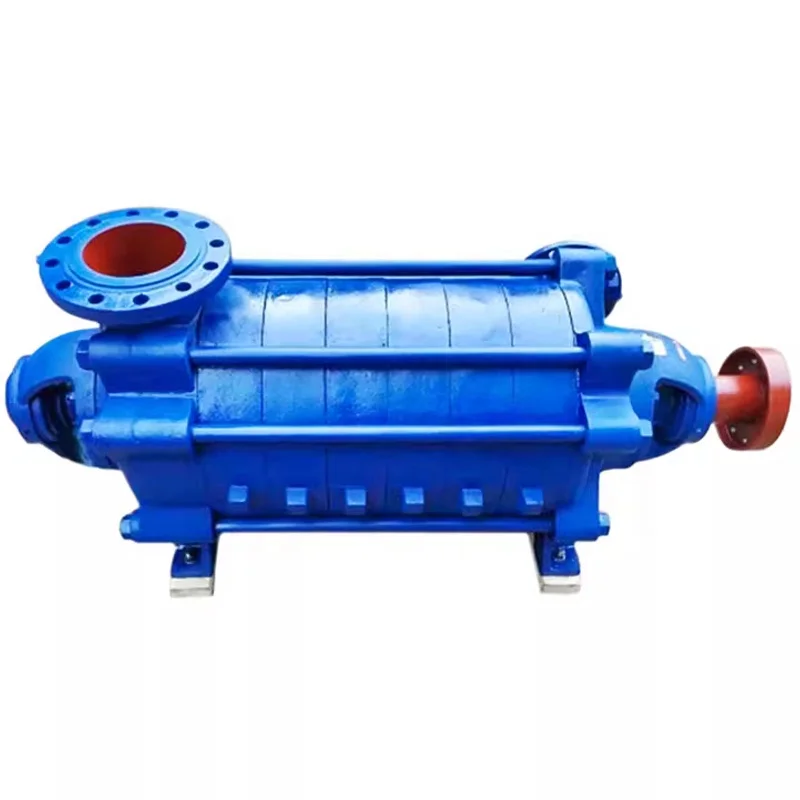

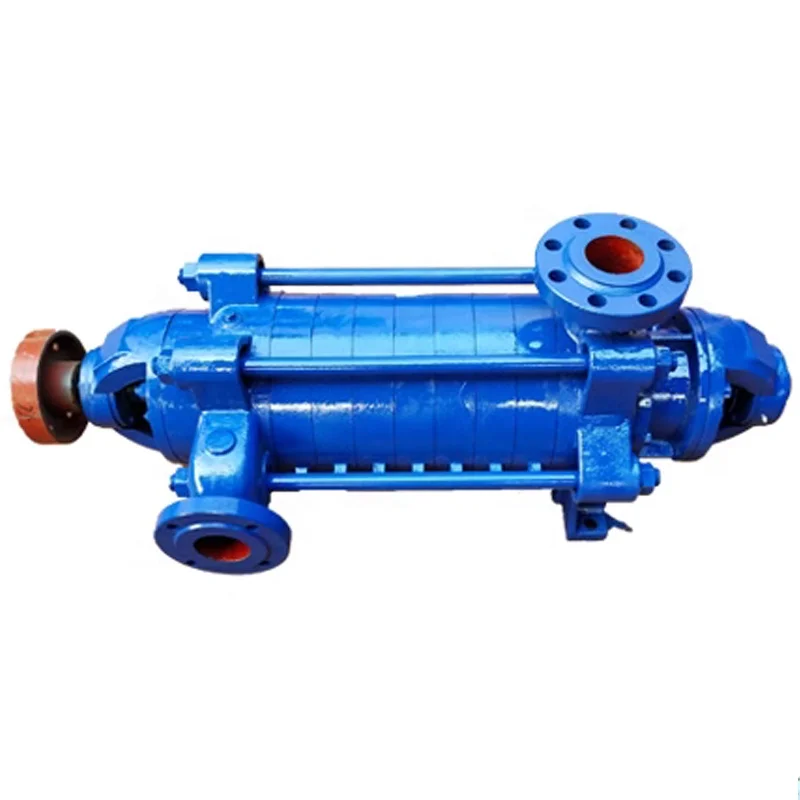

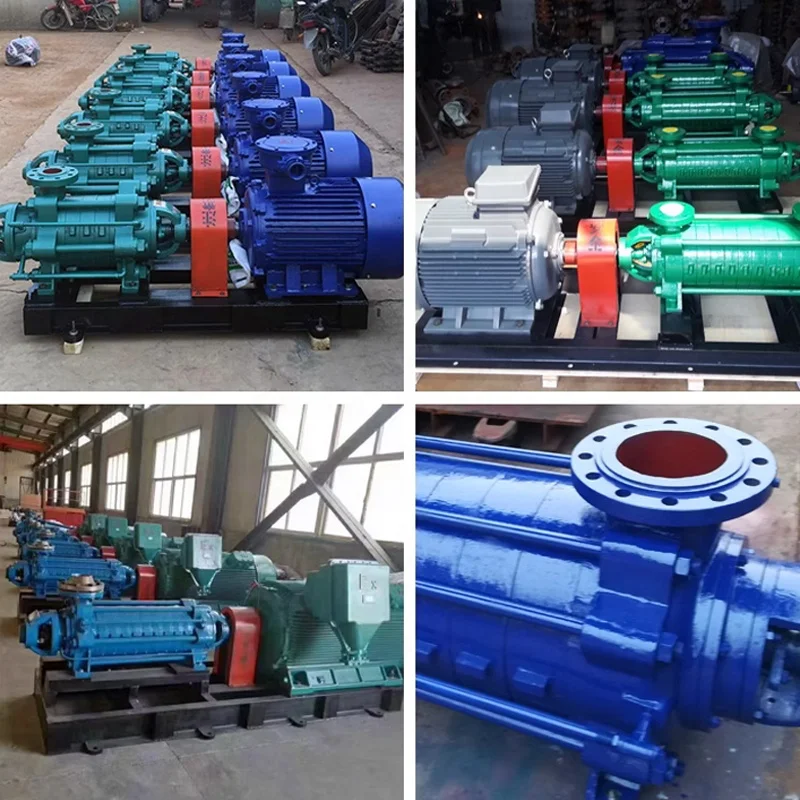

Diesel high pressure pumps Multi stage high Fire fighting pressure water fire extinguishing Multistage Water Pump automatic
- Category: >>>
- Supplier: Hebei Antai Water Pump Manufacturing Co. Ltd.
Share on (1600933209532):
Product Overview
Description
Product Description
DG series boiler water feed pump:medium temperature is not exceed 160℃, applicate to transport hot water, such as water feed to bolier, municipal and industrial heating system.This pump is horizontal sectional multistage centrifugal pump

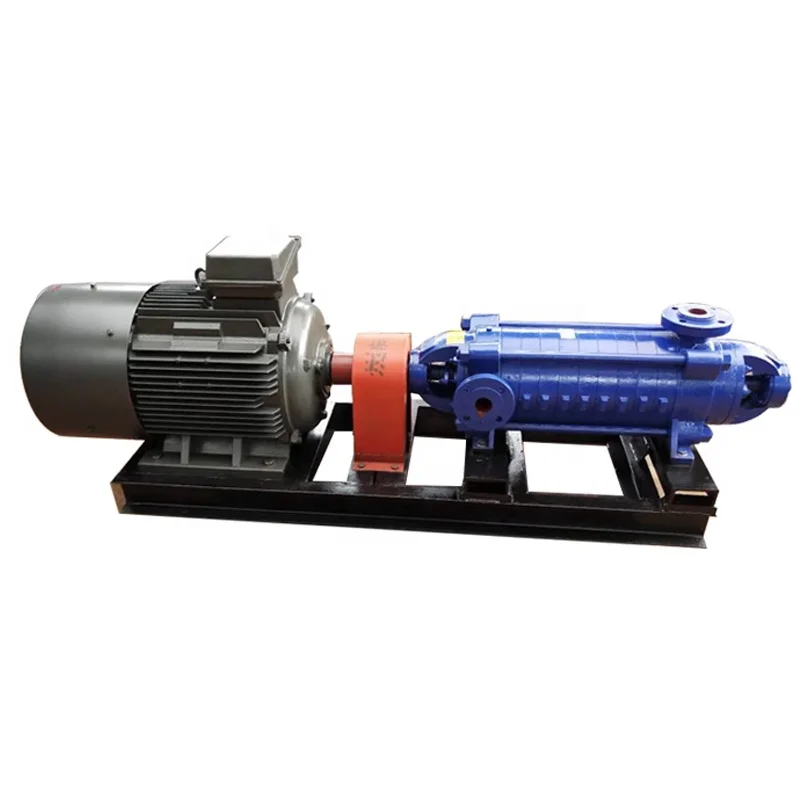

1.This series multi-stage pump have two bearings on begin and end shaft, flexible pin coupling coupled between pump and motor,.the rotating direction seen from the motor is clockwise
2.Horizontal suction and vertical discharge,but the DG pump are both vertical.Multi-stage pump

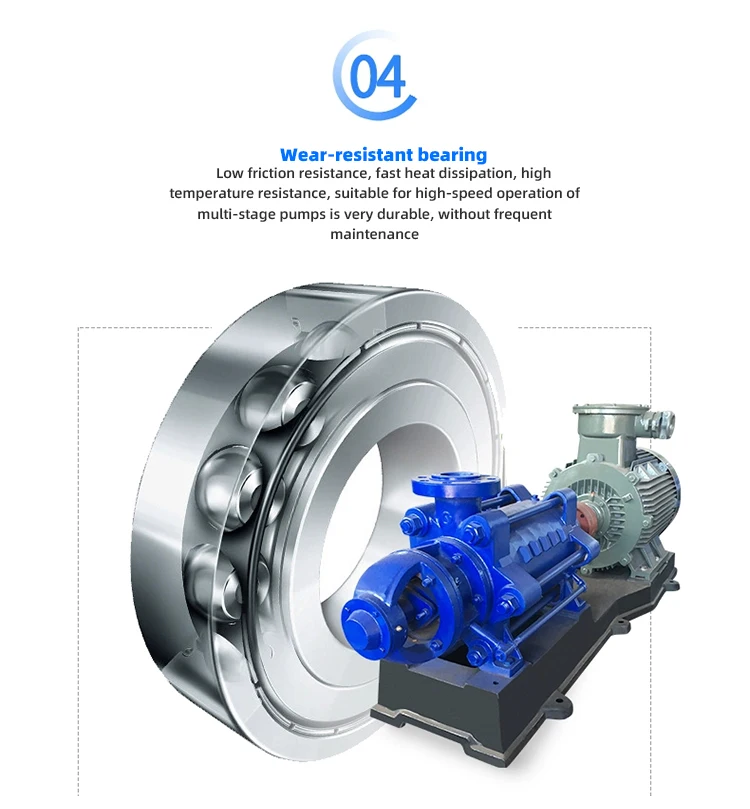

3.The bearing is lubricated by butter.

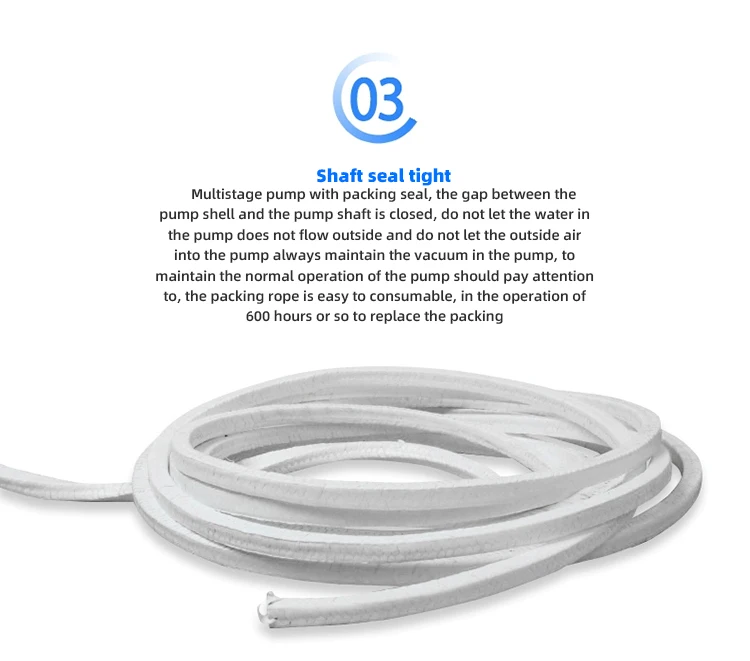

4.Shaft seal:Gland packing seal /mechnical seal
1.This series multi-stage pump have two bearings on begin and end shaft, flexible pin coupling coupled between pump and motor,.the rotating direction seen from the motor is clockwise
2.Horizontal suction and vertical discharge,but the DG pump are both vertical.Multi-stage pump
3.The bearing is lubricated by butter.
4.Shaft seal:Gland packing seal /mechnical seal

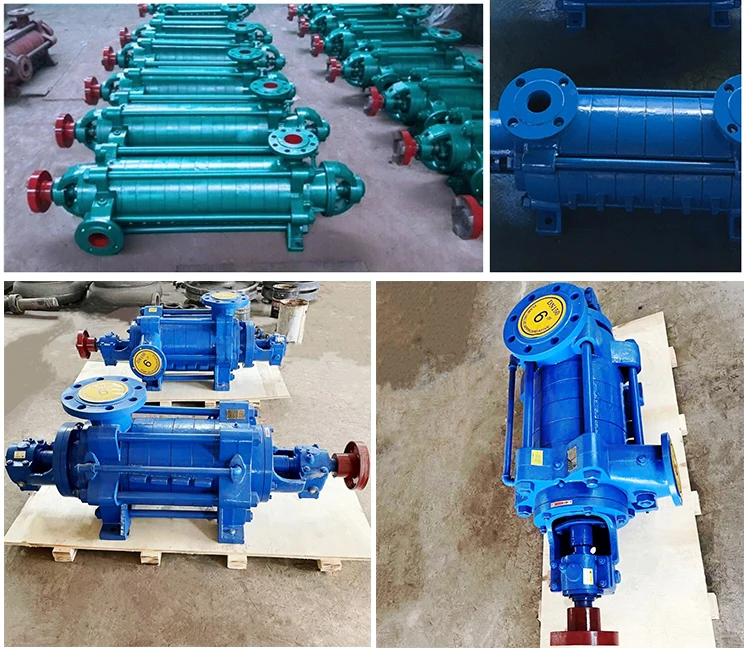

Details Images
Product Paramenters
Model number | series | Flow rate (m3/h) | head ( m ) | power (kW ) | Rotational speed ( r / min ) |
DG6-25 MD6-25 DF6-25 | 3.75 | 76.5 | 5.5 | ||
6.3 | 75 | 5.5 | |||
7.5 | 73.5 | 5.5 | |||
6 | 3.75 | 153 | 11 | ||
6.3 | 150 | 11 | |||
7.5 | 147 | 11 | |||
9 | 3.75 | 229.5 | 15 | ||
6.3 | 225 | 15 | |||
7.5 | 220.5 | 15 | |||
12 | 7.5 | 306 | 18.5 | ||
6.3 | 300 | 18.5 | |||
7.5 | 294 | 18.5 | |||
D12-25 DG12-25 MD12-25 DF12-25 | 3 | 7.5 | 84.6 | 7.5 | |
12.5 | 75 | 7.5 | |||
15.0 | 69 | 7.5 | |||
6 | 7.5 | 169.2 | 15 | ||
12.5 | 150 | 15 | |||
15.0 | 138 | 15 | |||
9 | 7.5 | 253.8 | 18.5 | ||
12.5 | 225 | 18.5 | |||
15 | 207 | 18.5 | |||
7.5 | 282 | 22 | |||
12.5 | 250 | 22 | |||
15 | 230 | 22 | |||
7.5 | 338.4 | 30 | |||
12.5 | 300 | 30 | |||
15 | 276 |
SThe performance parameter table only shows part of the products. For details, please consult our company’s account manager, so that you can choose products for you more professionally.
Company Profile
Hebei Antai Pump Manufacturing Co., Ltd. is based on slurry pump, desulfurization pump, double suction pump, sand and gravel pump as the main products, research and development, design, manufacturing, sales, Service as one of the professional pump manufacturing enterprises, can provide users with modeling design, installation research, renovation, mapping and customization, machine accessories Service. Since its establishment, the company has always pursued the enterprise purpose of survival by quality and development by reputation, strengthened enterprise management, and highlighted the service level. The products are exported to Australia, East West Asia, Russia, Ukraine, Brazil, India, the United States, Canada, and other countries.
The European Union, etc. The registered capital of the company is 12 million yuan, with high-end professional equipment such as casting, processing, assembly, testing and inspection. The main product series are:
ATZJ, ATZJL, ATZXW, ATAH(R), ATM (R), ATHH, ATH, ATL (R), ATSP(R), ATG, ATZGB and other slurry pumps
ATDT, ATDTL, ATTL (R) and other desulfurization pumps, ATS, ATSH and other double suction pumps, ATSQ, ATSG, ATSW and other series of sewage pumps, caliber fan
Circumference 25-1000mm, flow 5-15000³/h, head 5-145m, widely used in waste incineration slag treatment industry, mining, power, coal,
Metallurgy, chemical industry, building materials, water conservancy and other industries. The company has a high level of domestic pump performance test center, with a perfect quality management system, Strictly implement total quality management, has passed the $1 O9001 quality system certification. The company's manufacturing, sales and service procedures are complete, and products are reliable Quality, superior performance obtained a number of professional certifications, and has import and export qualifications. Welcome new and old customers at home and abroad to visit our company to discuss cooperation! We will provide customers with perfect and thoughtful professional services with high quality products. A hold of the hand, forever friends.
ATZJ, ATZJL, ATZXW, ATAH(R), ATM (R), ATHH, ATH, ATL (R), ATSP(R), ATG, ATZGB and other slurry pumps
ATDT, ATDTL, ATTL (R) and other desulfurization pumps, ATS, ATSH and other double suction pumps, ATSQ, ATSG, ATSW and other series of sewage pumps, caliber fan
Circumference 25-1000mm, flow 5-15000³/h, head 5-145m, widely used in waste incineration slag treatment industry, mining, power, coal,
Metallurgy, chemical industry, building materials, water conservancy and other industries. The company has a high level of domestic pump performance test center, with a perfect quality management system, Strictly implement total quality management, has passed the $1 O9001 quality system certification. The company's manufacturing, sales and service procedures are complete, and products are reliable Quality, superior performance obtained a number of professional certifications, and has import and export qualifications. Welcome new and old customers at home and abroad to visit our company to discuss cooperation! We will provide customers with perfect and thoughtful professional services with high quality products. A hold of the hand, forever friends.
Usage scenario
Due to high pressure and big flow ,widely application for boiler feed industrial,mining,water supply for high building,water circulation system,oil field ,etc
Exhibition
Packing & Delivery
Wooden case, iron frame, container, or Customized
FAQ
Q:Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.
Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable. The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.
Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable. The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
