HIGH POWER DC 12V to DC 48V 30A 1440W Max Step Up Boost Voltage Converter Regulator 12 Volt to 48 Volt 30 Amps
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (1600933229593):
Product Overview
Description
HIGH POWER DC 12V to DC 48V 30A 1440W Max Step Up Boost Voltage Converter Regulator 12 Volt to 48 Volt 30 Amps
Product Description
Product Name | Fulree DC DC Converter 12V to 48V 30A 1440W Max | |
Brand | Fulree | |
Model No. | 124830 | |
Module Properties | non-isolated boost module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 12V | |
Input Voltage Range | DC 11-16V | |
Output | ||
Output Voltage | DC 48V | |
Output Current | 30A Max | |
Output Power | 1440W Max | |
Conversion Efficiency | >90% | |
Voltage regulation | ±3% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 180mV | |
No-load current | 50-60mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Over-voltage protection | ||
Overheat protection | ||
Input/Output Installation | INPUT---------Input Positive“+” GND------Input/Output Negative "-" OUTPUT------Output Positive "+" | |
Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. | |
Certification | CE/RoHS/FCC | |
Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

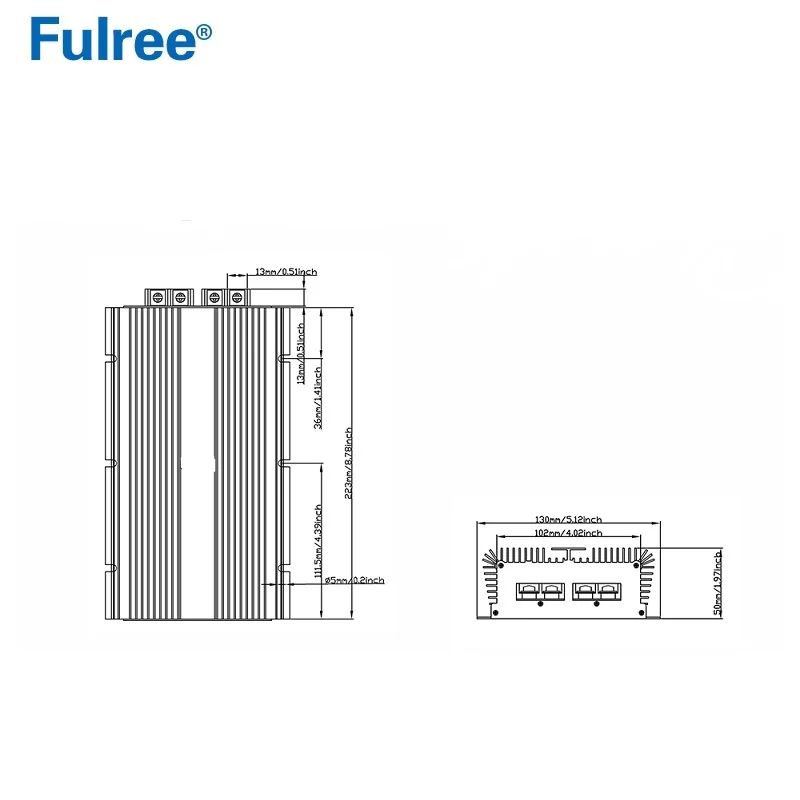

Product Size (L x W x H) | 220*130*50mm | |
Product Weight | 2.5kg/pc | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |

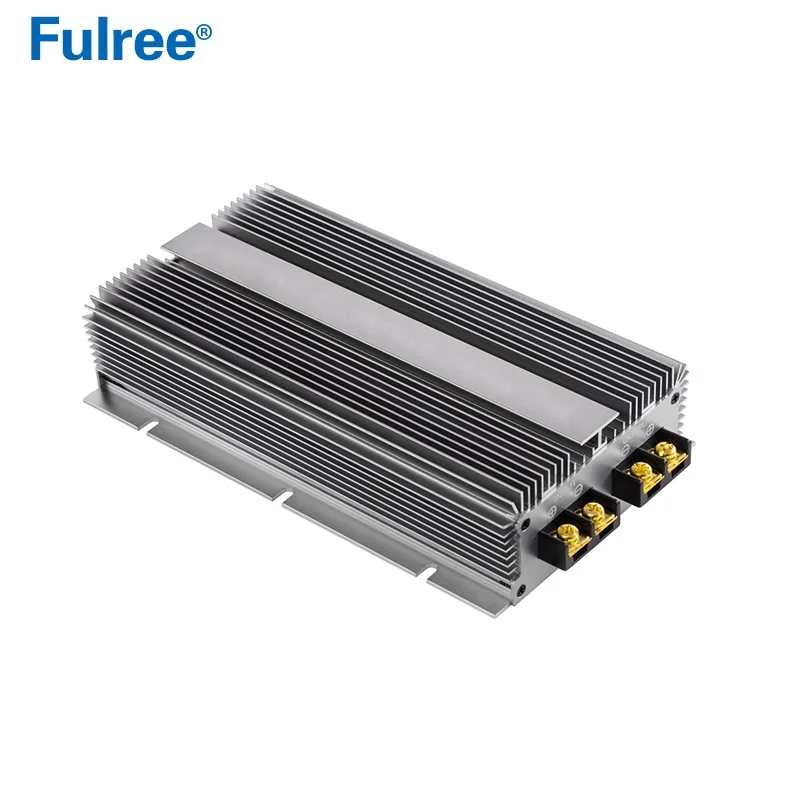

Product Picture
