Boiler Parts
$6.50-7.00

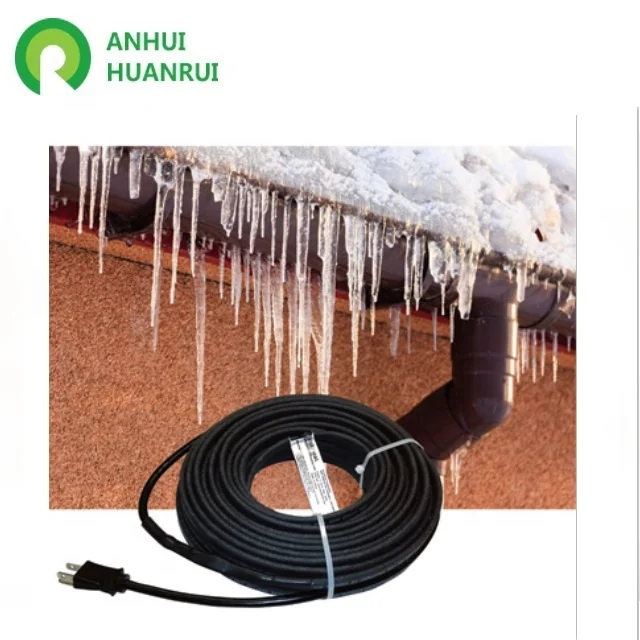

Water pipe heating cable roof defrost heating cable 12 volt heating cable
- Category: >>>
- Supplier: Anhui Huanrui Heating Manufacturing Co. Ltd.
Share on (1600933232853):
Product Overview
Description
Product Description
Applications
This cables help end costly ice damage by preventing ice dam formation and promoting the free flow of water through gutters and downspouts to ground level
Features and applications
with temperature and humidity controller,intelligently controlled,energy-saving.
It can effectively prevent damage caused by snow on the roof ,keep the gutter and down pipe clear,and prevent damage caused by ice.
pre-assembled and easy to install and use.
pre-assembled with a power plug ready for use
Ordering information 5W/ft
prat number | Voltage | length/ft | output w/ft | total power/W | current/Amps | Resistance/Ω |
HRHC-100-1 | 120 | 20 | 5 | 100 | 0.8 | 144.0 |
HRHC-150-1 | 120 | 30 | 5 | 150 | 1.3 | 96.0 |
HRHC-300-1 | 120 | 60 | 5 | 300 | 2.5 | 48.0 |
HRHC-400-1 | 120 | 80 | 5 | 400 | 3.3 | 36.0 |
HRHC-500-1 | 120 | 100 | 5 | 500 | 4.2 | 28.8 |
HRHC-600-1 | 120 | 120 | 5 | 600 | 5.0 | 24.0 |
HRHC-800-1 | 120 | 160 | 5 | 800 | 6.7 | 18.0 |
HRHC-1000-1 | 120 | 200 | 5 | 1000 | 8.3 | 14.4 |
HRHC-1200-1 | 120 | 240 | 5 | 1200 | 10.0 | 12.0 |
Our Advantages
Product Characters
1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation
resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation
resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

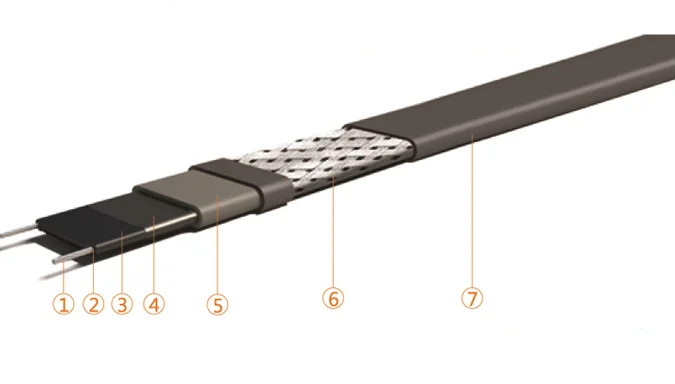

Three layer co-extrusion technology
1. Conductor
2. Low resistance transition layer
3. PTC Semi-conductive
4. Inner insulation layer
5. Outer insulation layer
6. Metal braid
7. Outer jacket
2. Low resistance transition layer
3. PTC Semi-conductive
4. Inner insulation layer
5. Outer insulation layer
6. Metal braid
7. Outer jacket
1. Definition
Three-layer co-extrusion technology of self-regulating heating cables is characterized in: the cables consist of two conductive
wires with a low resistance transition layers, PTC semi-conductive matrix, inner insulating layer and outer insulating layer,
metal braid and outer jacket. Among them the three layers — low resistance transition layer, PTC Semi-conductive matrix and inner
insulting layer are extruded in one step.
2. Advantages
A. Owing to three-layer co-extrusion technology, the inner insulating layer wrapped the PTC semi-conductive matrix tightly. No gap, no air, no water, no oil and no impurities will contaminate the matrix, which reduces the cable decay rate.
B. Low resistance transition layer contacts the PTC semi-conductive matrix tightly, effectively reducing the current impact to the material of PTC, reducing the start current, prolonging service life.
C. Most of out-sourcinginsulation resin will damage the PTC matrix on the performancesuch as life-span and insulation safety. Huanrui improved it by using self-made special modified insulation resin, the resin matches the PTC well and avoids the damaged to both layers, with longer life-span and higher performance.
Material properties:
Excellent weather resistance and ultraviolet radiation.
High and low temperature resistance, -50°C—140°C.
Great insulating property. 2000MΩ per 100 meters.
Three-layer co-extrusion technology of self-regulating heating cables is characterized in: the cables consist of two conductive
wires with a low resistance transition layers, PTC semi-conductive matrix, inner insulating layer and outer insulating layer,
metal braid and outer jacket. Among them the three layers — low resistance transition layer, PTC Semi-conductive matrix and inner
insulting layer are extruded in one step.
2. Advantages
A. Owing to three-layer co-extrusion technology, the inner insulating layer wrapped the PTC semi-conductive matrix tightly. No gap, no air, no water, no oil and no impurities will contaminate the matrix, which reduces the cable decay rate.
B. Low resistance transition layer contacts the PTC semi-conductive matrix tightly, effectively reducing the current impact to the material of PTC, reducing the start current, prolonging service life.
C. Most of out-sourcinginsulation resin will damage the PTC matrix on the performancesuch as life-span and insulation safety. Huanrui improved it by using self-made special modified insulation resin, the resin matches the PTC well and avoids the damaged to both layers, with longer life-span and higher performance.
Material properties:
Excellent weather resistance and ultraviolet radiation.
High and low temperature resistance, -50°C—140°C.
Great insulating property. 2000MΩ per 100 meters.

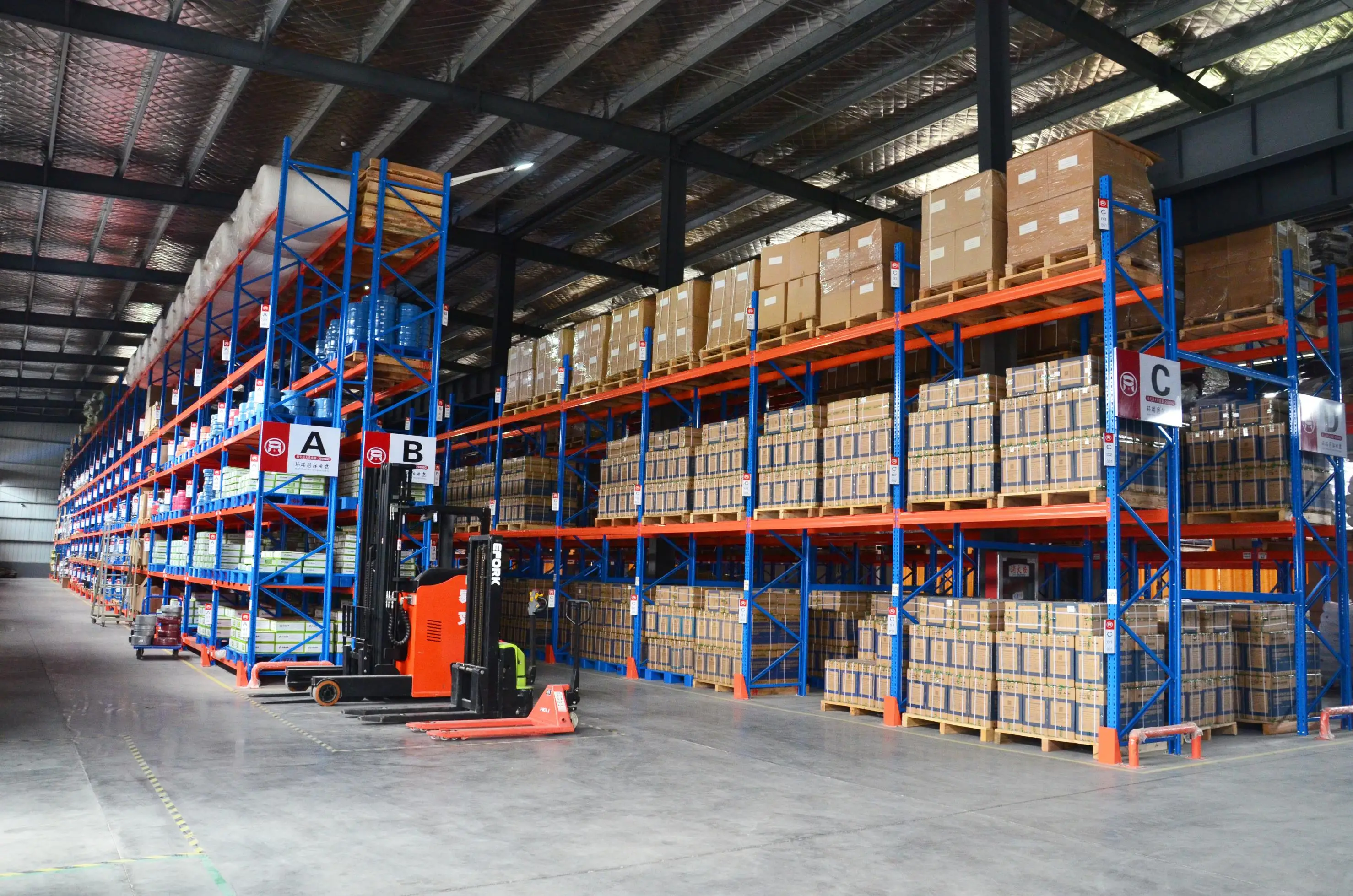

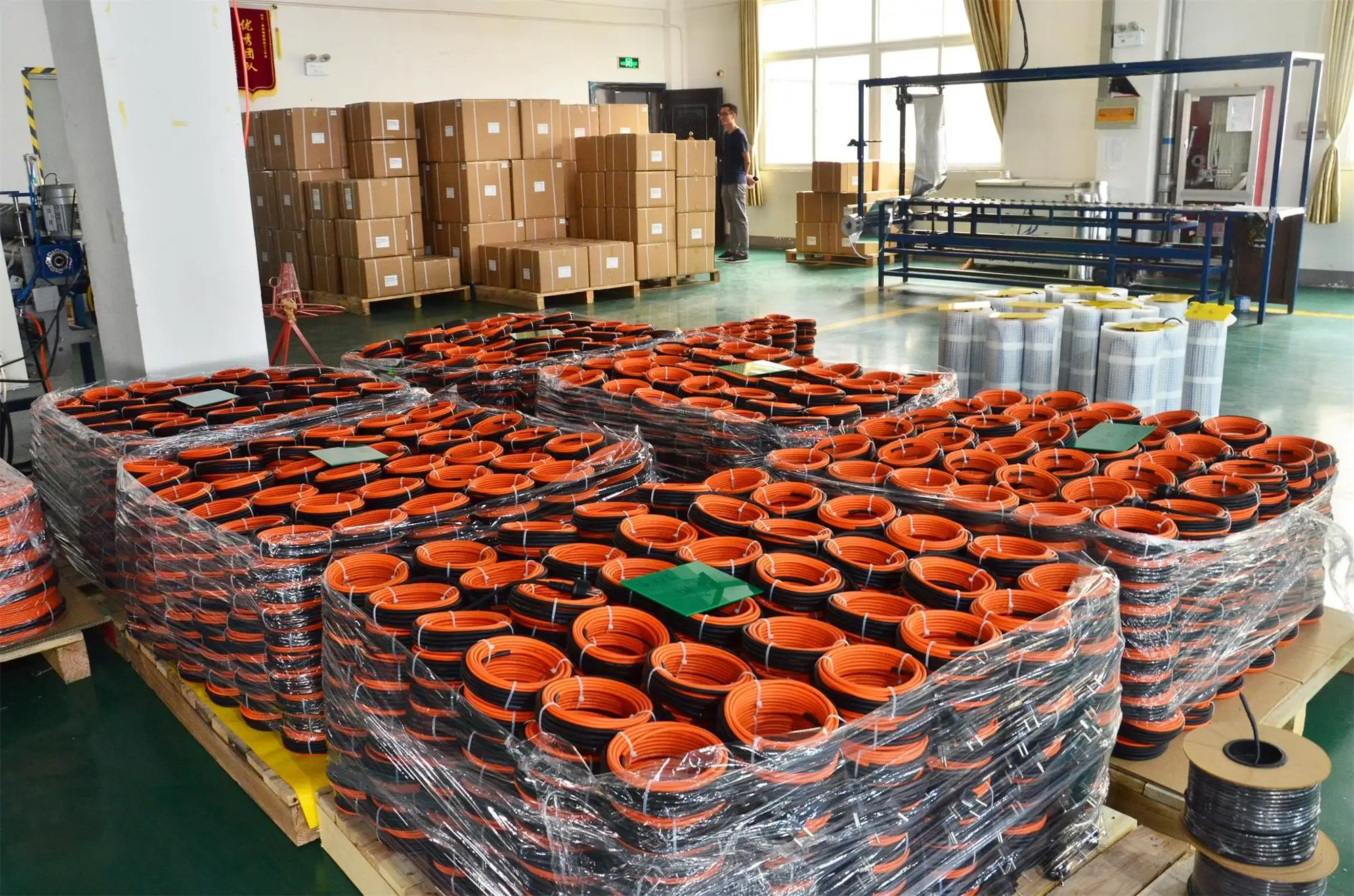

Packaging and Shipping
Recommend Products

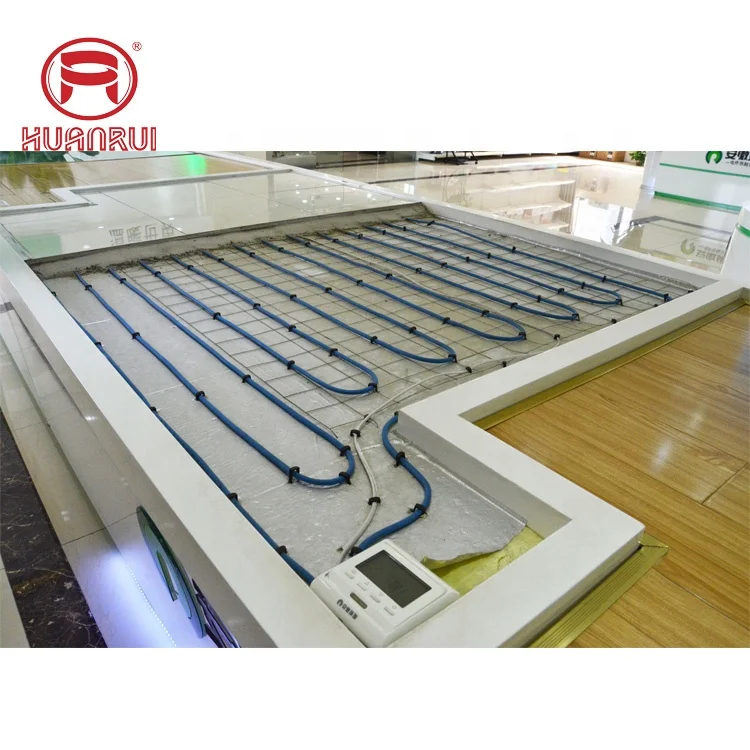

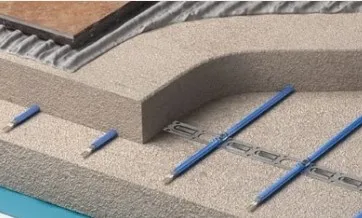

Underfloor heating cable
Underfloor heating cable diameters from 3.6mm to 5.8mm, available for in-concrete heating, for bathroom and little rooms
Certifications

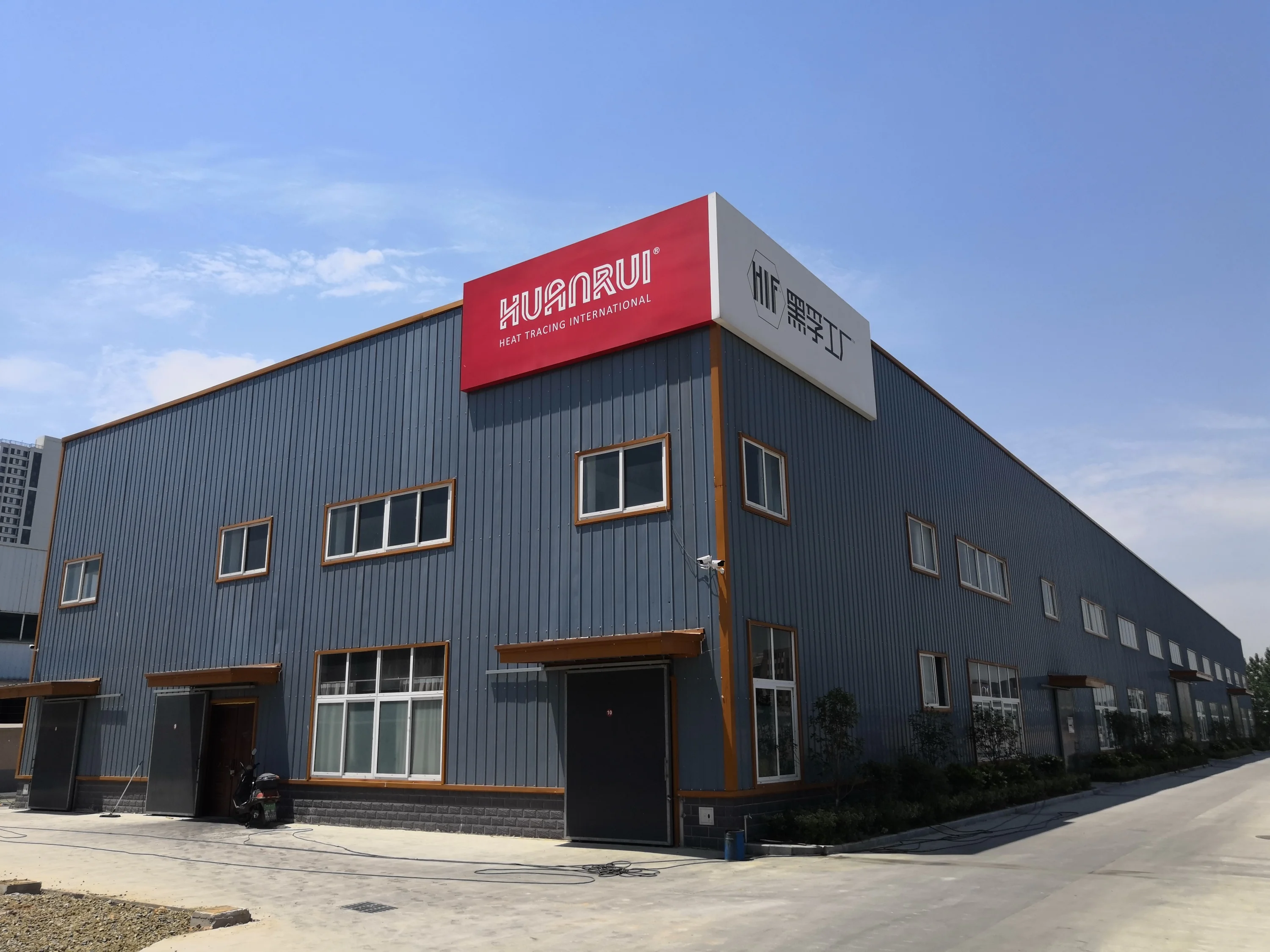

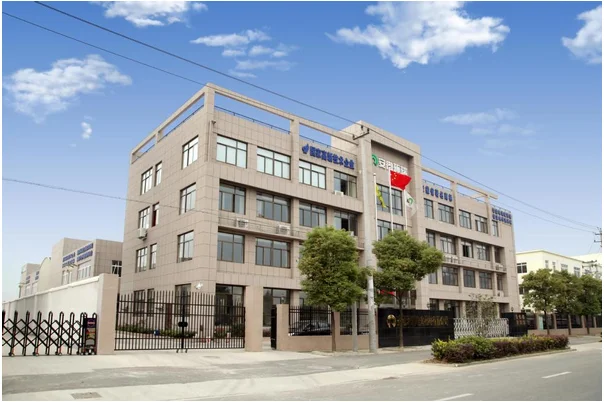

Company Profile
COMPANY PROFILE
Anhui Huanrui Heating Manufacturing Co., ltd. is a consolidated factory with the R&D, production, marketing and services in self-regulating heating cable and constant wattage heating cable, as well as one expert producer and an enterprise of National high-tech award. Huanrui located in Hefei city with registered capital of RMB 50.8 million and with factory covered area 26640sqm and project investment of RMB 80 million. Annual output volume is 50 million meters of different kinds of heating cable. R&D team is leaded by Professors from University of Science and Technology of China major in State key scientific and technological breakthrough plan, established for more than 10 years devoting to becoming the high-class heating cable supplier. Company invested RMB 120 million in 2014-2015, factory covering area 16500sqm.
* Total 38000sqm of production base, dozens of automatic production lines, annual output 50 million meters of heating cable.
* China patented technique of 3-layer extrusion, patent NO., ZL 2010 2 0236973.2；
* Bring in foreign production and test equipment, scientific quality management system to ensure quality.
* Owning more than 50 patents and more than 100 state certificates of honor.

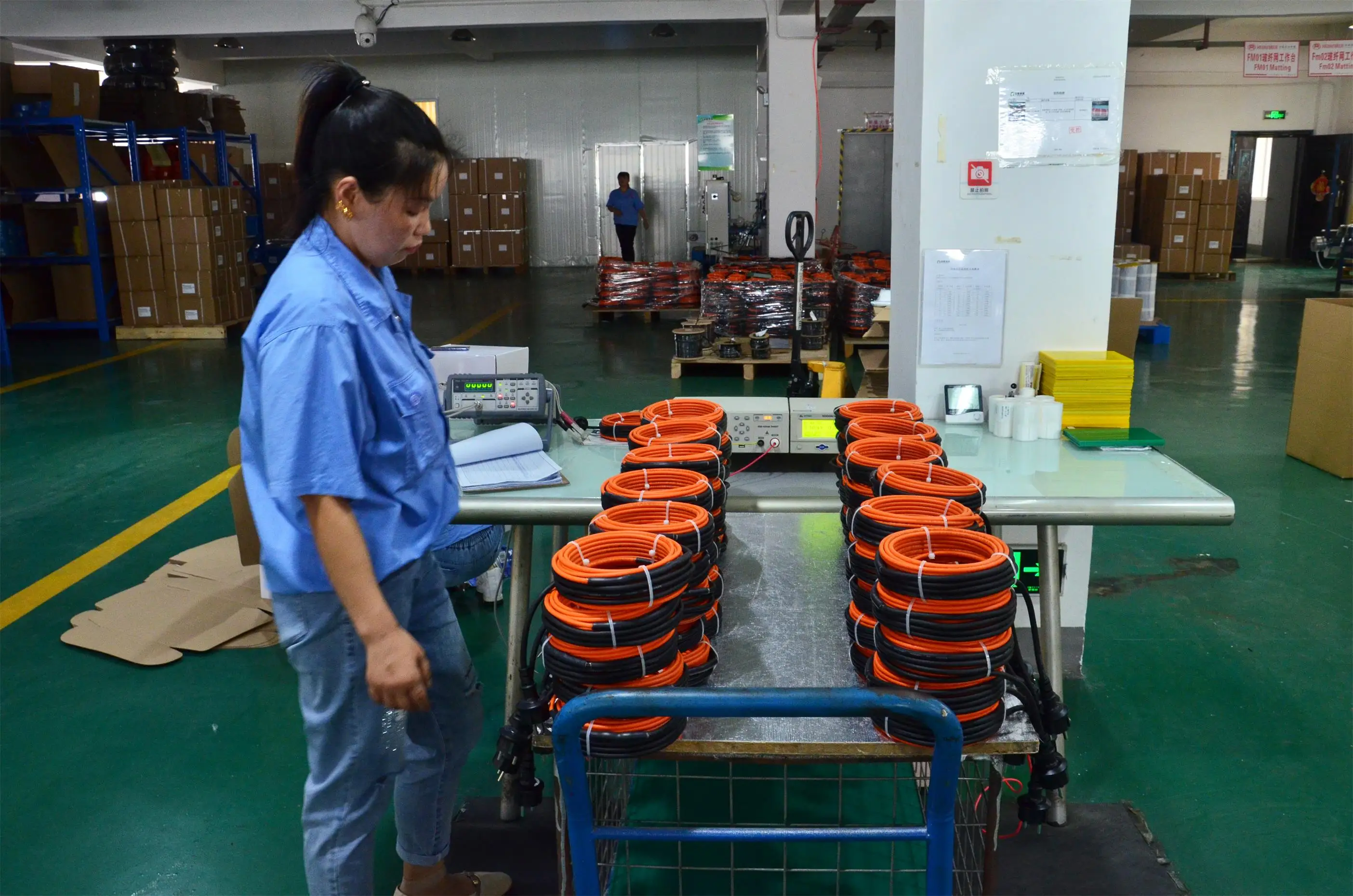

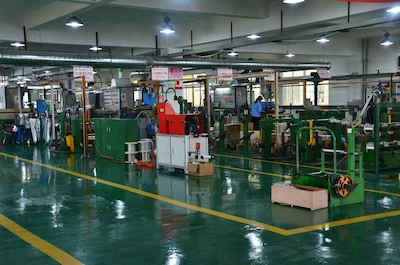

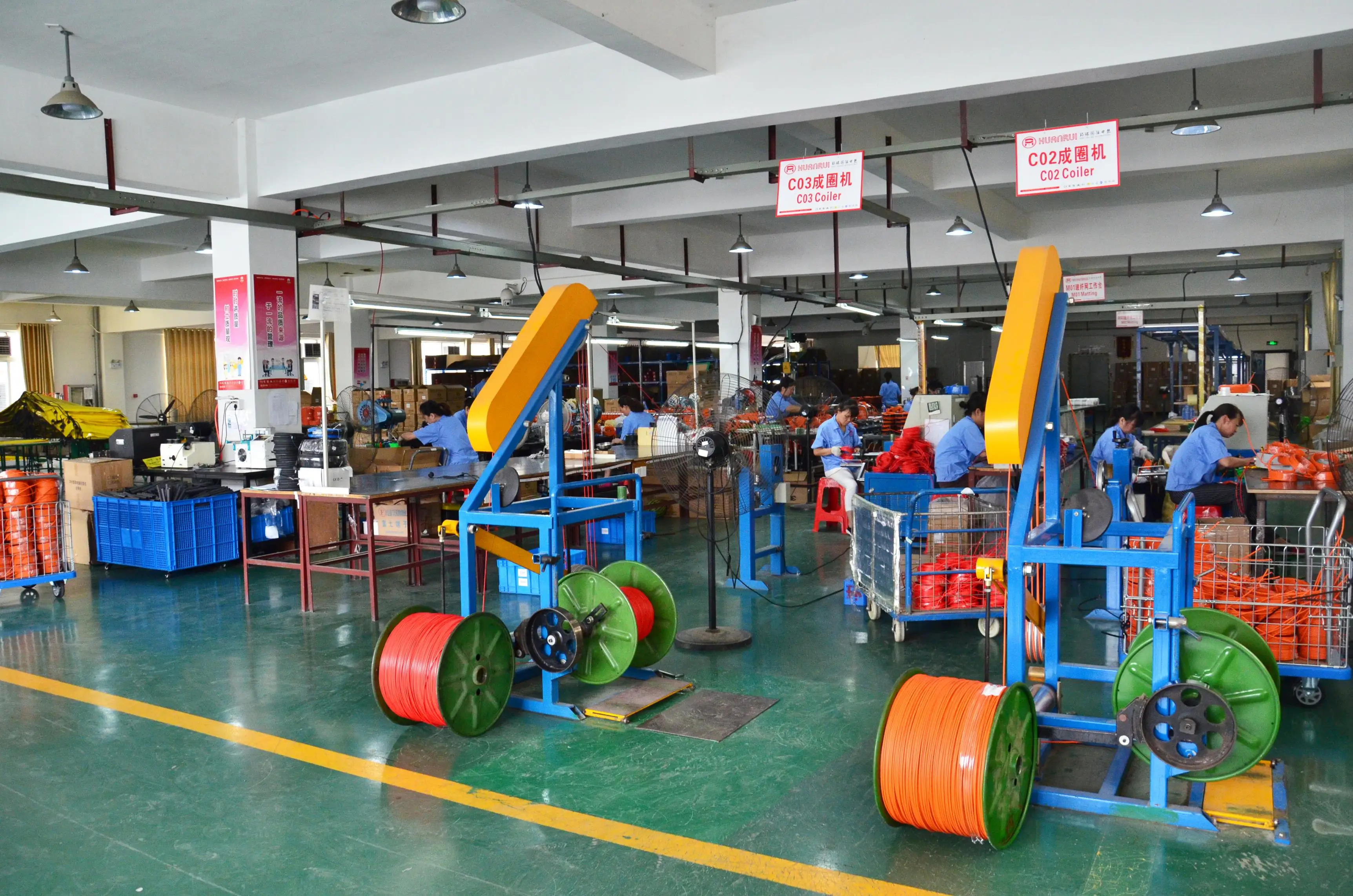

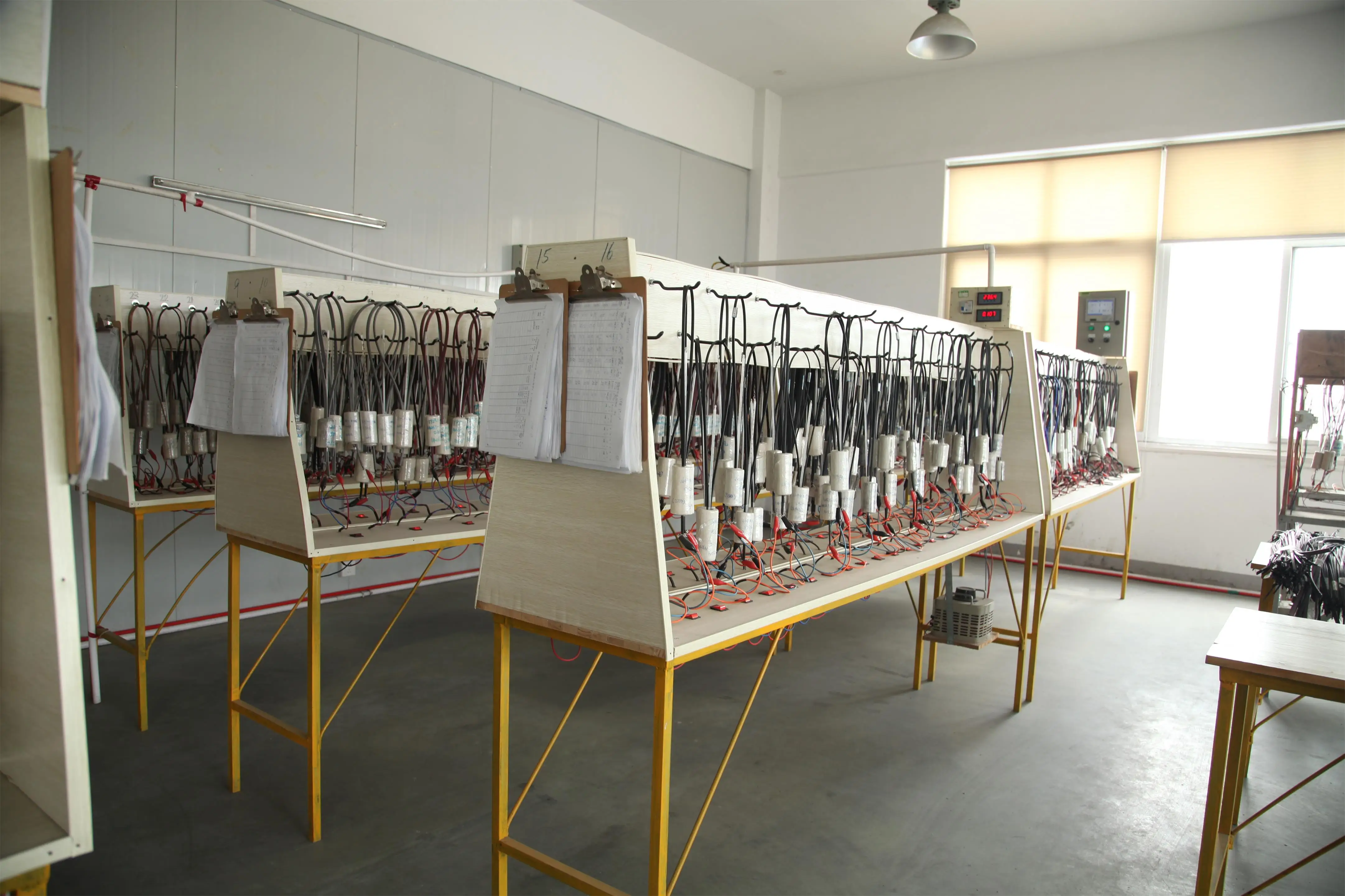

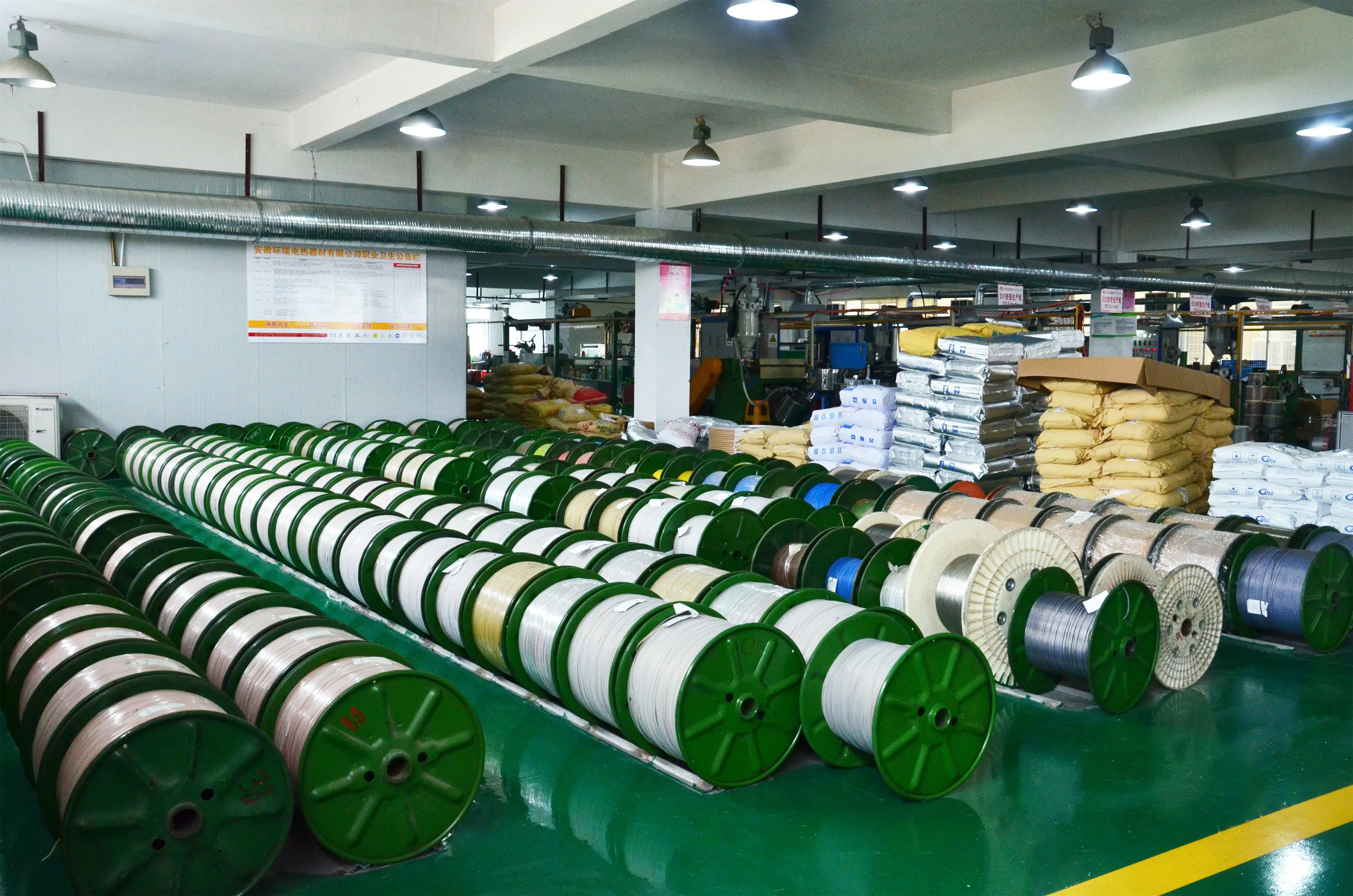

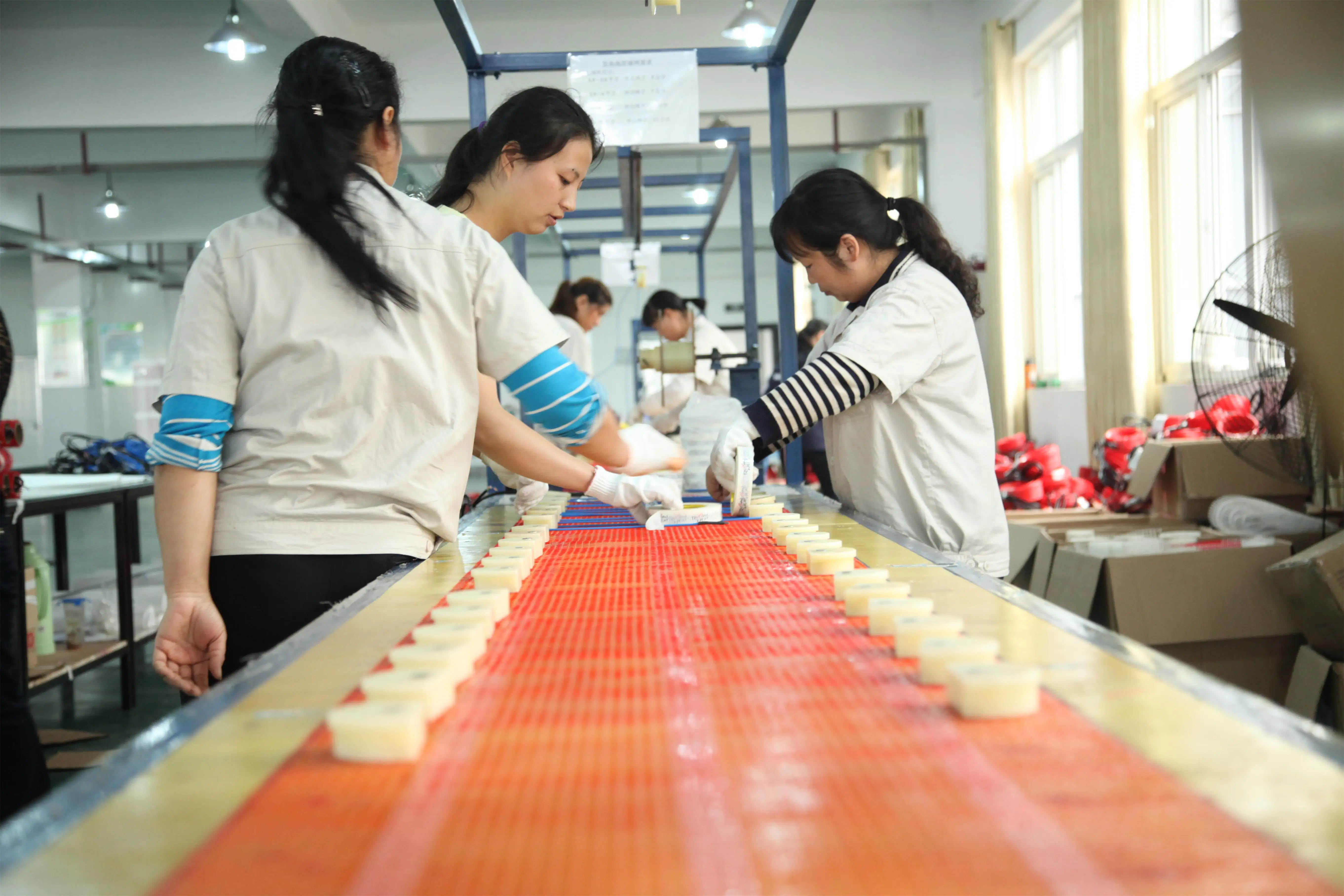

Product Workshop

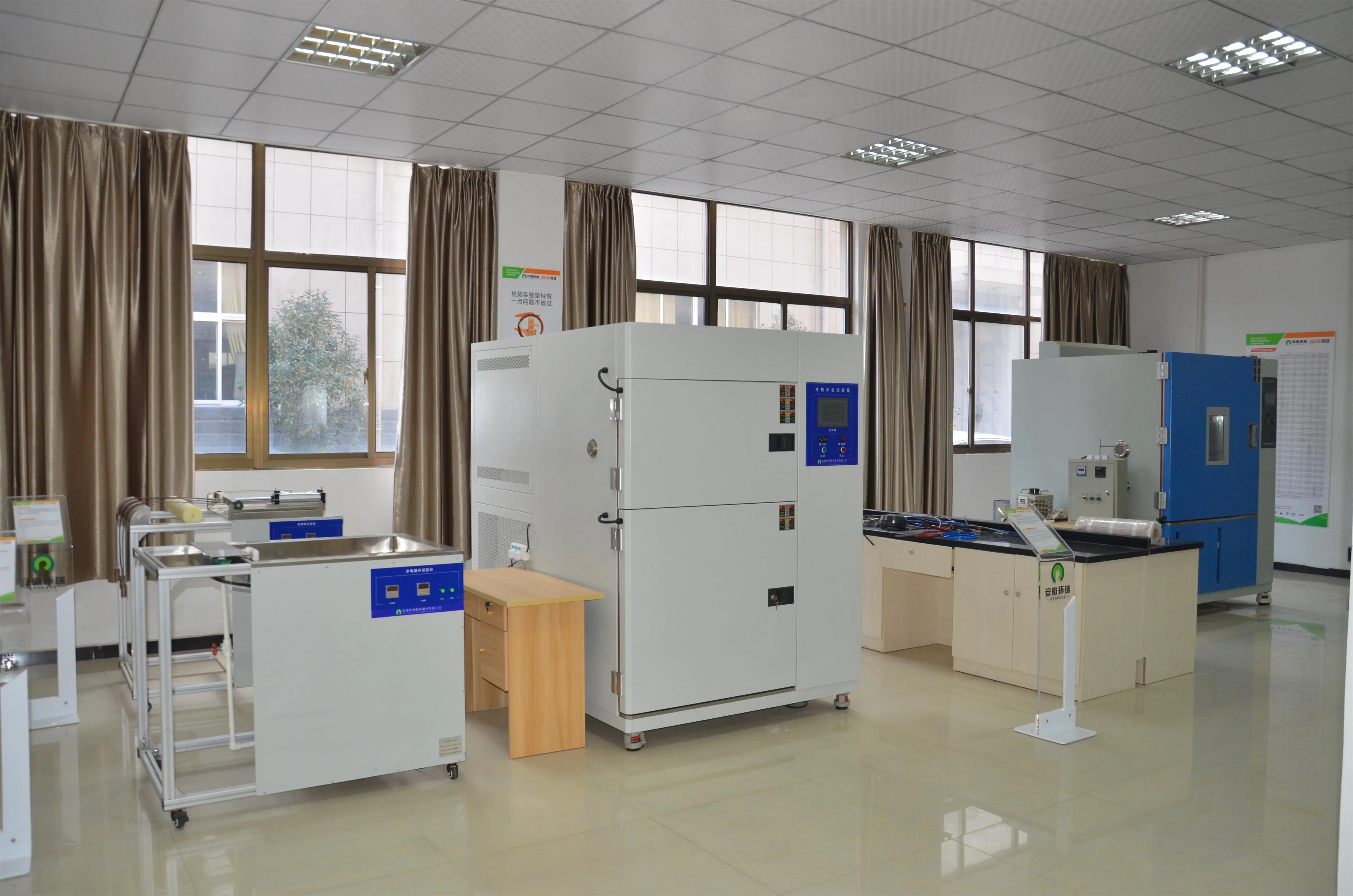

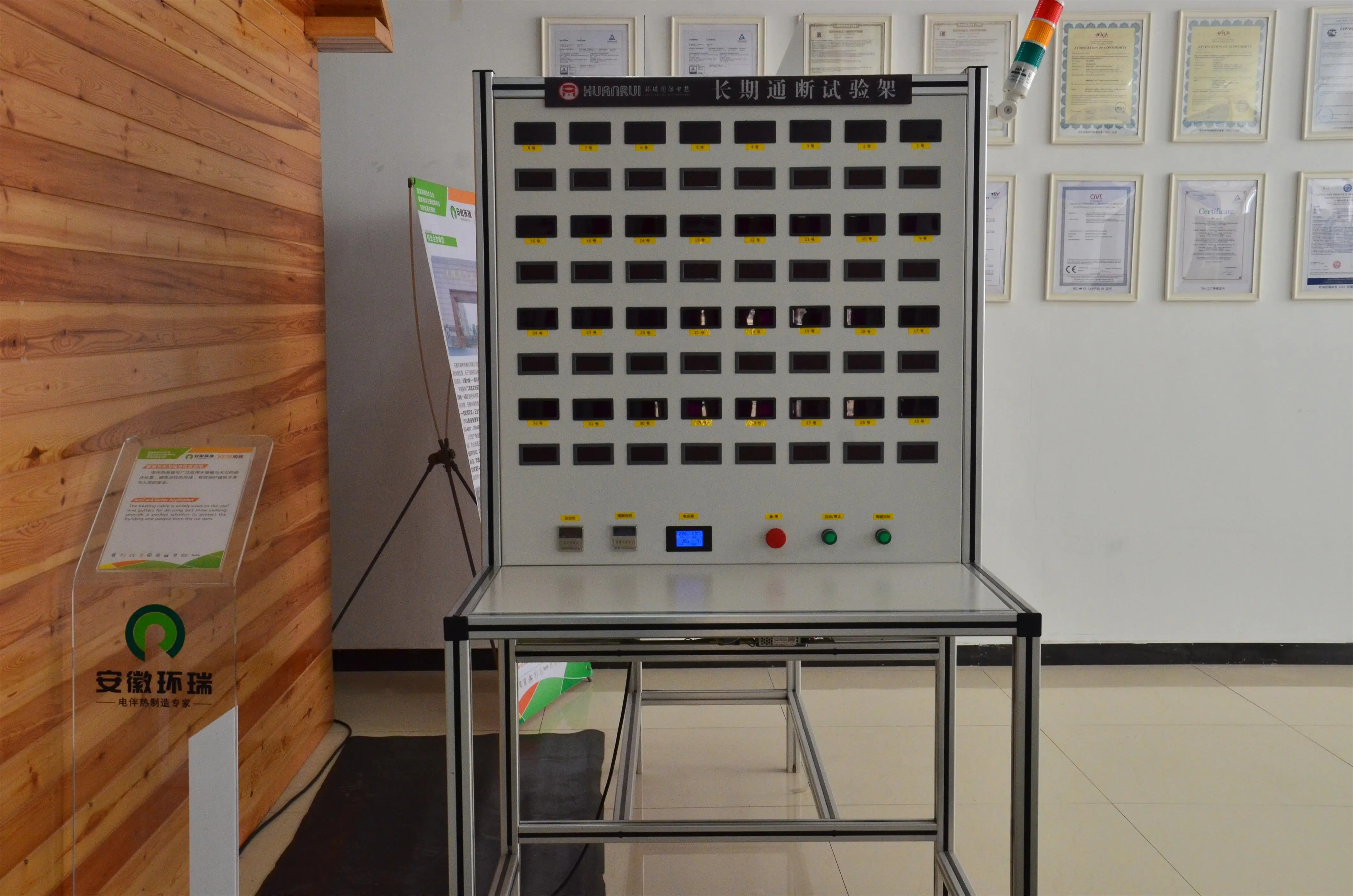

Laboratory

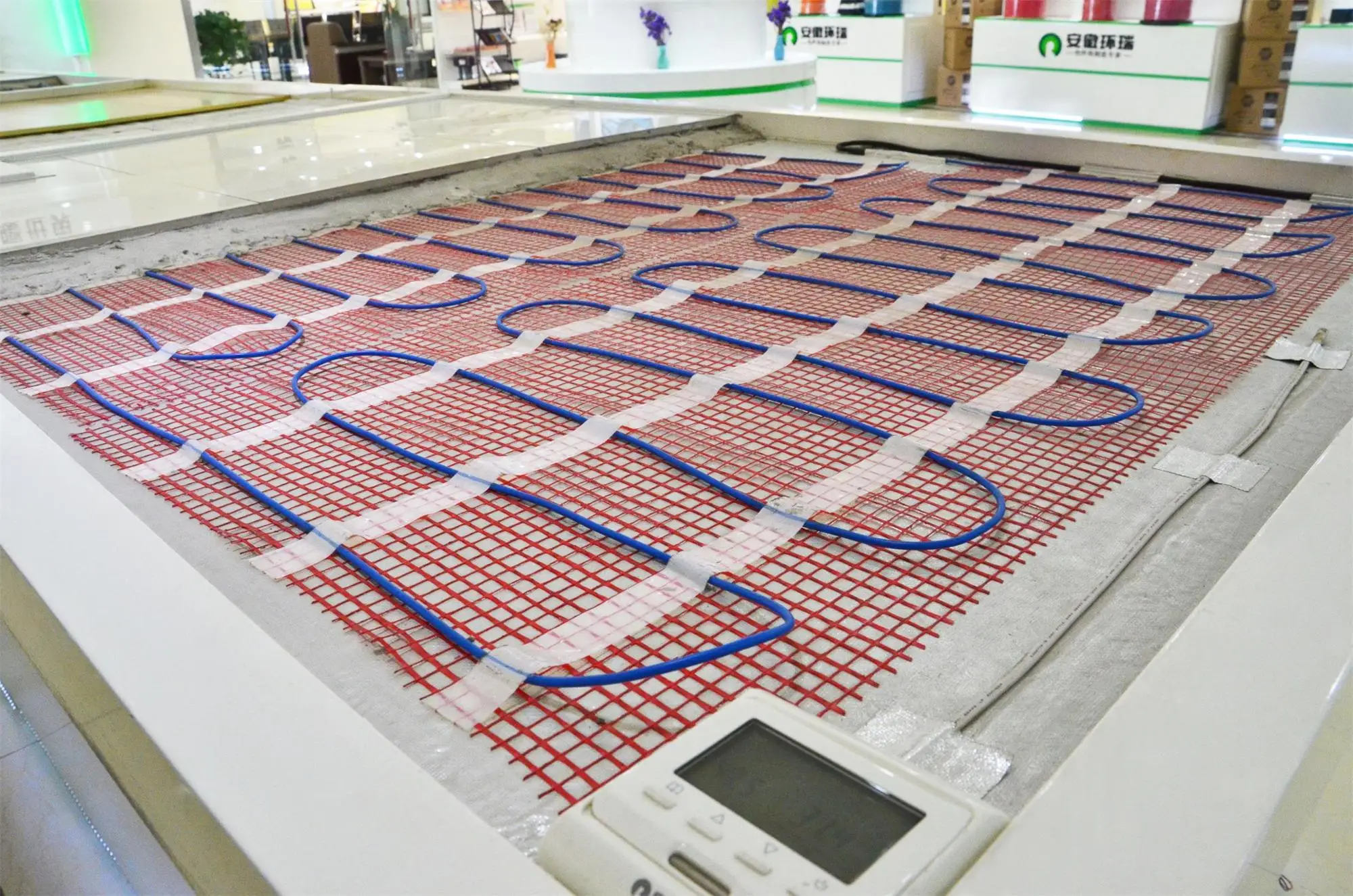

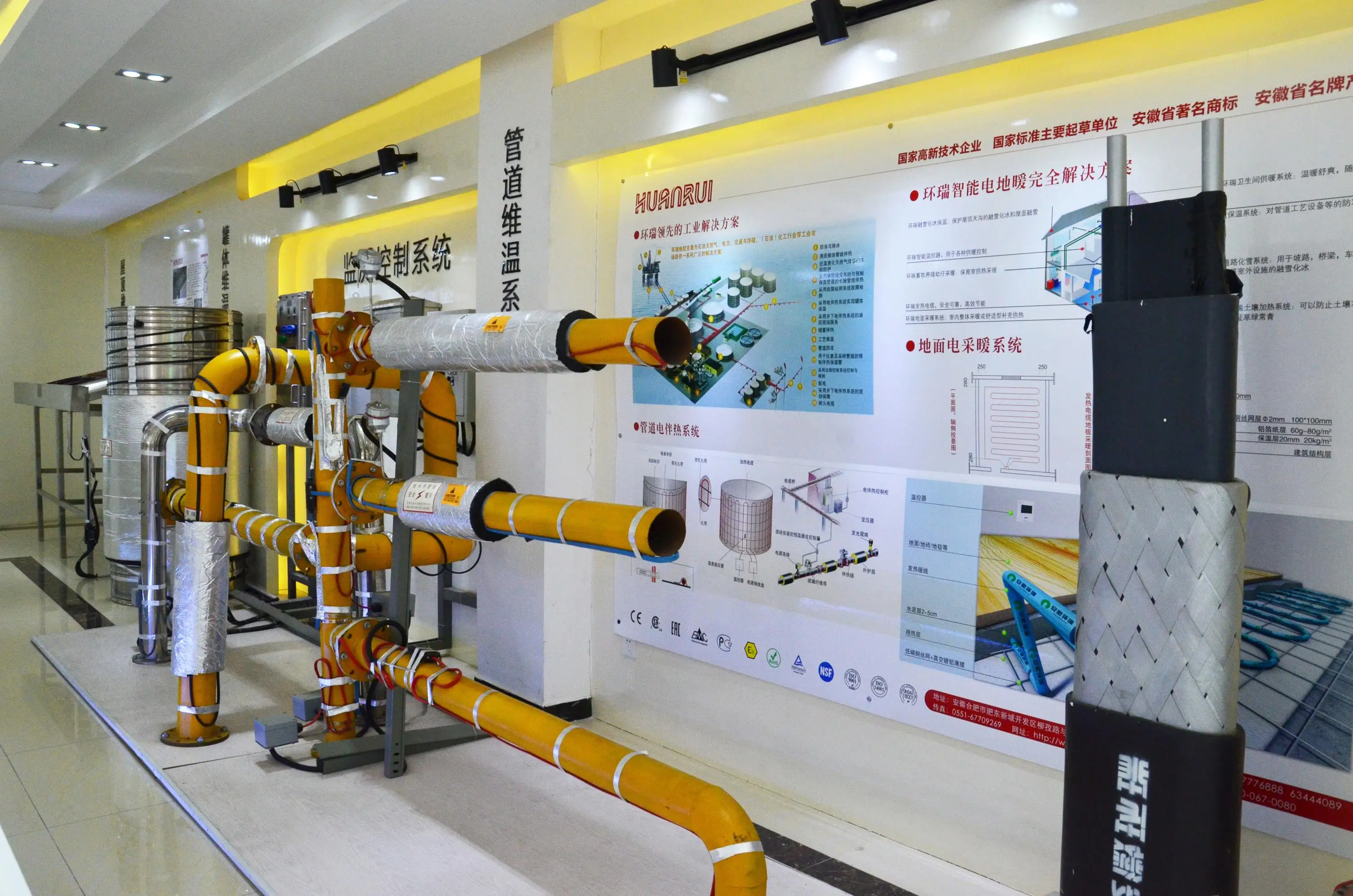

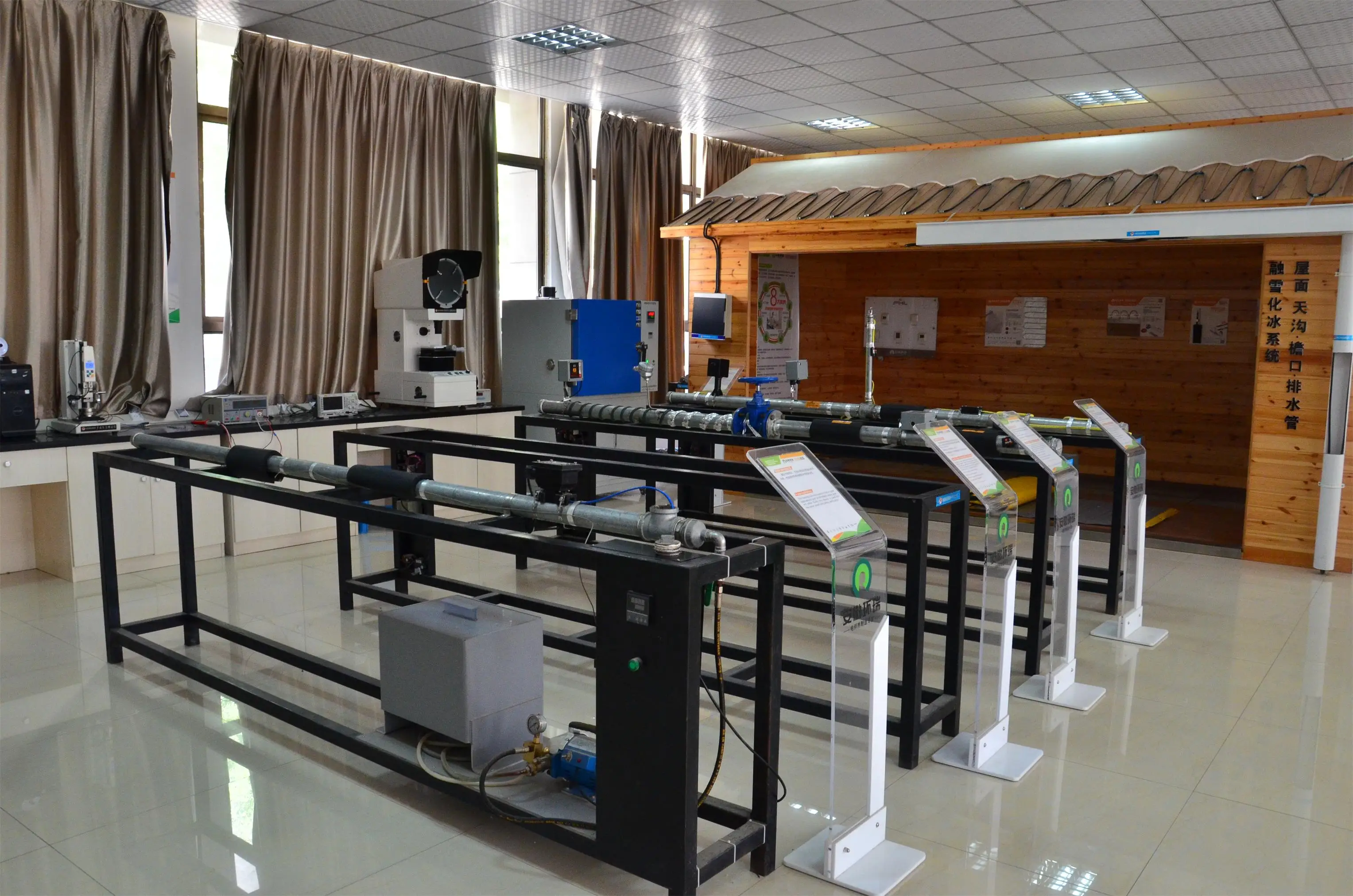

Showroom
Our Team
FAQ
Q1: - Are you manufacturer?
- Yes, our company focus on heating cable manufacturing since 2004, located in Hefei City, Anhui Province, China.
Welcome to visit our company!
Q2: - What's the MOQ?
- MOQ for self-regulating heating cable is 1000m.
MOQ for electric underfloor heating mat is 2000 sqm.
The less quantity can be negotiated.
Q3: - How long the warranty will be?
- The limited warranty for self-regulating heating cable is 10 years.
Warranty for electric underfloor heating mat & cable is 25 years.
We provide warranty against all defects in factory's material, design and workmanship.
Q4: - How long the delivery time will be?
- Normally within 7-15 days, big order should be negotiated.
Q5: - What is the Payment Term?
- T/T, L/C, Western Union, PayPal, Alibaba Secure Payment, D/P, etc.
Usually by T/T 30% as deposit in advance and the balance 70% should be paid when goods ready to ship or pay against the copy of B/L.
- Yes, our company focus on heating cable manufacturing since 2004, located in Hefei City, Anhui Province, China.
Welcome to visit our company!
Q2: - What's the MOQ?
- MOQ for self-regulating heating cable is 1000m.
MOQ for electric underfloor heating mat is 2000 sqm.
The less quantity can be negotiated.
Q3: - How long the warranty will be?
- The limited warranty for self-regulating heating cable is 10 years.
Warranty for electric underfloor heating mat & cable is 25 years.
We provide warranty against all defects in factory's material, design and workmanship.
Q4: - How long the delivery time will be?
- Normally within 7-15 days, big order should be negotiated.
Q5: - What is the Payment Term?
- T/T, L/C, Western Union, PayPal, Alibaba Secure Payment, D/P, etc.
Usually by T/T 30% as deposit in advance and the balance 70% should be paid when goods ready to ship or pay against the copy of B/L.
