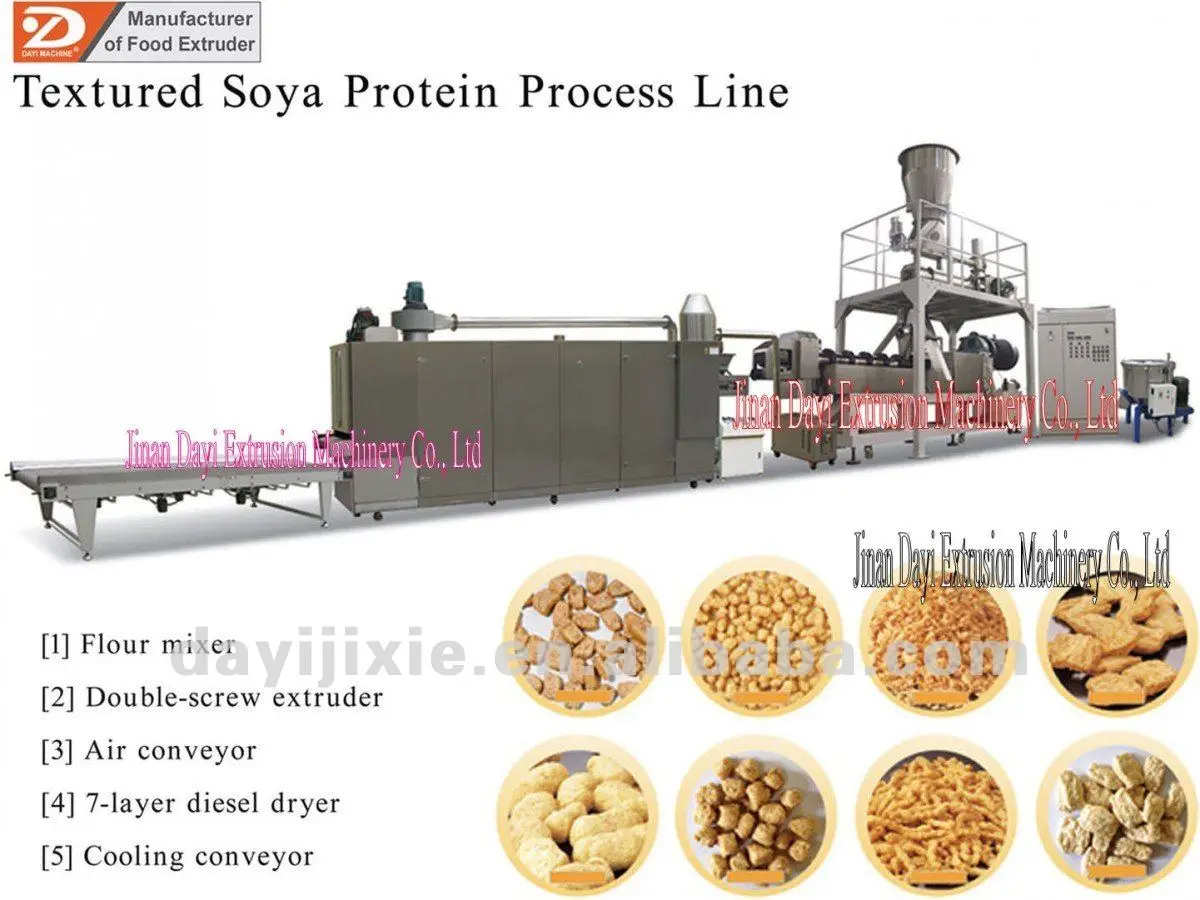

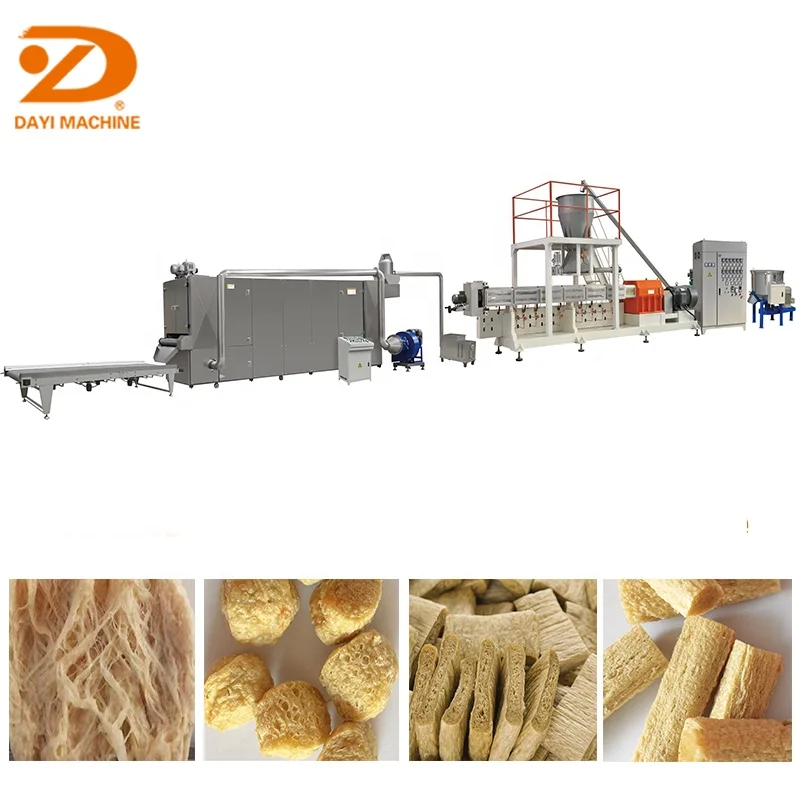

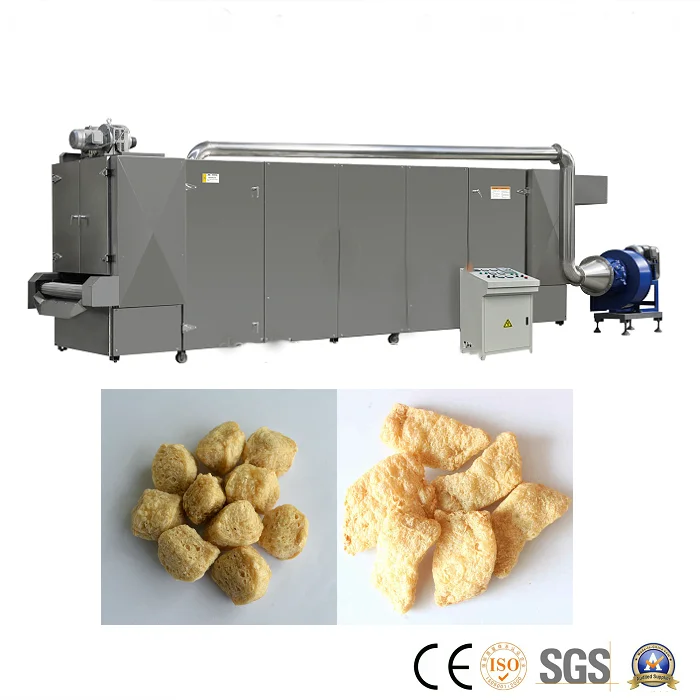

soya bean protein meat making machine soy meat balls snacks extruded production line
- Category: >>>
- Supplier: Jinan Dayi Extrusion Machinery Co. Ltd.
Share on (1600933246656):
Product Overview
Description
Product Description
Product Application

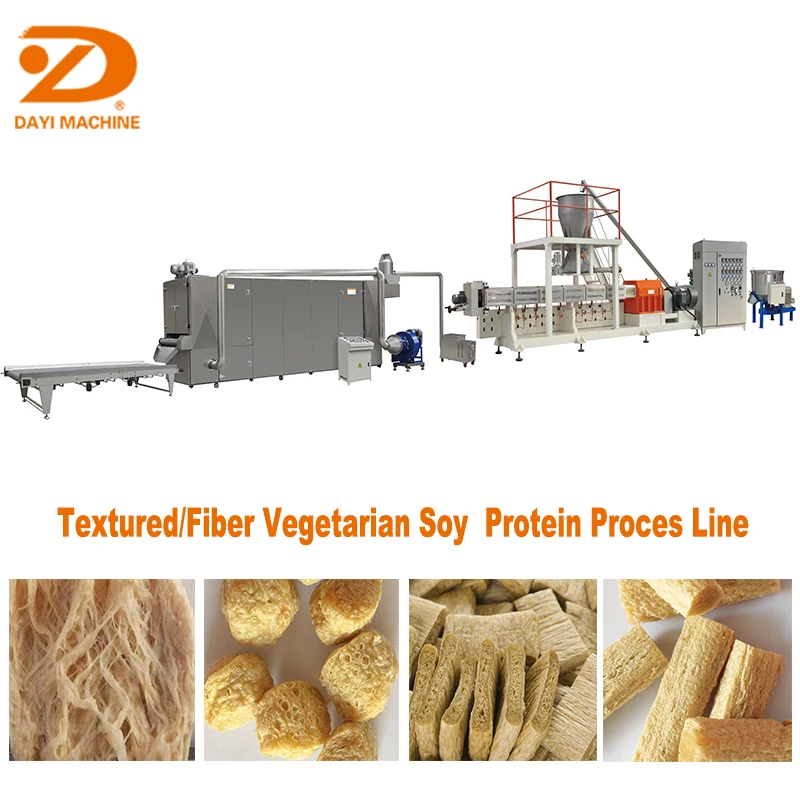

TVP/TSP/FVP(Textured vegetarian soy protein/ Fiber protein)processing line is deisgned and produced with our rich experiences on food extruder industry over 20 years. it adopts nonfat low temperature soy bean meal as main raw material to produce all kinds of textured protein food, which is nutritional and easily absorbed by human body. Such soy protein food looks like real muscle meat and mastication. Textured soy protein food is widely applied to many industries, such as can food, seasoning food, ham,cooking,etc. which can be replacement of real meat.
Model | Installed Power | Power Consumption | Capacity | Dimension |
SLG65-F | 120kw | 95kw | 250-300kg/h | 23000*3000*5300mm |
SLG72-AII | 187kw | 105kw | 300-400kg/h | 24000*2150*3070mm |
SLG85-A | 135kw | 110kw | 400-500kg/h | 24000*3000*5300mm |
Main Features
1) Direct transmission between motor and gear box,reducing energy consumption.
2) Feeding,main driving device, and rotary cutting device adopt inverters to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life. Segmental assembled screws are applied to more kinds of materials and products
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging molds(dies) and knives seat and bearing knife adjusting system can adjust the knife exactly and swiftly.
Detailed Images
Machine Features

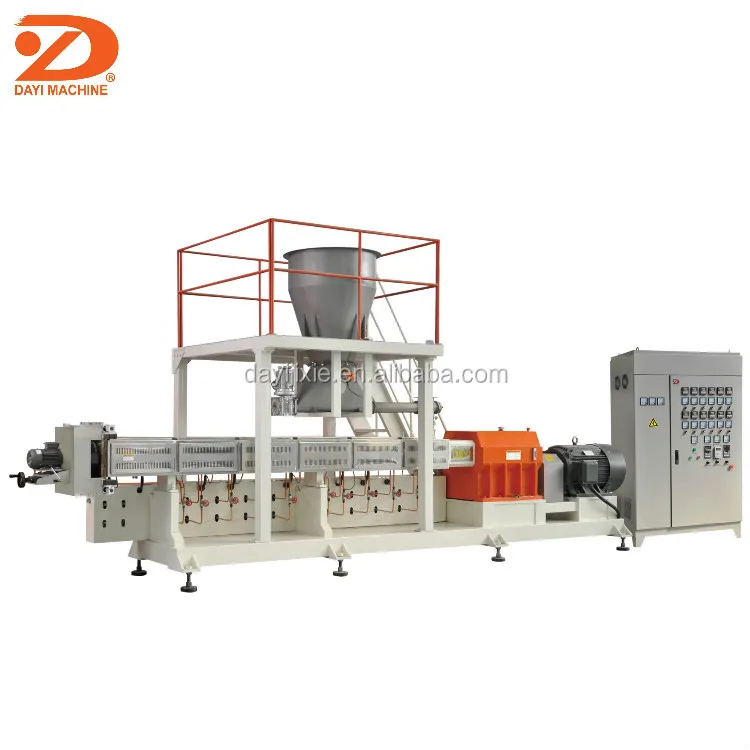

Name: Double Screw Extruder 72-AII
Installed Power:116.8kw
Power Consumption:90kw
Main Motor Power: 90kw
Capacity: 300-500kg/h
1) Modular combination of screws can be satisfied to different raw materials.
2) Barrel with water injecting device, and automatic heating and circulating cooling system can make accurate temperature.
Applied to make Textured Soy Protein Snack.
Machine Features
Name: Air Conveyor
Model: FJ-I
Brand: Jinan DAYI EXTRUSION MACHIENRY CO.,LTD
Standard Voltage: 380V/50hz
Installed Power:1.1kw
Applied to suck food from Extruder to Drying Machine.
Main Features

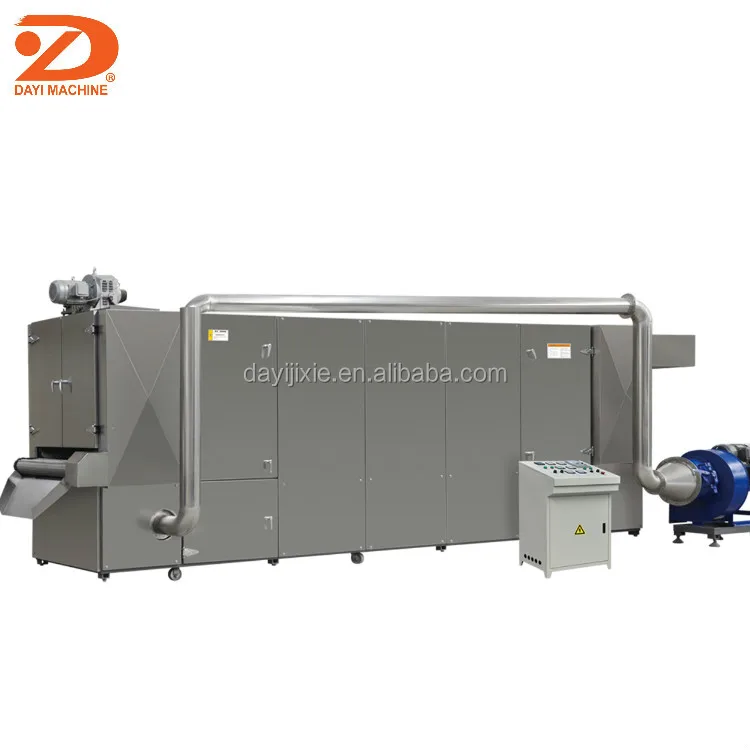

Name: Dryer
Model: WHX
Brand:Jinan DAYI EXTRUSION MACHIENRY CO.,LTD
Standard Original: 380V/50hz or Customized
Installed Power:9kw
Suitable to dry textured vegetarian protein pet food, puff snacks food, nutritional powder, bread crumb, etc.
Machine Features

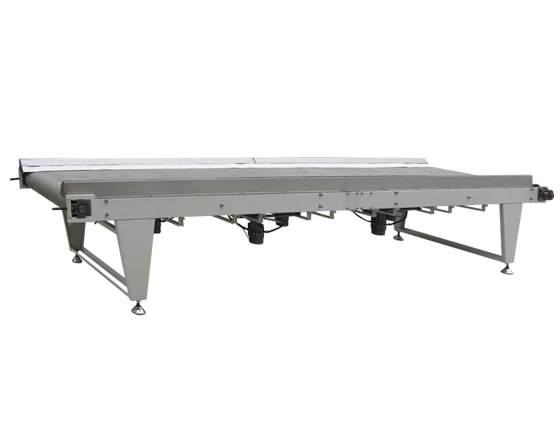

Name: Cooling Conveyor
Model:FLS
Brand: Jinan DAYI EXTRUSION MACHIENRY CO.,LTD
Standard Voltage:380V/50hz or Customized
Driving Power:1.5kw
Belt Width:600mm
Applied to convey product from dryer to packing machine and cooling product fast.
Our Company
About Us
DAYI Extrusion Machinery Co., Ltd. has been established for more than 20 years since 1996 ,with an annual average turnover of more than 100 million.DAYI is a professional food extruder manufacturing company and a national high-tech enterprise integrating R&D, production and manufacturing, product sales and after-sales service.
Company Premises
DAYI has modern office areas,R&D center and standardized manufacturing workshop,with the building area of more than 20,000㎡.DAYI has more than 50 senior engineers and technicians and it has trained a production and service team with excellent and high skills.
Business Scope
DAYI's main business scope includes food extrusion machinery, drying machinery, frying machinery, puffed food machinery .
Co-branding
DAYI has received high praise at home and abroad since established and its machinery has been exported to more than 50 countries ,such as Egypt, Japan, Russia, India, Canada, Australia and so on.
Typical Client
Acecook Company in Vietnam
Typical Client
Shanti Foods Co.,LTD in India.
Typical Client
Mitsuwa Co.,LTD In Japan
Attending Fair in Thailand
Attending Fair in Canton
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Marketing Campaign
Our Advantages
We can keep product design in the same level with internationally advanced technology consistently.We can guarantee customers superior quality machines up to design requirements and perfect working state.
We have high diathesis staff and excellent processing equipment, and quality control runs through the whole production process from parts stock to the beginning of production.
Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.We provide 1 year complete Guarantee and life-time maintenance service.
Contact Us
Q1: What is your terms of payment?
A1: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2: What is your terms of delivery?
A2: EXW, FOB, CFR, CIF.
Q3: How about your delivery time?
A3: Generally, most of items we keep stock for all season . it will take 7 to 10 days after receiving your advance paymentif we didn't have stock ,The delivery time depends on the items and the quantity of your order. Normaly 30 to 60days.
Q4: Do you inspect all your goods before delivery?
A5: Yes, we have 100% test before delivery
A1: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2: What is your terms of delivery?
A2: EXW, FOB, CFR, CIF.
Q3: How about your delivery time?
A3: Generally, most of items we keep stock for all season . it will take 7 to 10 days after receiving your advance paymentif we didn't have stock ,The delivery time depends on the items and the quantity of your order. Normaly 30 to 60days.
Q4: Do you inspect all your goods before delivery?
A5: Yes, we have 100% test before delivery
