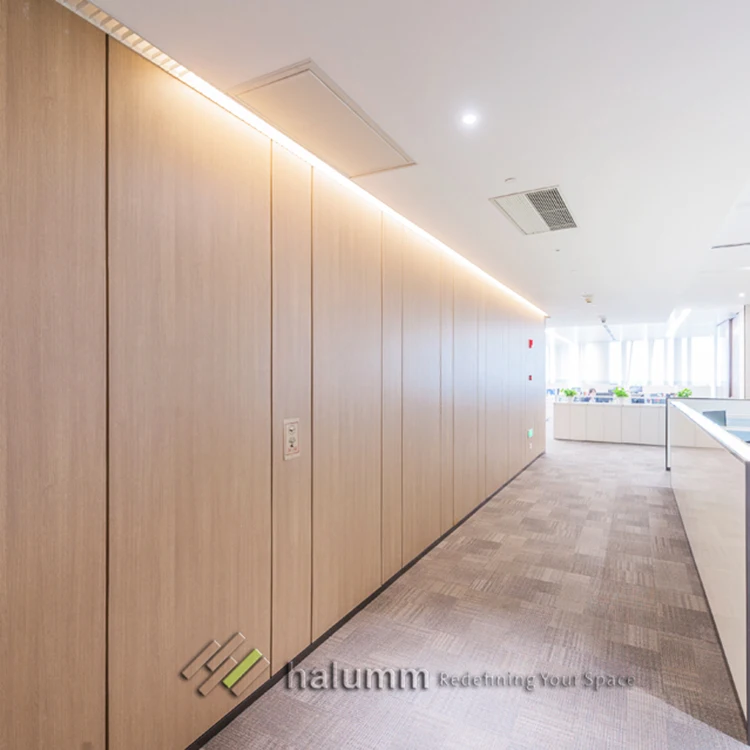

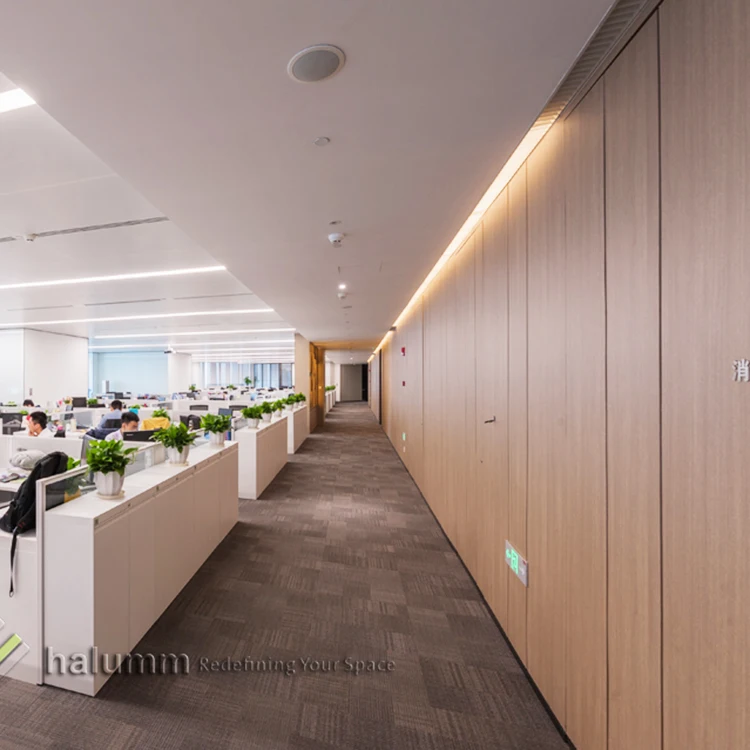

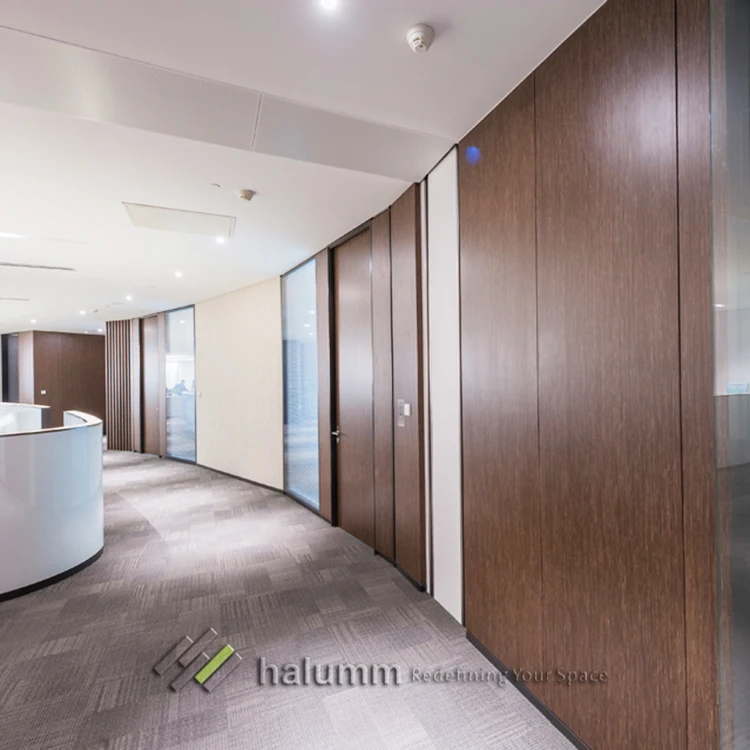

halumm High Quality The Wall Board Interior Easy Install Wall Panel Interior
- Category: >>>
- Supplier: Halumm Construction Technology Co. Ltd.
Share on (1600933263085):
Product Overview
Description
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | halumm |
Model Number | WALL CLADDING |
Warranty | 2 years |
Function | Sound-Absorbing, Fireproof, Heat Insulation |
Usage | Entertainment |
After-sale Service | Onsite Training, Onsite Installation, Free spare parts, Online technical support |
Project Solution Capability | graphic design |
Application | Workshop |
Design Style | Modern |
Partition Type | STEEPLE WALL CLADDING |
Partition Thickness | 60mm |
Skirting height | 30mm |
Profile | 1.0mm galvanized steel panel All-in-one |
Fire proof | 120mins fireproof with EN1363/1364 standard/ASTM E84 |
Painting | Powder Coated, painting thickness: ≥30μm AAMA2603 |
Sound insulation | 51dB with ISO717 |
Environmental performance | LEED requirements ISO:14001 ISO authentication |
Surface type | One side 0.8mm galvanized steel panel powder coating surface |
Style | Framed/Framless clear glass(EN 12150-2:2004) |
Products Description

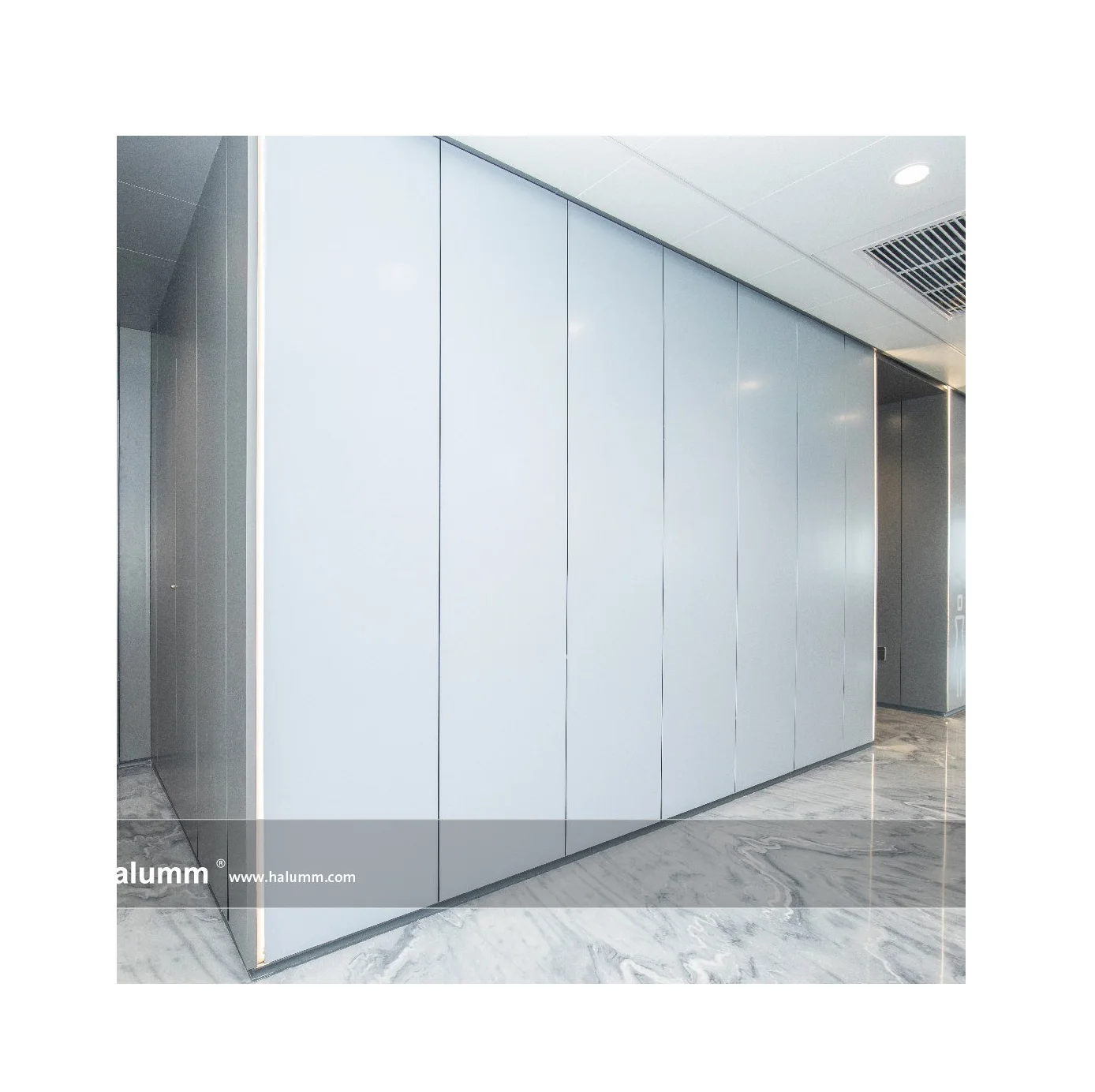

STEEL PANEL WALL CLADDING
Steel panel

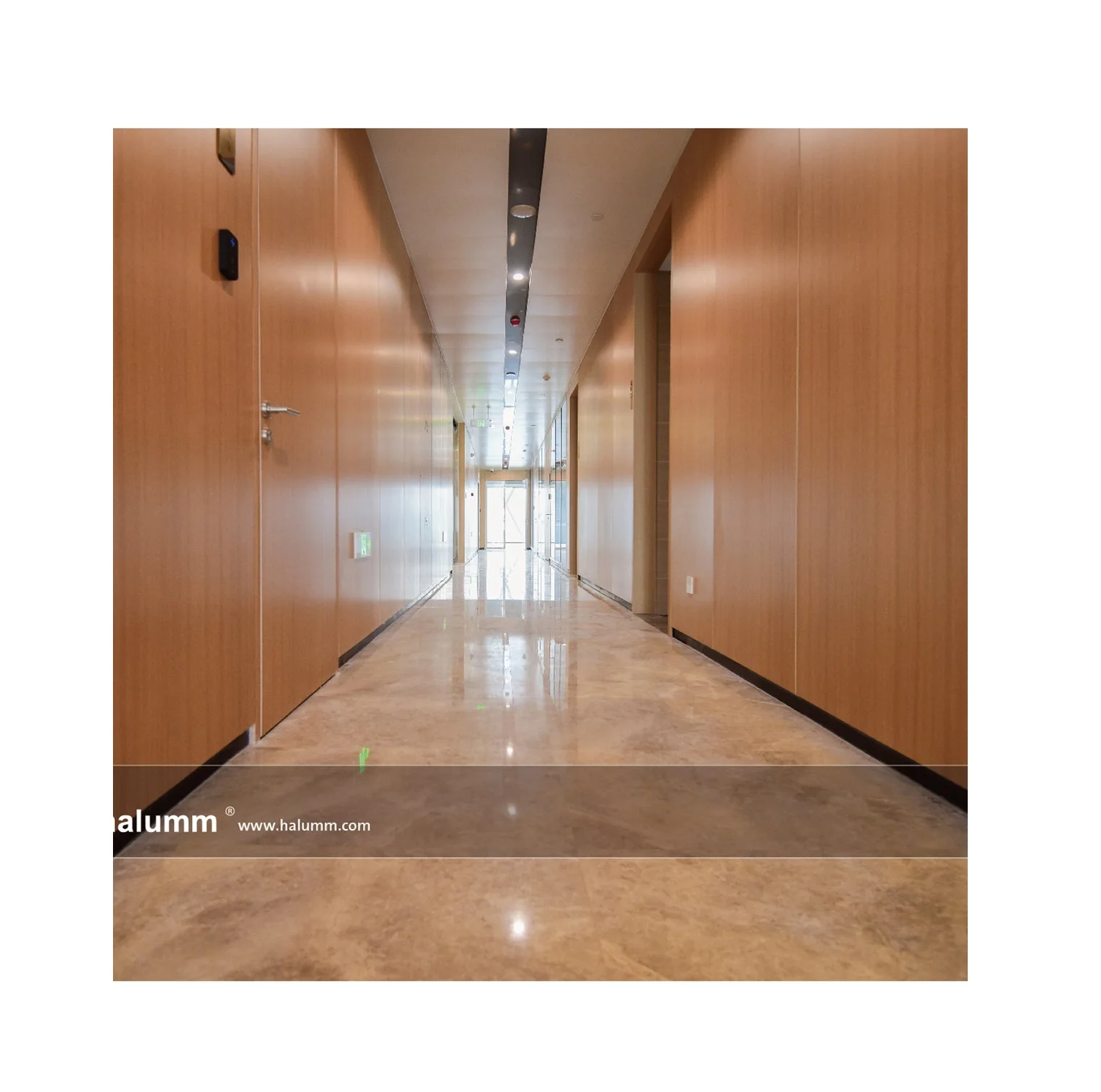

Steel panel with wood pattern
System Type | Steeple steel partition _ Seamed/ Seamless |
Size | Wall thickness:104mm； Maximum Screen Size:1100*3000mm |
Panel Parts | 0.8mm Galvanized steel panel combined with 12mm gypsum board ， Polyester lacquer finish, painting thickness: ≥20μm |
Metal Components | Galvanized steel panel，1.0mm thickness ，Stronger corrosion resistance；Galvanized quantity:≥80g/m；Main Keel Tensile Strength ≥400Mpa Vertical keel and horizontal keel are jointed together with patented design of keychain type Lock, which is repeatable disassembly, high connection strength and reliable connection |
Module assembly | The seal gap is 5mm, and 3mm PE form tape is be used to connect the dry wall and partition, inside the partition wall is filled with 50mm thick rockwool of 45kg/m3 Bulk density |
Soun Insulation | 42dB （ GB/T 50121-2005 ） |
Combustion property | A （ASTM E 84orUL 723）B1（GB 8624-2012) |
fireproof ability | 40min（GB/T 9978.1-2008、GB/T 9978.8-2008） |
Steeple steel partition

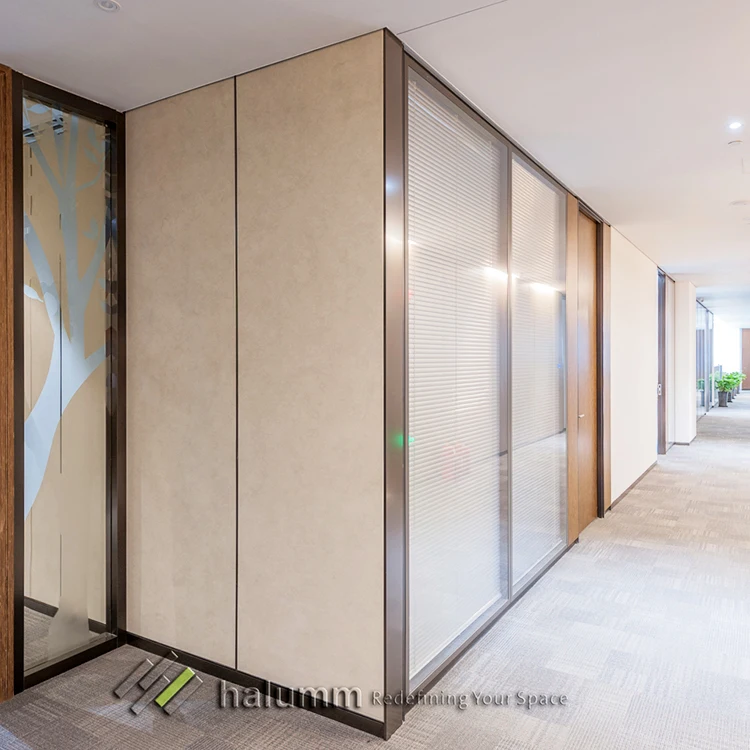

Glass panel with thin frame
Glass panel frameless
System Type | Framed Partition/Frameless Partition |
Size | Wall thickness:104mm； Maximum Screen Size: 1100 x 3000mm(W x H) |
Glass Thickness | 6+6/6+8/8+8/8.7+8.7mm |
Metal Components | Galvanized steel panel，1.0mm thickness，Stronger corrosion resistance ， Galvanized quantity:≥80g/m ；Aluminum Profile Painting:Powder Coated, painting thickness: ≥30μm Main Keel Tensile Strength ≥ 400Mpa；Vertical keel and horizontal keel are jointed together with patented design of keychain type Lock, which is repeatable disassembly, high connection strength and reliable connection. |
Soun Insulation | 42-46dB（GB/T 9978.1-2008、GB/T 9978.8-2008） |
Combustion property | A（GB 8624-2012) |
other functions | 25mm Electric/manual louvers, optional as required |

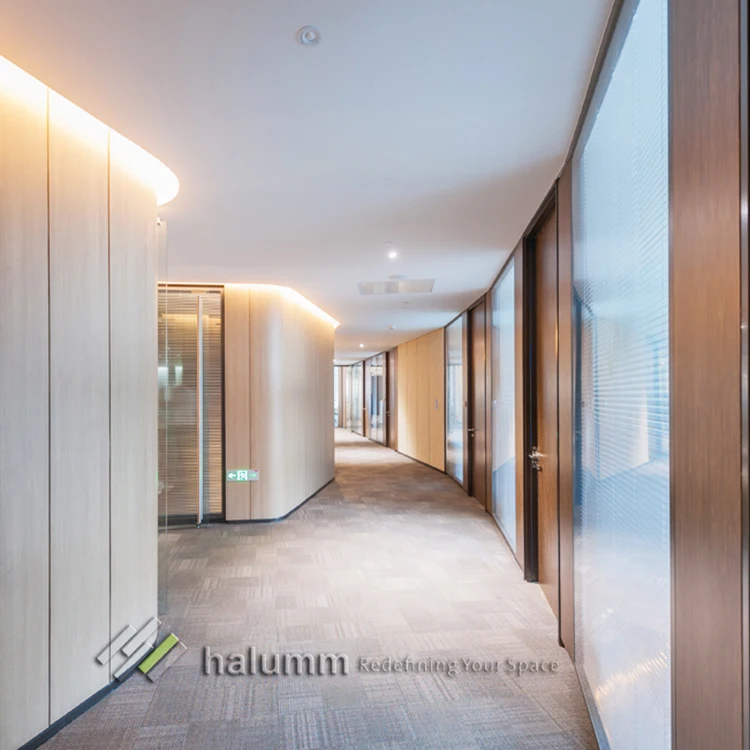

Framed glass Partition
Product Description

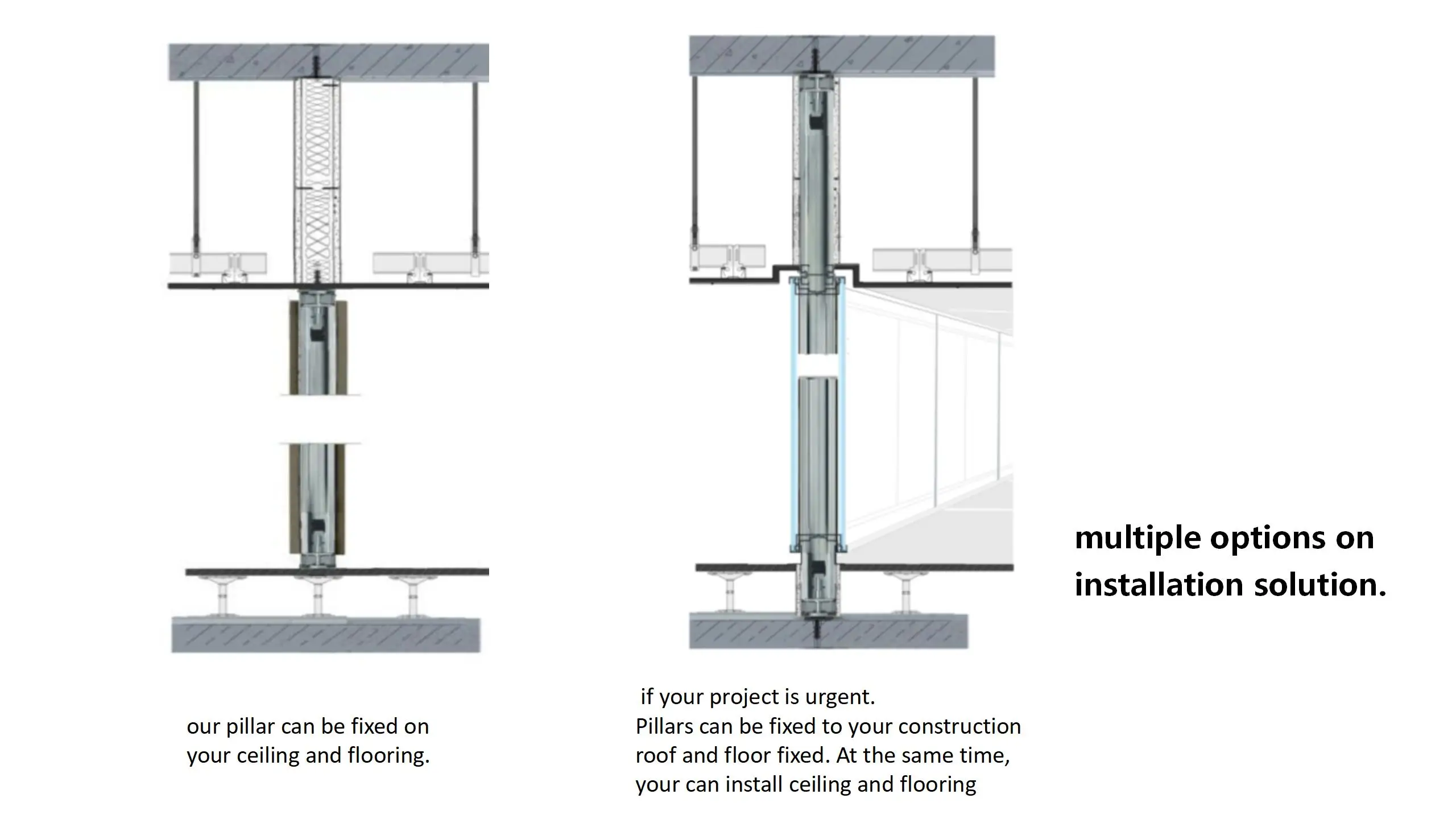

installation solution.
Ceiling and floor installed
The TV, ventilation system, wall thermal
system all can be inset into wall.
which will save a lot space.
which will save a lot space.
Urgent project entered in advance
With preset hole on pillar, cabling system can be perfectly combined in the wall.
Easy maintance is allowed for its hooked panels.
Easy maintance is allowed for its hooked panels.

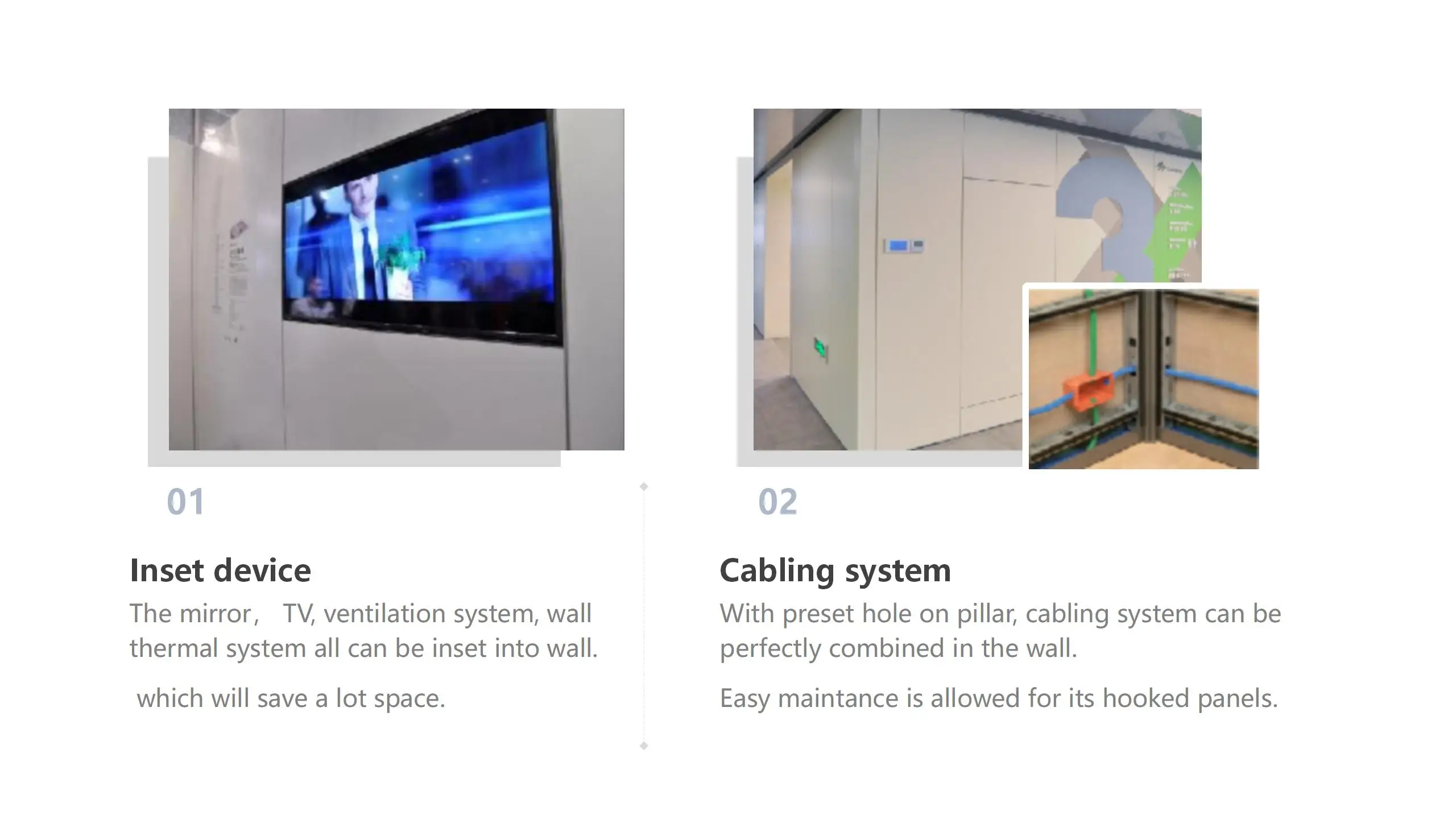

Inset device
The TV, ventilation system, wall thermal
system all can be inset into wall.
which will save a lot space.
which will save a lot space.
Cabling system
With preset hole on pillar, cabling system can be perfectly combined in the wall.
Easy maintance is allowed for its hooked panels.
Easy maintance is allowed for its hooked panels.
51dB Acoustic Insulation

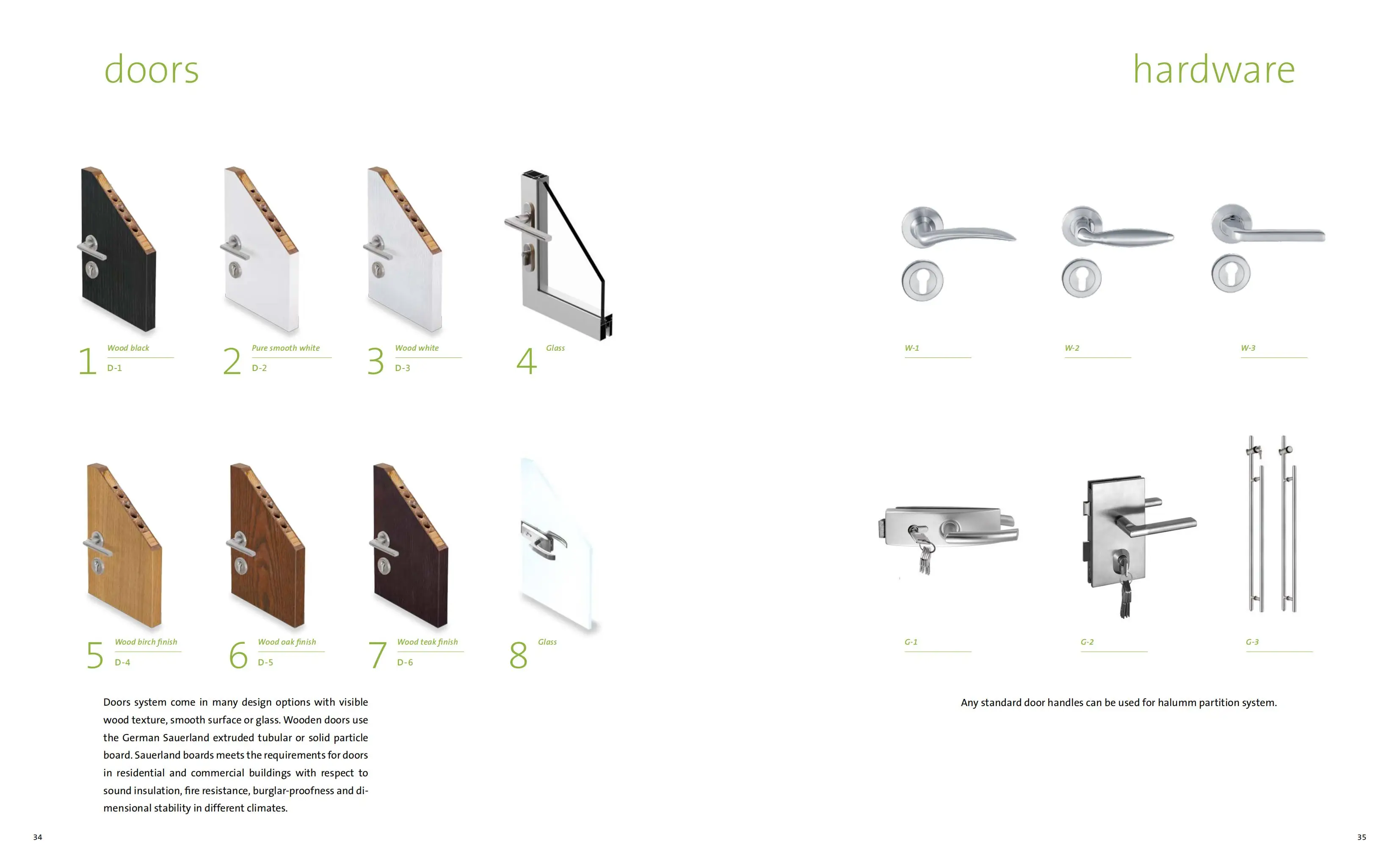

Steeple partition hardware fitting
About Us
Certifications

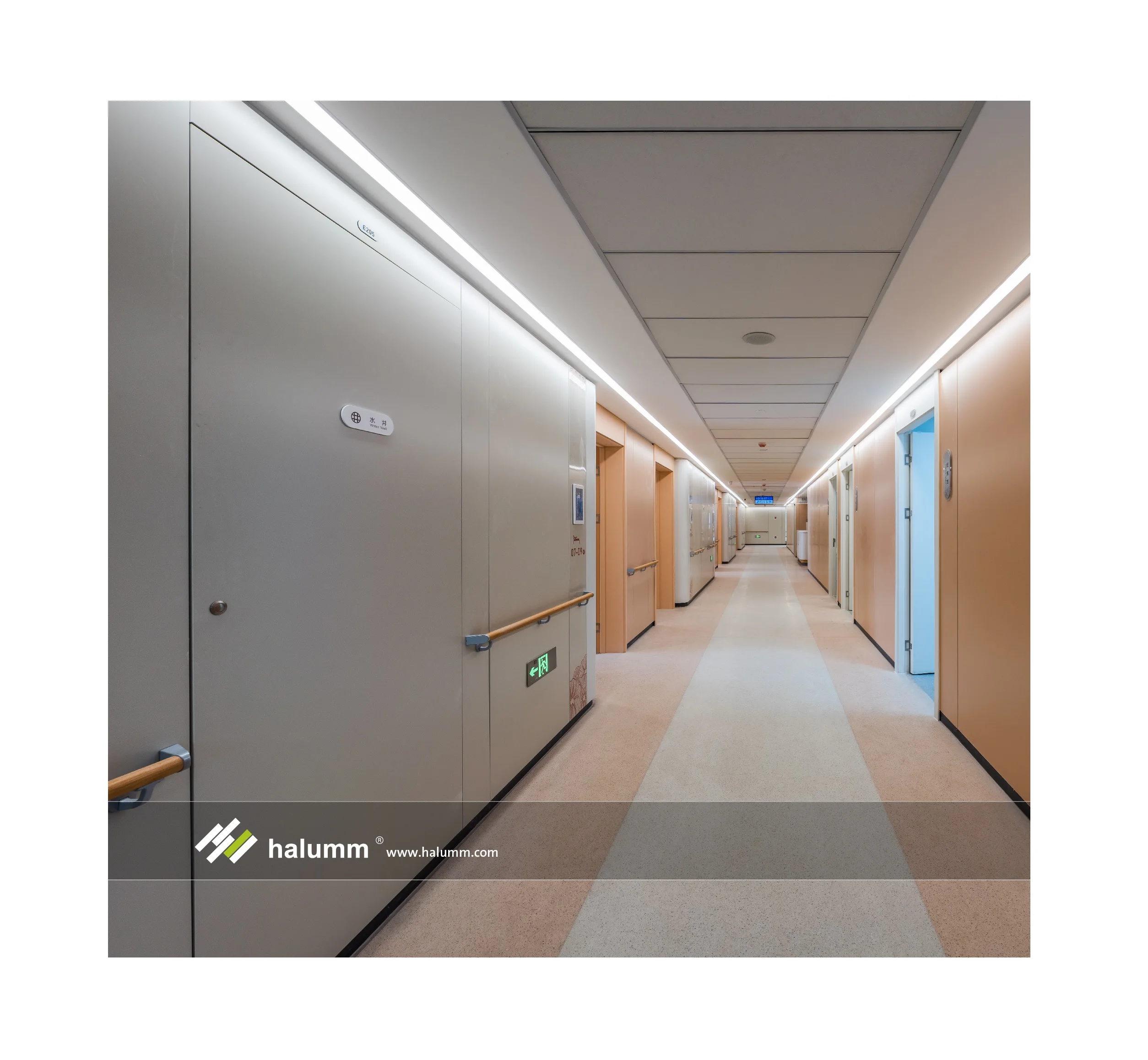

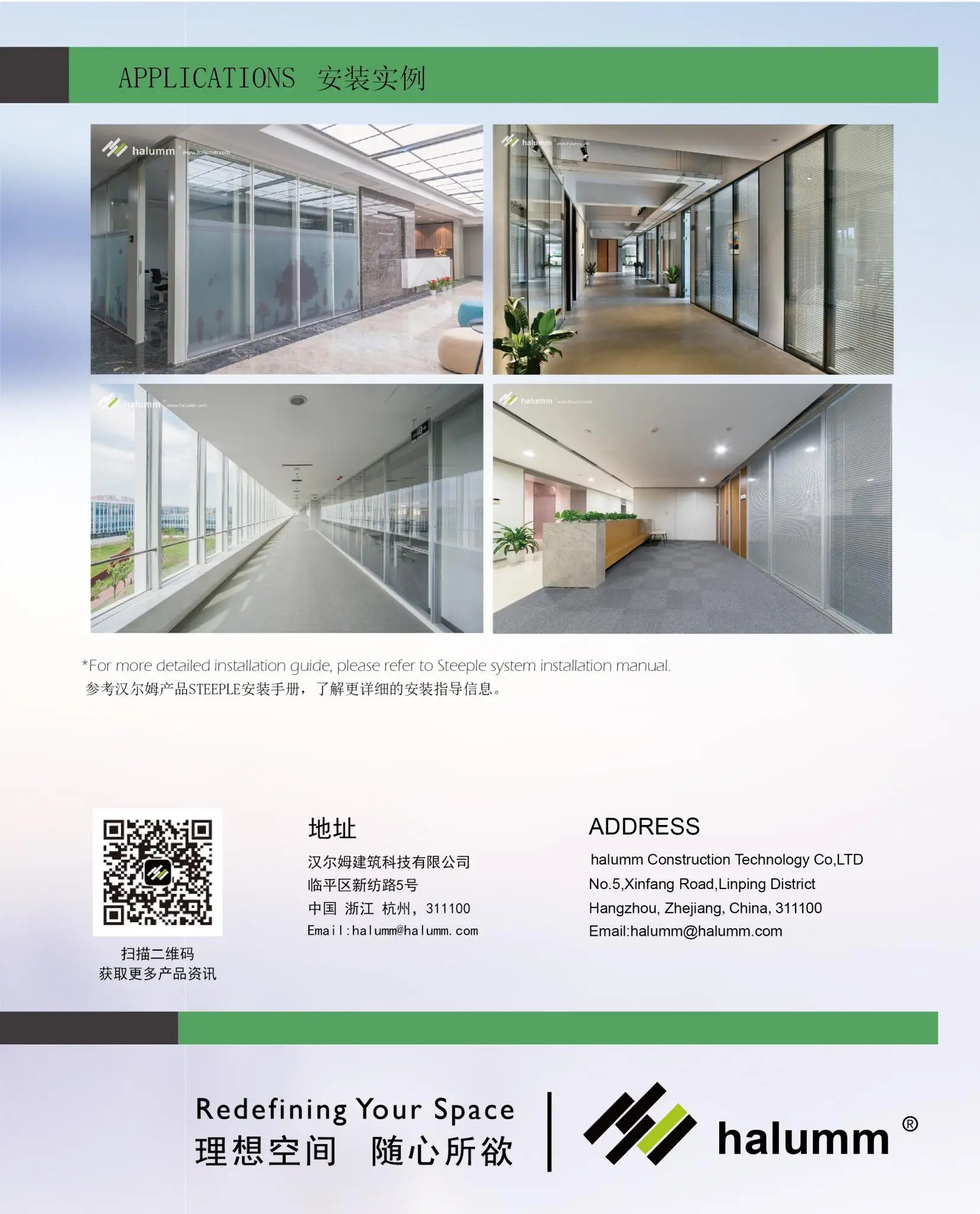

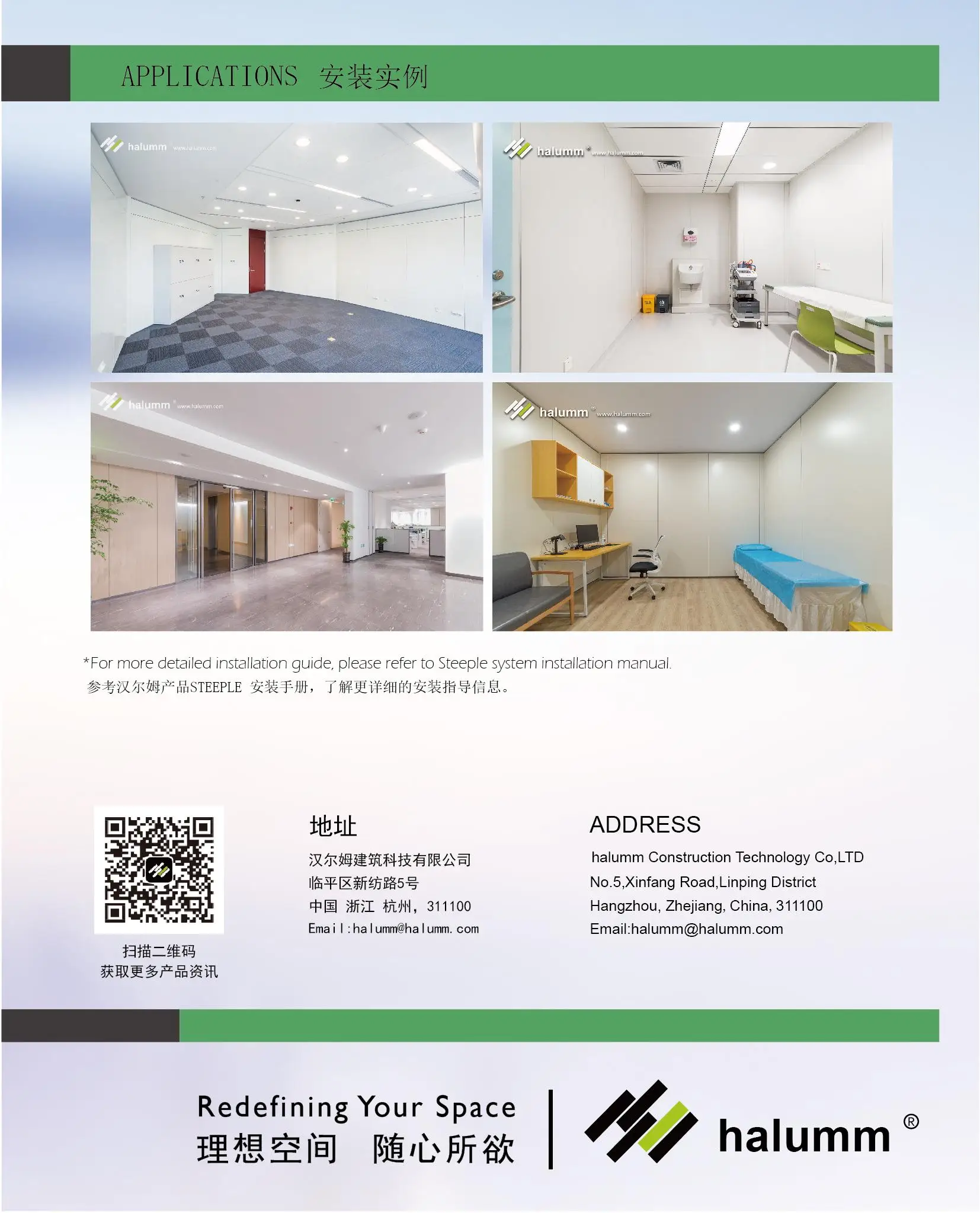

Project Case
Our Workshop
Packing & Delivery
Profile Packing
All profile in same size in a pallet to easy unload on site
Detailed lable on each package
Our Service
Engineer onsite to help you solve problem
halumm engineer installation guidance service
Good aftersales follow up
