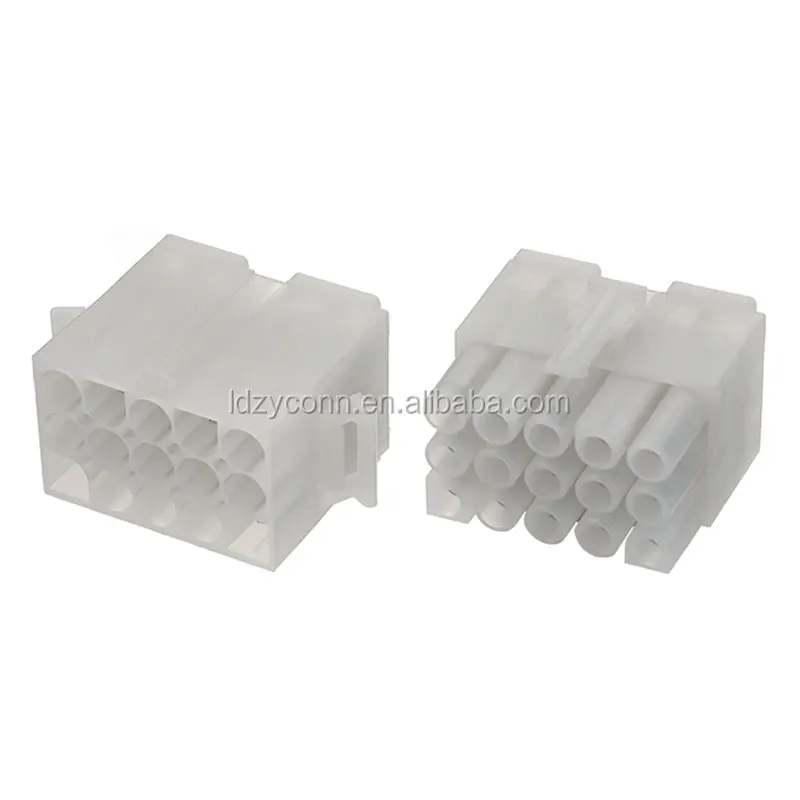

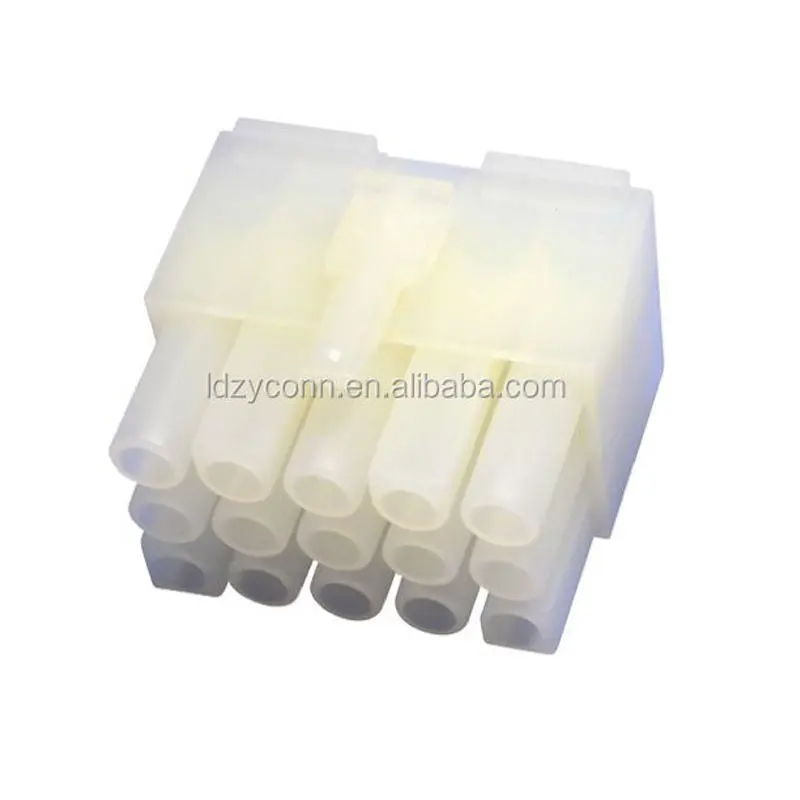

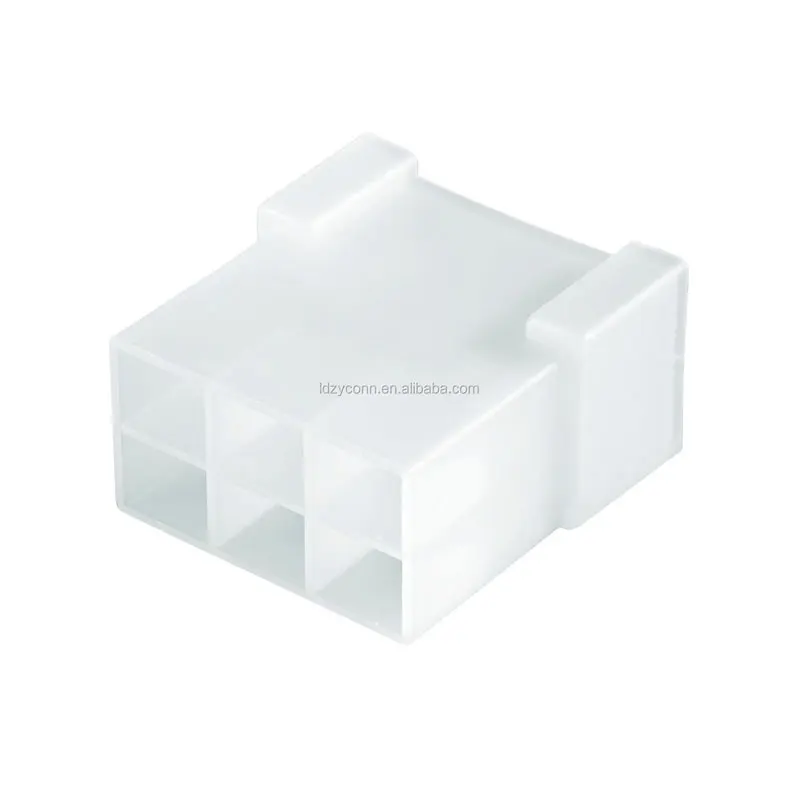

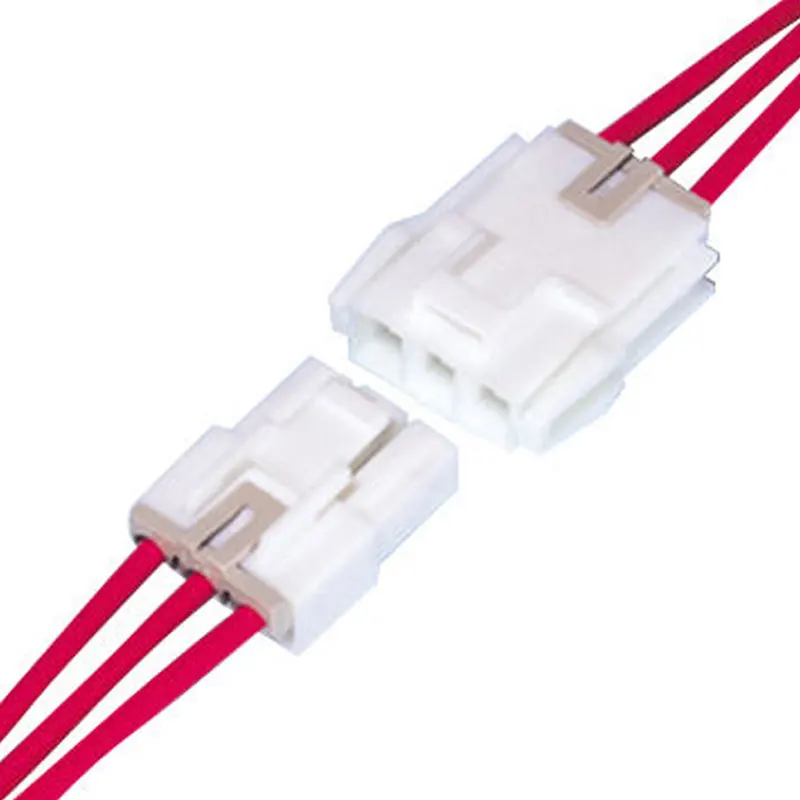

6.35 mm pitch wire to wire electric connector replaces AMP 2.1

Product Overview

Description

6.35 mm pitch wire to wire electric connector replaces AMP 2.1



current rating: 15A AC/DC

voltage rating: 600V AC/DC

temperature range: -25C~+85C

contact resistance: 3.5mΩ Max

insulation resistance: 1000mΩ Min

withstanding voltage: 5000V AC/minute

wire range: AWG#14~20

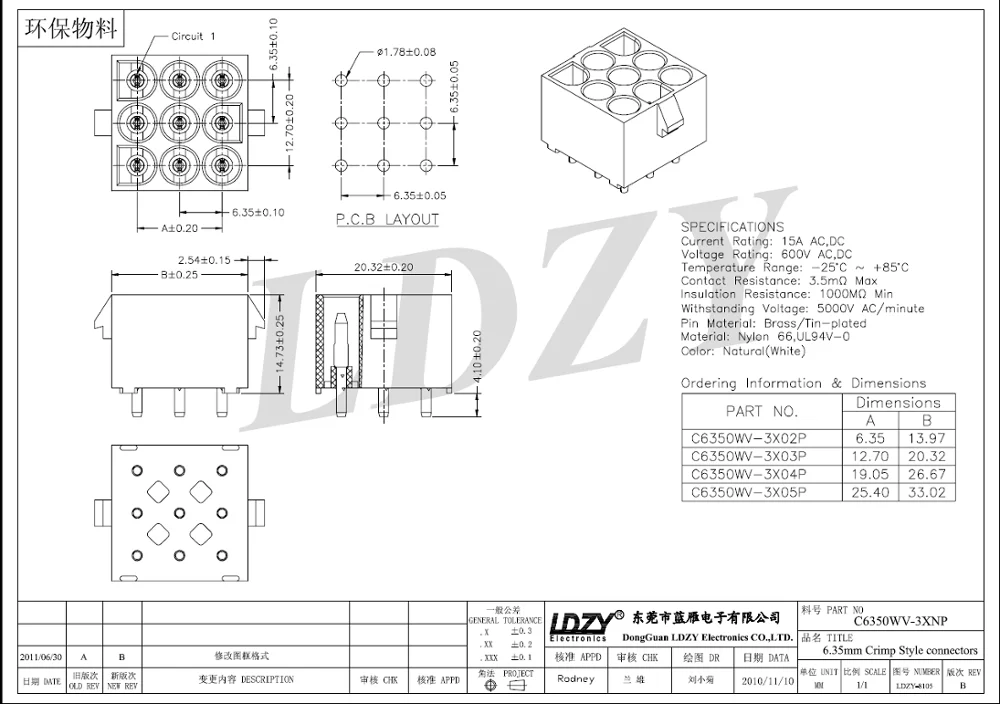

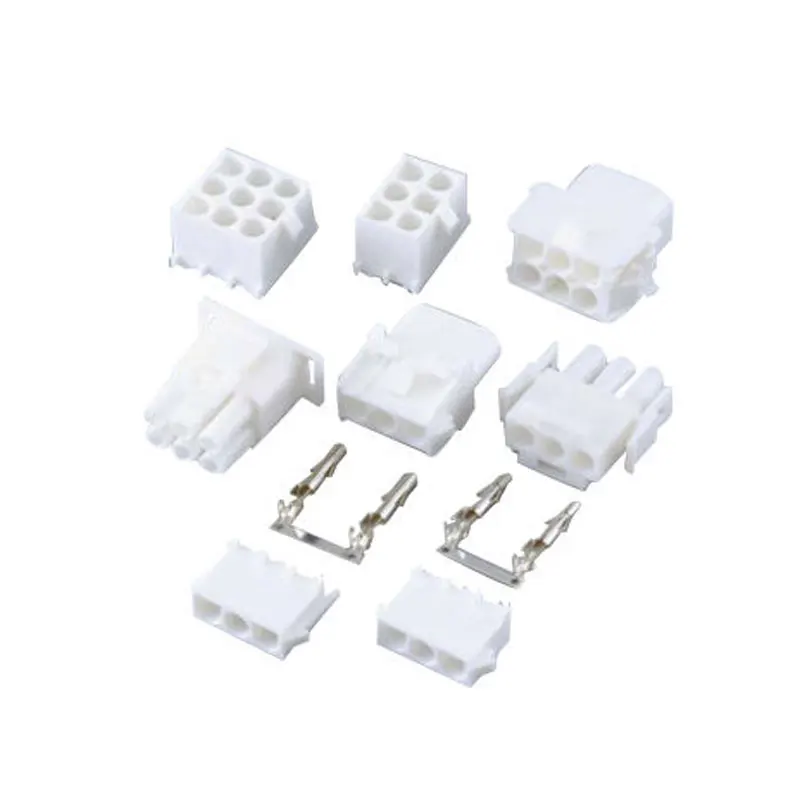

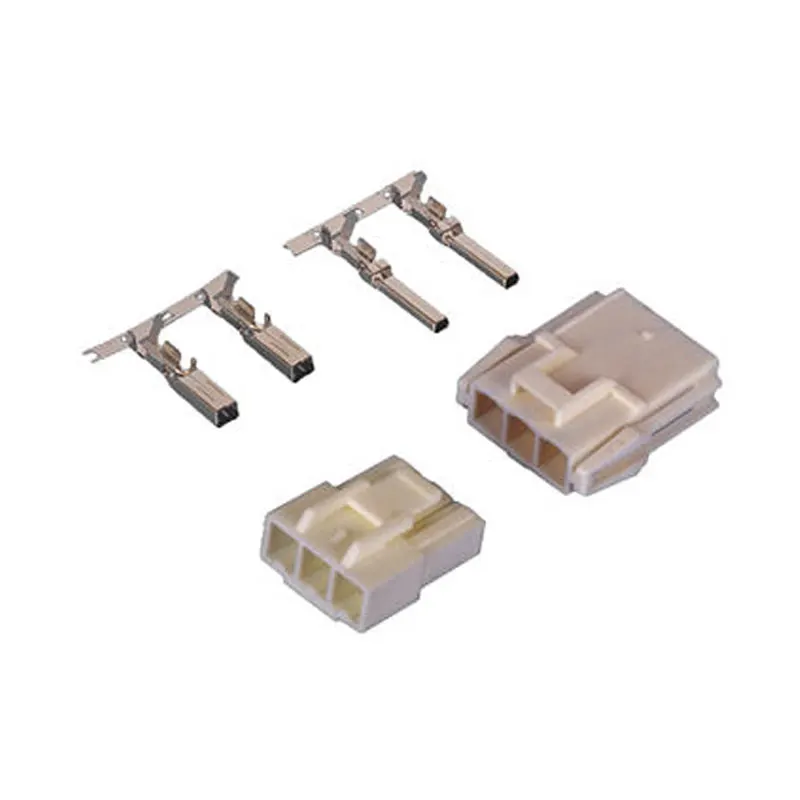

Item	Part No.	MAterial	Poles	QTY
Wafer	C6350WV(A)/WR(A)-(X)NP	Nylon66 UL94V-0	02-15	500PCS/Bag

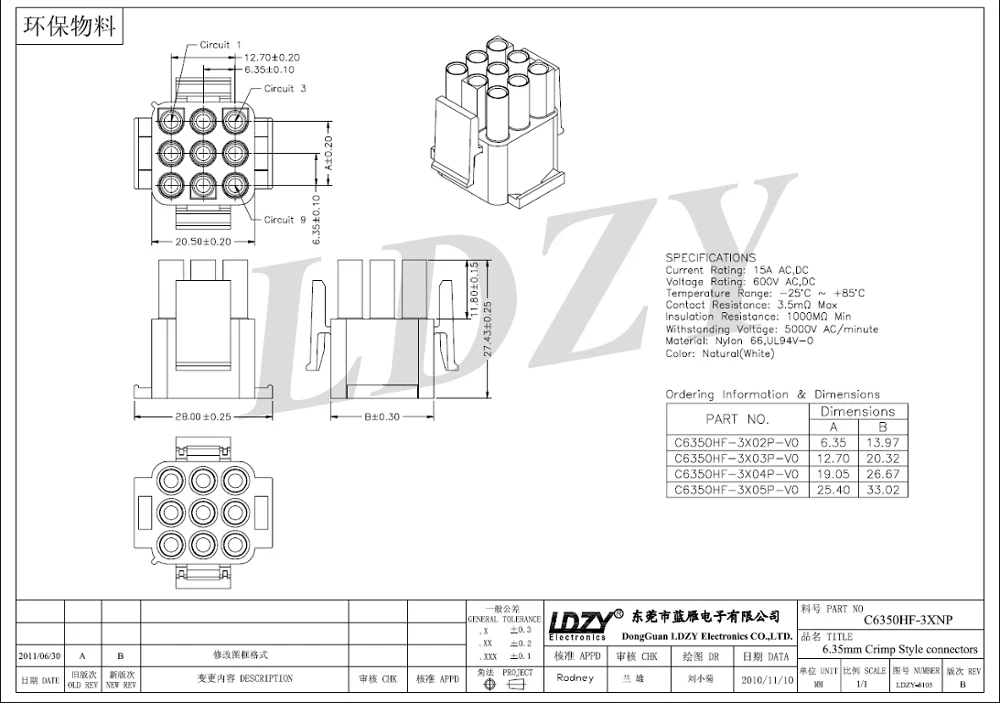

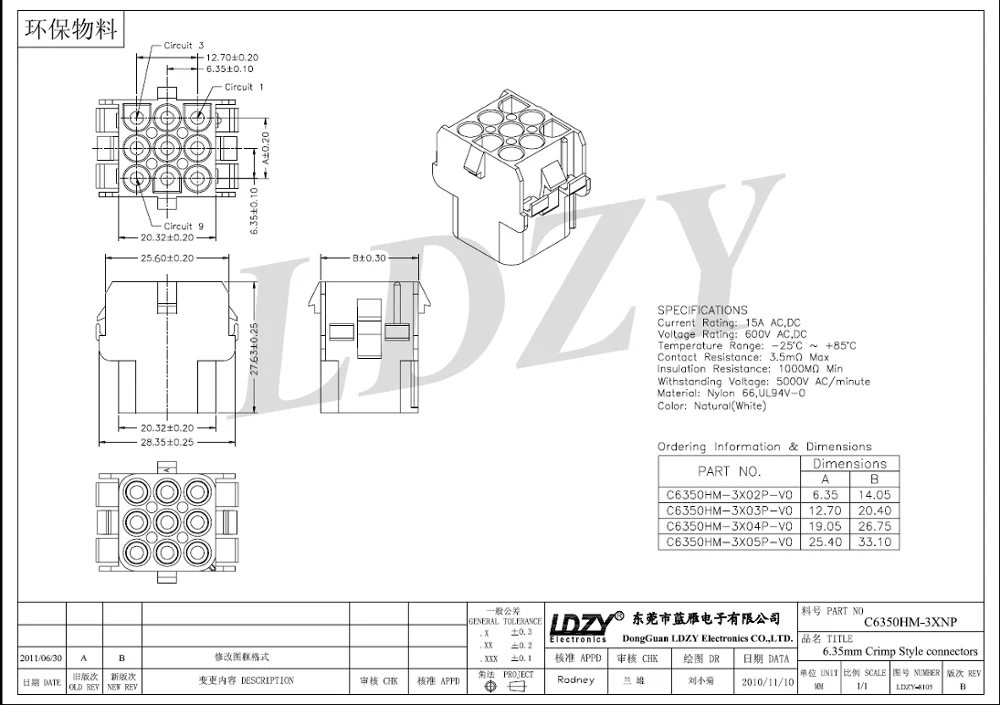

Housing	C6350HM/HF-(X)NP	Nylon66 UL94V-0	02-15	1K PCS / Bag

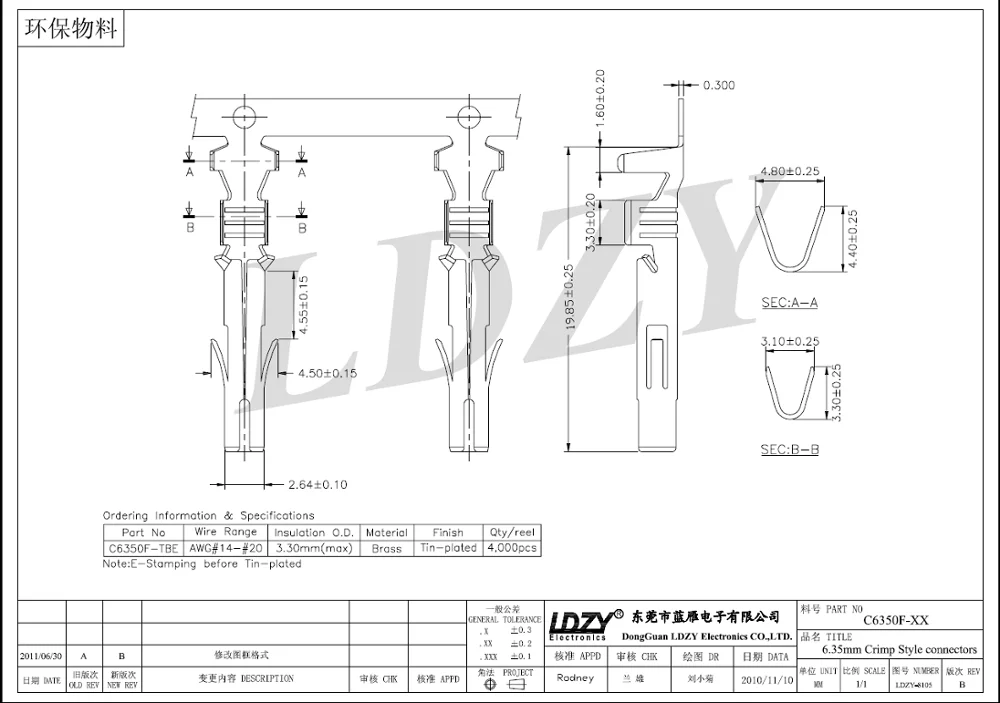

Terminal	C6350TM/TF-P	Phosphor Bronze		3.5 K PCS / Reel

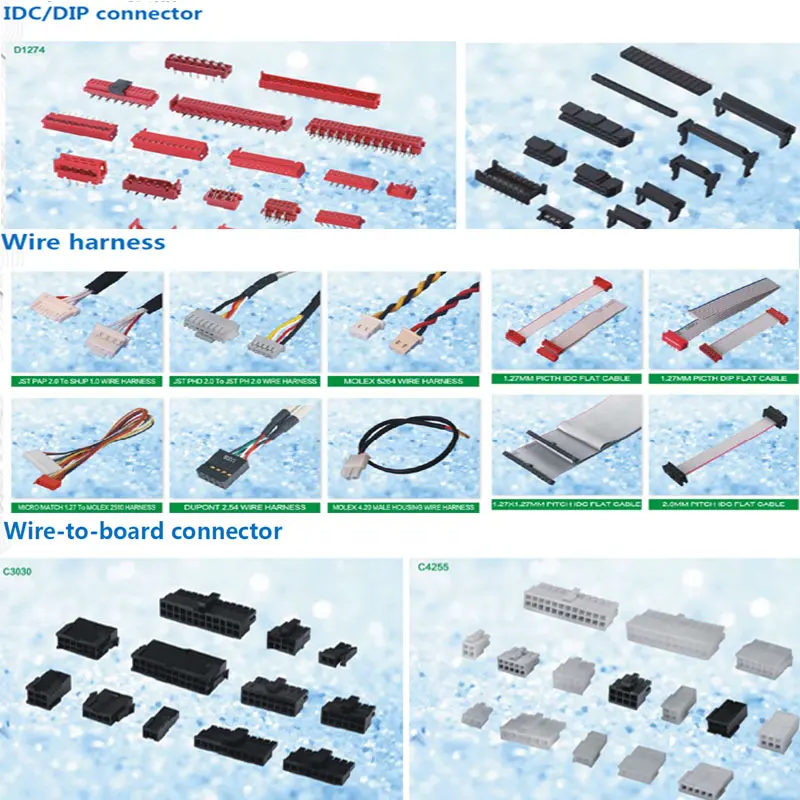

Besides this 6.35mm Pitch Wire to Wire Connector, we also have other kinds of Electronics Connector like below:







Package method for this 6.35mm Pitch wire to wire connector:

PE bag for housing/Wafer,
reel for terminal.



Shipping: delivery by air, by international express or by sea







We are a professional manufacturer of electronic connectors. Products include wire to board connectors, wire to wire connectors, board to board connectors, male & female headers, FPC connectors, cable/wire harnesses. They are widely used in medical equipments, automobile,

household appliances, digital products, security products, office equipment, laptop, electric toys and some other fields.





Testing, Stamping, Injection & assembly workshop information:



We have advanced production equipments and 150 experienced workers. Include injection molding machine to manufacture connector housing, automatic pin insertion machine for connector assembly, stamping machine for production of PIN and terminal. And perfected testing equipments to ensure the quality of products. Products are UL, RoHS, TUV certified. We strictly adhere to ISO9001, ISO14001 & IATF16949 quality management system.







1. We are a direct factory which manufacturing of electronics connectors, more than 15 years experience of electronics connector field and cable assembly filed.



2. 90% automatic production makes our daily production capacity reach 1 millions PCS. This enables us fo finish customers's order in a short time.



3. Support low MOQ, support OEM/ODM services and free samples within 3-10 working days.



4. Products pass the third inspection company like TUV/UL, and always a pre-production sample before mass production and 100% QC inspection Before Shippment.





LDZY company's products have been recognized by UL, RoHS and the third-party high-quality testing technology service institutions, and obtained a number of utility model and invention patents, and obtained "ISO 9001:2015, ISO14001, IATF16949 quality management system", "National high and new technology enterprise".









In order better to learn about the different market and different customers' needs, we attend exhibitions in different areas. We presented in Munich, HongKong, Shanghai and Dongguan since 2016.







Based on our rich experience of the electronics connector, we have cooperated with Flex, Foxconn, Siemens, Assmann, Plexus for many years, they're pleased of our product quality and company.









Q1: Are you a manufacturer ?

A: Yes, we are the professional manufacturer of connectors & hardness.



Q2: Do you provide the customized product ?

A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings.



Q3: What is the delivery time ?

A: Generally, it will take 3-5 days for small order or the stock goods; 7 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q4: How about the certificates ?

A: Factory has pass the ISO 9001 & ISO14001, Products has pass the UL, RoHS, REACH etc.



Q5: How about the sample ?

A: We can provide 5-10pcs Free samples. While the shipping fee for the sample will be paid by you (We're located in Dongguan city of China).



Q6: How about the payment terms ?

A: Generally we use the T/T payment in advance. If the amount is more than 3000USD,
we can do 30% T/T deposit , 70% T/T before shipment or against the copy of B/L. Further we also can accept the L/C, Western Union , paypal payment, etc.
