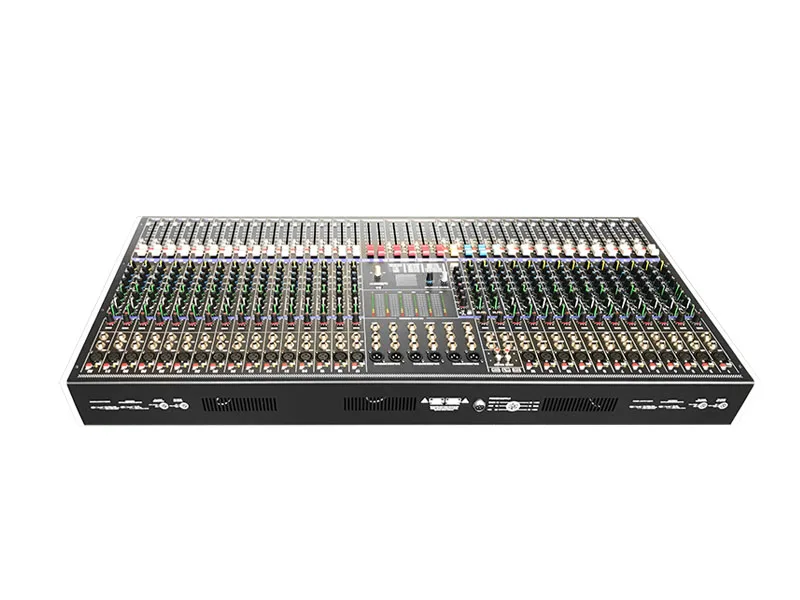

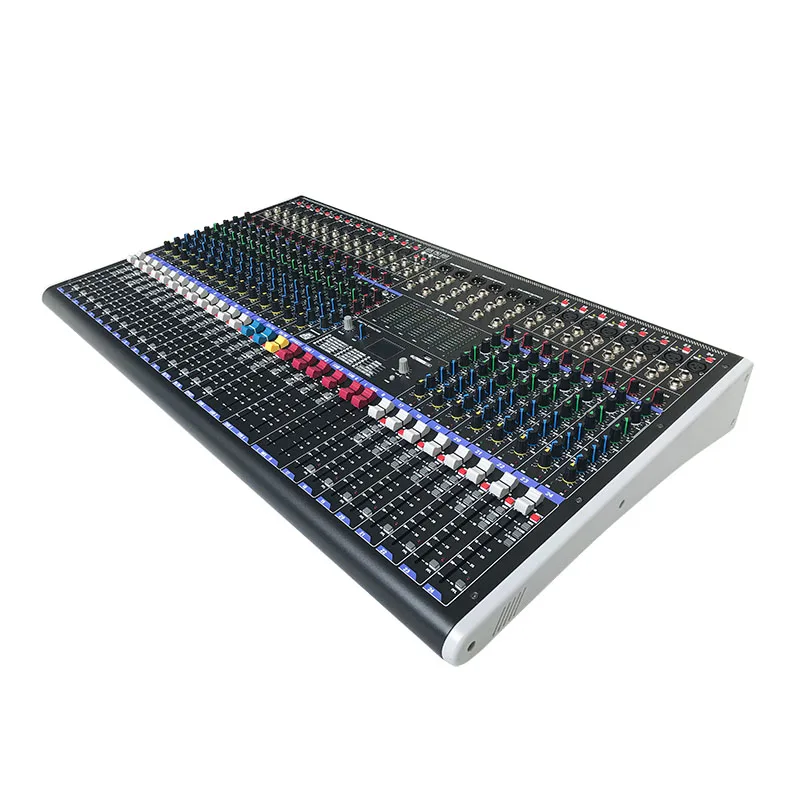

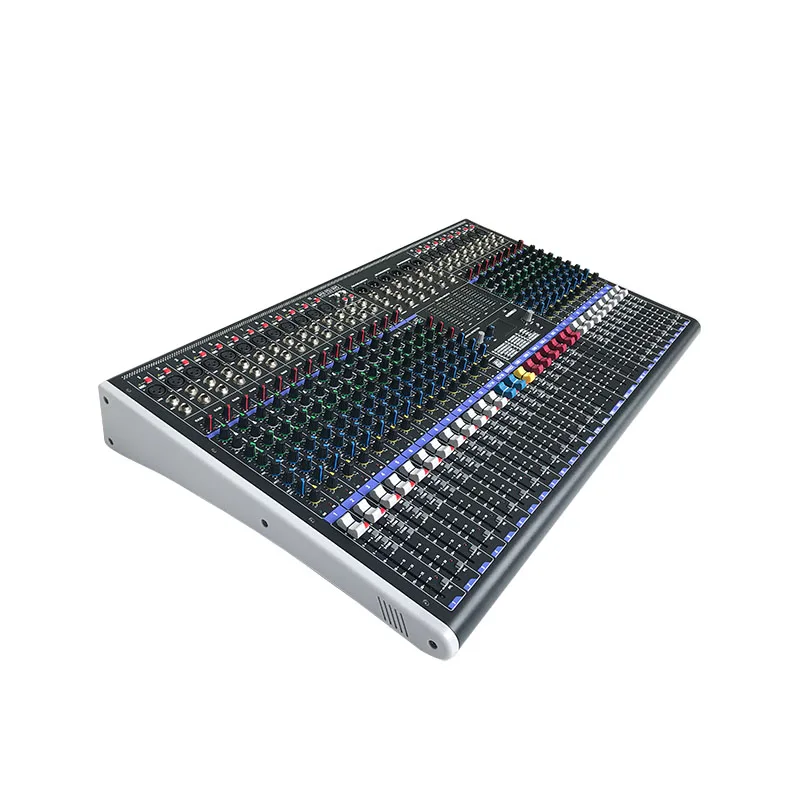

HUAIN studio pro 24 channel mixing console analog mixer de audio profecional
- Category: >>>
- Supplier: Zhuhai Huain Electronic Technology Co. Ltd.
Share on (1600933280106):
Product Overview
Description
Products Description

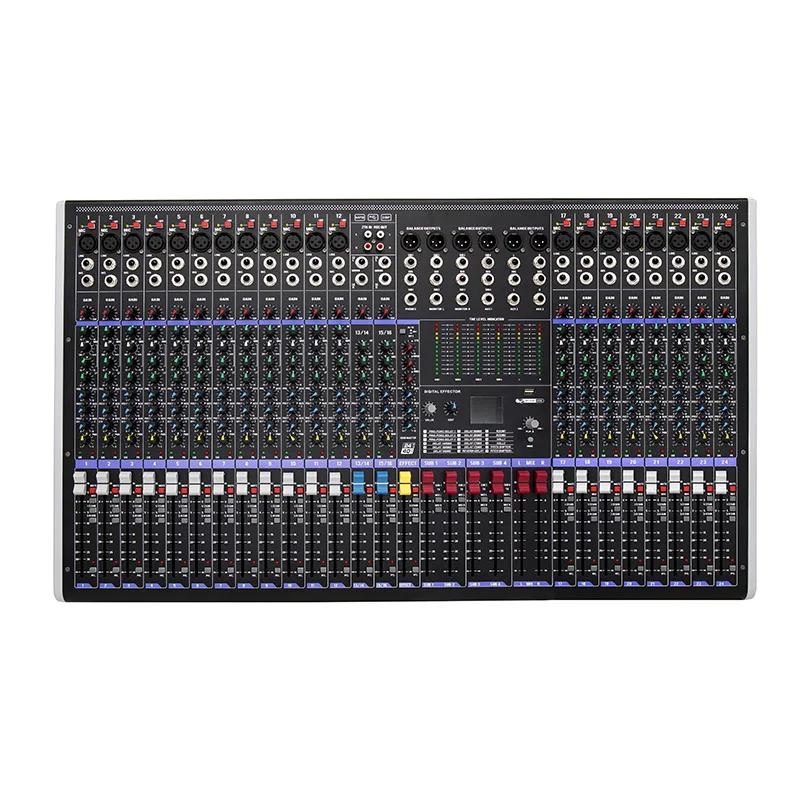

Pro 24 Channel Analog Mixing Console
Feature：1. Channel Mixer: 20 Mics 24 Line Inputs (20 Mono + 4 Stereo Groups) / 4 Group Buses + 2.2 Stereo Buses / 3AUX (including FX)
2.2 Stereo buses / 3AUX (including FX)
3. 3-band equalization for each channel.
4.24 channels with three-band high, mid, and low equalizer
5.20 48V phantom power switches
6.2TK recording input, output Lotus connector
7. Built-in 18 modes of digital effects
8.MP3 player with USB computer sound card input, cell phone Blue-tooth connection, MP3 playback and recording function
9.6 12-segment tri-color LED level columns
10.100MM stroke high analysis fader (attenuator)
11. External noise suppressor power supply, easy to use and flexible, power supply voltage 210v-240v
12. Durable and sturdy metal body, strong anti-interference ability
13. Appearance size: 80.5CM width × 46.5CM depth × 10CM height
14.Net weight: 12.1KG
15.Frequency response: XLR input to any output +0/-1dB 20Hz - 20kHz, all measured at +10dB output and 30dB gain state
16. Total Harmonic Distortion and Noise: XLS input to main signal output <0.05% at 1kHz, Equivalent Input Noise (E.I.N.) at mic input, 22Hz - 22kHz bandwidth, unweighted -125dBu (150Ω source impedance)
17. Mic Gain: Small -26dB, Large -70B
18. Bus Noise: Main Output: Input fader push to: Max, Main Signal fader push to: 0dB -90dB
19.Grouping Output: Input fader push to: Max, Grouping fader push to: 0dB -90dB
20. General Operating Level: 0dBu; Headphone Power 2x166mW, 200Ω
21. Mic Input 2kΩ: Line Input >10kΩ
22. Input and output impedance: input channel insert return 5kΩ (with EQ input, otherwise poor case of 1.8kΩ), the main signal, group and auxiliary output 150Ω, insert send 75Ω, recommended headphone impedance 50-600Ω
23.EQ (mono input): HF 12KHz, ±15dB, Mid 200Hz-3kHz, ±15dB, Lo 80Hz, ±15dB
24. Power consumption: external low-noise purification power 210v-240V, 60Hz, power consumption 60W
25.Working conditions: temperature range of -10 ° ~ +30 ° C, relative humidity 0% ~ 80
2.2 Stereo buses / 3AUX (including FX)
3. 3-band equalization for each channel.
4.24 channels with three-band high, mid, and low equalizer
5.20 48V phantom power switches
6.2TK recording input, output Lotus connector
7. Built-in 18 modes of digital effects
8.MP3 player with USB computer sound card input, cell phone Blue-tooth connection, MP3 playback and recording function
9.6 12-segment tri-color LED level columns
10.100MM stroke high analysis fader (attenuator)
11. External noise suppressor power supply, easy to use and flexible, power supply voltage 210v-240v
12. Durable and sturdy metal body, strong anti-interference ability
13. Appearance size: 80.5CM width × 46.5CM depth × 10CM height
14.Net weight: 12.1KG
15.Frequency response: XLR input to any output +0/-1dB 20Hz - 20kHz, all measured at +10dB output and 30dB gain state
16. Total Harmonic Distortion and Noise: XLS input to main signal output <0.05% at 1kHz, Equivalent Input Noise (E.I.N.) at mic input, 22Hz - 22kHz bandwidth, unweighted -125dBu (150Ω source impedance)
17. Mic Gain: Small -26dB, Large -70B
18. Bus Noise: Main Output: Input fader push to: Max, Main Signal fader push to: 0dB -90dB
19.Grouping Output: Input fader push to: Max, Grouping fader push to: 0dB -90dB
20. General Operating Level: 0dBu; Headphone Power 2x166mW, 200Ω
21. Mic Input 2kΩ: Line Input >10kΩ
22. Input and output impedance: input channel insert return 5kΩ (with EQ input, otherwise poor case of 1.8kΩ), the main signal, group and auxiliary output 150Ω, insert send 75Ω, recommended headphone impedance 50-600Ω
23.EQ (mono input): HF 12KHz, ±15dB, Mid 200Hz-3kHz, ±15dB, Lo 80Hz, ±15dB
24. Power consumption: external low-noise purification power 210v-240V, 60Hz, power consumption 60W
25.Working conditions: temperature range of -10 ° ~ +30 ° C, relative humidity 0% ~ 80
Maximum output level | 19dBm（1KHz，THD=0.5%） | ||||
Signal to noise ratio | 71dB | ||||
Low frequency | 80Hz±15dB | ||||
intermediate frequency | 2.5KHz±15dB | ||||
high frequency | 12KHz±15dB | ||||
Mono | 50dB | ||||
stereo | +4dB~-10dB | ||||
frequency response | 20Hz-20KHz | ||||
