Cheap China Wholesale Ul Class2 48v Volt Volts 100watts Low Voltage Garden Light Transformer Led Downlight Built In Driver
- Category: >>>
- Supplier: Shenzhenshi Zhenhuan Electronic Co. Ltd.
Share on (1600933308908):
Product Overview
Description
Products Description
cheap china wholesale UL Class2 48V Volt volts 100Watts low voltage garden light transformer led downlight built in driver

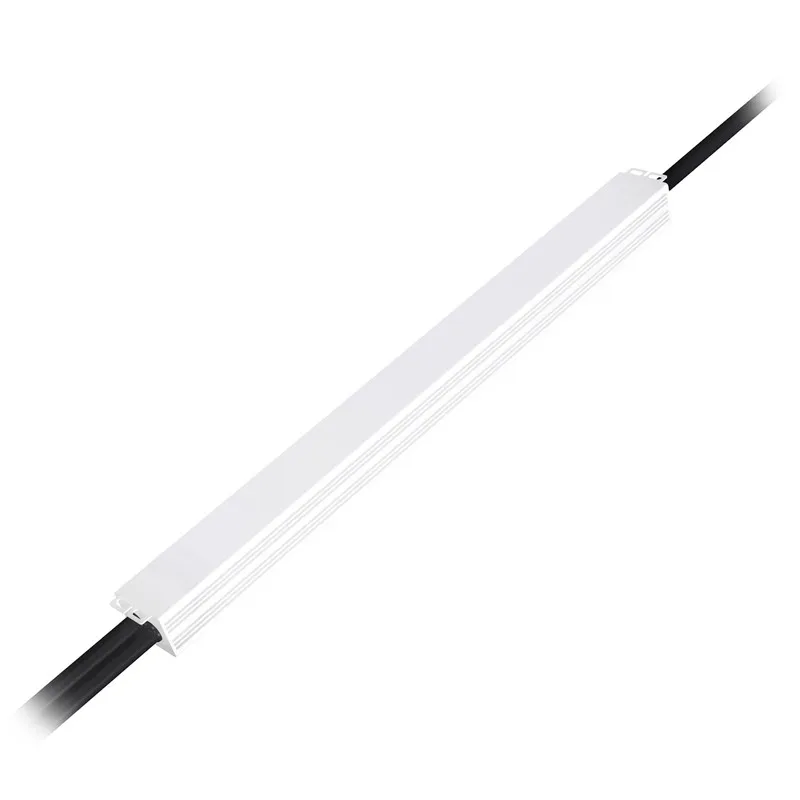

The KSPOWER - LO series 4 in 1 dimmable led driver 100 Watt is one constant voltage slim housing solution, single channel, accept standard AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the 0-10V 1-10V PWM dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the UL cUL CE GS certified dimmable led drivers provide 5 years warranty and outstanding led dimming performance.
Features:
* Height to 24.5 mm
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire

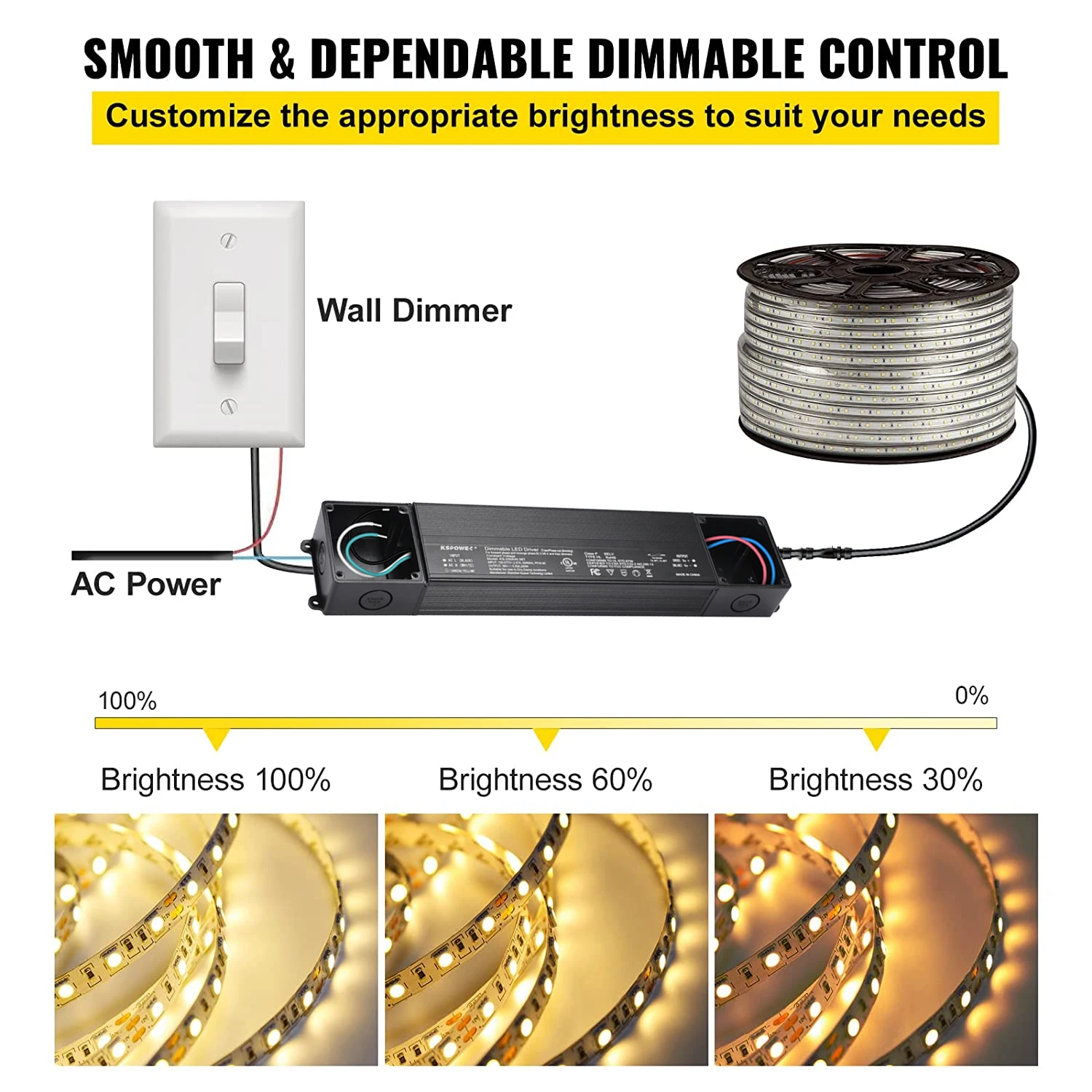

* Dimming: 0/1-10V or Resistor PWM Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Height to 24.5 mm
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 0/1-10V or Resistor PWM Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage | 100~277V AC 47~63Hz | ||||||
Power Factor | PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load | ||||||
NO. | KSLO-100W | ||||||
Output Voltage | 12V/ 24V/ 36V/ 48V | ||||||
Rated Current | 8.33A/ 4.16AA/ 2.78AA/ 2.06A | ||||||
Rated Power | 100W | ||||||
Ripple & Noise (max.) | 200mVp-p/ 250mVp-p | ||||||

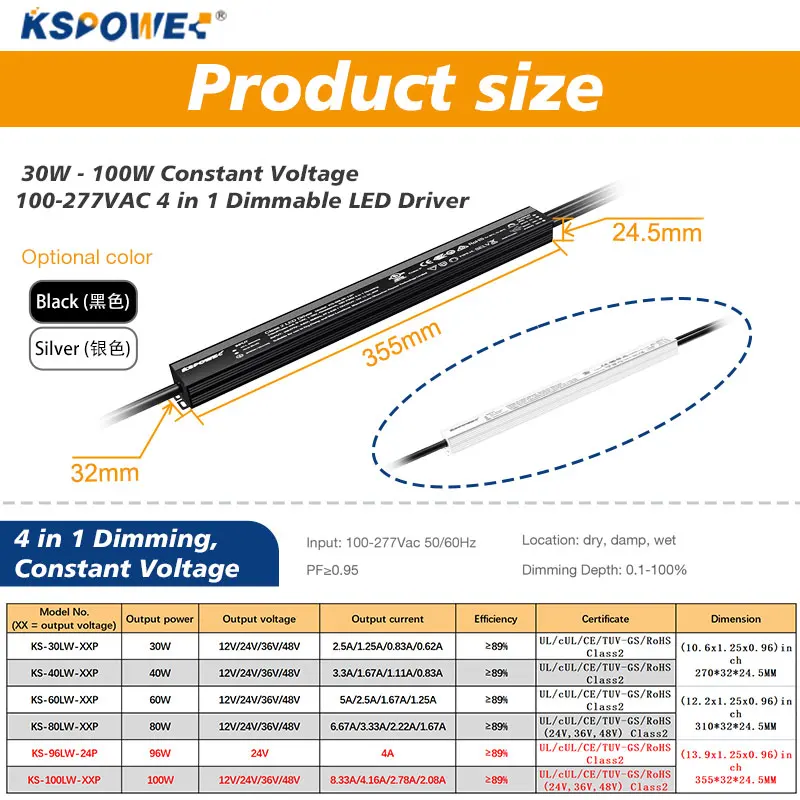

Dimension(L*W*H) | 355*32*24.5mm / 13.98*1.26*0.97in | ||||||

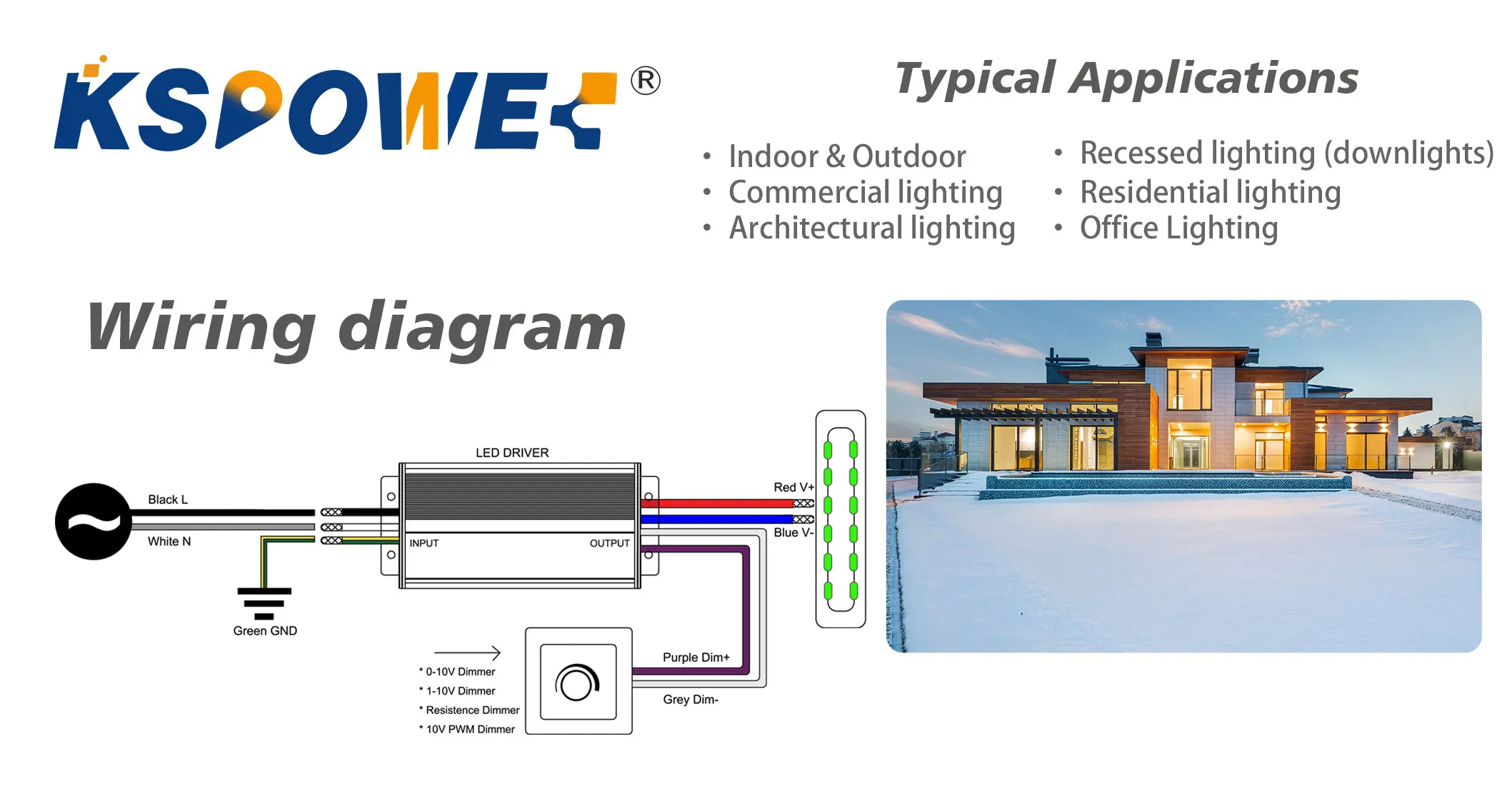

Dimming Connect Drawing
Company Profile
Working Room
Exhibition
Certifications
Applications
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 50 | 0.26 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
155*85*35 | 455*370*175 | 14 |
