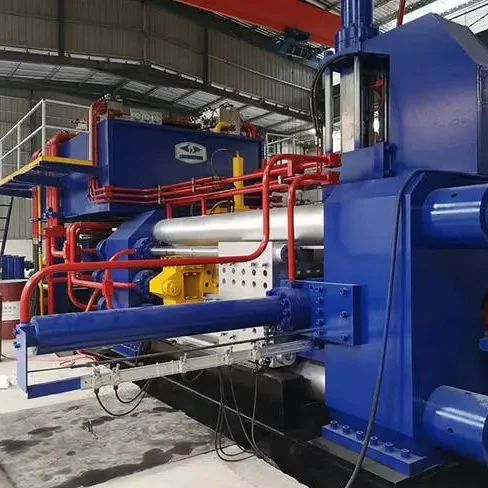

Mingcheng Best Selling Large Aluminum Extrusion Manufacturers Telescoping Extrusion 6 Inch Aluminium Extrusion Press
- Category: >>>
- Supplier: Dalian Mingcheng Industry Co. Ltd.
Share on (1600933325779):
Product Overview
Description
Contacts: Bella
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: kelly@weldcnc.com
Mob/Whatsapp: +86 138 4288 2706
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: kelly@weldcnc.com
Mob/Whatsapp: +86 138 4288 2706
Products Description

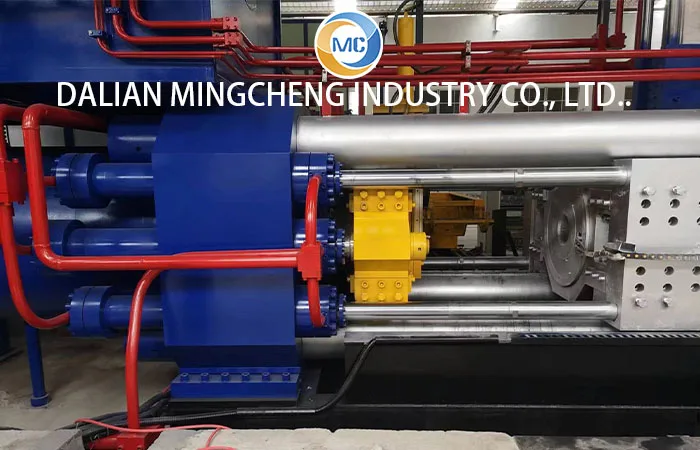

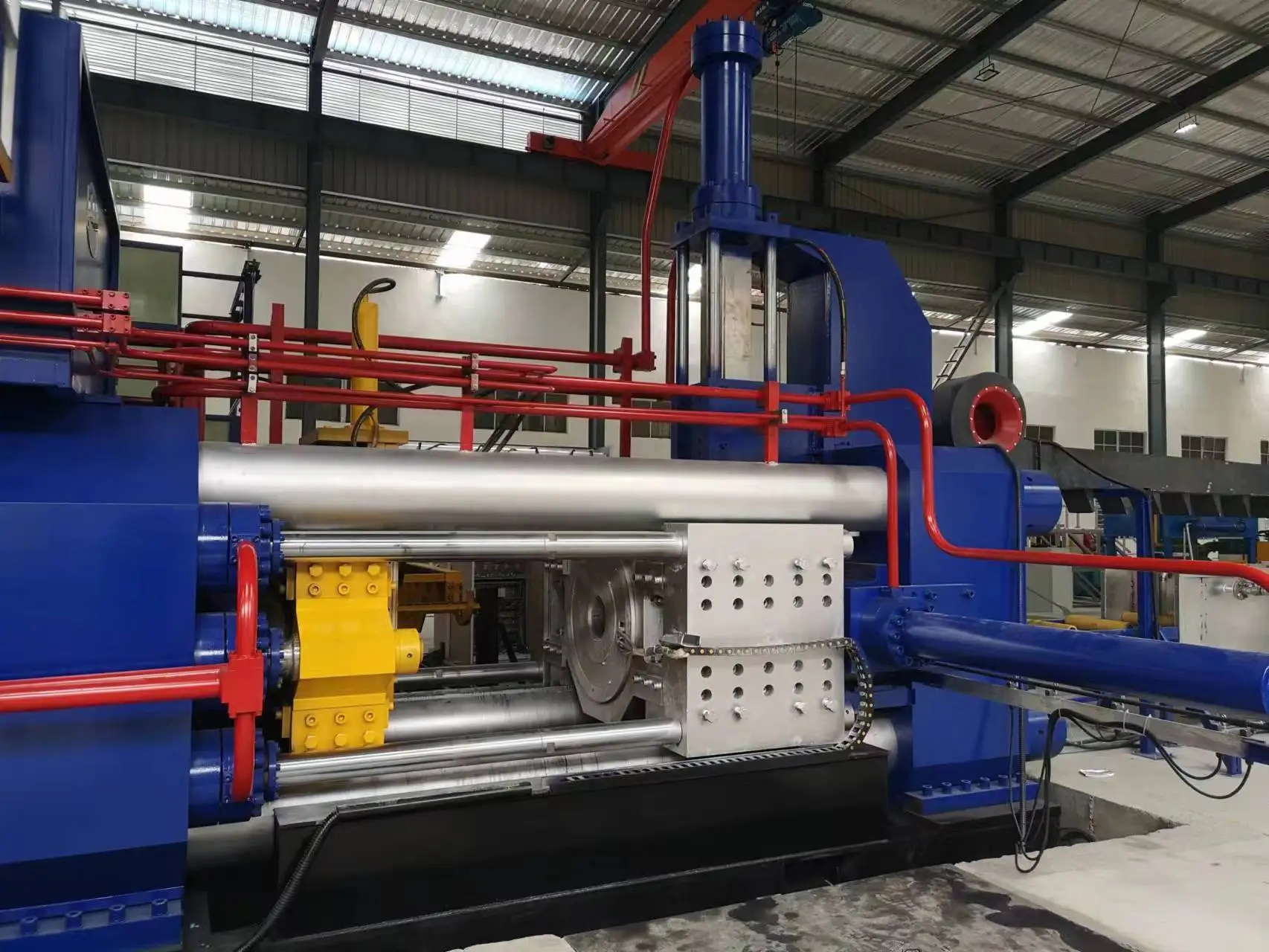

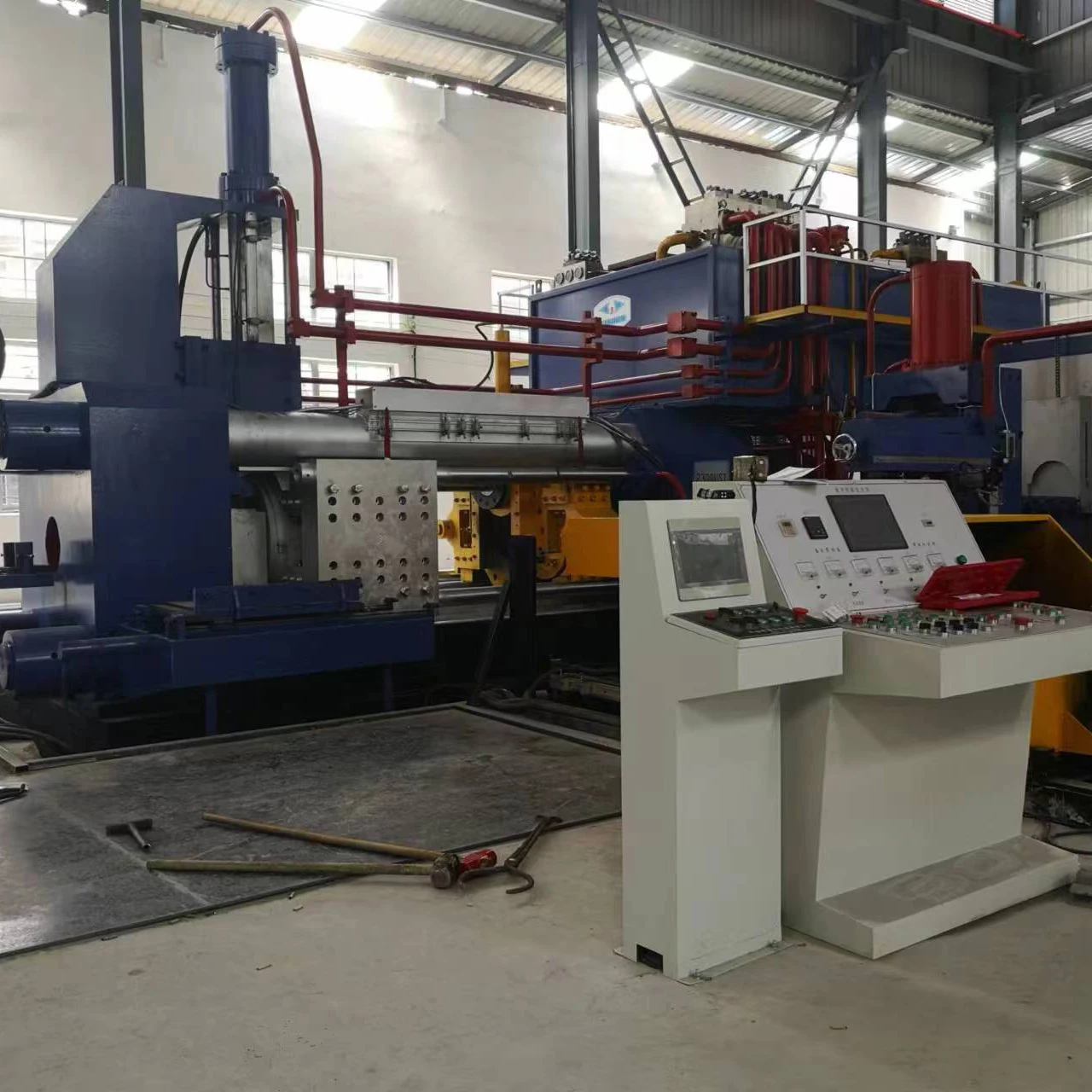

Aluminum/Copper Extrusion Press
There are two kinds of aluminum extrusion press, which are double-action extruder, and positive and negative extruder series, this equipment can be used to produce and extrude all kinds of construction, rail transit, auto parts, aviation, and other types of profiles.
1. Structure

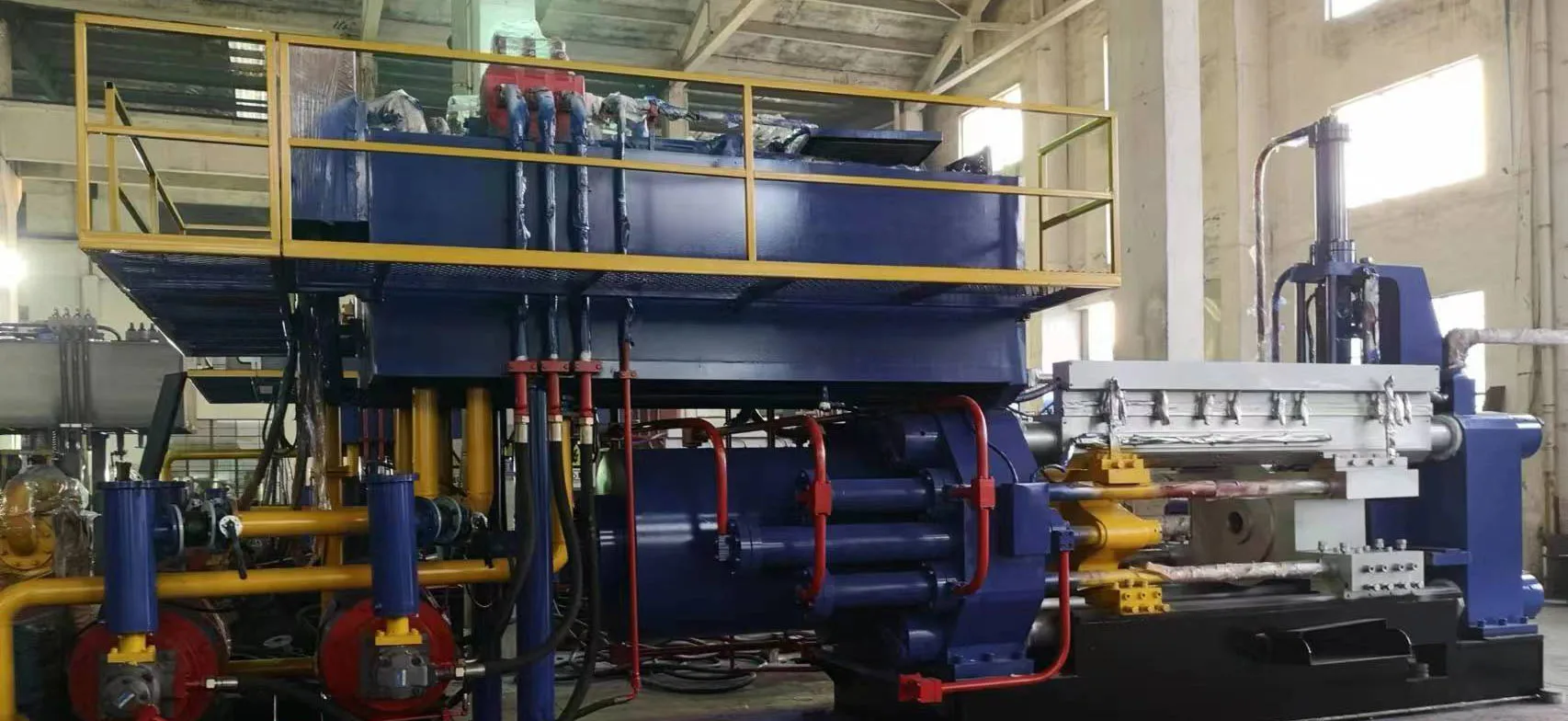

The machine has a four-column horizontal structure with a top-mounted oil tank. Its structure is compact and easy to assemble or disassemble.
2. Extrusion Process
There are two extrusion processes: following needles and fixed needles. Our machine can meet the extrusion requirements of different pipe diameters.
3. Electronic Component
We use PLC control and can do man-machine interface real-time monitoring.
4. Hydraulic System
Hydraulic system adopts large flow plug valve, stable performance, large flow, and low-temperature rise.
5. Locate Mode
The movable beam adopts four points positioning, and the center can be adjusted. It is convenient, safe, and rapid.
The machine has a four-column horizontal structure with a top-mounted oil tank. Its structure is compact and easy to assemble or disassemble.
2. Extrusion Process
There are two extrusion processes: following needles and fixed needles. Our machine can meet the extrusion requirements of different pipe diameters.
3. Electronic Component
We use PLC control and can do man-machine interface real-time monitoring.
4. Hydraulic System
Hydraulic system adopts large flow plug valve, stable performance, large flow, and low-temperature rise.
5. Locate Mode
The movable beam adopts four points positioning, and the center can be adjusted. It is convenient, safe, and rapid.
Range of Work
At present, copper and aluminum profile extrusion machines have been widely used in construction, electronics, automobiles, aerospace, machine manufacturing, and other fields.
In actual production, the application rate of copper-aluminum profile extrusion machines is constantly increasing, which can meet the needs of various industries.
In actual production, the application rate of copper-aluminum profile extrusion machines is constantly increasing, which can meet the needs of various industries.
Product Paramenters
TECHNICAL PARAMETERS FOR ALUMINUM EXTRUSION PRESS | ||||||||||
Model | Extruding Speed (mm/s) | Rated Extrusion Force | Fixed Work Stress (MPa) | Main Motor Power (KW) | ||||||
XJ-630 | 40 | 6300KN | 700UST | 21 | 75×3 | |||||
XJ-800 | 50 | 8000KN | 880UST | 21 | 132×3 | |||||
XJ-1000 | 40 | 10000KN | 1100UST | 21 | 132×3 | |||||
XJ-1250 | 50 | 12500KN | 1350UST | 21 | 132×4 | |||||
XJ-1630 | 40 | 16300KN | 1800UST | 21 | 132×5 | |||||
XJ-1800 | 40 | 18000KN | 2000UST | 21 | 132×6 | |||||
XJ-2200 | 40 | 22000KN | 2420UST | 21 | 132×7 | |||||
XJ-2500 | 40 | 25000KN | 2750UST | 21 | 132×8 | |||||

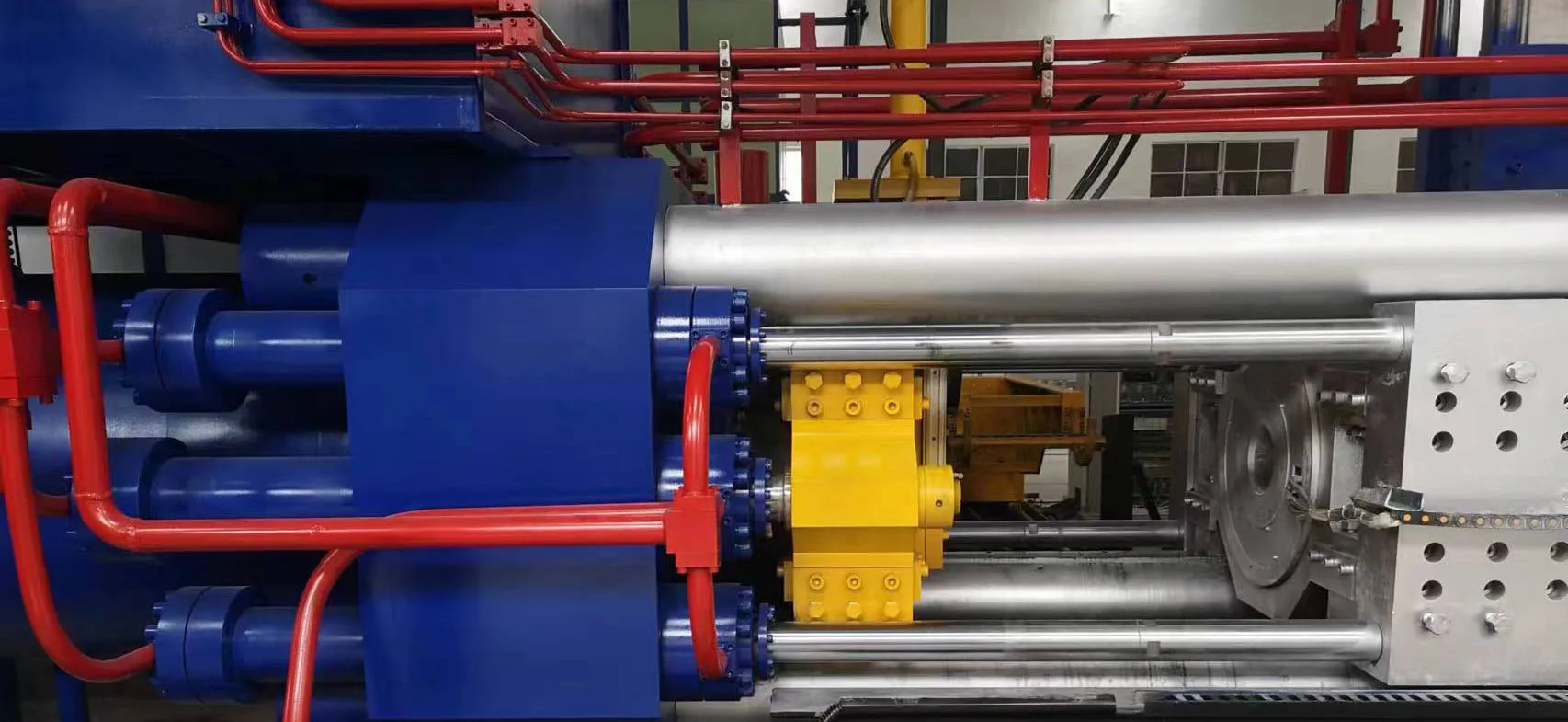

Mechanical Part
The mechanical part is composed of base, prestressed frame type tension column, front beam, movable beam, X-shaped oriented extrusion cylinder seat, extrusion shaft, ingot feeding mechanism, residual material separation shear, sliding die base, etc.

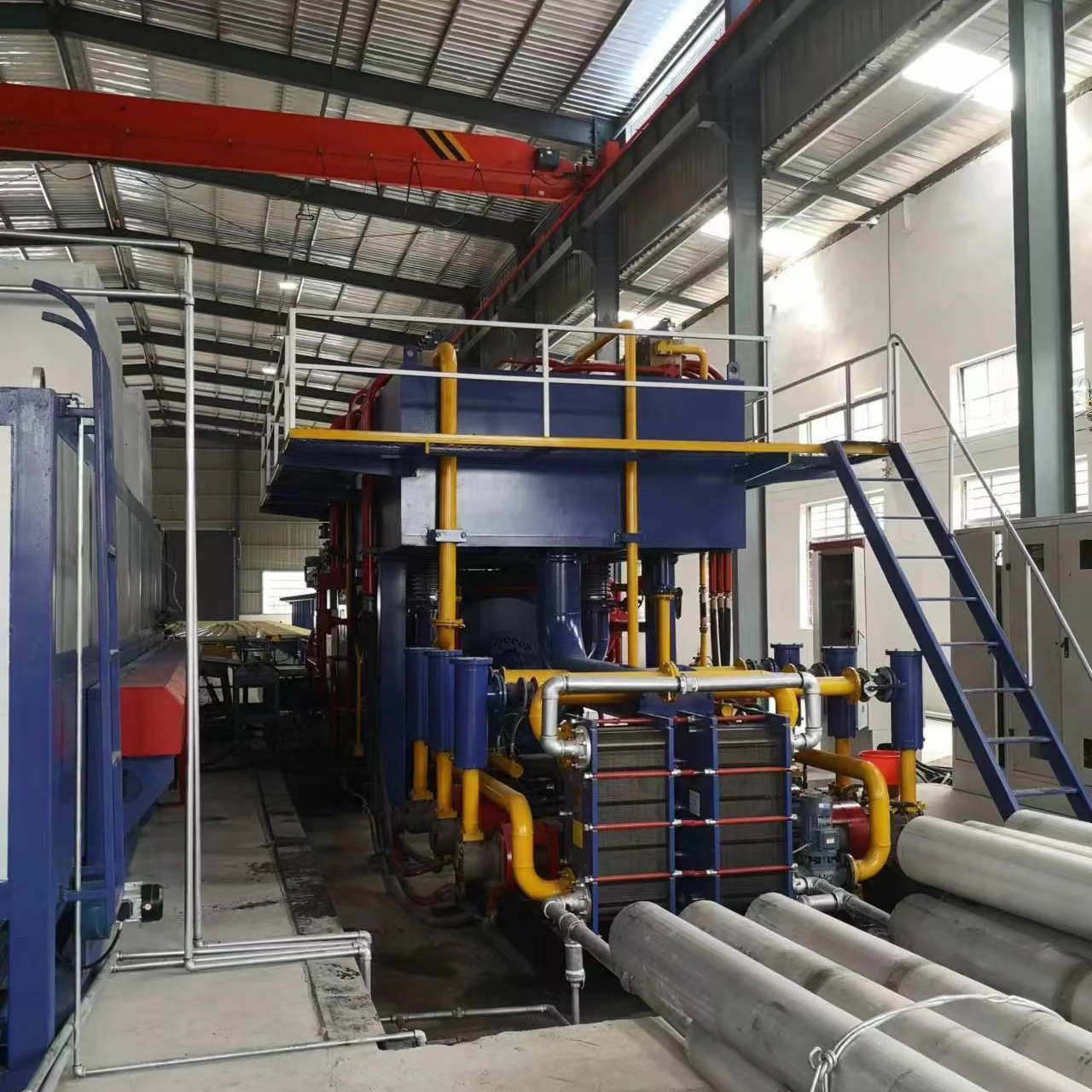

Hydraulic Part
The hydraulic system is mainly composed of master cylinder, side cylinder, locking cylinder, perforated cylinder, large-capacity axial piston variable pump, electro-hydraulic ratio servo valve (or electro-hydraulic proportional regulating valve), position sensor, oil pipe, oil tank and various hydraulic pressure switch composition.
Electrical Part

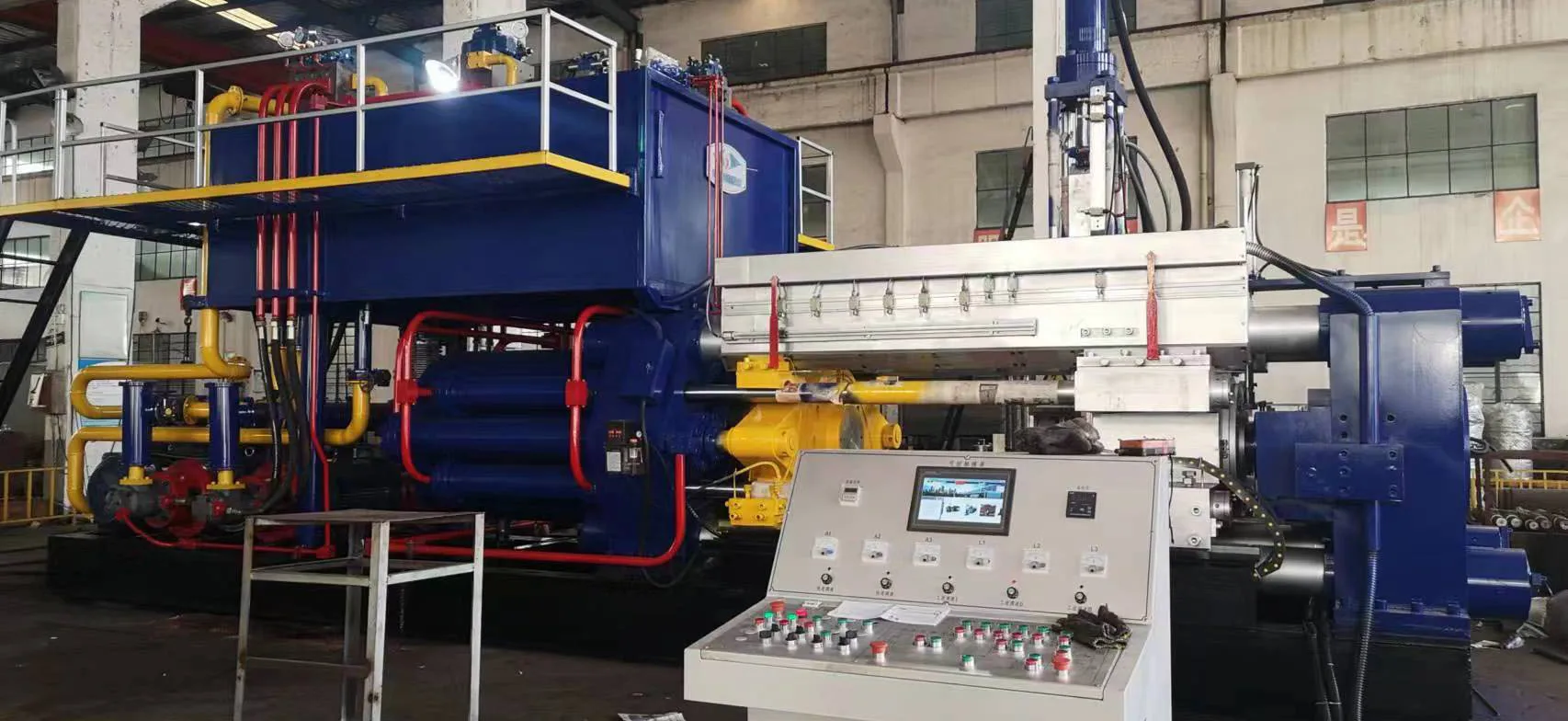

The electrical part is mainly composed of power supply cabinet, operation console, PLC programmable controller, upper industrial control machine and display screen.
Recommend Products
Company Profile
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.

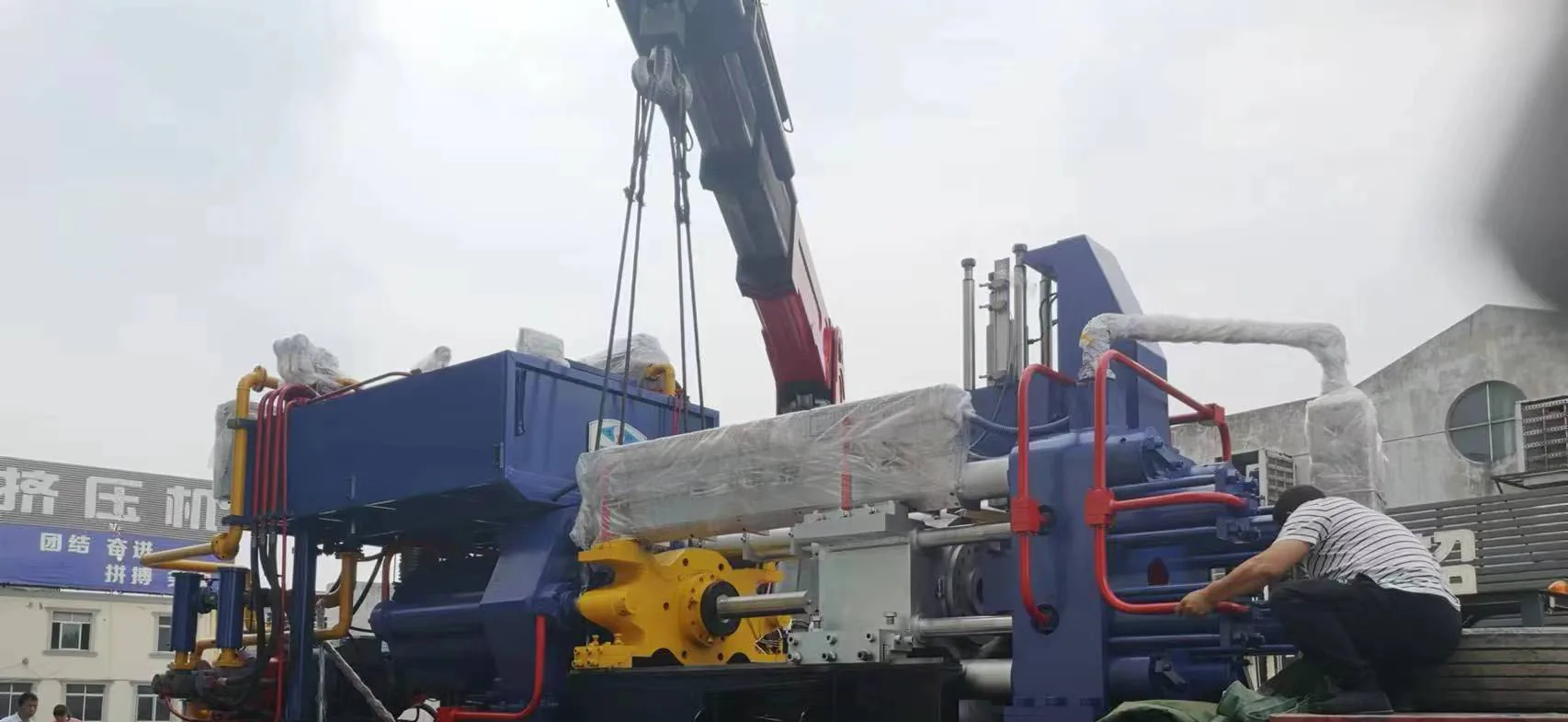

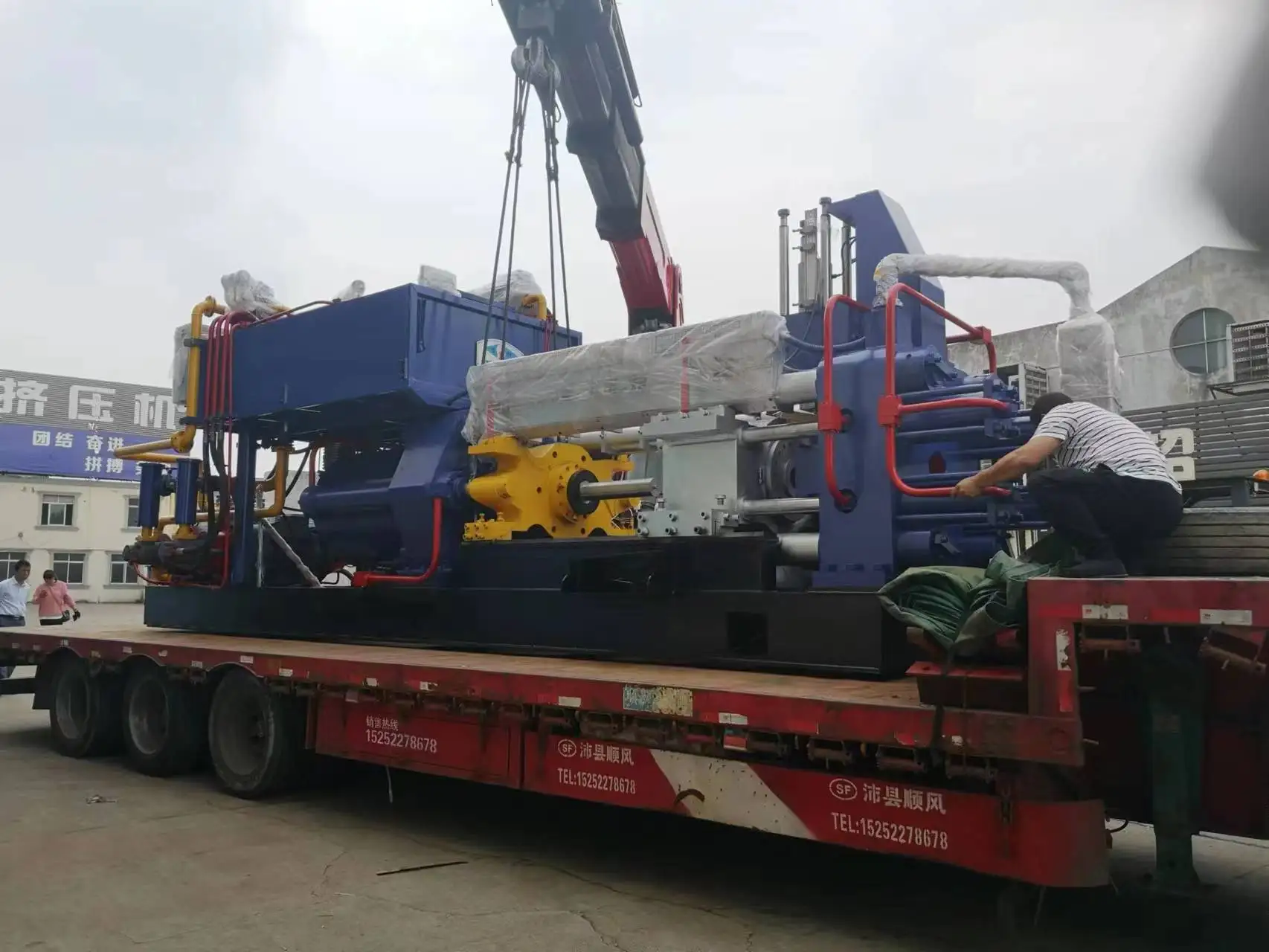

Product packaging
Packaging | ||
Size | 7M (L) * 2.8M (W) * 3.2M (D) | |
Weight | 25 T | |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
Contact Us
Contacts: Bella
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: kelly@weldcnc.com
Mob/Whatsapp: +86 138 4288 2706
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: kelly@weldcnc.com
Mob/Whatsapp: +86 138 4288 2706
FAQ
1.Does your company accept customized offer, we have special need.
MC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
3.Do you have price list for optional configuration?
We have various configurations and so many different specifications, so we can’t offer you price list. Please contact our sales engineer if you’re interested in certain specific configuration.
4.Does your company accept CIF price?
CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5.If your engineer come to our country to fix the machine and do some training, how much will it cost?
The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as v isa fee. Staff cost is
100USD/day/person, normally, it’s a two person job. But it will depends for a large equipment or installation and debugging of the whole line.
6.What’s the warranty?
Warranty is 12 months which begins from the day when the machine has arrived at the importer’s port.
7.What’s your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation.Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.
8.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
9.What I would do for the machine failure?
If the machine malfunction and users are unable to resolve, please email us for consultation. Our service department will respond within 24 hours.
10.How to define the machine warranty? When did you start timing?
We identify the warranty based on the factory number. Warranty timing counted starting after equipment commissioning and acceptance. If you have any questions, please email us for consultation.
11.How long is the warranty period of machine tool?
We commitment to client machines are one-year warranty. For the purchase of the user, registered as a member in this website,with the factory number of the machine, you can enjoy extended warranty of 3 months. For details, please refer to membership service.
12.Does MC have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
MC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
3.Do you have price list for optional configuration?
We have various configurations and so many different specifications, so we can’t offer you price list. Please contact our sales engineer if you’re interested in certain specific configuration.
4.Does your company accept CIF price?
CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5.If your engineer come to our country to fix the machine and do some training, how much will it cost?
The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as v isa fee. Staff cost is
100USD/day/person, normally, it’s a two person job. But it will depends for a large equipment or installation and debugging of the whole line.
6.What’s the warranty?
Warranty is 12 months which begins from the day when the machine has arrived at the importer’s port.
7.What’s your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation.Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.
8.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
9.What I would do for the machine failure?
If the machine malfunction and users are unable to resolve, please email us for consultation. Our service department will respond within 24 hours.
10.How to define the machine warranty? When did you start timing?
We identify the warranty based on the factory number. Warranty timing counted starting after equipment commissioning and acceptance. If you have any questions, please email us for consultation.
11.How long is the warranty period of machine tool?
We commitment to client machines are one-year warranty. For the purchase of the user, registered as a member in this website,with the factory number of the machine, you can enjoy extended warranty of 3 months. For details, please refer to membership service.
12.Does MC have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
