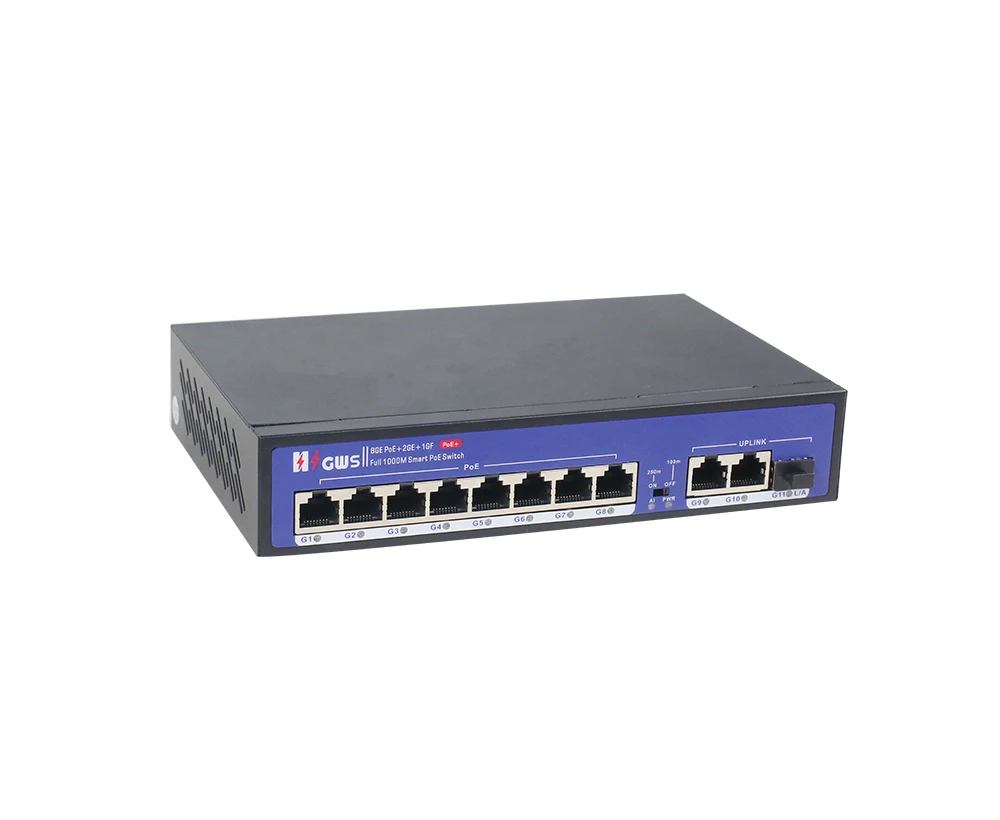

HZGWS 11 port Gigabit Uplink poe switch 8FE PoE 2GE Uplink port 1 SFP PoE Switch
- Category: >>>
- Supplier: HZGWS Technologies Co. Ltd.
Share on (1600933332156):
Product Overview
Description
Specification
Model | GWS-1108PFD | |
Interface Characteristics | ||
Fixed Port | 8*10/100Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP ports (Data) | |
Ethernet Port | Port 1-8 can support 10/100Base-T(X) and 9-10 100/1000Base-T(X) automatic detection, full/half-duplex MDI/MDI-X auto-sensing | |
Functional Switch | E: long-distance and VLAN isolation function (Default: OFF, Use:ON), After opening, the transmission rate of ports 1-8 is 10M to achieve 250 meters transmission. | |
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect | ||
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
Chip Parameter | ||
Network Management Type | Unmanaged | |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X ,IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 7.6Gbps (Non-blocking) | |
Forwarding Rate@64byte | 5.65Mpps | |
MAC | 2K | |
Buffer Memory | 2M | |
Jumbo Frame | 9.2Kbyte | |
LED Indicator | Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Functional switch: EXTEND (Green) | |
PoE & Power Supply | ||
PoE Port | Port 1 to 8 @ IEEE802.3af/at | |
Power Supply Pin | Default 1/2(+) 3/6(-),optional 4/5(+), 7/8(-) | |
Max Power Per Port | 30W, IEEE802.3af/at | |
Total PWR / Input Voltage | 120W/ (AC100-240V) | |
Power Consumption | Standby <5W, Full load <120W | |
Power Supply | Built-in power supply, AC100~240V 50-60Hz 2.2A | |
Physical Parameter | ||
Heat Dissipation | No Fan natural cooling | |
Operation TEMP/ Humidity | -20~+55°C, 5%~90% RH Non condensing | |
Storage TEMP/ Humidity | -40~+80°C, 5%~95% RH Non condensing | |

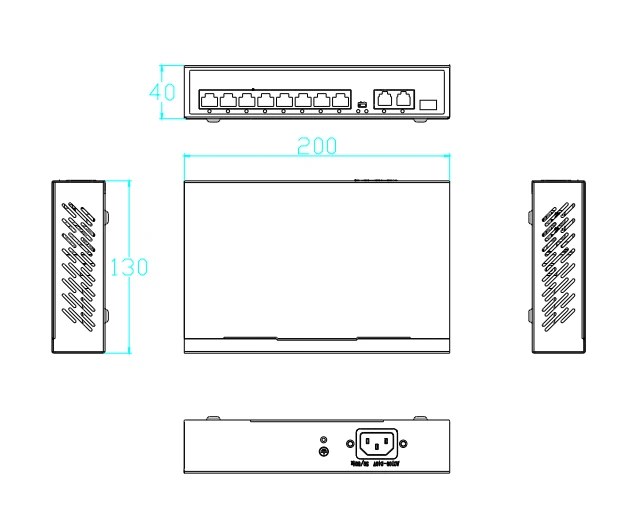

Dimension (L*W*H) | 200*130*40mm | |
Net /Gross Weight | <0.8kg / <1.2kg | |
Installation | Desktop, Wall-mounted | |
Certification & Warranty | ||
Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
Warranty | 1 year, lifelong maintenance. | |
