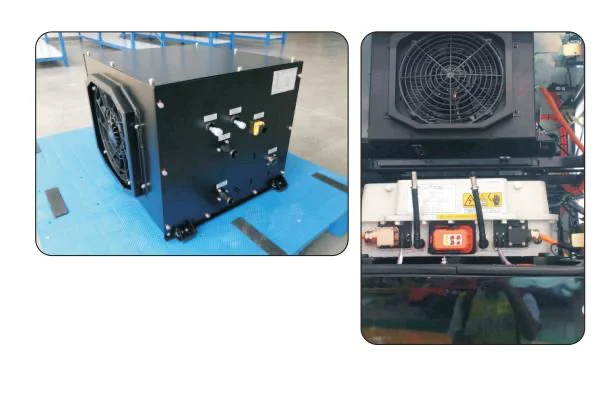

Brogen 1.5kw Battery Thermal Management System Independent Cooling System for Electric Bus Truck Battery
- Category: >>>
- Supplier: Shanghai Oe Industrial Co. Ltd.
Share on (1600933338401):
Product Overview
Description
Product Parameters
Skirt mounted feature: (SK8500, TLE 205/207/208)
The Skirt-mounted Independent Cooling System is one of the most important parts of the new energy bus thermal management system.
Which is used to meet the need for continuous cooling for the battery pack.
Which is used to meet the need for continuous cooling for the battery pack.
The main components of a Skirt-mounted Independent Cooling System are compressor, DC-DC (optional), blower, water pump, condenser, electronic controller, pressure sensor, temperature sensor, plate heat exchanger, expansion valve, and piping.
Features:
1. Save space, compact structure,
2. Highly integrated electronic control, real-time monitoring of operating status
3. High efficiency and energy saving, reliable performance
4. Convenient installation and maintenance
2. Highly integrated electronic control, real-time monitoring of operating status
3. High efficiency and energy saving, reliable performance
4. Convenient installation and maintenance

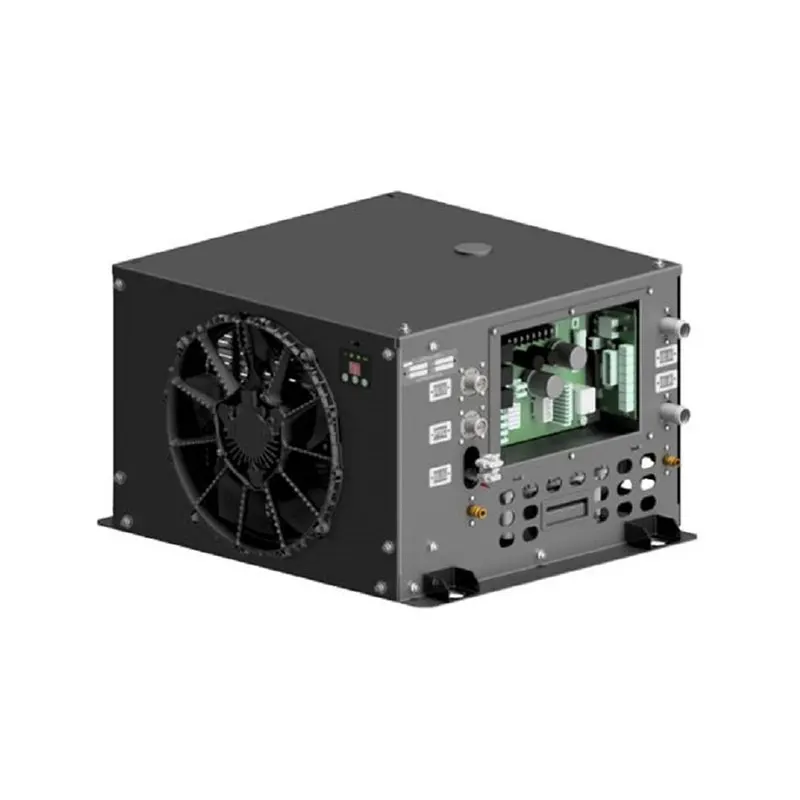

Vertical BTMS
1. Exhaust valve, charging valve Easy to charge fluorine refrigerant & water air discharge
2. Compact structure; Stacked arrangement； compact structure; small size
3. Copper connector Pipe pier To avoid electrochemical corrosion of copper and aluminum alloy
3. Copper connector Pipe pier To avoid electrochemical corrosion of copper and aluminum alloy

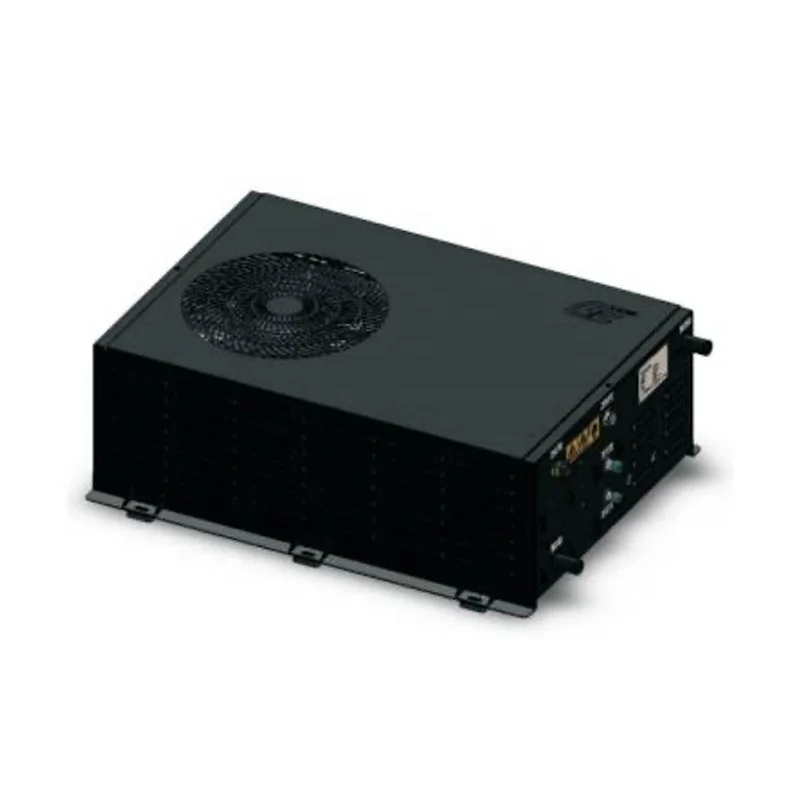

Horizontal BTMS
4. Control panel Monitors system running status in real time Indicator light (cooling/heating/failure) Button (self-running/water pump running/forced refrigeration/stop) Value (outlet temperature/fault code)
5. Electronic control system The electric control box
is connected to the same side of the pipe to improve the maintainability of the control module; Highly integrated electric control
is connected to the same side of the pipe to improve the maintainability of the control module; Highly integrated electric control

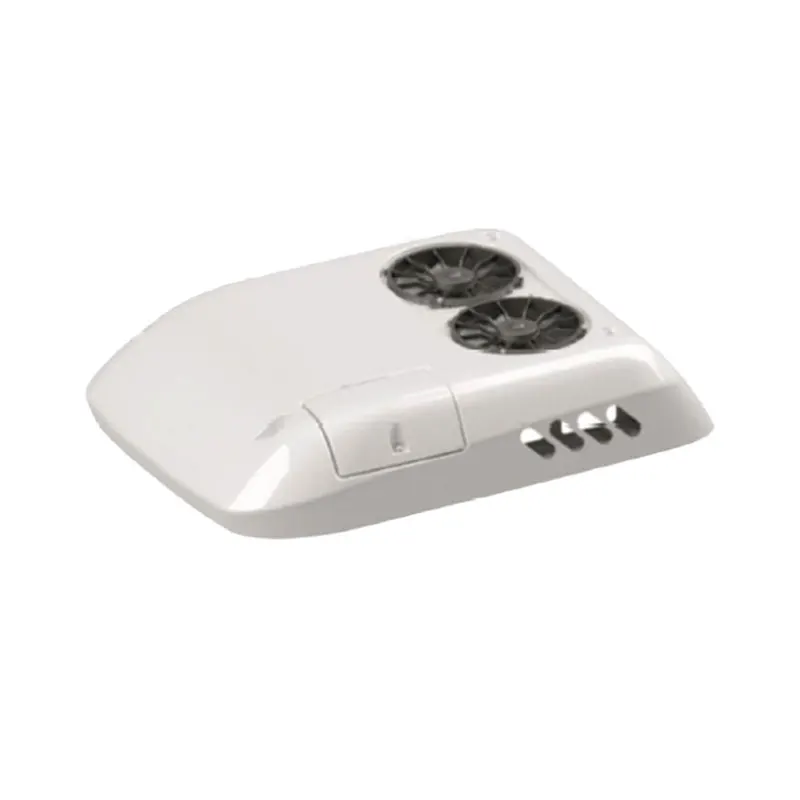

The refrigerant side has its own drying system, which can effectively protect the cleanliness of the system and improve the
reliability of the system. Top-mounted installation, saving space and easy maintenance. The unit can integrate expansion tank and heating system (≤14KW). Lightweight aluminum alloy structure, unique streamlined appearance.
reliability of the system. Top-mounted installation, saving space and easy maintenance. The unit can integrate expansion tank and heating system (≤14KW). Lightweight aluminum alloy structure, unique streamlined appearance.

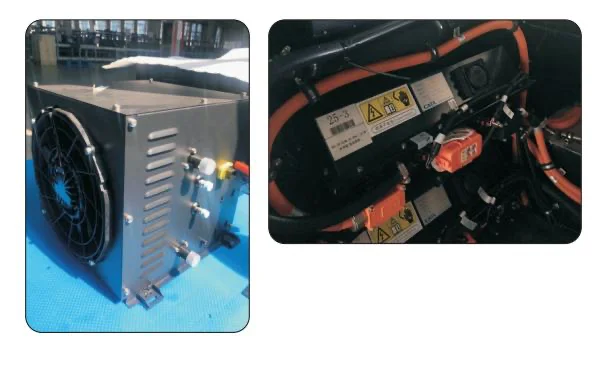

Project Cases
Product Paramenters
Vertical Model | TLE205 | TTLE207 | TLE208 |
Cooling capacity | 5Kw | 7kw | 8kw |
Low voltage power consumption | 500w | 700w | 700w |
High voltage input | DC400-750V | DC400-750V | DC400-750V |
Low voltage input | DC24V | DC24V | DC24V |
control power | DC24V ON/OFF signal | DC24V ON/OFF signal | DC24V ON/OFF signal |
Low voltage power supply | Vehicle provided | DC conversion | Vehicle provided |
weight | 40kgs | 50kgs | 48kgs |
size | L643*W599*H383 | L835*W560*H310 | L669*W621*H461 |
The refrigerant | R134a | R410a | R134a |
water pump | Q=1200L/h,H>10m | Q=2400L/h,H>13m | Q=2800L/h,H>16m |
Pipe diameter | 25mm | 25mm | 25mm |
DC-DC | NO | Have | NO |
Expansion tank | NO | NO | NO |
PTC heater | NO | NO | NO |
Product Series | Rated cooling capacity/kW | Forced air cooling capacity/kW (optional) | Heating capacity/kW (optional) | Placement |
1 series | 1.5 | / | / | Horizontal |
3 series | 3.5 | 0-5 | 5 | Vertical |
3.5 | 0-5 | 5 | Horizontal | |
5 series | 5.5 | 0-5 | 5 | Vertical |
5.5 | 0-5 | 5 | Horizontal | |
7 series | 7.5 | 0-5 | 7-14 | Vertical |
7.5 | 0-5 | 7-14 | Horizontal |
Top mounted Model | TLE105 | TLE108 |
Cooling capacity | 5Kw | 8KW |
Low voltage power consumption | 300w | 500w |
High voltage input | DC400-750V | DC400-750V |
Low voltage input | DC24V | DC24V |
control power | DC24V ON/OFF signal | DC24V ON/OFF signal |
Low voltage power supply | Vehicle provided | Vehicle provided |
weight | 61kgs | 61kgs |
size | L1029*W1369*H280 | L1029*W1369*H280 |
The refrigerant | R134a | R134a |
water pump | external | external |
Pipe diameter | 25mm | 25mm |
DC-DC | NO | NO |
Expansion tank | can be integrated | can be integrated |
PTC heater | Can be integrated, <14Kw | Can be integrated, <14Kw |
