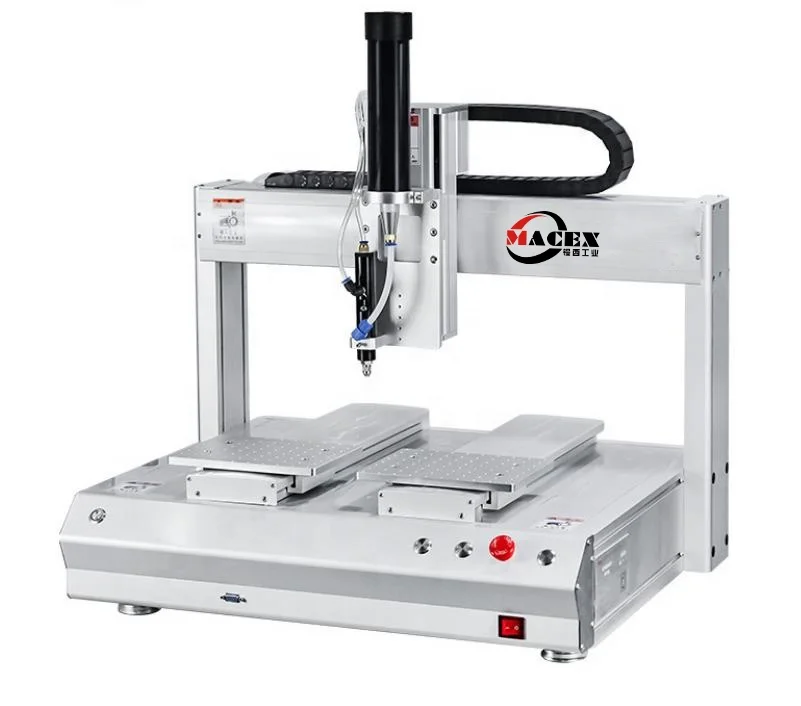

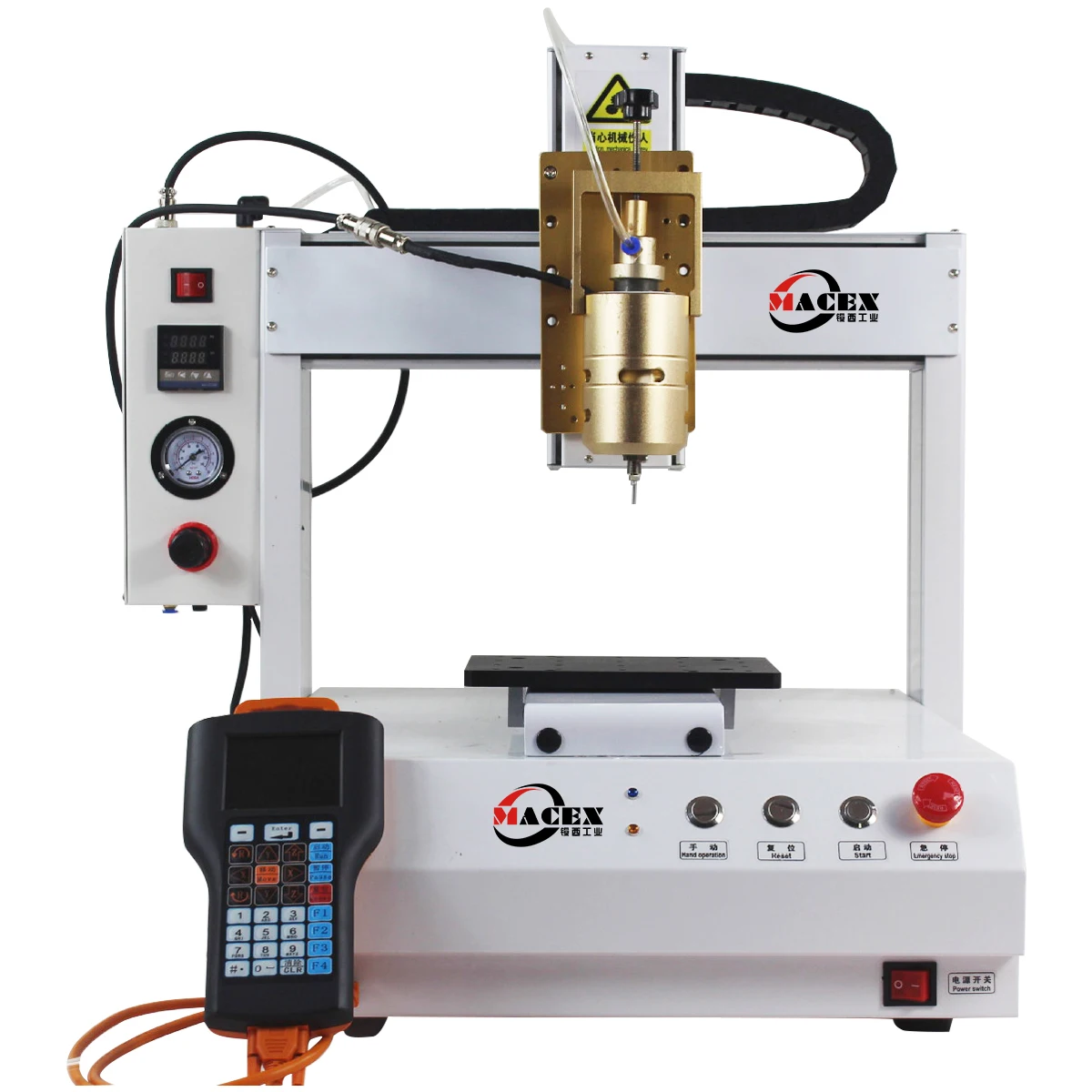

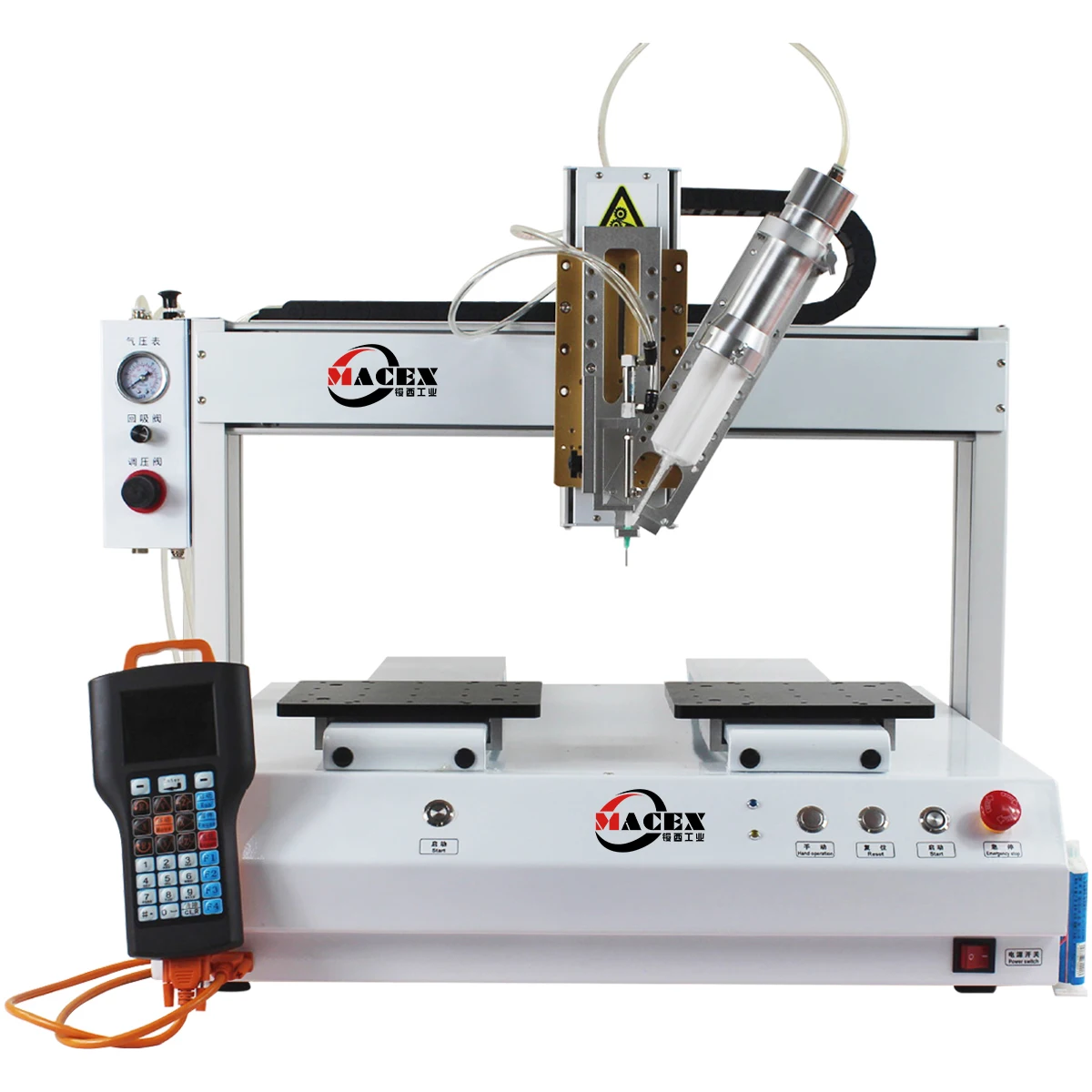

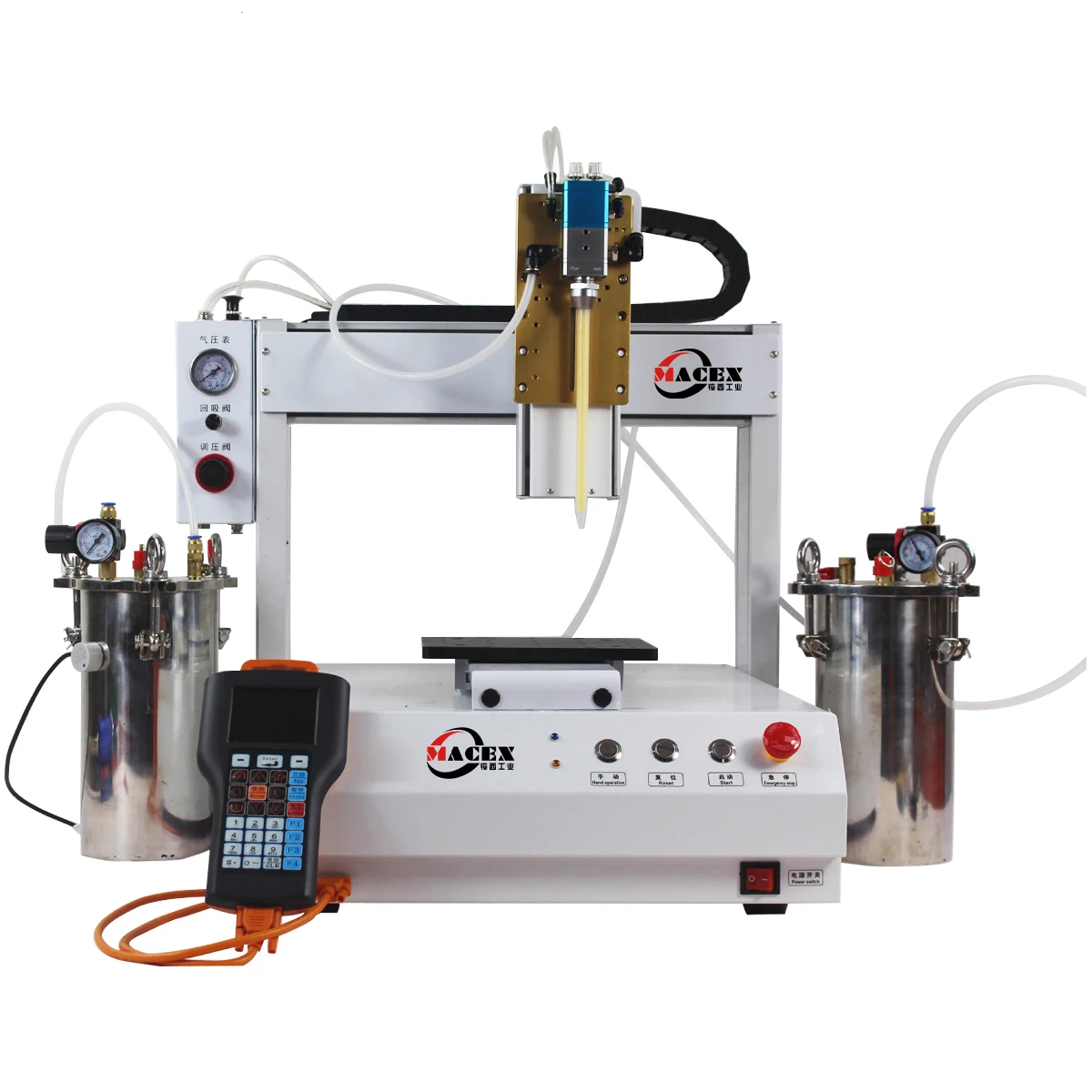

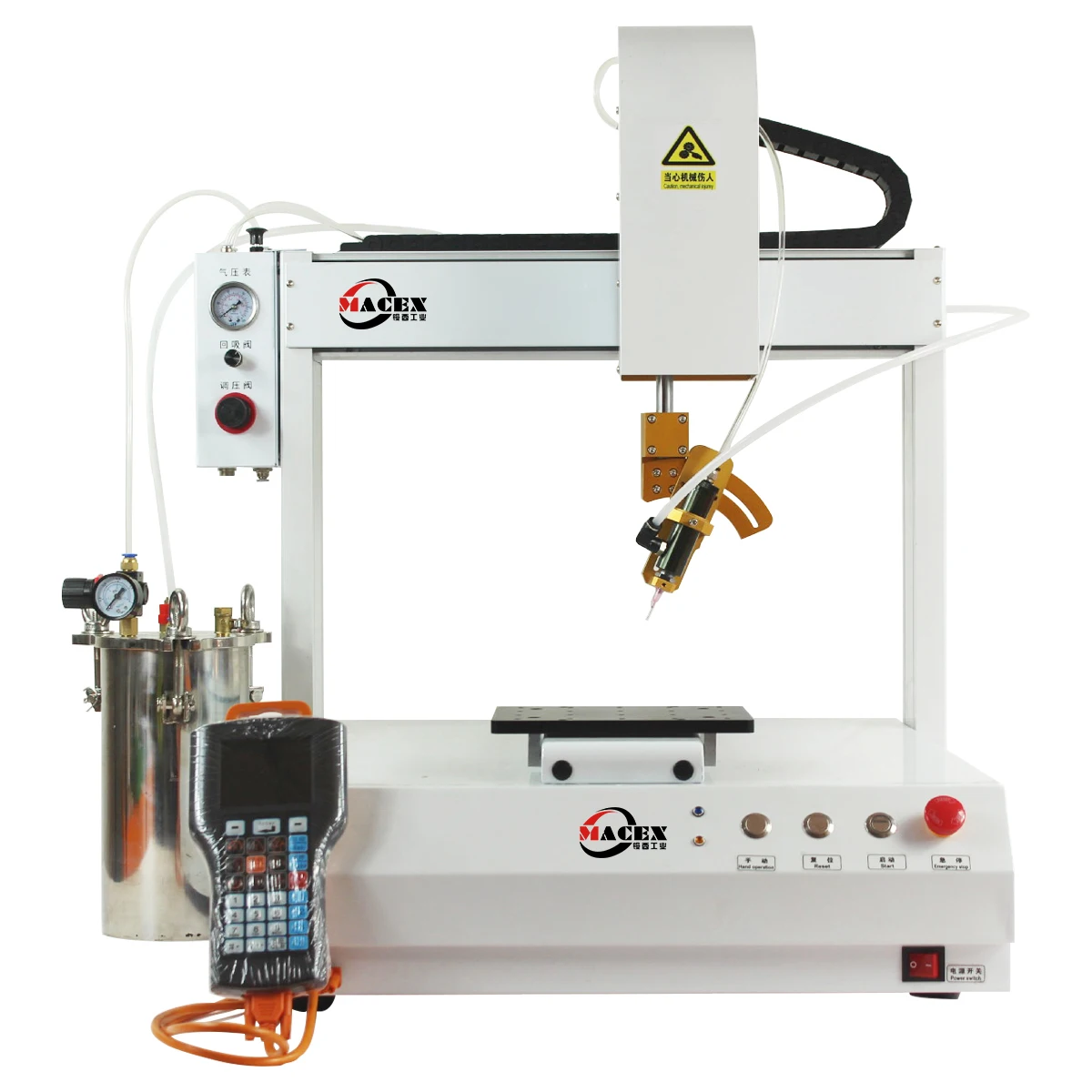

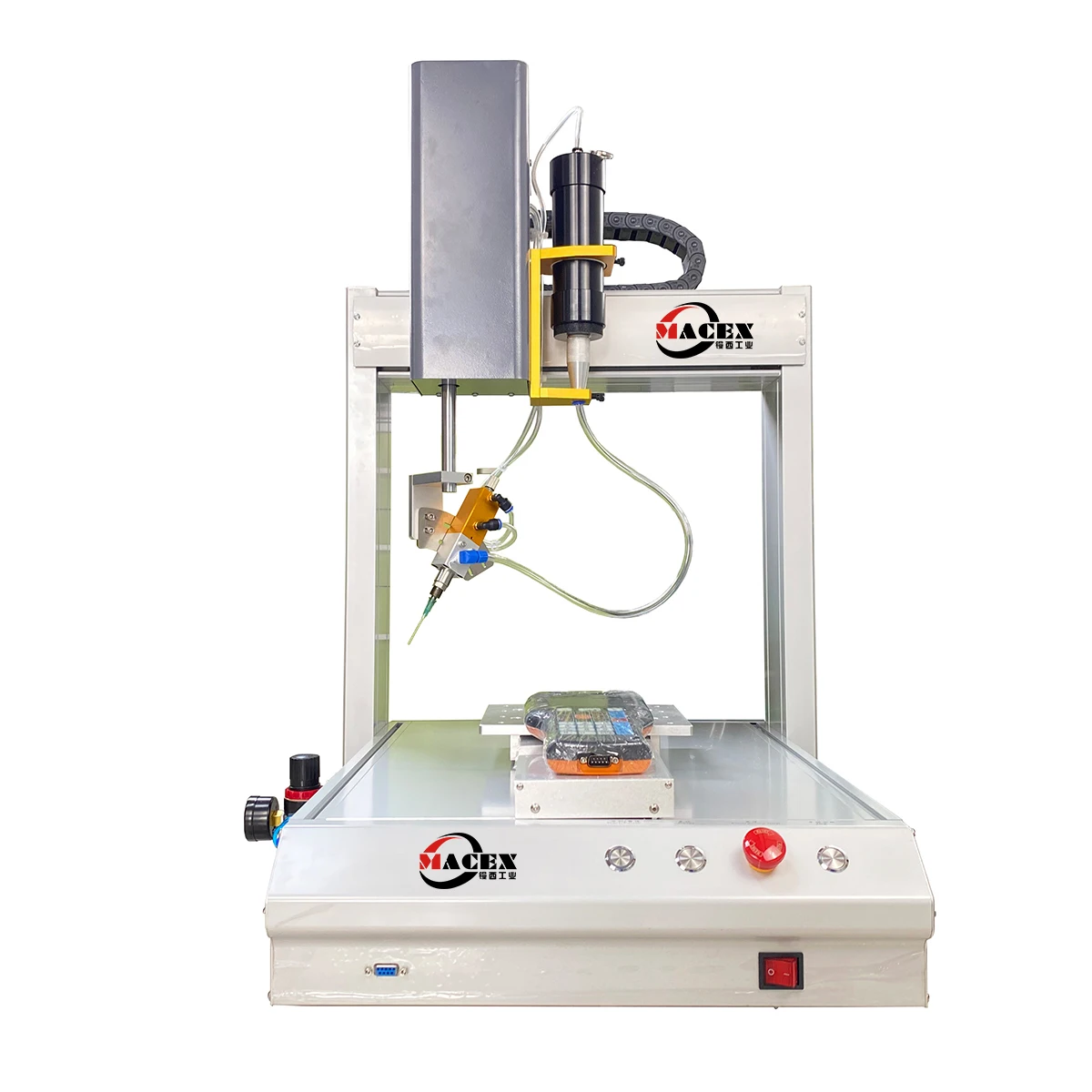

Automatic glue dispensing machine Double Head Silica Gel Dispenser for PCB,LCD
- Category: >>>
- Supplier: Shenzhen Macex Industry Co. Ltd.
Share on (1600933350077):
Product Overview
Description
Product Description
Features:
1. Can realize single platform, double platform tilt rotary dispensing
2. Full automatic robot glue dispenser, 3 axis. Locate precisely.
3. Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
4. Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
5. Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
6. Can be equipped with several heads for working at the same time to increase dispensing efficiency.
7. Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
2. Full automatic robot glue dispenser, 3 axis. Locate precisely.
3. Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
4. Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
5. Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
6. Can be equipped with several heads for working at the same time to increase dispensing efficiency.
7. Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
Operating principle:
* Compress the glue into the feed pipe connected to Piston Chamber by conpressing air into the glue botton(injector). When the
piston is in the upstroke, the piston chamber is filled with glue.And When the piston is pushed down, the glue is extruded from
the needle nozzle. The dispensing glue amount is decided by the distance of piston downstroke. The gule dispensing amount can
be controlled by manual adjustment or by setting the program.
* Improve dispensing speed, dispensing environment and dispensing quality.
piston is in the upstroke, the piston chamber is filled with glue.And When the piston is pushed down, the glue is extruded from
the needle nozzle. The dispensing glue amount is decided by the distance of piston downstroke. The gule dispensing amount can
be controlled by manual adjustment or by setting the program.
* Improve dispensing speed, dispensing environment and dispensing quality.

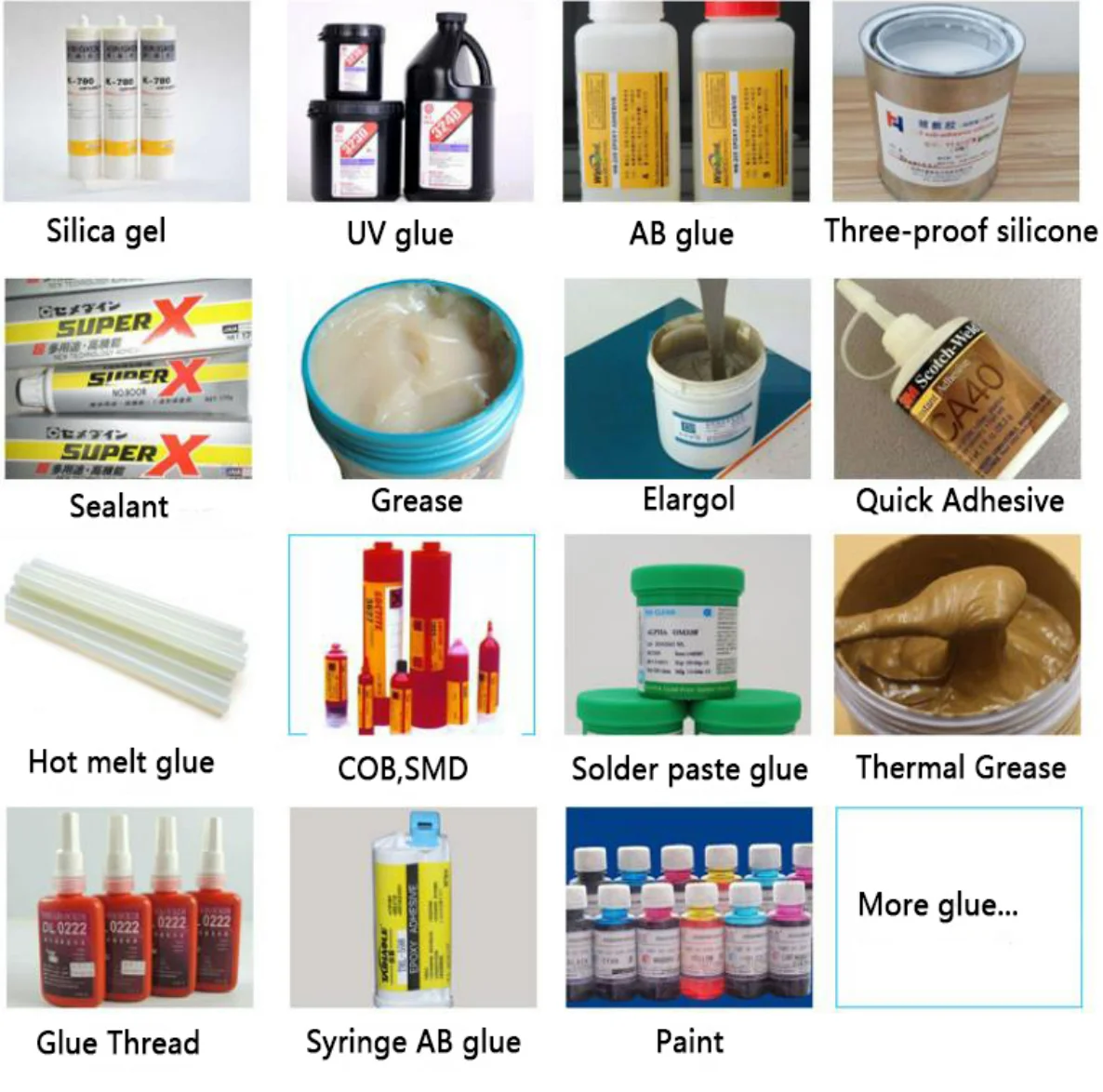

Suitable glue:
UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Application industry:
The electronics industry
Encapsulation mobile phones key point glue, battery, laptop battery encapsulation, computer speaker/receiver, coil dispensing, PCB dependend sealant, IC sealant, horn outside marks glue, sealant, PDA LCD sealant, IC packaging, IC bonding, casing of adhesive, optics processing, circuit component and the substrate adhesive, printed circuit board glue
Lighting industry
Led fluorescent powder dispensing led drive power supply heat conduction potting, hard light, soft article lamp potting, the ball bubble lamp, floodlight, such as sealing, led street lamps adhesive seal Wash the wall lamp, project-light lamp, lawn lamp, outdoor lamp potting, led lamp holder potting, led shoot the chimney and lamp cup adhesive seal.
The car industry
Lamp encapsulation, electric vehicle controller encapsulation, filters, oil filter, diesel filter, air filter), body and roof reinforcement plate coating, brake shoe, clutch and transmission belt potting, Windows sealed, plastic board, radiator tanks glue, glue filling auto sensor, automotive electronics and automotive electrical, instrumentation potting protection, mechanical parts such as mechanical seal coating.
Industrial electrical
Capacitors, transformers, relays, buttons and other adhesive sealing, motor coil coating, electric glue cupboard door sealing side.
Solar photovoltaic (pv)
Photovoltaic inverter heat conduction potting, potting solar battery box, solar component potting.
Construction engineering
Heat insulation aluminum, steel, aluminum honeycomb panel, building plank, fire doors, security doors, coating.
Hardware/home appliances/commodity/etc
Encapsulation mobile phones key point glue, battery, laptop battery encapsulation, computer speaker/receiver, coil dispensing, PCB dependend sealant, IC sealant, horn outside marks glue, sealant, PDA LCD sealant, IC packaging, IC bonding, casing of adhesive, optics processing, circuit component and the substrate adhesive, printed circuit board glue
Lighting industry
Led fluorescent powder dispensing led drive power supply heat conduction potting, hard light, soft article lamp potting, the ball bubble lamp, floodlight, such as sealing, led street lamps adhesive seal Wash the wall lamp, project-light lamp, lawn lamp, outdoor lamp potting, led lamp holder potting, led shoot the chimney and lamp cup adhesive seal.
The car industry
Lamp encapsulation, electric vehicle controller encapsulation, filters, oil filter, diesel filter, air filter), body and roof reinforcement plate coating, brake shoe, clutch and transmission belt potting, Windows sealed, plastic board, radiator tanks glue, glue filling auto sensor, automotive electronics and automotive electrical, instrumentation potting protection, mechanical parts such as mechanical seal coating.
Industrial electrical
Capacitors, transformers, relays, buttons and other adhesive sealing, motor coil coating, electric glue cupboard door sealing side.
Solar photovoltaic (pv)
Photovoltaic inverter heat conduction potting, potting solar battery box, solar component potting.
Construction engineering
Heat insulation aluminum, steel, aluminum honeycomb panel, building plank, fire doors, security doors, coating.
Hardware/home appliances/commodity/etc
Specification
Model | DJ331 | DJ441 | DJ661 | ||||||||
Trip | 300/300/100 | 400/400/100 | 600/600/100 | ||||||||
Programmatically | Import teaching programming or graphics | ||||||||||
Motion graphics | Point, line, arc, circle, curve, multiple lines, spiral, ellipse | ||||||||||
Dispensing head | Plastic needle/TT needle | ||||||||||
Dispensing cylinder | 3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC | ||||||||||
Minimum discharge | 0.01ML | ||||||||||
The glue frequency | 5times/SEC. | ||||||||||
Load | Y/X axle load | 10kg | |||||||||
Z axle load | 5kg | ||||||||||
Axial dynamic speed X/Y/Z | 0-600mm/sec | ||||||||||
Resolving power | 0.01mm/Axis | ||||||||||
Repeatability positioning accuracy | Screw drive | 0.01-0.02 | |||||||||
Synchronous belt drive | 0.02-0.04 | ||||||||||
Program record mode | At least 100,5000points each | ||||||||||
Display mode | LCD Teaching box | ||||||||||
Motor system | Japan precision micro stepping motor | ||||||||||
Drive mode | Guide | Taiwan HIWIN guide rail | |||||||||
Wire road | HIWIN screw rod | ||||||||||
Belt | Italy Italy Lartey synchronous belt | ||||||||||
X/Y/Z axis synchronous belt for standard configuration, | |||||||||||
Z axis screw rod is optional, XYZ axis screw rod for customization. | |||||||||||
Motion filing function | 3axis(3 dimensional space, any route can) | ||||||||||
Input power | Full voltage AC110v~220V | ||||||||||
External control interface | RS232 | ||||||||||
Motor control shaft number | 4 axis | ||||||||||
Axis range | X | 300 | 400 | 600 | |||||||
Y | 300 | 400 | 600 | ||||||||
Z | 100 | 100 | 100 | ||||||||
Outline size | 530/589/630 | 630/689/632 | 830/889/830 | ||||||||
Body weight | 45kg | 55kg | 65kg | ||||||||
FAQ
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
