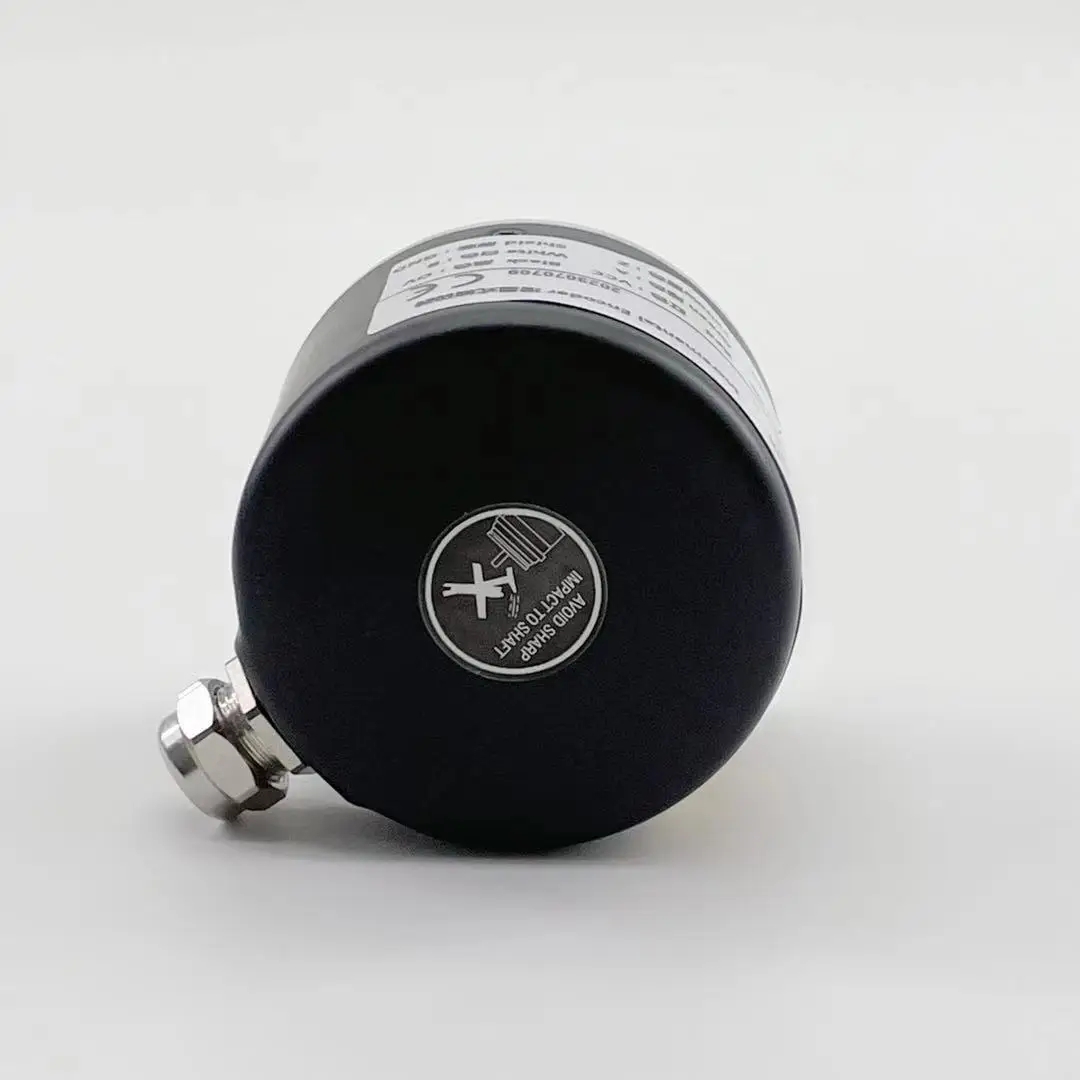

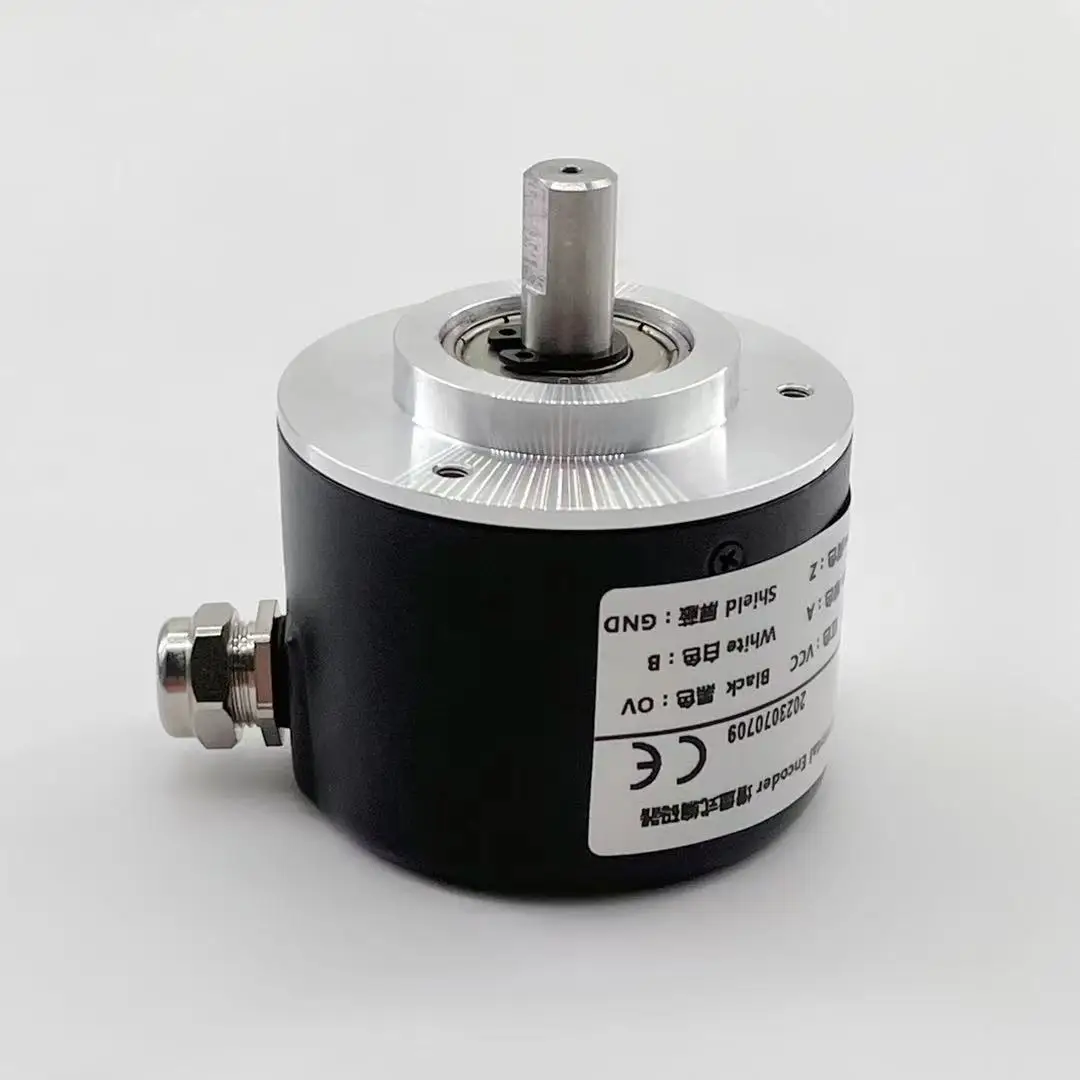

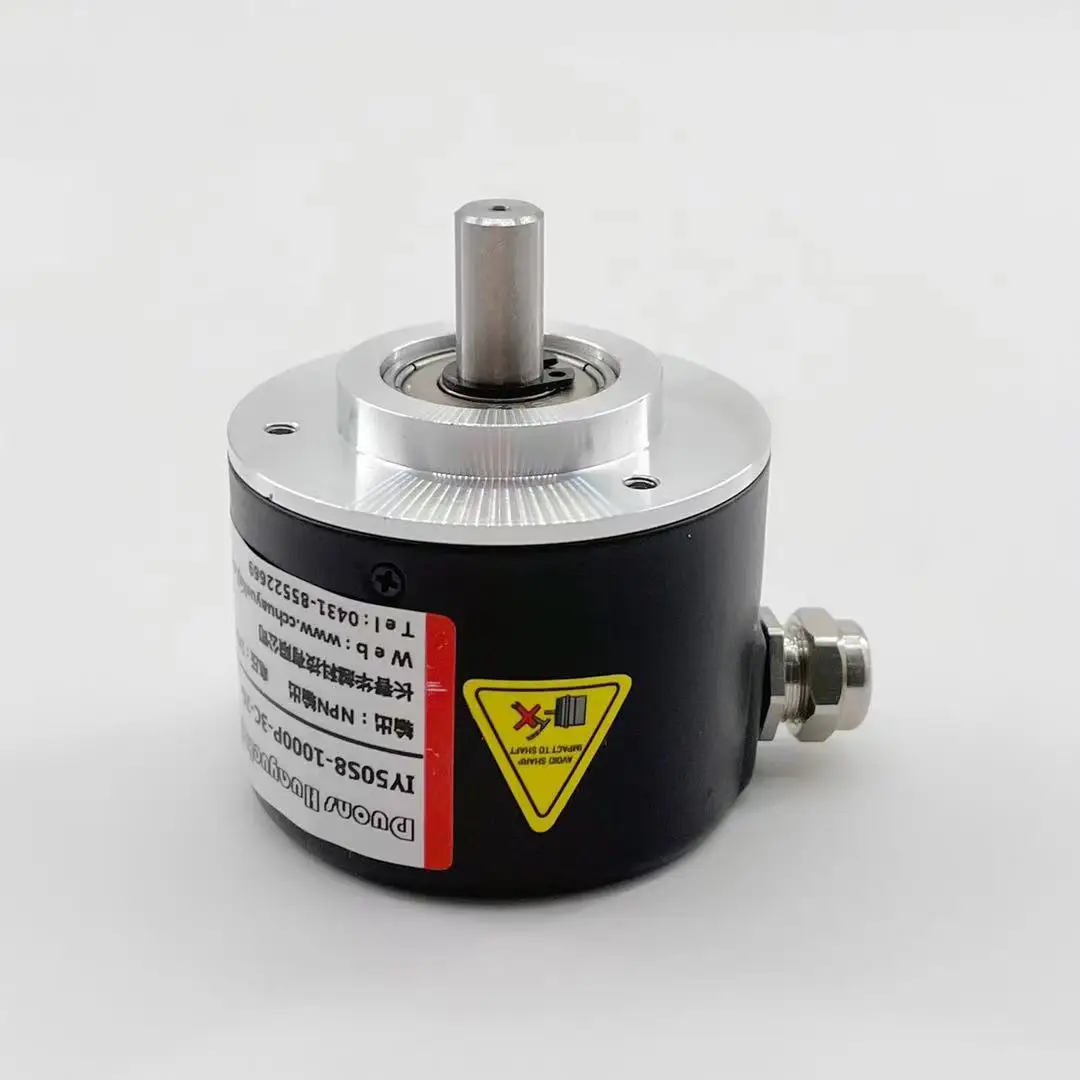

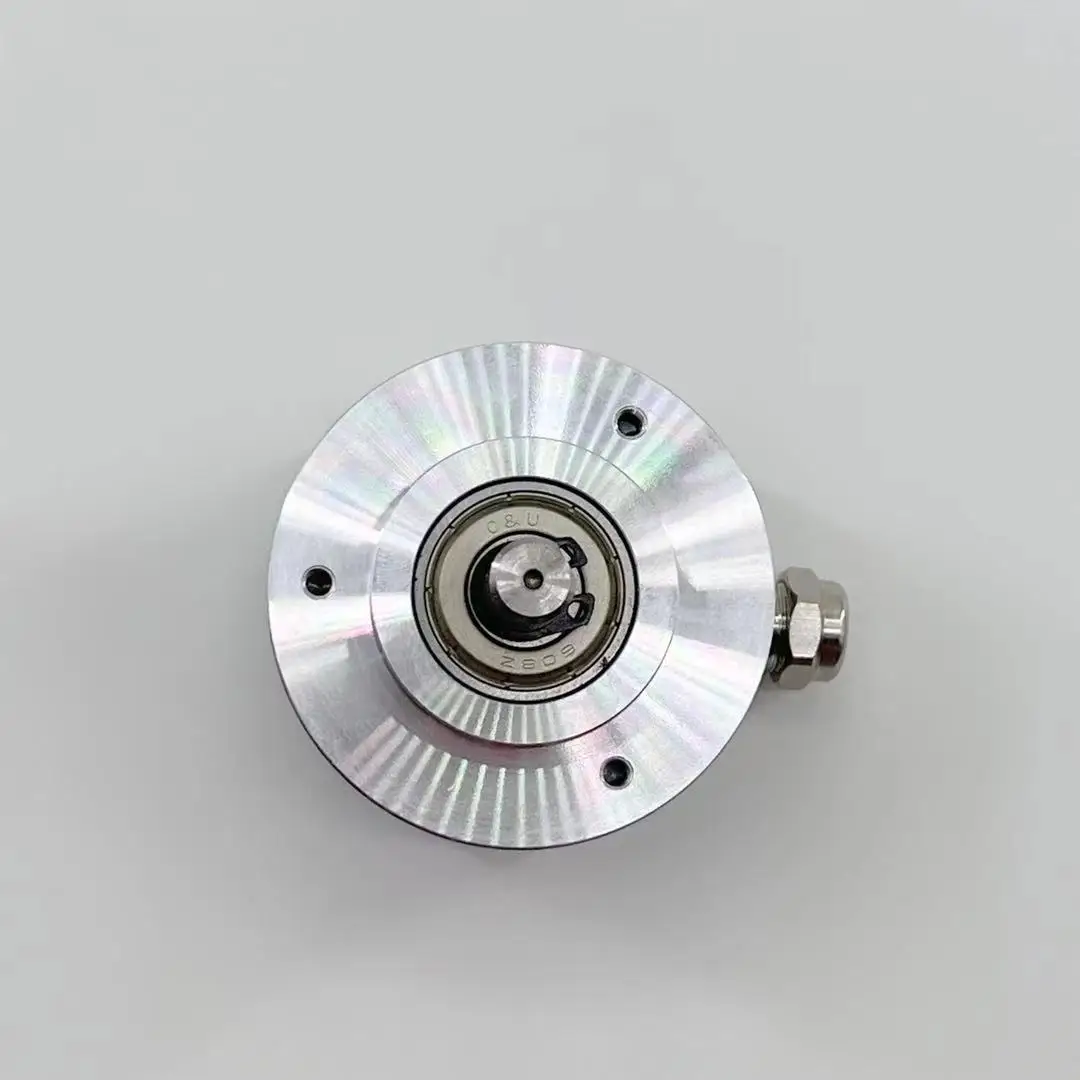

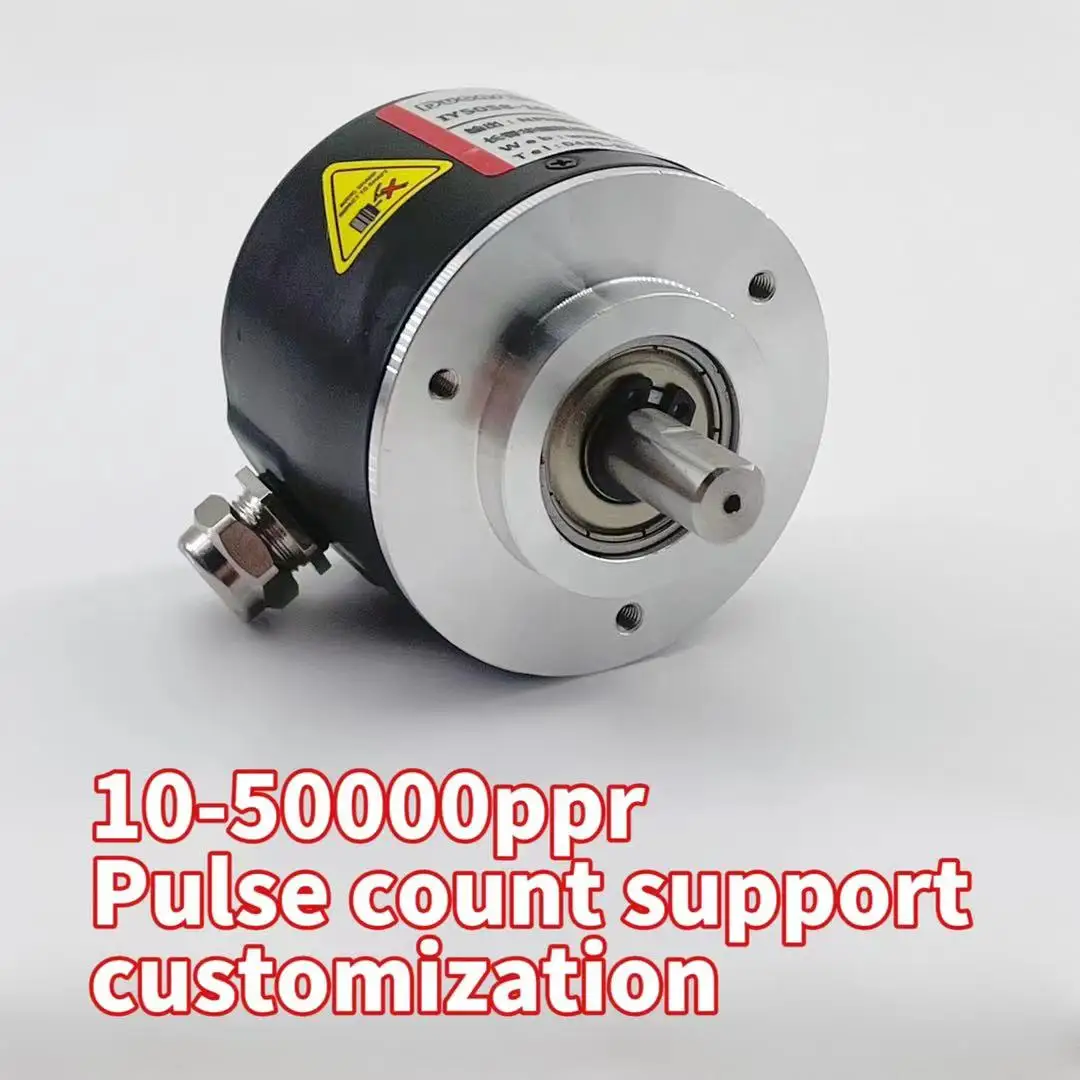

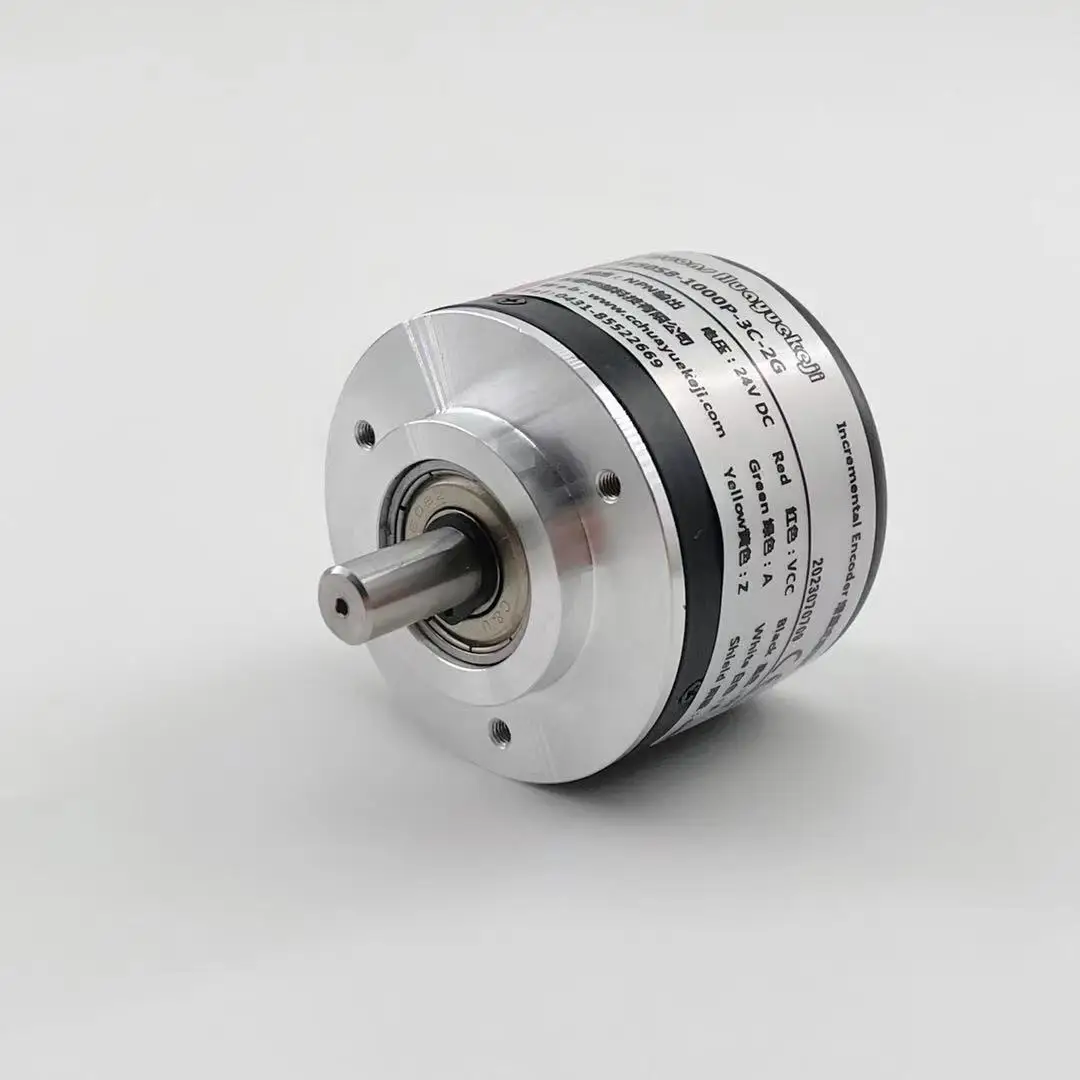

10 20000PPR pulse output 8mm solid shaft incremental encoder
- Category: >>>
- Supplier: Changchun Huayue Technology Co. Ltd.
Share on (1600933379342):
Product Overview
Description
Sensor type | ROTARY ENCODER |
Place of Origin | China Jilin |

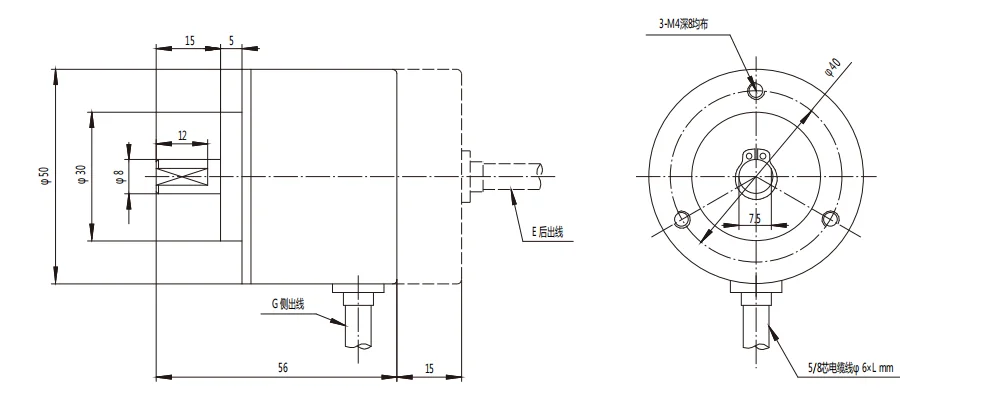

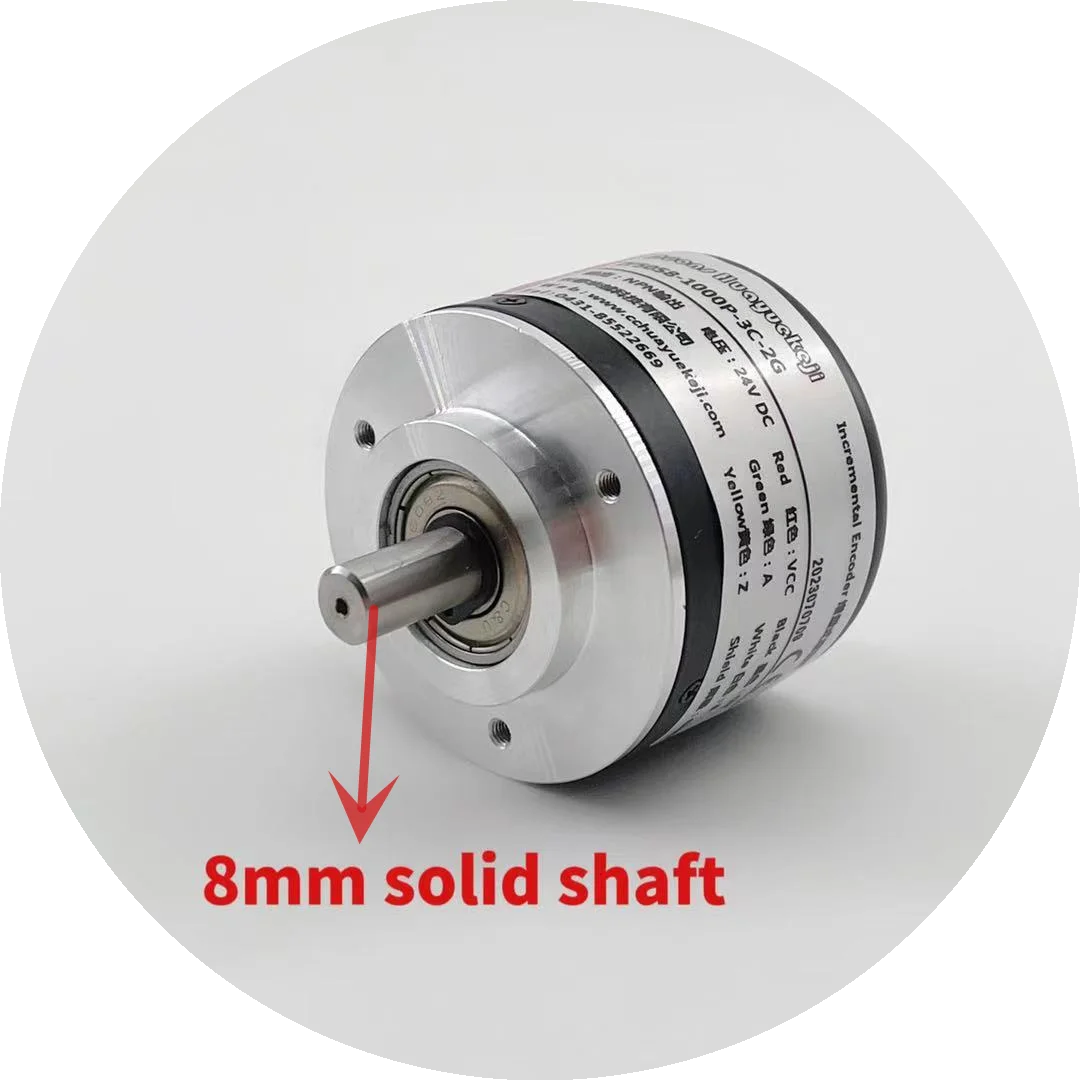

Shaft diameter | 8mm solid shaft |
Mains Voltage | 5V ;8-24V ;10-30V ;12V |

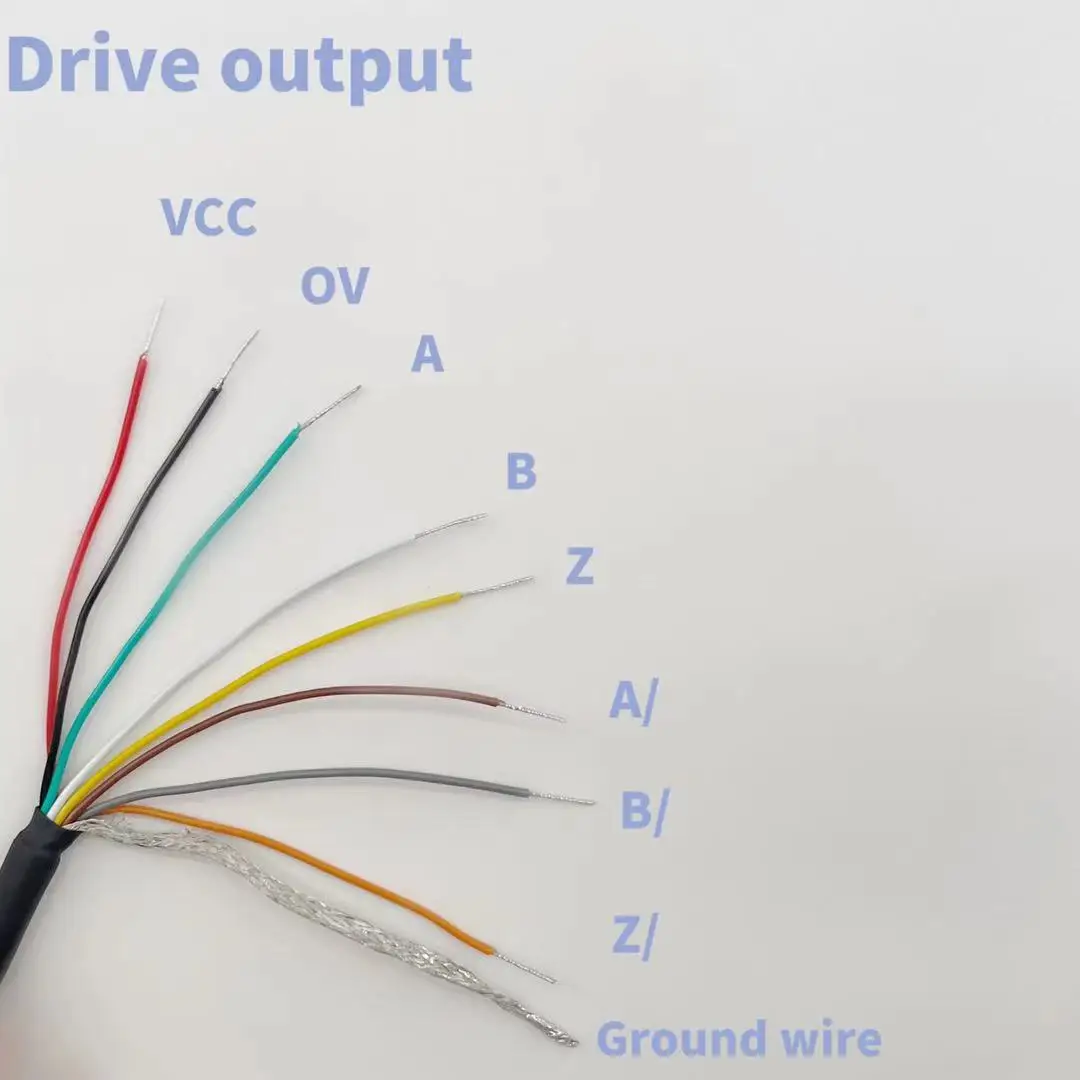

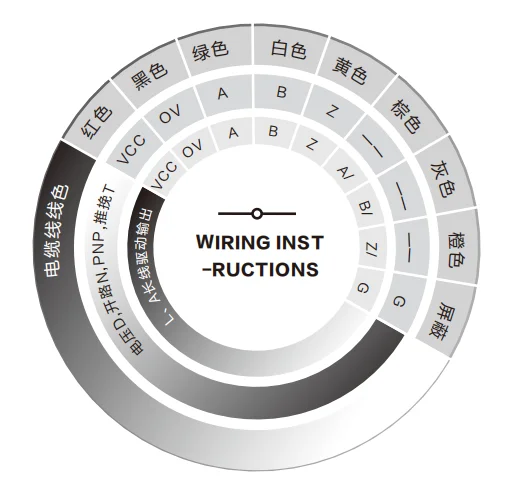

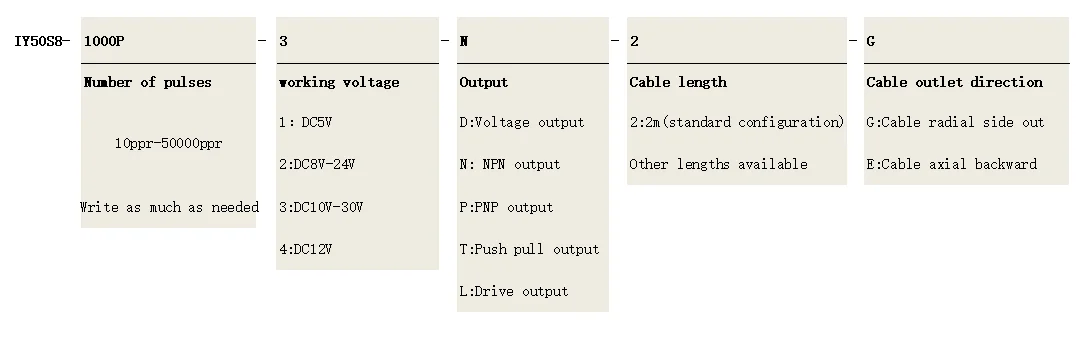

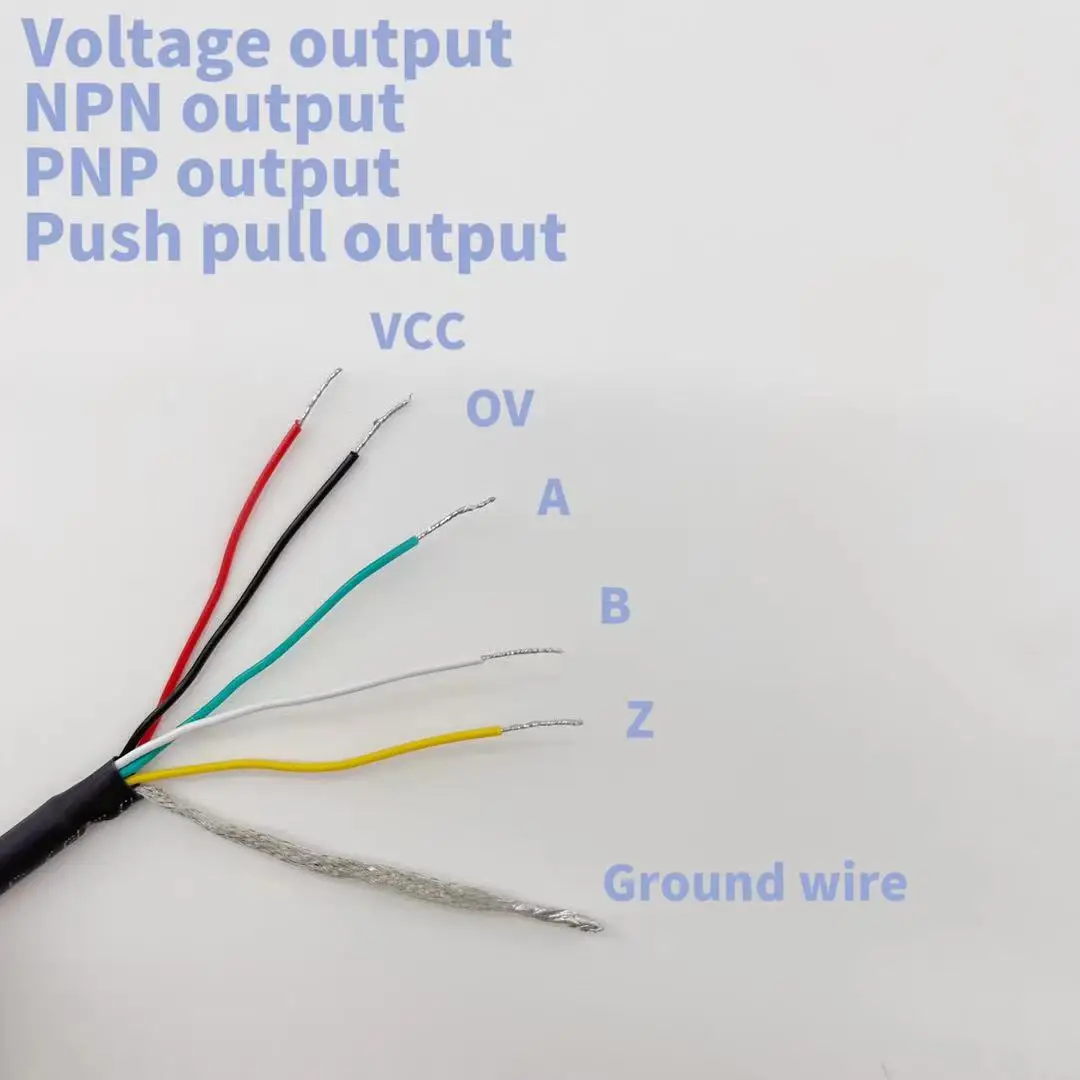

Output | D: Voltage output N: Open collector NPN output P: PNP output T: push-pull/complementary output L: drive output A: wide voltagedrive output |
Products Description | ≤60mA |
Maximum speed | 6000 r/min |
Operating temperature (℃) | -20~+85 |
Relative humidity (℃) | 35%~+85% RH without condensation |
Impact resistance (m/s²) | 50 (3 times in x, y, and z directions, each lasting for 6ms) |
Vibration resistance (m/s²) | 20 (10~200HZ, 2 hours each in x, y, and z directions) |
Protection grade | Universal IP54 ; Preferred IP65 |
Weight (kg) | 0.5kg（With packaging);net weight 0.25 kg |
Q1:How to order our product ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
