Hardware Fasteners Stainless Steel Wedge Anchor Expansion Bolts Through Bolt
- Category: >>>
- Supplier: Kunshan Zhonggu Precision Hardware Co. Ltd.
Share on (1600933384277):
Product Overview
Description

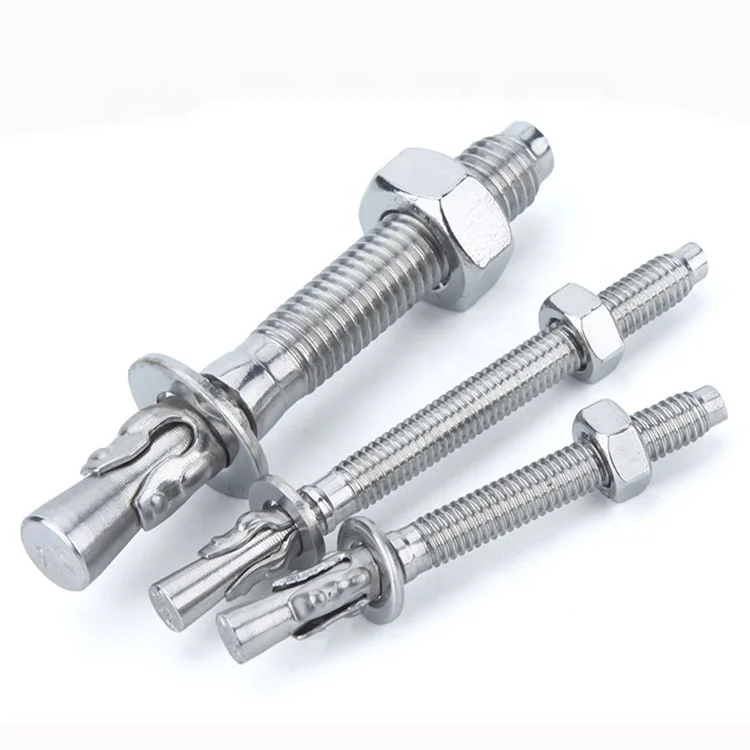

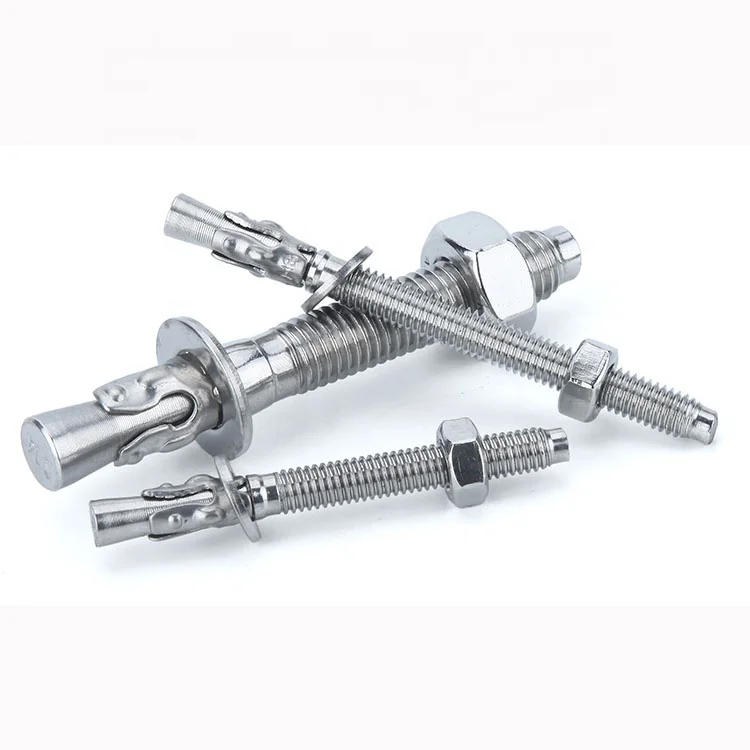

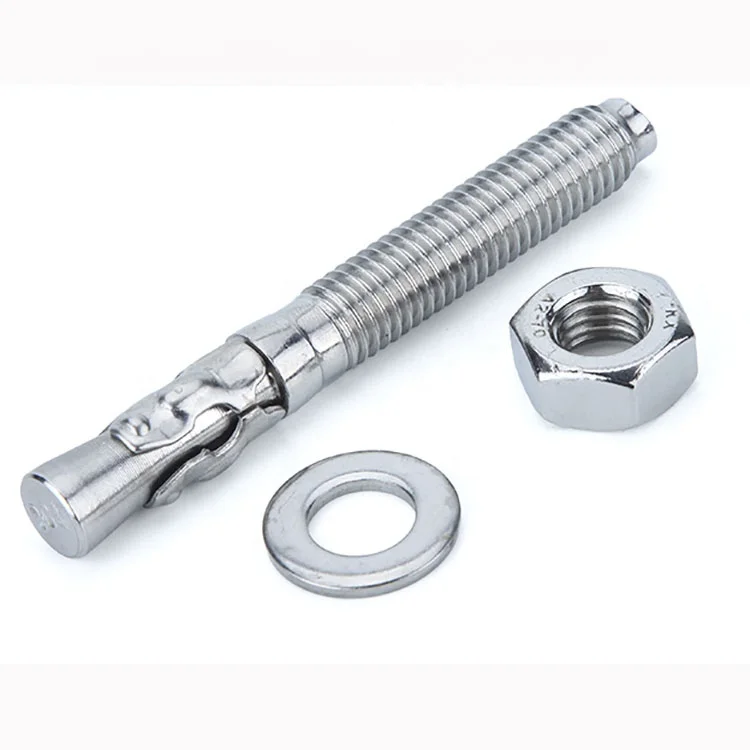

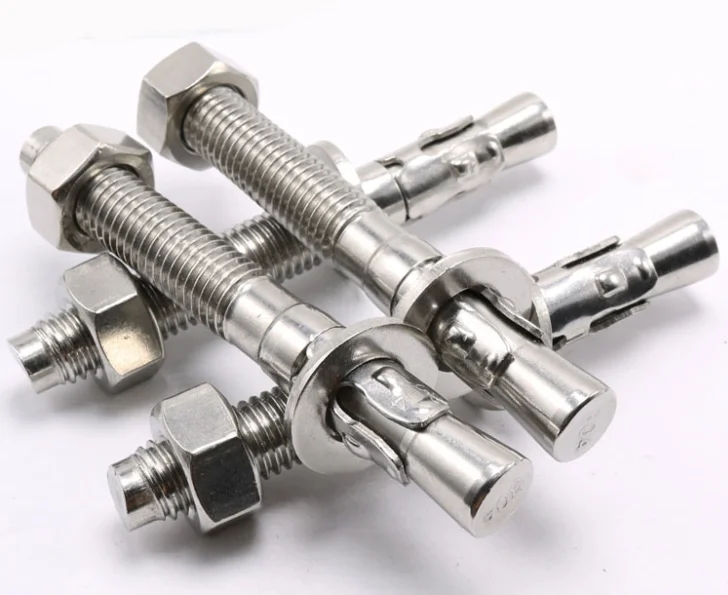

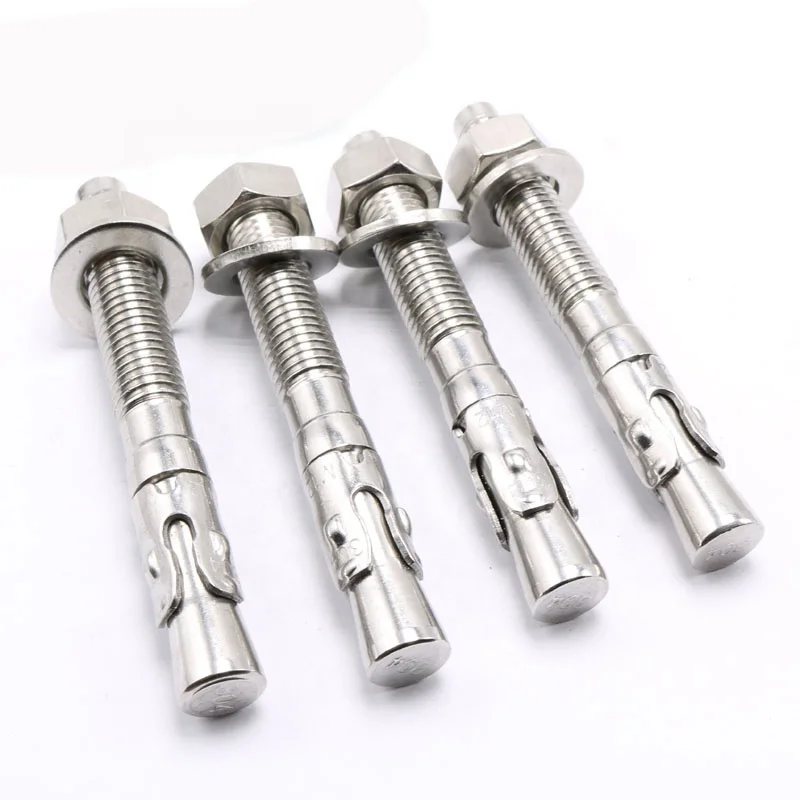

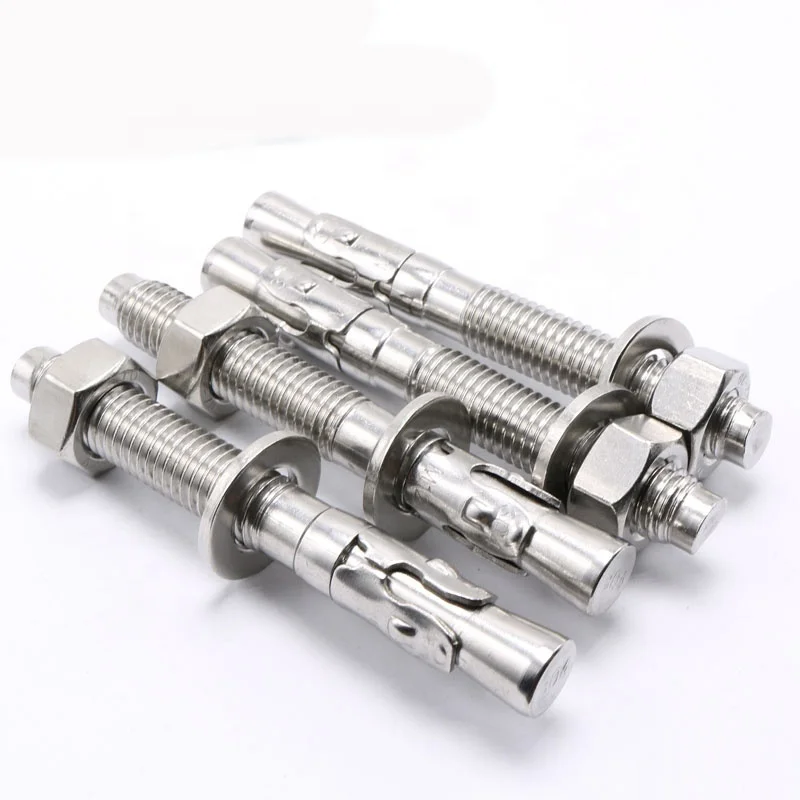

Hardware Fasteners Stainless Steel Wedge Anchor expansion bolts
Product Description
Footstone: Concrete & Natural Hard Stone
Material: Steel, Stainless Steel
Usuage: Extensive use for perforation type's fastening, Such as metal frame, profiled bar, wall mounting, soleplate, bracket, machines, beam, angle iron, track etc. You can adjust the embedded depth according to the fixity's thickness, the tensile breaking strength will be increasing along with to the embedded depth increasing. The longer thread anchors are much better suitable for wall mounting and heavy duty goods fixing.
Purpose: To be reliable, and to ensure the great tensile strength, we must ensure that using of the clip will be full expansion, and the clip can not be detached from the body or distorted.
Note: According to the clip, we have 3 different types, A B C. Anchor length can be customized in accordance with the construction requirements.The enclosed load carrying capacity data of this product is under the test condition of 280-330kgs/cm2 of the concrete intensily, and the max security load carrying capacity should not exceed 25% of the standard gauge.
| Size | Bit Dia(mm) | Thread Length(mm) | Bore Dia(mm) | Min Depth(mm) | Max Tension(Kgs) | ||||
| M6×45 | 6.0 | 20 | 6.0 | 30 | 850 | ||||
| M6×60 | 6.0 | 25 | 6.0 | 35 | 850 | ||||
| M6×70 | 8.0 | 25 | 8.0 | 35 | 850 | ||||
| M6×90 | 8.0 | 30 | 8.0 | 35 | 850 | ||||
| M8×50 | 8.0 | 25 | 8.0 | 35 | 1105 | ||||
| M8×60 | 8.0 | 25 | 8.0 | 40 | 1105 | ||||
| M8×80 | 8.0 | 30 | 8.0 | 40 | 1105 | ||||
| M8×100 | 8.0 | 50 | 8.0 | 40 | 1105 | ||||
| M8×120 | 8.0 | 60 | 8.0 | 40 | 1105 | ||||
| M10×70 | 10.0 | 35 | 10.0 | 50 | 1500 | ||||
| M10×80 | 10.0 | 35 | 10.0 | 50 | 1500 | ||||
| M10×90 | 10.0 | 50 | 10.0 | 50 | 1500 | ||||
| M10×120 | 10.0 | 70 | 10.0 | 50 | 1500 | ||||
| M10×150 | 10.0 | 100 | 10.0 | 50 | 1500 | ||||
| M12×75 | 12.0 | 30 | 12.0 | 50 | 2300 | ||||
| M12×80 | 12.0 | 30 | 12.0 | 60 | 2300 | ||||
| M12×90 | 12.0 | 40 | 12.0 | 55 | 2300 | ||||
| M12×100 | 12.0 | 40 | 12.0 | 60 | 2300 | ||||
| M12×110 | 12.0 | 60 | 12.0 | 60 | 2300 | ||||
| M12×120 | 12.0 | 60 | 12.0 | 60 | 2300 | ||||
| M12×140 | 12.0 | 70 | 12.0 | 60 | 2300 | ||||
| M12×160 | 12.0 | 100 | 12.0 | 60 | 2300 | ||||
| M16×90 | 16.0 | 45 | 16.0 | 60 | 3400 | ||||
| M16×120 | 16.0 | 60 | 16.0 | 70 | 3400 | ||||
| M16×140 | 16.0 | 60 | 16.0 | 80 | 3400 | ||||
| M16×160 | 16.0 | 80 | 16.0 | 80 | 3400 | ||||
| M16×180 | 16.0 | 100 | 16.0 | 80 | 3400 | ||||
| M16×220 | 16.0 | 150 | 16.0 | 80 | 5400 | ||||
| M20×120 | 20.0 | 60 | 20.0 | 80 | 5400 | ||||
| M20×160 | 20.0 | 60 | 20.0 | 100 | 5400 | ||||
| M20×220 | 20.0 | 120 | 20.0 | 100 | 5400 | ||||
Related Products
Certifications
Testing Laboratory
We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
Production Process
First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.
The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
Company Information
Kunshan Zhonggu Precision Hardware Co., Ltd founded in 2006, is a set design, development, production, sale as a whole, professional production and operation of various types of industrial fasteners.
Company provides: National standard(GB), British standard(BS), German standard(DIN), American standard (ANSI) IFI), Japanese standard(JIS), International standard(ISO) and other standard fasteners, also can be made according to the requirement of customers.
The company product sales areas: mainland China/Europe/America/Japan/southeast Asia region.
The company's quality management system: ISO9001:2000 certification, ROHS certification, CE certification, etc.
The company's products usage: Automotive/Mould/Mechanical/Hydraulic/Wind Energy/PV/Elec-
tronic/Construction, etc.
FAQ
Q:How can I get a quotation?
A:Kindly provide us your details request (item No, style, logo, size, material, surface treatment, quantity etc.) the more detailed the better, leave us an inquiry or email to us and we will response promptly!
Q:How to get a free sample?
A:We recommend you work with Alibaba Trade Assurance, itis very convenient And T/T, PayPal, Western Union.. are all available.
Q:What's the process of order?
A:Send us Inquiry →get quotation →payment done →open mold and make samples→
deliver you samples or send you pictures of samples for approval→mass production.
Q:When can l expect the customized product to be finished?
A:Sample:7-10 working days (Standard).
Bulk order:20-25 working days(Standard).
If you have any other questions, please feel free to contact us!
