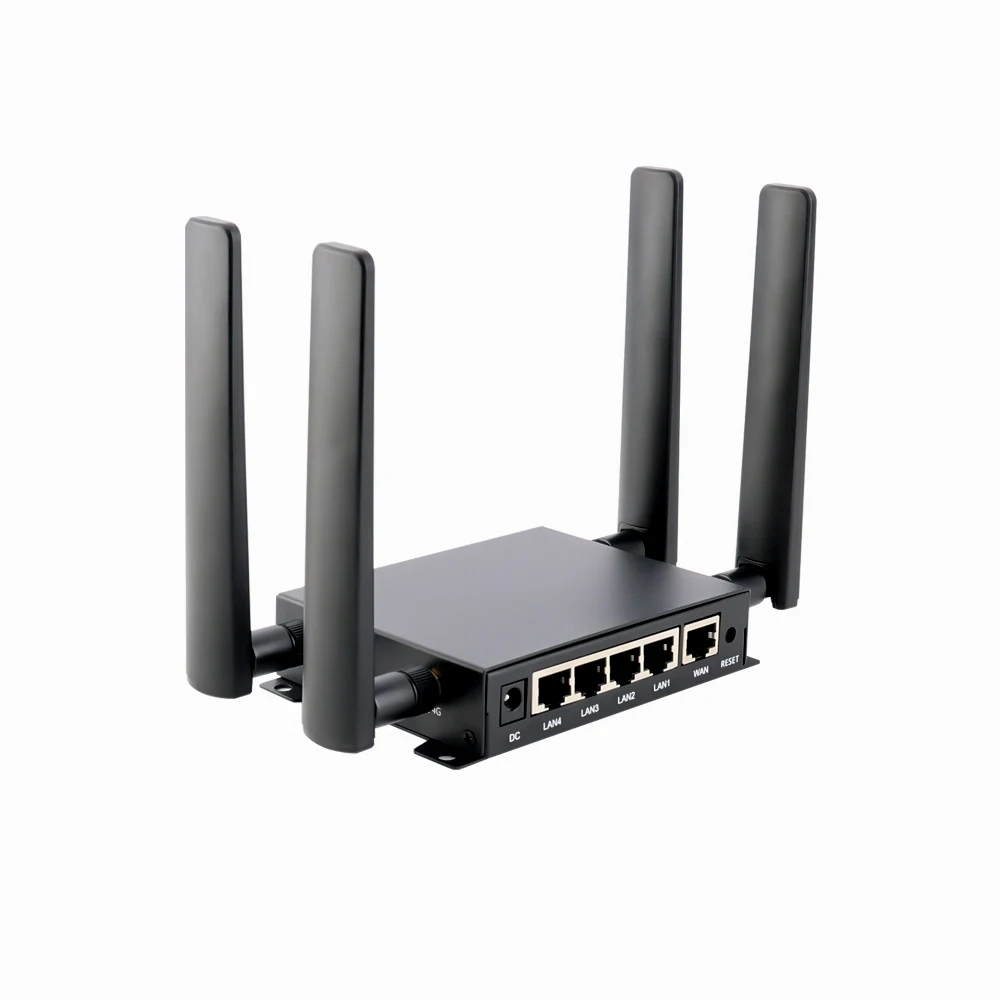

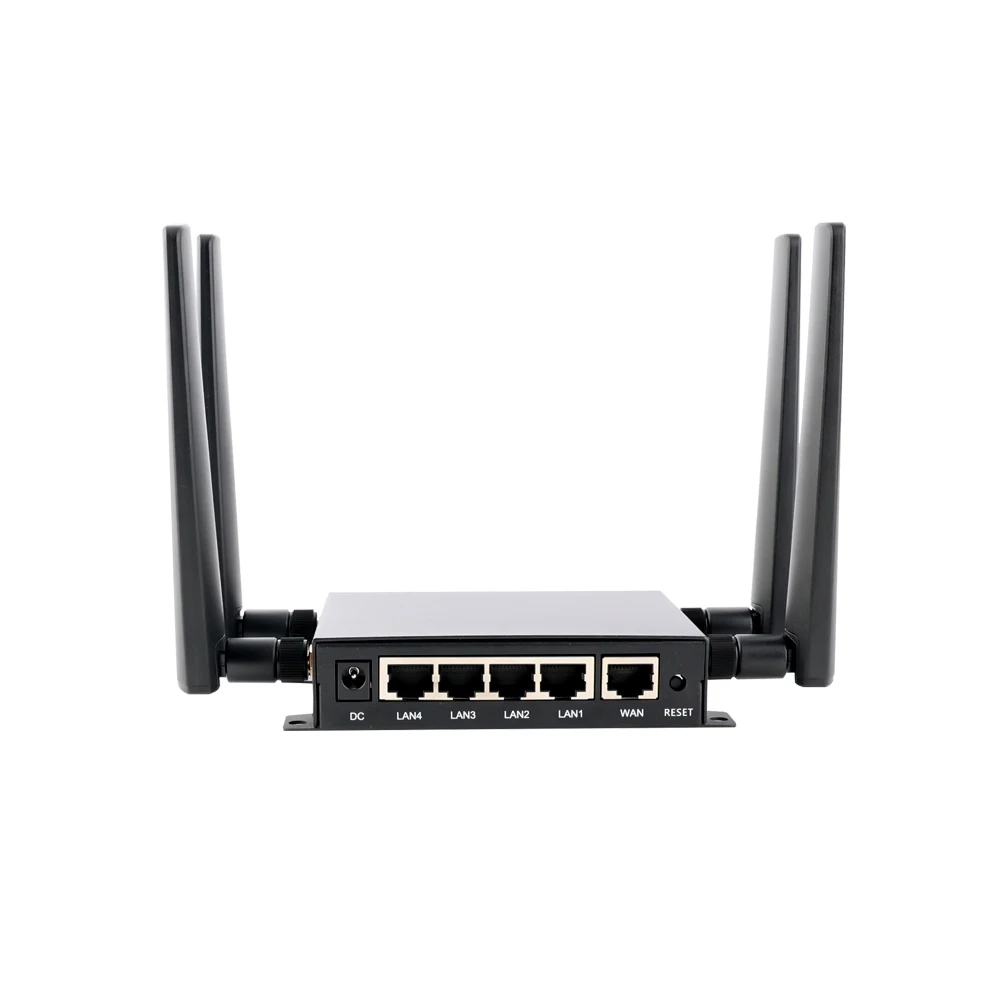

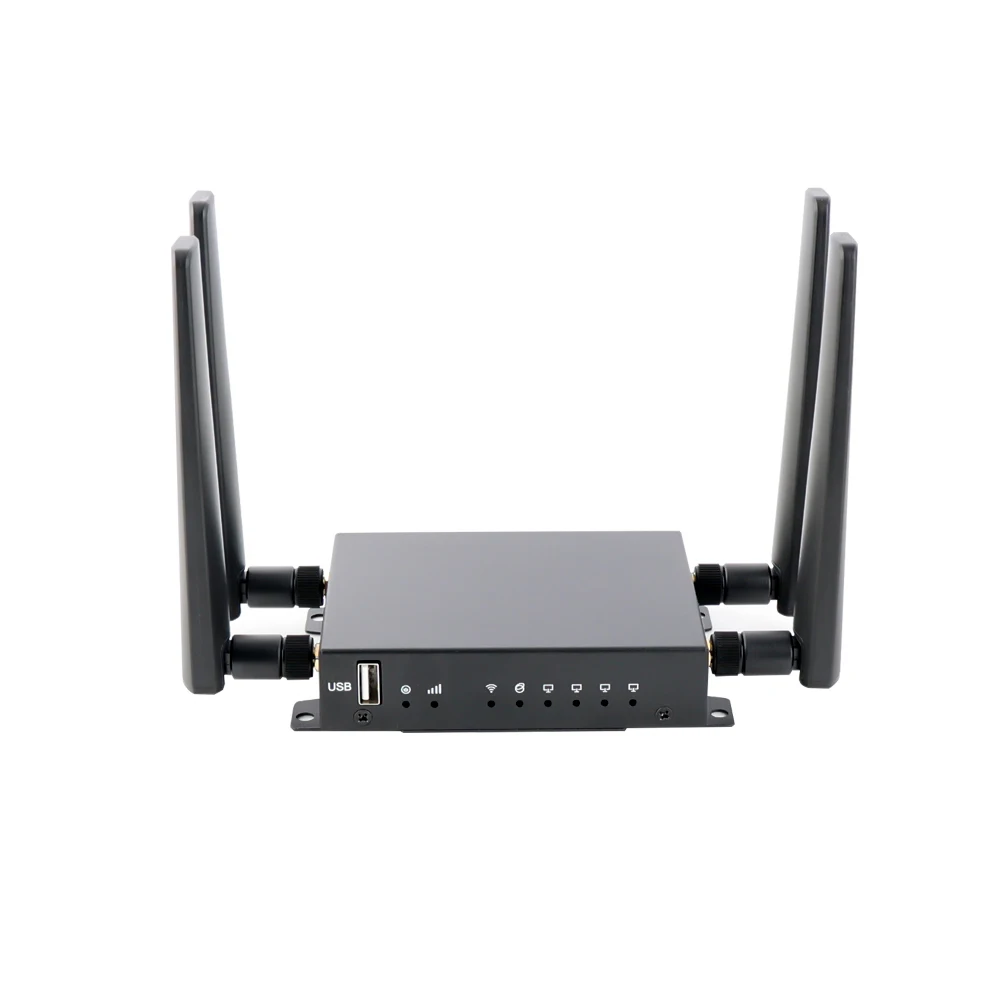

openwrt 4G VPN router MTK7628 OpenVPN PPTP L2TP ZeroTier SMS and Wireguard
- Category: >>>
- Supplier: Shenzhen Hooolink Technology Co. Limited
Share on (1600933415145):
Product Overview
Description
Product Description
openwrt 4G VPN router MTK7628 OpenVPN PPTP L2TP ZeroTier SMS and Wireguard
HL-WR842 4G series parameters
Model with 4G module （Major countries） | 4G band | 4G transfer speed |
HL-WR842-CN (China, India) | FDD:B1/B3/B5/B8 TDD: B34/B38/B39/B40/B41 WCDMA:B1/B5/B8 GSM/EDGE:B3/B8 | 4G maximum transfer speed: download speed(DL)：150Mbps upload speed(UL)：50Mbps |
HL-WR842-EU (Europe) | FDD:B1/B3/B7/B8/B20/B28 TDD:B38/B40/B41 WCDMA:B1/B8 GSM/EDGE:B3/B8 | |
HL-WR842-AU (Latin America, Australia, New Zealand) | FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD:B40 WCDMA:B1/B2/B4/B5/B8 GSM/EDGE:B2/B3/B5/B8 | |
HL-WR842-J (Japan) | LTE-FDD：B1/B3/B8/B18/B19/B26 LTE-TDD：B41 WCDMA：B1/B6/B8/B19 | |
HL-WR842-AFXD (North America) | FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 |
(If you need other frequency bands, please communicate with us.)
Overview:
The HL-WR842 uses the MTK7628 solution. The main frequency is up to 580MHz. It supports 1*10/100M WAN + 4*10/100M LAN+ 1*USB port+ 1*SIM card slot+ 1*MINIPCI-E slot. 2.4GHz is 300Mbps. The built-in MINI PCI-E can connect 3G/4G modules according to customer needs, and can support CAT4 and CAT6 modules. Support OpenVPN, PPTP, L2TP, IPSec.
It complies with IEEE802.11b/g/n wireless network protocol, two external 5dBi antennas. Coverage is over 100 meters and supports about 30 access points. Supports Openwrt firmware.
>Compliant with IEEE802.11b/g/n protocol
>Wireless transmission speed 300Mbps
>1*10/100M WAN
>4*10/100M LAN
>1*SIM card slot
>1*USB interface
>1*MINI PCI-E slot
>Support Uboot flashing
>Support 64/128-bit WEP encryption, WPA/WPA2, SPA-PSK/WPA2-PSK and other encryption security mechanisms
>10 wireless standby, 4~5 high-definition video, about 10 wired.
>Support Openwrt firmware
Hardware | ||
Chipset | MTK7628 / 580MHZ | |
DDR2 | DDR2 128MB | |
SPI Flash | SPI 16MB | |
Wireless Standards | IEEE802.11n/802.11g/802.11b | |
Transmit Power | 802.11b 18dBm±2dBm 802.11g 15dBm±2dBm 802.11n 15dBm±2dBm | |
Reception Sensitivity | 802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER | |
Wireless Speed | 300Mbps | |
Working Frequency | 2.4GHz(2T2R) | |
Antenna Type | 4 external 5dBi antenna | |
Interface | 1* 10/100M WAN 4* 10/100M LAN 1* USB port 1* SIM Card Slot 1* PCI-E Slot | |
LED | Power,USB,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 | |
Button | Reset | |
Power Supply | DC 12V | |
Max power consumption | < 15W | |
Dimensions (L*W*H) | 131*88.5*28.6mm | |
Software | ||
Default Setting | IP Address: 192.168.1.1 User/Password: root/admin | |
WAN Type | PPPoE/ Dynamic IP/Static IP/3G/4G | |
Working mode | AP;Router | |
System | Supports SDK，OpenWRT, eCos | |
DHCP server | DHCP server Client List； Static address assignment； | |
Virtual Server | Port Forwarding DMZ | |
Security | Client List Filter MAC Address Filter URL Filter Remote WEB management | |
DDNS | Support | |
VPN | Support | |
Bandwidth Control | Support | |
Static Router | Support | |
System Log | Support | |
Others | Mac address clone Configuration file import and export Web upgrade | |
Others | ||
Environment | Operating Temperature: -30℃~70 ℃ Storage Temperature: -40℃~90 ℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | |
Packing list
1 x Wireless Router
2 x 5dBi antennas (4G series routers are 4 x 5dBi antennas)
1 x Power Supply (12V 1A)
1 x SIM Card Tray
1 x network cable
