0.6s High Speed Rfid Boom Barrier Gate Automatic DC Motor Remote Control Roadway Safety Adjustable Electronic Car Parking Barrie
- Category: >>>
- Supplier: Chisung Intelligence Technology(shenzhen) Co. Limited
Share on (1600933458095):
Product Overview
Description
Specification
Place of Origin | China |
Product Name | High-End DC24V Planetary Motor Barrier Gate Mechanism |
Motor Working Temperature | -30℃~+80℃ |
Motor Power | Max 200W |
Working Power | AC110~120V, or AC200~240V |
Relative Humidity | 30%~80%, No condensation |
Distance of remote control | L>=30M |
Controller input voltage | DC24V±10%, 10A |
Insulation Grade | F |
Application | Roadway Safety |
Warranty | 1 Year |
MOQ | 1 Set |

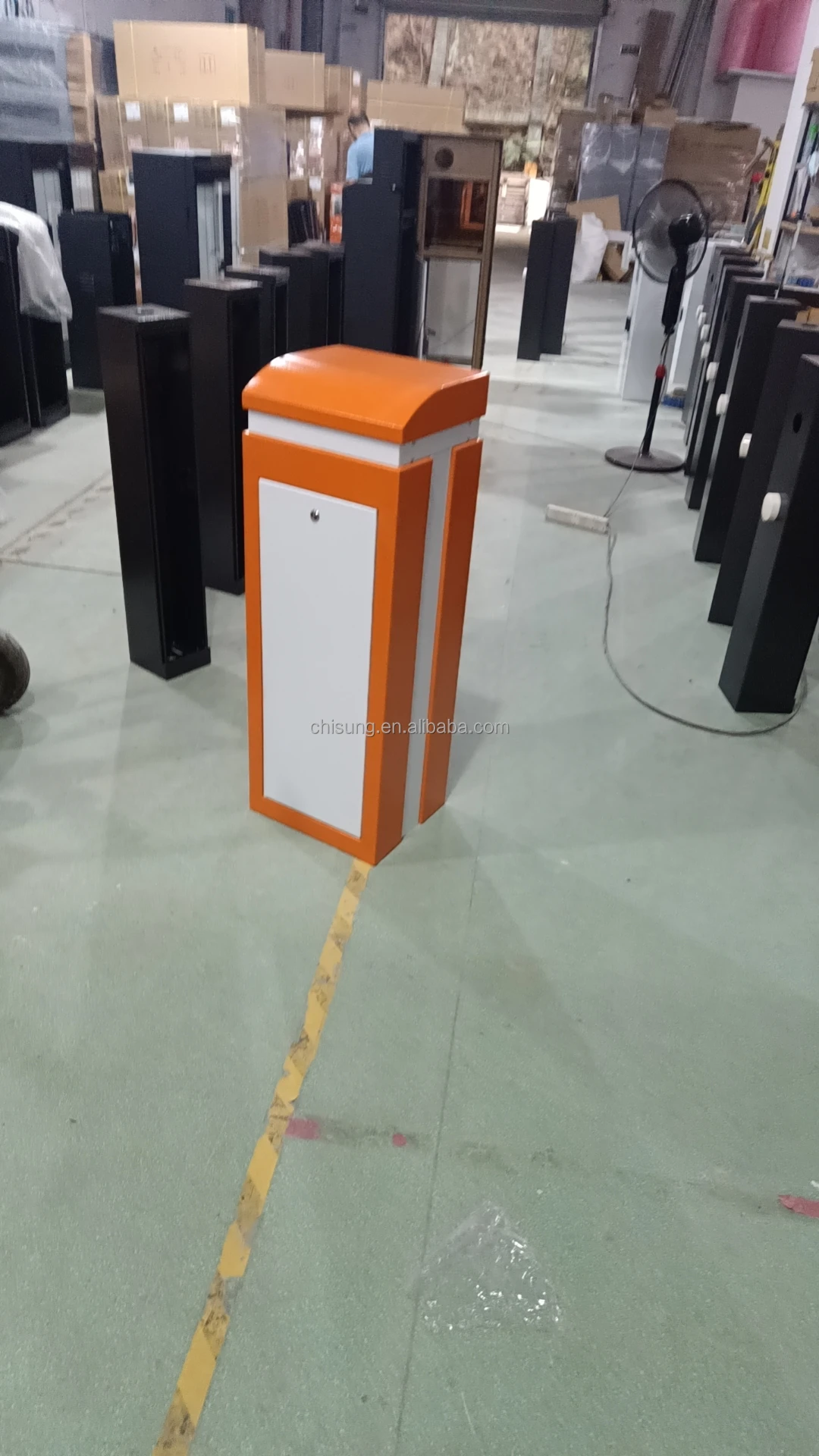

Product Display
Brief Introduction
The product consists of five parts: cabinet cap, cabinet body, transmission mechanism, control unit, and boom.
The product consists of five parts: cabinet cap, cabinet body, transmission mechanism, control unit, and boom.
It distinguishes between left and right machines and is used in parking lot entrance and exit control systems.
This product is divided into three types: straight boom barrier, folding boom barrier and fence boom barrier.
This product is divided into three types: straight boom barrier, folding boom barrier and fence boom barrier.
Barrier Types
Type Description ( Boom length = L, Seconds=S )
Barrier Gate with Straight Boom
L≤2.5M, up speed 0.6S.375USD/Unit
L≤3M, up speed 0.9S.
L≤3.5M, up speed 1.5S.
L≤4M, up speed 2.5S.
L≤4.55M, up speed 4S.
Barrier Gate with Carbon round boom
L≤3.5M， up speed 0.6S.475USD/Unit
Type Description ( Boom length = L, Seconds=S )
Barrier Gate with Straight Boom
L≤2.5M, up speed 0.6S.375USD/Unit
L≤3M, up speed 0.9S.
L≤3.5M, up speed 1.5S.
L≤4M, up speed 2.5S.
L≤4.55M, up speed 4S.
Barrier Gate with Carbon round boom
L≤3.5M， up speed 0.6S.475USD/Unit

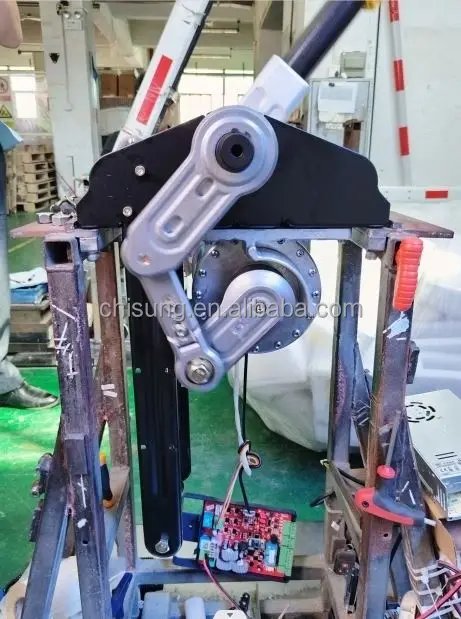

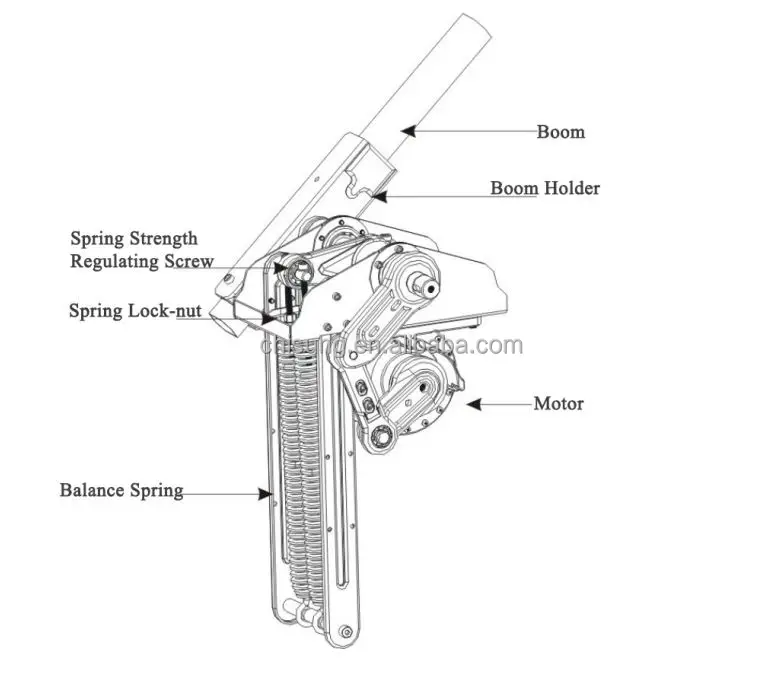

Mechanism Structure
Function&Features
1. Motor driven, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 2.5 million times, spring life 500,000 times.
2. With auto-reversing on obstruction functions, the boom will auto reverse when meeting obstacles.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support remote control, open and interference-free environment, the maximum distance is 50 meters.
2. With auto-reversing on obstruction functions, the boom will auto reverse when meeting obstacles.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support remote control, open and interference-free environment, the maximum distance is 50 meters.
Installation Instructions
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Chisung(Chisung Intelligence Technology Co., Limited), is one of the enterprises integrating intelligent machinery and electronic technology in road safety machines.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Domestic Market(30.00%),South America(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tripod Turnstile,Speed Glass Gate,Barrier Gate,Swing Gate Opener,Sliding Gate Opener
4. why should you buy from us not from other suppliers?
Chisung Technology is integrating intelligent machinery and electronic technology, and all the hardware and software technology is designed by ourselves and advanced in the markets; ODM/OEM to meet to the different clients in China and overseas markets
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
We are based in Guangdong, China, start from 2014,sell to Domestic Market(30.00%),South America(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tripod Turnstile,Speed Glass Gate,Barrier Gate,Swing Gate Opener,Sliding Gate Opener
4. why should you buy from us not from other suppliers?
Chisung Technology is integrating intelligent machinery and electronic technology, and all the hardware and software technology is designed by ourselves and advanced in the markets; ODM/OEM to meet to the different clients in China and overseas markets
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
