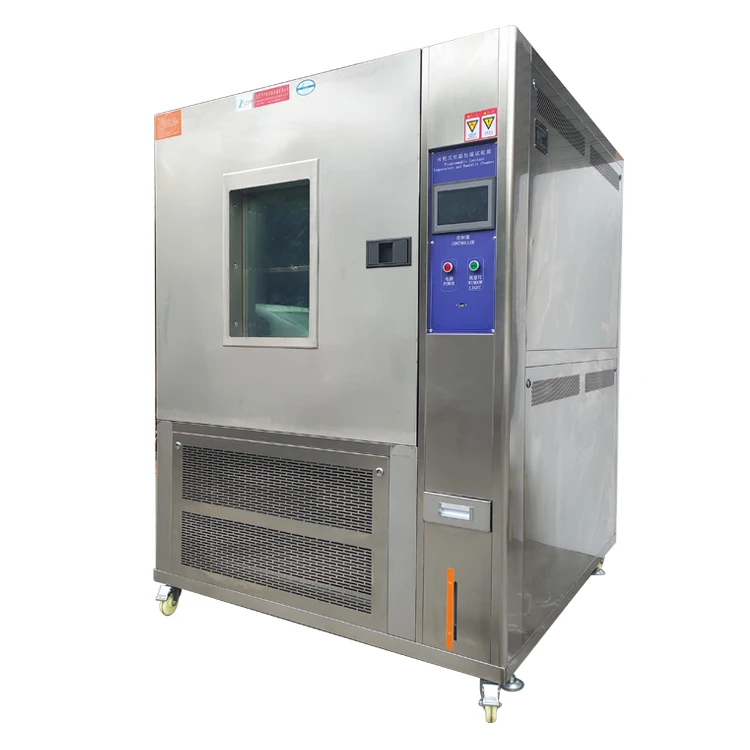

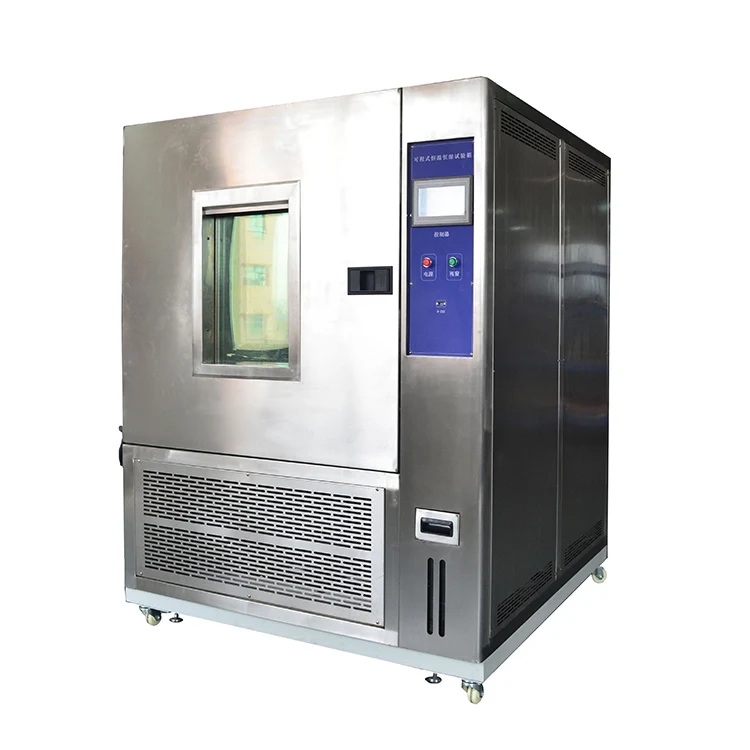

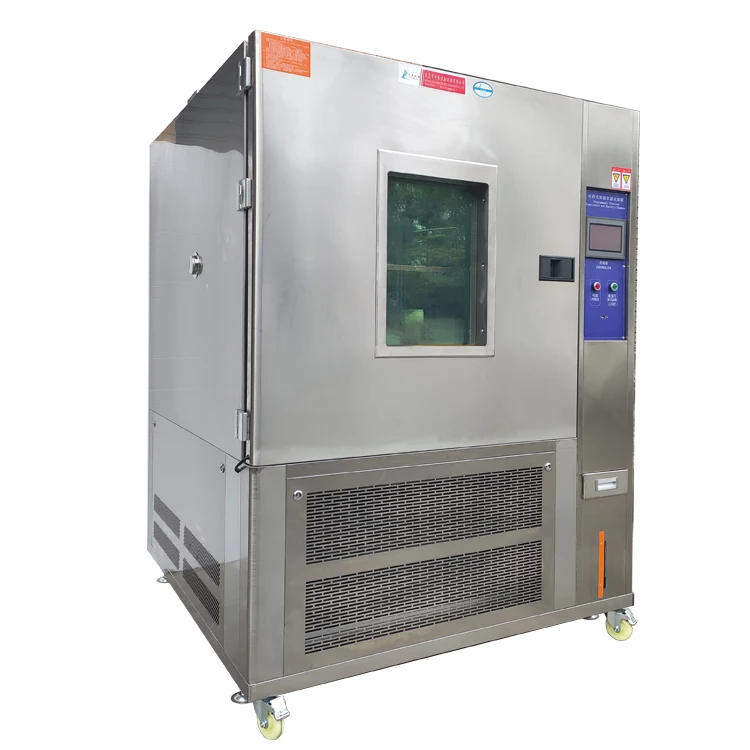

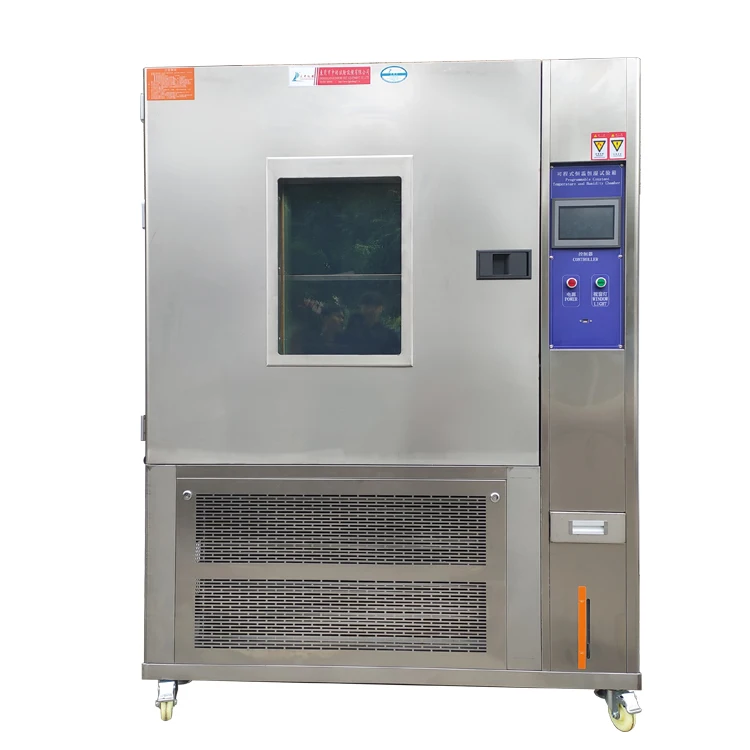

Lab Climatic Temperature Humidity Test chamber Humidity and Temperature Chamber
- Category: >>>
- Supplier: Guangdong Newgoer Instrument Co. Ltd.
Share on (1600933793534):
Product Overview
Description
Product Description
Lab Climatic Temperature Humidity Test chamber Humidity and Temperature Chamber
√ Sales in more than 80 countries
√ CE certification
√ Long service life
√ PLC control system
√ Appearance material customization
√ Size customization
Application:
Programmable Temperature Humidity Climatic Test Chamber is applied to test the materials in heat resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Programmable Temperature Humidity Climatic Test Chamber applied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

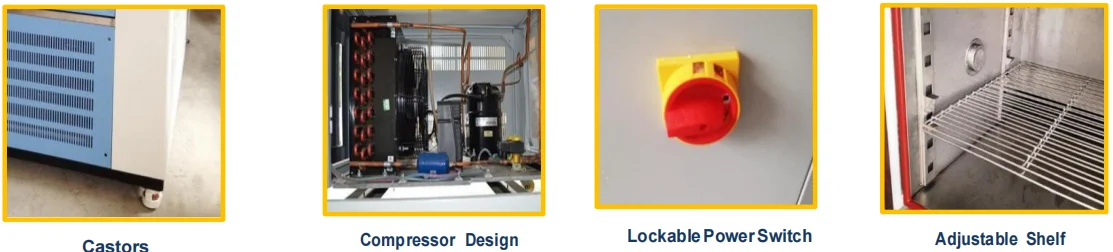

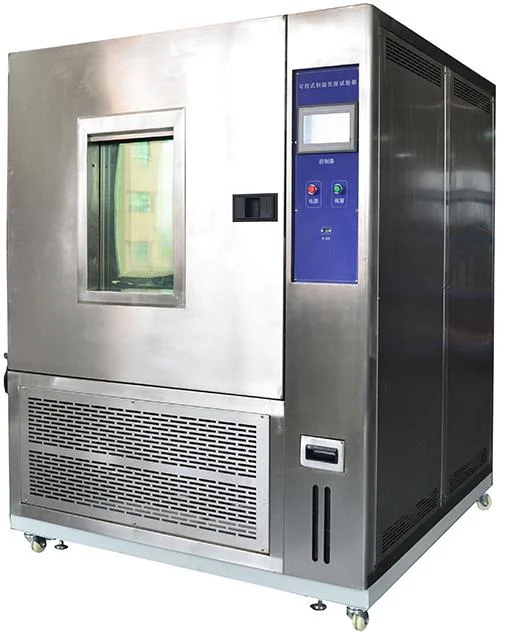

Detailed Images
Model | NG-TH80 | NG-TH150 | NG-TH225 | NG-TH408 | NG-TH608 | NG-TH800 | NG-TH1000 | ||||||
Workroom Sizes (cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 80*95*80 | 100*100*80 | 100*100*100 | ||||||
Inner Chamber Volume | 80L | 150L | 225L | 408L | 608L | 800L | 1000L | ||||||
Temperature Range | -40°C~150°C (A: -20°C; B: -40°C; C: -70°C are optional) | ||||||||||||
Temperature Fluctuation | ≤±0.5°C (standard) | ||||||||||||
Temperature Evenness | ≤±1°C | ||||||||||||
Temperature Deviation | ≤±1°C | ||||||||||||
Accuracy | 0.5°C, 2.0% R.H | ||||||||||||
Humidity Range | 20% ~ 98% R.H | ||||||||||||
Humidity Deviation | ±2% R.H | ||||||||||||
Temperature Rise Speed | 2.0°C ~ 5.0 °C/min | ||||||||||||
Temperature Cool Speed | 0.7°C ~ 1.2 °C/min | ||||||||||||
Time Needed for Heating | RT°C ~ 200°C ≤30min | ||||||||||||
Time Needed for Cooling | RT°C ~ -40°C ≤60min | ||||||||||||
Noise | 72 dB（A） | ||||||||||||
Material | Inner chamber：# SUS 304 stainless steel | ||||||||||||
Refrigerants | R4O4A & R23 USA HONEYWELL environmental protection refrigerant | ||||||||||||
Condensing Way | Air-cooled or water-cooled | ||||||||||||
Heater | Nickel chrome heating wire heater | ||||||||||||
Humidifier | Semi-closed steam and wet | ||||||||||||
Water Supplying Way | Automatic cycling water supply | ||||||||||||

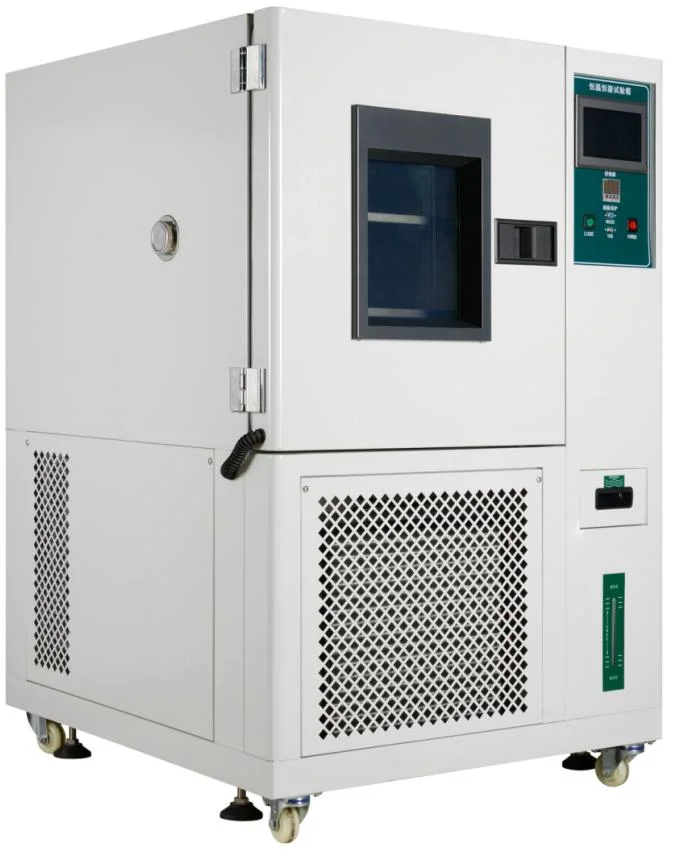

Model:
NG-TH (80/150/225/408/608/800/1000) NG-THB (80/150/225/408/608/800/1000)

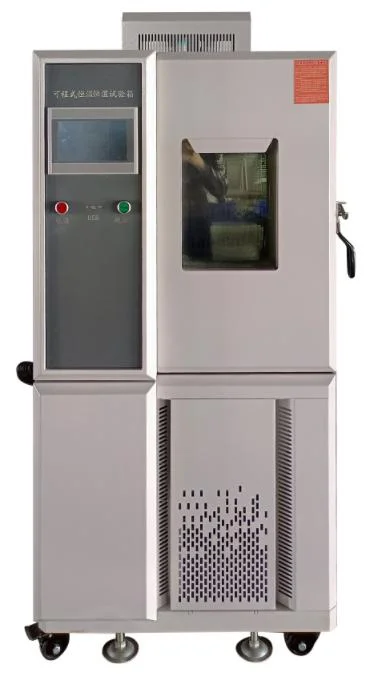

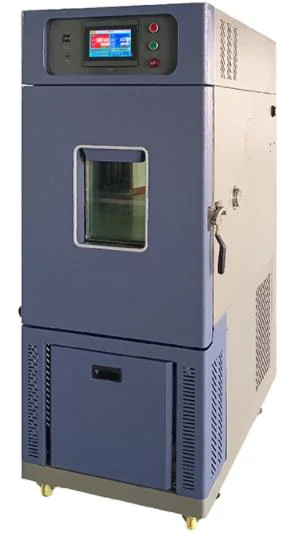

NG-TH Series: NG-THB Series:
Outer Material: Steel Plate Paint Outer Material: Stainless Steel

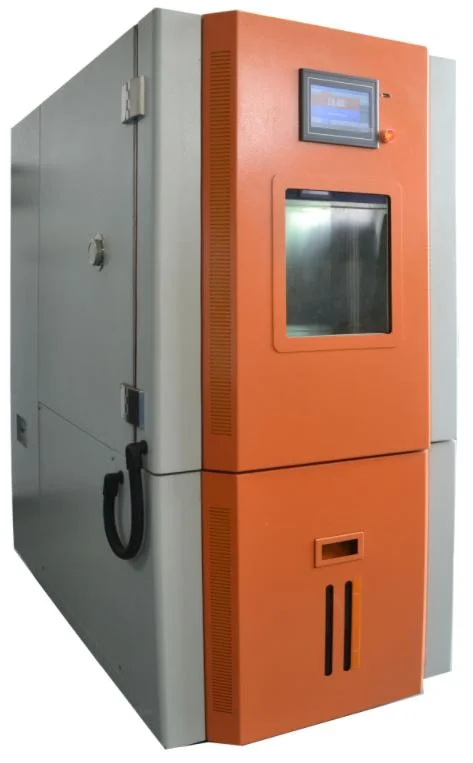

Other Appearance Optional (Steel Plate Paint)
Design Standard:
GB11158 - 2008: Specifications for high temperature test chambers
GB10589-89: Specifications for low temperature test chambers
GB10592-89: Specifications for low / high temperature test chambers
GB/T10586-89: Specification for damp heat test chambers
GB/T2423.1-2008 / IEC 60068-2-1:2007: Environmental testing for electric and electronic products --
Part 2: Test Methods -- Test A: Cold
GB/T2423.2-2008 / IEC 60068-2-2:2007: Environmental testing for electric and electronic products --
Part 2: Test Methods -- Test B: Dry heat
GB/T2423.3-2006 / IEC 60068-2-78:2001: Environmental testing for electric and electronic products --
Part 2: Testing method -- Test Cab: Damp heat, Steady state
GB/T2423.4-2008 / IEC 60068-2-30:2005: Environmental testing for electric and electronic products --
Part 2: Testing method -- Test Db: Damp heat, Cyclic (12h + 12h cycle)
GB/T2423.22-2002 / IEC 60068-2-14:1984: Environmental testing for electric and electronic products --
Part 2: Testing method -- Test N: Change of temperature
IEC60068-2-1.1990: Environmental testing - Part 2: Tests -- Test A: Cold
IEC60068-2-2.1974: Environmental testing - Part 2: Tests -- Test B: Dry heat
GJB150.3 - 1986: Environmental test methods for military equipment -- High temperature test
GJB150.4 - 1986: Environmental test methods for military equipment -- Low temperature test
GJB150.9 - 1986: Environmental test methods for military equipment -- Damp heat test
GB10589-89: Specifications for low temperature test chambers
GB10592-89: Specifications for low / high temperature test chambers
GB/T10586-89: Specification for damp heat test chambers
GB/T2423.1-2008 / IEC 60068-2-1:2007: Environmental testing for electric and electronic products --
Part 2: Test Methods -- Test A: Cold
GB/T2423.2-2008 / IEC 60068-2-2:2007: Environmental testing for electric and electronic products --
Part 2: Test Methods -- Test B: Dry heat
GB/T2423.3-2006 / IEC 60068-2-78:2001: Environmental testing for electric and electronic products --
Part 2: Testing method -- Test Cab: Damp heat, Steady state
GB/T2423.4-2008 / IEC 60068-2-30:2005: Environmental testing for electric and electronic products --
Part 2: Testing method -- Test Db: Damp heat, Cyclic (12h + 12h cycle)
GB/T2423.22-2002 / IEC 60068-2-14:1984: Environmental testing for electric and electronic products --
Part 2: Testing method -- Test N: Change of temperature
IEC60068-2-1.1990: Environmental testing - Part 2: Tests -- Test A: Cold
IEC60068-2-2.1974: Environmental testing - Part 2: Tests -- Test B: Dry heat
GJB150.3 - 1986: Environmental test methods for military equipment -- High temperature test
GJB150.4 - 1986: Environmental test methods for military equipment -- Low temperature test
GJB150.9 - 1986: Environmental test methods for military equipment -- Damp heat test

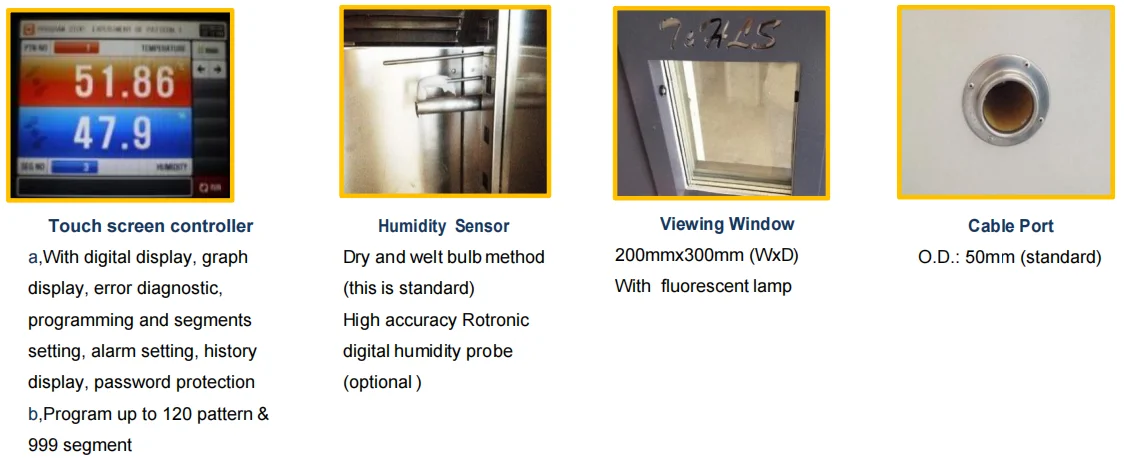

Features:
* LED TouchScreen
* PID Control of Temperature and Humidity
* Both Temperature and Humidity are Programmable (can have 120 patterns, 1200 segments)
* With Humidity Sensor
* With RS485/232 output to computer
* Window Software
* Remote fault notification(optional)
* With ViewingWindow
* With thermostats (prevent overheat)
* CablePorts (50mm diameter)
* WithDataStorage functionbyUSB Flash Memory
* Protection (phase protection, overheat, over current etc)
* Water Tank with level detector
* AdjustableShelf
* Anti-condensation technology of the workroom .(Optional)
* User friendly three color LED indicator lamp ,easy to read working condition
* PID Control of Temperature and Humidity
* Both Temperature and Humidity are Programmable (can have 120 patterns, 1200 segments)
* With Humidity Sensor
* With RS485/232 output to computer
* Window Software
* Remote fault notification(optional)
* With ViewingWindow
* With thermostats (prevent overheat)
* CablePorts (50mm diameter)
* WithDataStorage functionbyUSB Flash Memory
* Protection (phase protection, overheat, over current etc)
* Water Tank with level detector
* AdjustableShelf
* Anti-condensation technology of the workroom .(Optional)
* User friendly three color LED indicator lamp ,easy to read working condition

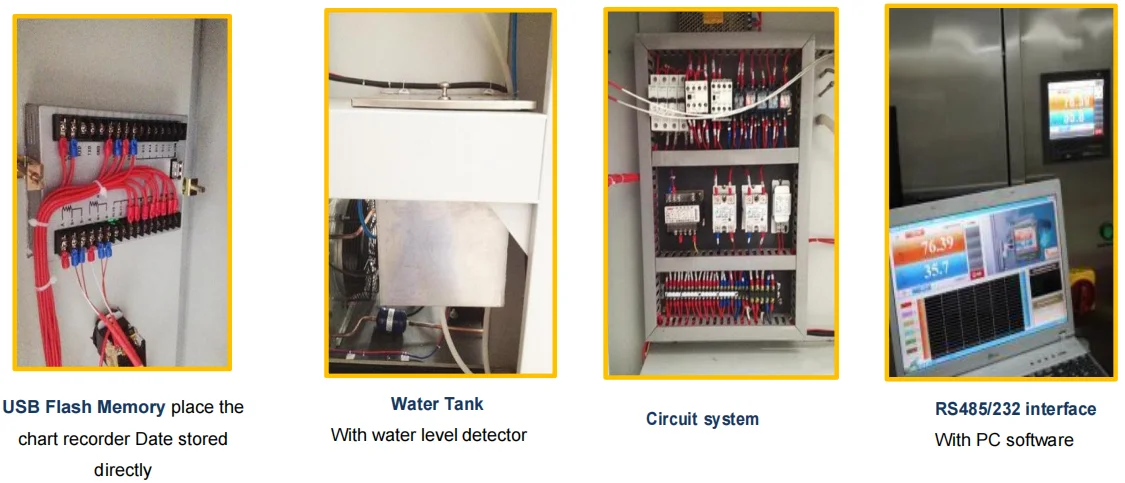

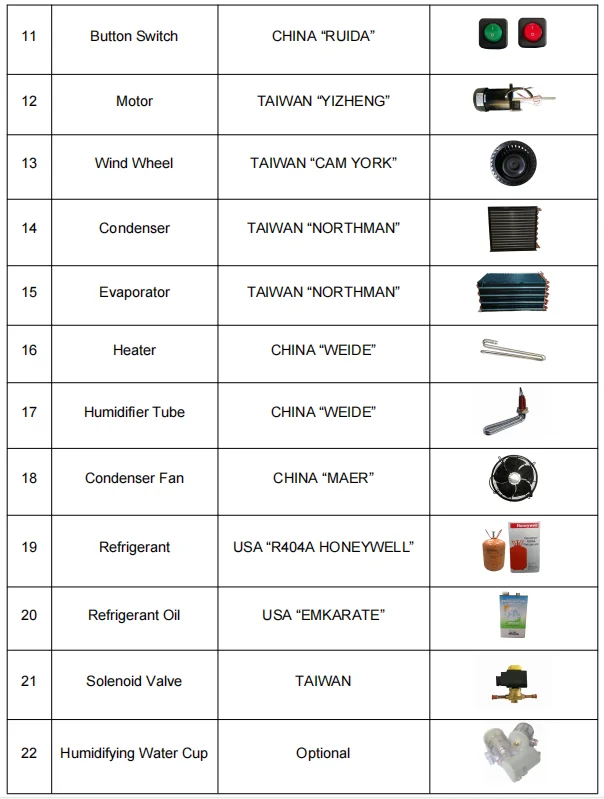

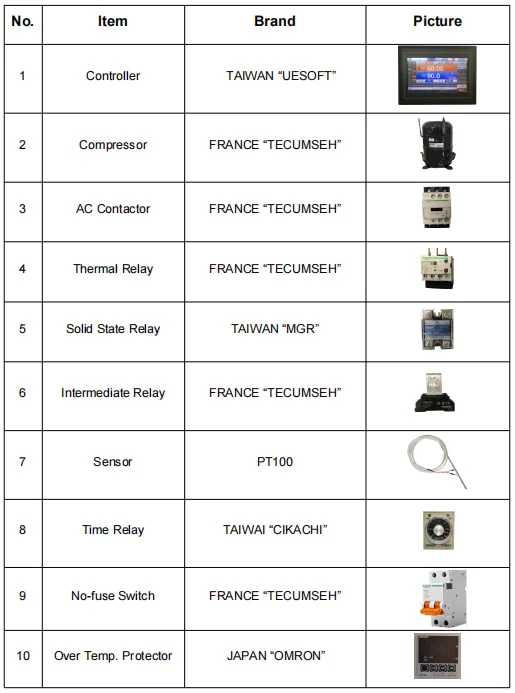

Standard List of Main Parts

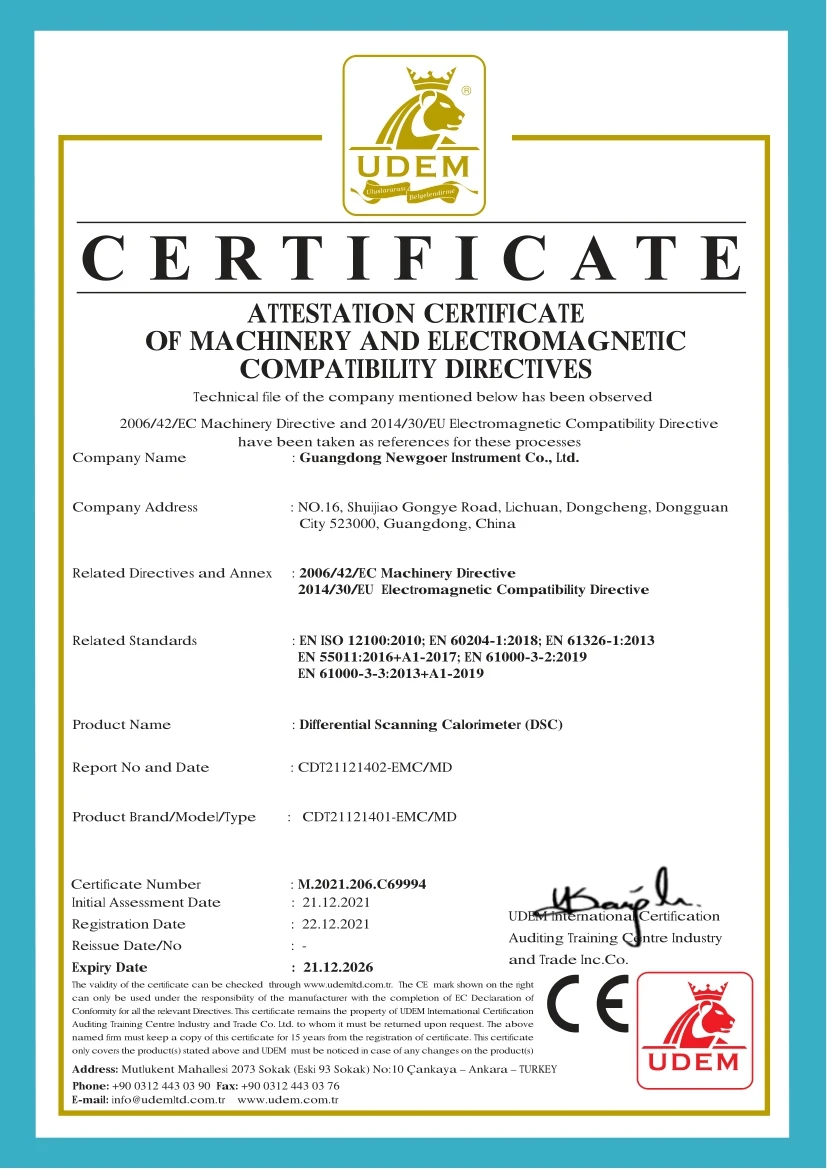

Certificate
Related Products
Company Introduction
FAQ
1.Are your company a trading one or a factory ?
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
