Product Description

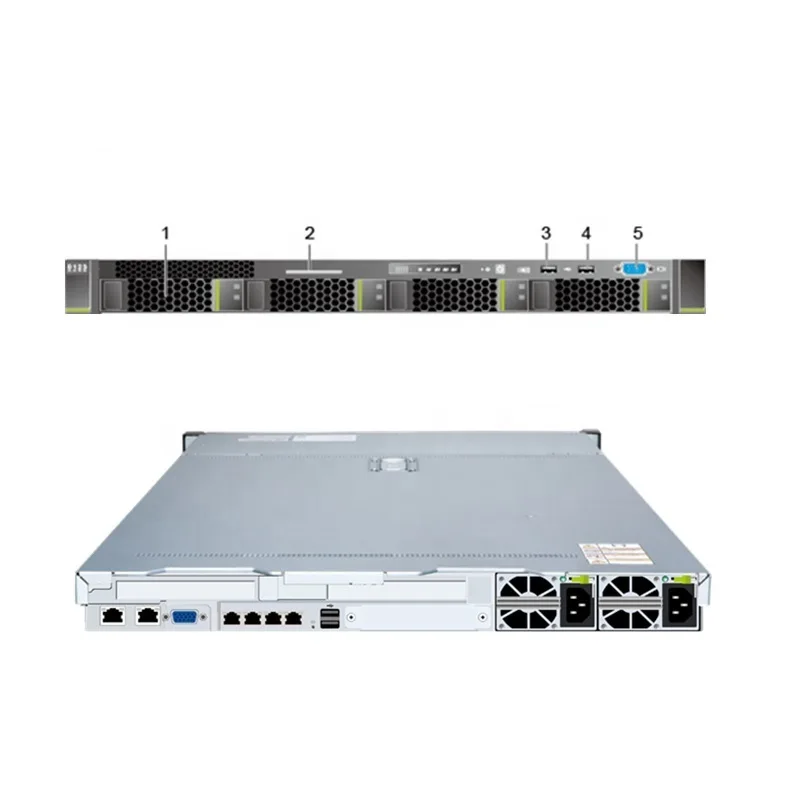

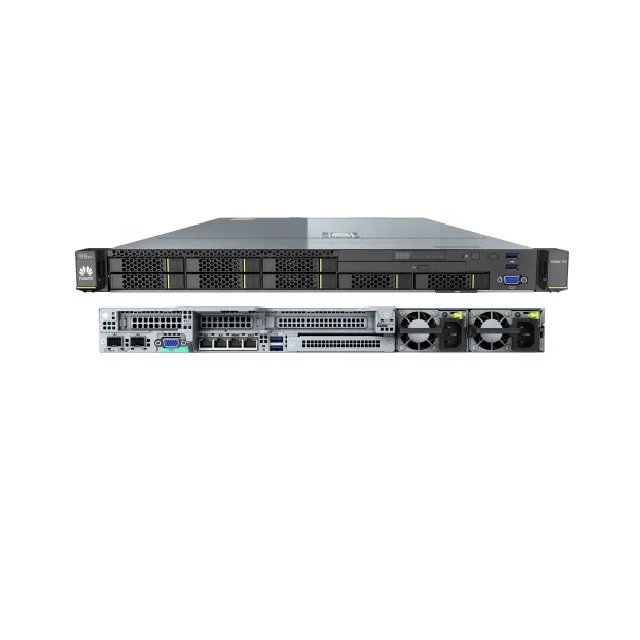

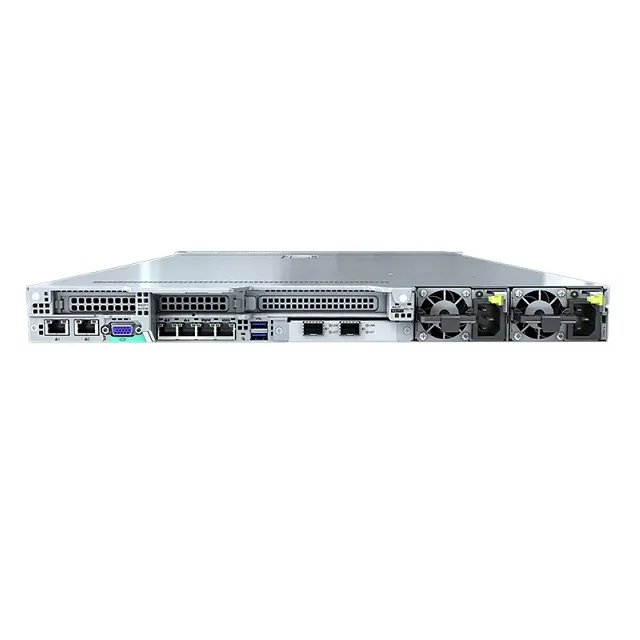

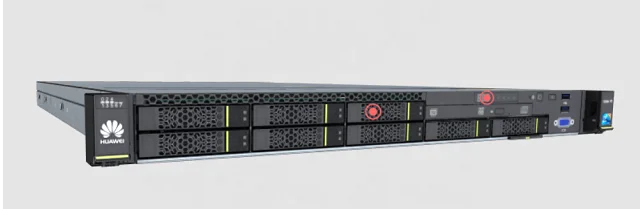

FusionServer 1288H V6 1288HV6 Server 2U 4309Y CPU 8C 2.80GHZ Server 1U rack server
\t
\t\t
\t\t\t
\t\t\tMODEL
\t\t\t |
\t\t\t
\t\t\tFusionServer 1288H V6
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tForm Factor
\t\t\t |
\t\t\t
\t\t\t1U rack server
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tMaxim Processor
\t\t\t |
\t\t\t
\t\t\tOne or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tRAM
\t\t\t |
\t\t\t
\t\t\t32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tDrive bays
\t\t\t |
\t\t\t
\t\t\tSupports various drive configurations and hot swappable:
\t\t\t• 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less)
\t\t\t• 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less)
\t\t\t• 10 x 2.5-inch SAS/SATA/SSD drives
\t\t\t• 8 x 2.5-inch SAS/SATA/SSD drives
\t\t\t• 4 x 3.5-inch SAS/SATA/SSD drives
\t\t\tSupports flash storage:
\t\t\t• Dual M.2 SSDs
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tStorage controllers
\t\t\t |
\t\t\t
\t\t\tSupports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration,
\t\t\tdrive roaming, self-diagnosis, and remote web-based configuration
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tI/O & Ports
\t\t\t |
\t\t\t
\t\t\tLOM: 2 x 10GE + 2 x GE ports
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tPower supplies
\t\t\t |
\t\t\t
\t\t\t• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
\t\t\t• 1500 W AC Platinum PSUs
\t\t\t1000 W (input: 100 V to 127 V AC)
\t\t\t1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
\t\t\t• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
\t\t\t• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
\t\t\t• 2000 W AC Platinum PSUs
\t\t\t1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
\t\t\t2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tHeight X Width X Depth
\t\t\t |
\t\t\t
\t\t\tChassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm
\t\t\tChassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tRail
\t\t\t |
\t\t\t
\t\t\tOptional rail
\t\t\t |
\t\t
\t\t
\t\t\t
\t\t\tWeight
\t\t\t |
\t\t\t
\t\t\t25.0kg
\t\t\t |
\t\t
\t
