Winan Factory Price Fire Hydrant for Fire Fighting

Product Overview

Description

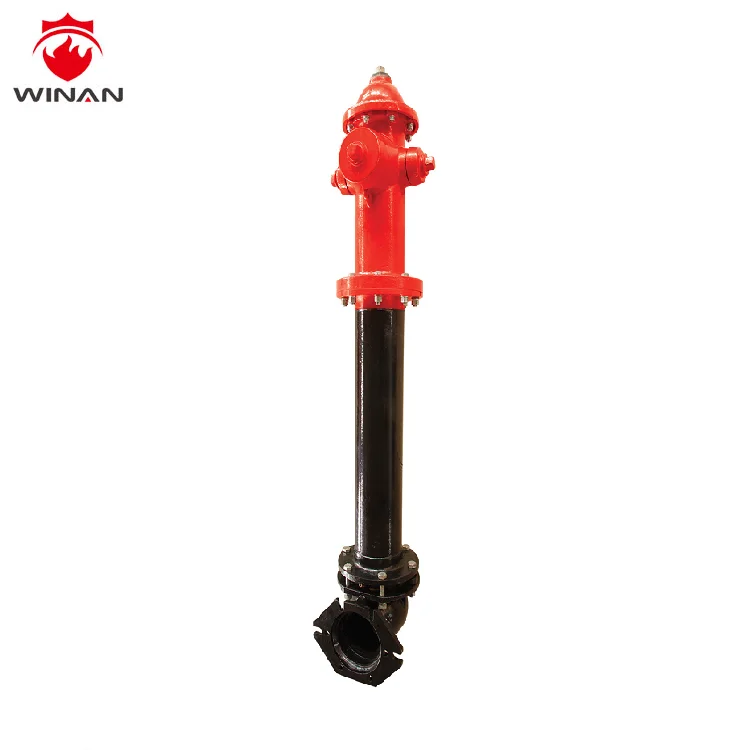

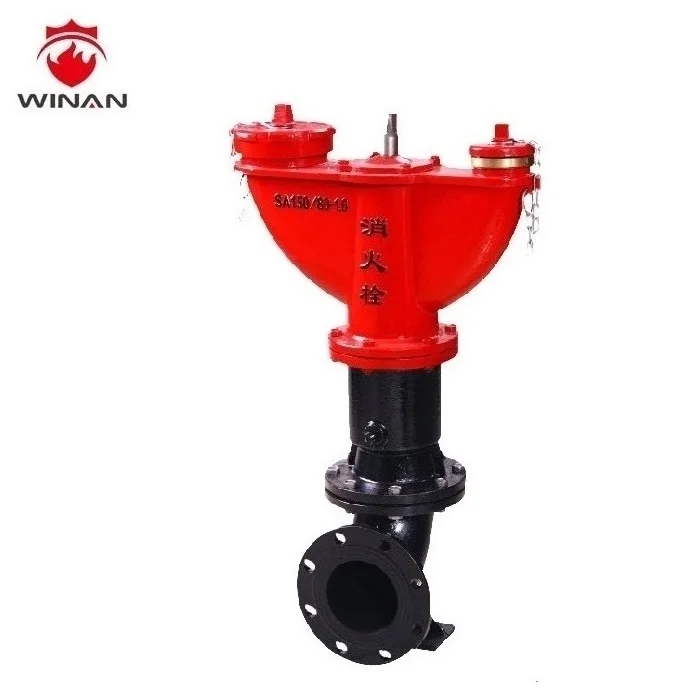

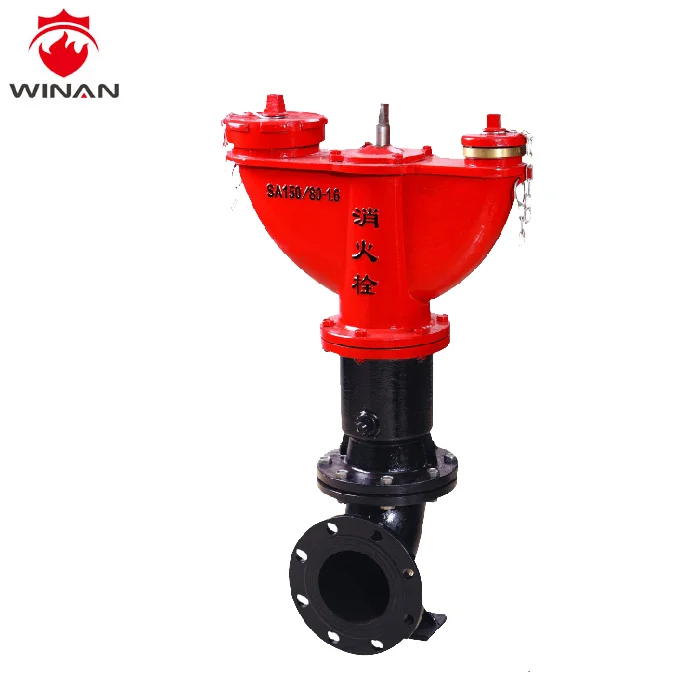

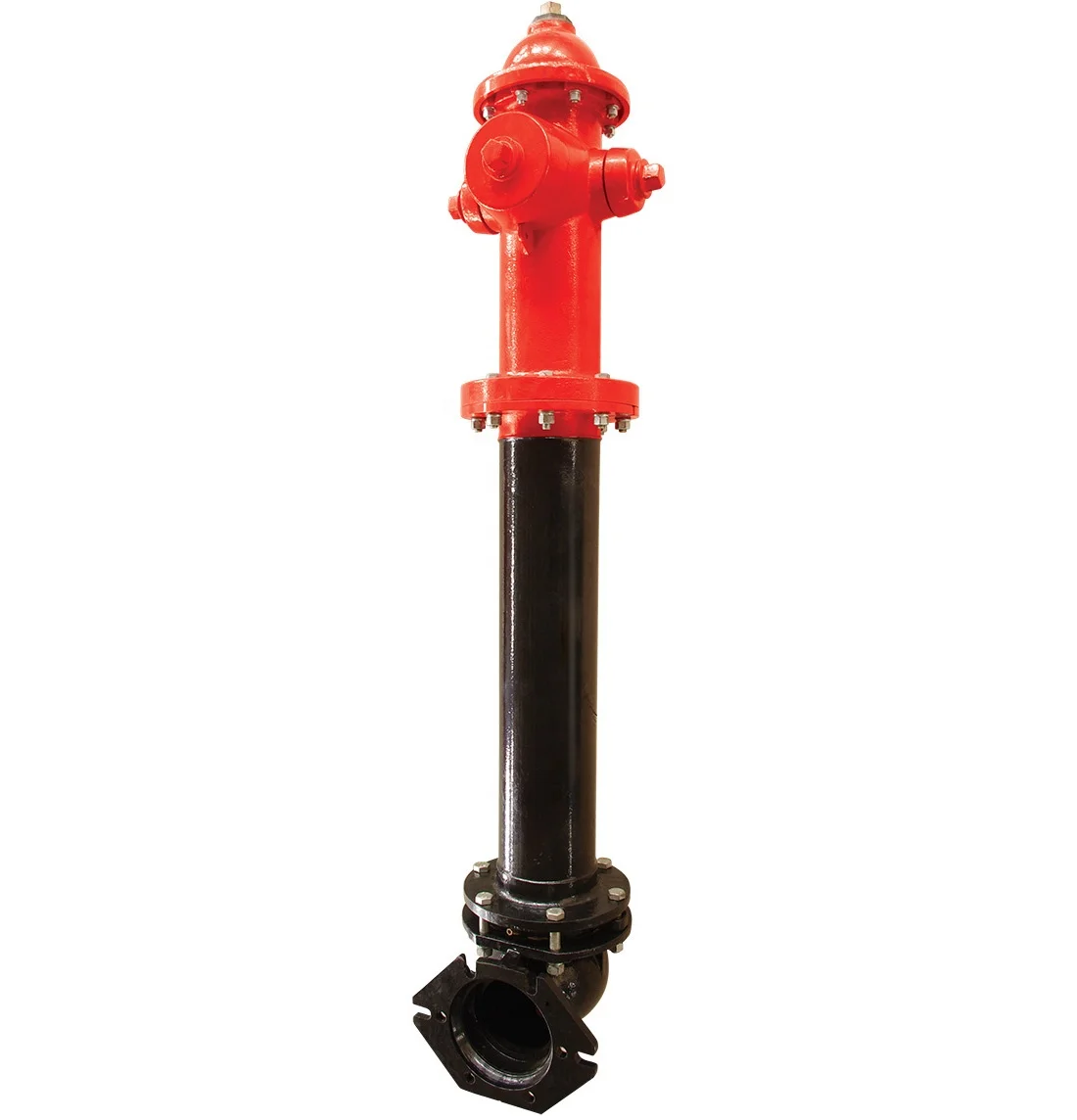

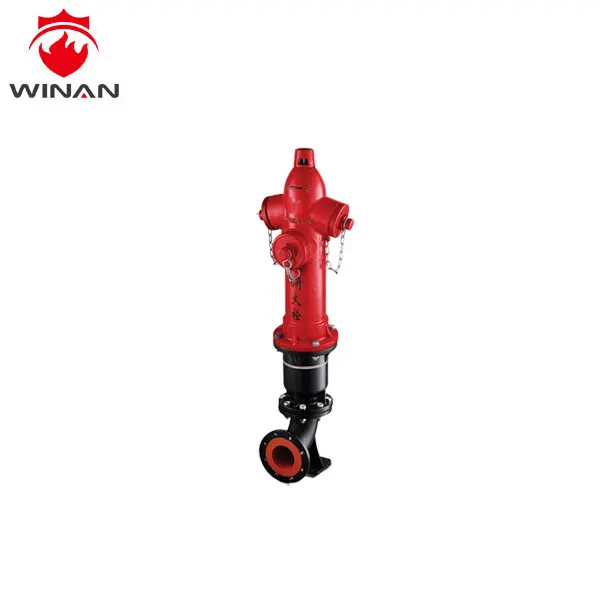

The outdoor above/underground hydrant is generally used to provide fire water supply or connect with fire hose or fire guns directly. It is the essential equipment for fire-fighting pipe network of public buildings, public places and industrial and mining establishments.

Working Principle:

The outdoor above/underground hydrant has three outlets and they are controlled by valve flap and it is closed usually. One of the outlets is connected with fire truck exclusively and the other two are connected with fire hose or fire guns when needed. A dedicated wrench is needed to open the valve flap. Pay attention that make sure the other two outlets are closed when use only one outlet.

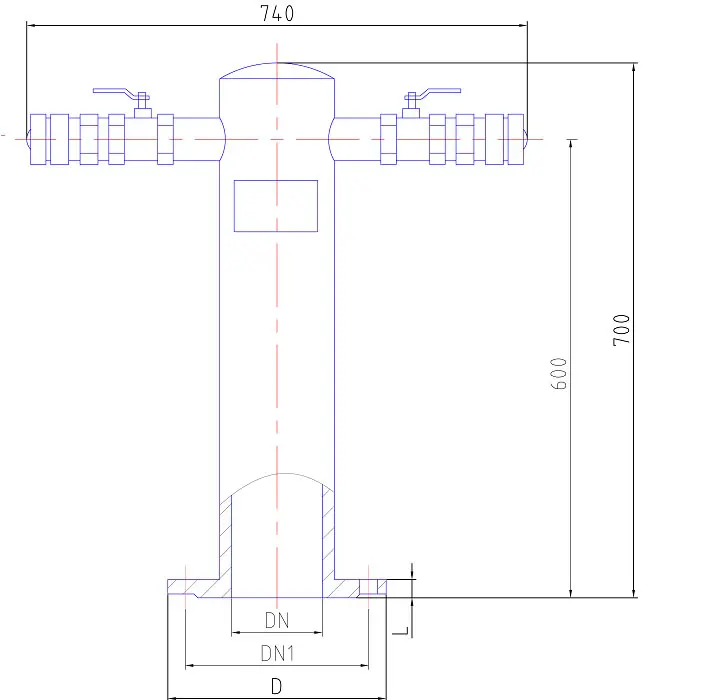

Technical parameters:

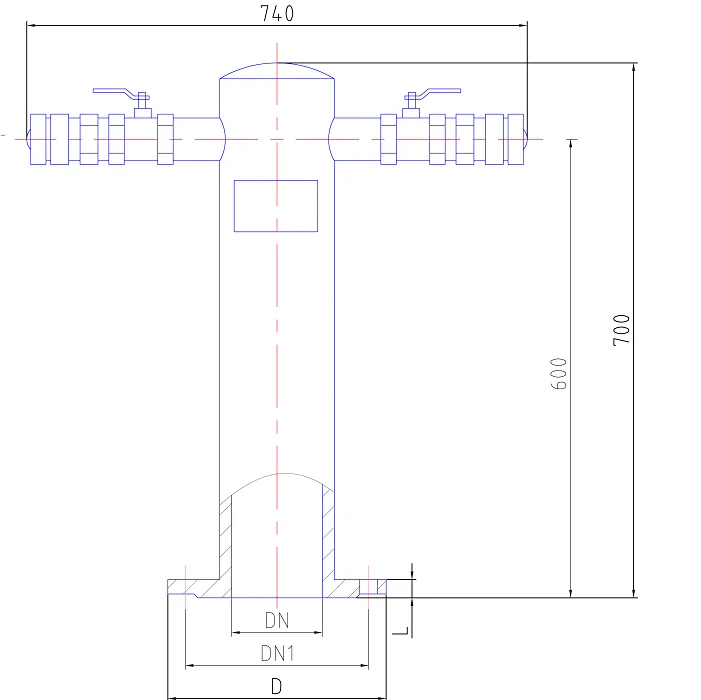

Model Parameter	Underground Hydrant		Aboveground Hydrant
	SSK×100/65	SSK×150/80	SSKS×100/65	SSKS×150/80
Nominal Diameter (mm)	DN100	DN150	DN100	DN150
Nominal Pressure (MPa)	1.6MPa
Outlet Standard×QTY	KY65×2	KY80×2	KY65×2	KY80×2
Water Inlet Standard (mm)	M125×6	M170×6	M125×6	M170×6
Pairing Flange	DN100	DN150	DN100	DN150
Bolt Center Distance (mm)	180	240	180	240
Bolt Aperture (mm)	18	22	18	22
Bolt Hole QTY	8	12	8	12
Total height can be manufactured as clients' demand

Notes: we make available customized designs for our clients
