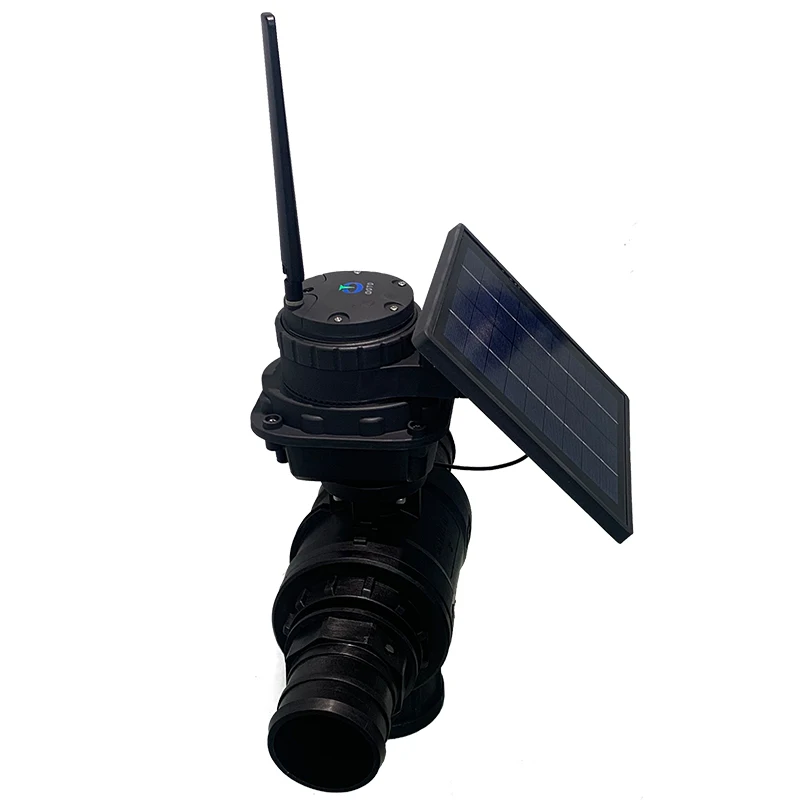

Solar Power LoRa remote control 3 way 2way electric actuator drive control valve 3 way ball valve electric actuator
- Category: >>>
- Supplier: Shenzhen Power-Tomorrow Actuator Valve Co. Ltd.
Share on (1600933817484):
Product Overview
Description
Product Description
A LoRa remote-control irrigation system allow users to manage irrigation task through cell phone.This application makes use of the cellular network and LoRa protocol.The instructions are passed onto the user request in the form of SMS in farm irrigation.

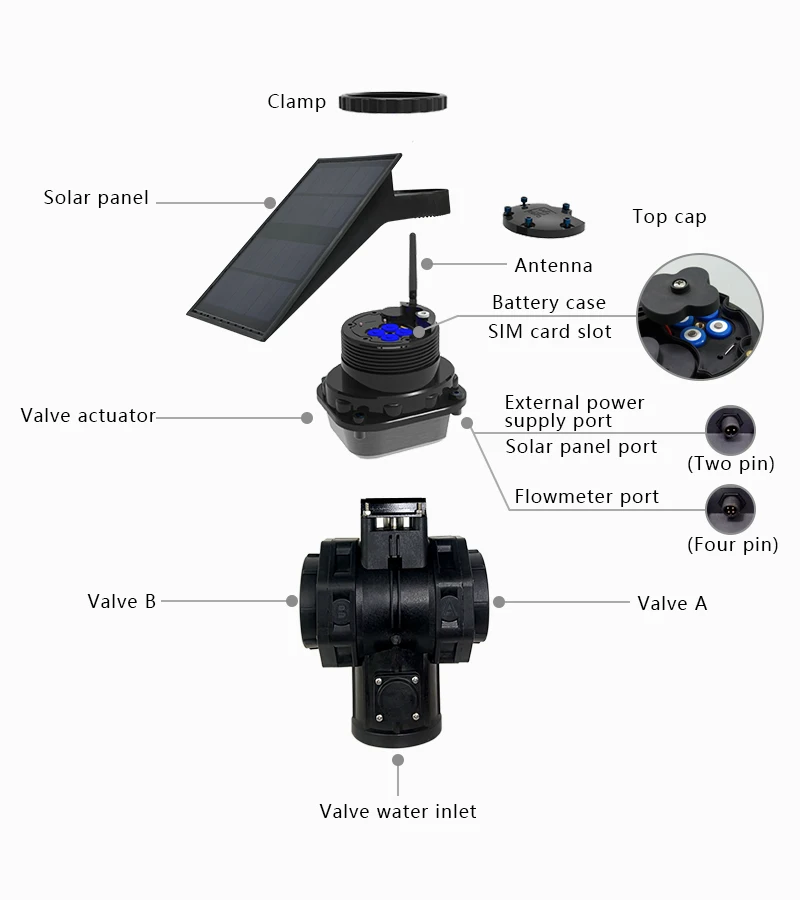

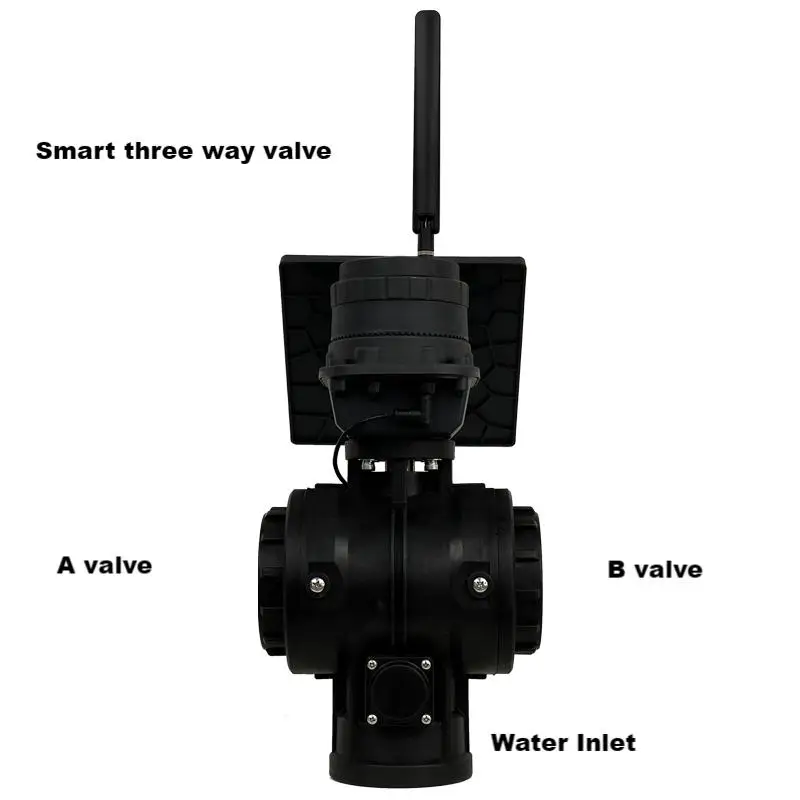

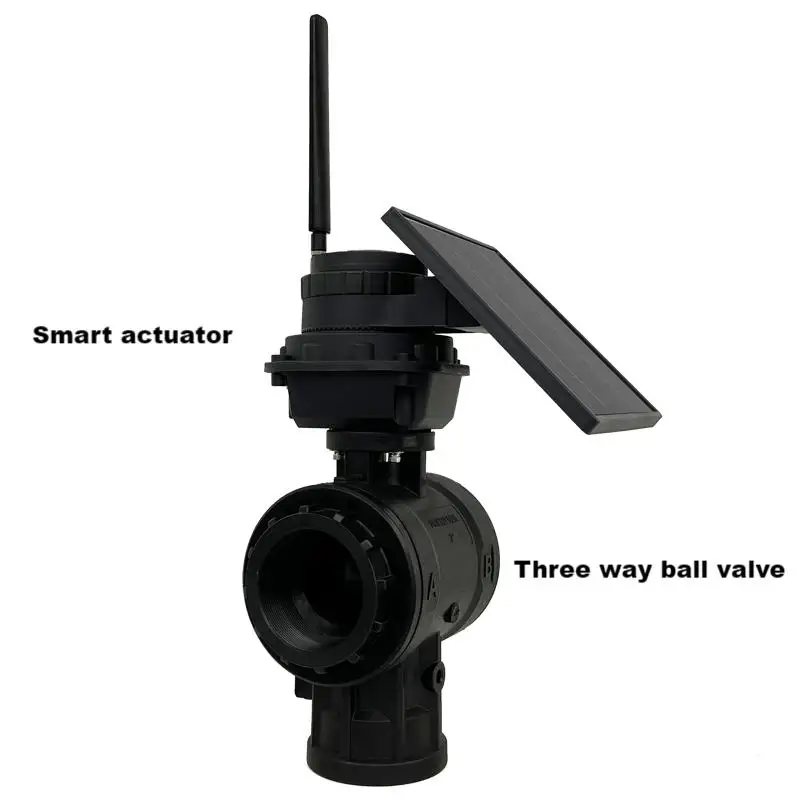

The hardware is motorized three way valve, which is different from tradition solenoid valve, has full open valve port and bigger flow coefficient, with smart actuator on the top to open and close the valve. The valve can be opened and closed from 0°to 180°

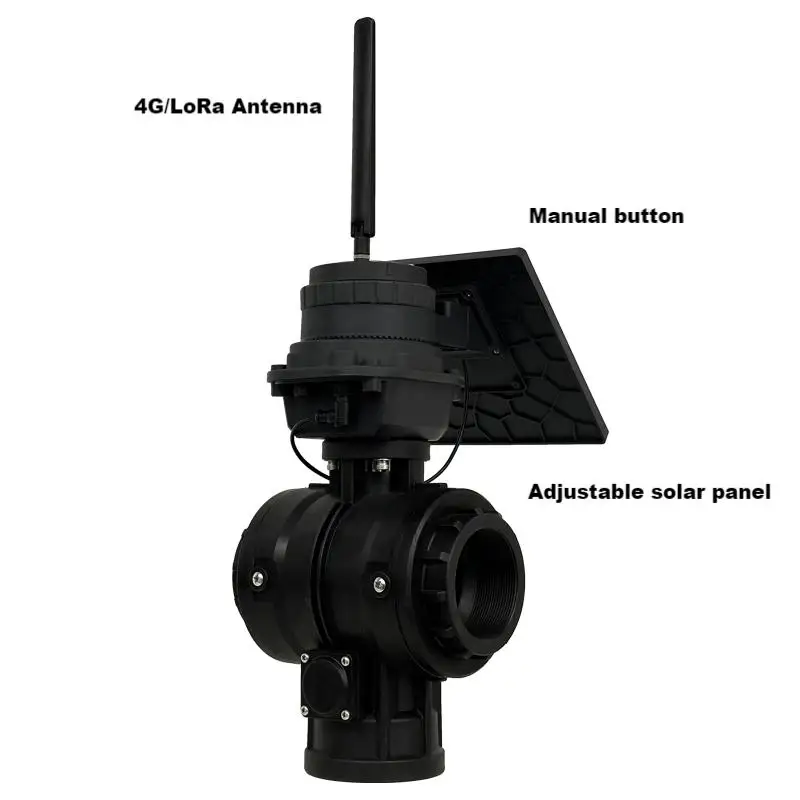

The user communicates with the valves through SMS. The valves communicate with the system through LoRa signal.
Product Characteristics
1.Control the irrigation task remotely via the internet or via SMS messaging
2.Control the valve position by percentage
3.Left open, right open, full close design, realize two-way water flow control, cover a larger farm irrigation area, and saves more cost
The hardware is motorized three way valve, which is different from tradition solenoid valve, has full open valve port and bigger flow coefficient, with smart actuator on the top to open and close the valve. The valve can be opened and closed from 0°to 180°
The user communicates with the valves through SMS. The valves communicate with the system through LoRa signal.
Product Characteristics
1.Control the irrigation task remotely via the internet or via SMS messaging
2.Control the valve position by percentage
3.Left open, right open, full close design, realize two-way water flow control, cover a larger farm irrigation area, and saves more cost

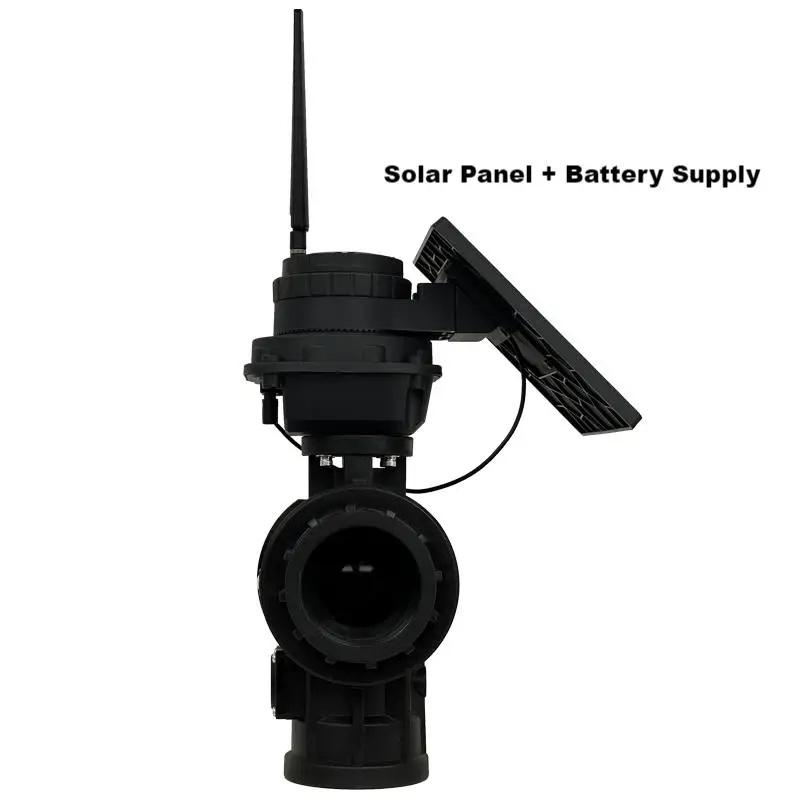

4. Solar power, installed without AC cable
Specification
product model | QT-02F-G |
battery | 18650 lithium battery(wide temperature)， battery capacity: 2000mAh，four pcs |
solar panel | polysilicon 6V 5W |
Solar panel port | stable voltage and current device inside, can connect 5V-30V DC power |
Flowmeter （external） | Max flow rate：10m/s |
Min flow rate：0.3m/s | |
Working pressure：5kg/cm^2 | |
valve torque | ≤60N.m |
Max power | 3.8W at communication（Max power at full emission） |
25W at locked motor（overcurrent protection inside device） | |
Protection level | IP67 |
Certifications
Packing & Delivery
FAQ
1. What is the special feature of our solar irrigation system?
Most of the solar irrigation system in the market, it is solar based
pumping system. Ours is solar based valve system. The valve automation
in the watering scheduled is all powered by solar panel+rechargeable batteries. no need any electric cable
2. What is the longevity of the rechargeable batteries and solar panel?
Battery: 2 years
Solar panel: 5 years
3. How long can the valve work once batteried are fully charged.
As we use rechargeable batteries, in the sunny condition, the battery can work continously.
Let take QT-02-G as an example, the solar panel is polysilicon, 6.5V, 5.5W. The QT-02-G use 4 batteries.
If in a cloudy weather situation,once full charge, the battery can stand by 15days.
4. What is a motorized valve?
A motorized valve use motor to drive the valve open and close while a solenoid valve use solenoid valve to open and close.
A motorized valve can connect different types of valves. Let take QT-02-G as example, QT-02-G can connect ball valve and butterfly valve, PVC material or metal materials.
5. What is the difference between solenoid valve based automatic irrigation and motorized valve based irrigatin system?
A. Motorized valve has bigger open port than solenoid valve.
B. The valve can be open without any water pressure
C. Solar powered Installation without any AC/DC electric power cable.
6. Can App support English language?
Yes, it has Chinese and English version.
7. What is the communication protocol for the devices?
We have 4G and LoRa protocol.
8. What internet protocol does the system support?
The system supports HTTP MQTT TCP/IP.
9. What is LoRa frequency?
For chinese market: 470Mhz-510Mhz
For oversea market: 860Mhz-930Mhz
10. What is the valve size.
There are DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,
DN300, DN350, DN400, DN500
Most of the solar irrigation system in the market, it is solar based
pumping system. Ours is solar based valve system. The valve automation
in the watering scheduled is all powered by solar panel+rechargeable batteries. no need any electric cable
2. What is the longevity of the rechargeable batteries and solar panel?
Battery: 2 years
Solar panel: 5 years
3. How long can the valve work once batteried are fully charged.
As we use rechargeable batteries, in the sunny condition, the battery can work continously.
Let take QT-02-G as an example, the solar panel is polysilicon, 6.5V, 5.5W. The QT-02-G use 4 batteries.
If in a cloudy weather situation,once full charge, the battery can stand by 15days.
4. What is a motorized valve?
A motorized valve use motor to drive the valve open and close while a solenoid valve use solenoid valve to open and close.
A motorized valve can connect different types of valves. Let take QT-02-G as example, QT-02-G can connect ball valve and butterfly valve, PVC material or metal materials.
5. What is the difference between solenoid valve based automatic irrigation and motorized valve based irrigatin system?
A. Motorized valve has bigger open port than solenoid valve.
B. The valve can be open without any water pressure
C. Solar powered Installation without any AC/DC electric power cable.
6. Can App support English language?
Yes, it has Chinese and English version.
7. What is the communication protocol for the devices?
We have 4G and LoRa protocol.
8. What internet protocol does the system support?
The system supports HTTP MQTT TCP/IP.
9. What is LoRa frequency?
For chinese market: 470Mhz-510Mhz
For oversea market: 860Mhz-930Mhz
10. What is the valve size.
There are DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,
DN300, DN350, DN400, DN500
