High Output Gypsum 2 micron calcite Grinding Process Plant Line, 200Mesh Calcium Carbonate Barite Kaolin Powder Raymond Mill
- Category: >>>
- Supplier: Baichy Heavy Industrial Machinery Co. Ltd.
Share on (1600933834819):
Product Overview
Description
High Output Gypsum 2 micron calcite Grinding Process Plant Line, 200Mesh Calcium Carbonate Barite Kaolin Powder Raymond Mill

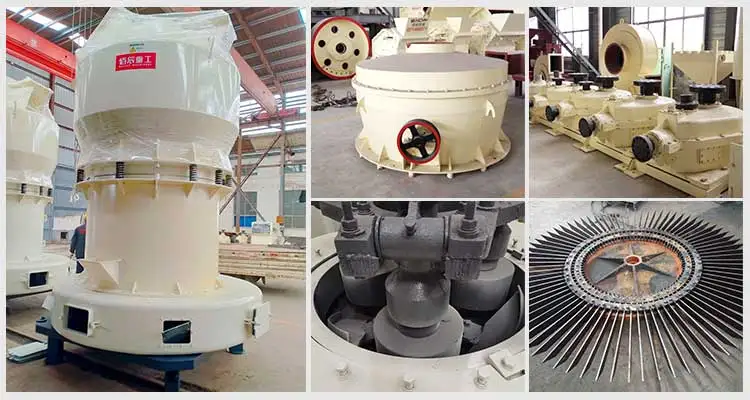

Machine Components: mainframe, separator, blower, finished powder cyclone collector, bag filter connecting pipes, etc.
Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, ect.
Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, ect.
[ Capacity ]: 0.5–60 t/h
[ Applicable Material ]:
Raymond mill, also known as raymond grinding mill, raymond roller mill, and raymond grinder, is suitable for grinding non-flammable and non-explosive materials. The finished powder size can be adjusted between 30 and 425 mesh(0.613 mm-0.044 mm).
Raymond mill is suitable for process in various non-flammable mineral which is below seven Mos hardness, and moisture below 6%, such as limestone, calcite carbonate, dolomite, barite, talc, gypsum, diabase, quartz, bentonite, bauxite, iron ore, etc.
Working principle

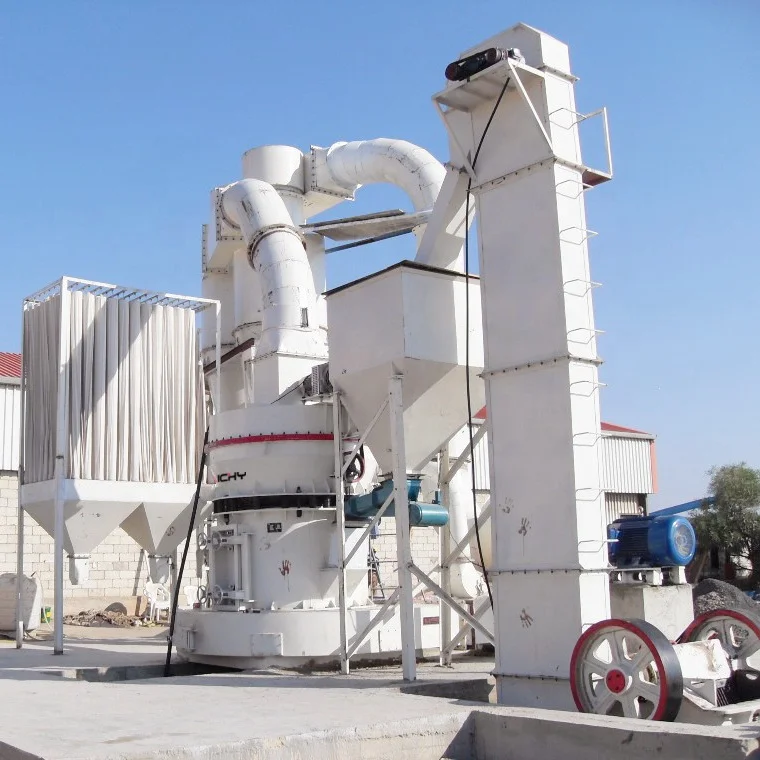

1. The whole structure of the Raymond Mill machine mainly includes the host, analysis machine, plumbing fixtures, and blower, according to user needs, it can be equipped with a crusher, elevator, electromagnetic vibrating feeder, electric control cabinet, etc.
2. After materials are crushed to the desired particle size, enter into the storage hopper by the elevator, and then through the vibrating feeder enter into the grinding chamber of Raymond mill uniform continuously.

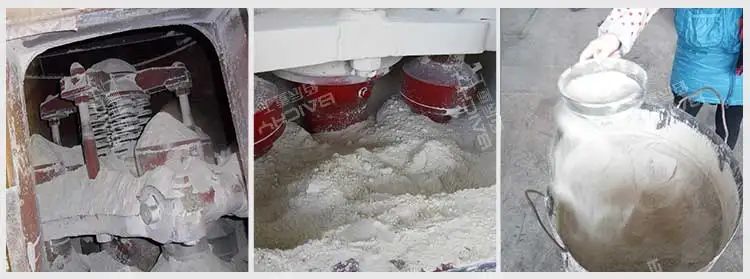

3. Due to the centrifugal force when rotating, the rollers swing outward, pressed on the grinding ring, shovel blade scoop up materials, then send them between the grinding roller and grinding ring, due to the grinding roller rolling to achieve the crushing purpose.
4. After the grinding material, the powder along with the circulating air made by the blower, is brought into the analysis machine for sorting, coarse material will regrind. Qualified powder along with the air enters into the finished product cyclone powder collector, then discharges the powder tube, which is the finished product.
5. In the grinding chamber of Raymond mill, because there is certain moisture in the ground material when grinding, it will generate heat, moisture evaporates, and the pipe interface of the whole is not tight, the outside air is drawn into making the circulation pressure increased to ensure that the mill work under negative pressure. The increased air flow enters into the dust through the duct and, at last, enters into the atmosphere after purification.
| Model | Roller | Roll Dia. (mm) | Roll Ring Size (mm) | Max. Input Size (mm) | Output Size (mm) | Capacity T/Shaft | Power (Kw) | Dimension | |
| 3R | 1510 | 3 | 150*100 | 570*100 | 15 | 0.125-0.044 | 0.8-10 | 7.5 | 3200*1200*3800 |
| 2115 | 3 | 210*150 | 630*150 | 15 | 0.125-0.044 | 1-12 | 15 | 3500*3300*4500 | |
| 2615 | 3 | 260*150 | 780*150 | 20 | 0.125-0.044 | 1.5-20 | 18.5 | 4650*3600*5100 | |
| 2715 | 3 | 270*150 | 830*150 | 20 | 0.125-0.044 | 2-28 | 22 | 4700*3600*5100 | |
| 3015 | 3 | 300*150 | 875*150 | 25 | 0.125-0.044 | 2-35 | 30 | 5300*4100*5200 | |
| 4R | 3016 | 4 | 300*160 | 890*160 | 25 | 0.125-0.044 | 3-36 | 30 | 5400*4100*5200 |
| 3216 | 4 | 320*160 | 970*160 | 25 | 0.125*0.044 | 4-45 | 37 | 7100*5900*7900 | |
| 3220 | 4 | 320*200 | 970*200 | 25 | 0.125-0.044 | 4-55 | 45 | 9900*5800*1058 | |
| 5R | 4119 | 5 | 410*190 | 1270*190 | 30 | 0.613-0.044 | 8-60 | 75 | 9200*7250*9700 |
With the conventional roller mill design, when fine-grinding, the classifier tails (rejected particles) are also quite fine and can be easily entrained into the airstream. However, the fine grinding roller mills are designed with a separate path for the coarse reject material to travel back to the grinding zone in such a way that particle short-circuiting is avoided.
 |  |  |
Jaw Crusher
| Impact Crusher | Cone Crusher |
 |  |  |
Grinding Mill
| Ball Mill | Mobile Crusher Plant |
20 national service mileage:
Service mileage for local customers to provide equipment installation, commissioning and after-sales service
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
