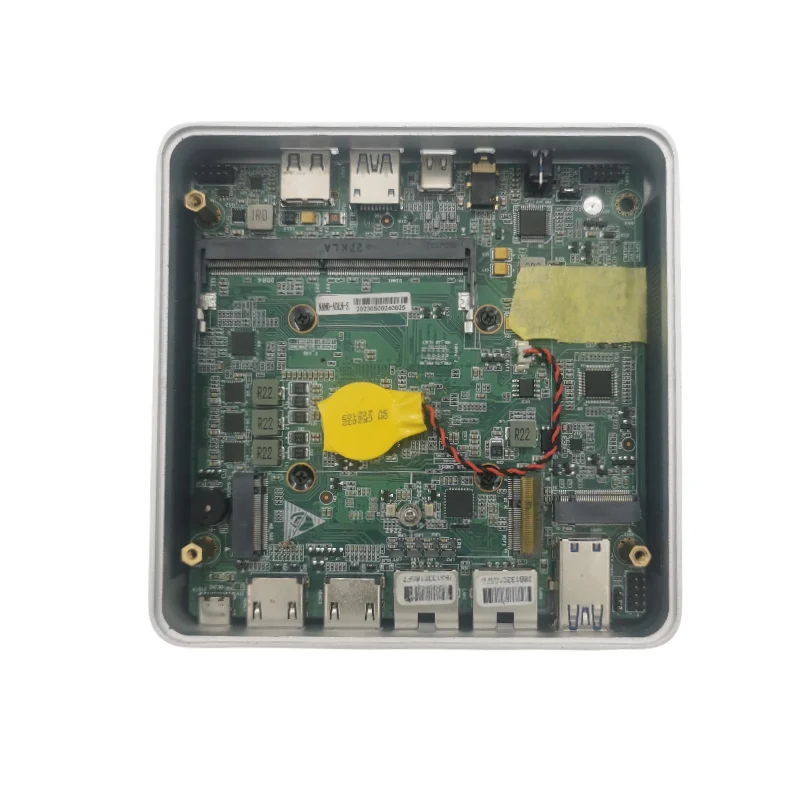

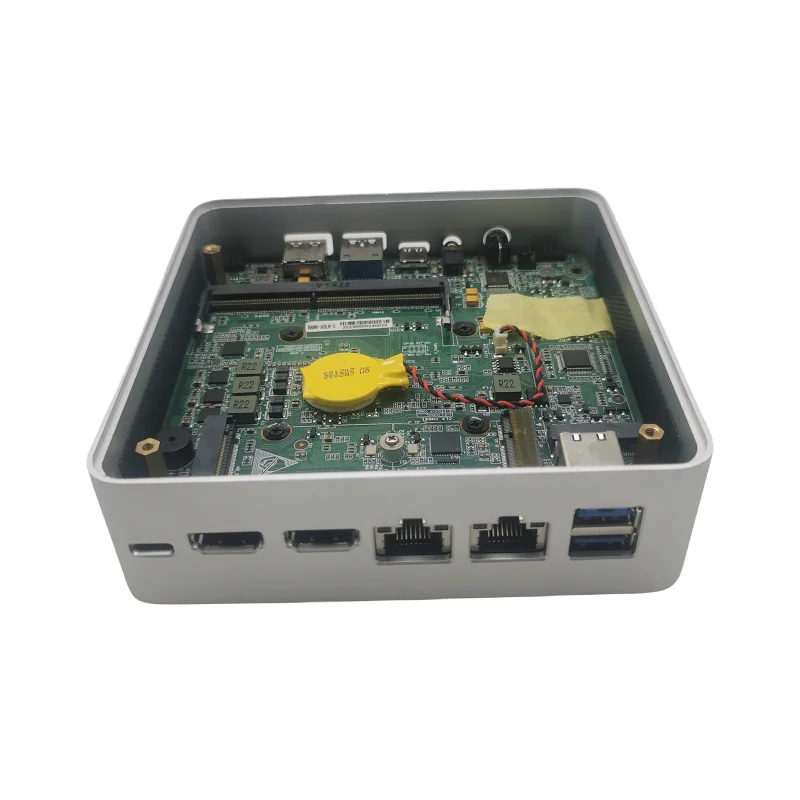

Armortec Mini PC Support for Intel Alder Lake N Series Processor HDMI,DDR4,TPM module,Type C

Model No.

NUC-ALN2H2L

Processor

Supports Intel® Alder Lake-N Series N97/N100/N200 optional processor

CPU Specification

N97

N100

N200

Total Cores

4

4

4

Total Threads

For mobile

4

4

Max Turbo Frequency

3.60 GHz

3.40 GHz

3.70 GHz

Cache

6 MB Intel® Smart Cache

6 MB Intel® Smart Cache

6 MB Intel® Smart Cache

TDP

12W

6W

6 W

RAM

1*DDR4 SO-DIMM, maximum support 16GB

Display

2*HDMI2.0, Intel® UHD Graphics, Max resolution support 4096X2160@60Hz, support DualView, DualApplication function

The internet

2*intel 226 2.G Gigabit Ethernet, support Wake on LAN, PXE function

Store

1*SATA, transmission speed can reach 6Gbps

1*M.2 Key M, support M.2 2242/2280 SATA/PCIE SSD

Expansion slot

1*M.2 Key B,support 2242 SATA SSD

1*Mini-PCIE (M.2 Key E) slot, support WIFI, BT module

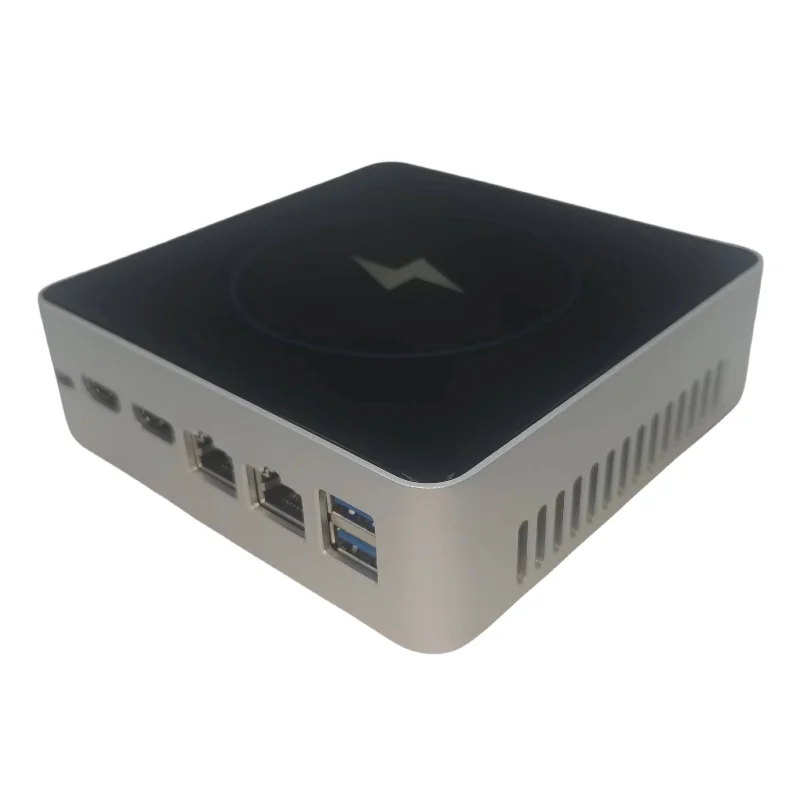

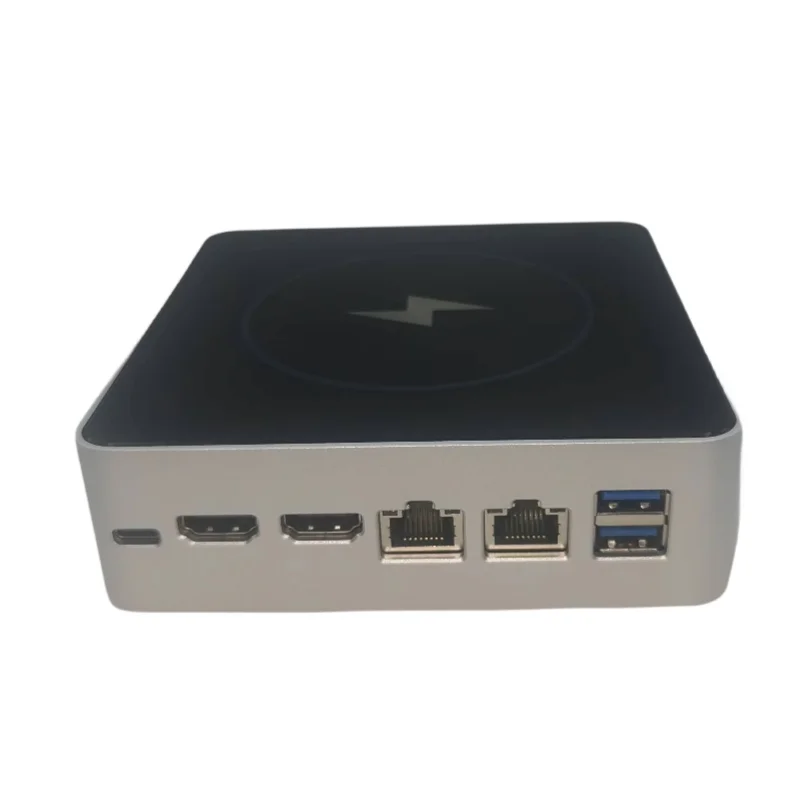

 Backplane I/O interface

2* RJ-45 Gigabit network interface

2* HDMI interface

2*USB3.0

1*DC_IN(TYPE-C interface),support 12~19V power supply

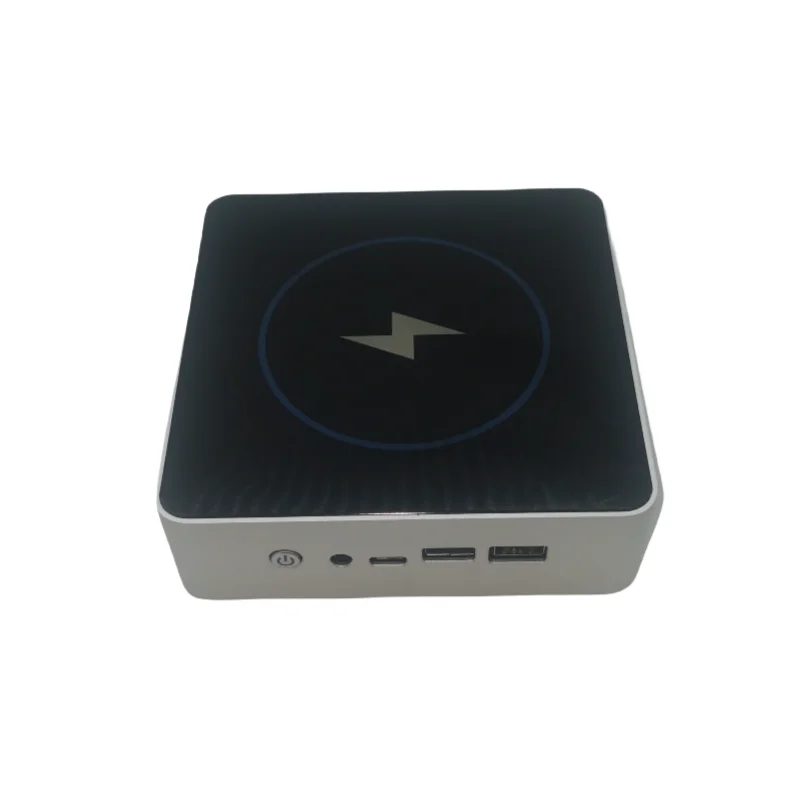

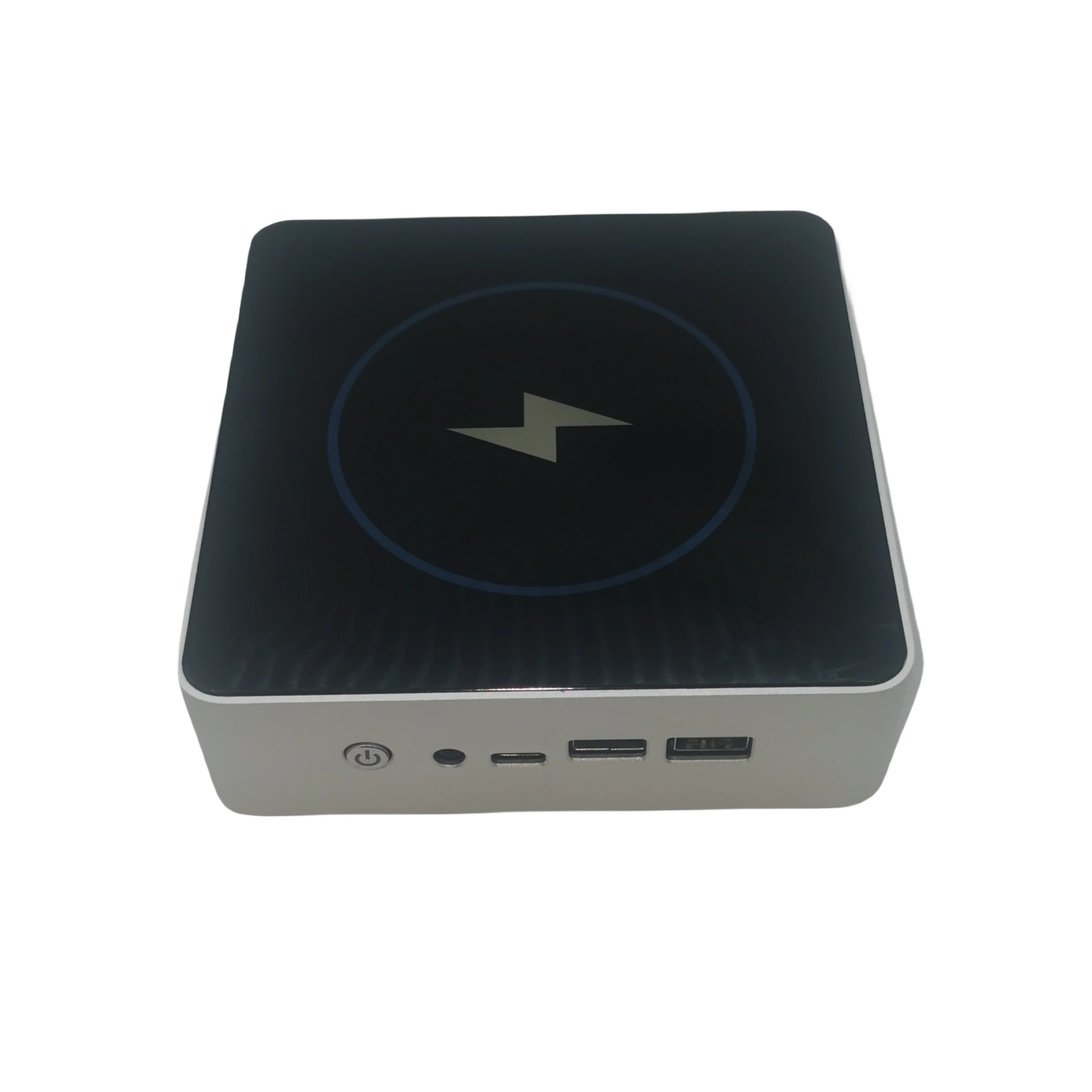

Frontplane I/O interface

1*power button (LED Indicator optional)

1*earphone/MIC in one

1*USB3.0,1*USB2.0

1*TYPE-C support USB3.1 and DP

 Built-in I/O Pin

1*F_Panel

1*F_USB2.0 interface, can be extended to 2*USB2.0

1*AUTO_ON interface

1*CPU_FAN 4pin interface

1*CLR CMOS

OS

windows10/11/Linux

GPIO

N/A

BIOS

AMI UEFI BIOS

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

12~19V power supply DC

Operating temperature

-10℃~70℃

Cooling

Fan optional

Storage temperature

-20℃~70℃

Motherboard Dimension

120*120mm

Working humidity

5%-95% relative humidity, non-condensing

Size
