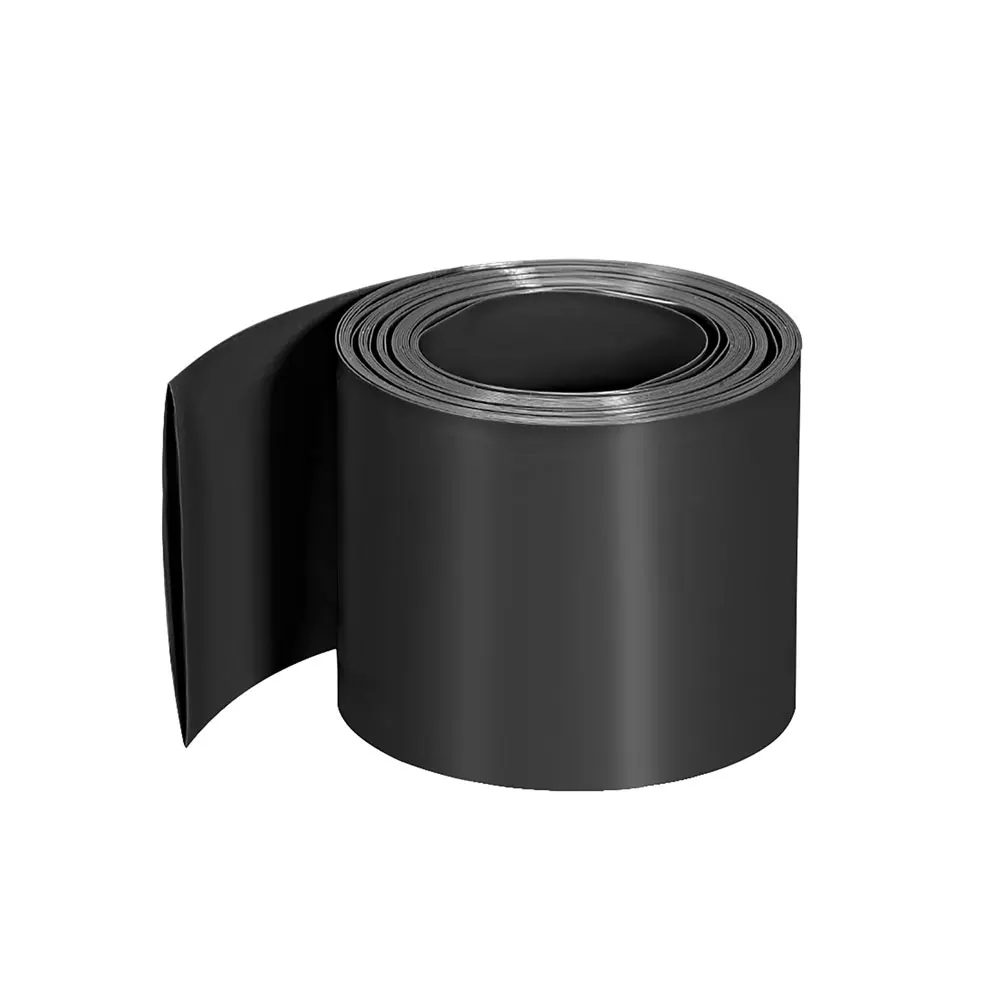

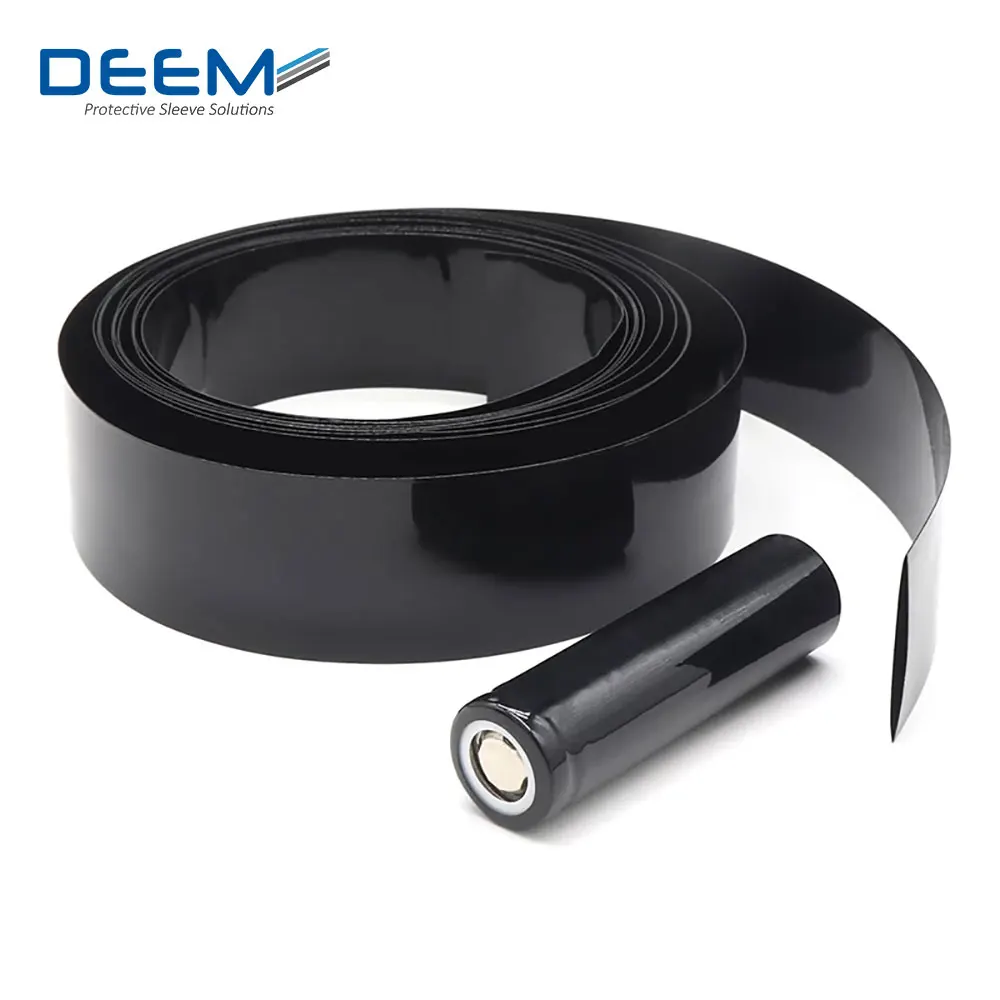

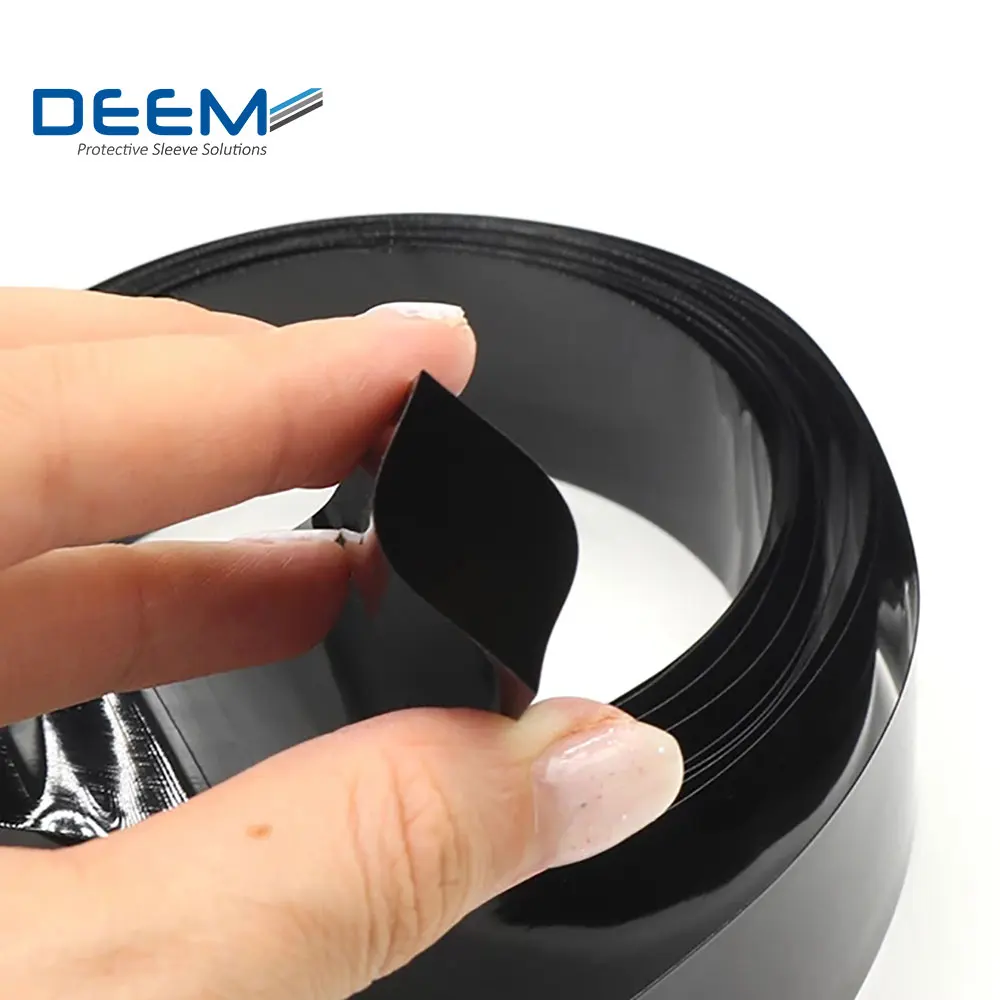

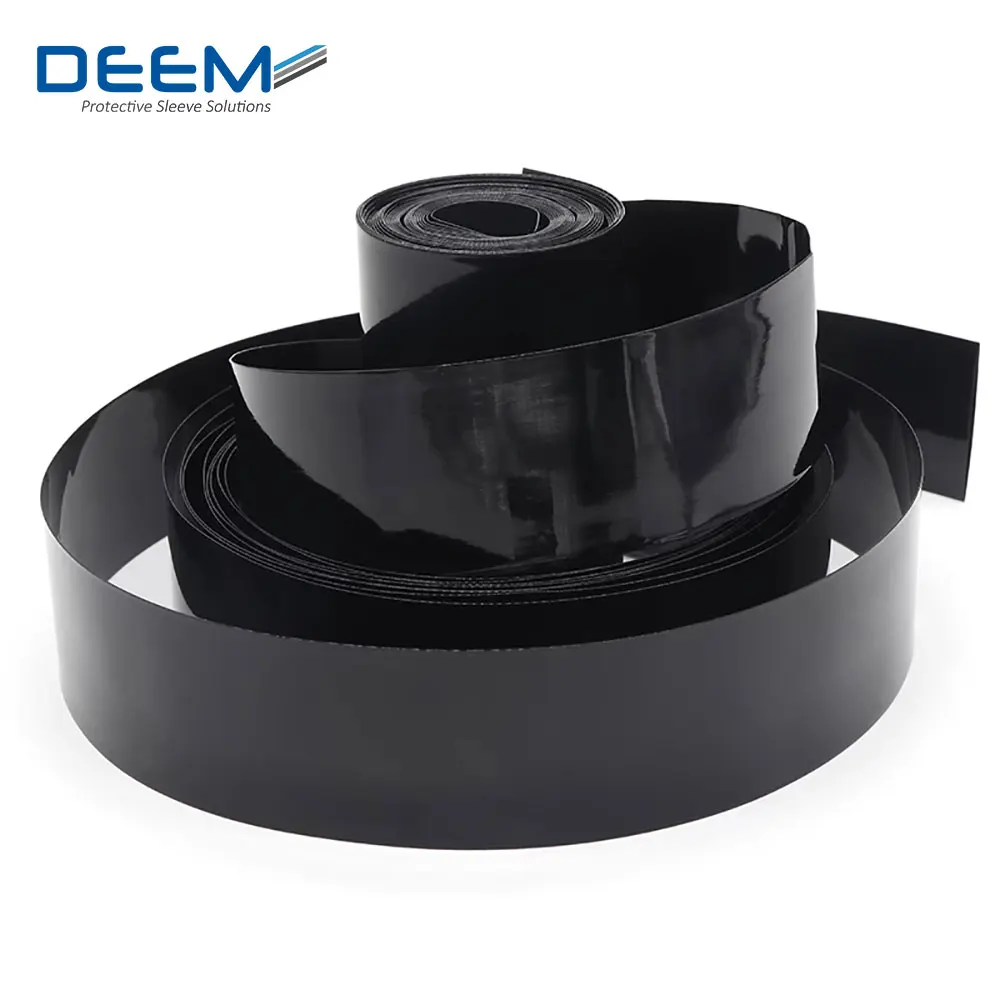

DEEM Customized size pvc flexible heat shrink tubing for battery jacketing shrink sleeve

Product Overview

Description

Technical Data



Property		Test Method	Values
Working temperature		-	-20°C to +85°C
Longitudinal change		-	- 10% maxi
Tensile strength	Unaged	ASTM D 638	≥ 10 MPa
Elongation at break			≥ 42%
Heat resistance	1000h @ 105°C	-	No crack
Dielectric strength		ASTM D 149	≥ 15 kV/mm
Volume resistivity		ASTM D 257	≥ 10 14 Ω.cm
Water absorption		ASTM D 570	≤ 2,0%

Dimensions

 These parts can be tailor-made to each customer’s application.
• Flat width: 5 to 150 mm
• Thickness: 40 to 200 microns
• Finish: Shiny, matt or satin
• Spools as standard, cut pieces available on request
