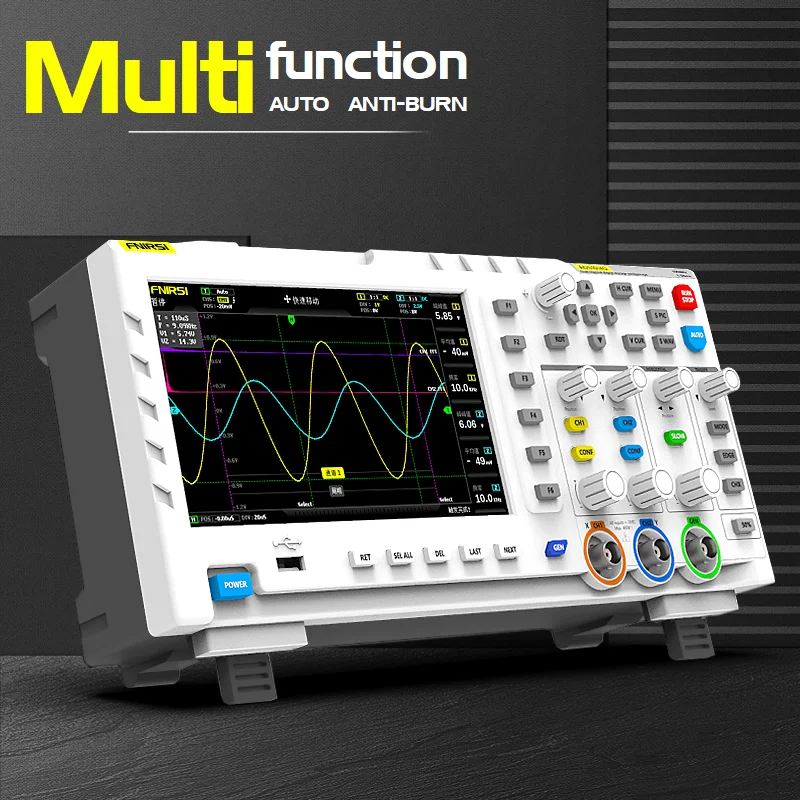

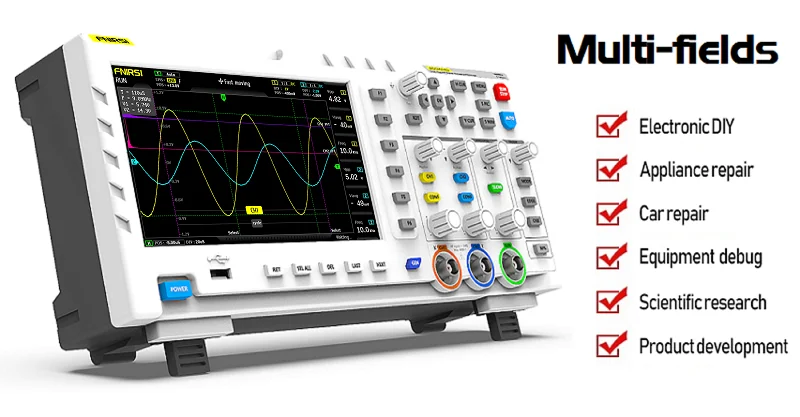

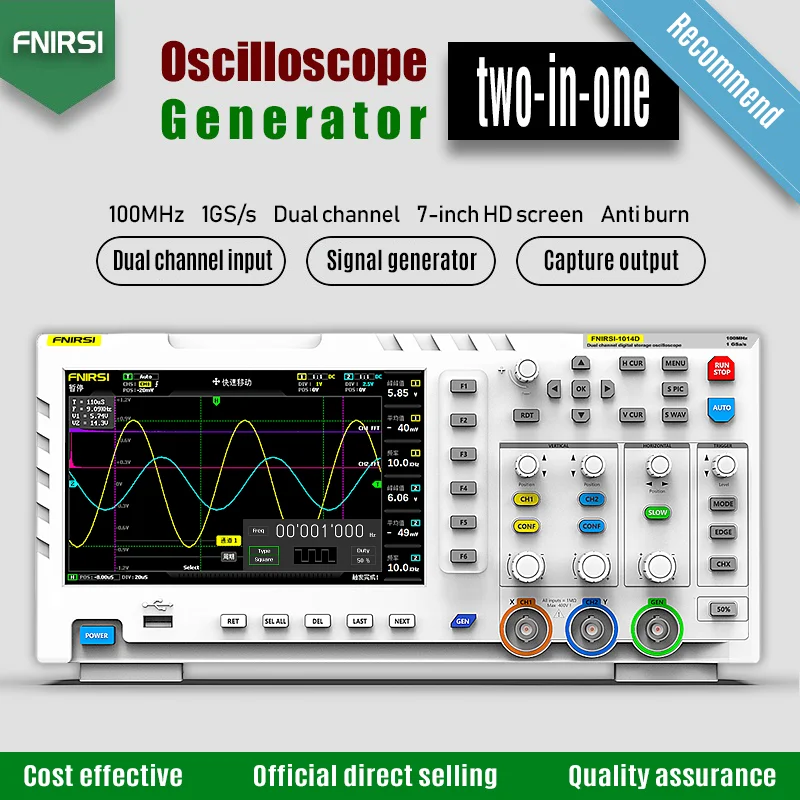

Portable Digital Storage FNIRSI 1014D Oscilloscope 2 in 1 Dual Channel Ana log Bandwidth 1GSa/s Sampling Rate
- Category: >>>
- Supplier: Chengdu Xinchangrong Technology Co. Ltd.
Share on (1600933861844):
Product Overview
Description
Product Description
Key features:
1：Built in DDS signal generator, support 12 kinds of function signal
2：Industry's original 【Capture output signal】 function，can store up to 1000 capture signals
3：Targeted high intelligent decoding algorithm, the encoder life is infinite

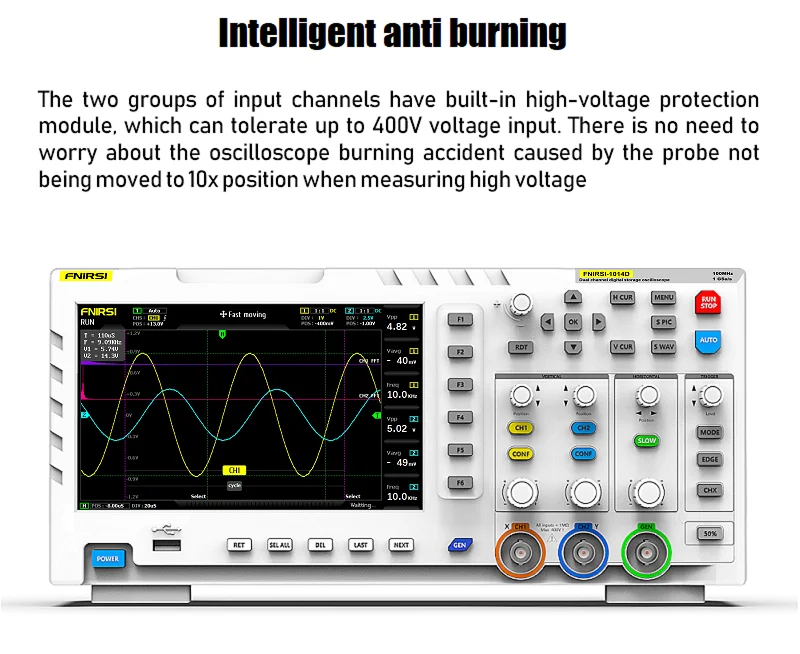

4：Intelligent anti-burn，1X Can withstand up to 400V withstand voltage
5：100MHz analog bandwidth @ 1GSa/s sampling rate（1X = 5MHz，10X = 100MHz）
6：Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
7：High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V，100X can measure 0 ~ 4000V
8：Up to 12 parameters measurement：VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period

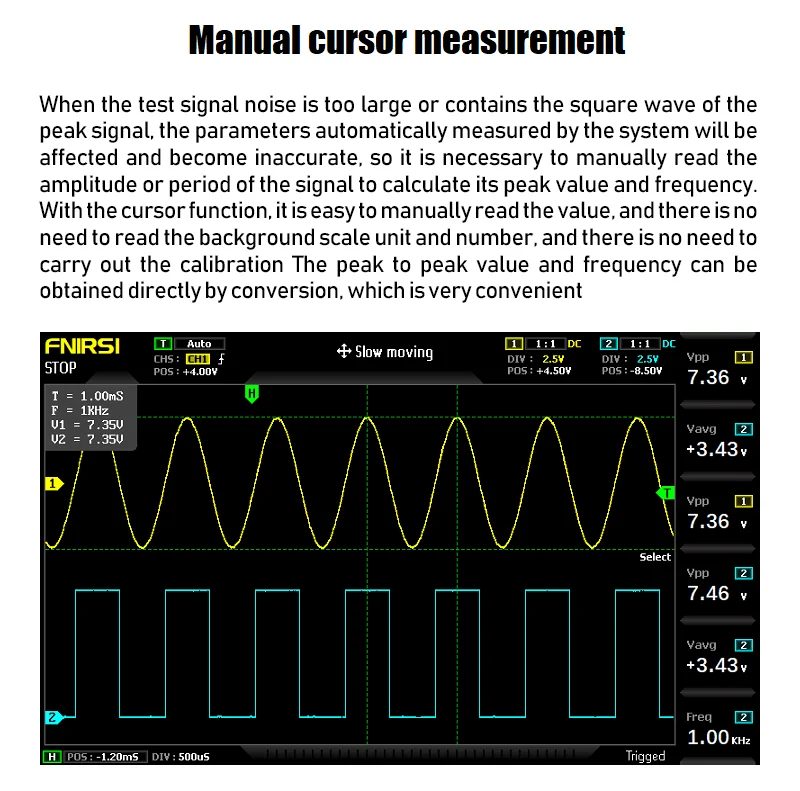

9：Cursor measurement function, it is convenient to manually measure the period and frequency and voltage

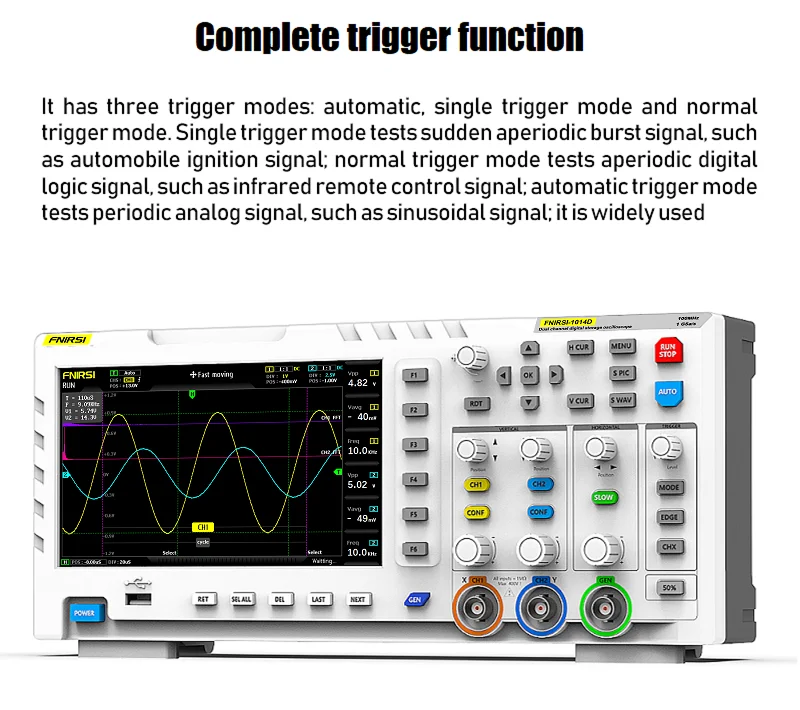

10：Complete triggering function (single, normal, automatic)
11：At any time, the waveform display (pause function) is frozen

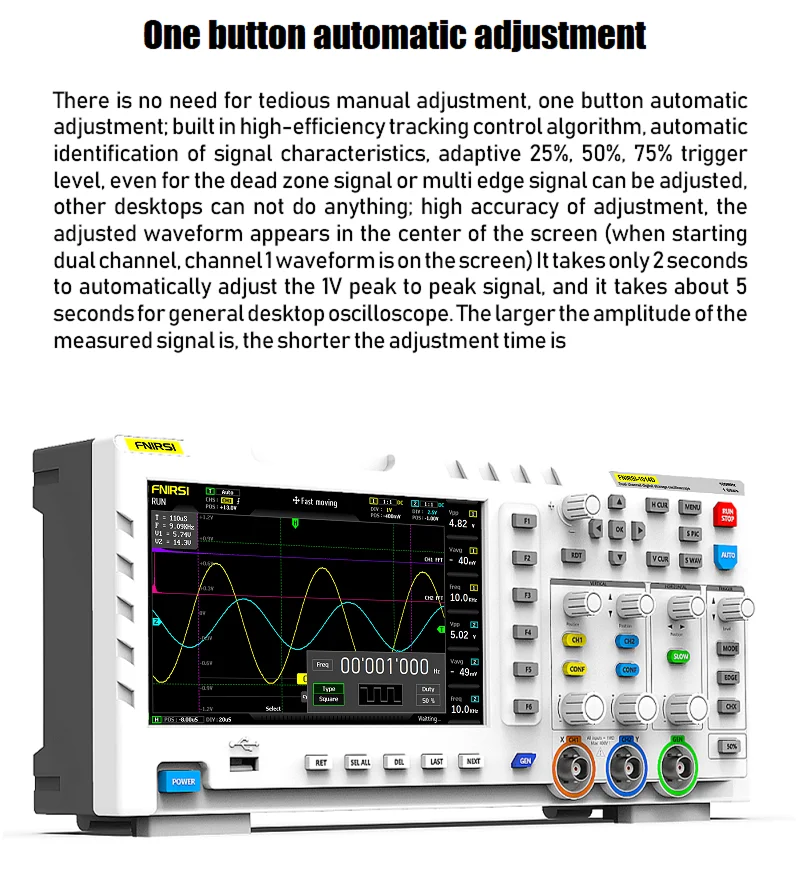

12：Equipped with high efficiency One-button AUTO

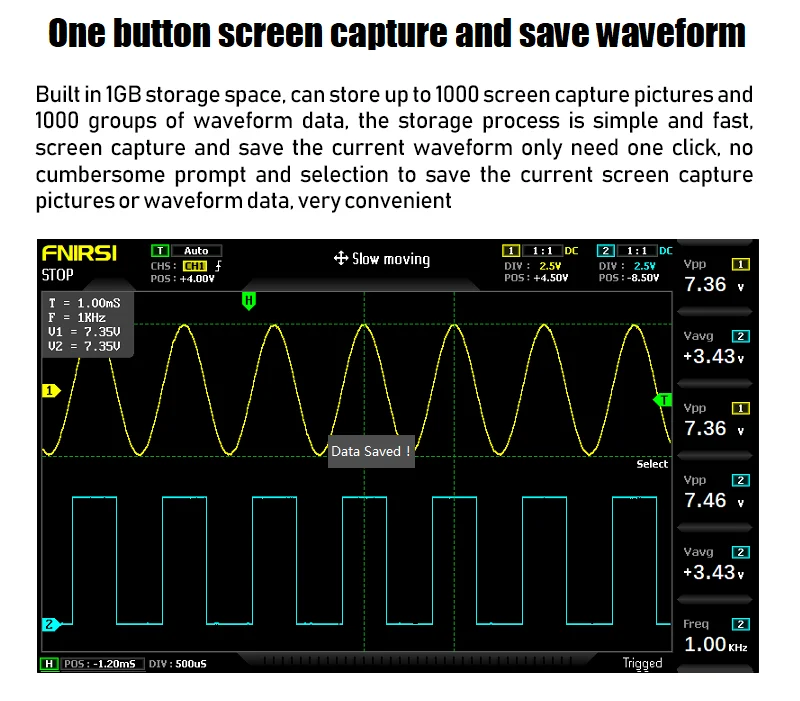

13：One-button waveform storage and screenshot
14：Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

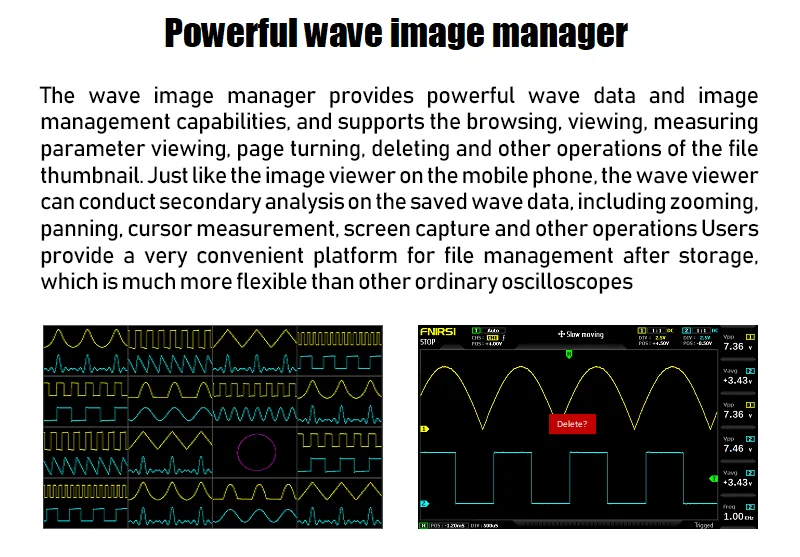

15：Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

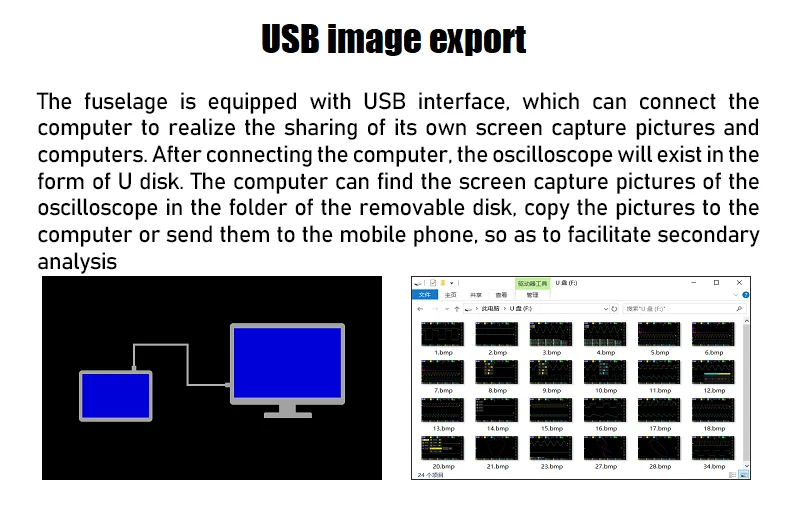

16：Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis

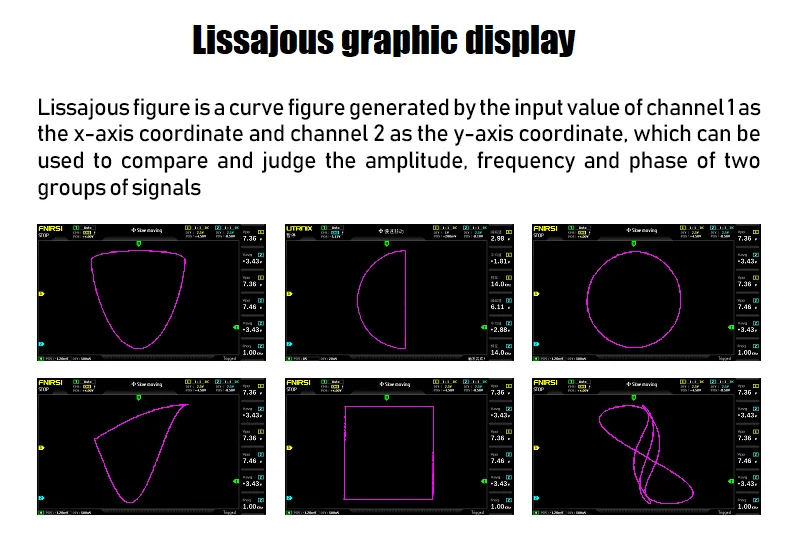

17：Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
18：FFT display function, can analyze the spectral characteristics of the signal
19：Memory compression technology, waveform refresh screen does not flicker
20：Screen brightness adjustment
21：Background grid brightness adjustment

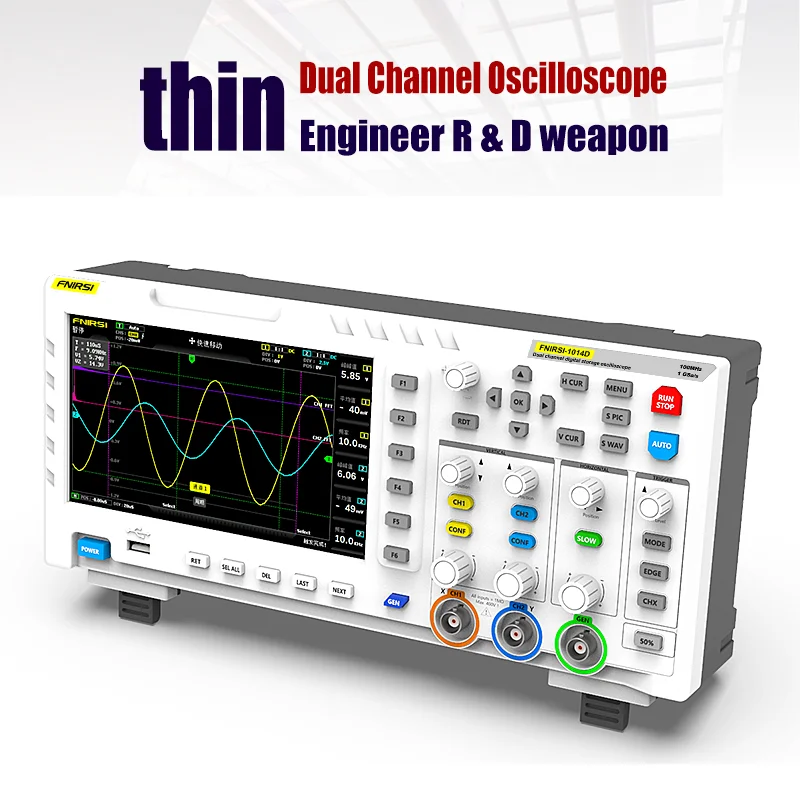

22：Ultra thin, easy to carry
1：Built in DDS signal generator, support 12 kinds of function signal
2：Industry's original 【Capture output signal】 function，can store up to 1000 capture signals
3：Targeted high intelligent decoding algorithm, the encoder life is infinite
4：Intelligent anti-burn，1X Can withstand up to 400V withstand voltage
5：100MHz analog bandwidth @ 1GSa/s sampling rate（1X = 5MHz，10X = 100MHz）
6：Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
7：High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V，100X can measure 0 ~ 4000V
8：Up to 12 parameters measurement：VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period
9：Cursor measurement function, it is convenient to manually measure the period and frequency and voltage
10：Complete triggering function (single, normal, automatic)
11：At any time, the waveform display (pause function) is frozen
12：Equipped with high efficiency One-button AUTO
13：One-button waveform storage and screenshot
14：Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
15：Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
16：Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
17：Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
18：FFT display function, can analyze the spectral characteristics of the signal
19：Memory compression technology, waveform refresh screen does not flicker
20：Screen brightness adjustment
21：Background grid brightness adjustment
22：Ultra thin, easy to carry
Specification
Full Set
Full Set With European standard conversion plug
Specifications:
1：Analog band width: 100MHz * 2

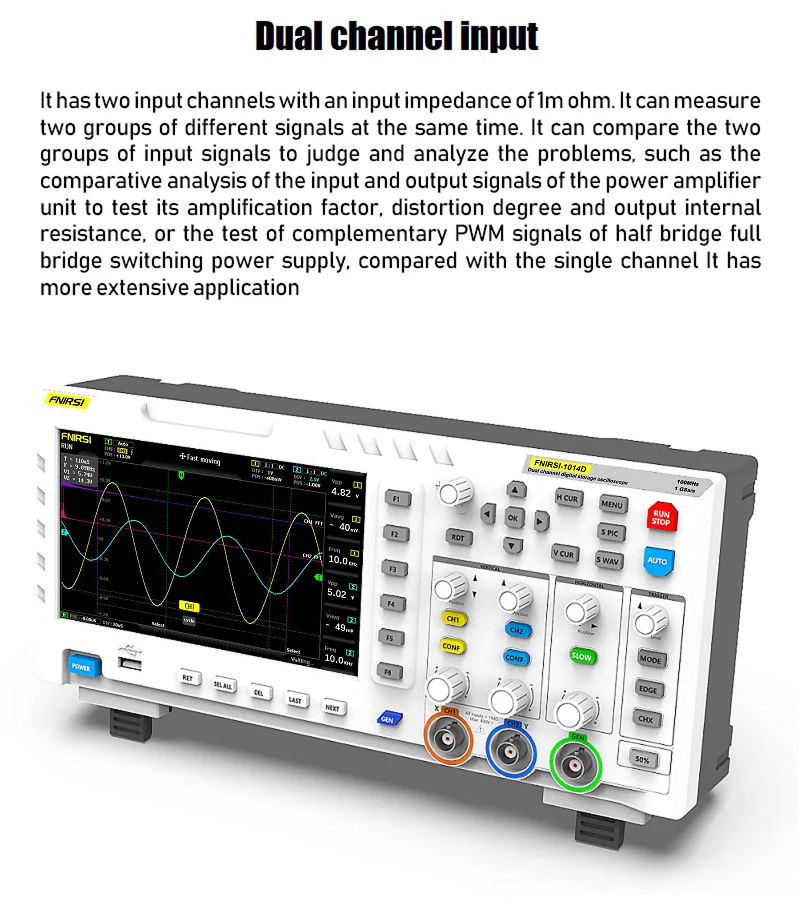

2：Number of channels：2 channels
3：Maximum real time sampling rate: 1GSa/s
4：Vertical sensitivity: 50 mV/div ~ 500 V/div
5：Horizontal time base range: 50S/div ~ 10nS/div
6：Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
7：Storage depth: 240Kbit
8：Input resistance: 1MΩ
9：ADC precision: 8bits
10：Coupling mode: AC/DC
11：Trigger mode: Single, Normal, Auto
12：Trigger edge: Rising edge/Falling edge
13：External trigger voltage 0 – 40 V
14：Display: 7 inch - 800*480
16：Extension ports：USB picture export
18：Size: 340mm x 140mm x 70mm
19：Body weight: 1.5kg
1：Analog band width: 100MHz * 2
2：Number of channels：2 channels
3：Maximum real time sampling rate: 1GSa/s
4：Vertical sensitivity: 50 mV/div ~ 500 V/div
5：Horizontal time base range: 50S/div ~ 10nS/div
6：Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
7：Storage depth: 240Kbit
8：Input resistance: 1MΩ
9：ADC precision: 8bits
10：Coupling mode: AC/DC
11：Trigger mode: Single, Normal, Auto
12：Trigger edge: Rising edge/Falling edge
13：External trigger voltage 0 – 40 V
14：Display: 7 inch - 800*480
16：Extension ports：USB picture export
18：Size: 340mm x 140mm x 70mm
19：Body weight: 1.5kg
Certifications
Packing & Delivery

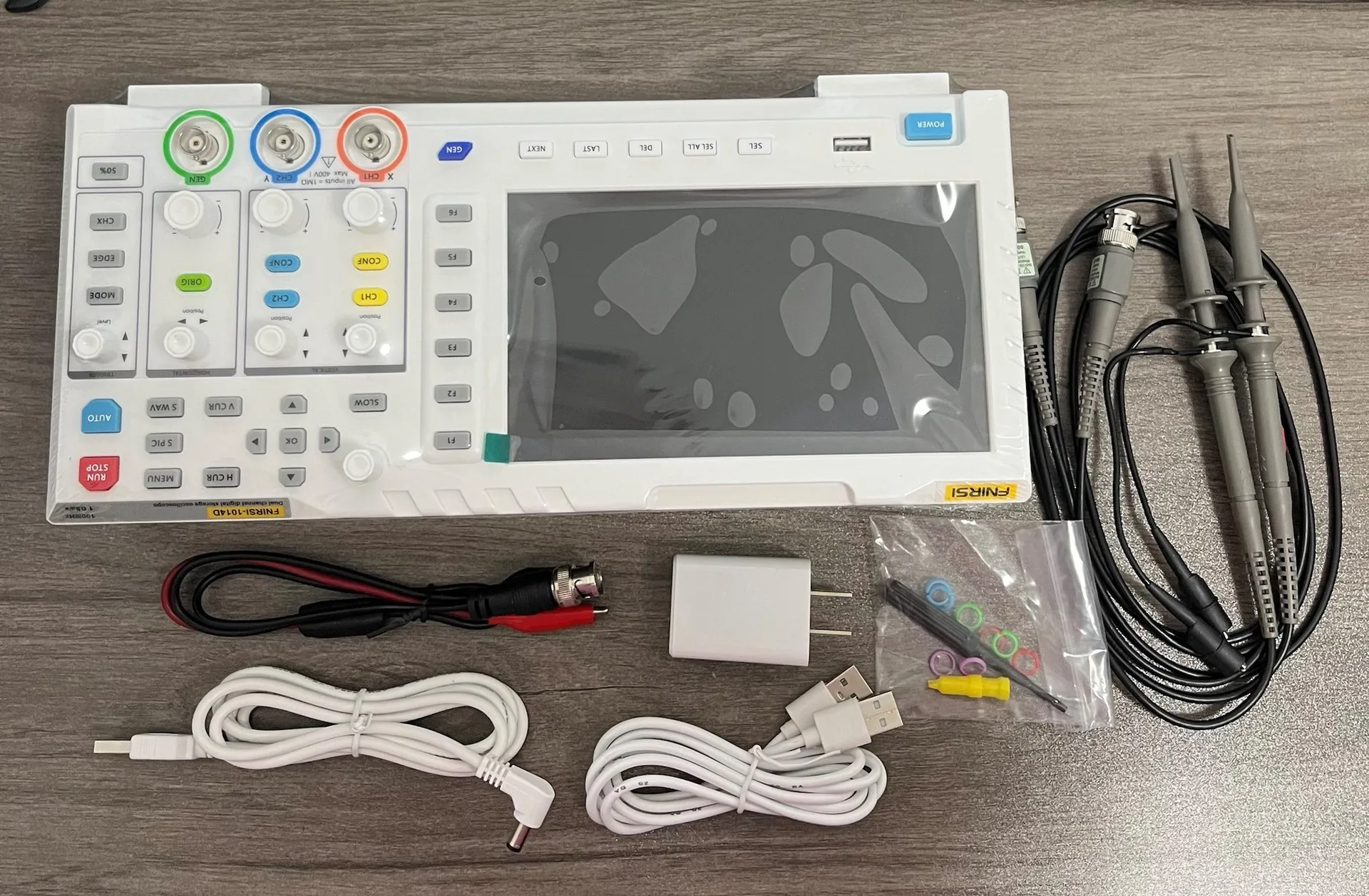

Package includes:
1 x FNIRSI-1014D oscilloscope host
2 x Matching 100MHz probe（1X and 10X）
1 x Crocodile clip
1 x 5V2A Power Adapter
1 x USB data line
1 x User manual (English)
1 x FNIRSI-1014D oscilloscope host
2 x Matching 100MHz probe（1X and 10X）
1 x Crocodile clip
1 x 5V2A Power Adapter
1 x USB data line
1 x User manual (English)
Standard sizes | single package | FCL specification |
quantity | 1 | 10 pcs |
Net weight | 16kg | |
Gross weight | 1.6kg | 17kg |
Size | 37x20x12.5cm | 65x39.5x42.5cm |
