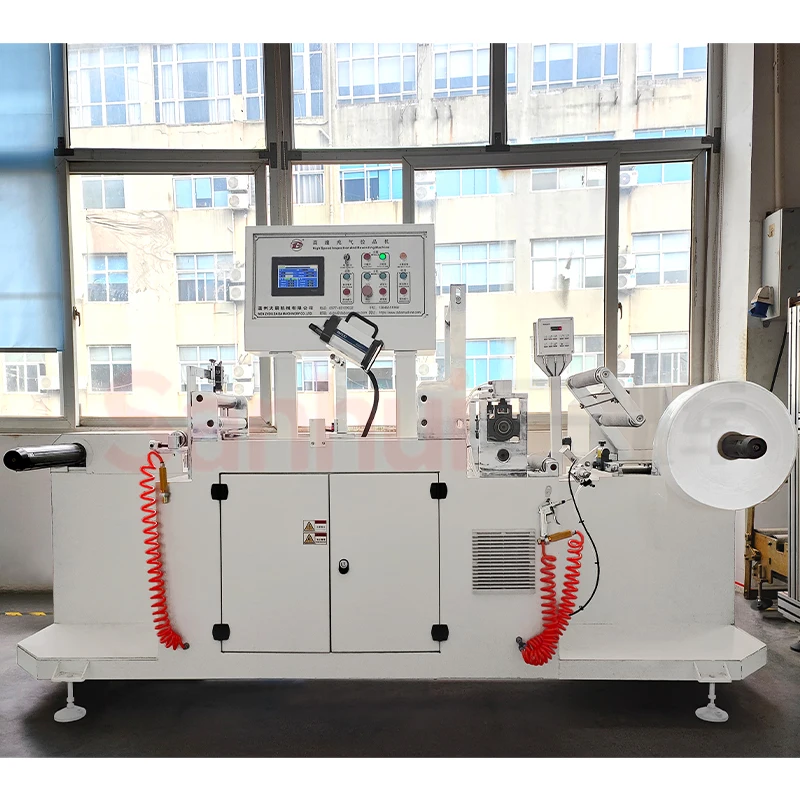

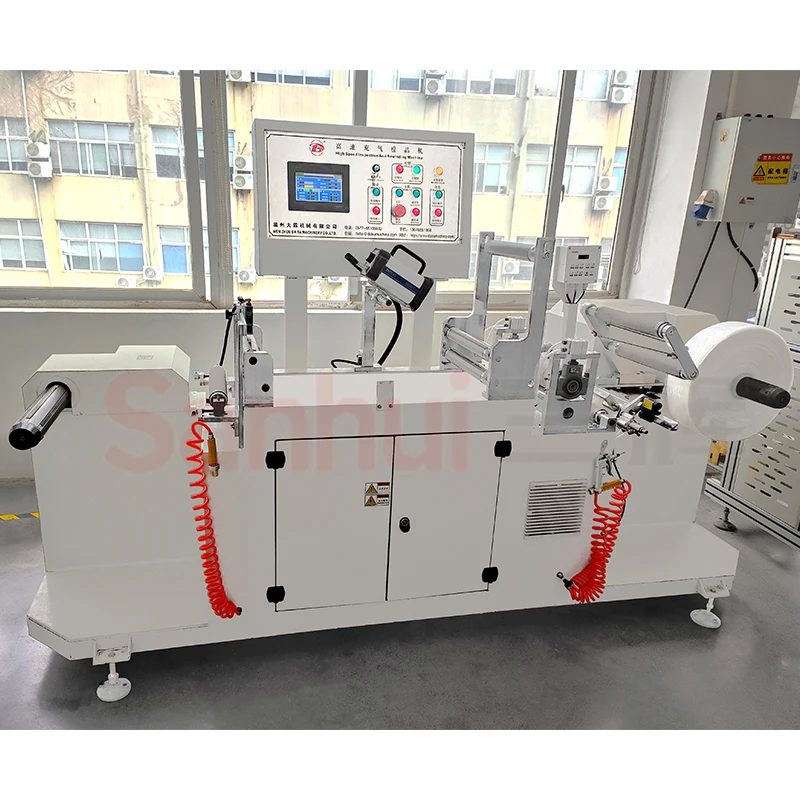

Automatic Roll to Roll Flexo Packing Label Inspection rewinding Machine Suitable for trimming and rewinding
- Category: >>>
- Supplier: Wenzhou Sanhui Machinery Manufacturing Co. Ltd.
Share on (1600933884267):
Product Overview
Description
Products Description
Introduction

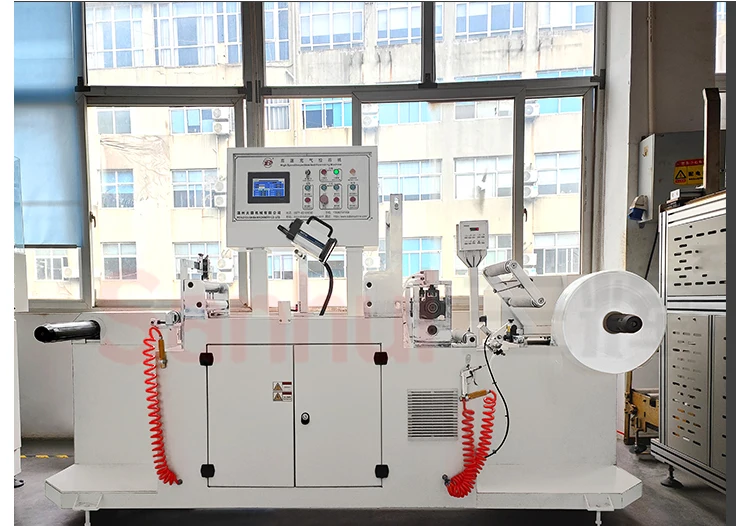

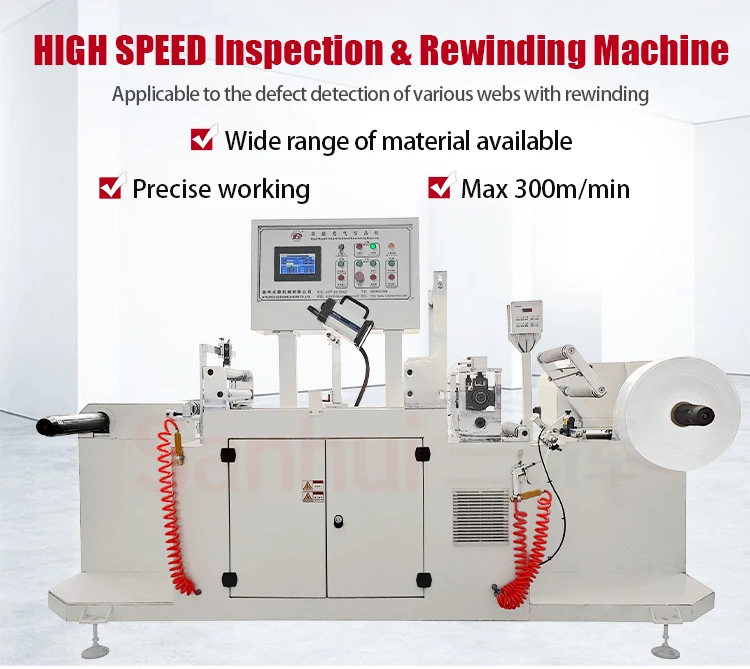

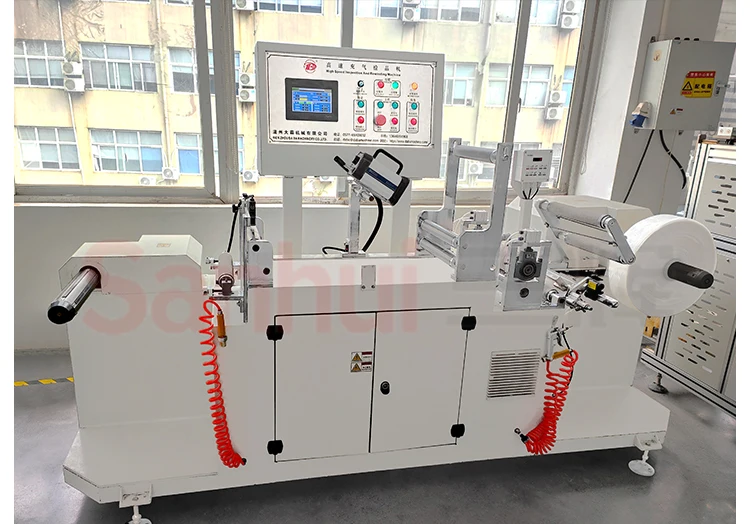

DBJP-350 High Speed Gravure Printed Label Inspection & Rewinding Machine is specialized in inspecting the sleeve tube seaming label whiched was sealed by the sleeve label sealing machine.Through the inspection & rewinding,we can check the sealing quality,printing quality etc.

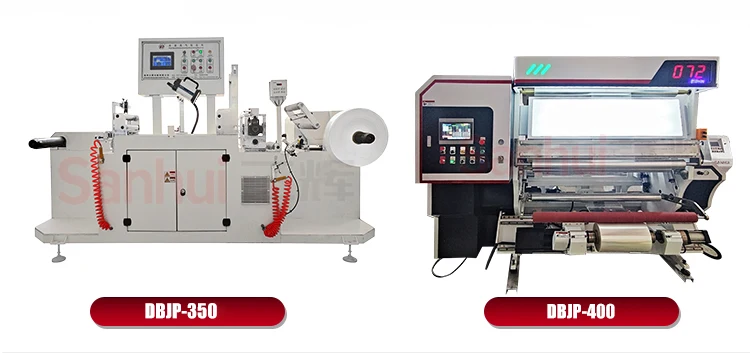

Machine Model | DBJP-350 | DBJP400 | ||||||
Max.unwinding width | 300mm | 1100mm | 1300mm | 1600mm | 1800mm | |||
Max. Unwinding dia | Φ750mm | Φ800mm | ||||||
Max.inspection speed | 300m/min | 10-400m/min | ||||||
Max.rewinding width | 300mm | 1100mm | 1300mm | 1600mm | 1800mm | |||
Max. Rewinding dia | Φ750mm | Φ800mm | ||||||

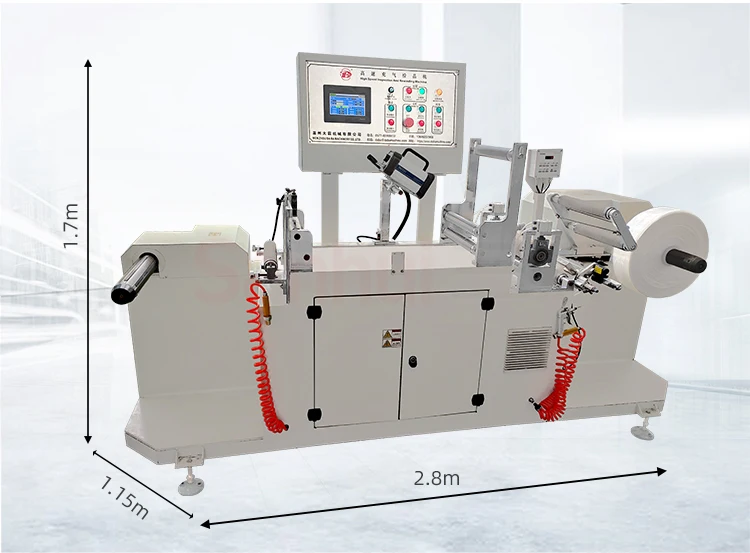

Machine size(L*W*H) | 2.8m*1.15m*1.7m | 2.0x3.3x1.6m | 2.0x3.5x1.6m | 2.0x3.8x1.6m | 2.0x4.1x1.6m | |||
Machine weight | 400kg | 3200kg | 3400kg | 3600kg | 3800kg | |||

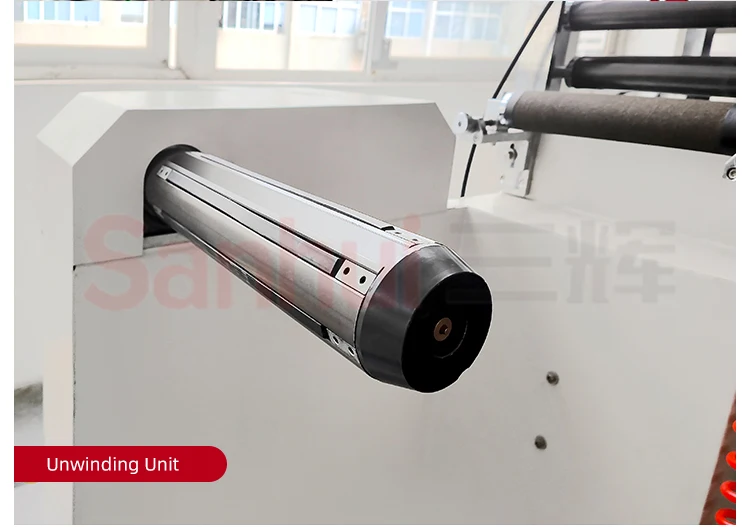

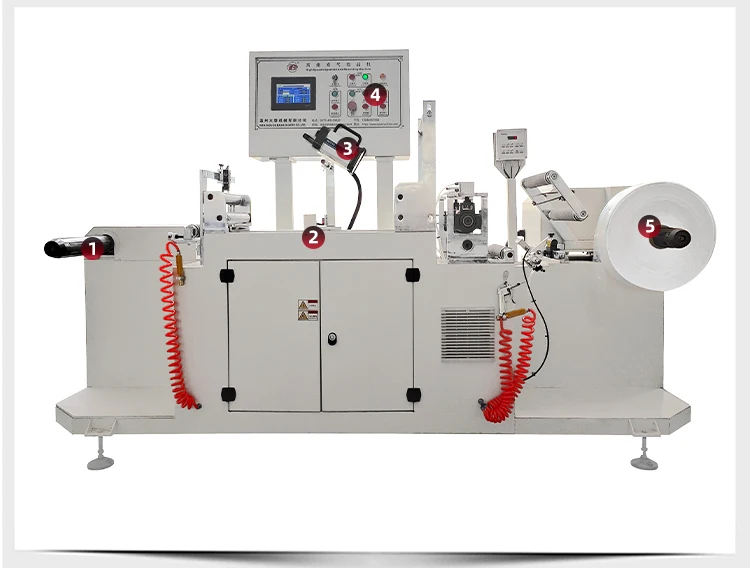

① Unwinding Unit

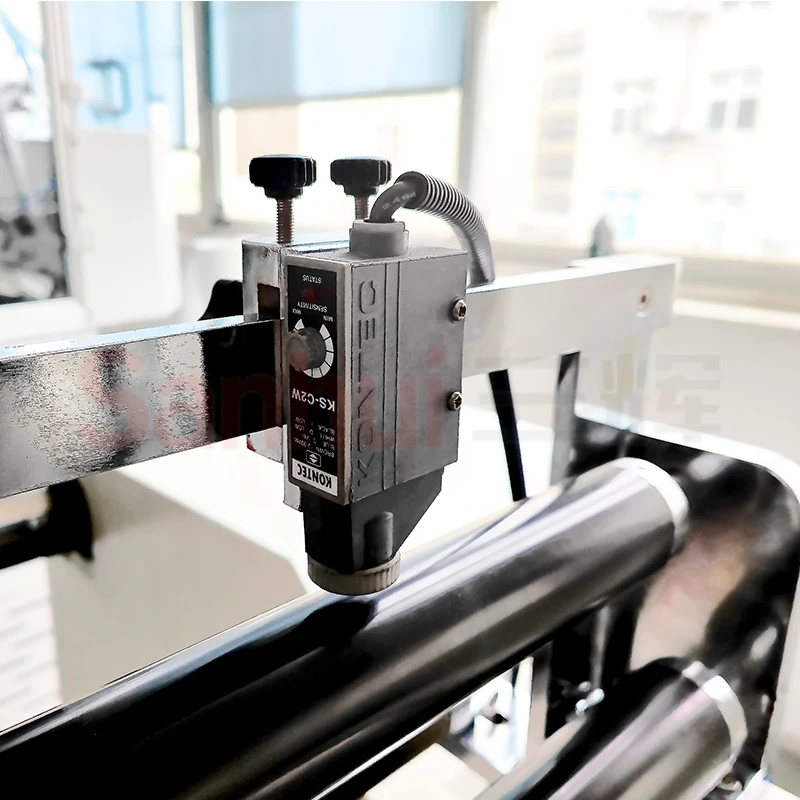

② Detection sensor
③ Stroboscope
④ Control Panel
⑤ Rewinding Unit
a. 3inch airshaft

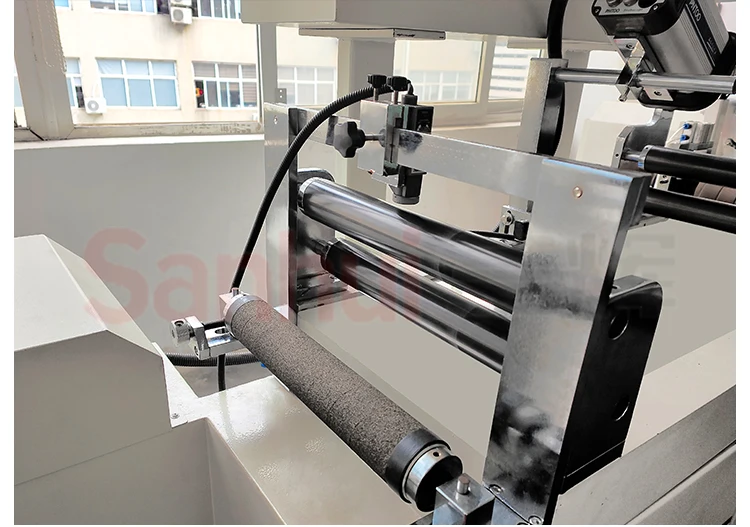

c.Edge Position Controlling System
d.Automatic Unwinding tension controlling system
c.Edge Position Controlling System
d.Automatic Unwinding tension controlling system

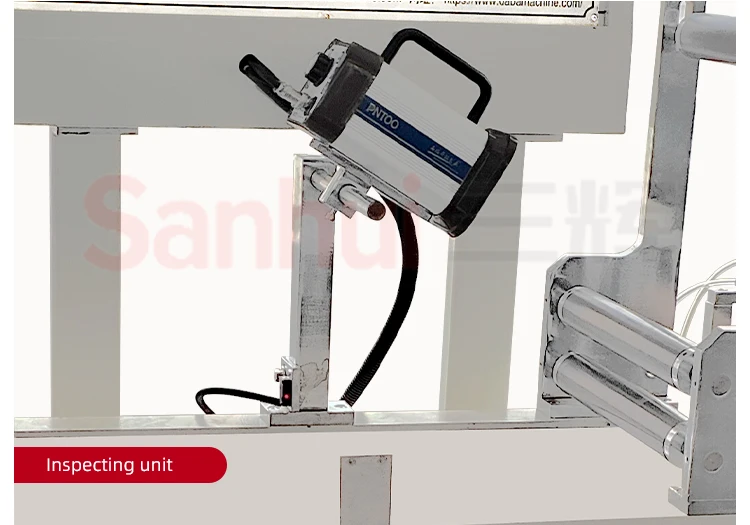

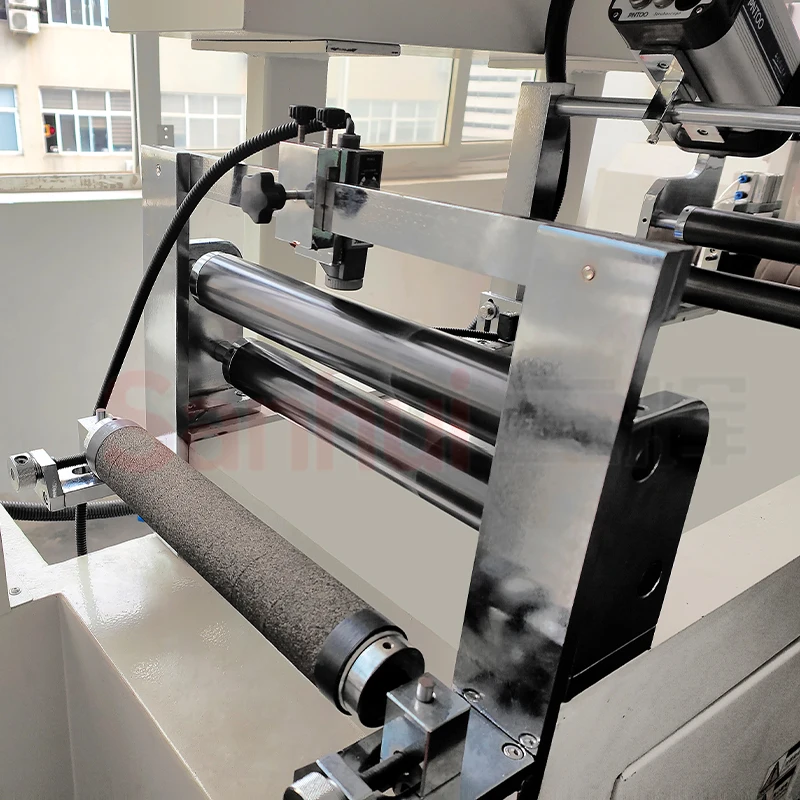

a.Inspecting by air.
b.Flash light for inspection keeping the same speed with machine
c.Air out ,machine stop automaticly.
d.Working table is optional.
b.Flash light for inspection keeping the same speed with machine
c.Air out ,machine stop automaticly.
d.Working table is optional.

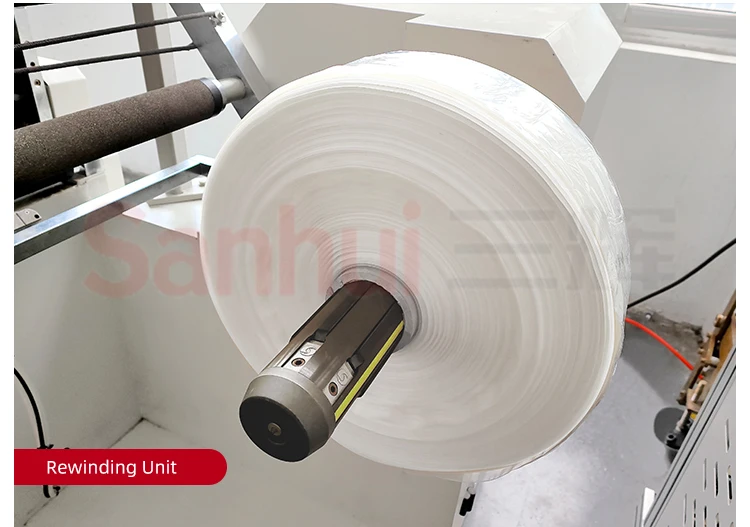

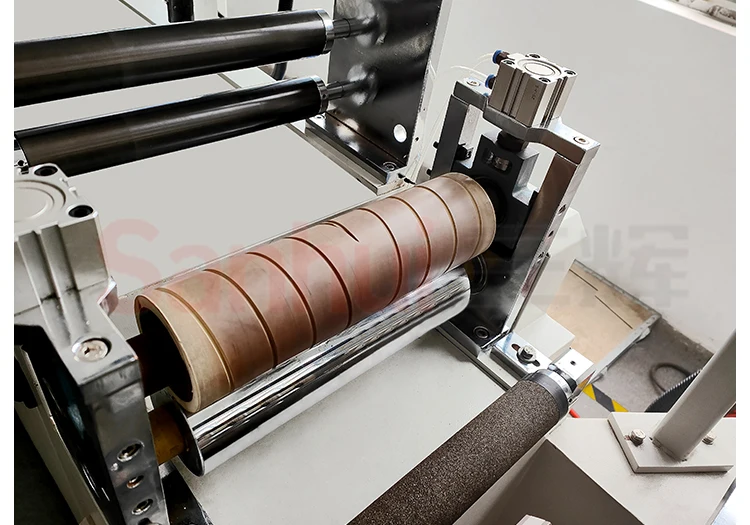

Rewinding Unit
a.3inch airshaft
b. Automatic Rewinding tension controlling system
b. Automatic Rewinding tension controlling system
