Многослойная машина для производства воздушных пузырей
- Category: >>>
- Supplier: Guangdong Zhongrui Plastic Machinery Technology Co. Ltd.
Share on (1600933898853):
Product Overview
Description
Product Overview

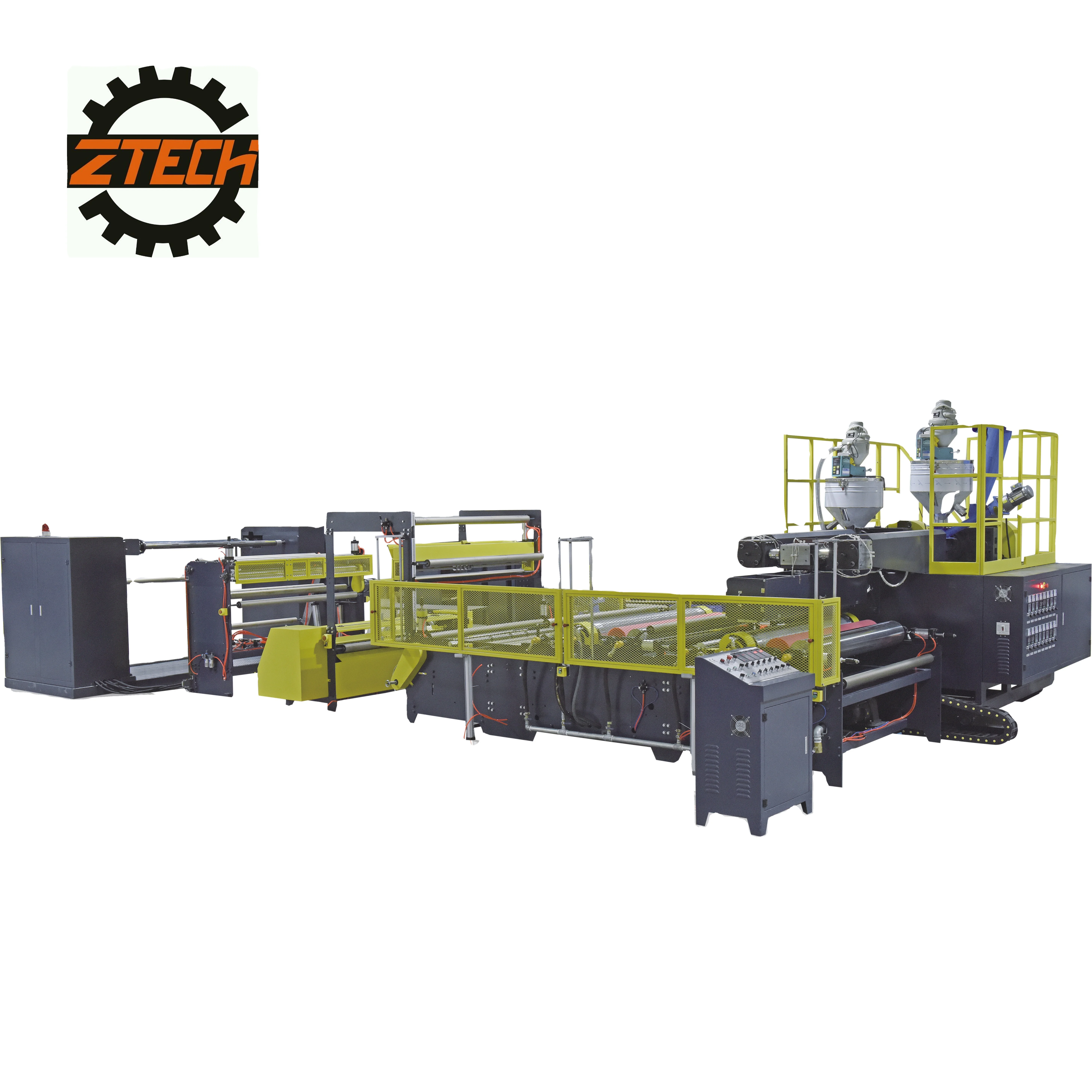

2 Layers PE Air Bubble Film Machinery (Twin-Screw Design)

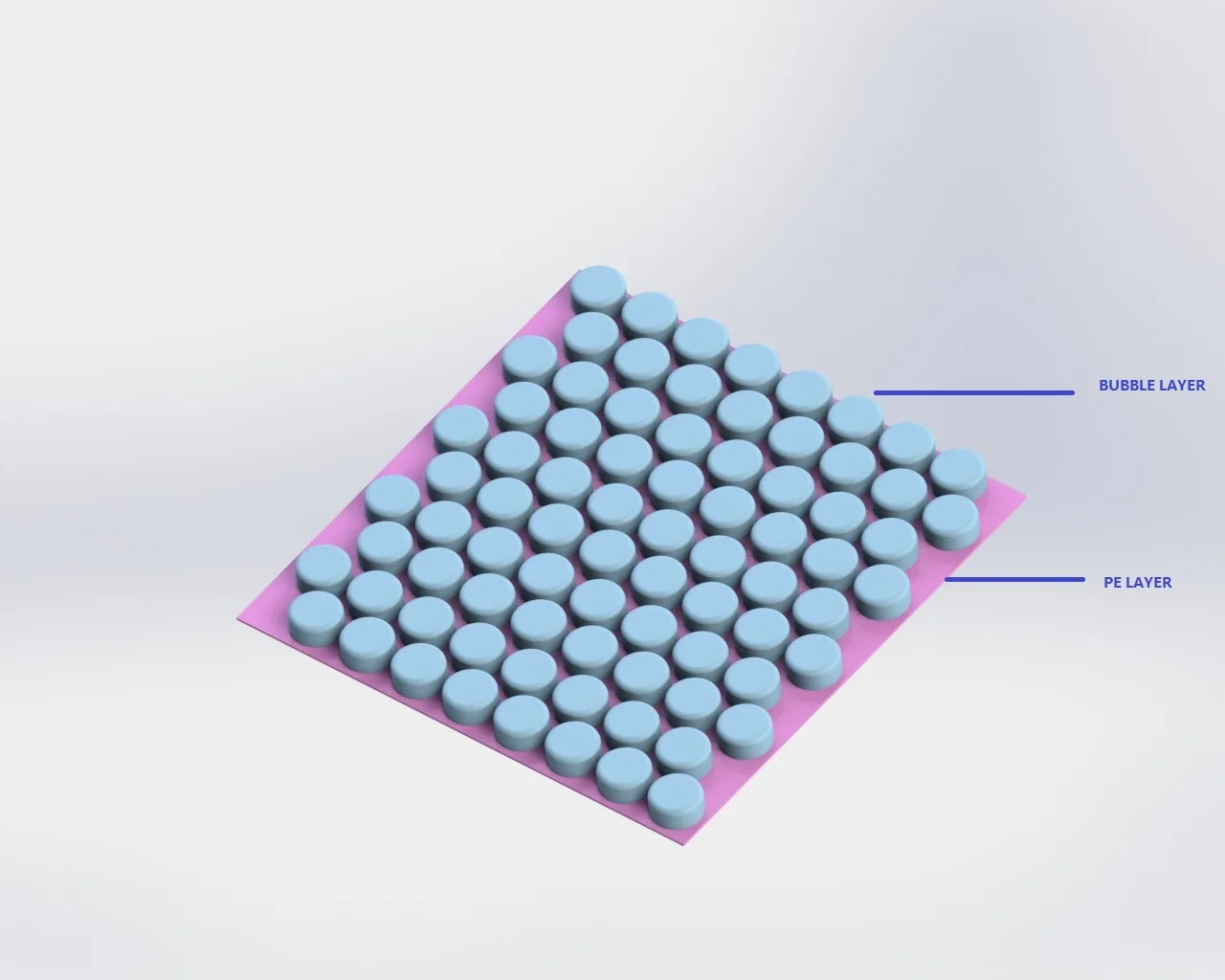

To produc 2 layers air bubble film(Bubble Layer + PE Layer)
Each layer can be separately controlled and with different material and different formula and color
Each layer can be separately controlled and with different material and different formula and color
FEATURES AT A GLANCE
2 Layers PE Air Bubble Film Machinery (Twin-Screw Design)
Maximum Line Speed 40 meters/minute
Special machine Maximum Line Speed 50 meters/minute
Special machine Maximum Line Speed 50 meters/minute

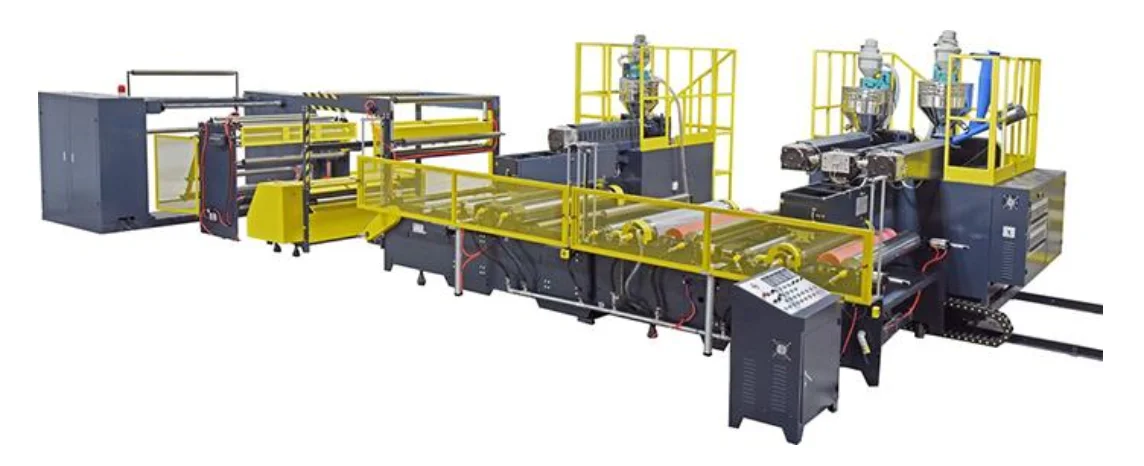

3 layers bubble film type

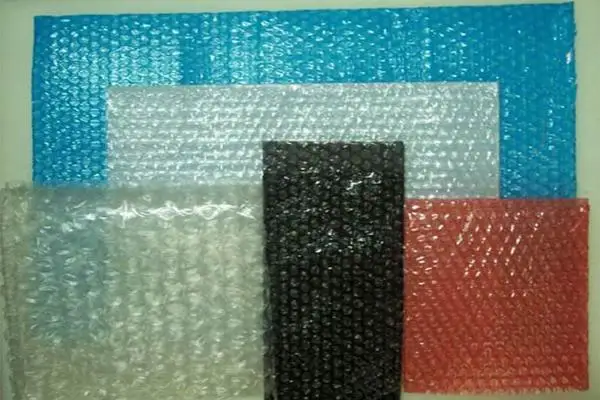

Product

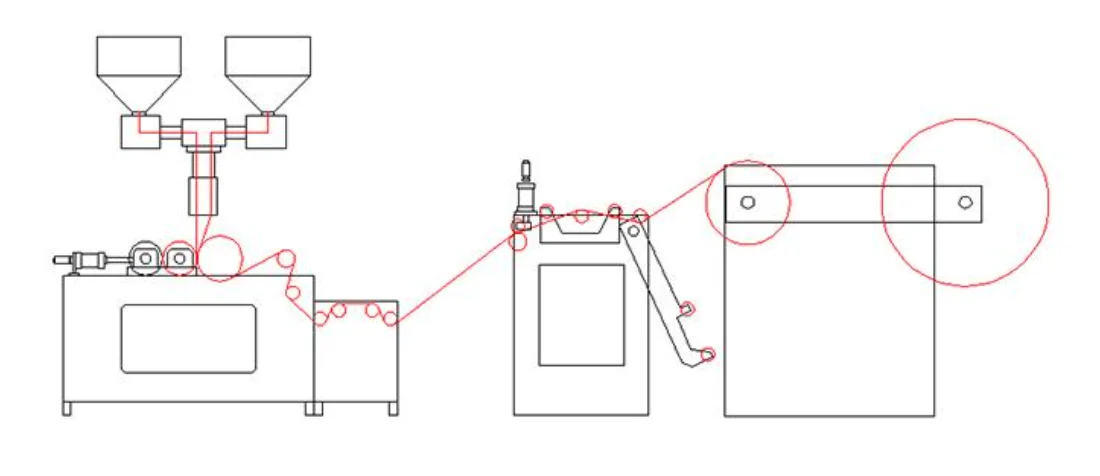

flow chart
PRODUCT SPECIFICATIONS
Item | Details |
Raw Material | Low density polyethylene / linear low density polyethylene / recycled material |
Maximum width (mm) | 1530 |
Effective width (mm) | 1500 |
Speed (m/hr) | 800-2400 |
Production Capacity (kg) | 84-155 |
Range of film thickness (g/m2) | 25-300 |
Screw diameter (mm) | 65-65 |
Screw length diameter ratio | 32:1 |
Temperature Control Region | 16 |
Power of main motor | 18.5KW+18.5KW |
Power of vacuum pump | 2.2KW |
Maximum rewinding diameter | 1500mm (Can be customized upon requested) |
Power supply (volt) | 380V,50HZ,3 PHASES (Can be customized for different countries) |
Total Power (KW) | 118 |
Heating Power (KW) | 78 |
Effective Power (KW) | 35 |
Weight(kg) | 7600 |
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK

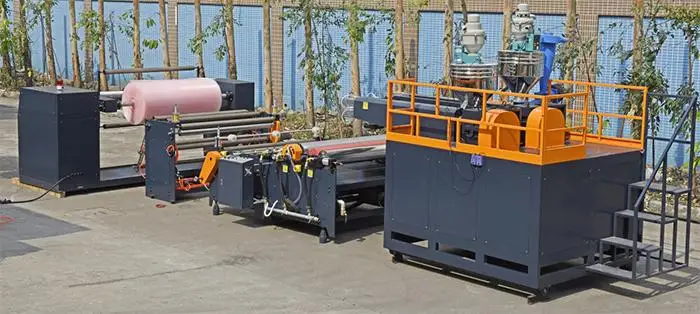

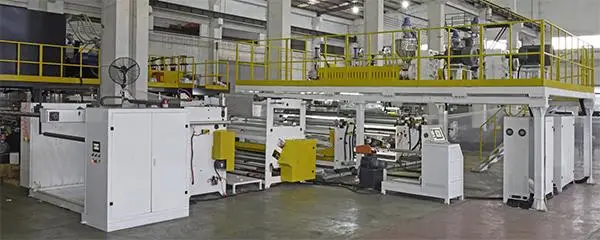

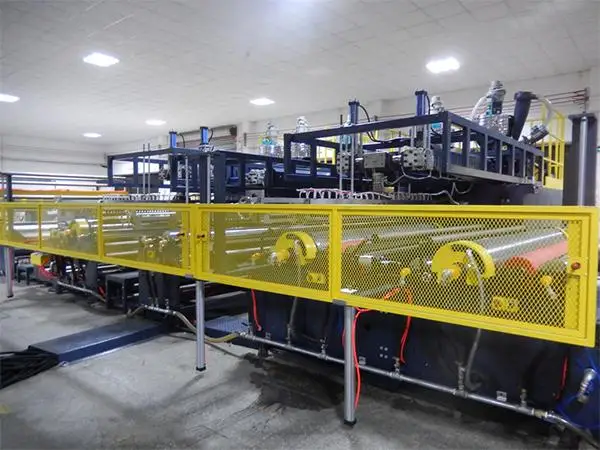

Successful Project
Project in Hungary
Project in Mexico
Project in America
SIMILAR PRODUCTS
FAQ
Q1: Are you trading company or manufacturer
We are the best air bubble film making machine factory at Guangdong China for more than 10years experiences,
machines have been sold out all over the world, and have ship out more than 50 machines to USA
Q2：How do you guarantee machine quality
Quality is our first priority, all our workers are well trained and many of them are have more than 10years experience
in the bubble film facotry,and we strictly follow the production procedures, all machine will be having a throughout
test, then can ship out to the customer
Q3：Why choose your company as supplier
Ztech have more than 10years experiences in making high standard and high quality bubble wrap film machines
Sronger structure and high speed machine max speed 40merter per mintues and special machine max. speed
50meter per mintues, more output
Machines have been sold out all over the world, and have ship out more than 50 machines to US
·Many our customer bought our first machine, then second on,then third one.... we grew up with each other and
that's the best partnership
Q4: How about installation, training and after service
Rich experienced engineers available to provide oversea service at your factory
Installing, testing and training service
Lifelong technical support
1 year warranty
Q5: How to contact you
Email:sales@ztechmc.com
machines have been sold out all over the world, and have ship out more than 50 machines to USA
Q2：How do you guarantee machine quality
Quality is our first priority, all our workers are well trained and many of them are have more than 10years experience
in the bubble film facotry,and we strictly follow the production procedures, all machine will be having a throughout
test, then can ship out to the customer
Q3：Why choose your company as supplier
Ztech have more than 10years experiences in making high standard and high quality bubble wrap film machines
Sronger structure and high speed machine max speed 40merter per mintues and special machine max. speed
50meter per mintues, more output
Machines have been sold out all over the world, and have ship out more than 50 machines to US
·Many our customer bought our first machine, then second on,then third one.... we grew up with each other and
that's the best partnership
Q4: How about installation, training and after service
Rich experienced engineers available to provide oversea service at your factory
Installing, testing and training service
Lifelong technical support
1 year warranty
Q5: How to contact you
Email:sales@ztechmc.com
