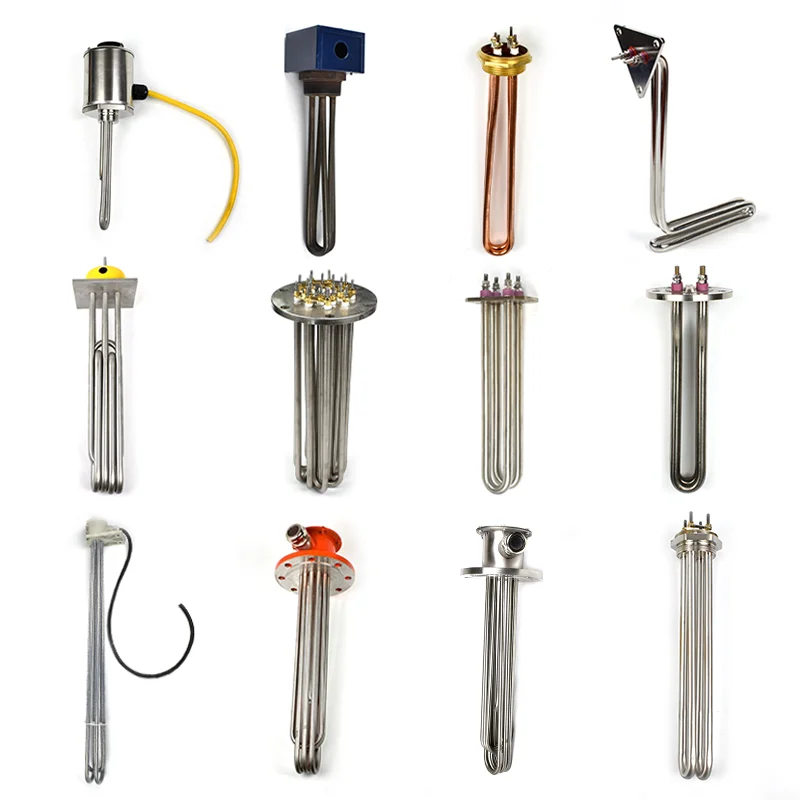

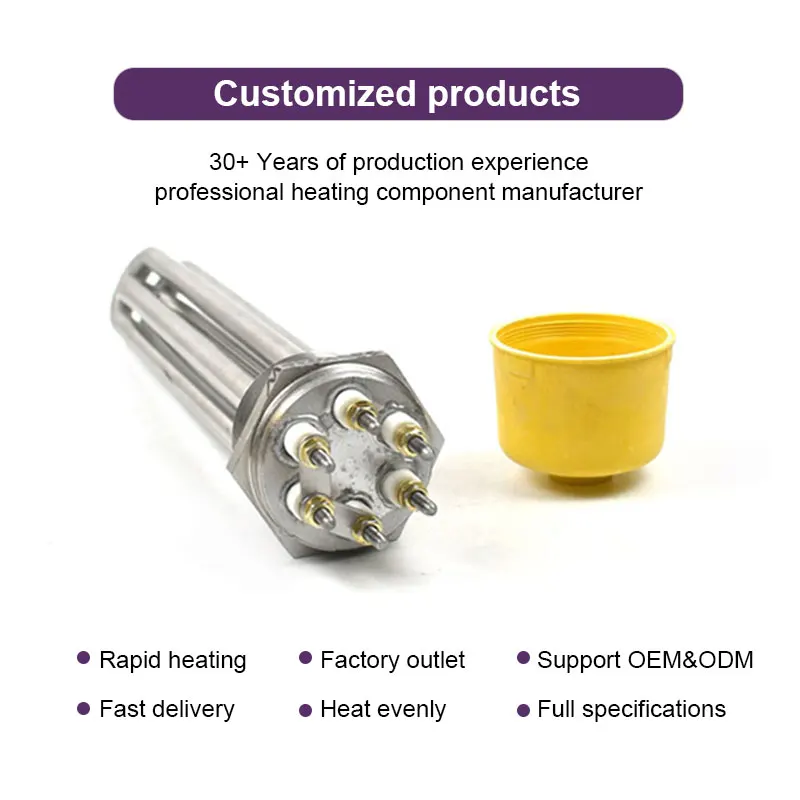

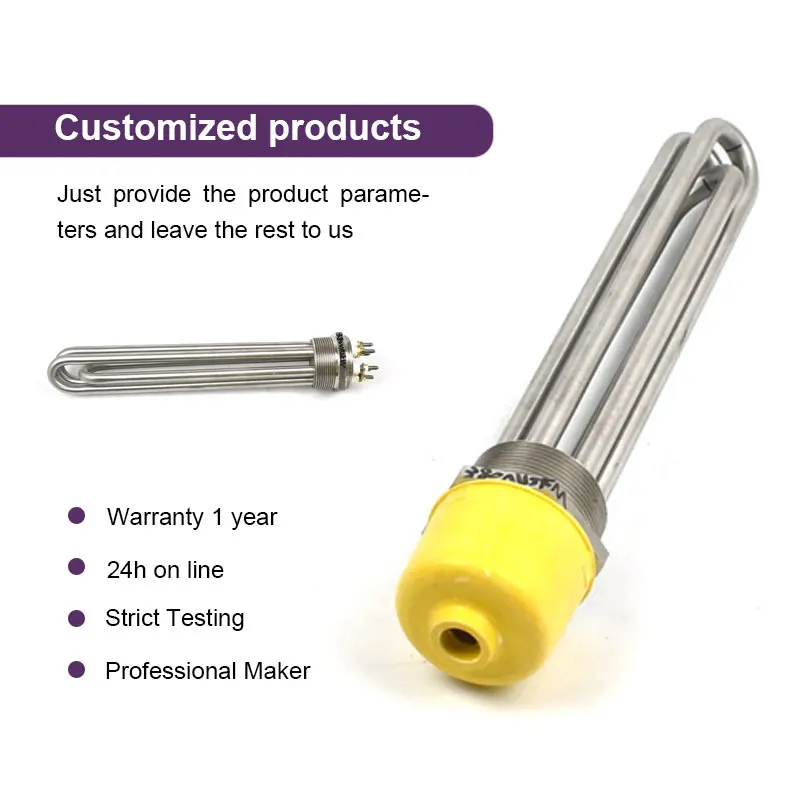

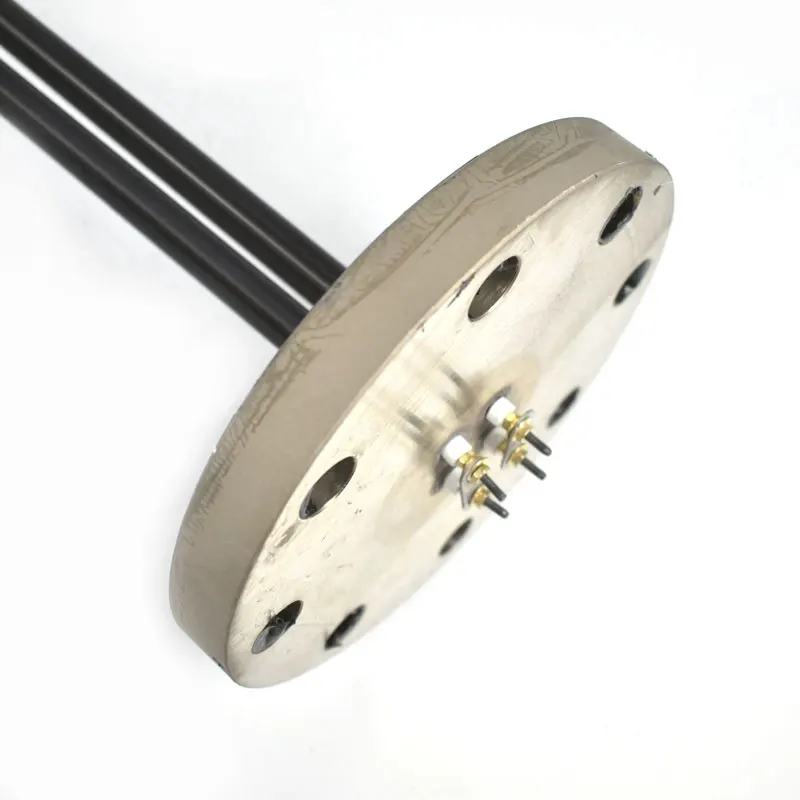

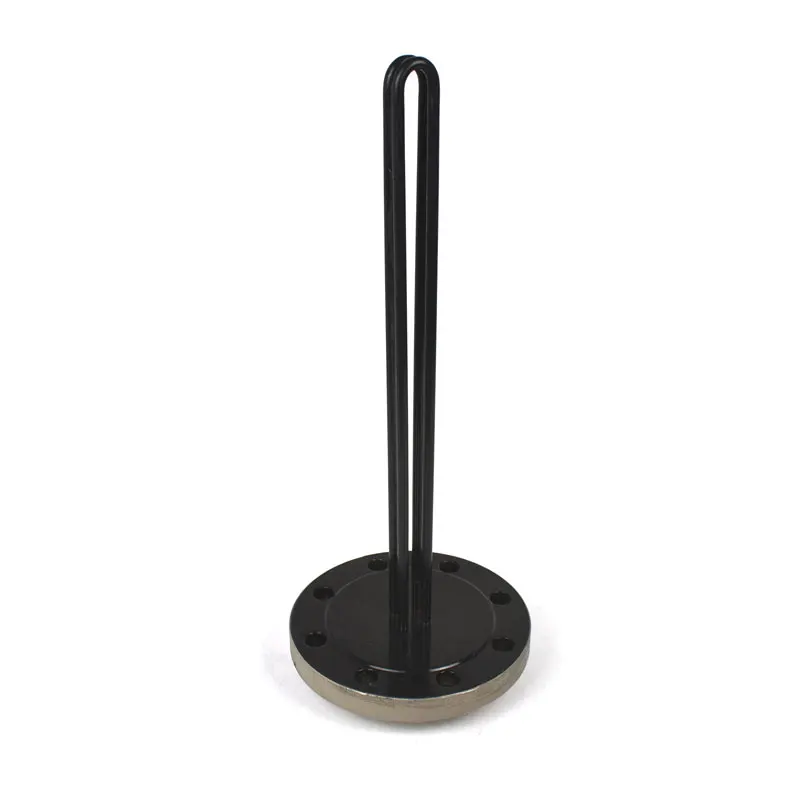

BRIGHT PTFE Coating Immersion Rod Water Heater 3KW 7000W 230V 2000W 2U Flange Heating Tube with Thermostat
- Category: >>>
- Supplier: Jiangsu Bright Electric Heating Technology Co. Ltd.
Share on (1600933937175):
Product Overview
Description
Product Paramenters
Product Name | Flange Immersion Heater | |
Wattage Tolerance | +5%, -10% | |
Resistance tolerance | +10%, -5% | |
Insulation resistance (cold) | ≥ 500 MΩ | |
Maximum leakage current (cold) | ≤ 0.5 mA | |
Tube diameter | Φ6.6mm-Φ20mm | |
Insulation Material | High-purity Mgo | |
Reisistance wire element | Ni-Cr or FeCr | |
Lead Connection Option | Crimped or Swaged leads | |
Voltage and power | customized | |
Warranty | one year | |
Material | SUS304 SUS321 SUS316 and other customization | |
Thread Size | 1",1.25",1.5",2",2.5" and other customization | |
Tube Length | ≥200mm | |
Power | ≥12V | |
Wattage | 1-12w/cm2 | |
Shape | customized according to drawing | |
Lead and type of connection leads | 10" Fiberglass Standard(Wire options,silicone high temperature frberglass) | |
Flange size | Thread flanges （NPT /BSP:1.5"/2"/2.5"/1.25" ）Round Flange: DN25/DN50/DN100 Othe shape ara customized | |
Including flange immersion heater,explosion-proof flange heater, anti-corrosion flange heater, etc | ||
Why Choose Us
Our Advantage
☆Factory direct sales, specifications and sizes can be customized according to drawings.
☆Products use high-quality raw materials to ensure product quality.
☆Product factory professional inspection.
☆Support professional after-sales service to solve customers' worries.
☆Products use high-quality raw materials to ensure product quality.
☆Product factory professional inspection.
☆Support professional after-sales service to solve customers' worries.
Products Description
About this item
☆Stainless steel surface has electropolish.
☆UL and cUL listed to the safety standards.
☆3U type Ultra Low Watt Density design, longer lifespan.
☆Supplied with silicon sealing washer which is flexible and waterproof.
☆The flange has a middle screw for grounding to ensure safe operation.
☆Dry burning is strictly forbidden, heater tube should be immersed into water all the time when application.

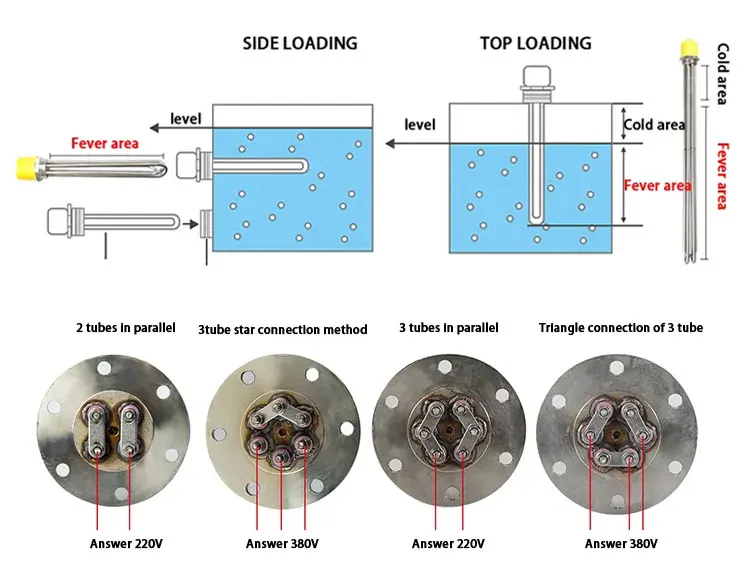

Installation
Side mounting: install the side opening at a certain distance from the water tank to the bottom.
Top mounting: opening at the bottom or top of the water tank for installation, or hanging at the top.
The star connection method: refers to connecting the three-phase ends of the motor winding together, and the three-phase head end is the power end; the triangle connection method refers to connecting the three-phase winding head end and tail end with each other, and the three ends are the power end.
Triangle connection method: it is helpful to improve the power of the motor. The disadvantage is that the starting current is large and the voltage (380V) of the winding is large. Increased insulation class.
Star connection: it is helpful to reduce the withstand voltage of winding (220V) and the insulation level. Reduced starting current. The disadvantage is the reduction of motor power.
Therefore, most of the small power motors below 4kw adopt star connection method, and those larger than 4kw adopt triangle connection method.
The star connection method: refers to connecting the three-phase ends of the motor winding together, and the three-phase head end is the power end; the triangle connection method refers to connecting the three-phase winding head end and tail end with each other, and the three ends are the power end.
Triangle connection method: it is helpful to improve the power of the motor. The disadvantage is that the starting current is large and the voltage (380V) of the winding is large. Increased insulation class.
Star connection: it is helpful to reduce the withstand voltage of winding (220V) and the insulation level. Reduced starting current. The disadvantage is the reduction of motor power.
Therefore, most of the small power motors below 4kw adopt star connection method, and those larger than 4kw adopt triangle connection method.
Application

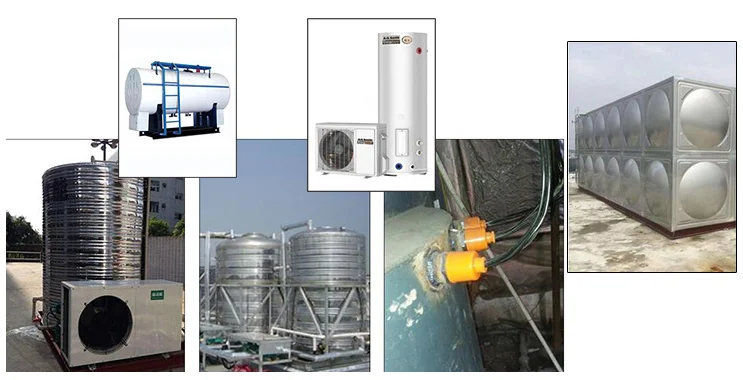

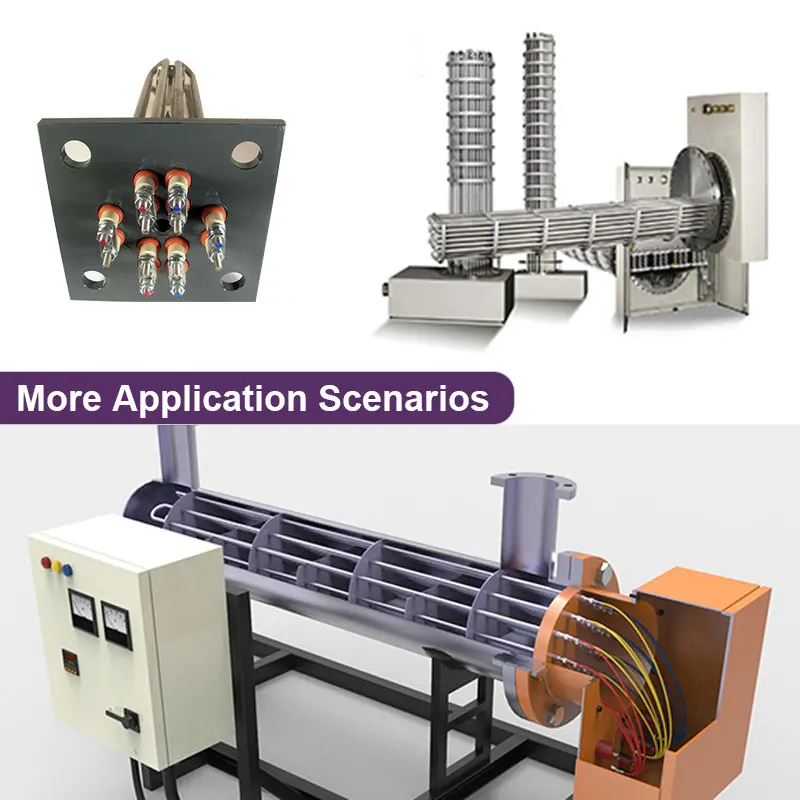

Professional selection,stable performance and more accurate,suitable for chemical industry aquaculture,food, packing and other industried with temperature control equipment.
Packaging and Delivery
Packaging
Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
About Bright
Company Profile
Jiangsu Bright Electric Heating Technology Co., Ltd.was founded in 1985, Which is a research, design,
manufacture,installation and consulting services for the integration of the industrial manufacturing company.we have 28,000 ㎡ non-dust work shop,35 years manufacture and export experience.Near Shanghai port. Main products are environmentally friendly air duct heater,pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices.
manufacture,installation and consulting services for the integration of the industrial manufacturing company.we have 28,000 ㎡ non-dust work shop,35 years manufacture and export experience.Near Shanghai port. Main products are environmentally friendly air duct heater,pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices.

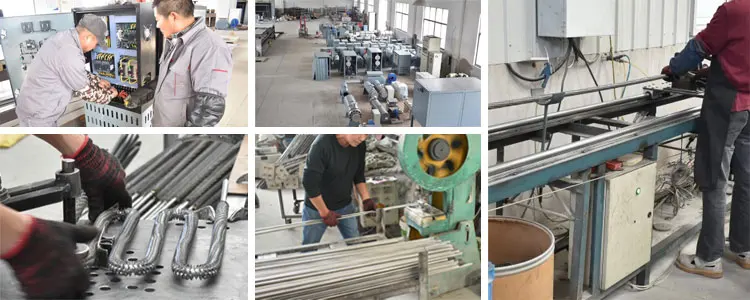

Our Factory
Our factory has a scale of 5000-10000 square meters, with a professional design and production team, complete production lines,and rigorous product factory inspection to ensure the output of high-quality products.
