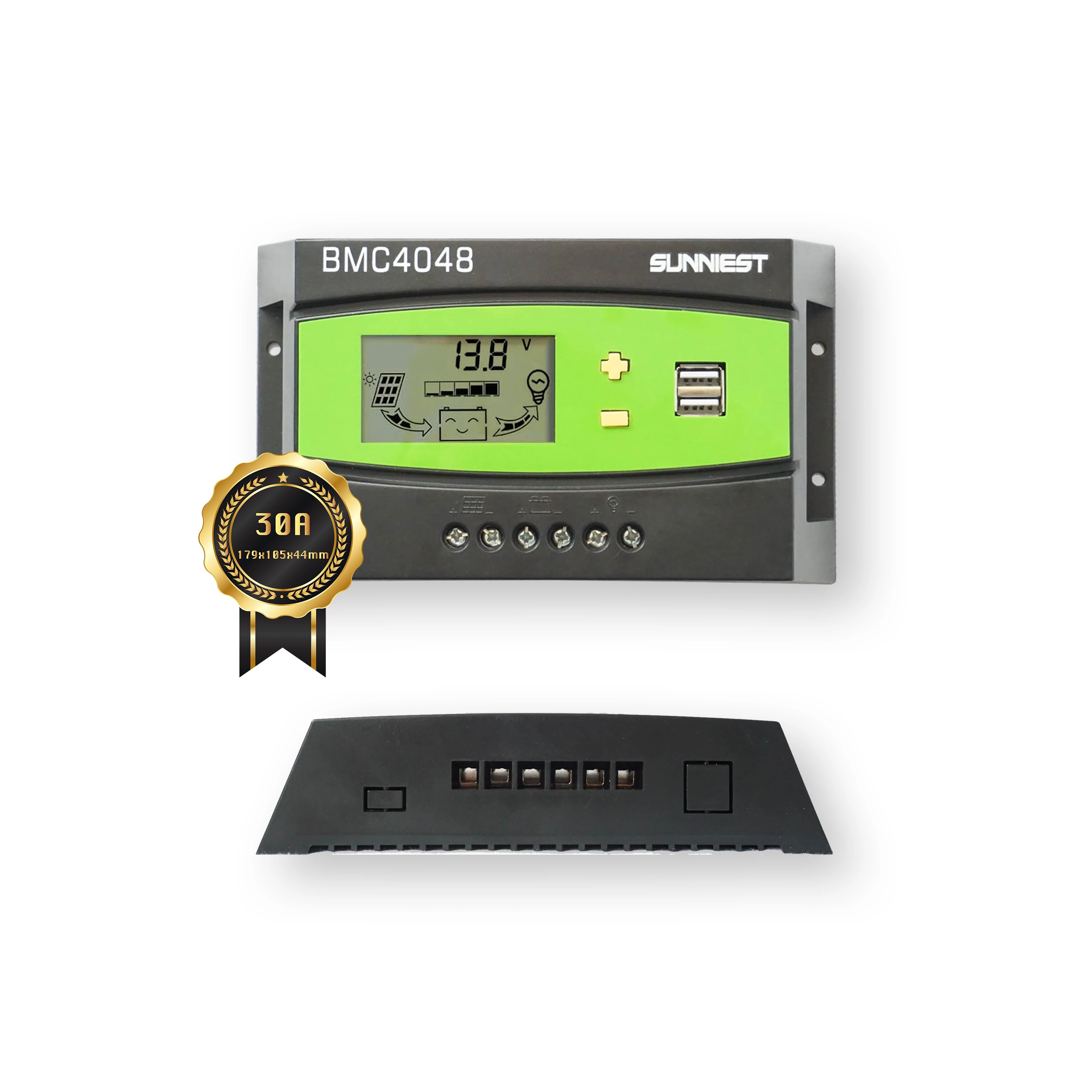

Smart 30A 40A Solar Controller PMW 12V 24V 48volt 5V Output PV Battery Regulator Solar Charger Controller for CCTV Systems
- Category: >>>
- Supplier: Sunniest Solar Nantong Ltd.Sunniest Ltd.
Share on (1600933974199):
Product Overview
Description
Detail Images

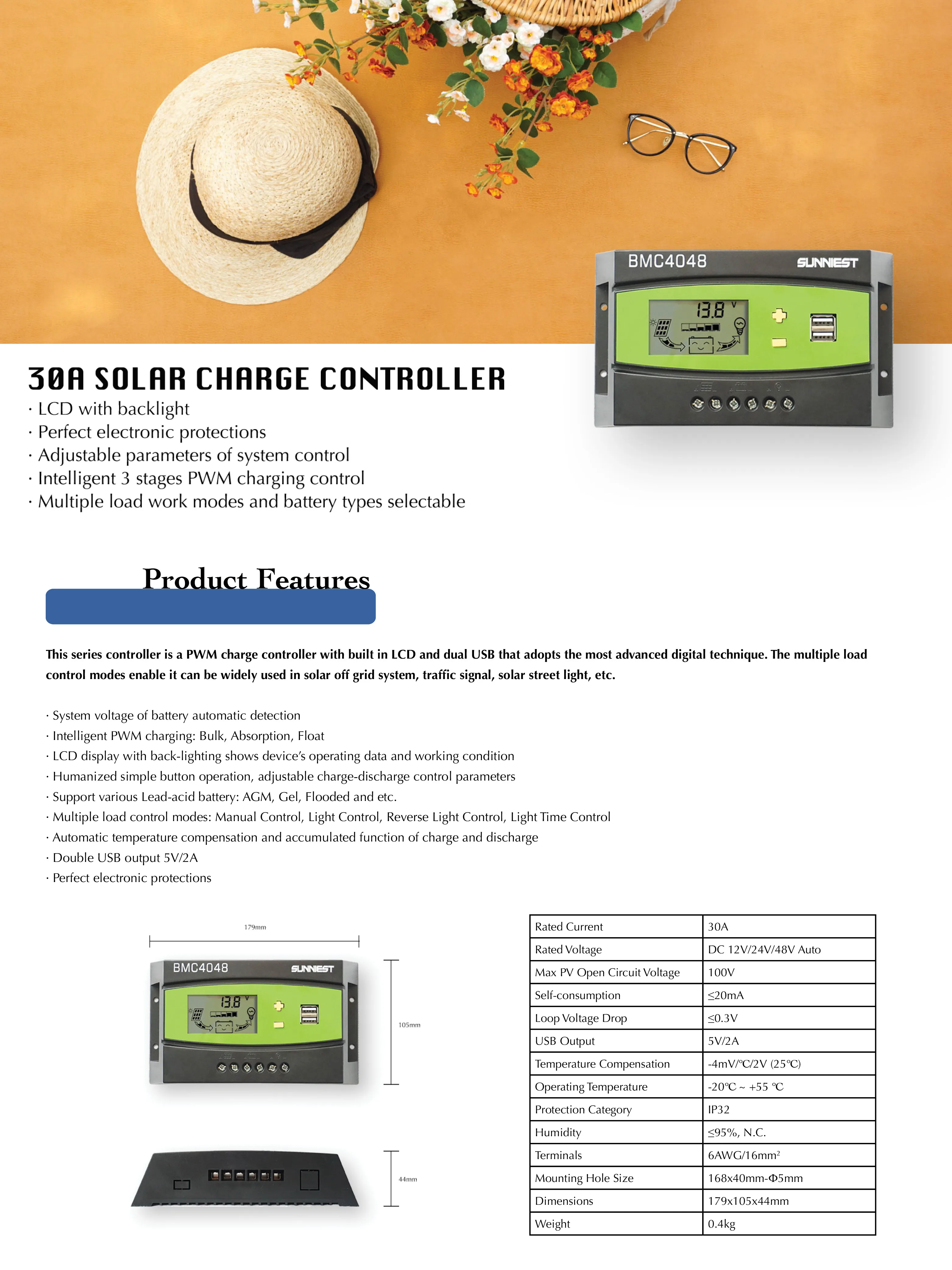

Products Description
Product Paramenters
Rated Current | 30A/40A | 30A/40A | 50A/60A | 80A/100A | |||
Rated Voltage | DC 12V/24V/48V Auto | ||||||
Max PV Open Circuit Voltage | 100V | ||||||
Self-Consumption | ≤20mA | ||||||
Loop Voltage Drop | ≤0.3V | ||||||
USB Output | 5V/2A | ||||||
Temperature Compensation | -4mV/℃/2V (25℃) | ||||||
Operating Temperature | -25℃ ~ +55 ℃ | ||||||
Protection Category | IP32 | ||||||
Humidity | ≤95%, N.C. | ||||||
Terminals | 6AWG/16mm2 | 4AWG/25mm2 | |||||
Mounting Hole Size | 168x40mm-Φ5mm | 171x56mm-Φ5mm | 200x64mm-Φ5mm | ||||
Dimension | 179x105x44mm | 184x130x48mm | 218x149x66mm | ||||
Weight | 0.4kg | 0.6kg | 0.9kg | ||||

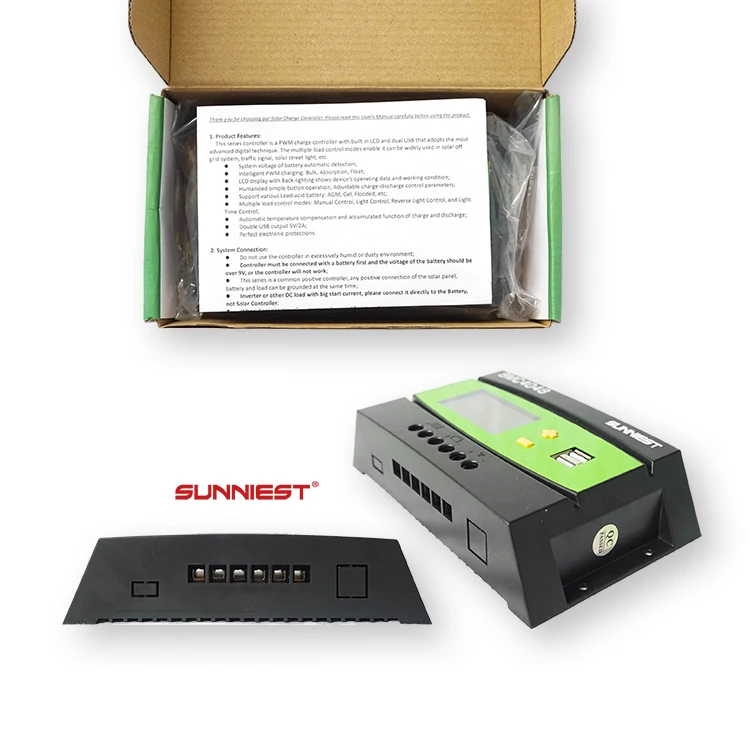

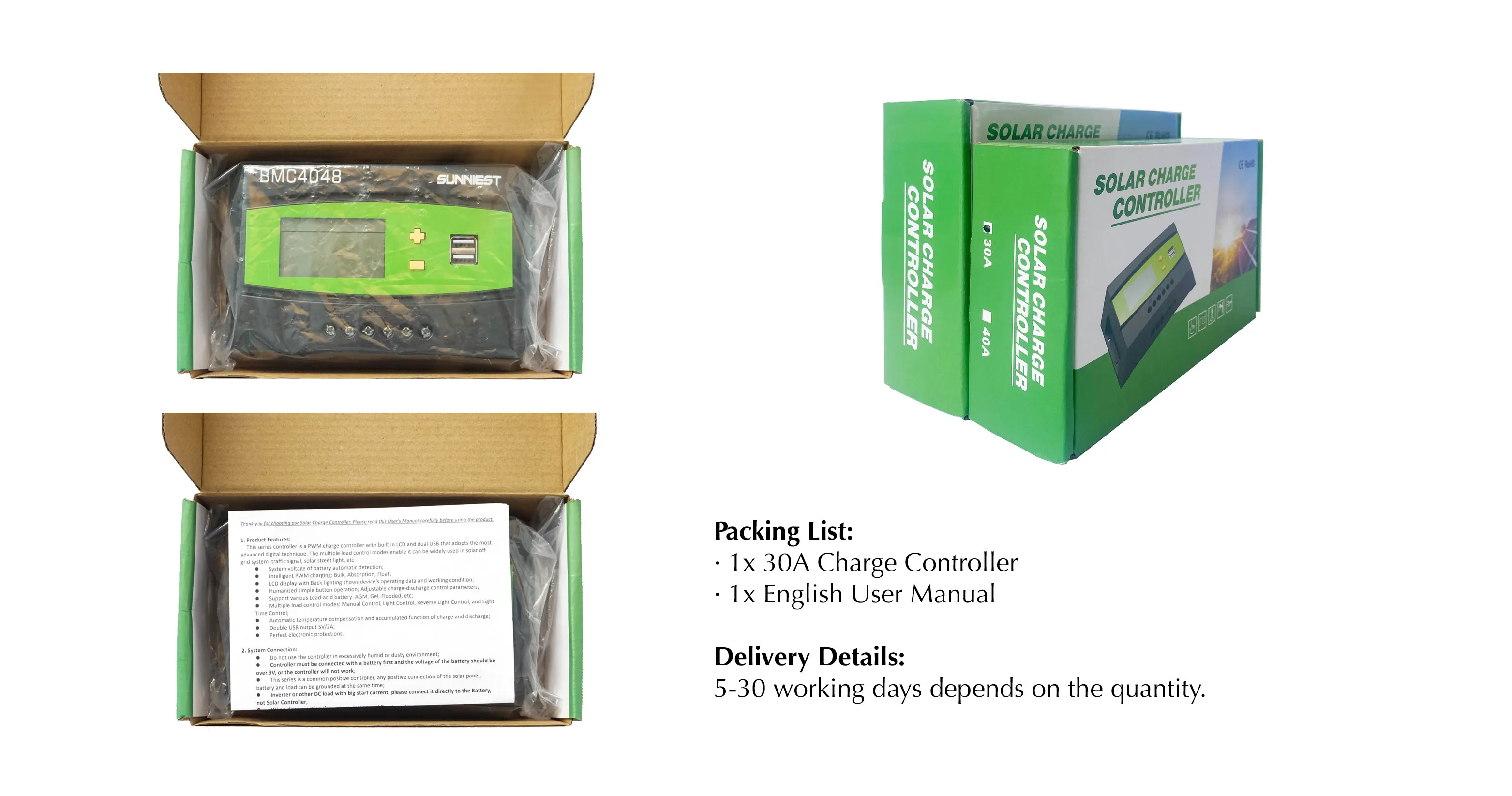

Packing and Shipping
